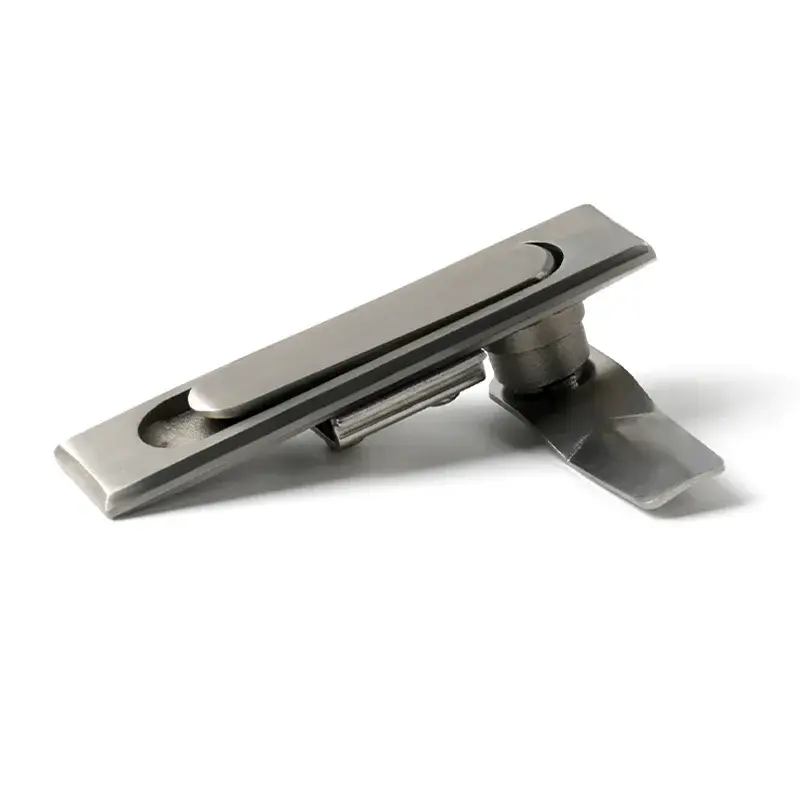

Concealed Distribution Box Cabinet Flat Lock

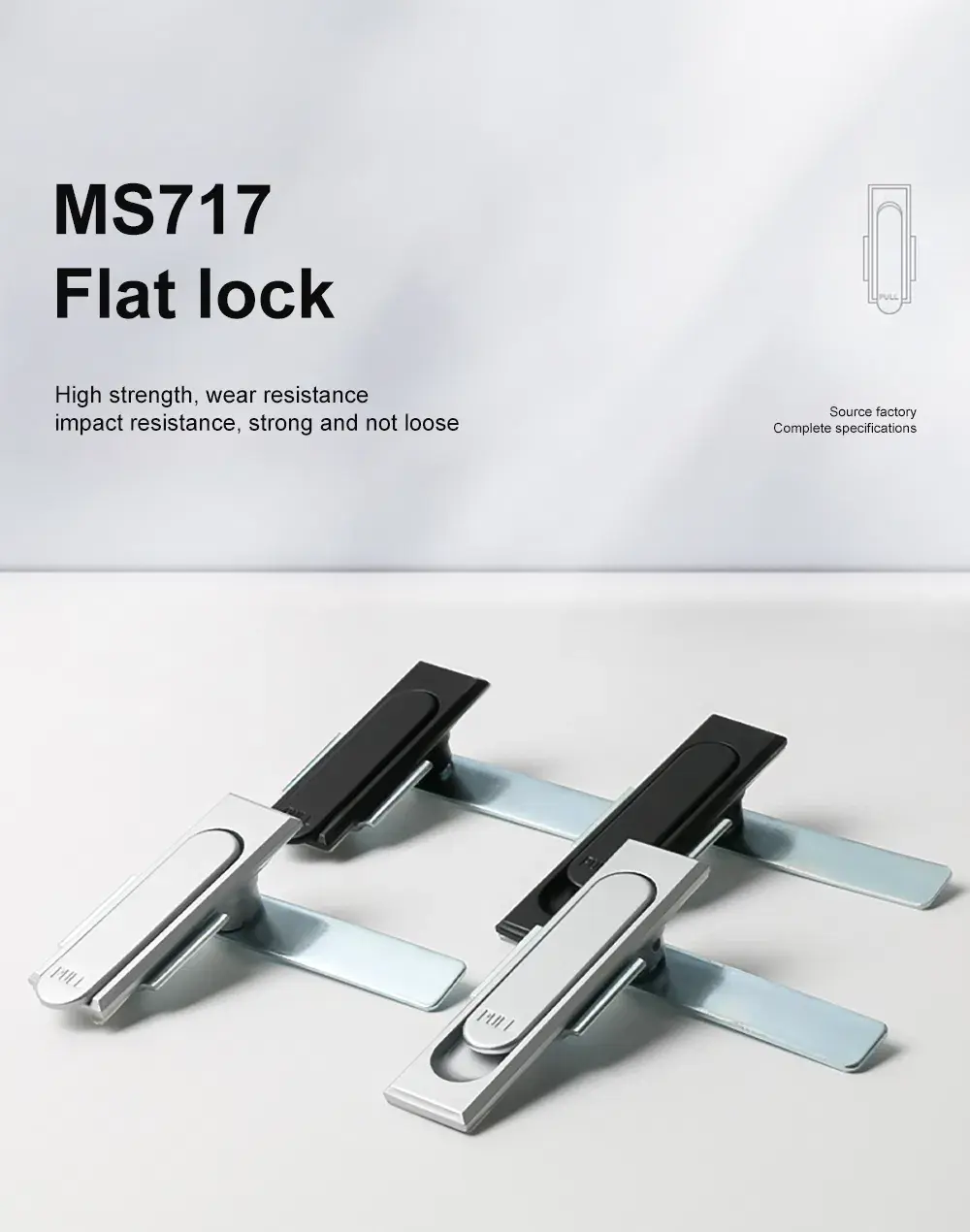

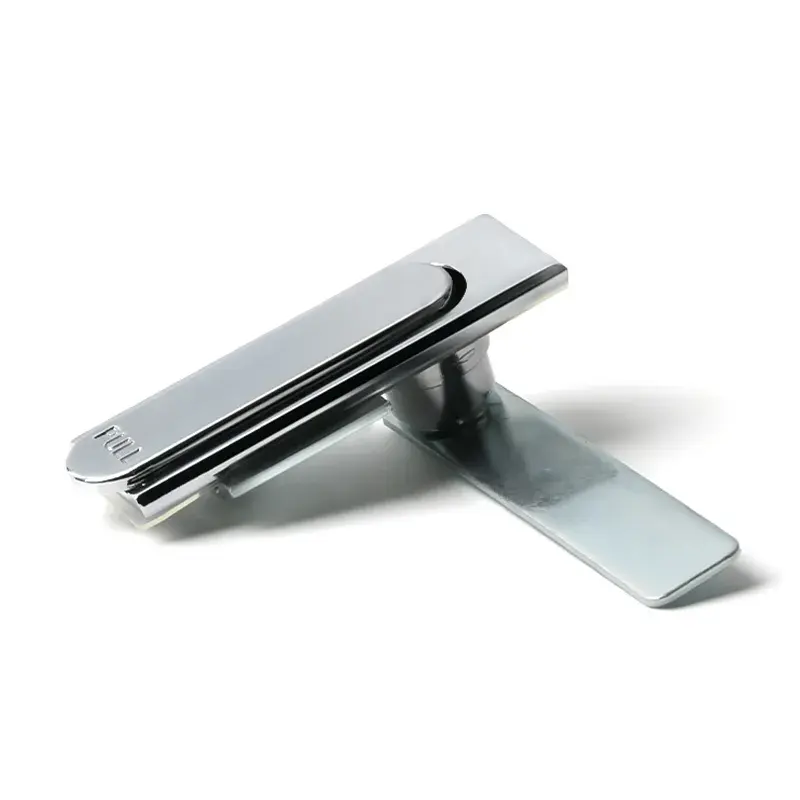

Fashion Concealed Distribution Box Cabinet Flat Lock designs from Yitai Lock enhance the appearance of control cabinets. The MS717 series switch cabinet door lock is a practical lock for distribution boxes and cabinets. It uses a lift-and-rotate-press opening method, which is both convenient and safe.

Material and Color

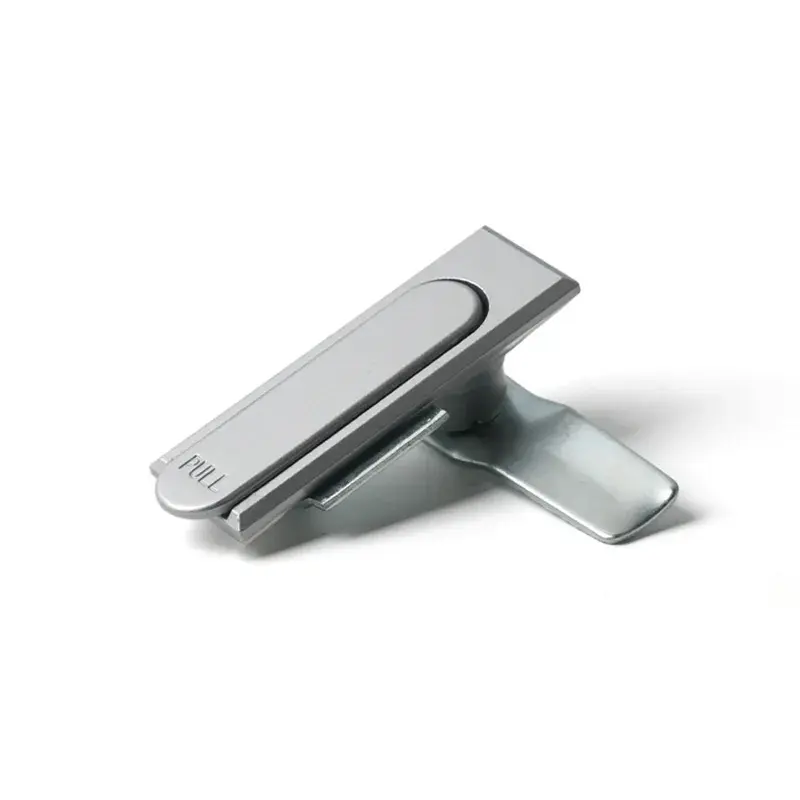

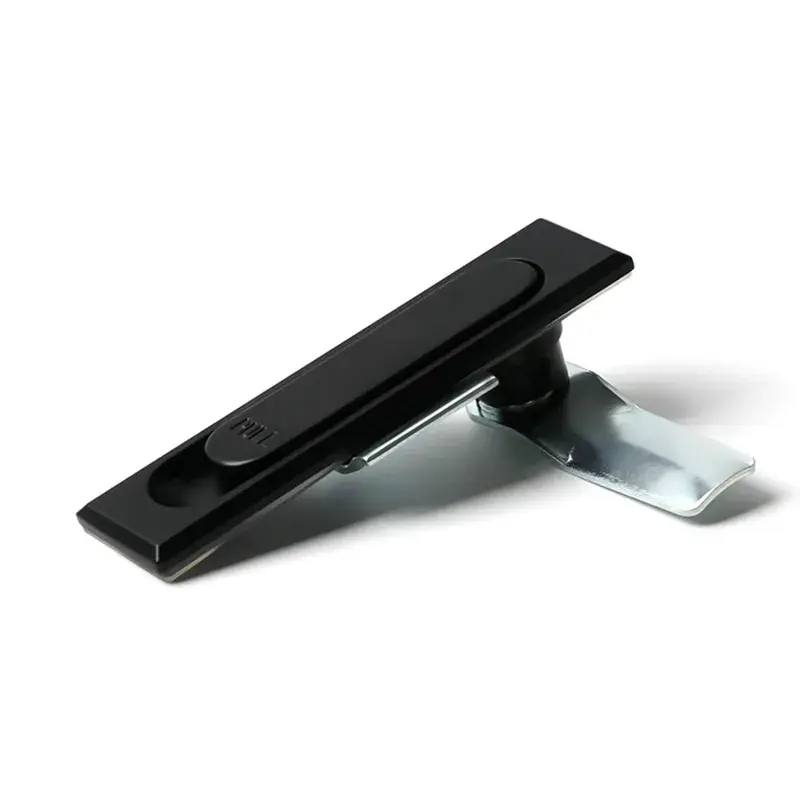

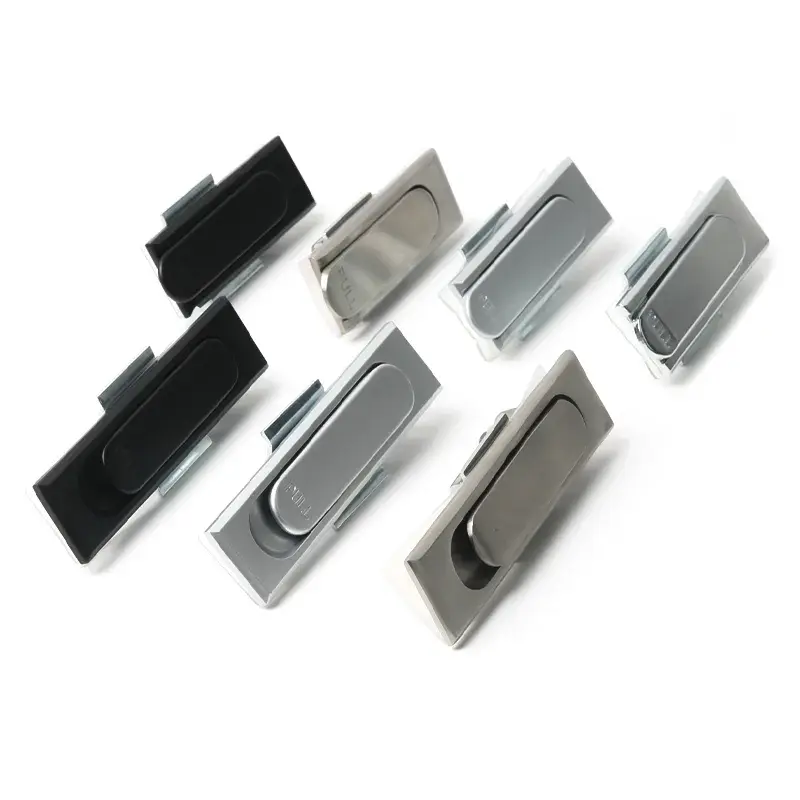

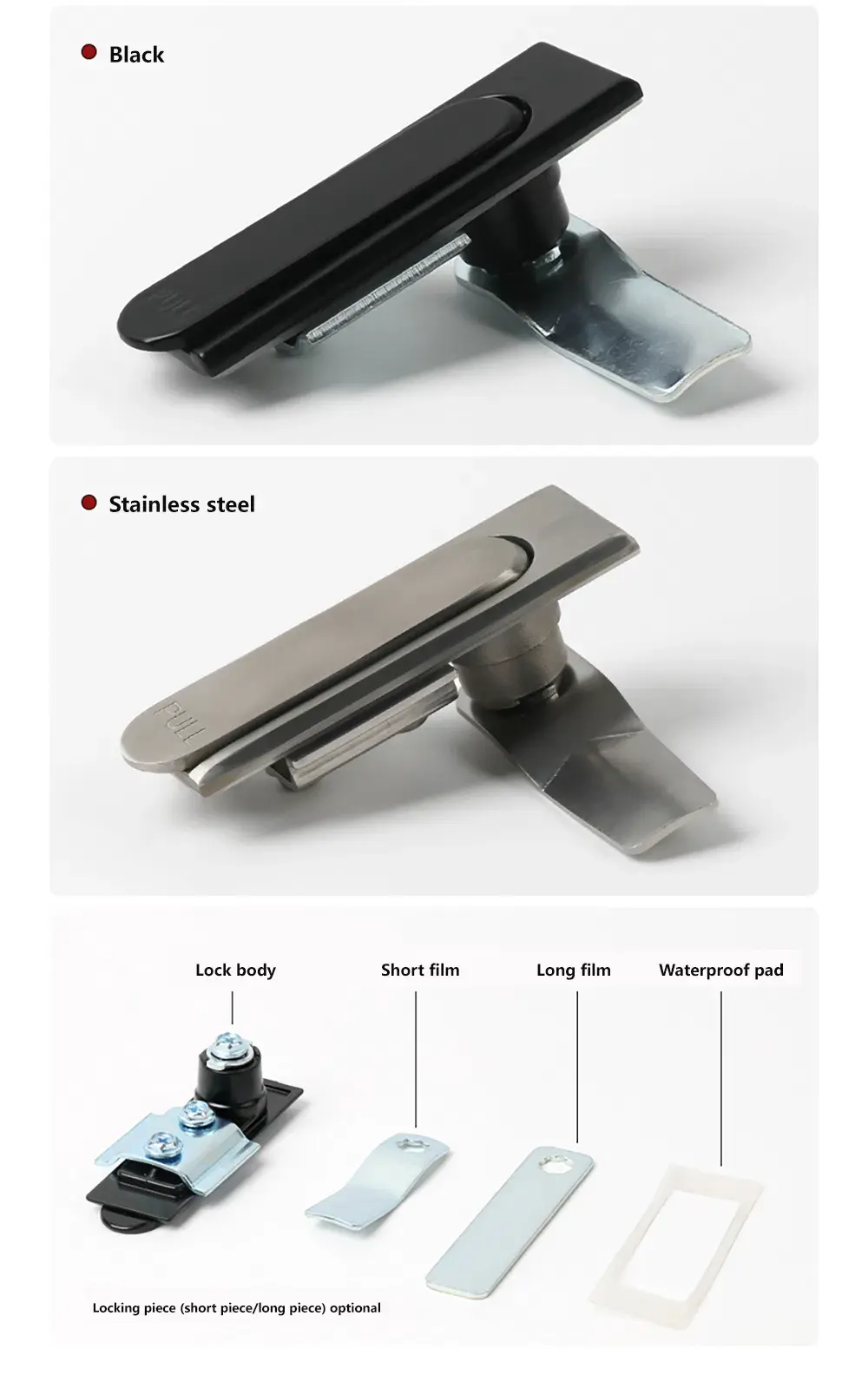

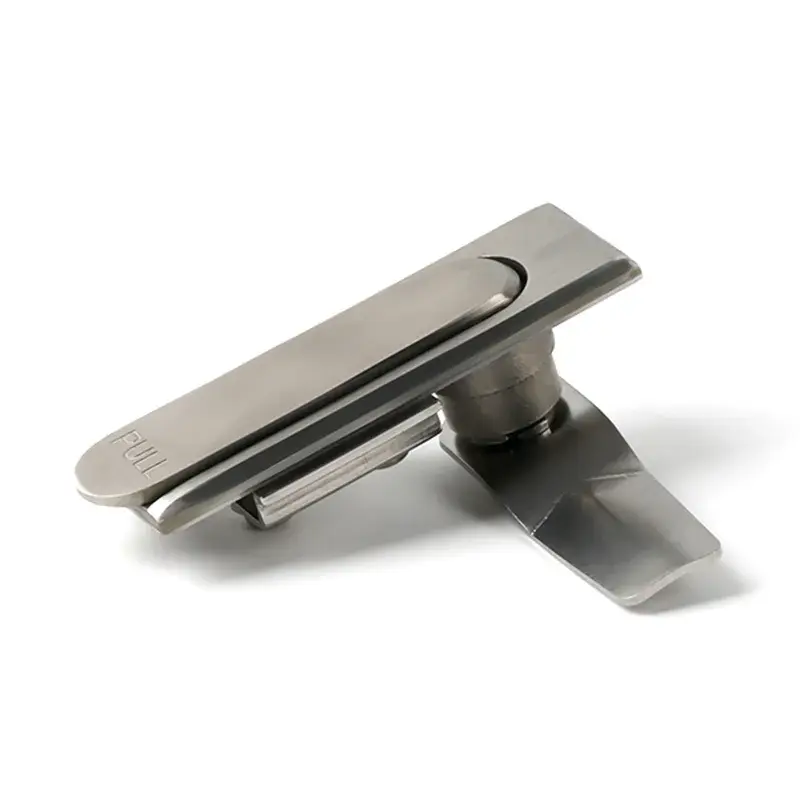

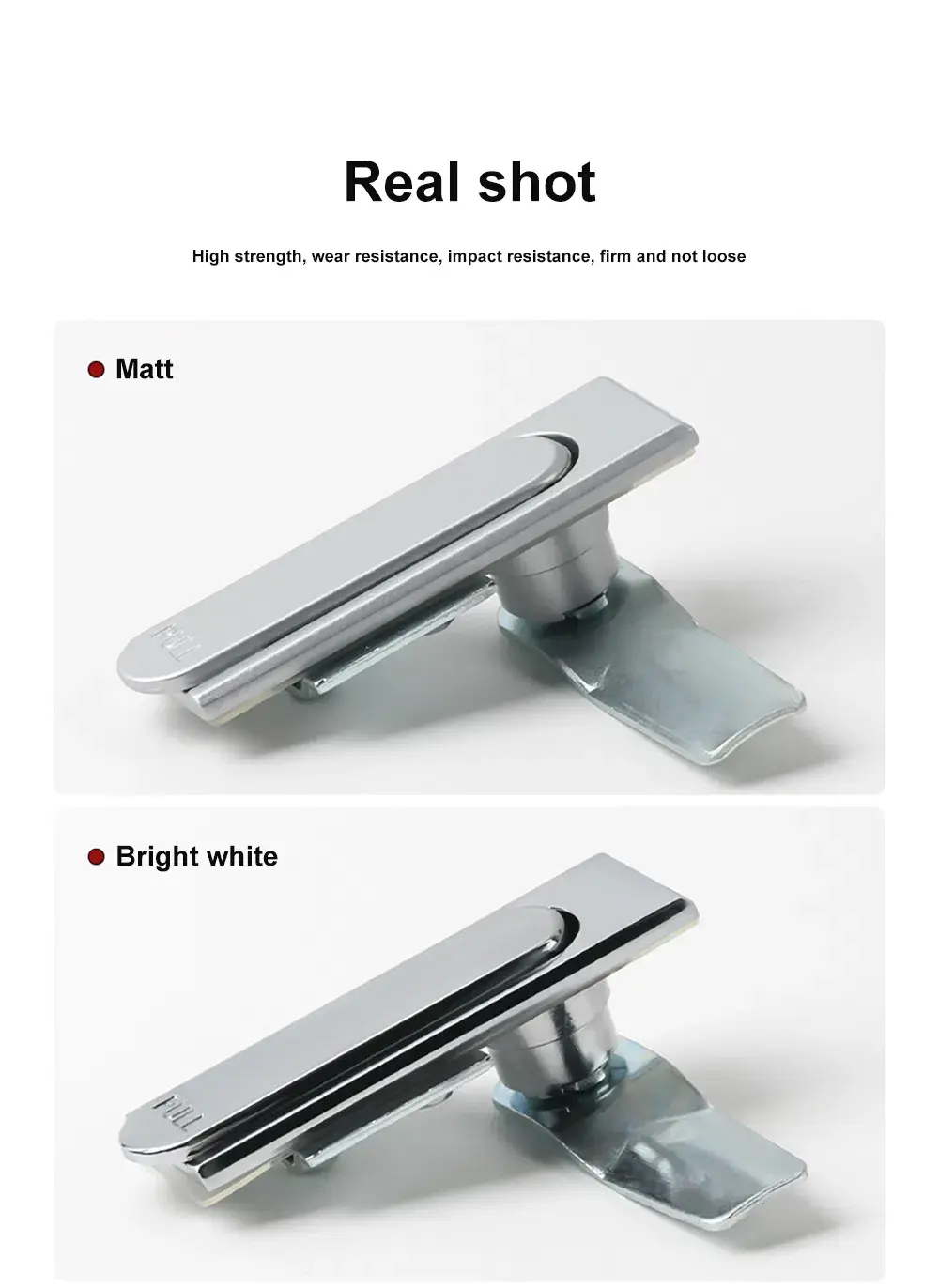

The MS717-1 model is available in aluminum alloy or zinc alloy, with surface finishes in matte, black, or bright white. The color of stainless steel material is stainless steel natural color. The MS717-2 model is available in zinc alloy or stainless steel. The zinc alloy material is available in matte or black colors.

Function

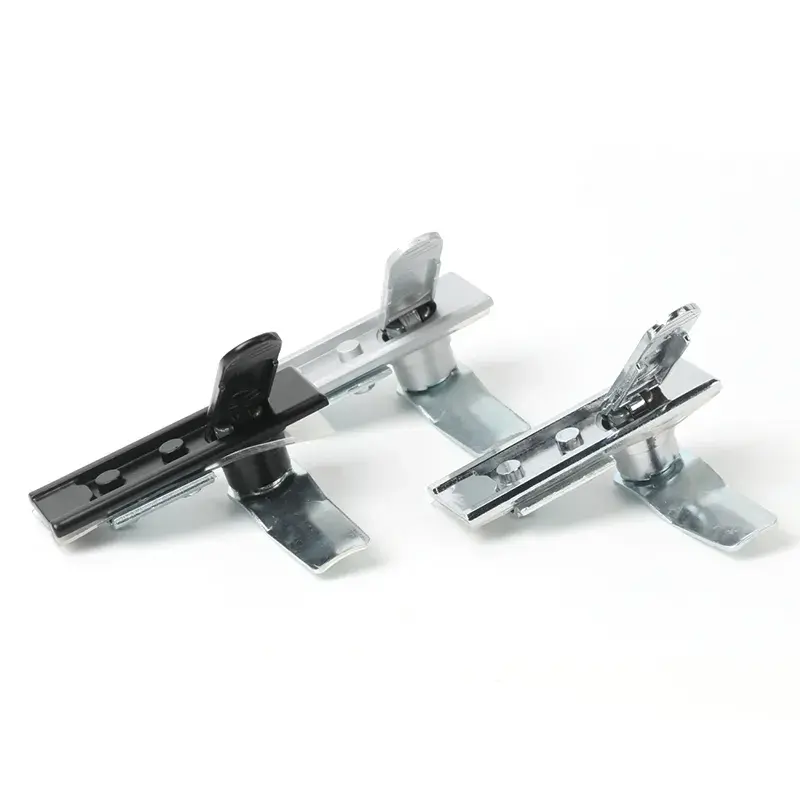

The function of the MS717 lock is to achieve quick unlocking through an upward rotation motion. Press the lock button and rotate the handle to open the lock, making the operation convenient.

Dimensions

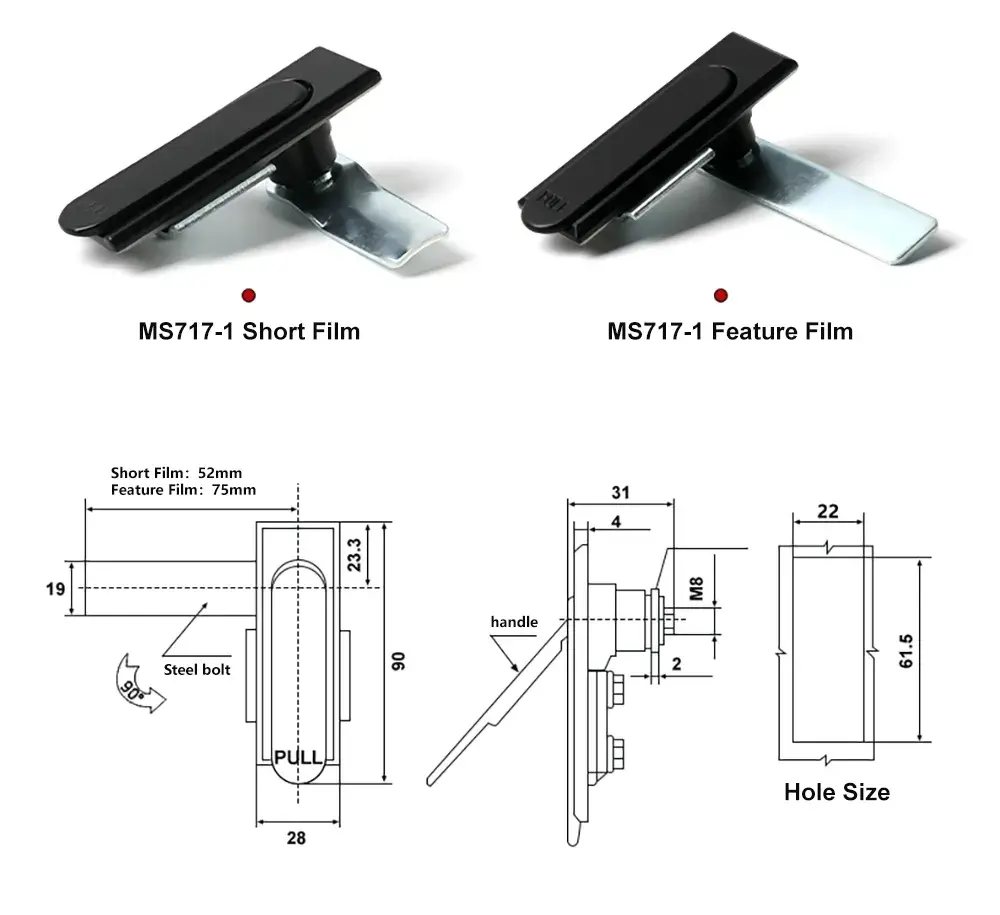

The dimension of MS717-: 90*28mm.

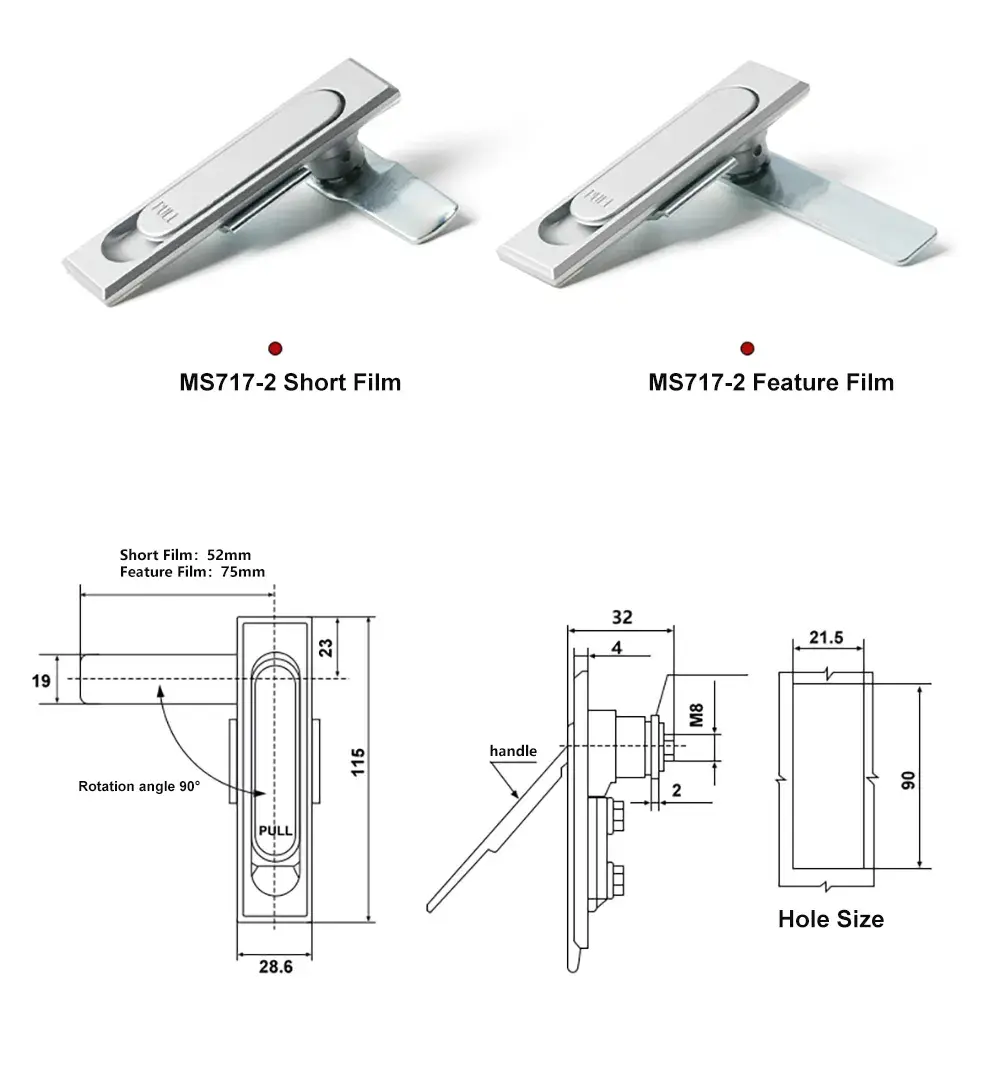

The dimension of MS717-2 zinc alloy: 112*27.5mm, and the dimension of MS717-2 stainless steel is 115*28.6mm.

The length of the short lock plate is 52mm, and the length of the long lock plate is 75mm.

FAQ

1.Q: Can stainless steel models be used in food processing workshops?

A: Stainless steel models in their natural color meet food-grade hygiene standards and are resistant to acid and alkali corrosion, making them an ideal choice for the food industry.

2.Q: How to handle scratches on the matte finish?

A: Minor scratches can be repaired with a touch-up pen of the same color. For deep scratches, it is recommended to replace the lock body cover.

3.Q: What to do if the lock tongue does not retract smoothly?

A: Remove any foreign objects from the lock tongue slot and apply a small amount of silicone-based lubricant to restore elasticity.

4.Q: What is the temperature range for the aluminum alloy model?

A: It can be used normally within the -20°C to 80°C range. Use outside this range may affect mechanical performance.

5.Q: Does low temperature in winter affect usage?

A: In environments below -30°C, it is recommended to choose the stainless steel model, as it has more stable low-temperature performance.
