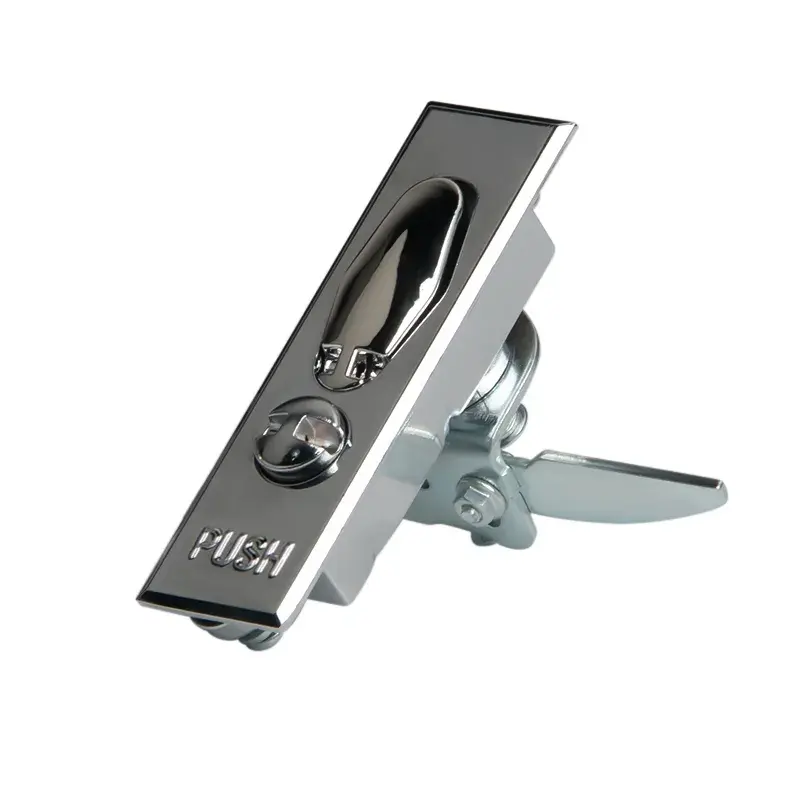

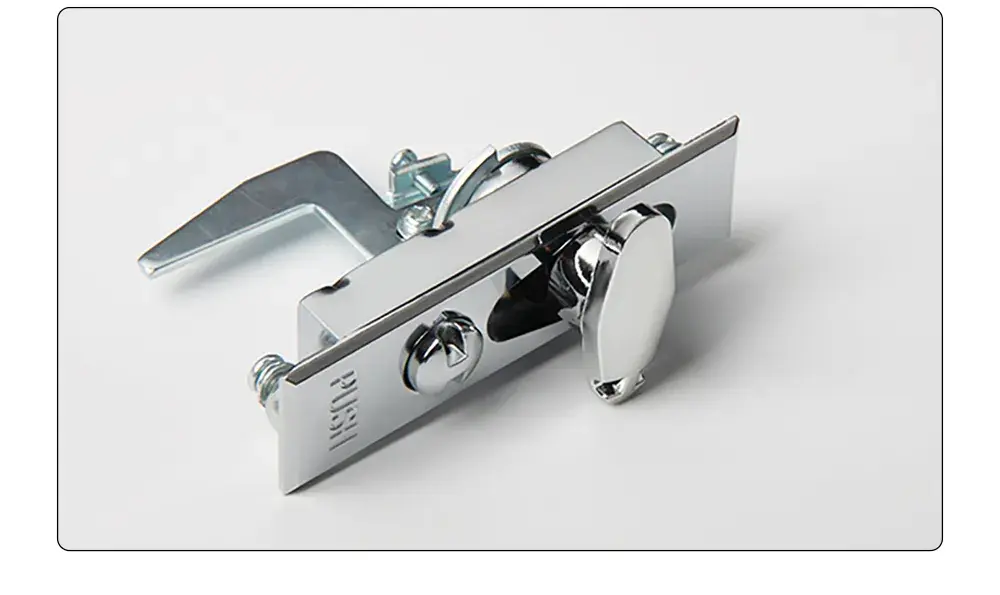

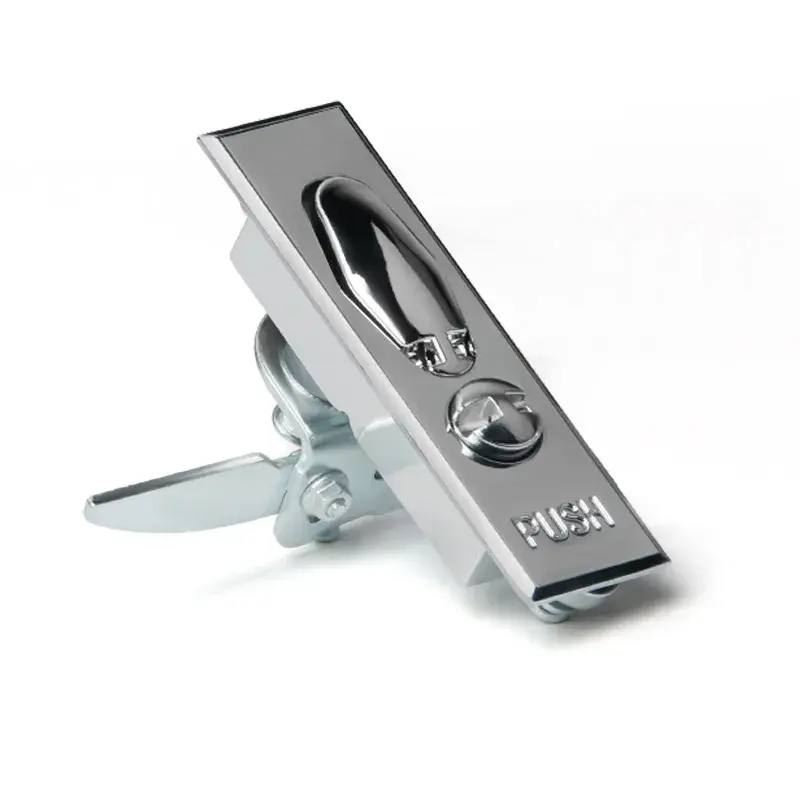

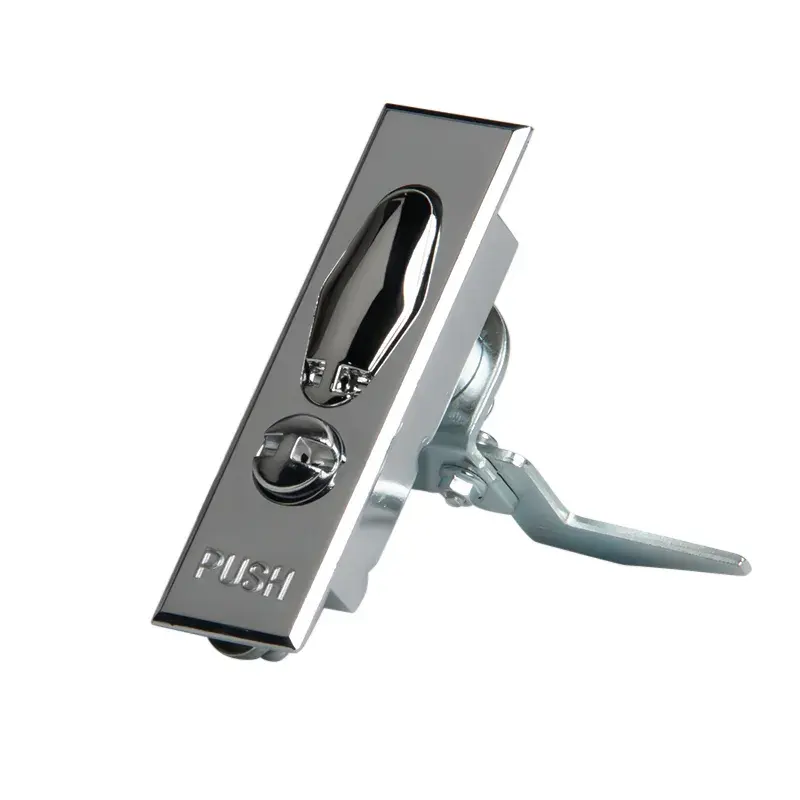

Plane Metering Lock

The flat metering lock manufactured by Yitai Lock provides higher security. It is compatible with most industrial cabinets through standardized mounting holes. It is suitable for equipment in industries such as power and telecommunications.

Material and Color

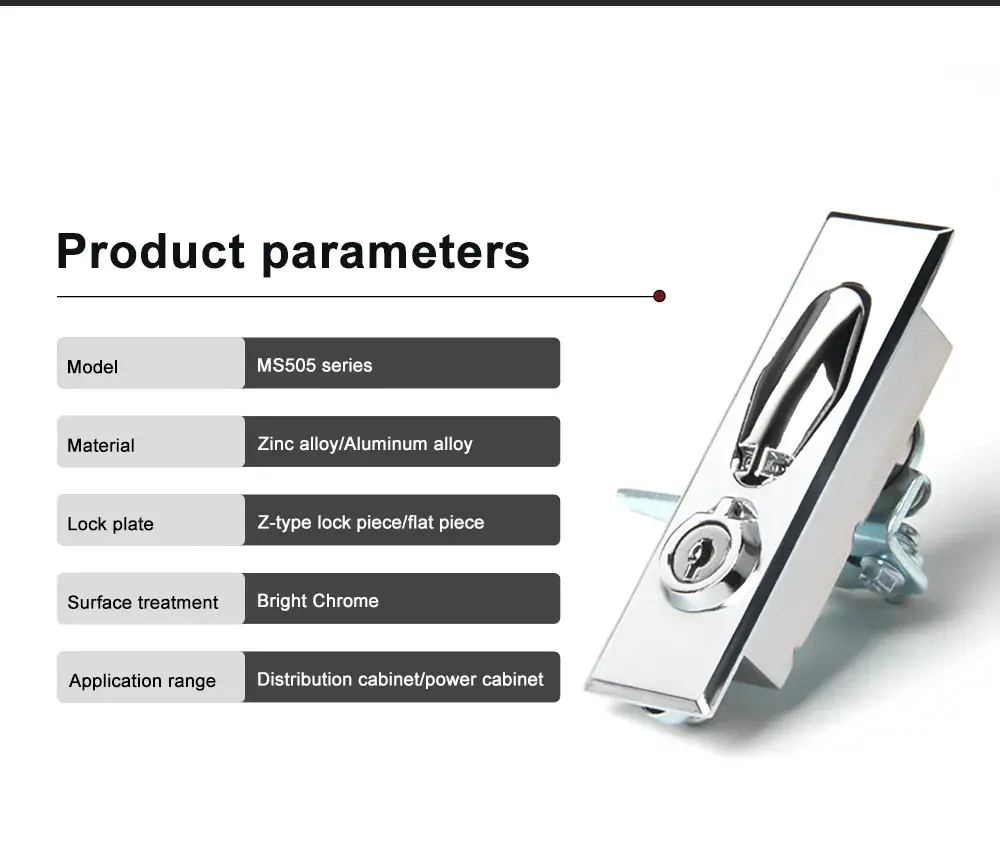

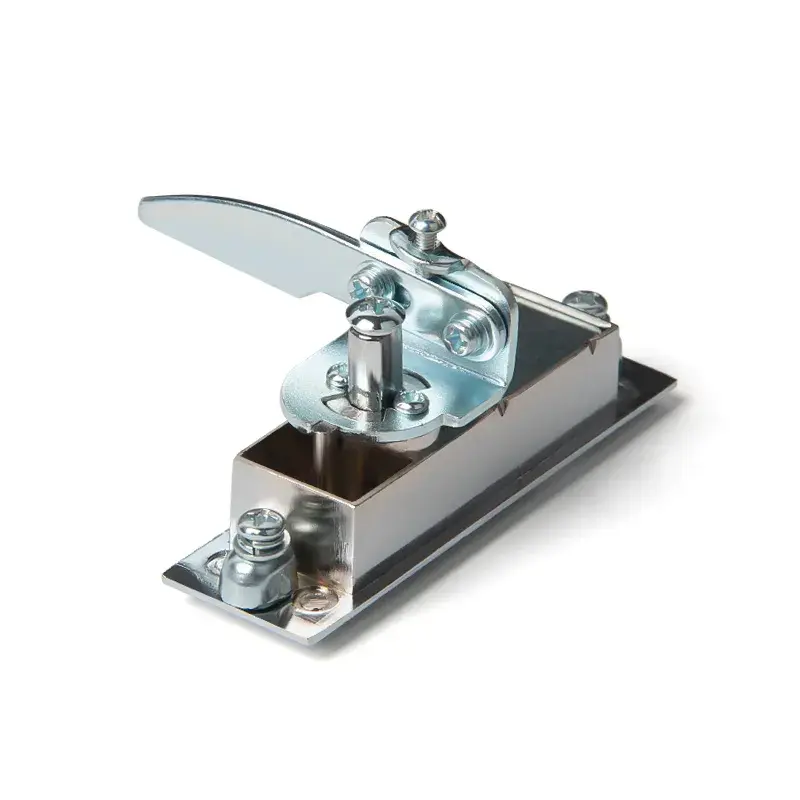

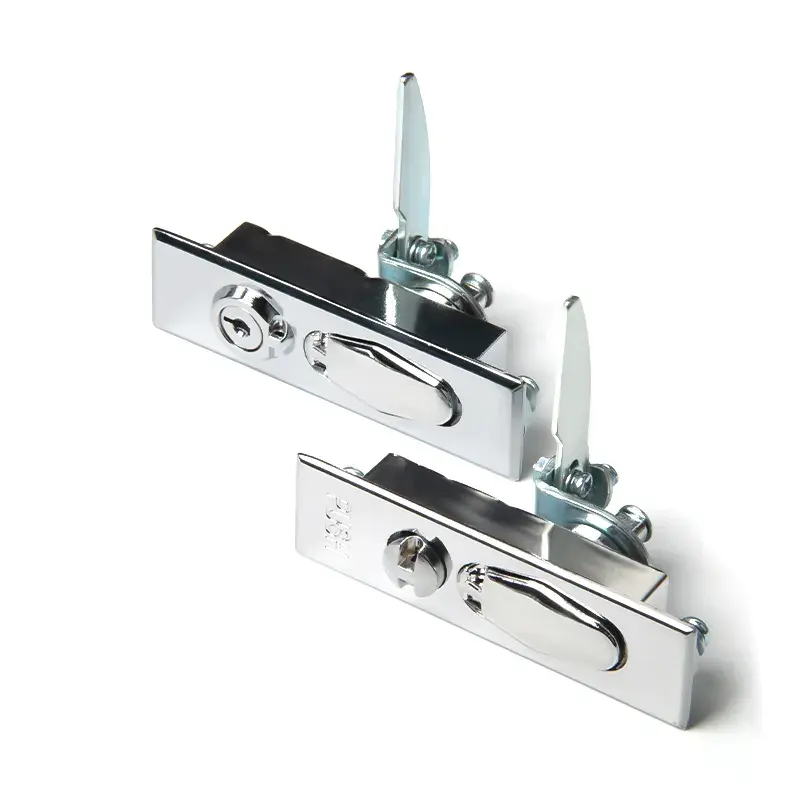

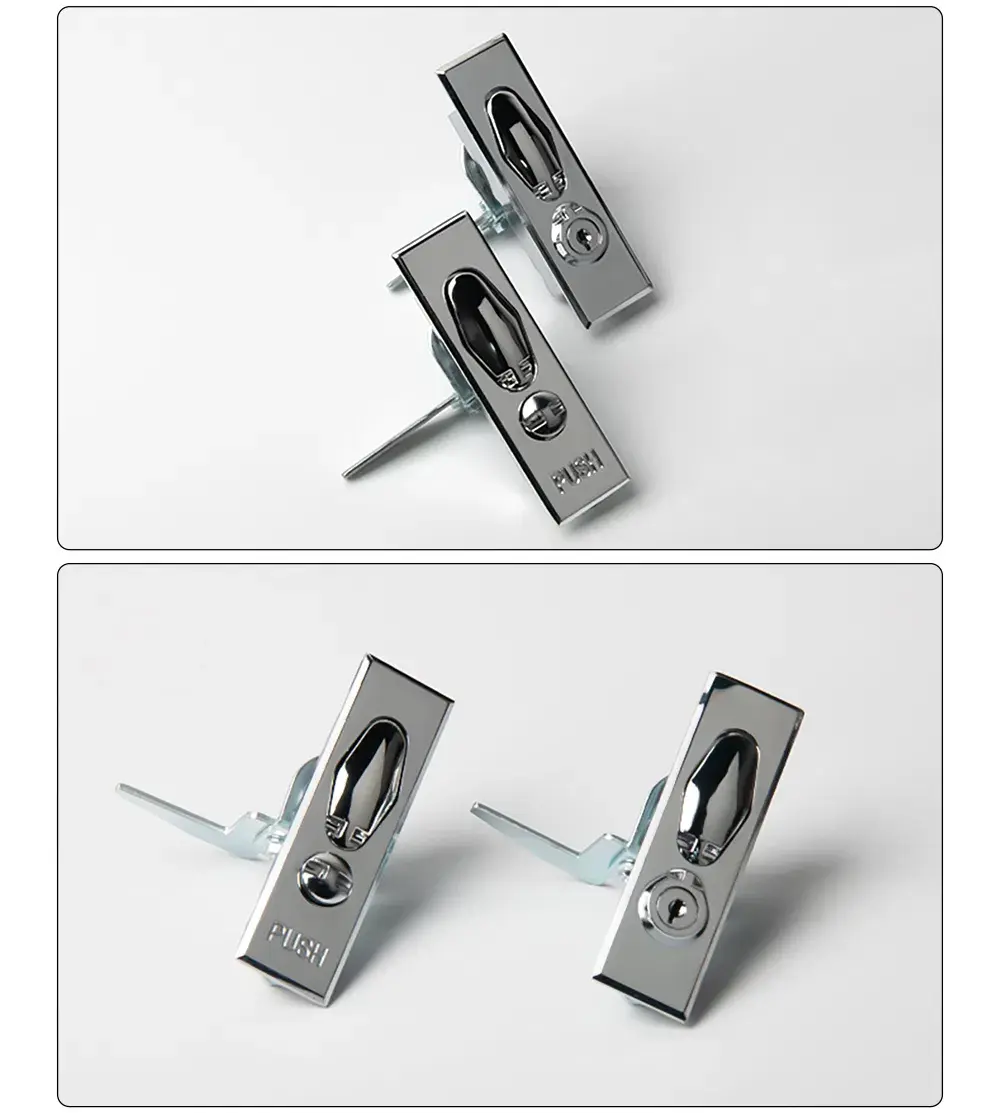

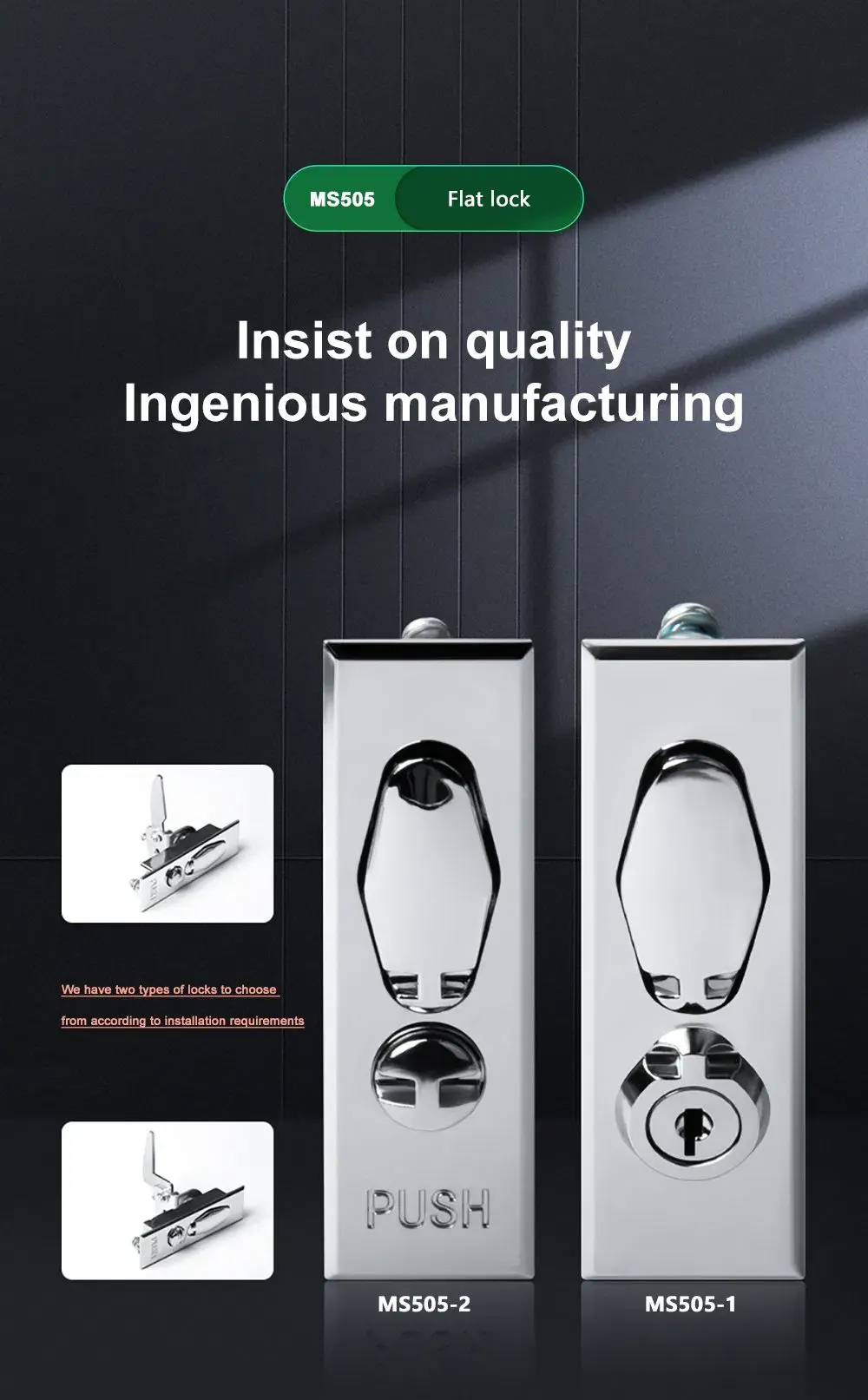

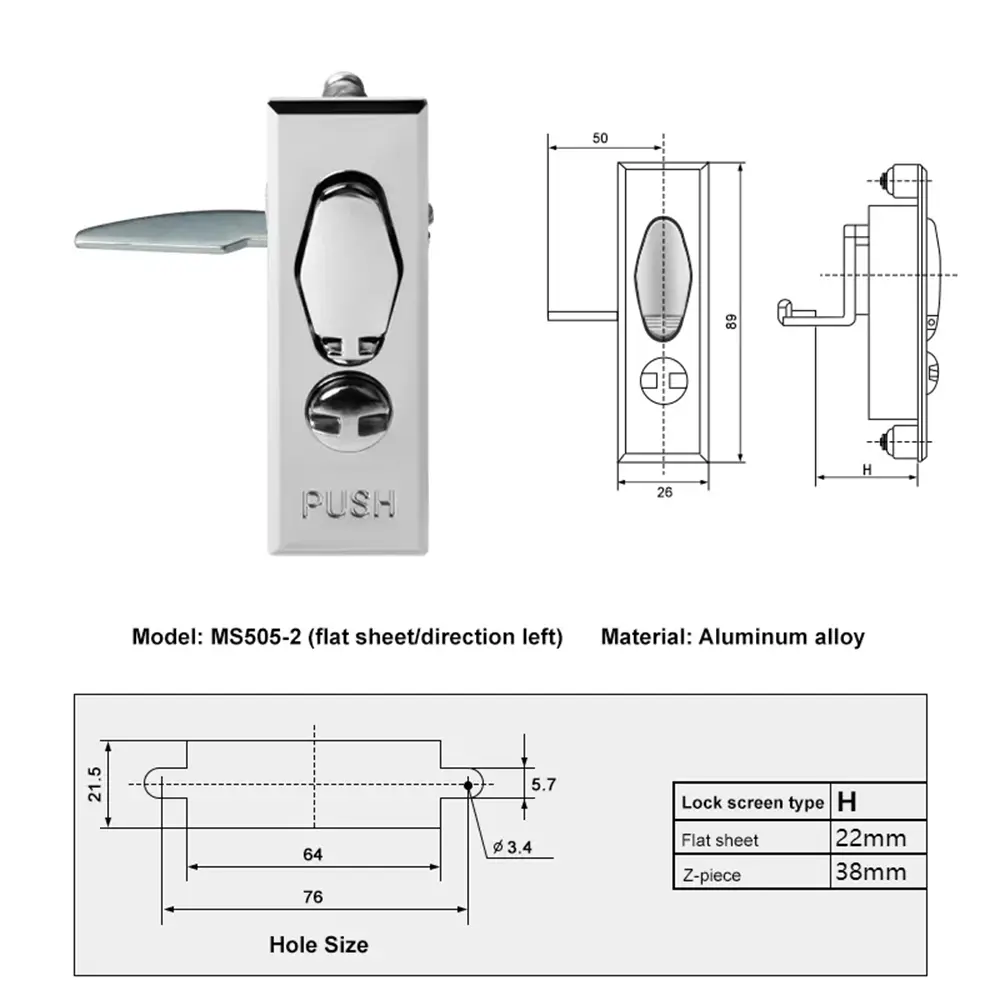

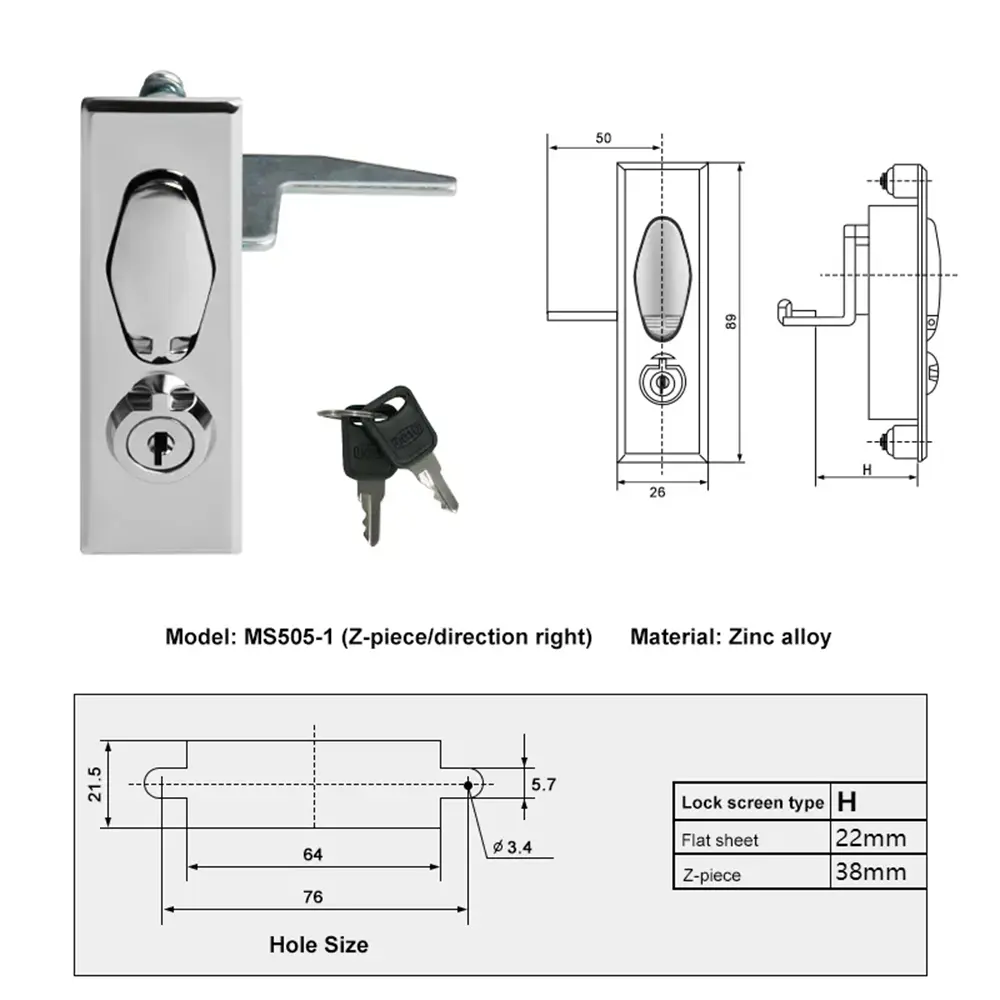

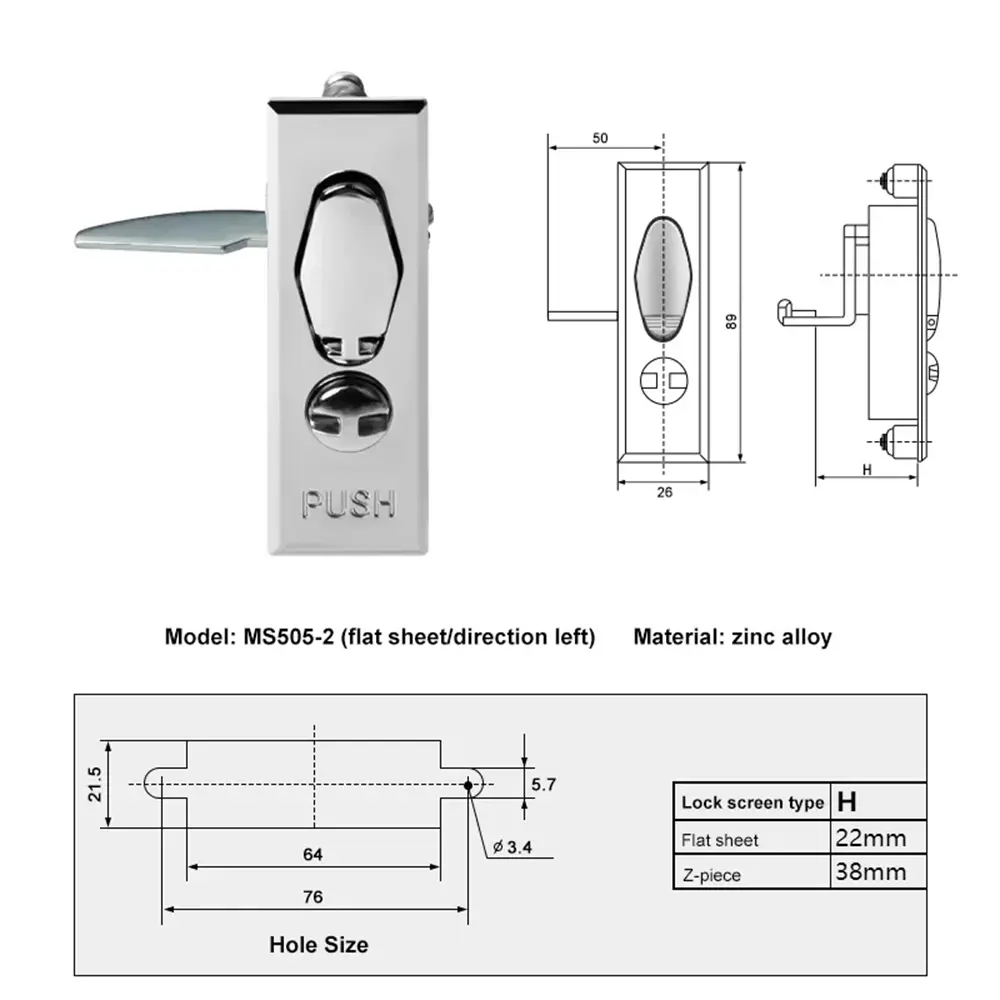

The MS505 series Plane Metering Lock offers two material options: aluminum alloy and zinc alloy. The aluminum alloy lock is suitable for projects with limited budgets; the zinc alloy material has higher strength and better resistance. The locking tab includes flat locking tab and Z-shaped locking tab.

Selection Classification

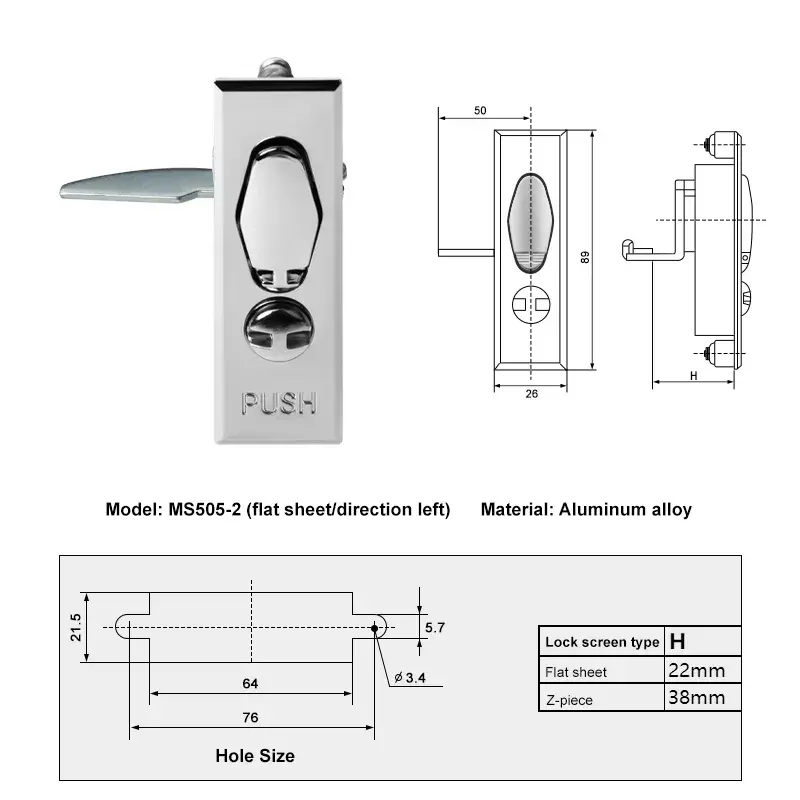

Aluminum alloy Plane Metering Locks are suitable for standard indoor environments, while zinc alloy models are recommended for applications requiring higher strength. Flat lock plates are suitable for standard flat installations, while Z-shaped plates are suitable for special structures with installation surface differences.

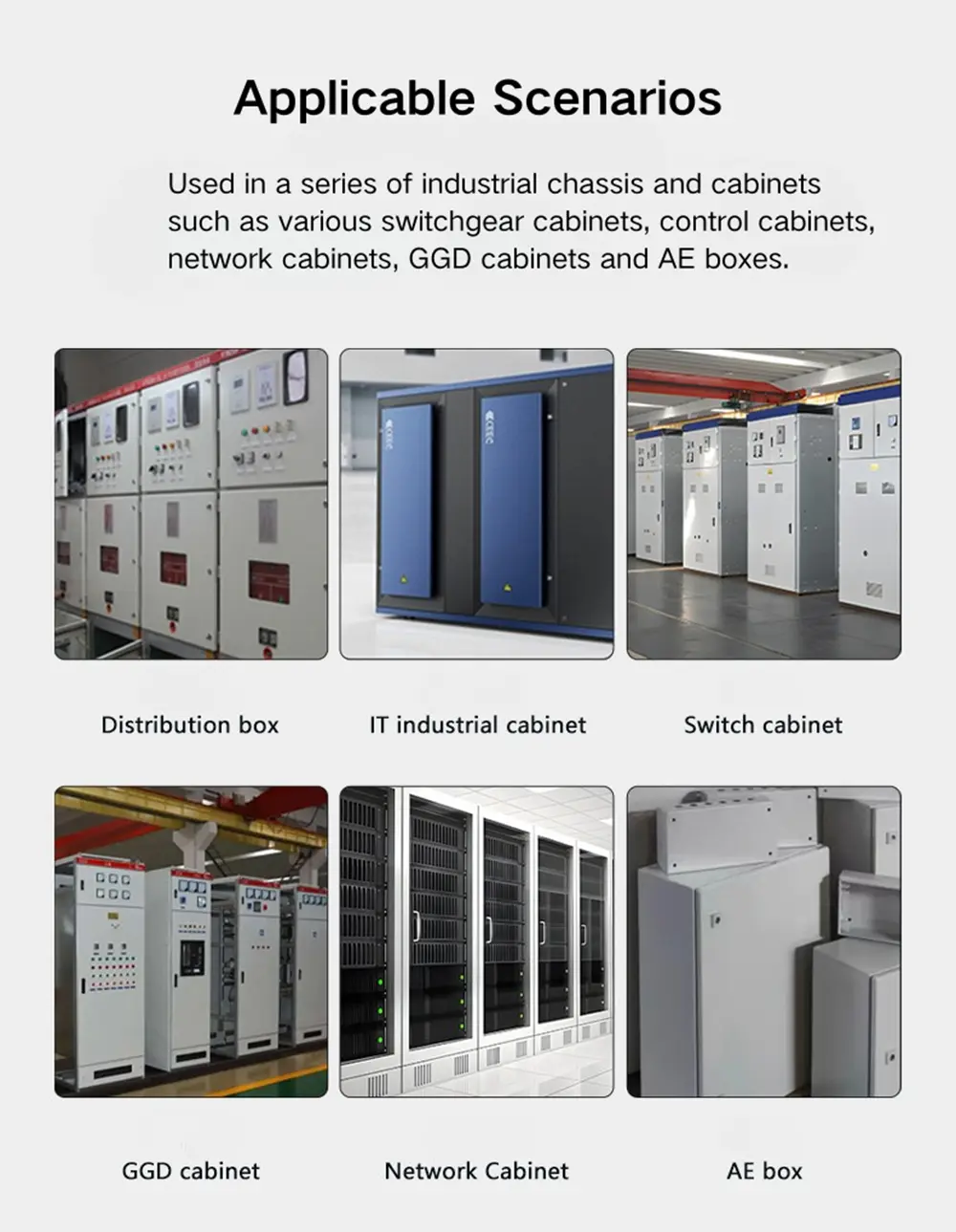

Application Scenarios

Electricity Metering Boxes: Lead seal functionality meets anti-theft management requirements.

FAQ

Q: How do I choose the opening direction?

A: When facing the cabinet door, if the hinge is on the left, choose a left-opening lock; if the hinge is on the right, choose a right-opening lock.

Q: How do I choose between flat plates and Z-shaped plates?

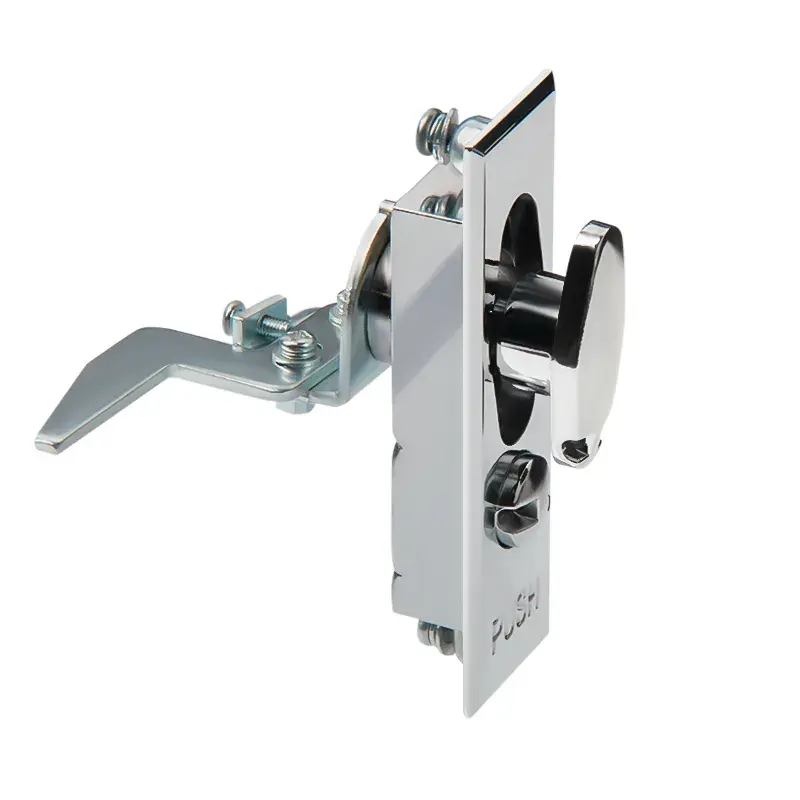

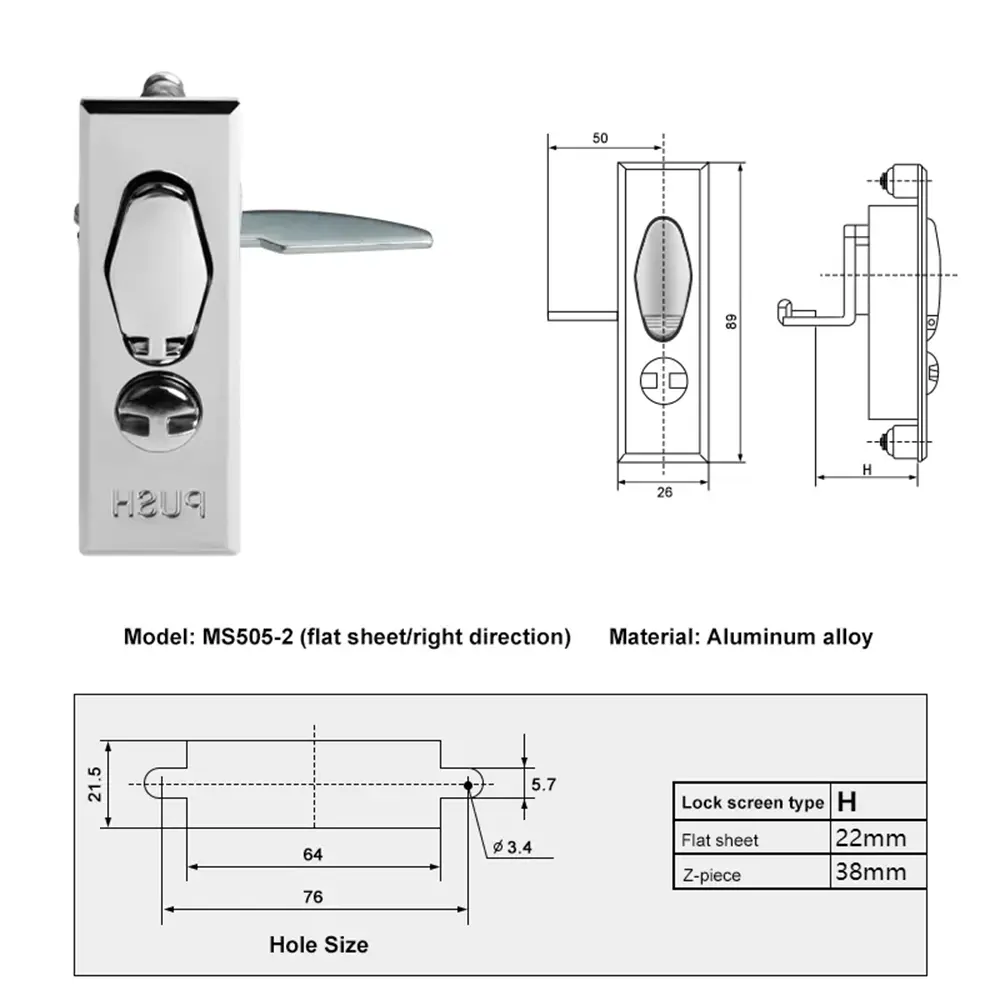

A: Choose a flat plate for flat installation. When there is a height difference between the lock and the installation surface, a Z-shaped plate must be used.

Q: Does installation require drilling holes?

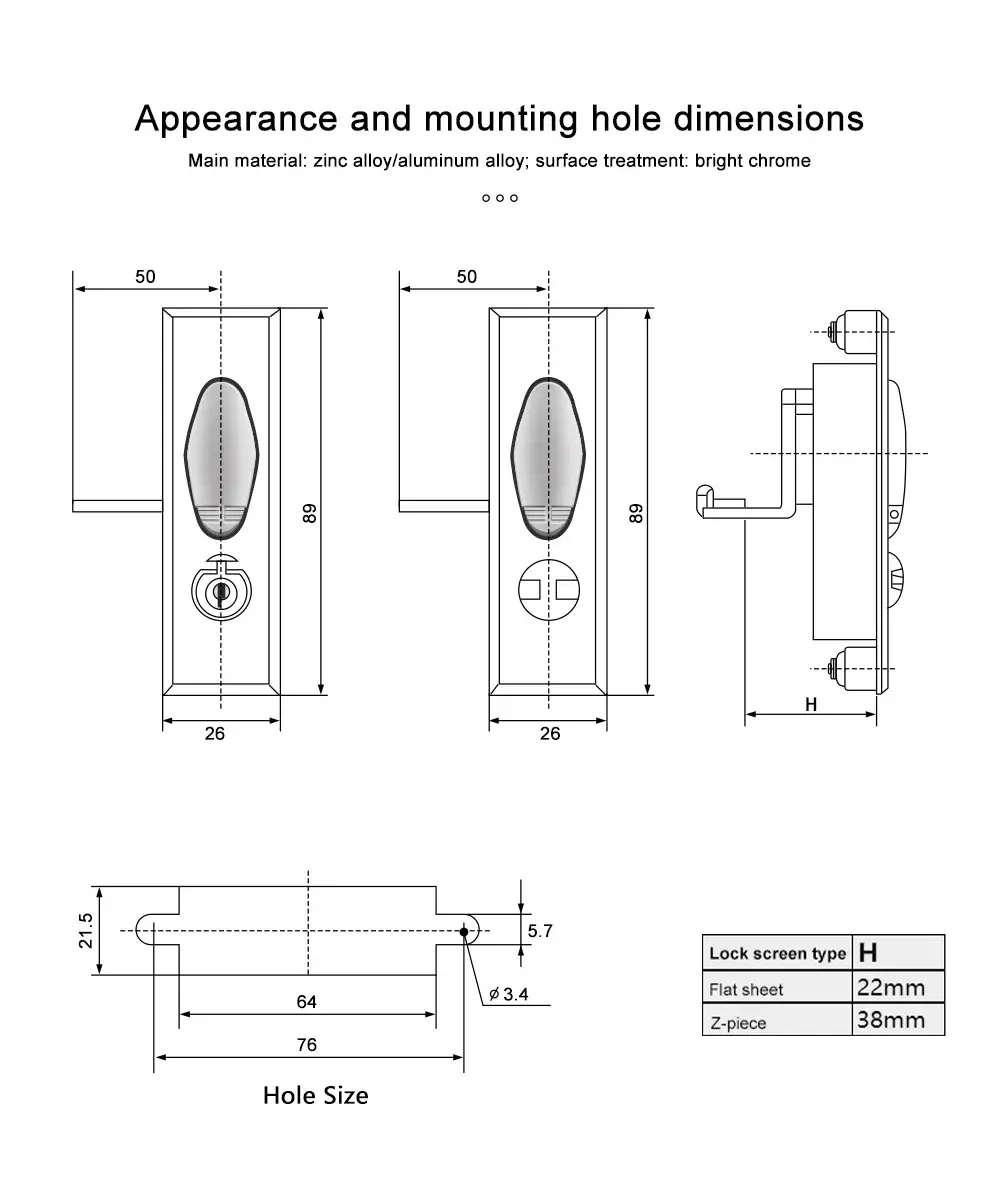

A: The standard hole spacing design is compatible with most cabinets. Special cabinets may require minor hole enlargement.

Q: Does it support padlocks?

A: This series is designed for flat locks and does not support padlock functionality. A dedicated padlock model must be selected.

Q: How should the lead seal be properly installed?

A: The lead seal wire should be threaded through the dedicated hole and ensure both ends are visible. After the lead seal block is secured, a destructive inspection must be conducted.
