Why Are Silent Damping Hinges Becoming a Popular Choice for Industrial Cabinet Doors?

Anyone who works around electrical enclosures and control cabinets knows the sound — a heavy door swinging open too fast and slamming into its stop, or closing with a sharp metal-on-metal clang. It's not just noise; repeated impact puts stress on the door panel, the frame, and the hinge itself over time. Yitailock's adjustable damping stainless steel hinge addresses this directly, and it's been gaining traction across distribution box and control cabinet applications for exactly that reason.

How the Damping Mechanism Works

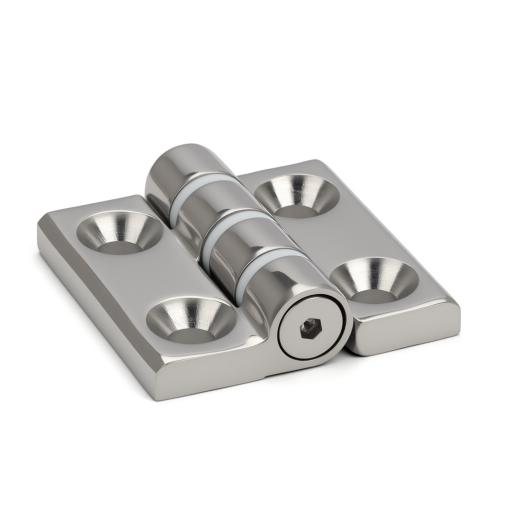

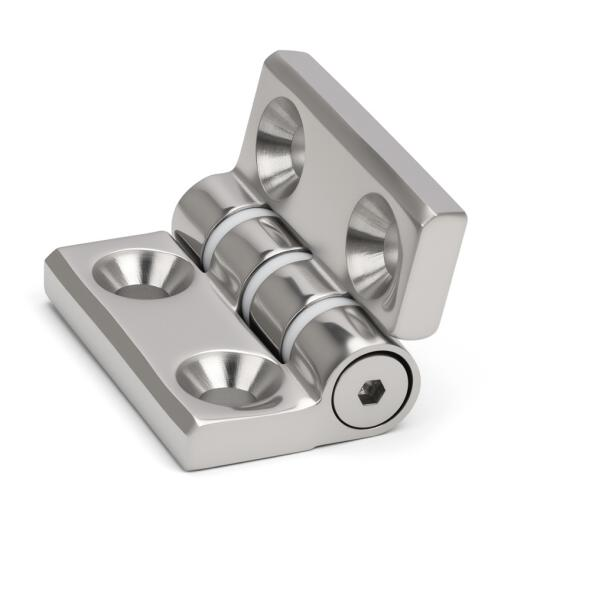

The core of this industrial hinge is a four-section stainless steel barrel precision-assembled with three alternating layers of POM damping washers.

What makes this design practical is that the damping is adjustable. Hex socket screw holes on the hinge body allow the torque to be tuned — tighten for more resistance, loosen for less. This means the same hinge can be configured to suit a lightweight panel or a heavier cabinet door without swapping out the hardware.

Where It's Used

The adjustable damping hinge suits any application where controlled door movement matters:

Distribution boxes and control cabinets — where doors are opened and closed regularly and uncontrolled swinging causes wear on seals, gaskets, and surrounding components

Electrical enclosures in server rooms or clean environments — where sudden door impact can disturb sensitive equipment nearby

Heavy-duty industrial panels — where the door weight alone creates enough momentum to cause damage without some form of resistance built into the hinge

The 90° stop versions are well suited to wall-mounted enclosures where the door needs to open flat against the cabinet side without swinging past. The 120° stop versions give more clearance for access, which suits freestanding cabinets where full-width opening is useful.

Choosing the Right Spec

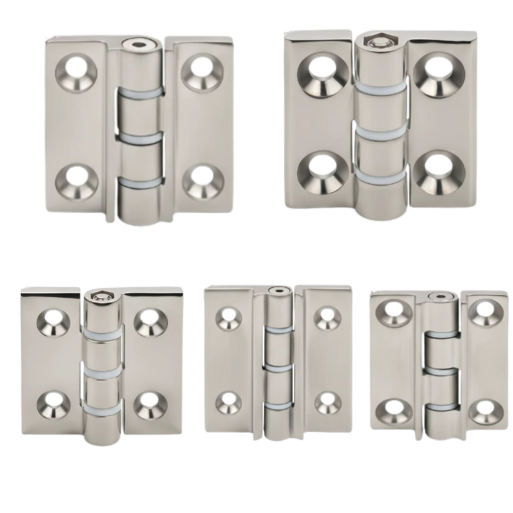

Five sizes are available, and the right choice depends on door weight and the finish required:

52×40×4.5mm — brushed finish, 90° stop. The most compact option, suited to smaller distribution box doors.

47×48×4.5mm — brushed finish, 120° stop. A slightly wider leaf for better load distribution on medium-weight doors.

63×62×4.5mm — brushed finish, 120° stop. The largest of the brushed range, suited to heavier panels where a wider bearing surface helps.

60×60×6mm — mirror finish, no fixed stop angle listed. A mid-weight option with a polished appearance for cabinets where finish matters.

60×60×8mm — mirror finish. The heaviest-duty option in the range, built for substantial doors that need the most damping resistance.

All five are 304 stainless steel throughout — brushed for a functional industrial look, mirror-polished for applications where the cabinet exterior is more visible.

A Practical Upgrade

Switching to a damping stainless steel hinge on a cabinet door is a small change that makes a noticeable difference in daily use. The door moves with resistance rather than momentum, which reduces wear on every component it interacts with and removes the jarring impact that comes with uncontrolled closing. For enclosures that are accessed frequently, it's a straightforward improvement that holds up well over the long term
