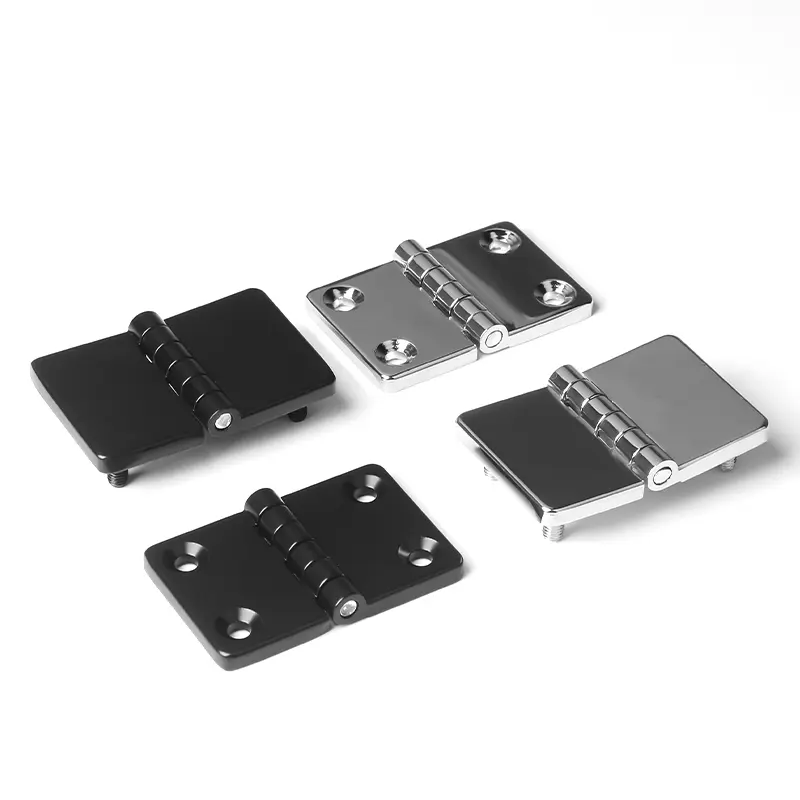

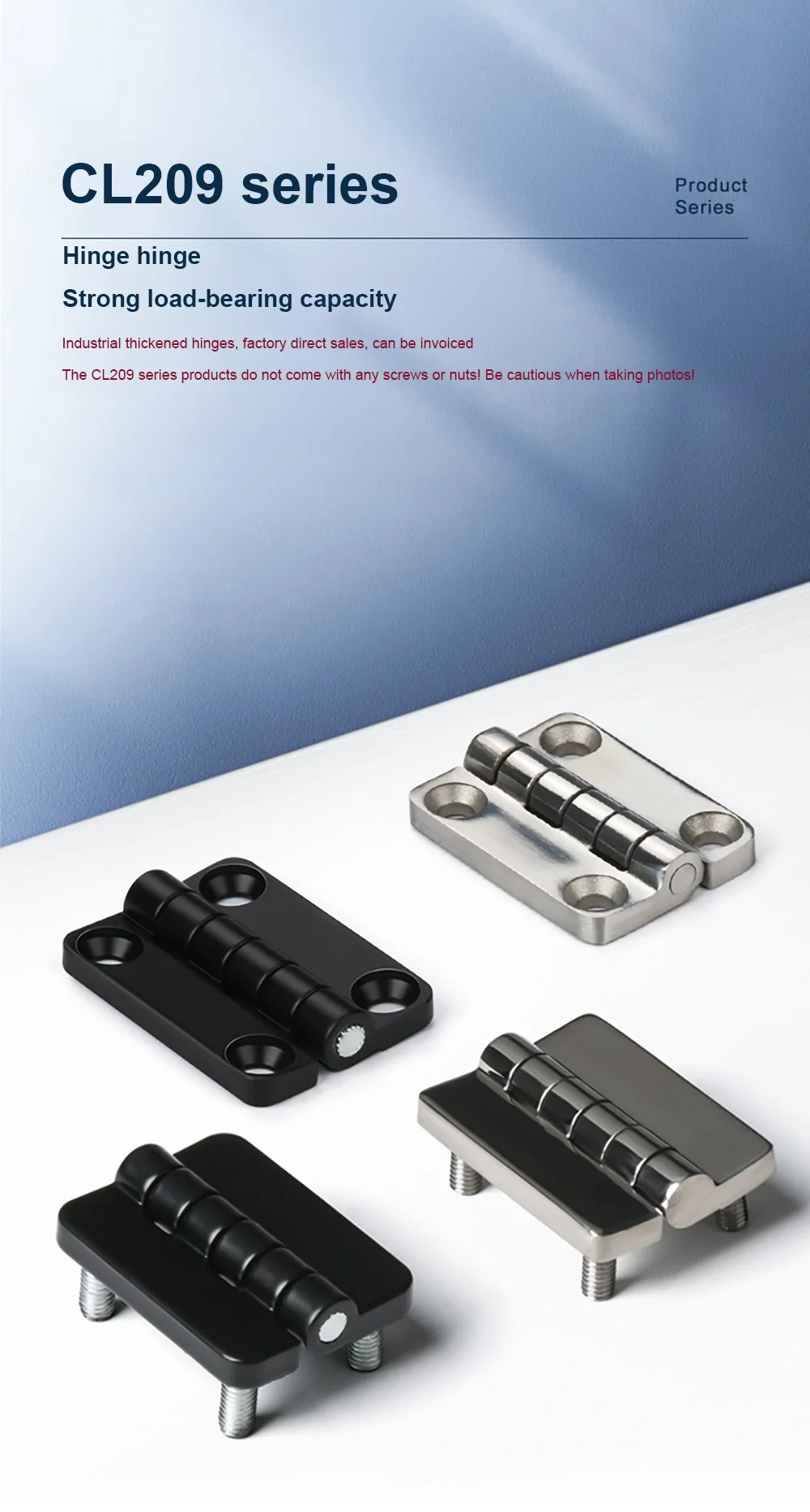

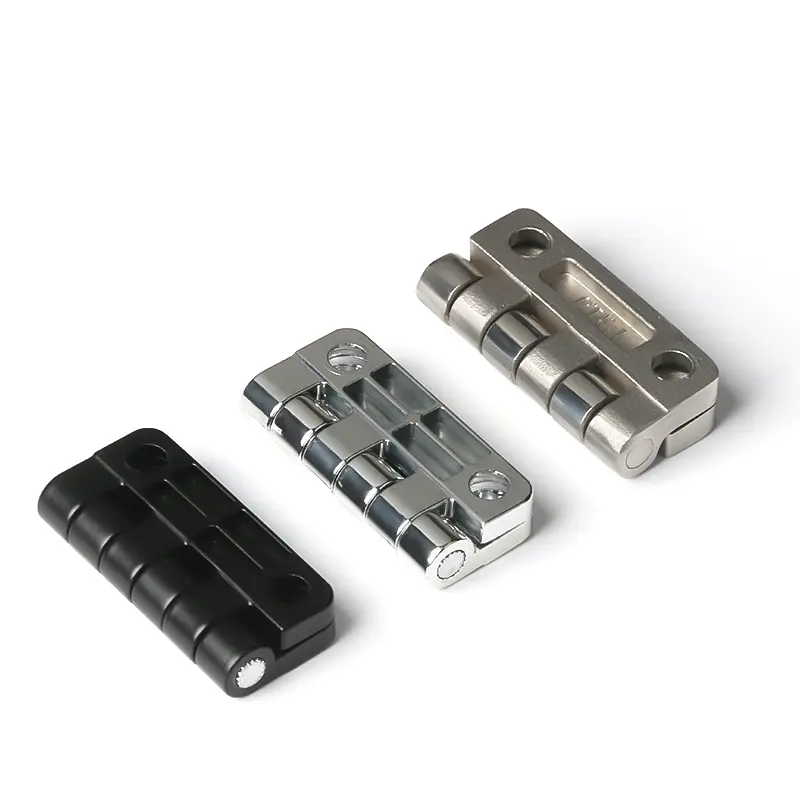

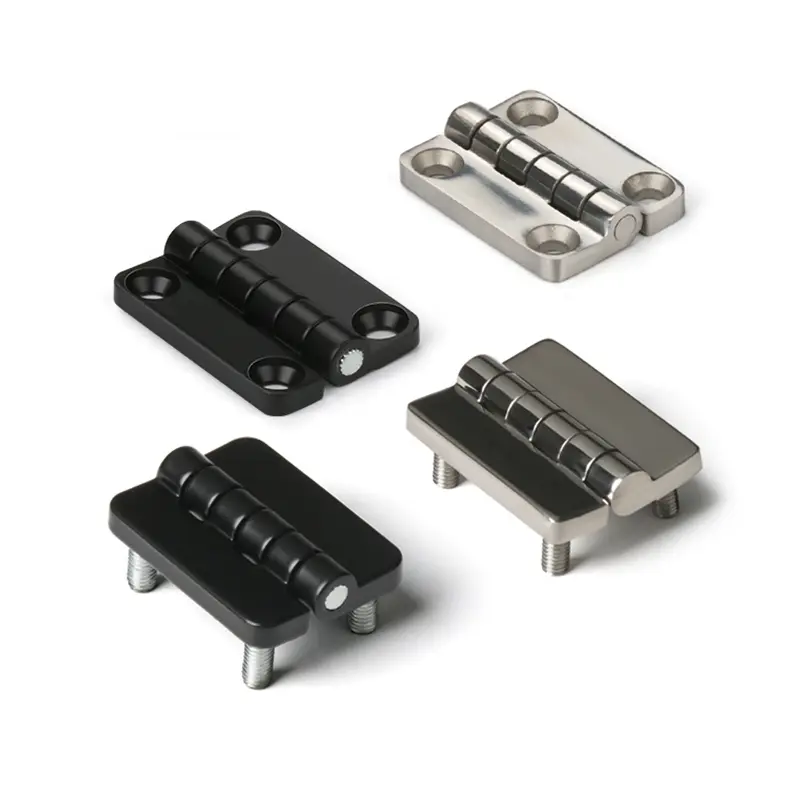

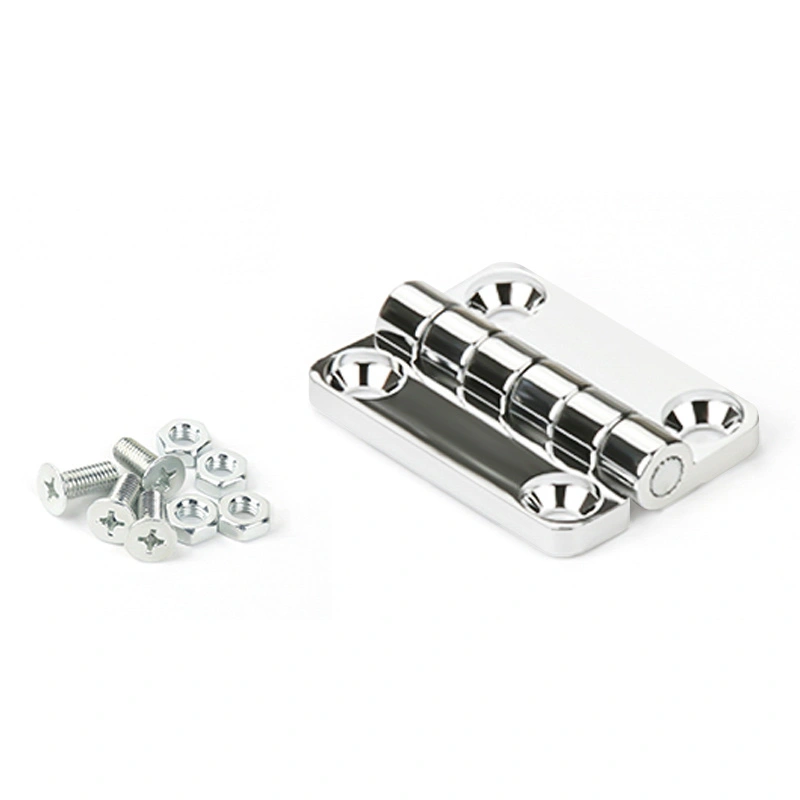

Folding Hinge for Electrical Cabinet and Distribution Box

This is a folding hinge for electrical cabinets and distribution box made in China.The hinge is a folding structure designed to ensure load-bearing performance while realizing compact installation, which is especially suitable for space-constrained box application scenarios.

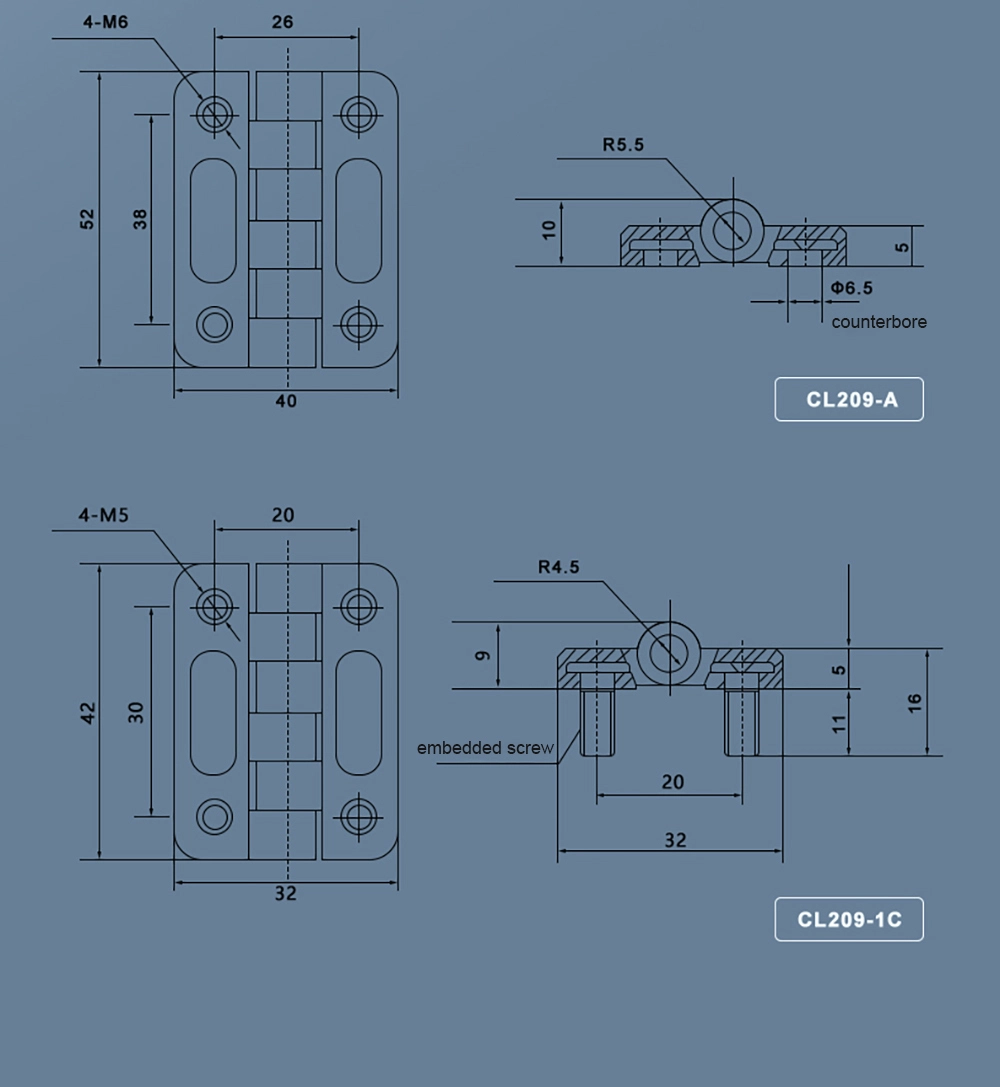

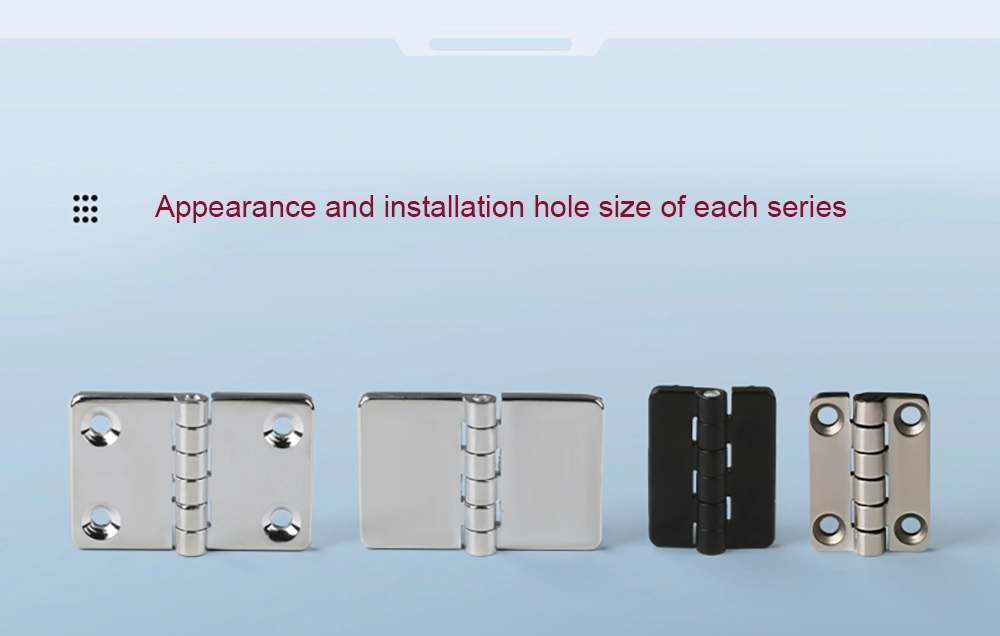

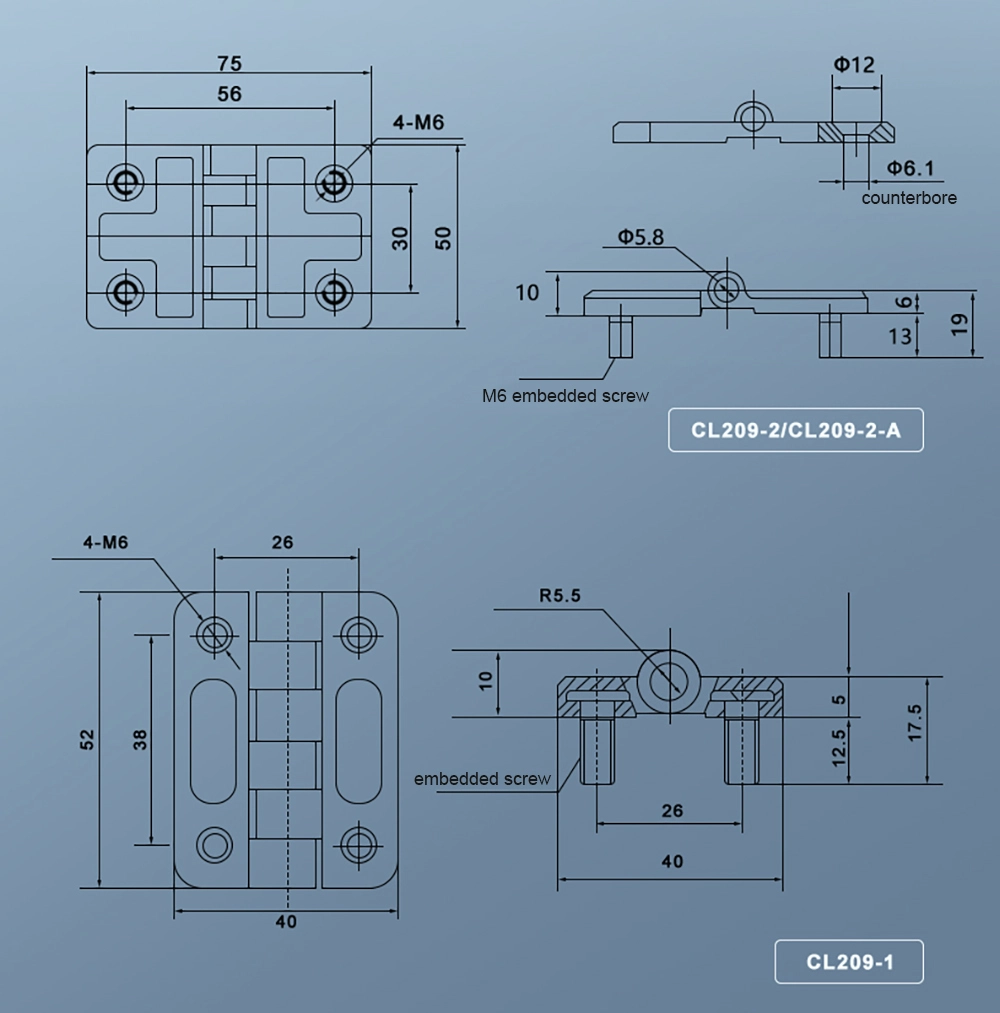

External dimensions:

The following unit is mm.

CL209-1C Small: 32*42

CL209-1 iron: 40*54.5

CL209-1/CL209-A medium economy/zinc alloy premium model: 40*52

CL209-1/CL209-A medium stainless steel quality model: 40*54

CL209-2/CL209-2-A large high-quality models: 50*75

Material Types

Folding hinge CL209 for electrical cabinets and distribution box is available in zinc alloy and stainless steel, with the CL209-1 model additionally available in iron.

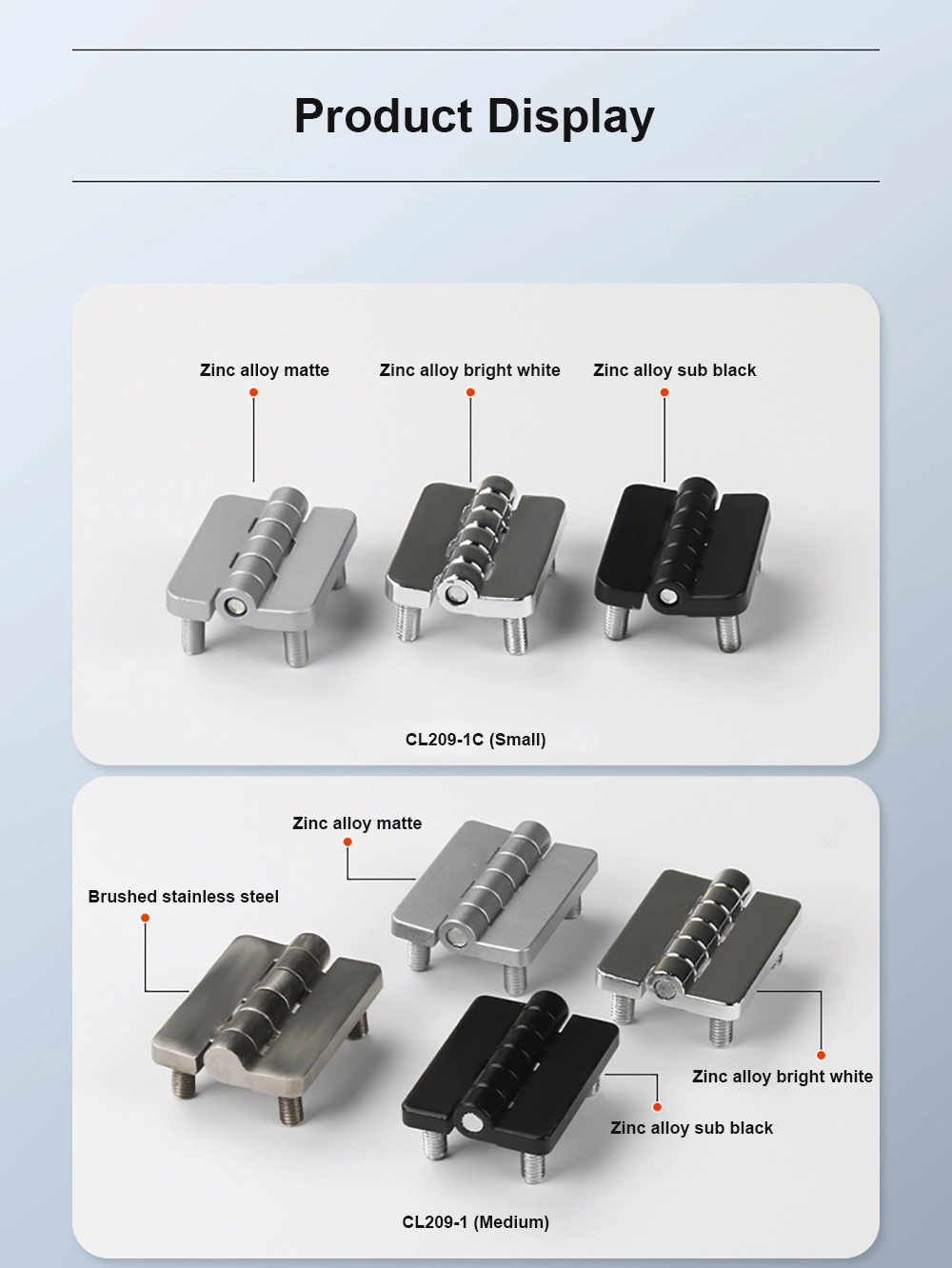

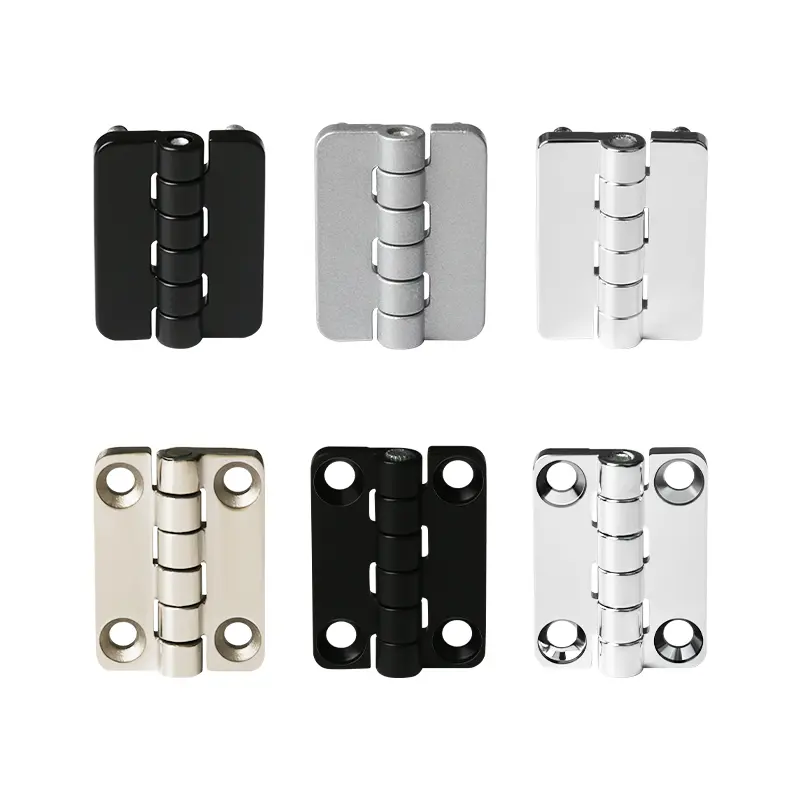

Color Options

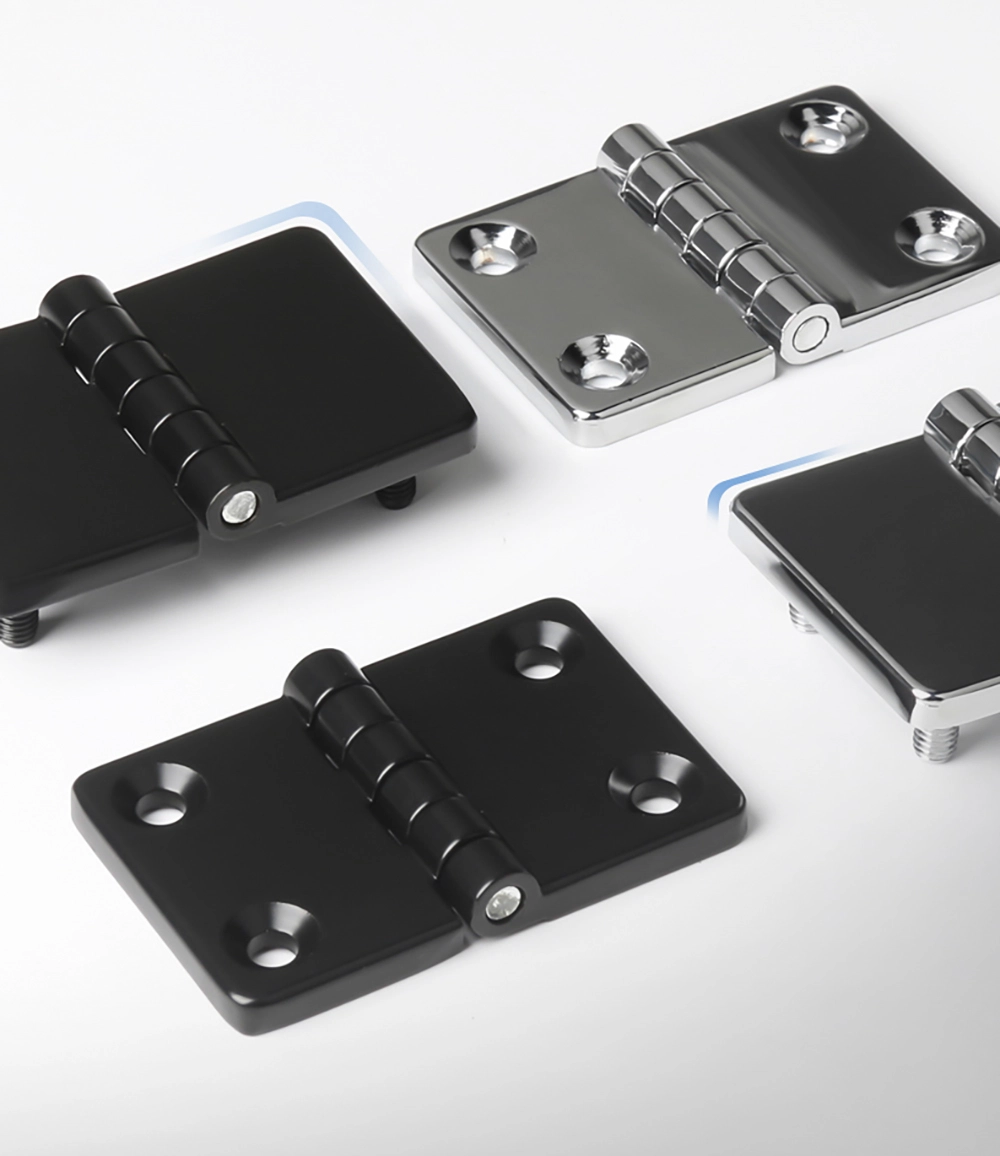

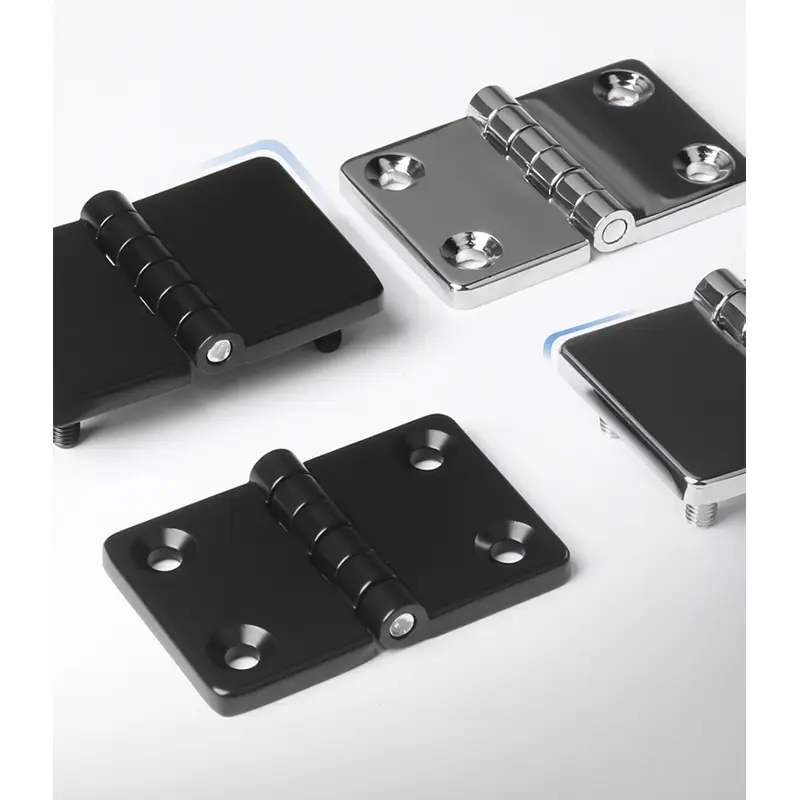

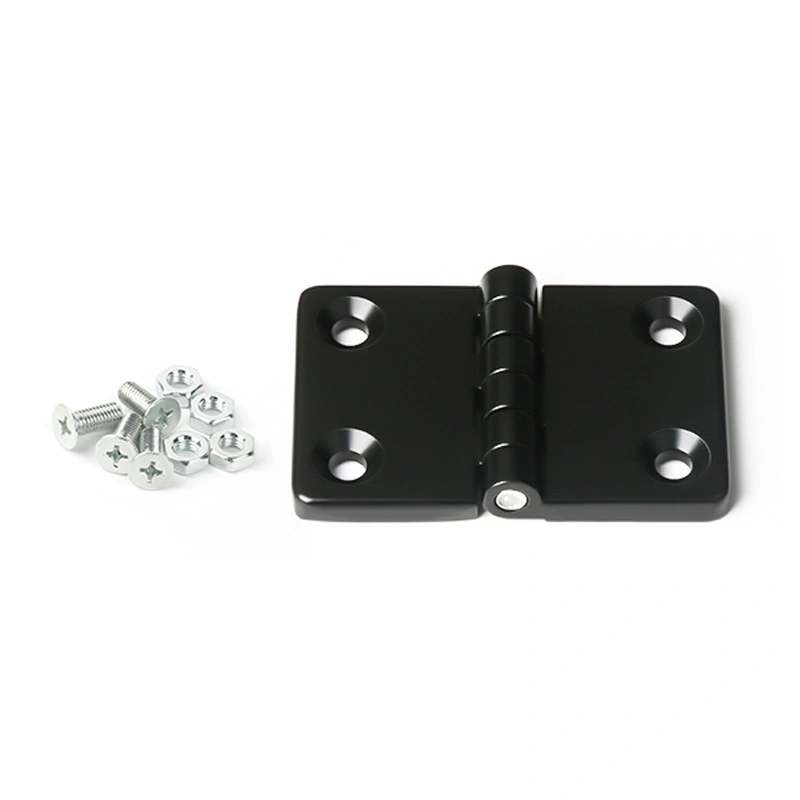

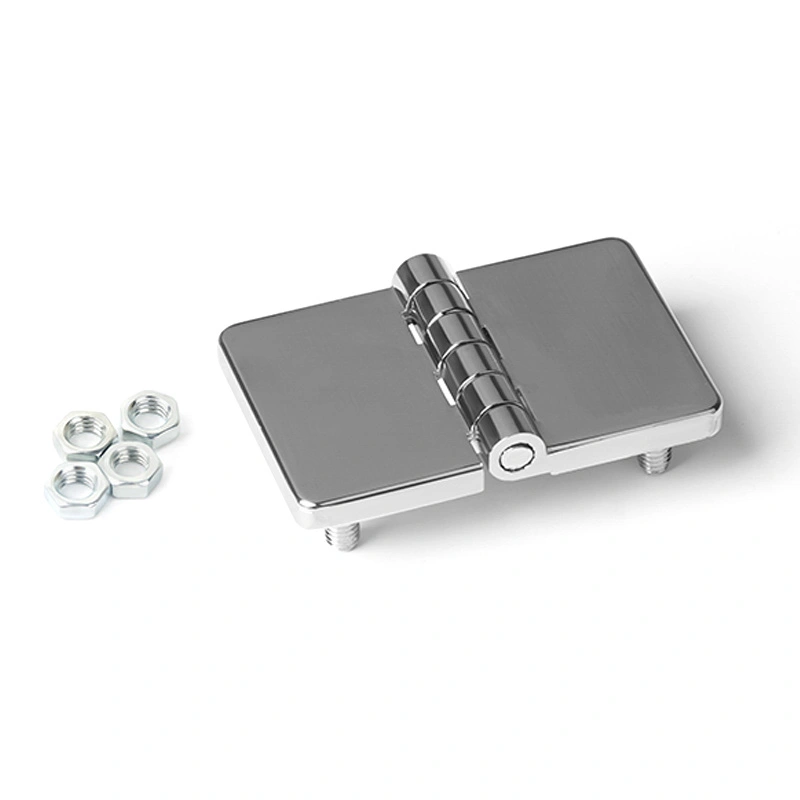

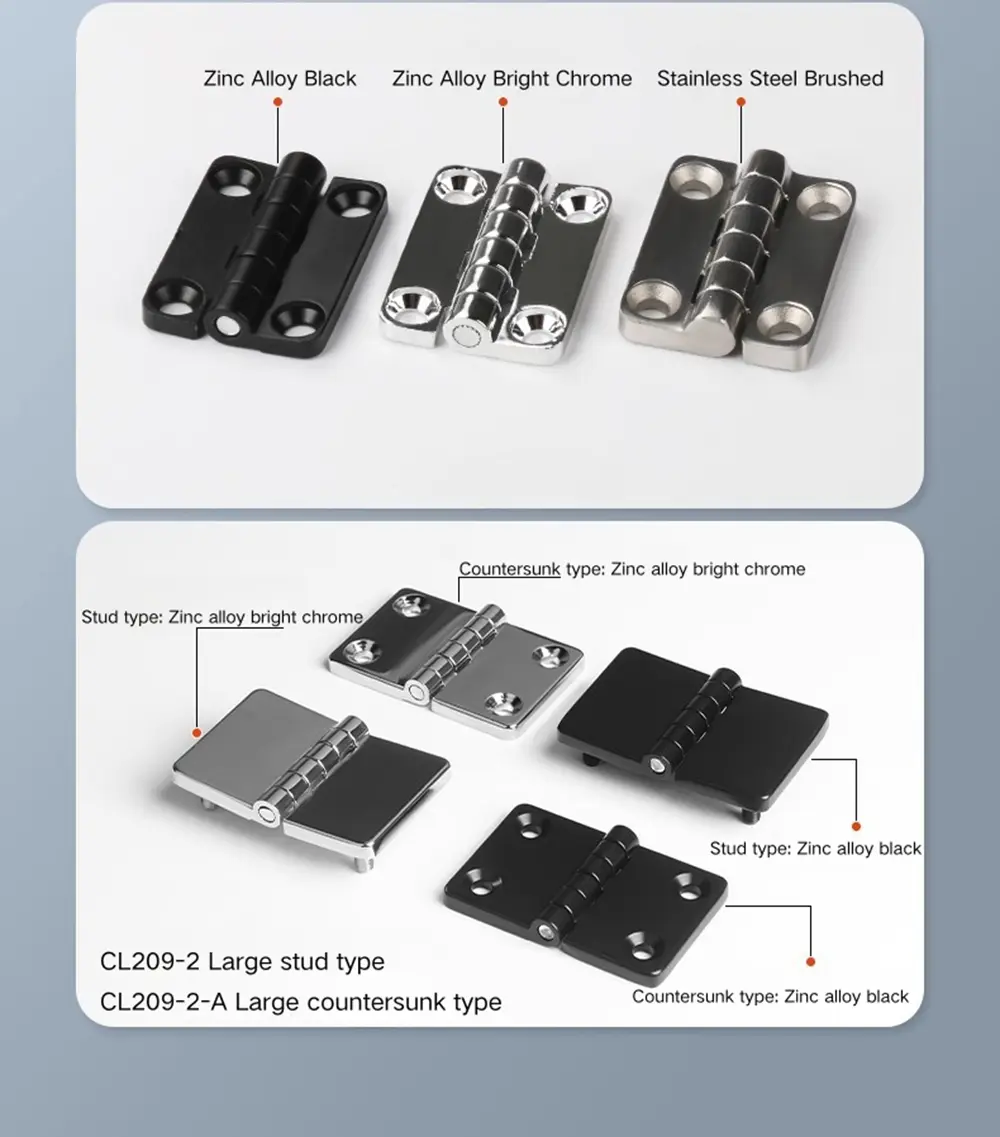

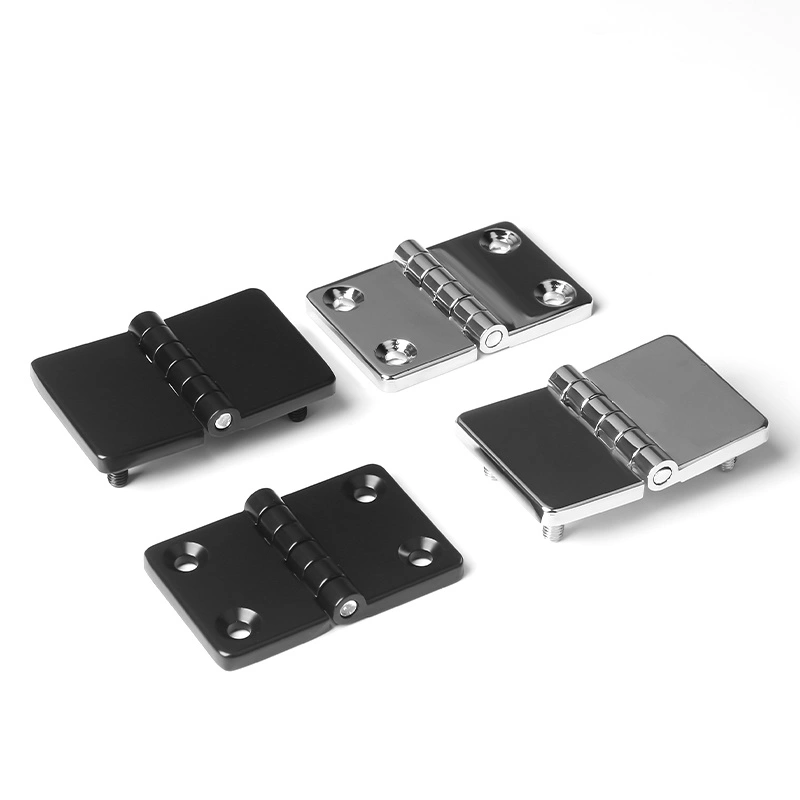

Folding Hinge for Electrical Cabinet and Distribution Box offer a wide range of materials and finishes to choose from, with zinc alloy models available in black, matte and bright white; iron models available in black and galvanized options; and stainless steel models available in mirror and brushed finishes.

Suggestions for selection

Zinc alloy model Suitable for common indoor power distribution equipment, or scenes that require color matching.

Galvanized iron model Folding Hinge for Electrical Cabinet and Distribution Box is suitable for slightly damp or slightly corrosive environment (such as workshop, basement); black model is mostly used in dry environment, because iron is easy to rust.

Stainless steel models have the best corrosion resistance and are suitable for outdoor environments; brushed models are more resistant to wear and tear.

FAQ

Q:Do the three colors of zinc alloy models (black/matt/white) affect performance?

A: The color is only the difference in surface treatment, the rustproof performance is the same, choose according to demand.

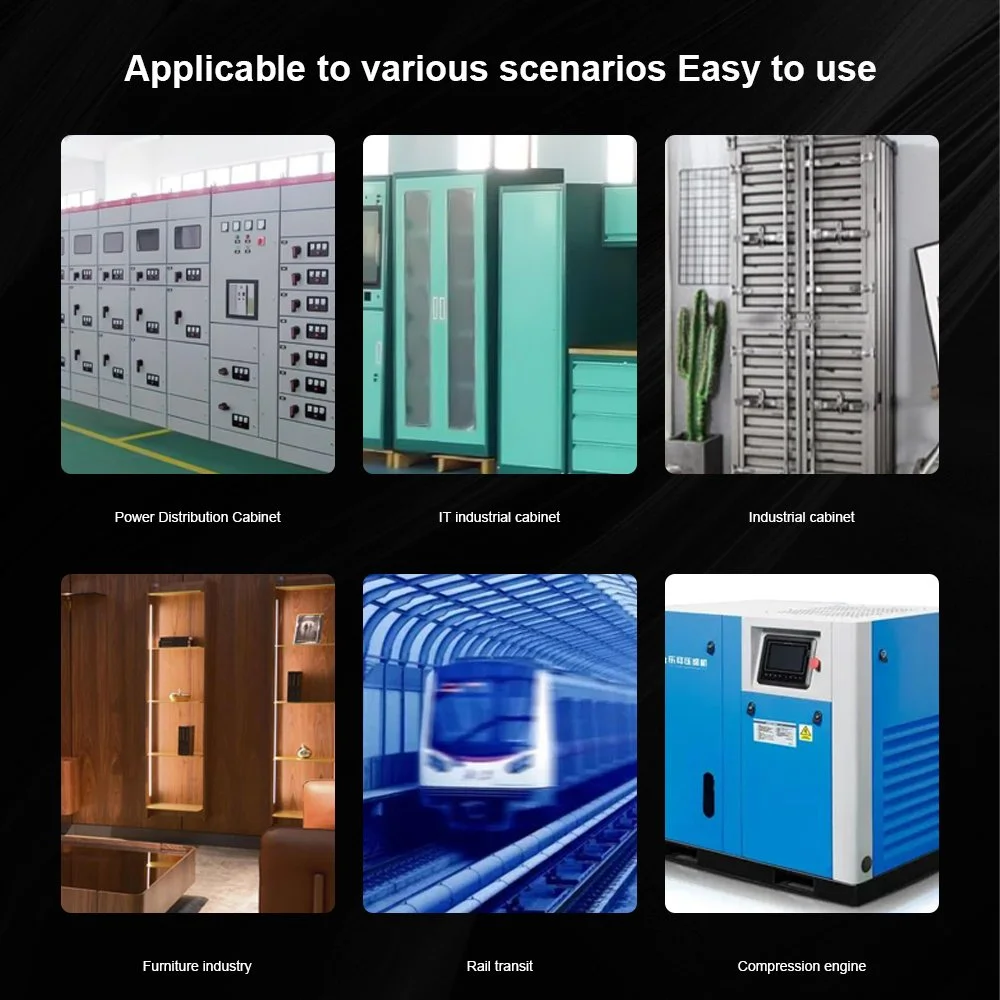

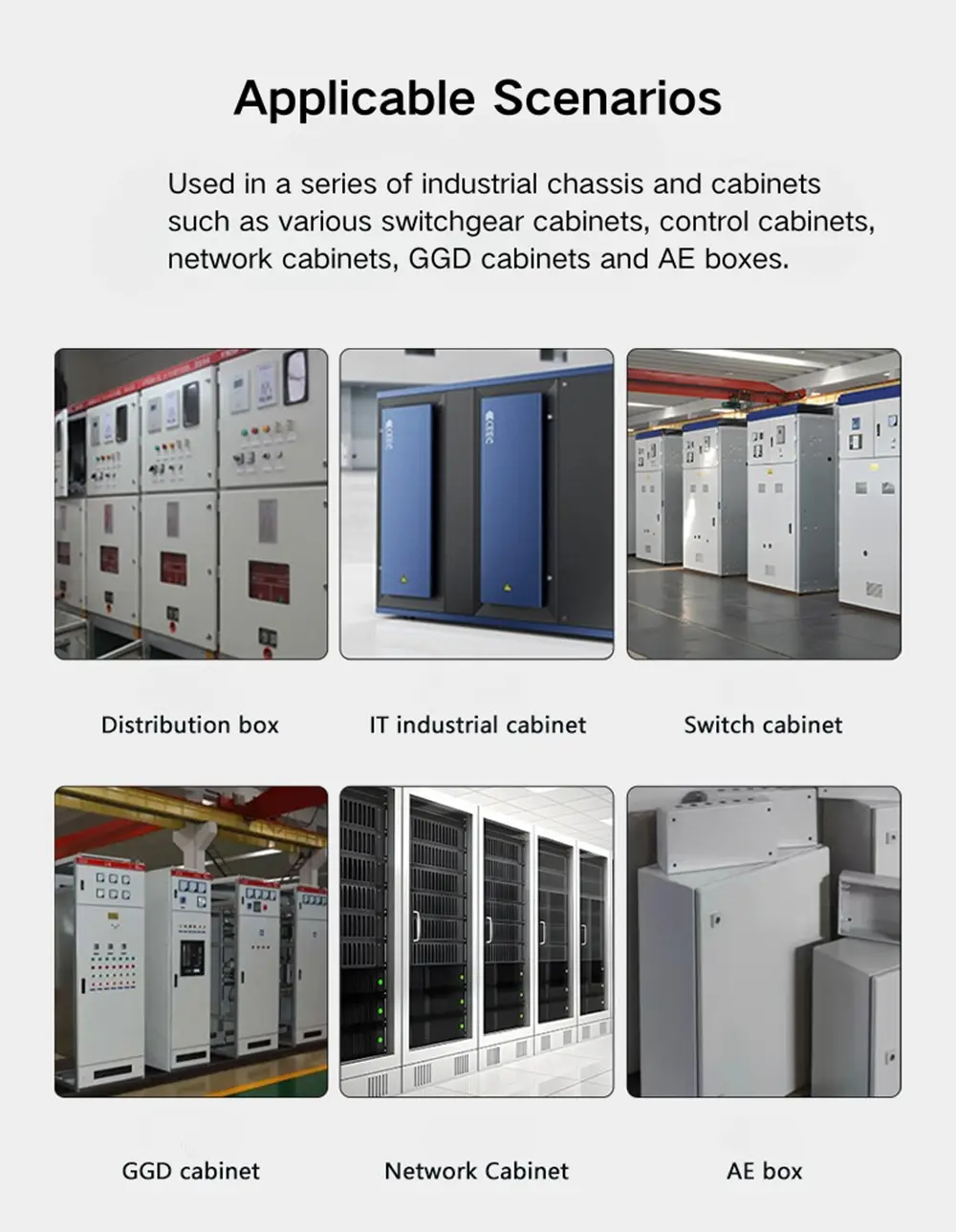

Q: What types of electrical cabinets are CL209 hinges suitable for?

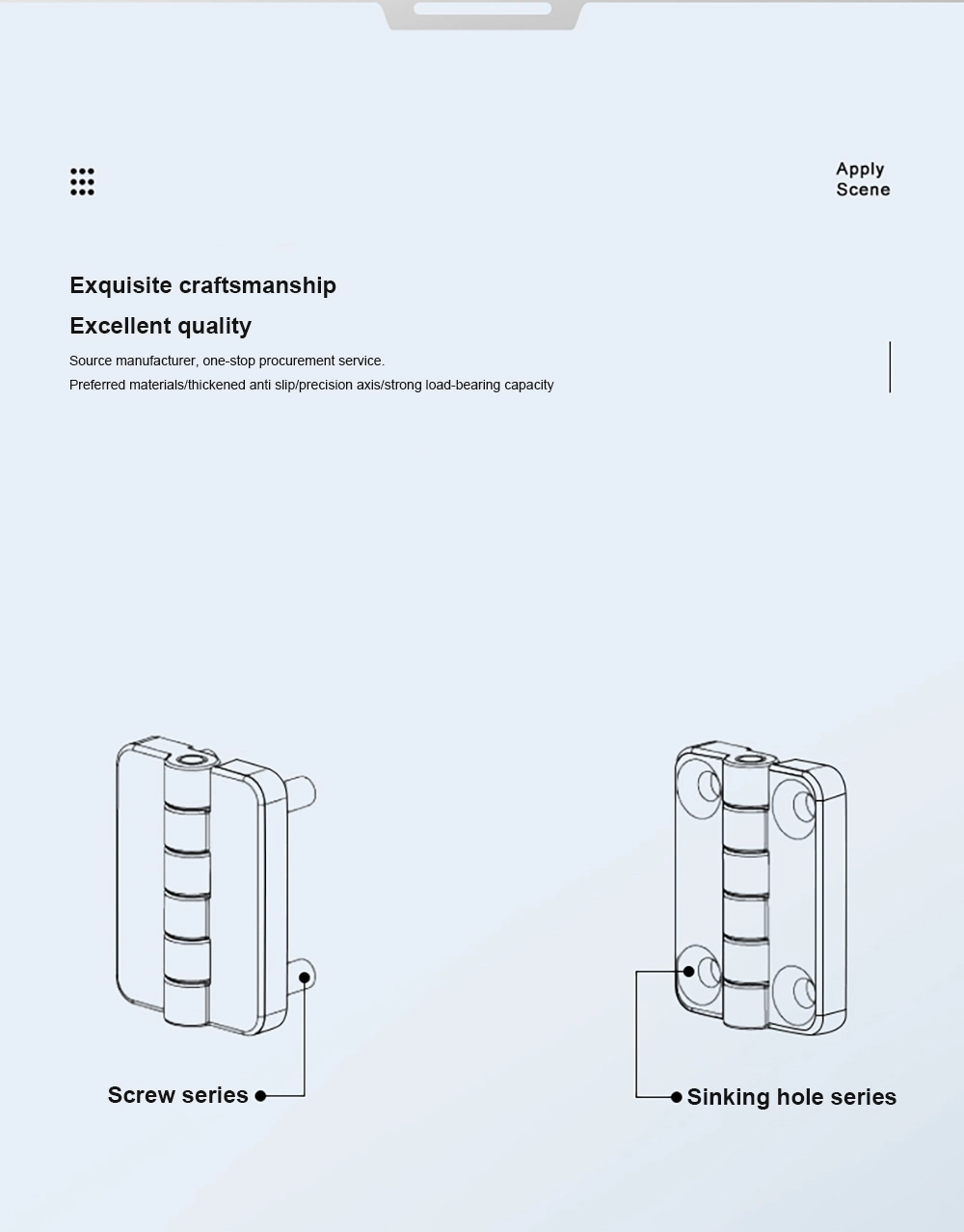

A: It is suitable for standard distribution boxes, control cabinets, outdoor cabinets and other cabinets that need to be opened and closed frequently, and supports two types of installation.

Q: Difference between CL209-1 and other models?

A: CL209-1 is the basic model, with additional iron option.

Q:What is the difference between mirror and brushed finishes for stainless steel?

A:Mirror: beautiful and easy to clean, but may show scratches.

Brushed: more resistant to wear and tear, hiding scratches.

Q:Does it support left and right two-way installation?

A:Yes, the hinge can be flexibly adapted to the left or right door design.
