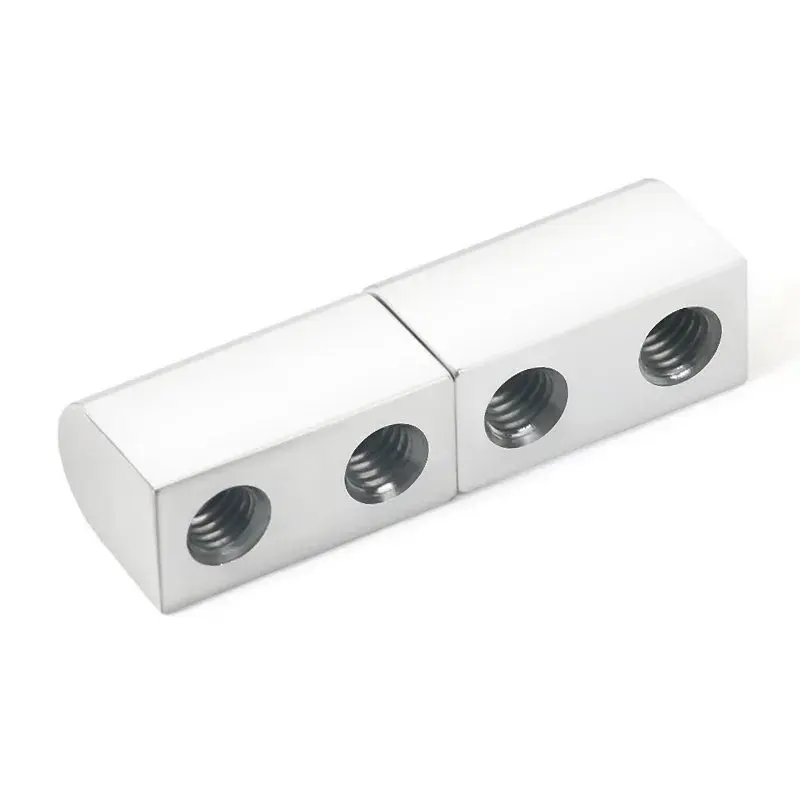

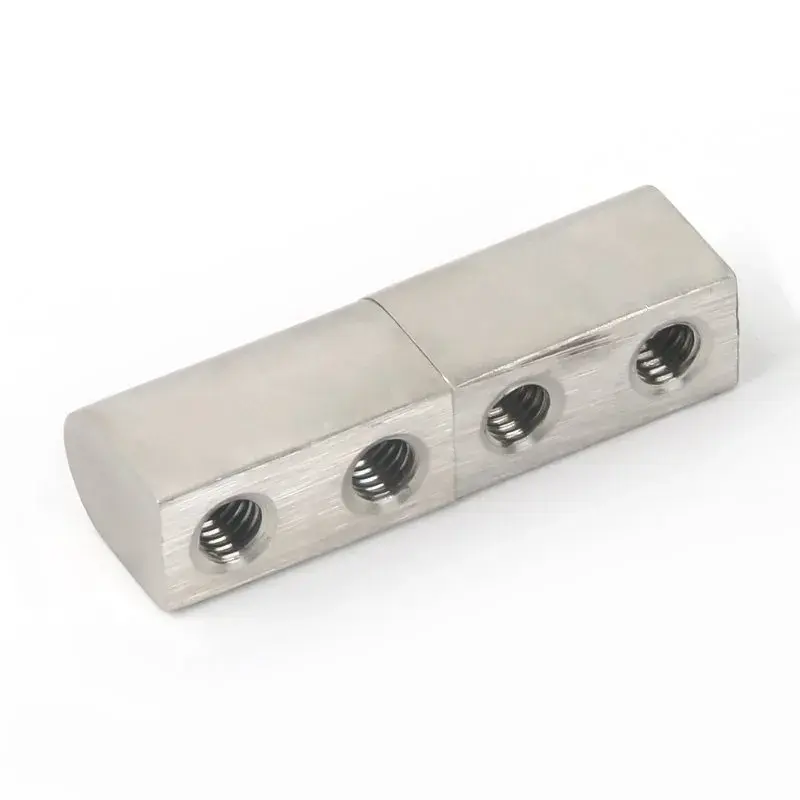

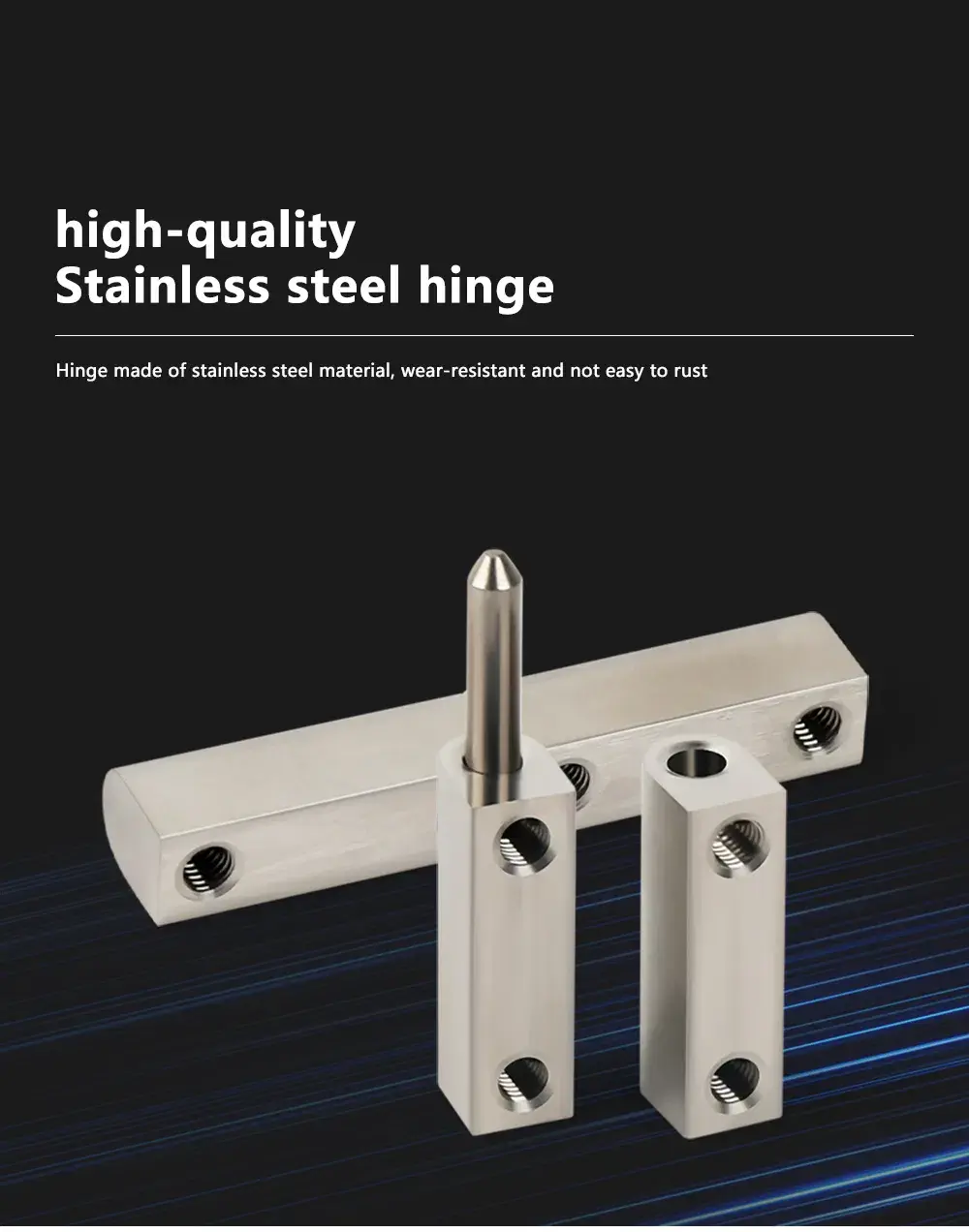

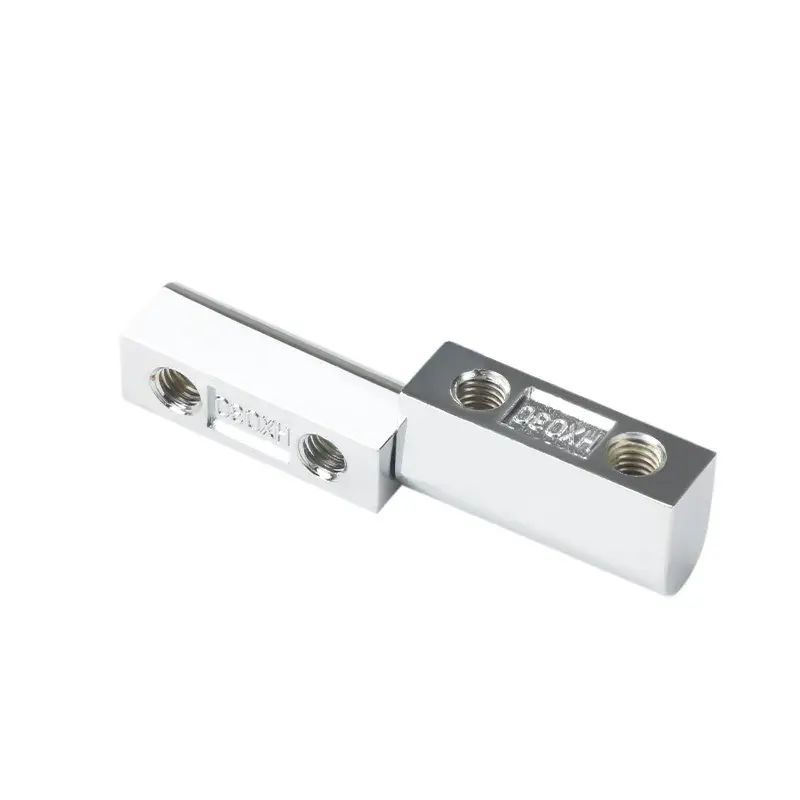

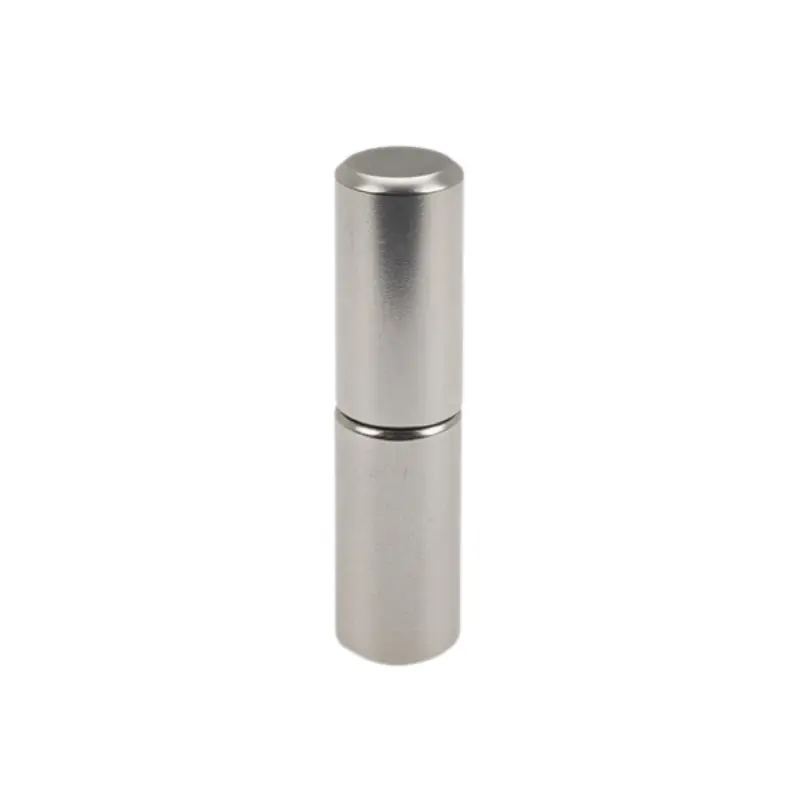

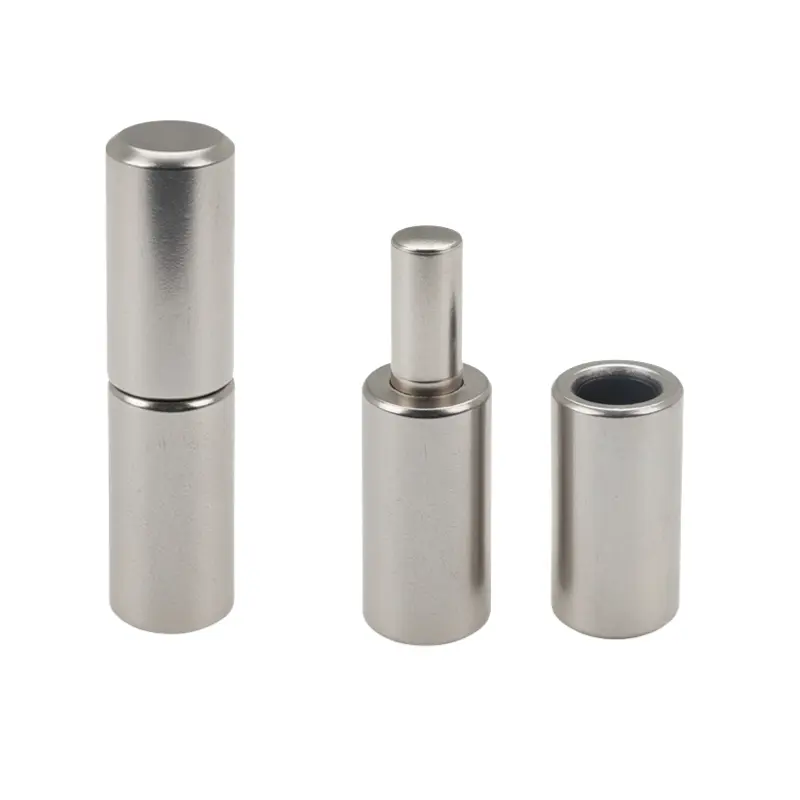

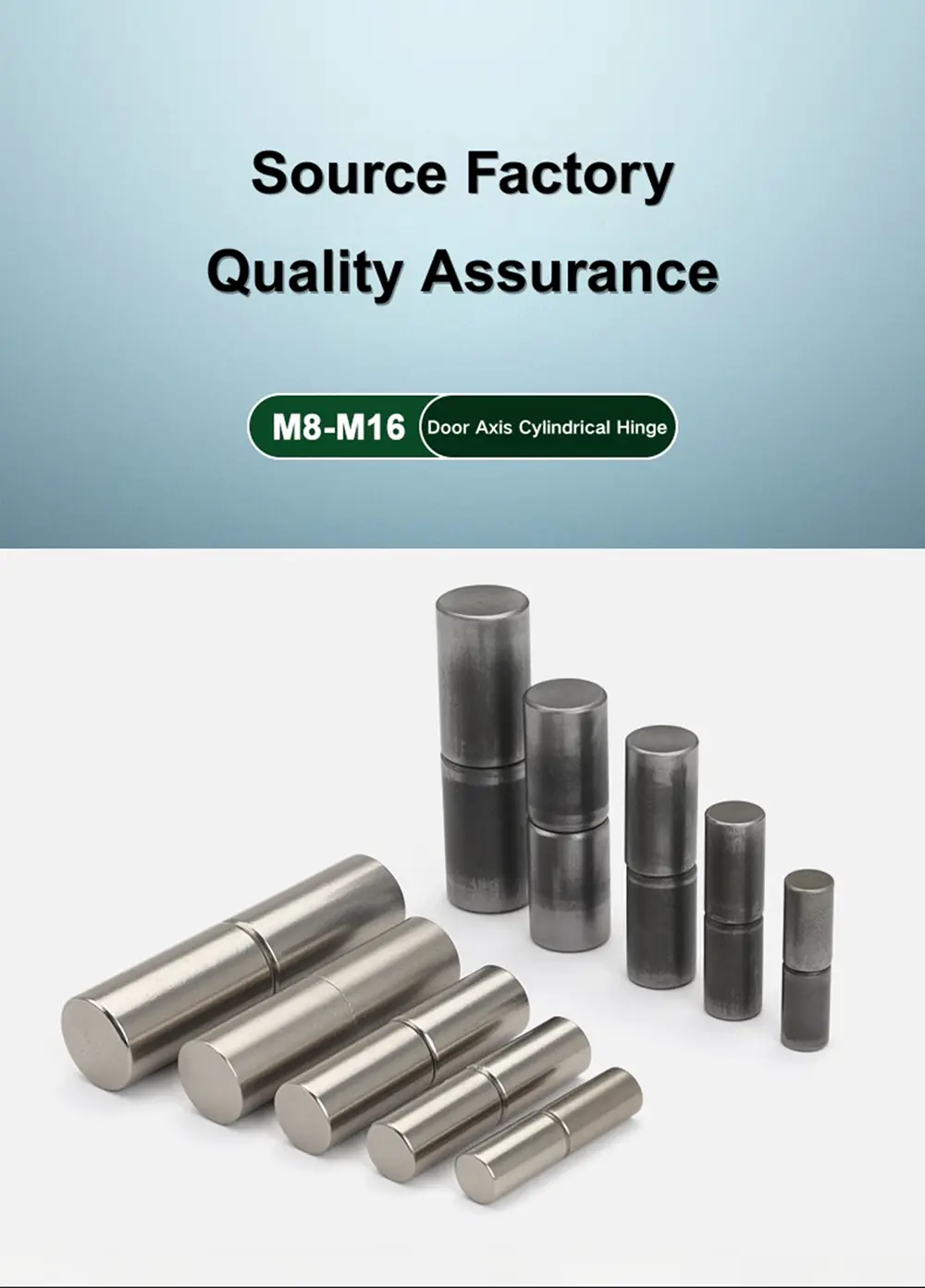

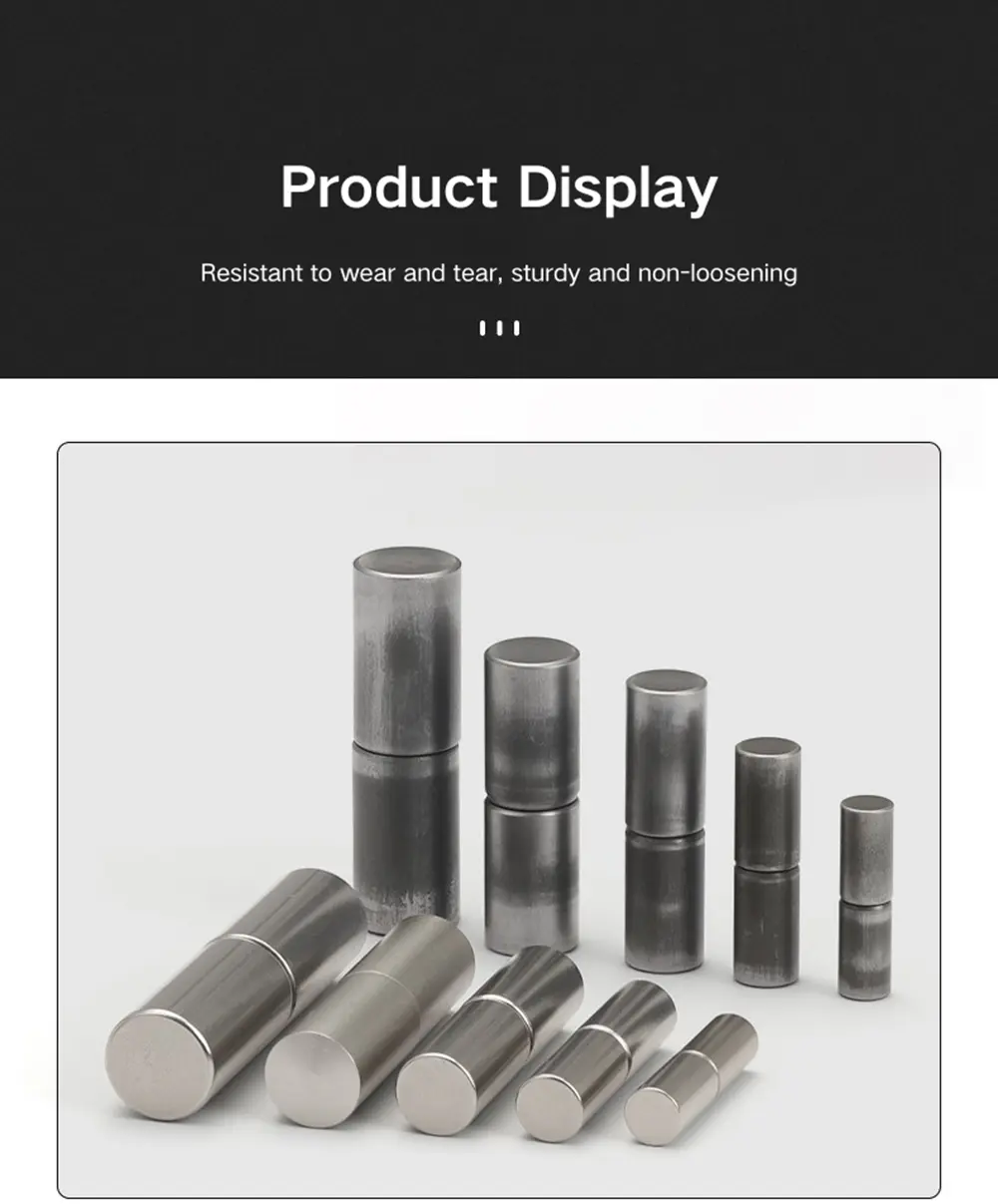

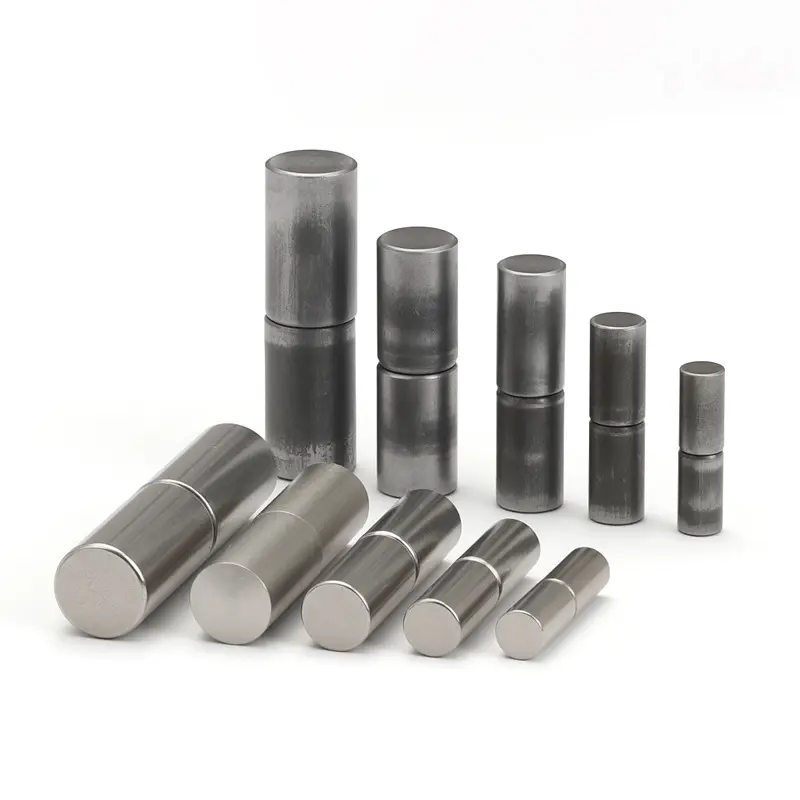

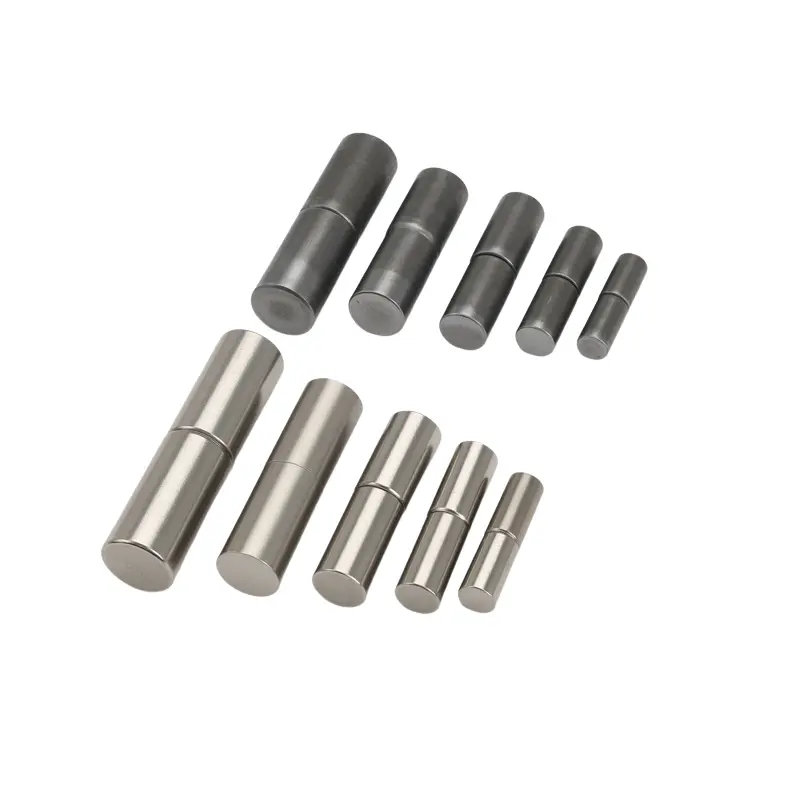

In-line Hinge Stainless Steel Lift-off

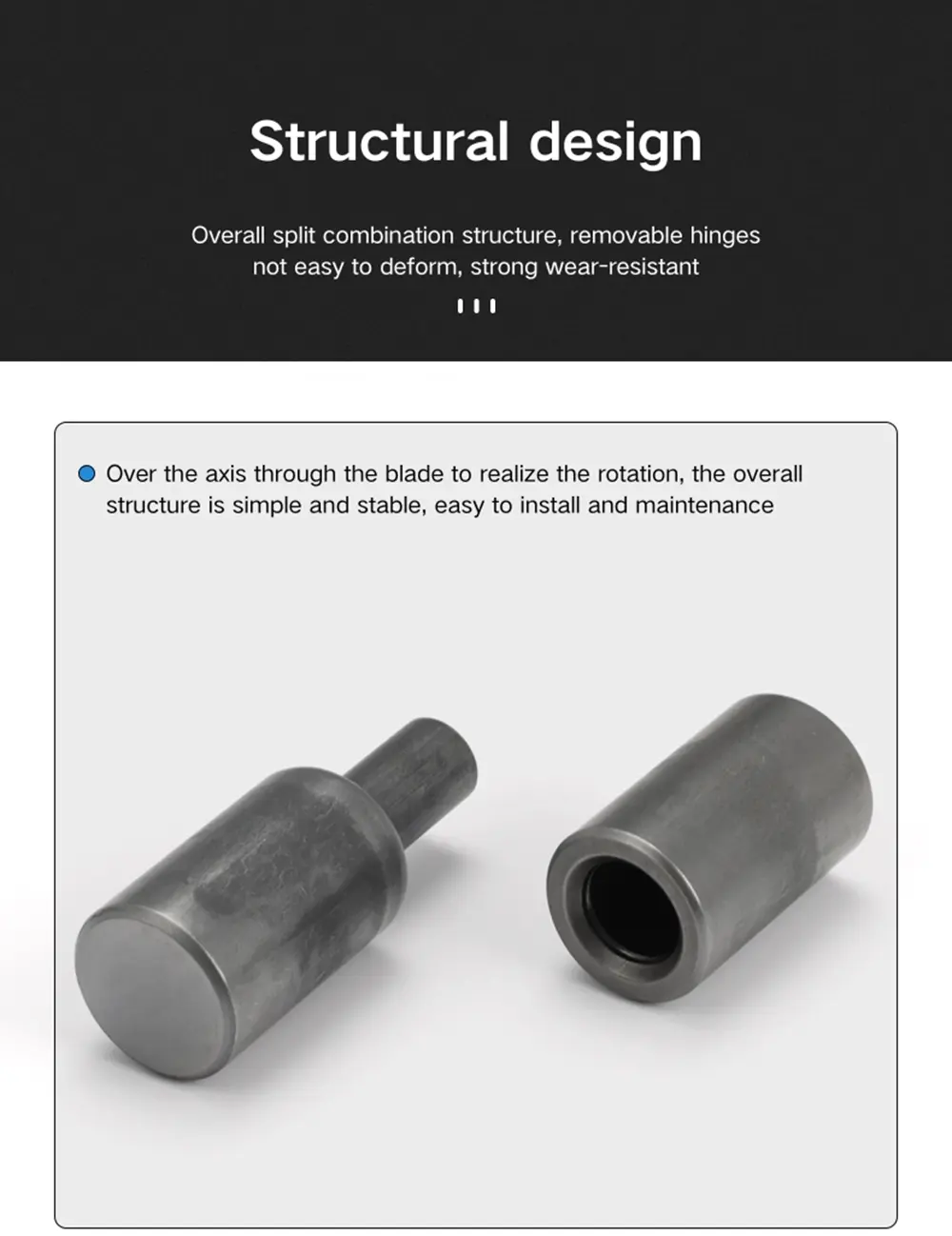

The advanced hinges from Yitai Lock improve the performance of your cabinets.The door axis of the mother and child two-link hinge adopts unique mother and child double-axis linkage structure, which significantly improves the stability and load-bearing capacity of the door plate.

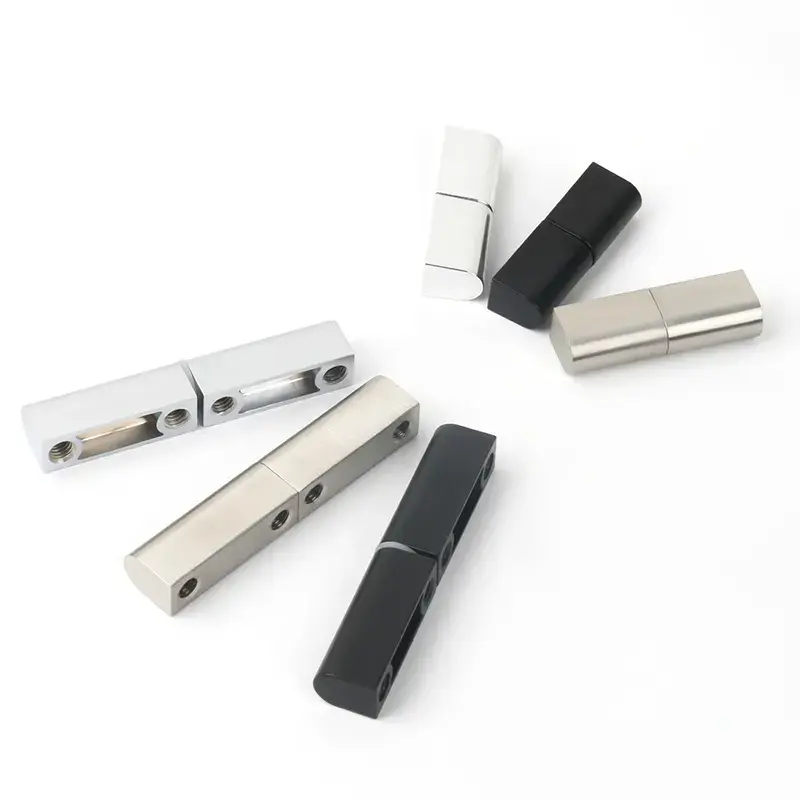

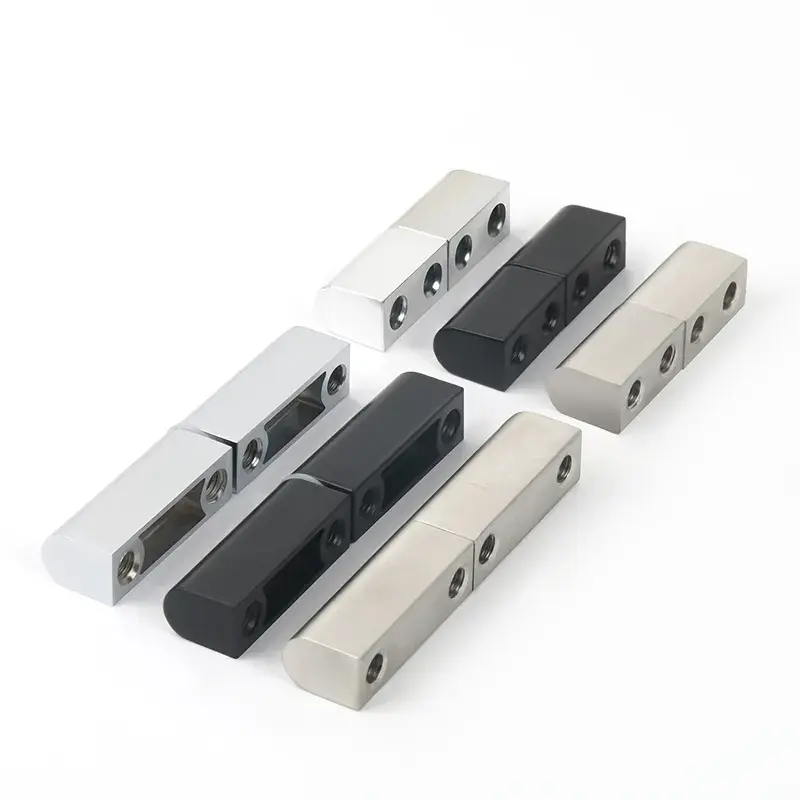

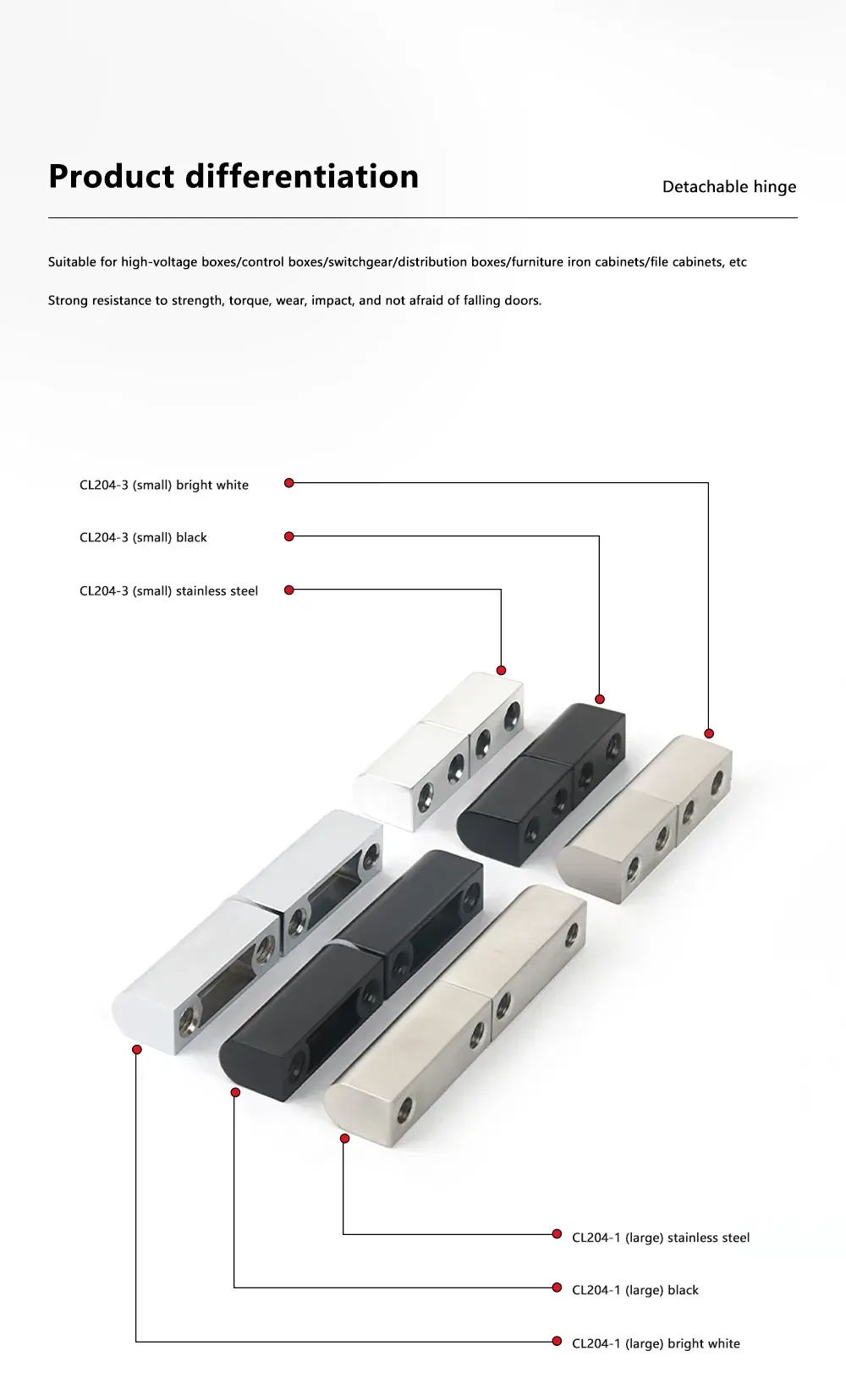

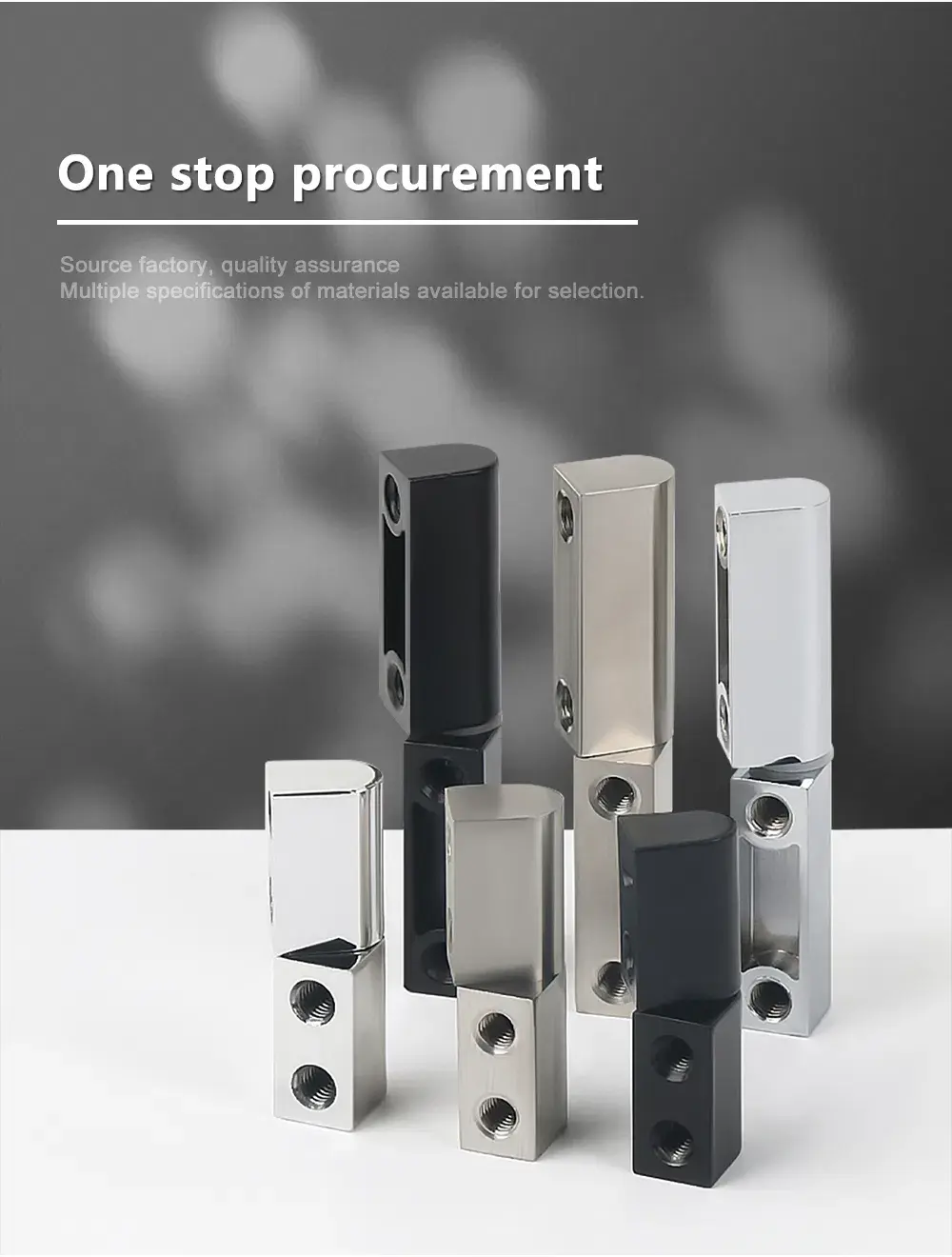

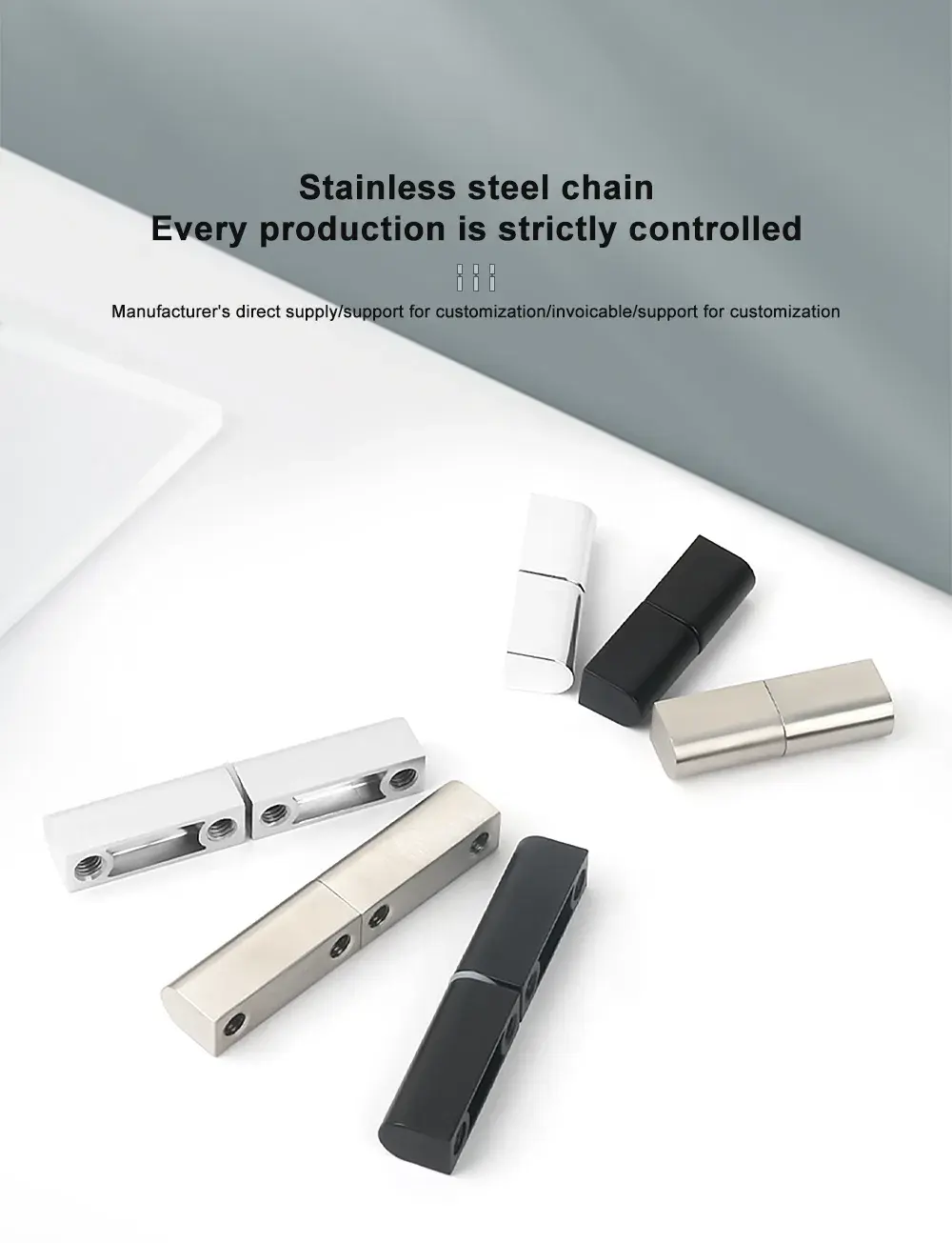

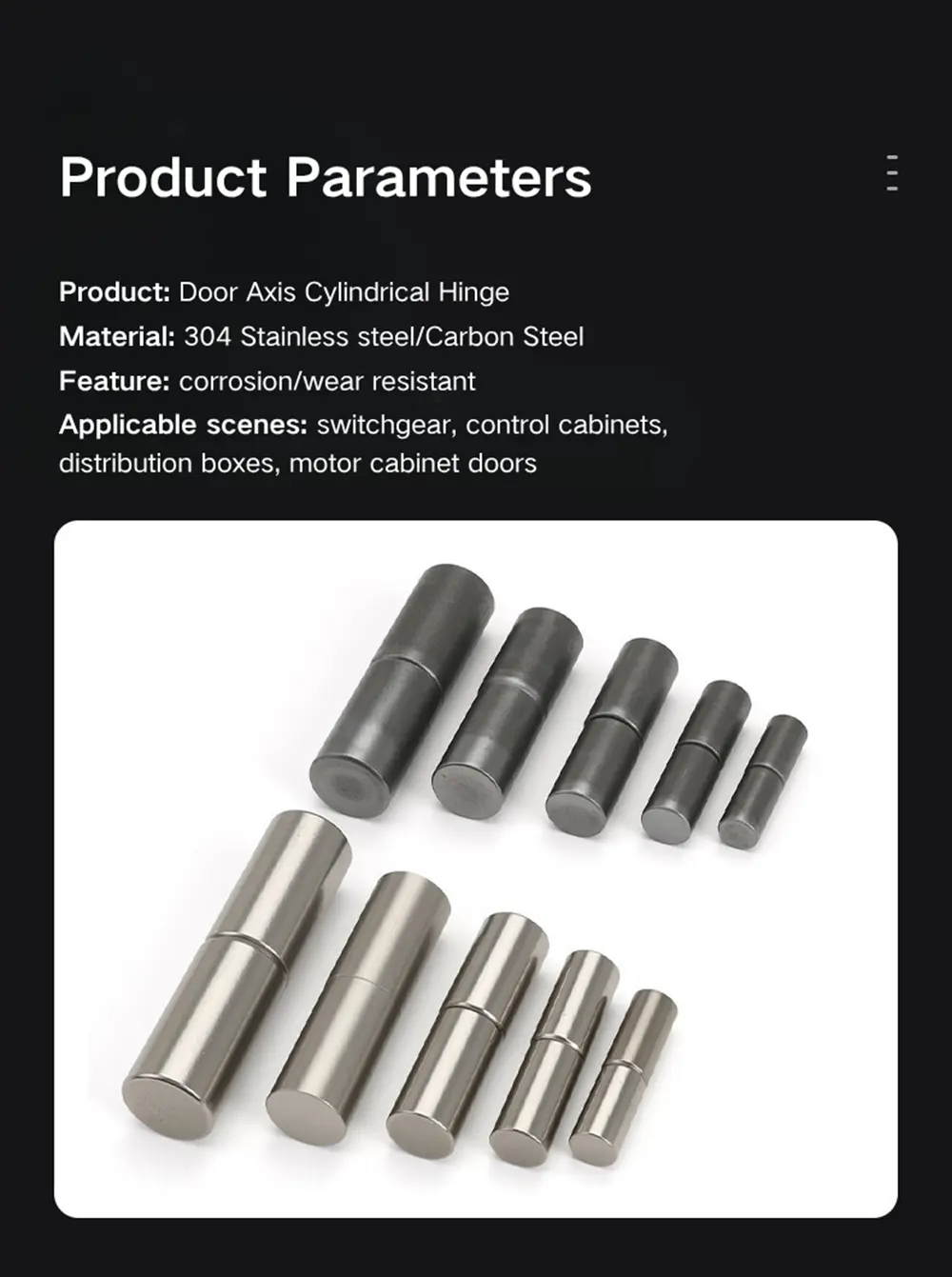

Materials and Colors:

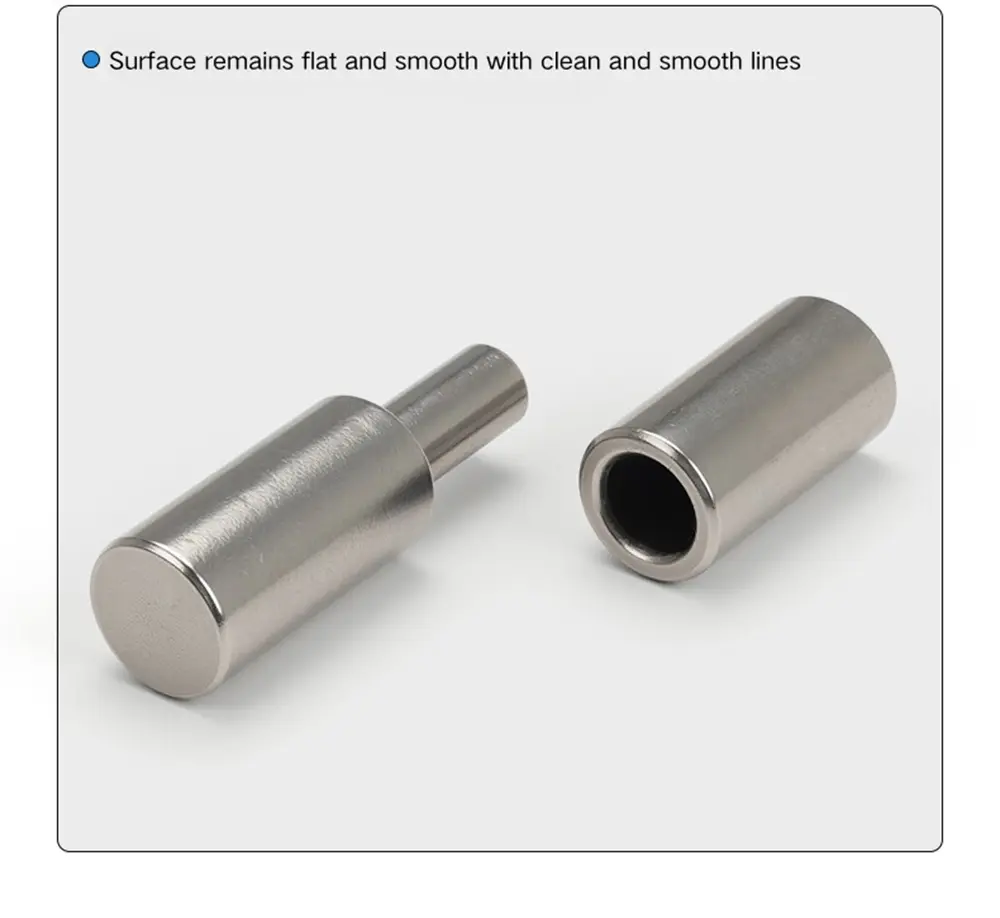

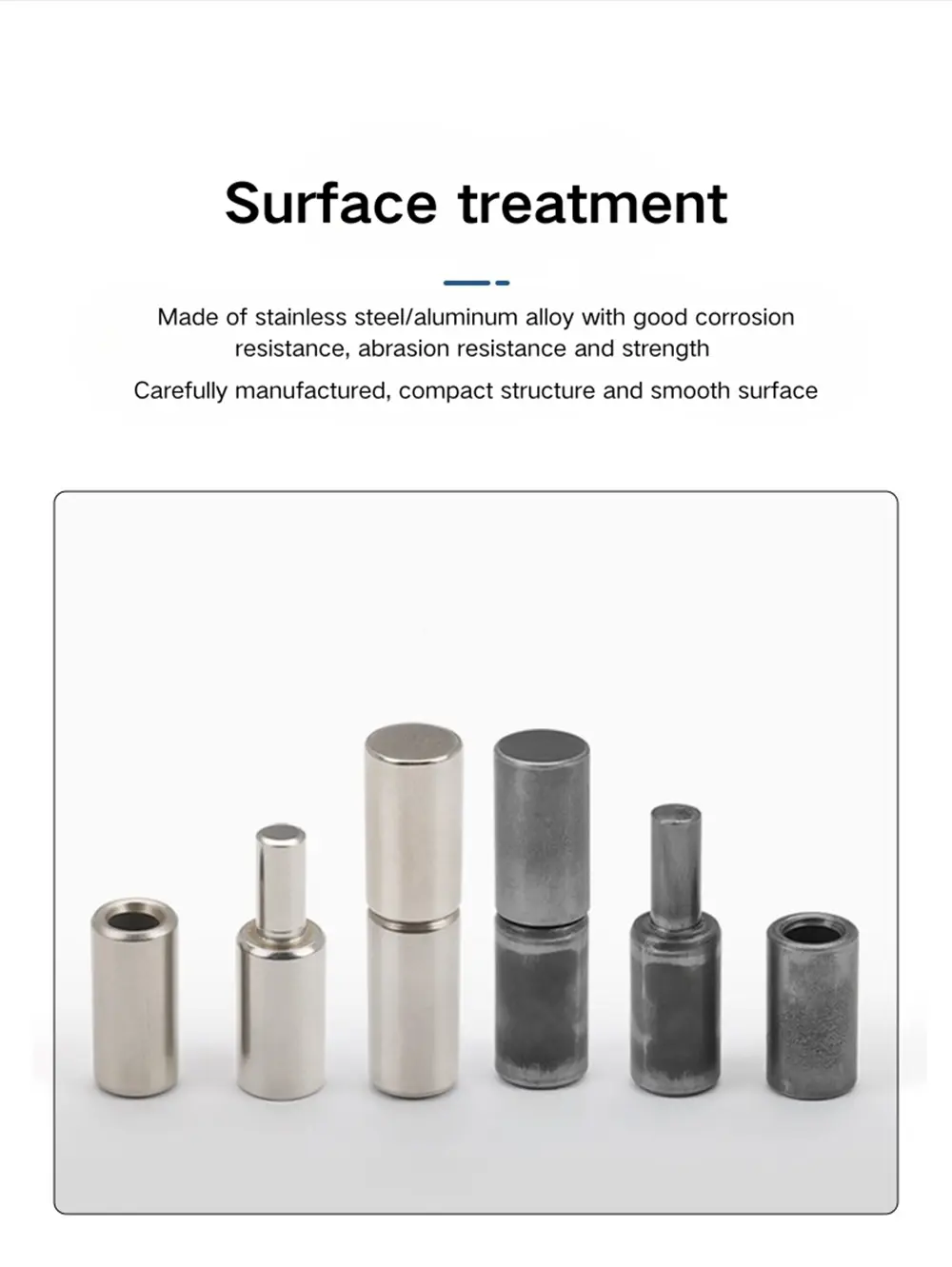

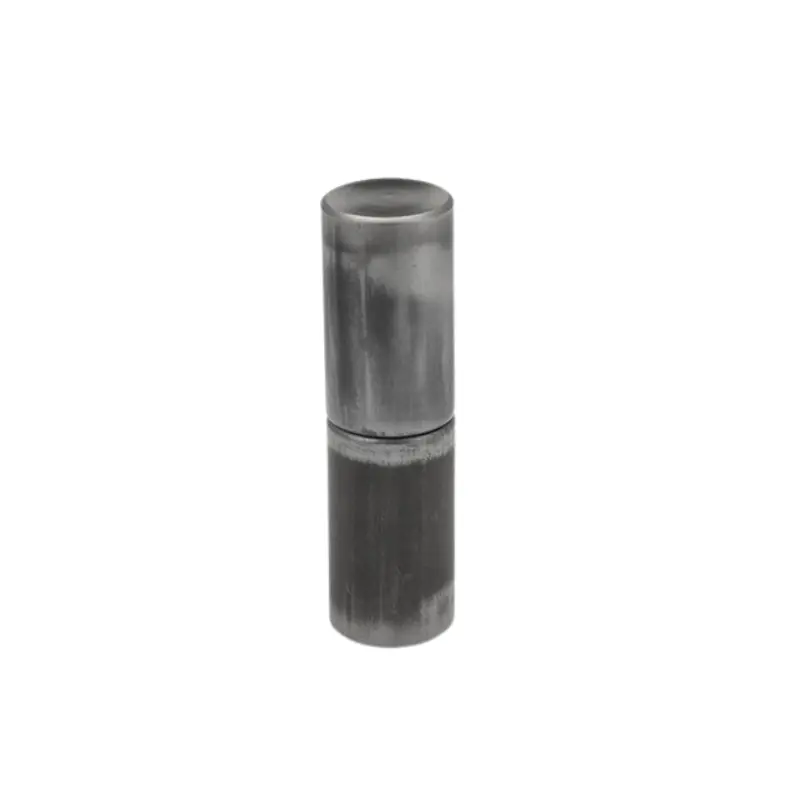

In-line hinge stainless steel lift-off is available in 201 stainless steel and 304 stainless steel, all versions maintaining the original metallic appearance. This model is also available in iron. Iron versions are galvanized for basic rust protection; 201 stainless steel for good corrosion resistance in regular environments; and 304 stainless steel for optimal resistance to oxidation, acids and alkalis for harsh environments. The surfaces are brushed or polished for industrial aesthetics and functionality.

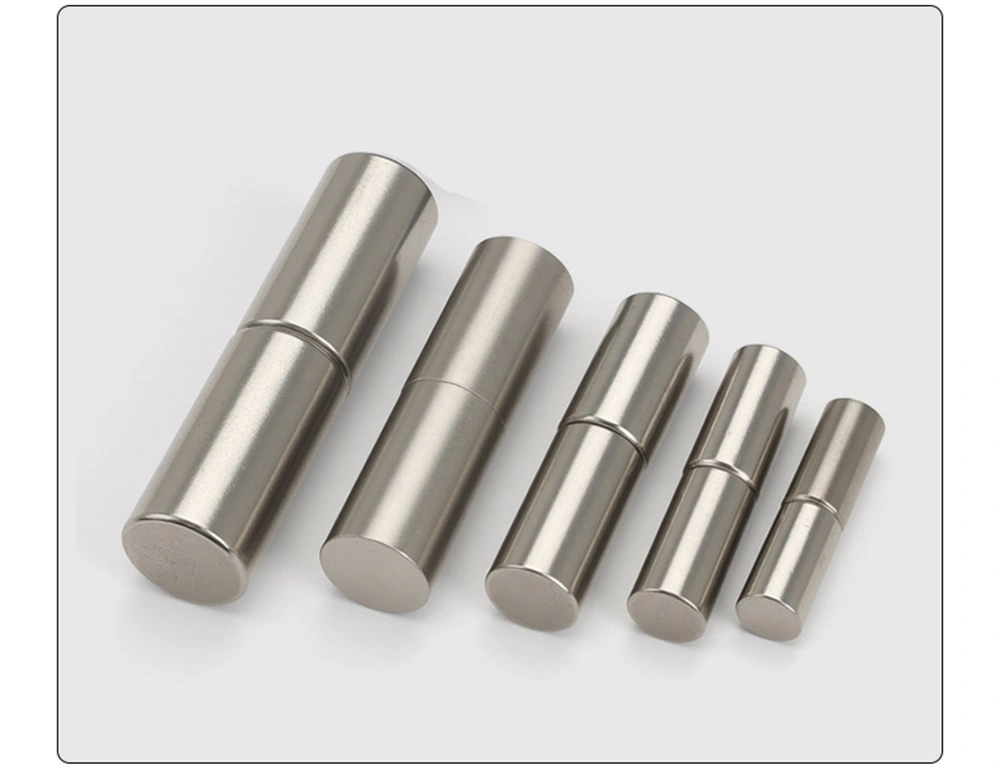

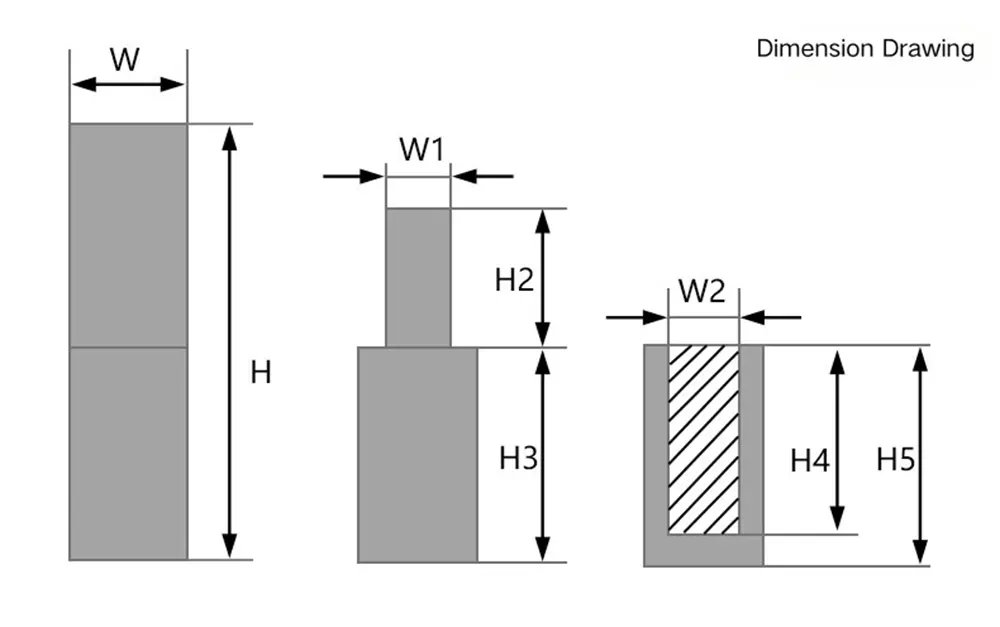

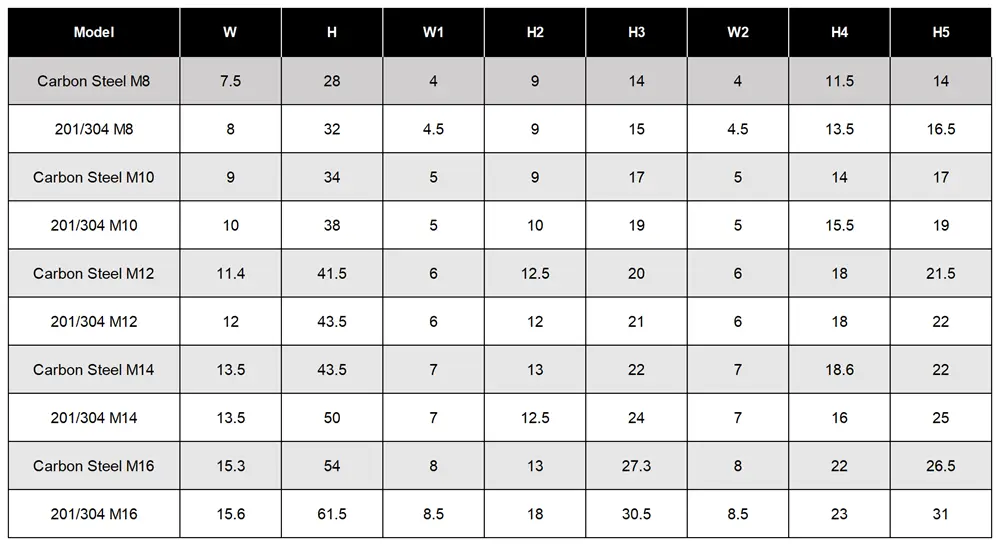

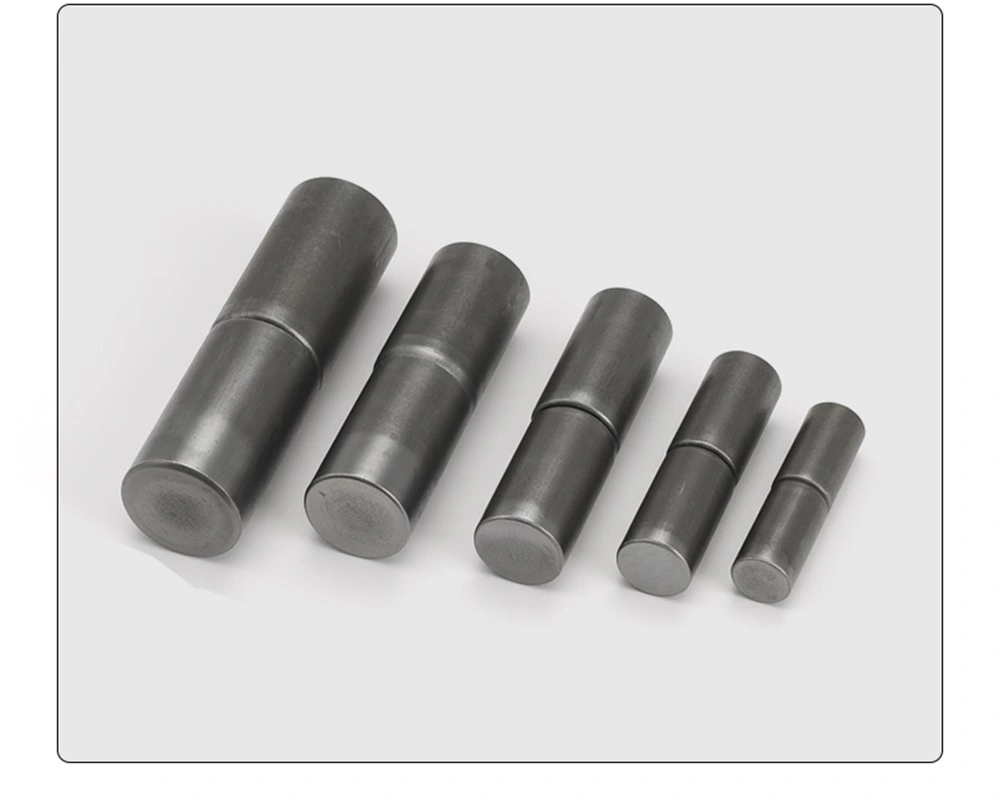

Dimensions

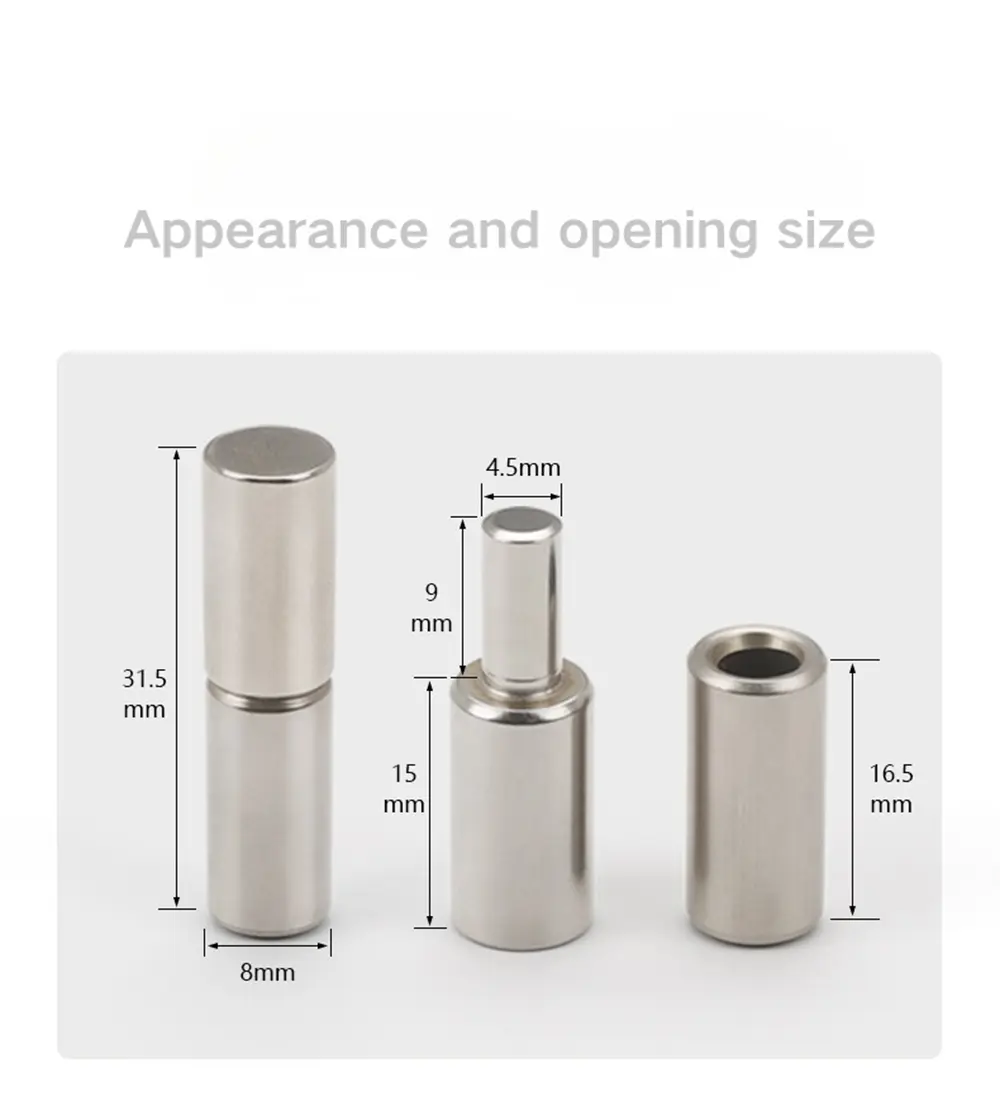

M8 (diameter of 8mm): the length of the iron material is 30.2mm, the length of 201/304 stainless steel is 31.6mm

M10 (diameter of 10mm): the length of the iron material is 33.4mm, the length of 201/304 stainless steel is 37.6mm

M12 (diameter of 12mm): the length of the iron material is 39.7mm, the length of 201/304 stainless steel is 31.6mm M12 (diameter 12mm): length of iron is 39.7mm, length of 201/304 stainless steel is 43mm.

M14 (diameter 14mm): length of iron is 50.8mm,

M16 (diameter 16mm): length of iron is 56mm, M16 (diameter 16mm): length of iron is 56mm.

Selection:

Conventional dry environment can choose lower cost iron galvanized version; places containing weakly corrosive media are recommended to use 201 stainless steel; coastal, chemical and other extreme environments must use 304 stainless steel. Multiple hinges need to be installed when the door panel is too wide or too heavy.

FAQ

Q: How to distinguish between 201 and 304 stainless steel?

A: Using stainless steel identification liquid detection, 201 meet reagent red, 304 keep the original color.

Q: How long is the maintenance cycle of galvanized iron plate ?

A: In humidity > 80% environment, need to spray water-based rust inhibitor every 3 months to extend the life.

Q: What is the lead time for customized non-standard sizes?

A: Please ask for specific delivery time if you can provide 3D drawings.

Q: How to determine the need for replacement?

A: Replacement should be done immediately when the free sagging angle of the door panel is >5° or when the opening and closing force is more than 2 times of the initial value.

Q:What is the effect of exceeding the recommended weight of the door panel?

A: Overloading may lead to deformation of hinges and sinking of door panels. Long-term overloading will shorten the life of the product, and in serious cases, it may cause potential safety hazards.
