Spring Bolts Latch Hinge

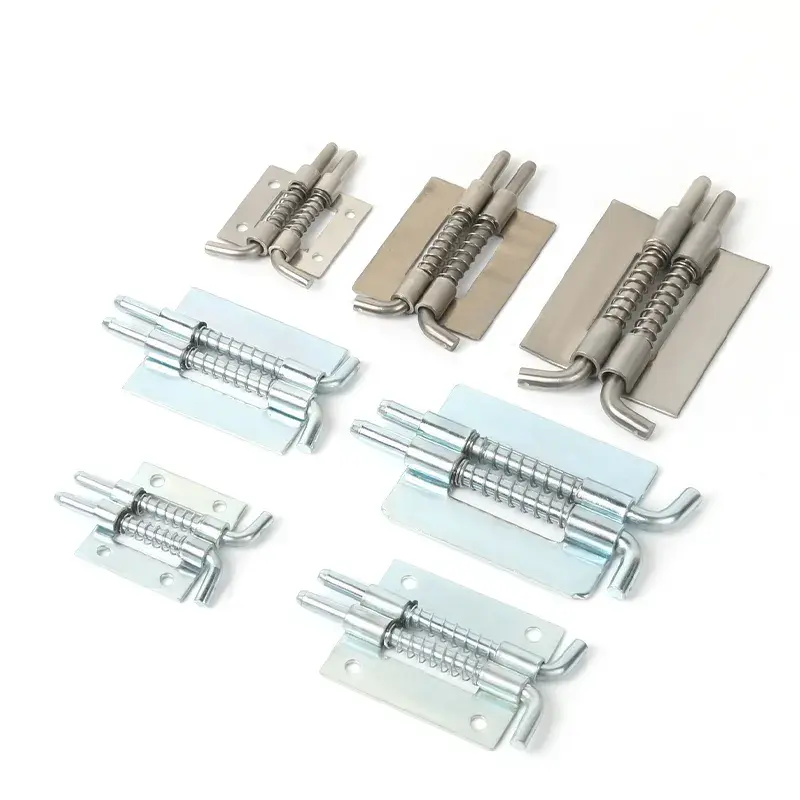

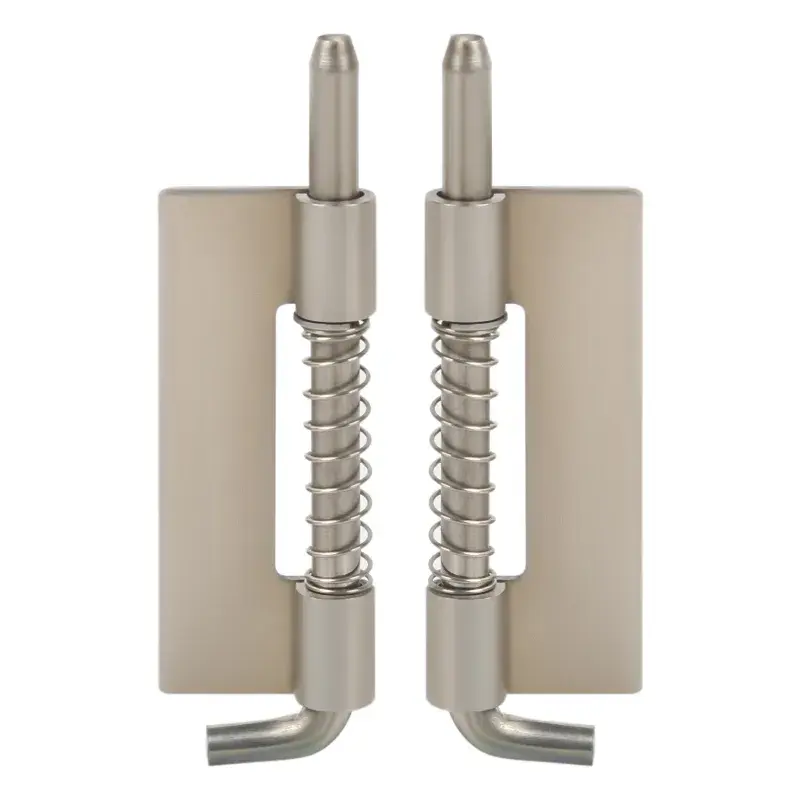

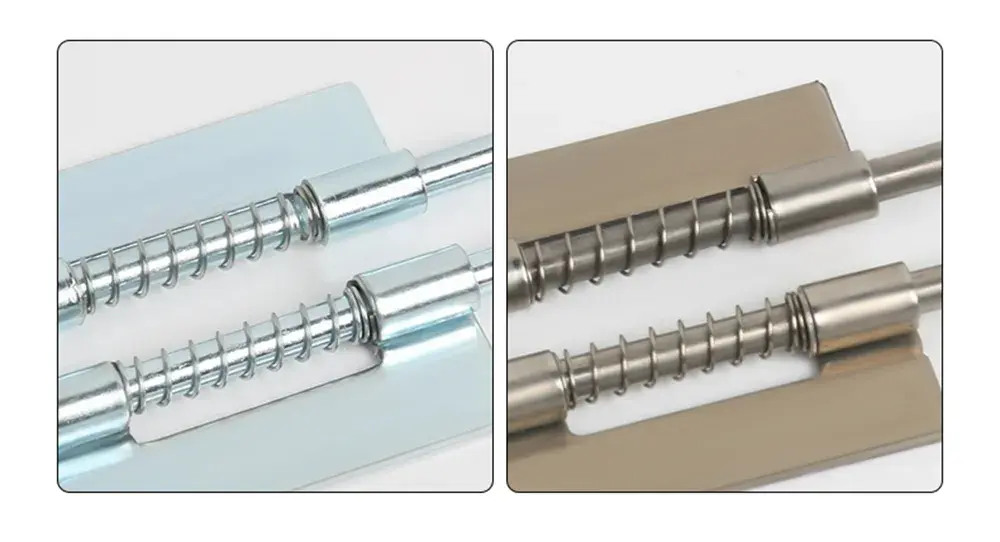

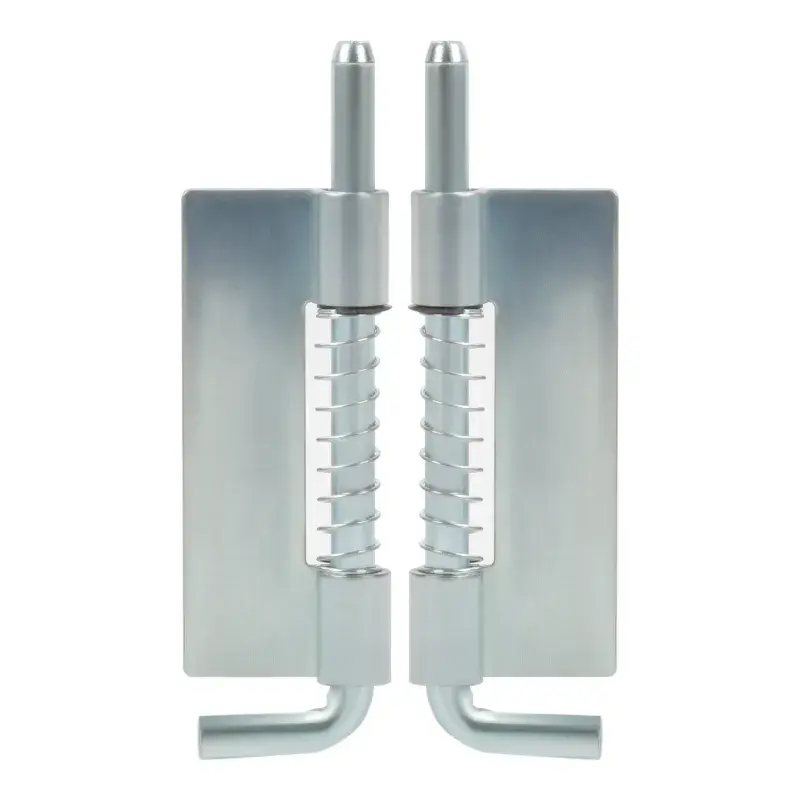

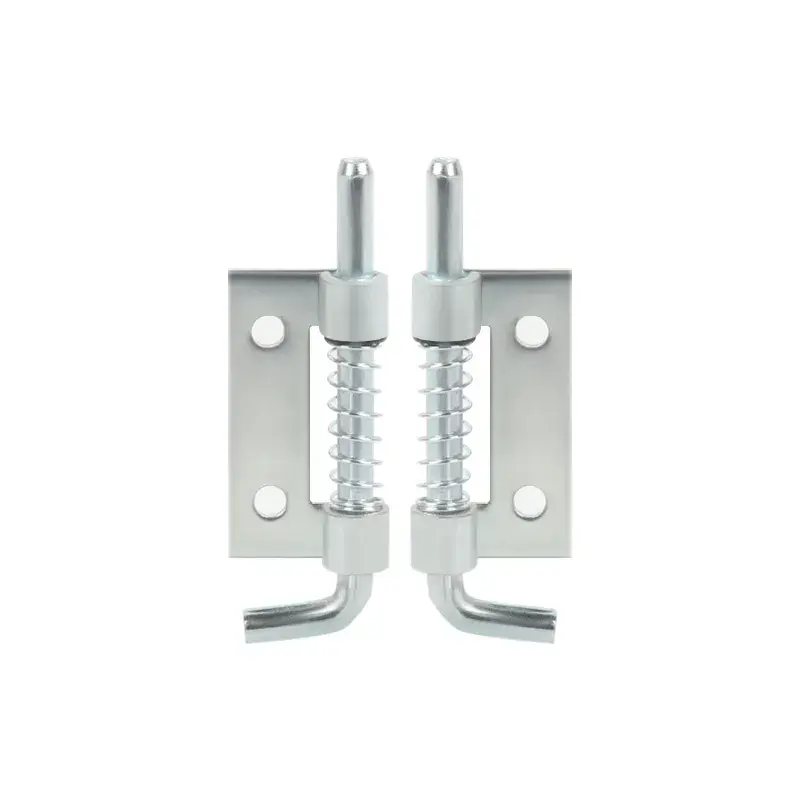

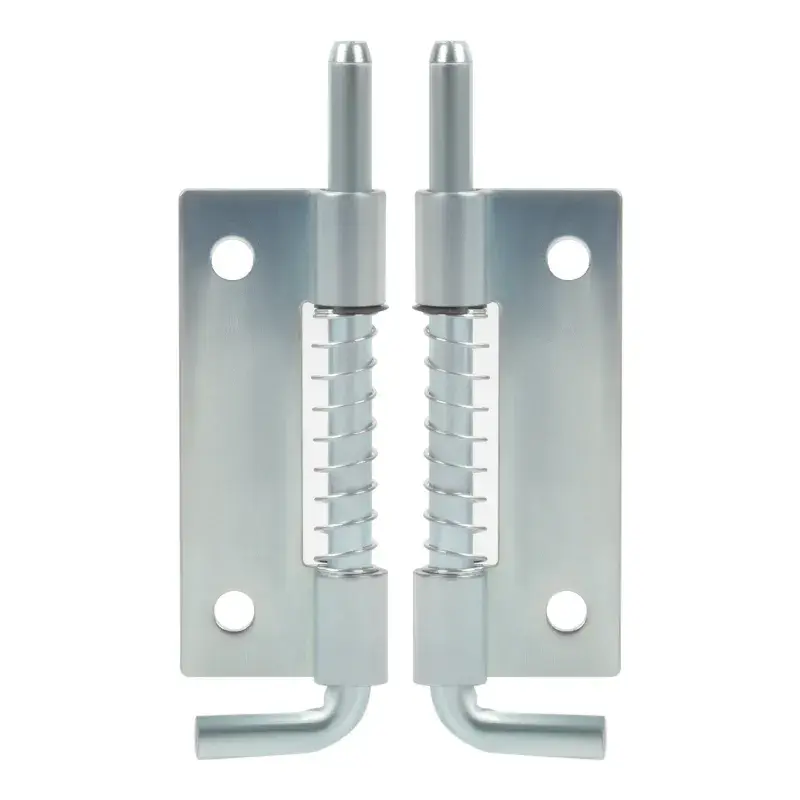

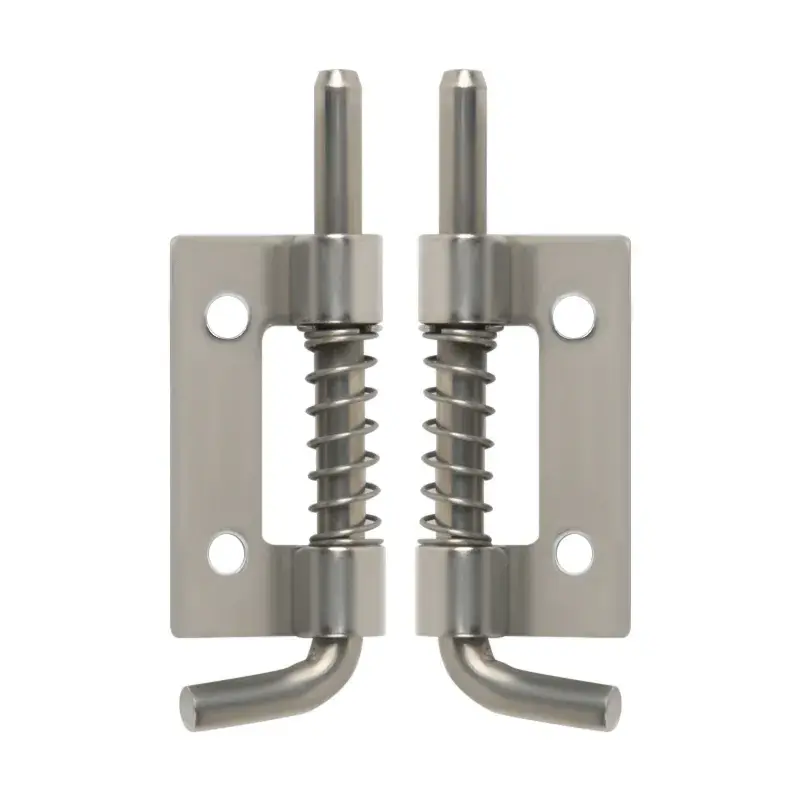

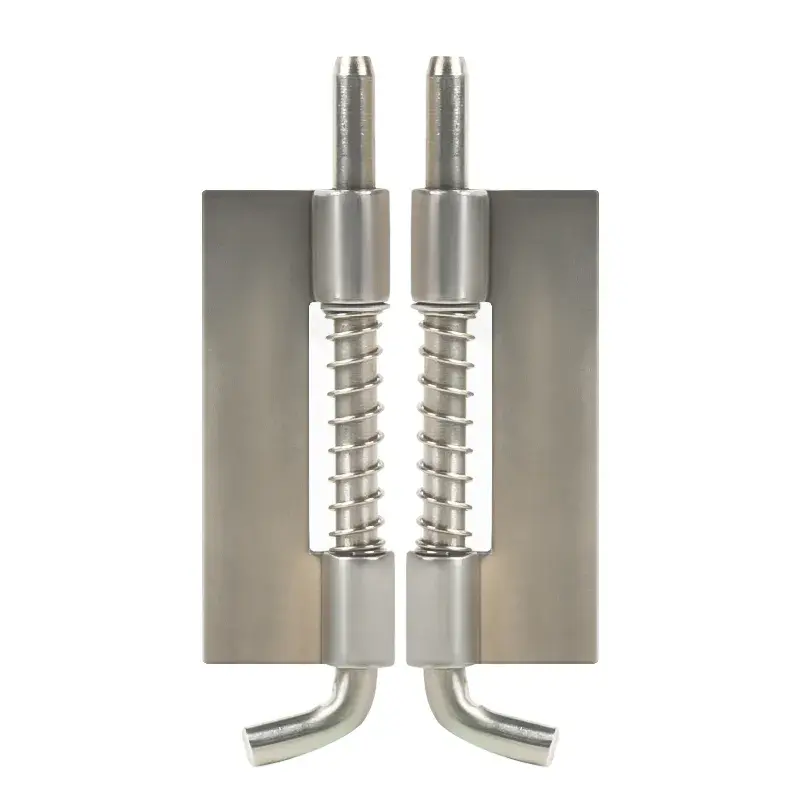

Yitai Lock has standard size cabinet hinges in stock for immediate shipment. The CL225 welded hinge is a spring loaded concealed hinge for electrical boxes and cabinets, with a flat plate structure for concealed installation of the door. The spring loaded pin mechanism ensures smooth opening and closing of the door and precise positioning.

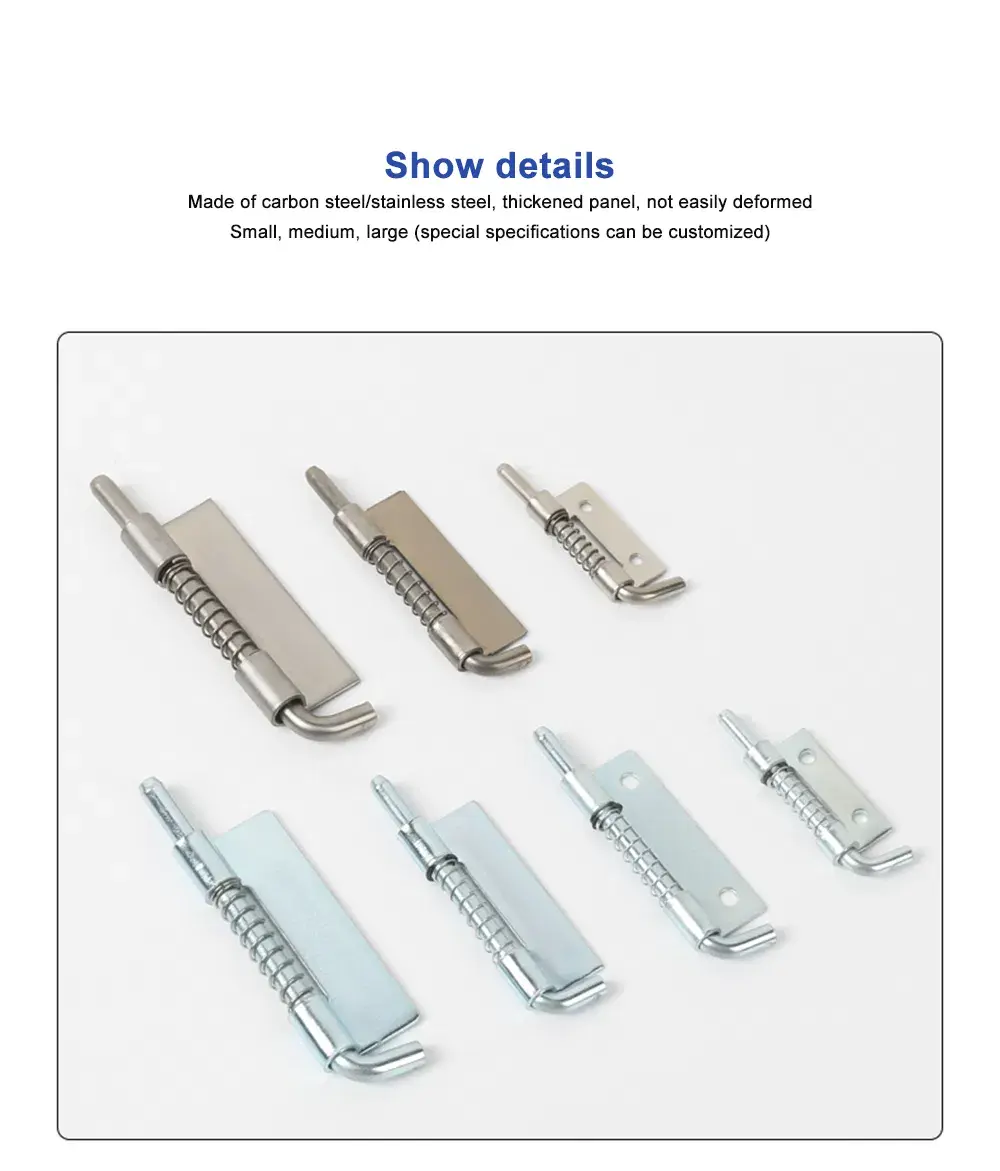

Material and Color:

This series of hinges are available in galvanized iron, 201 stainless steel and 304 stainless steel. The iron version is galvanized to achieve basic rust prevention and is silver in color. 201 stainless steel is sufficiently corrosion-resistant in regular environments and is available in primary color; 304 stainless steel in primary color offers optimal oxidation and corrosion resistance.

Dimensions

Standard Sizes:

Length: 100mm, 125mm, 150mm (total unfolded hinge length).

Width: 25mm, 30mm (single leaf width).

Thickness: 1.2mm, 1.5mm, 2.0mm (varies by material).

Installation and Maintenance:

Installation requires arc welding or tig welding fixing, local polishing is recommended after welding. Routine maintenance only need to check the pin spring tension every year, stainless steel version of the salt spray environment needs to be flushed with fresh water every six months. The hinges need to be replaced when there is a significant increase in resistance to opening and closing the door.

Applications

Furniture

Cabinets, wardrobes,(select load-bearing capacity based on door weight).

Industrial Equipment

High and low voltage distribution cabinet, industrial control box, outdoor communication cabinet.

Architectural Doors/Windows

Lightweight interior doors.

FAQ

Q: Does welding installation affect the hinge performance?

A: Professional welding will not affect the performance, but need to control the temperature of the heat affected zone.

Q: Is the surface finish customizable?

A: Brushed, mirror and other surface finish options are available, please inquire specifically for minimum order quantities.

Q: Can I paint or customize the hinge color?

A: Yes, but ensure the surface is pre-treated (e.g., sandblasted for paint adhesion). Powder-coated hinges offer better durability than DIY painting.

Q: How long is the maintenance cycle?

A: Regular environment check once a year, corrosive environment check the lubrication condition of the pin mechanism every six months.

Q: What technical support is provided after purchase?

A: Installation instruction video and after-sales support are available.
