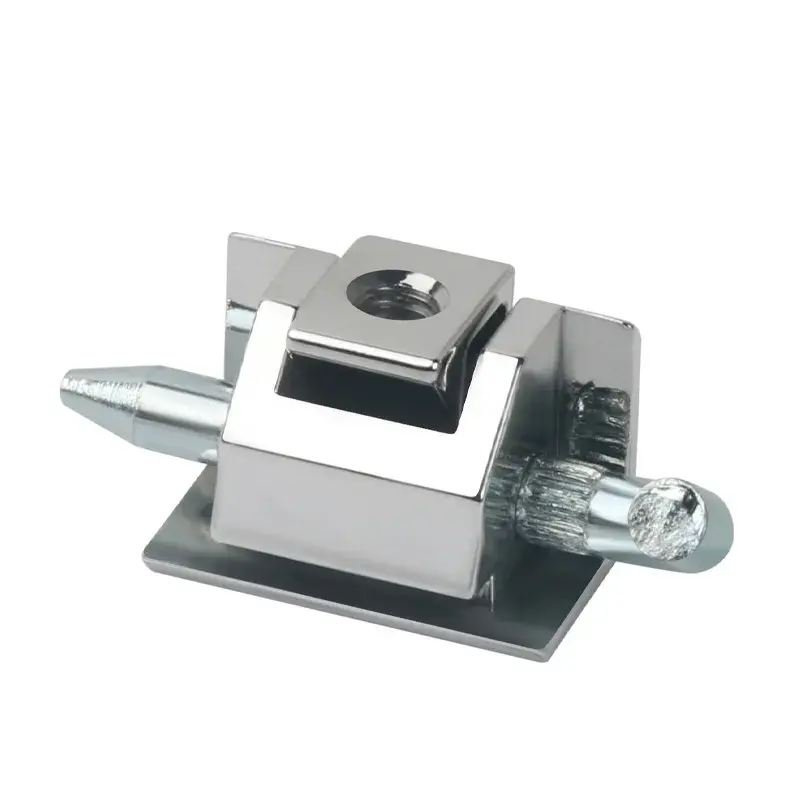

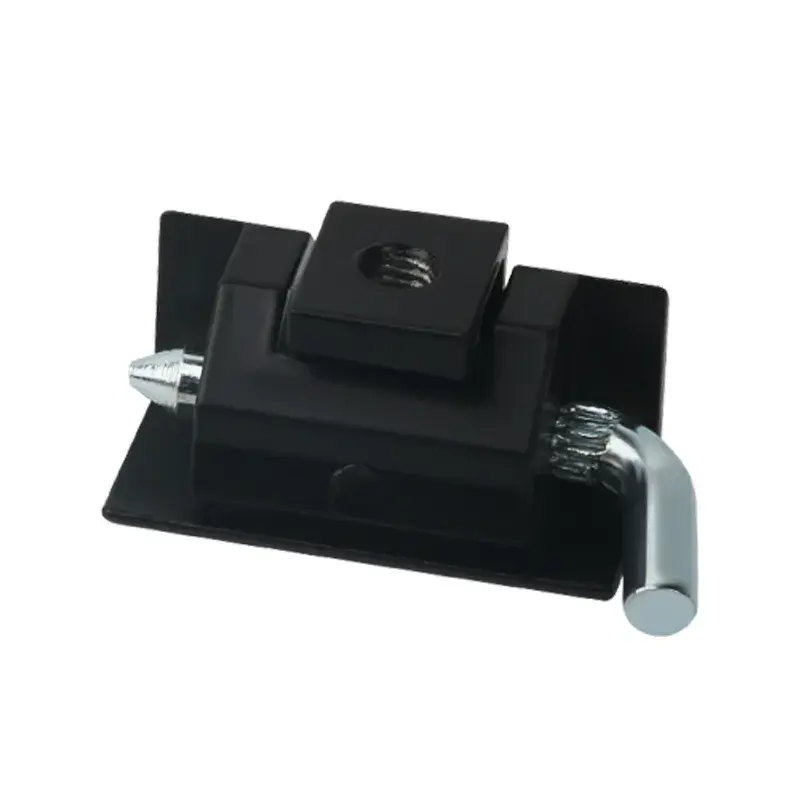

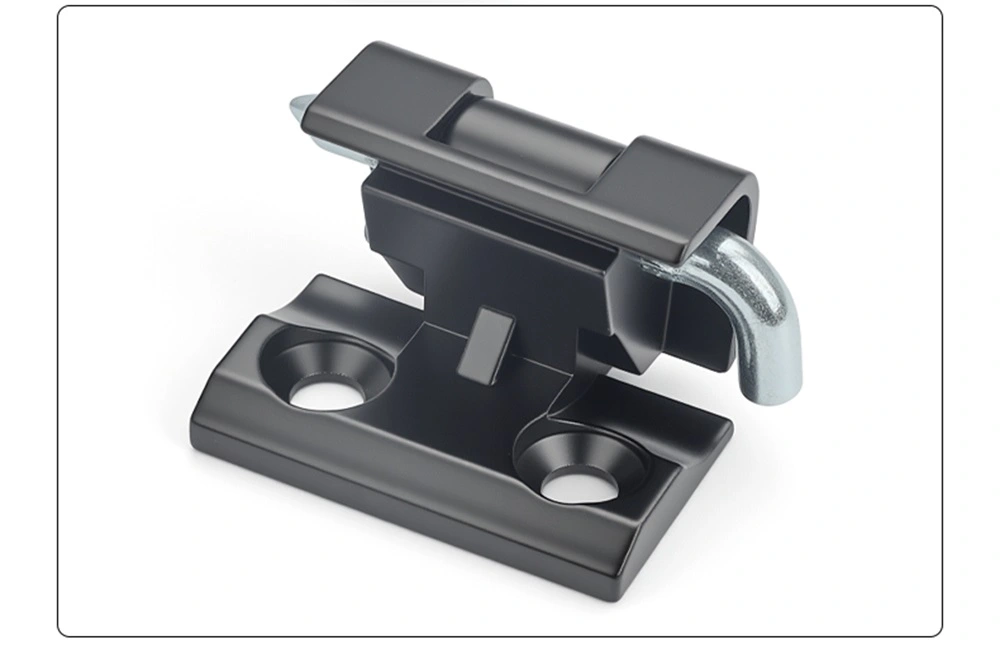

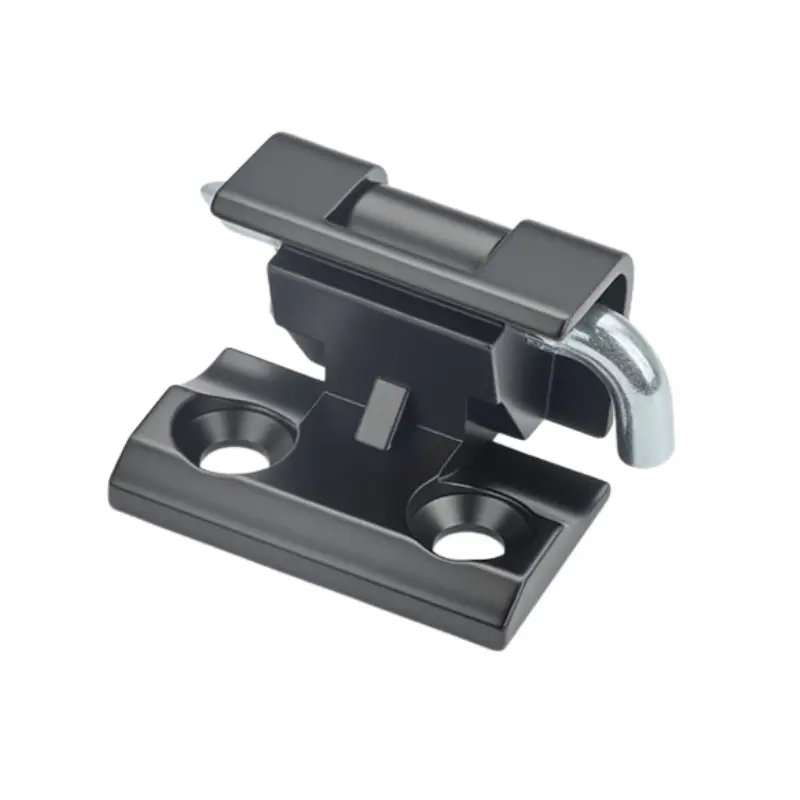

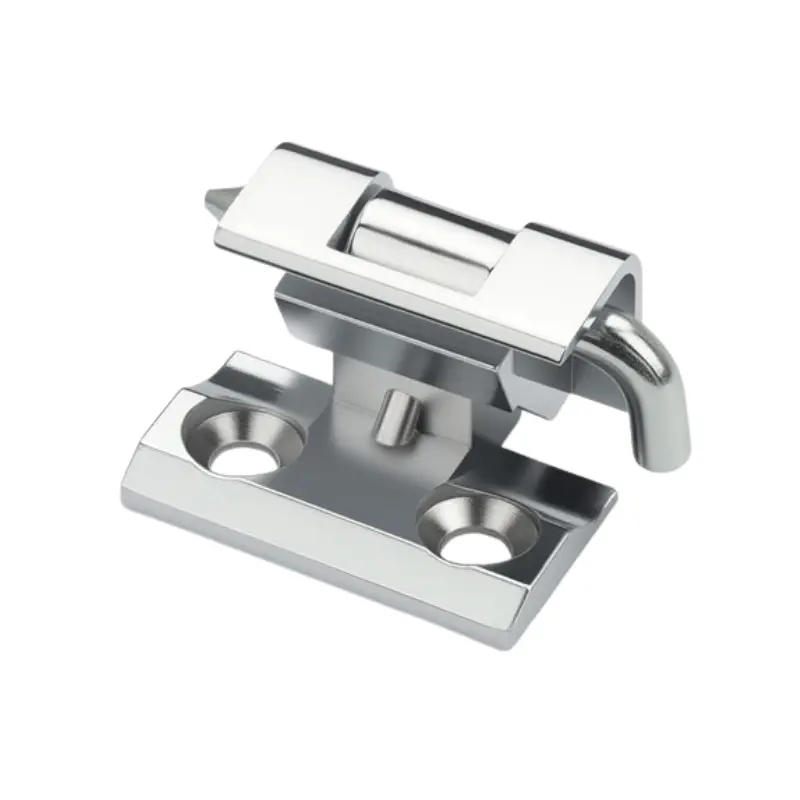

Clip-in Pin Electric Cabinet Hinge

Consumers can apply for free Clip-in pin electric cabinet hinge samples of Yitai Lock industrial lock.The card-style latch hinge for electrical cabinets is a concealed hinge specifically designed for distribution cabinets and switchgear cabinets.

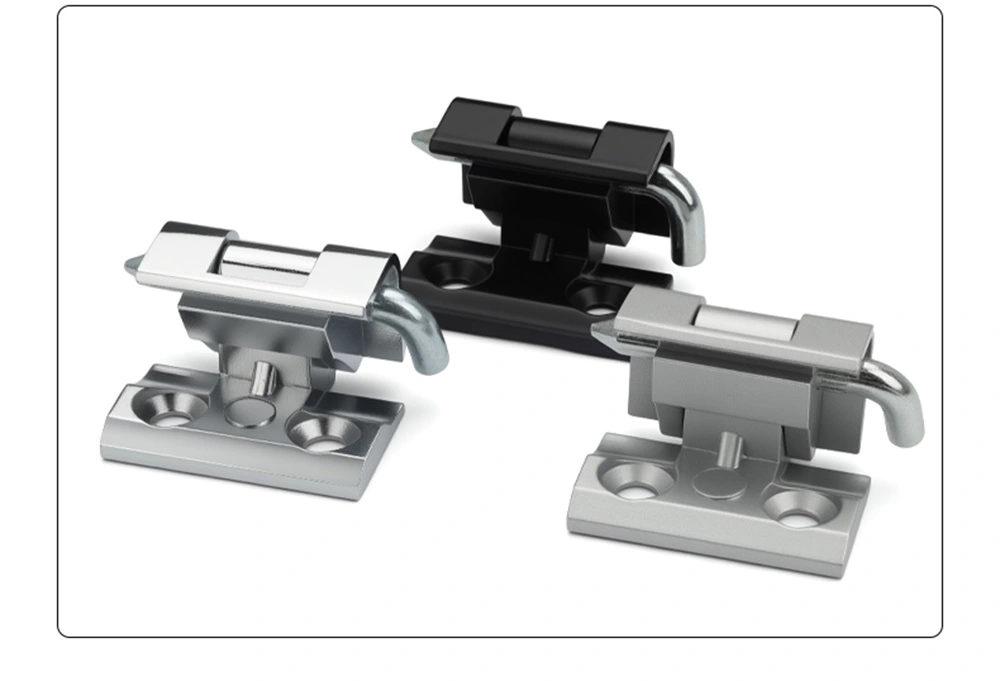

Material and color:

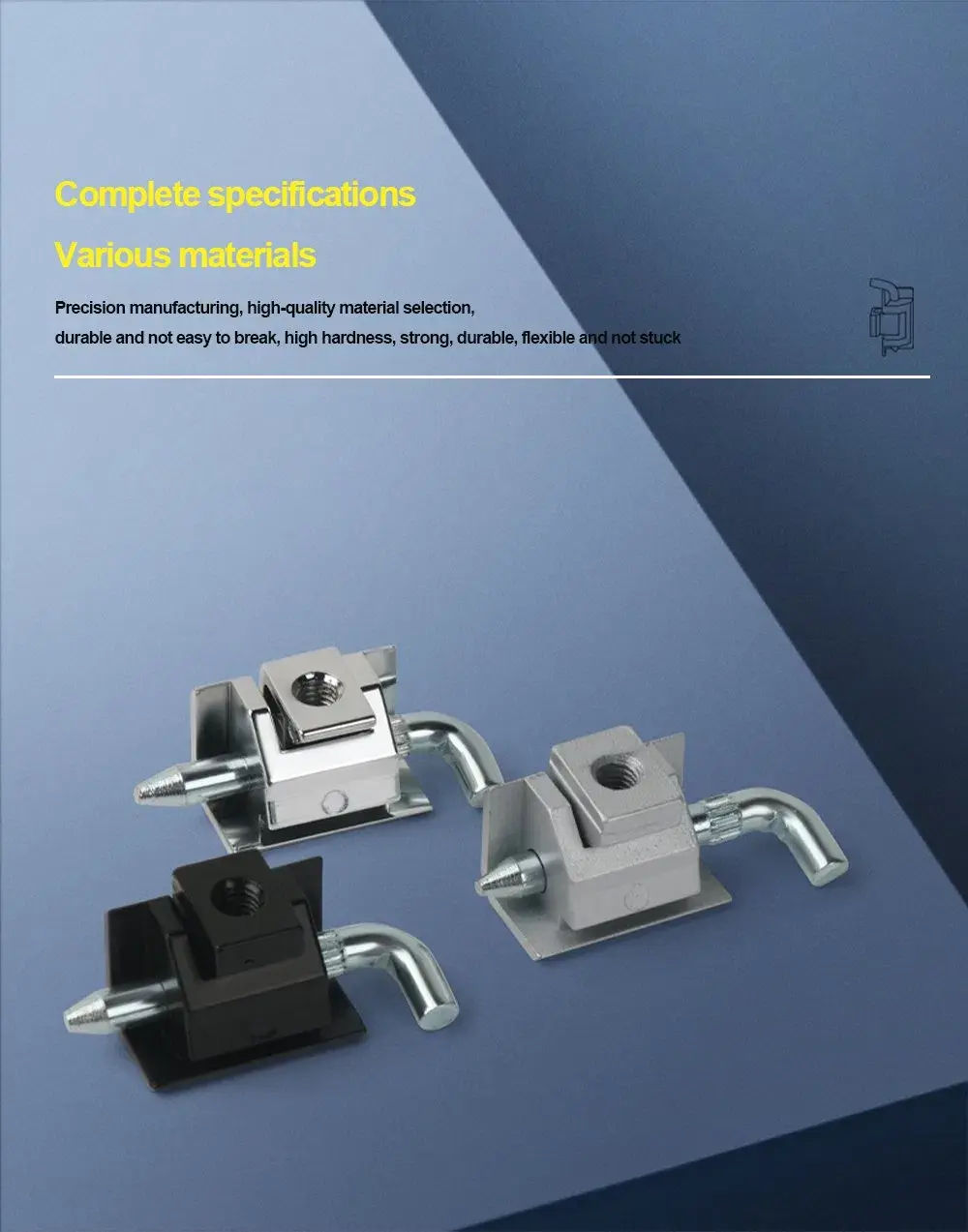

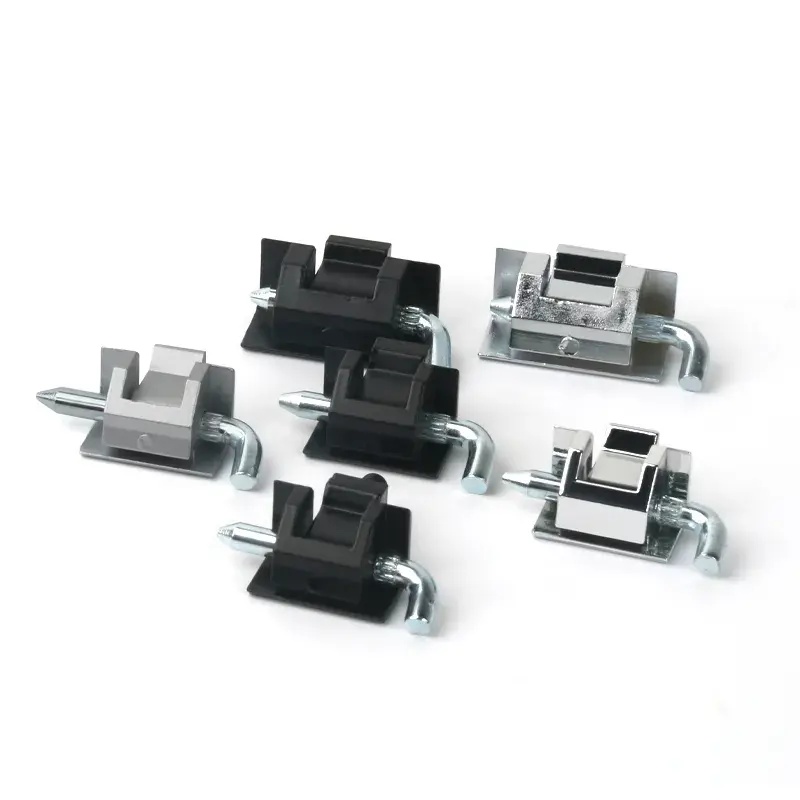

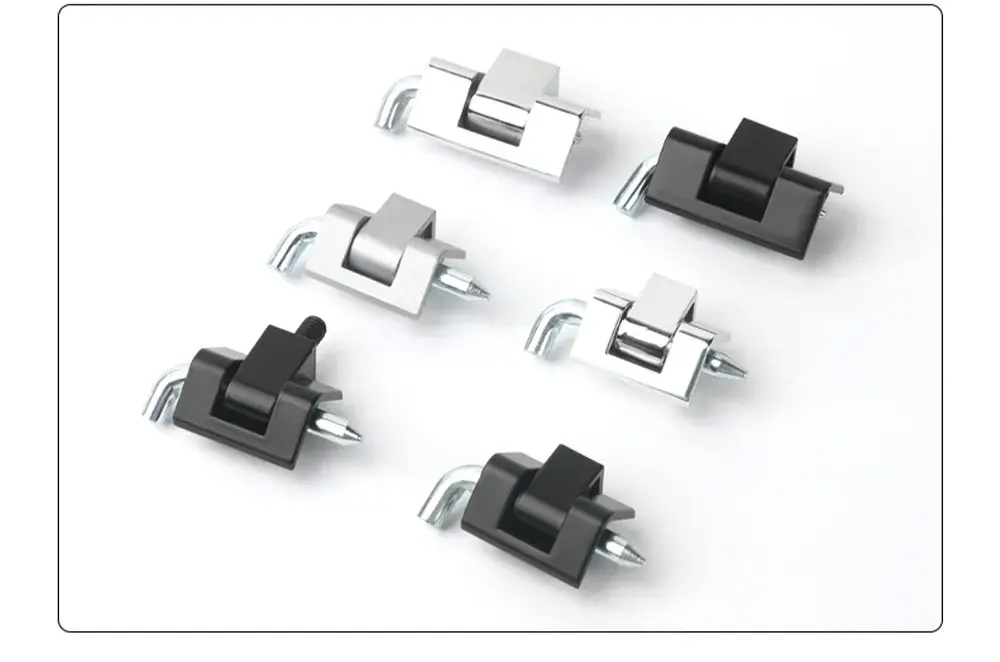

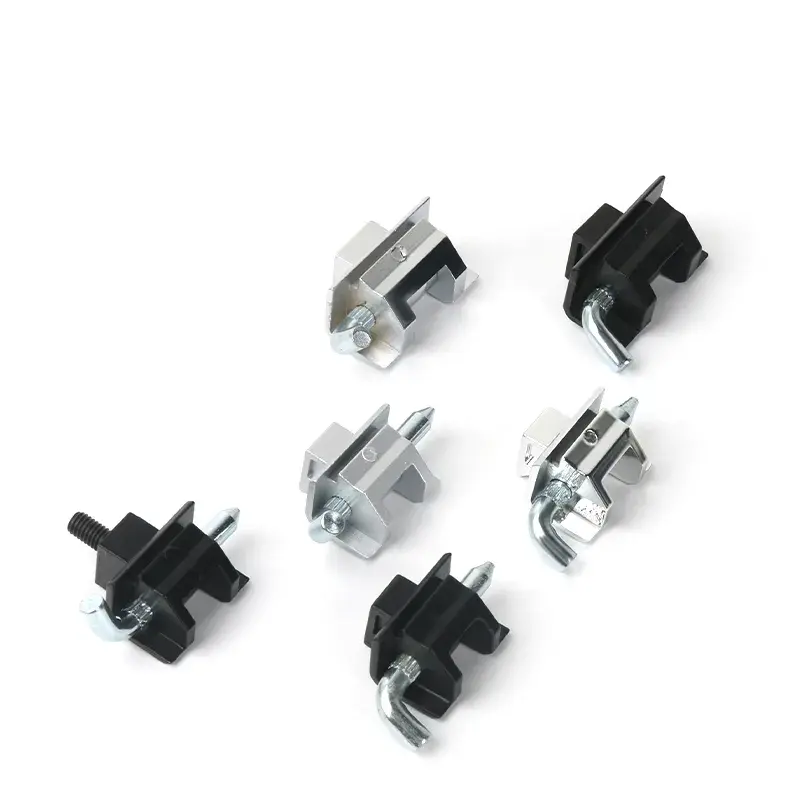

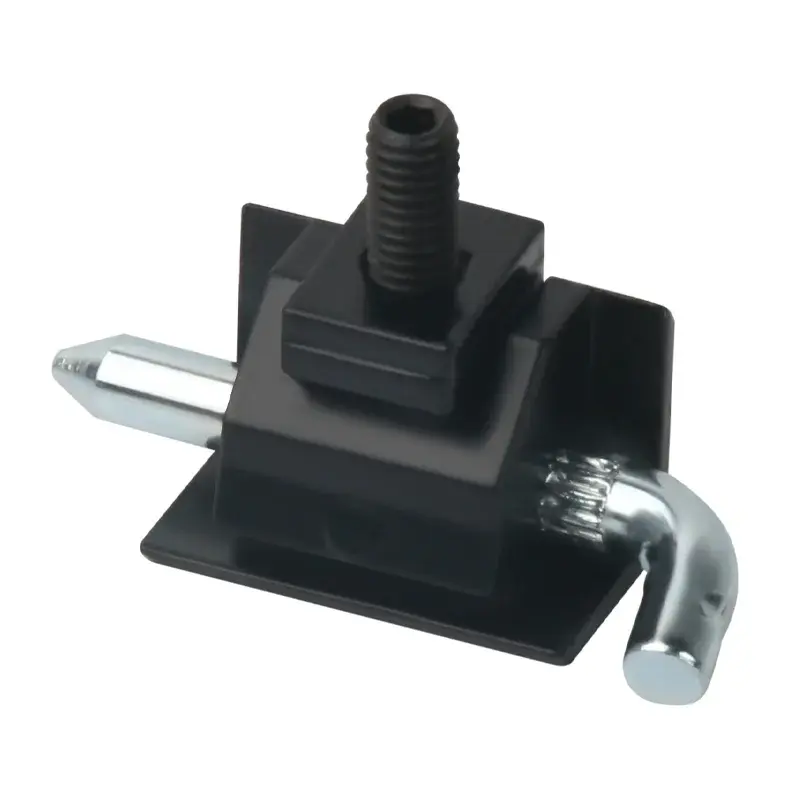

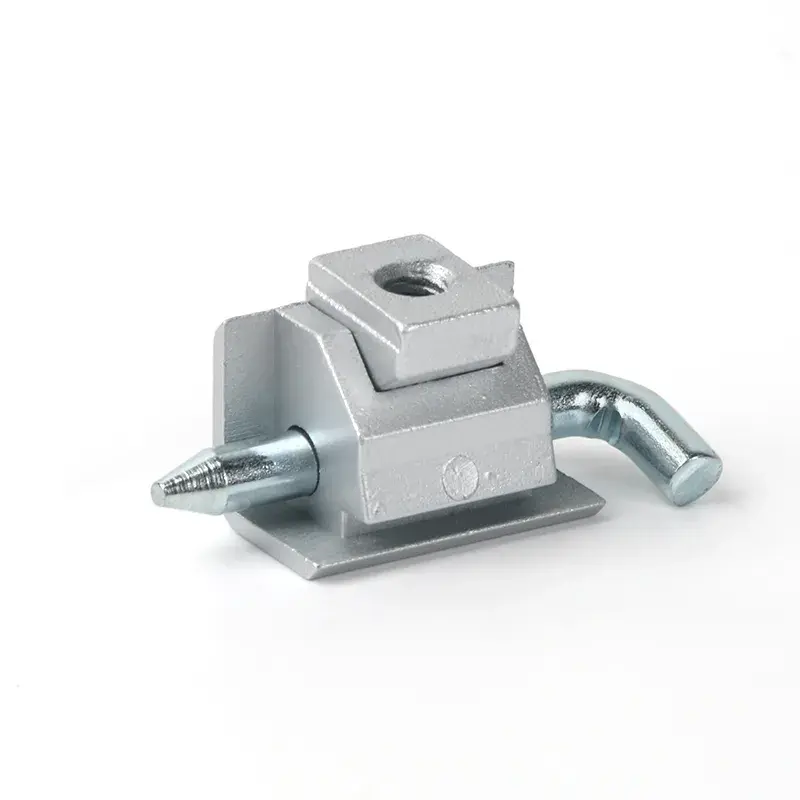

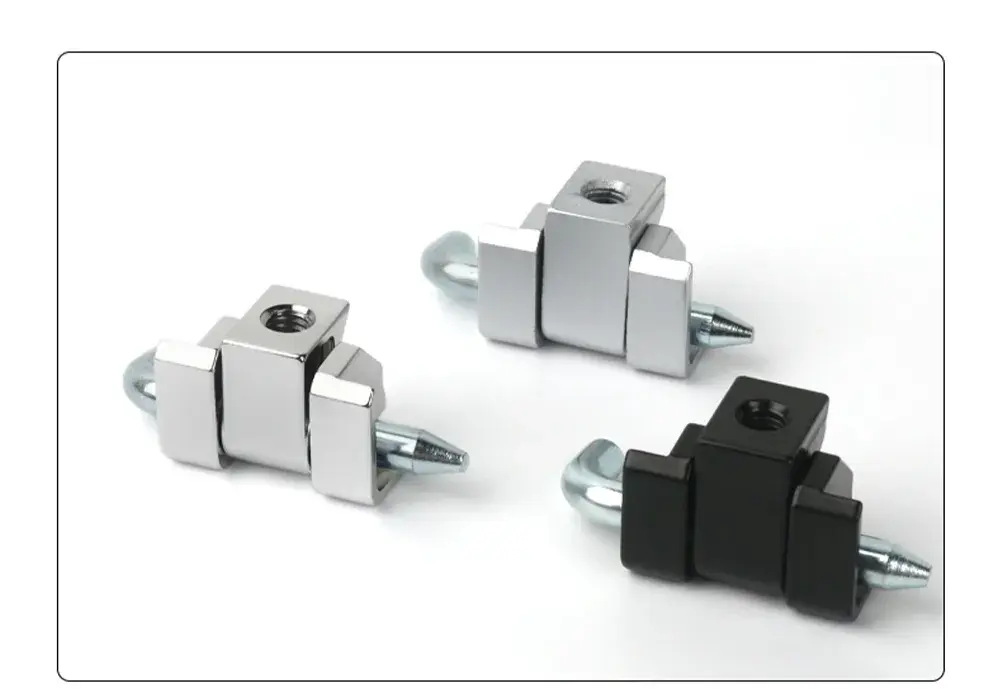

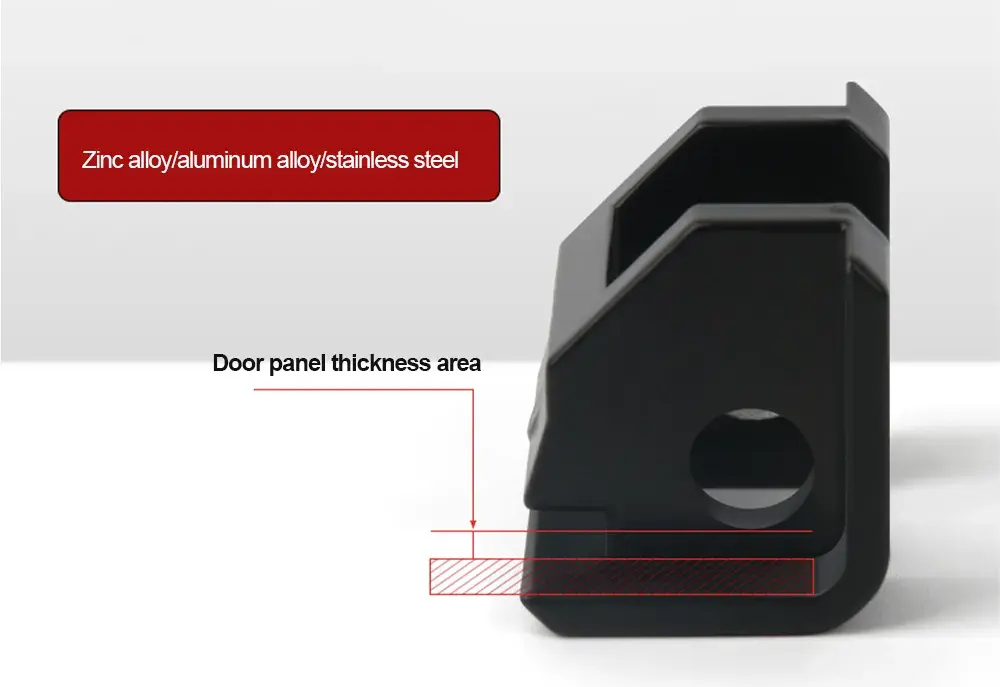

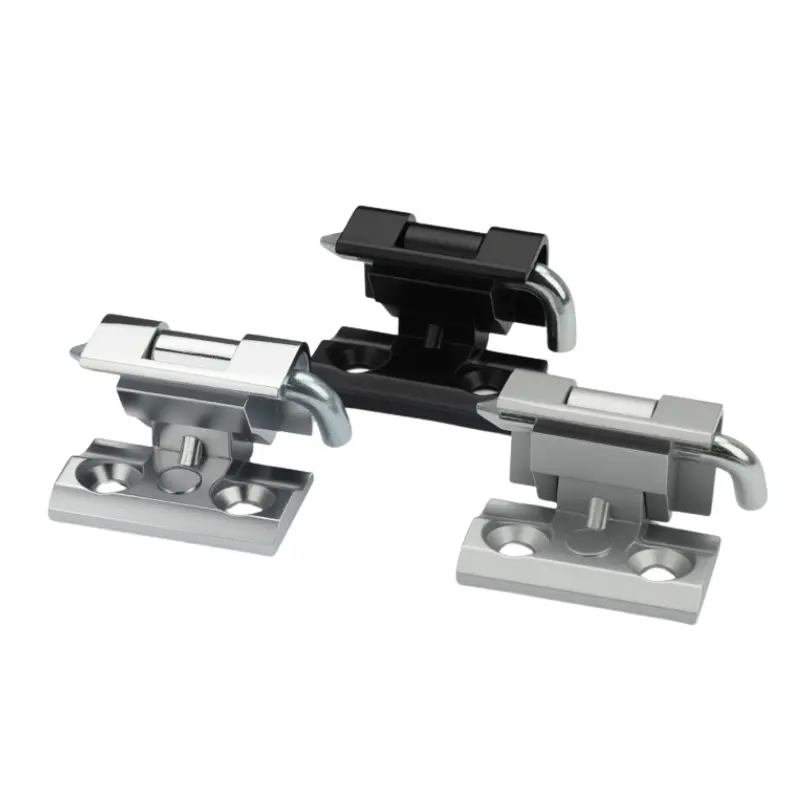

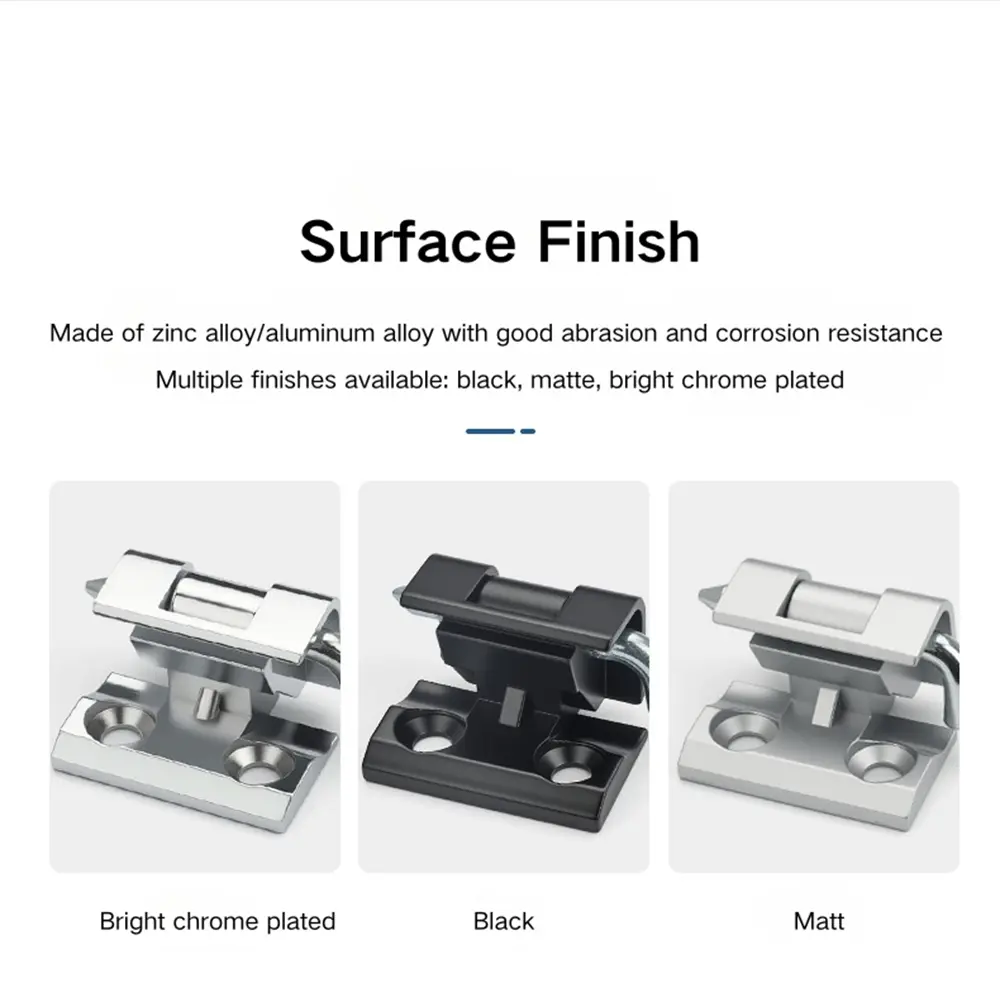

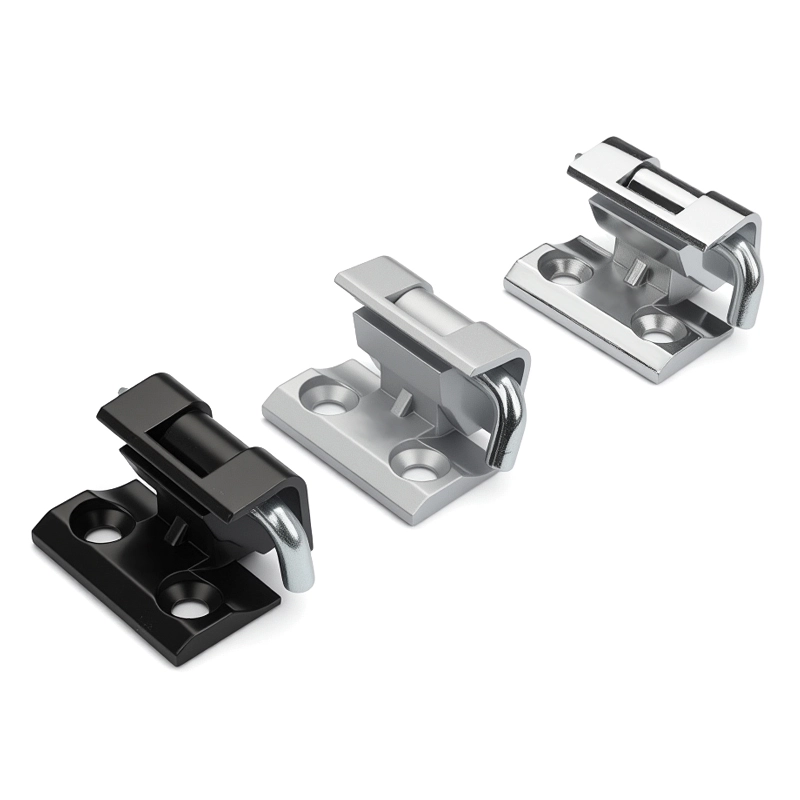

The hinges of the card-type plug-in electrical cabinet are made of aluminum alloy or zinc alloy. Aluminum alloy is available in black, bright chrome, and matte finishes, while zinc alloy is available in black and matte finishes through a spraying process, offering higher mechanical strength.

Features:

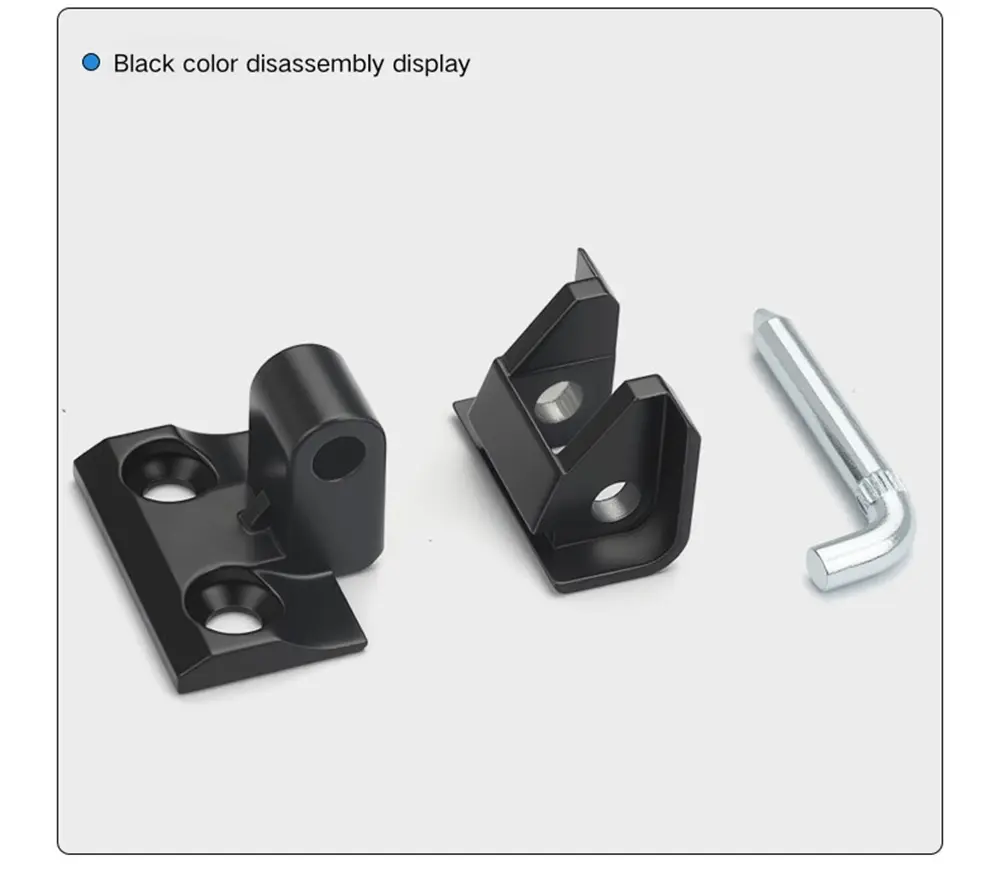

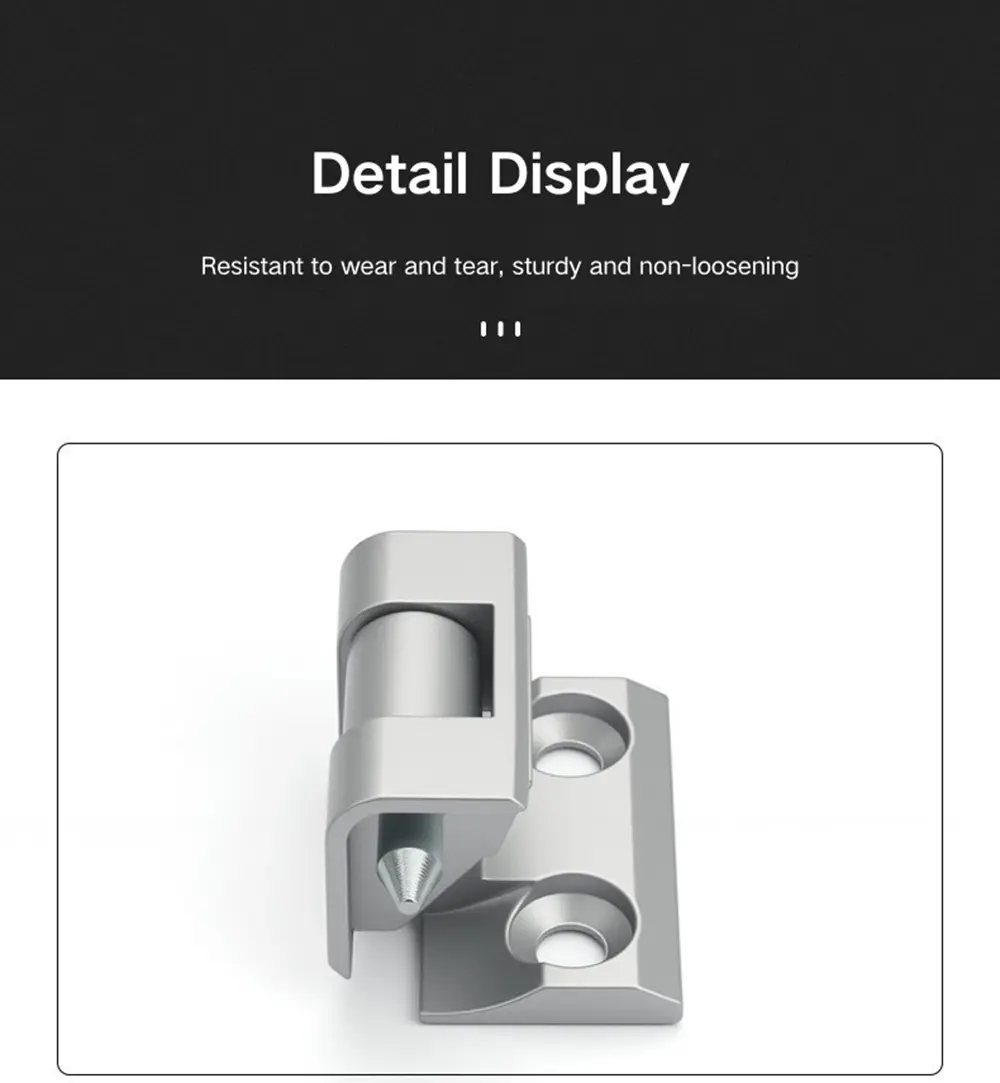

The built-in latch design eliminates exposed parts, effectively preventing accidental contact or human damage, and greatly improving equipment safety. The structure is compact, supports left and right door opening and closing, can rotate smoothly by approximately 180°, supports quick disassembly and assembly, and simplifies the process. Complies with power equipment protection level requirements.

Application scenarios:

Mainly used in high-voltage switchgear cabinets, smart meter boxes, industrial automation control cabinets, and other fields. Examples include data center cabinets, rail transit equipment boxes, outdoor communication base stations, and ship electrical cabinets. In the commercial field, it can also be used in high-end display cabinets, medical equipment boxes, and other situations that require concealed installation.

FAQ

Q1:What is the core difference between card-type latches and traditional hinges?

A: Card-type latches are hidden inside the door panel, combining anti-theft functionality with visual simplicity.

Q2: Do they fail under extreme temperatures?

A: Aluminum alloy: temperature range -40°C to 120°C; zinc alloy: -30°C to 150°C. Special treatment is required for temperatures outside these ranges.

Q3: How do you determine when hinges need to be replaced?

A: Replacement is required if the latch becomes stuck, the door panel sags by more than 3mm, or the hinge shaft emits unusual noise.

Q4: Do you offer customization for non-standard specifications?

A: Customization is available for material, size, and color. Minimum order quantity (MOQ) and delivery time are determined by specific material, size, and weight requirements.

Q5: How do you choose between aluminum alloy and zinc alloy?

A: Aluminum alloy is recommended for lightweight applications, while zinc alloy is preferred for higher strength requirements.
