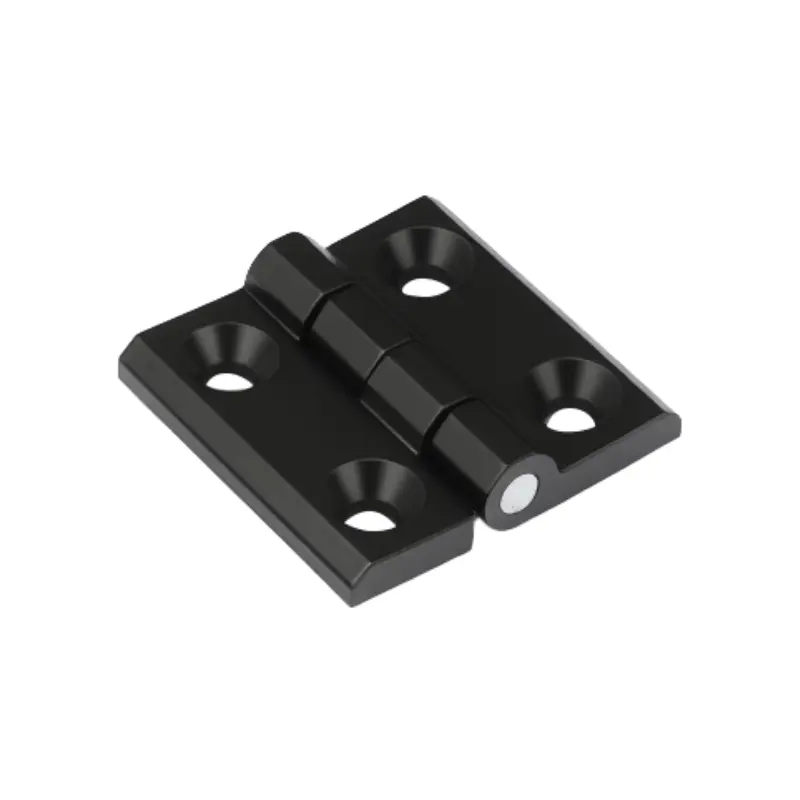

Stainless Steel Hinge

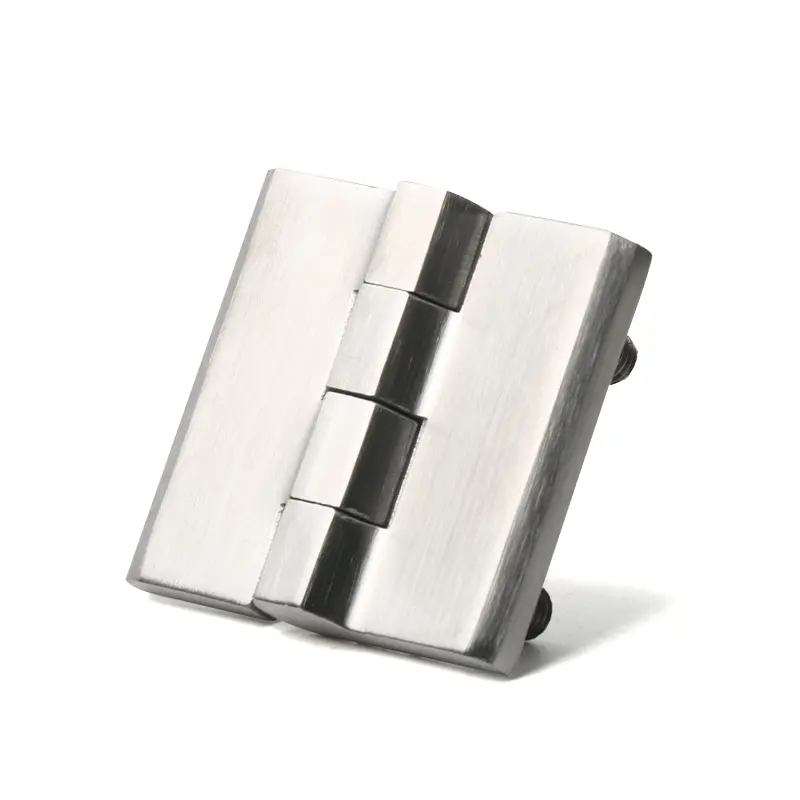

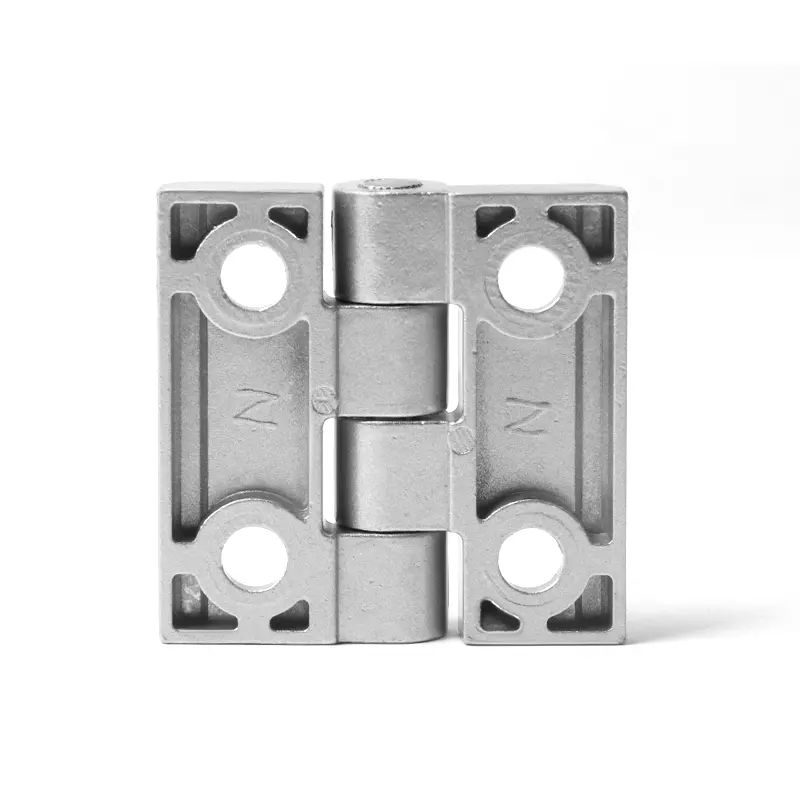

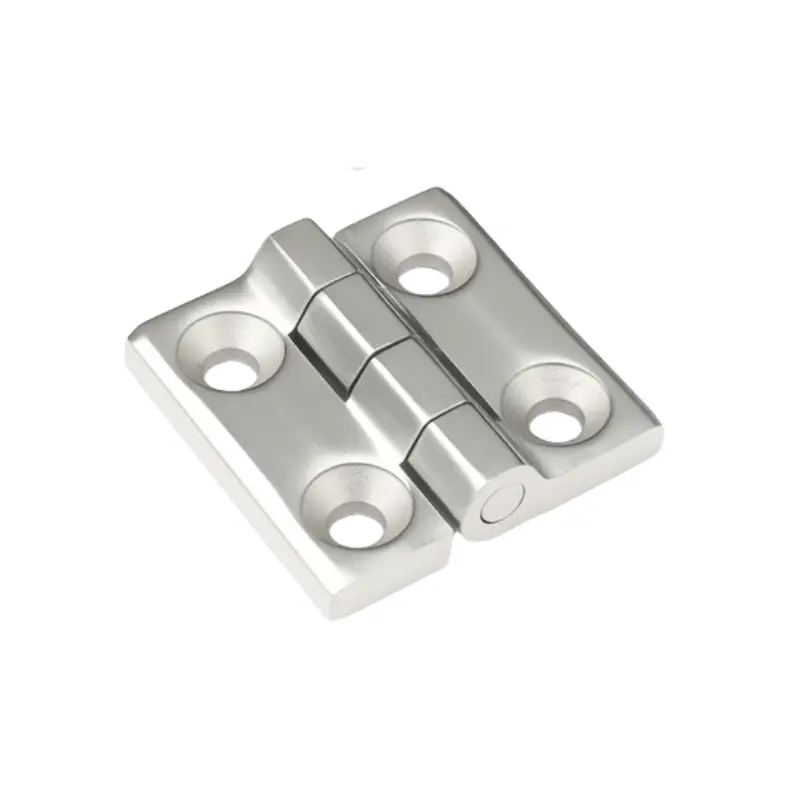

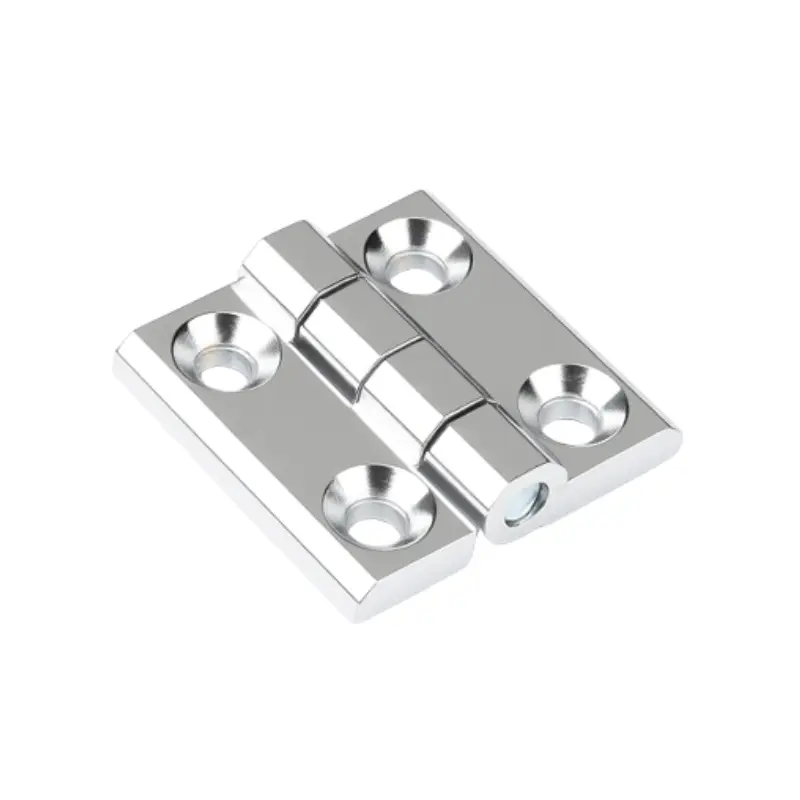

With locks and stainless steel hinge at its core, Yitai lock provides security guarding for homes and commercial spaces. CL218 Stainless steel hinge is a heavy duty hinge widely used in distribution boxes, electrical cabinet doors and mechanical equipment for high load capacity and durability.

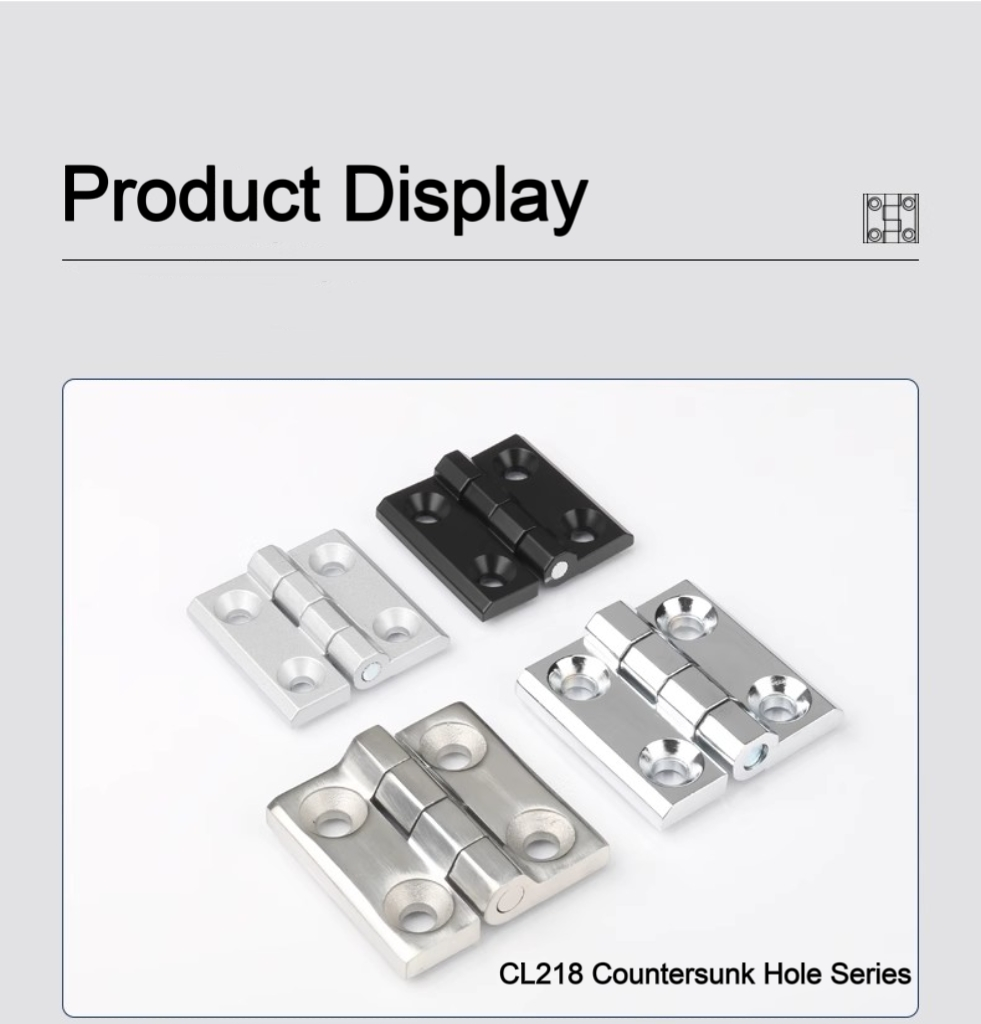

We have long been committed to the innovation and refined production of hardware locks.Design features of the stainless steel hinges include a 180-degree door opening angle, universal left and right construction, and countersunk screw fixing to ensure a solid installation.

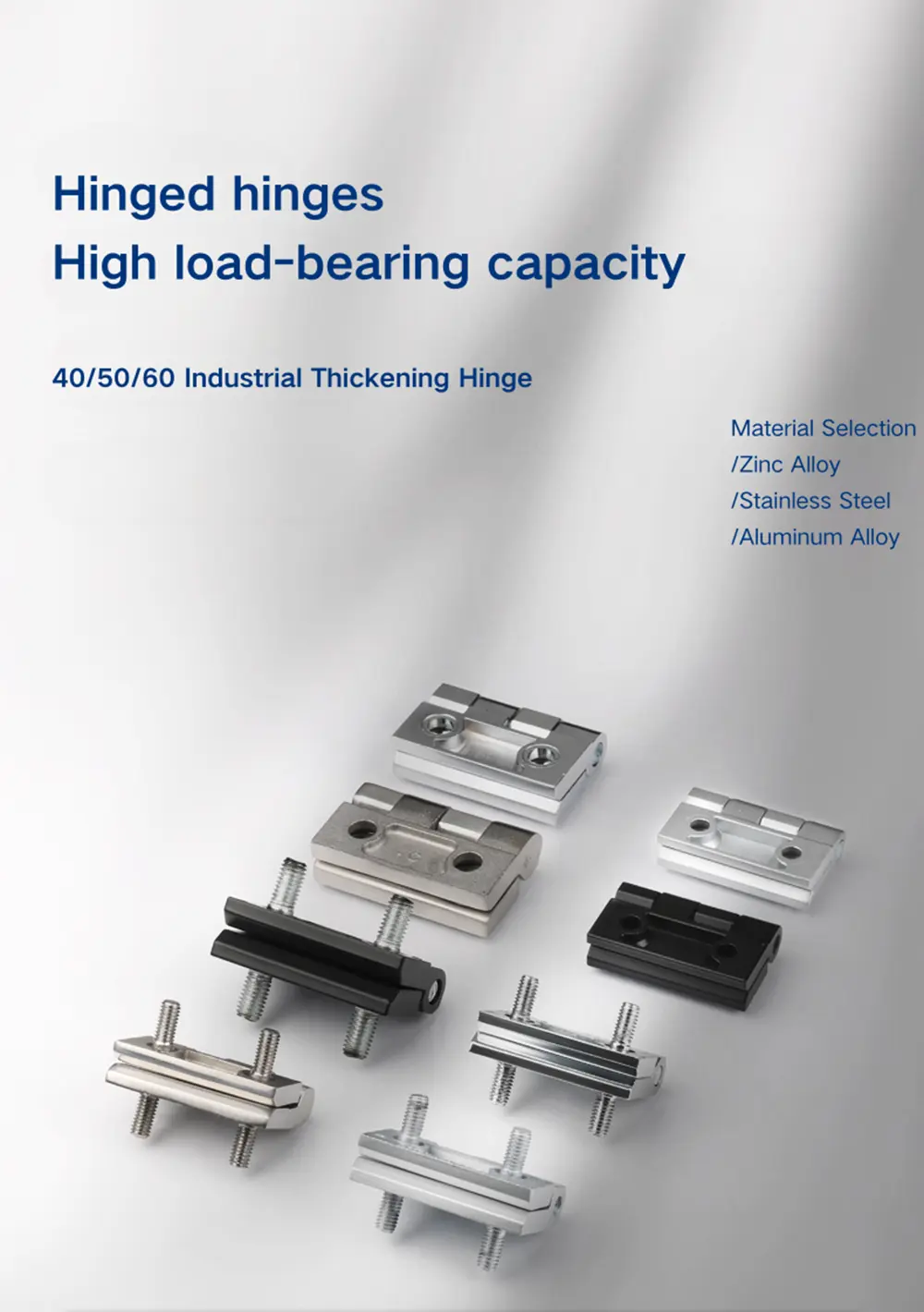

Material Types

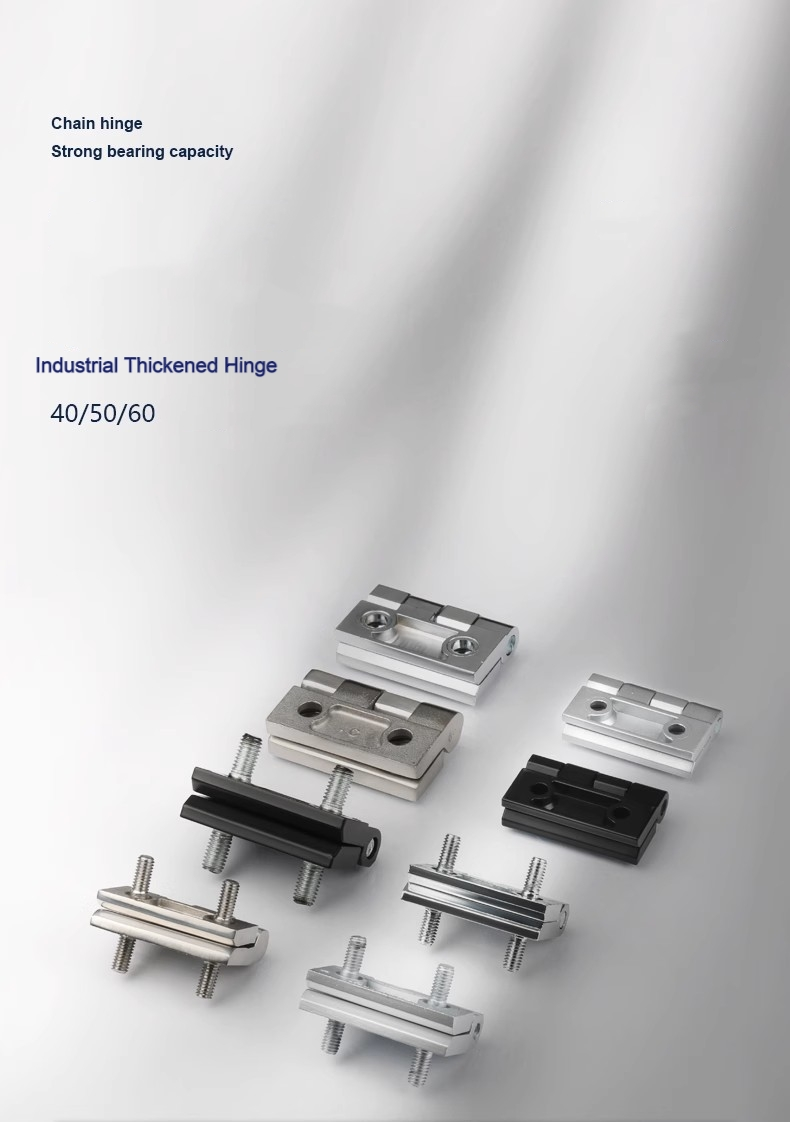

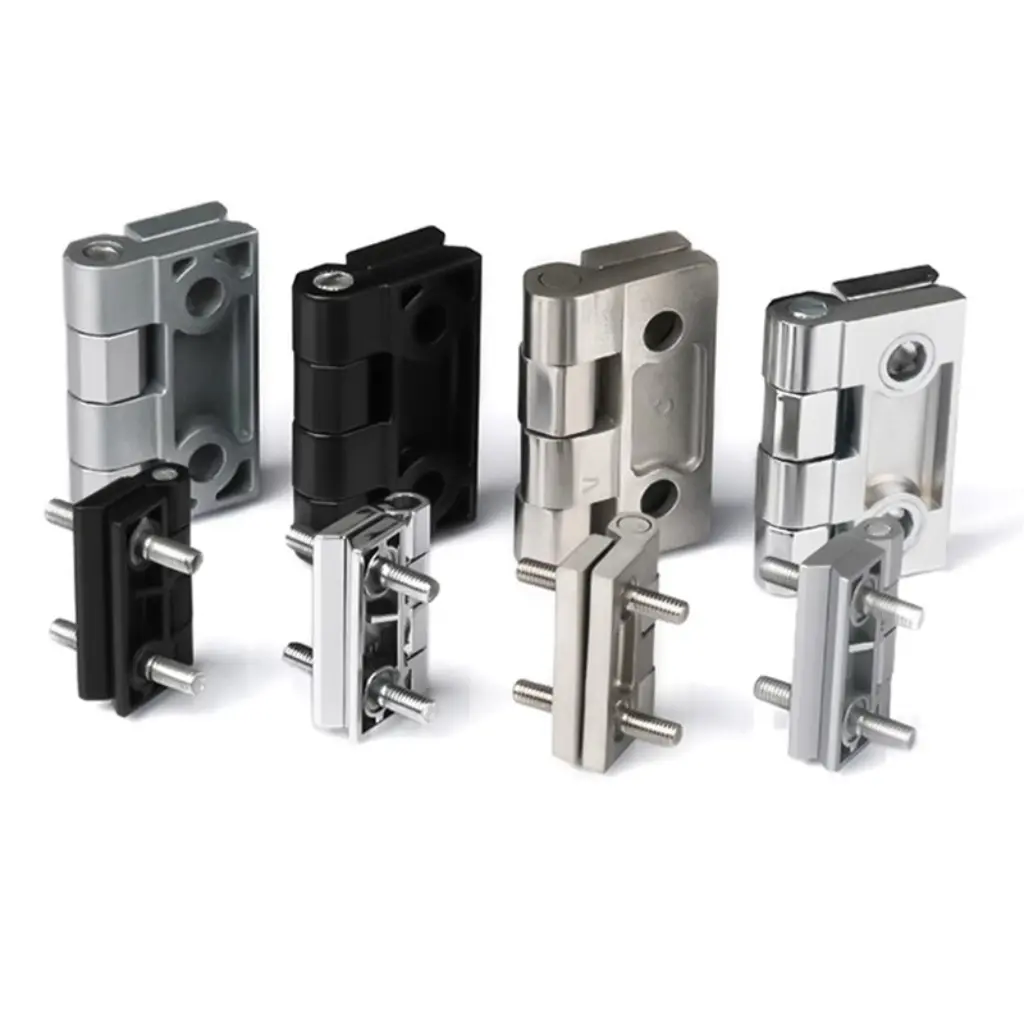

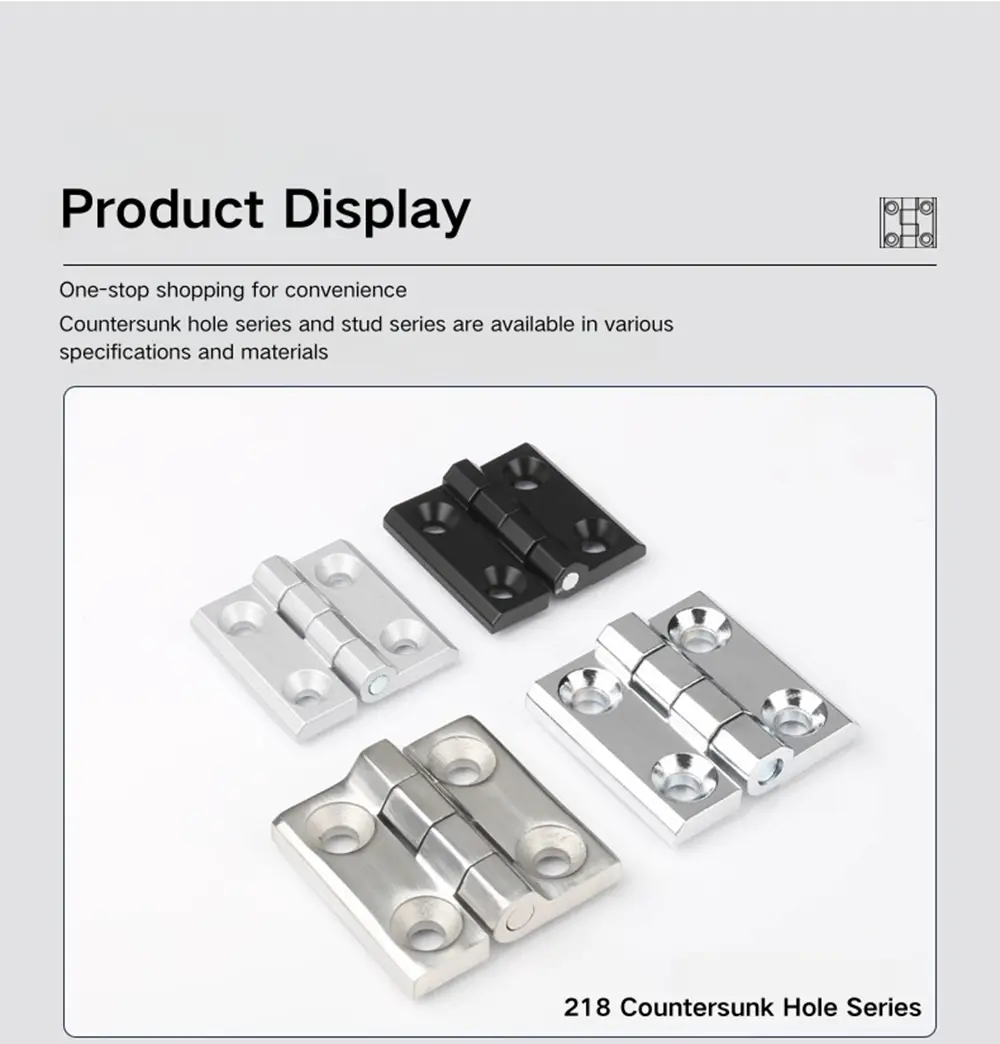

The main material of stainless steel hinges is not only stainless steel, but also provide two options of zinc alloy and iron, of which the models CL218-0-40, CL218-50, CL218-60 and so on, there are also zinc alloy thicker type and stainless steel thicker type.

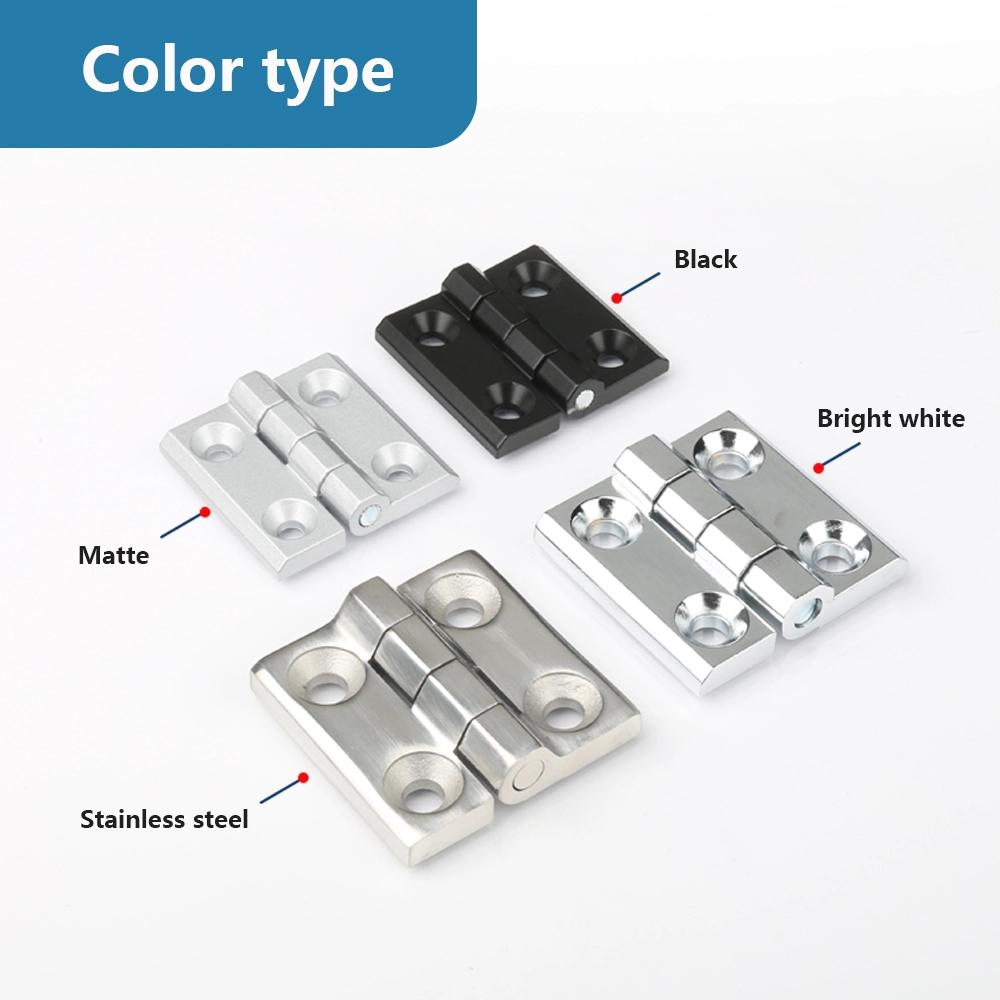

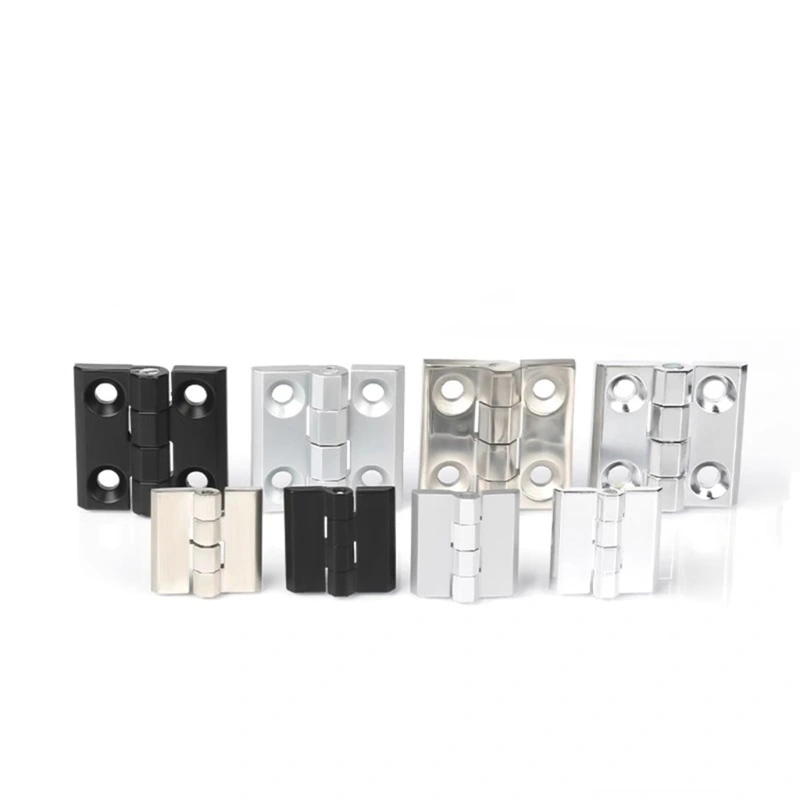

Color Options

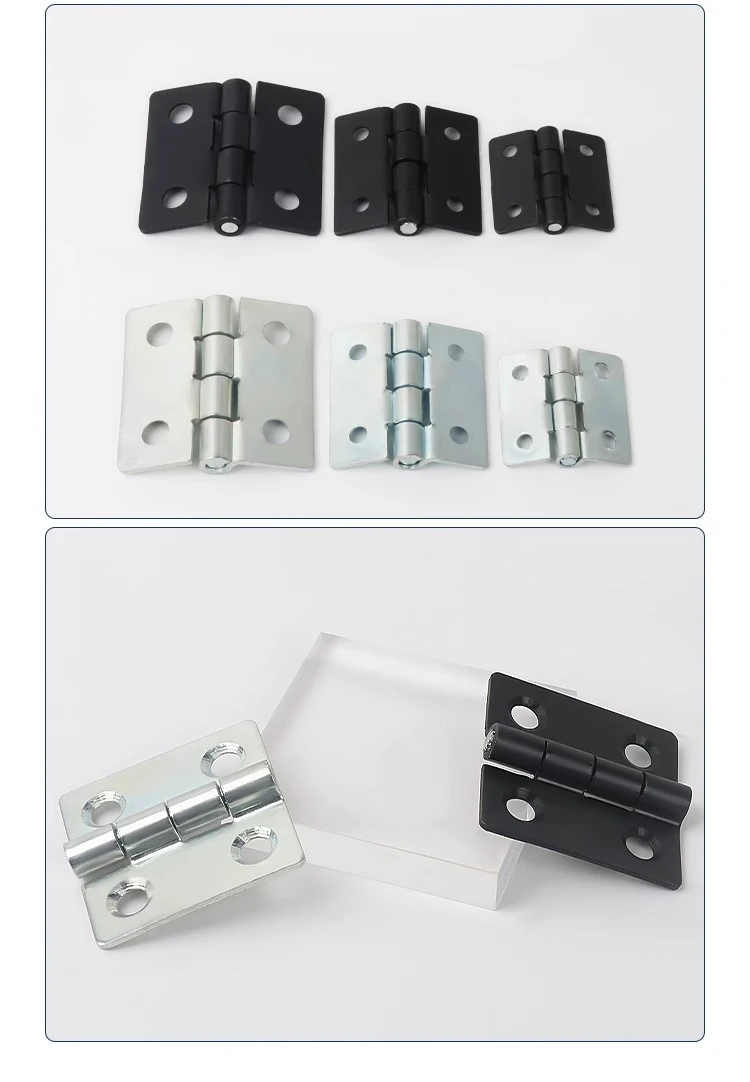

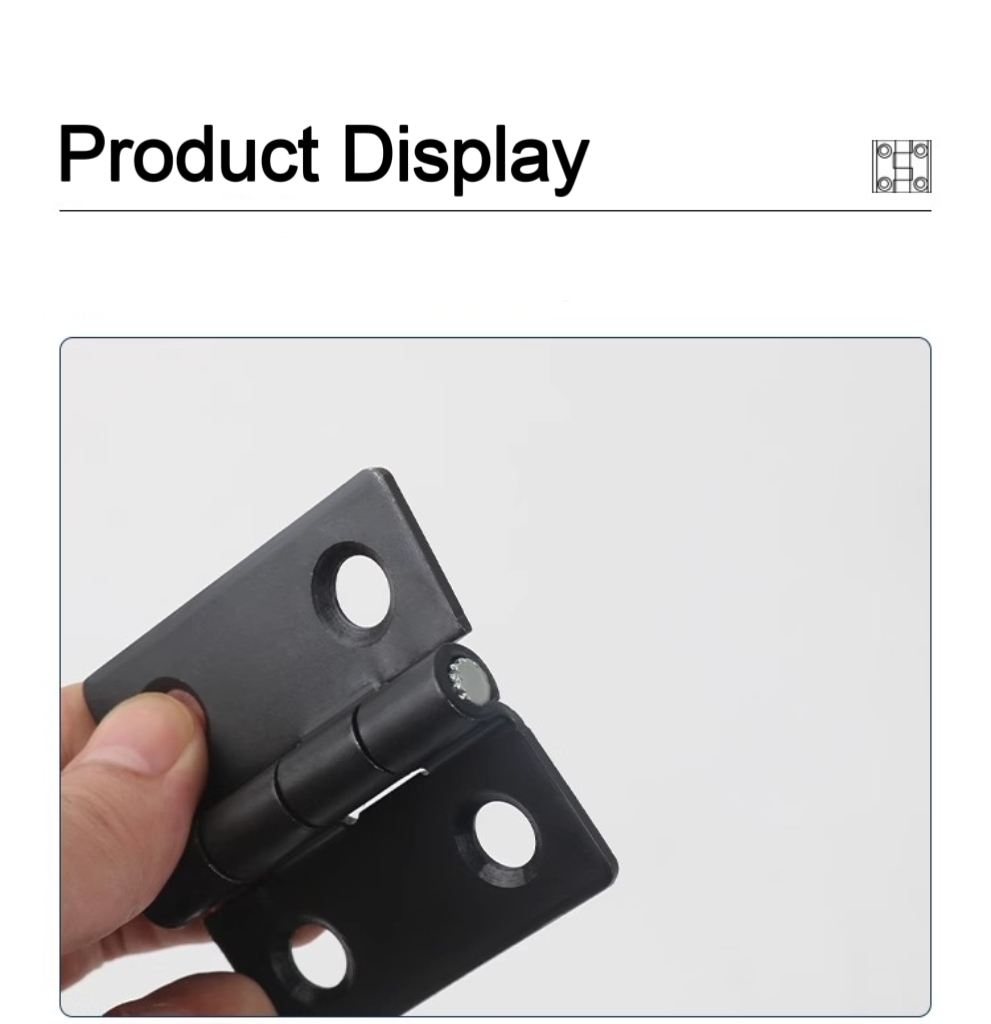

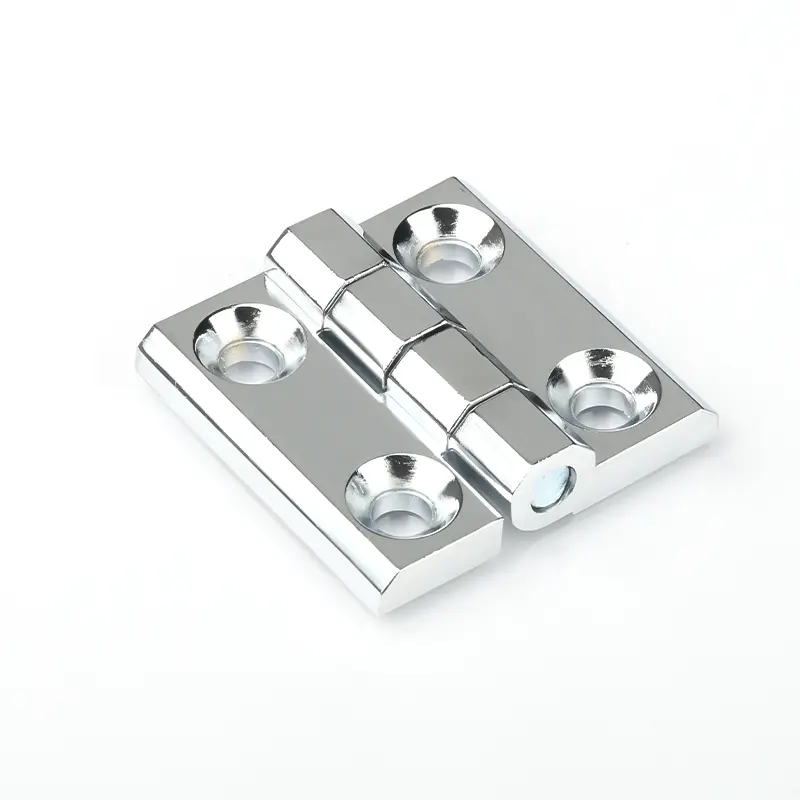

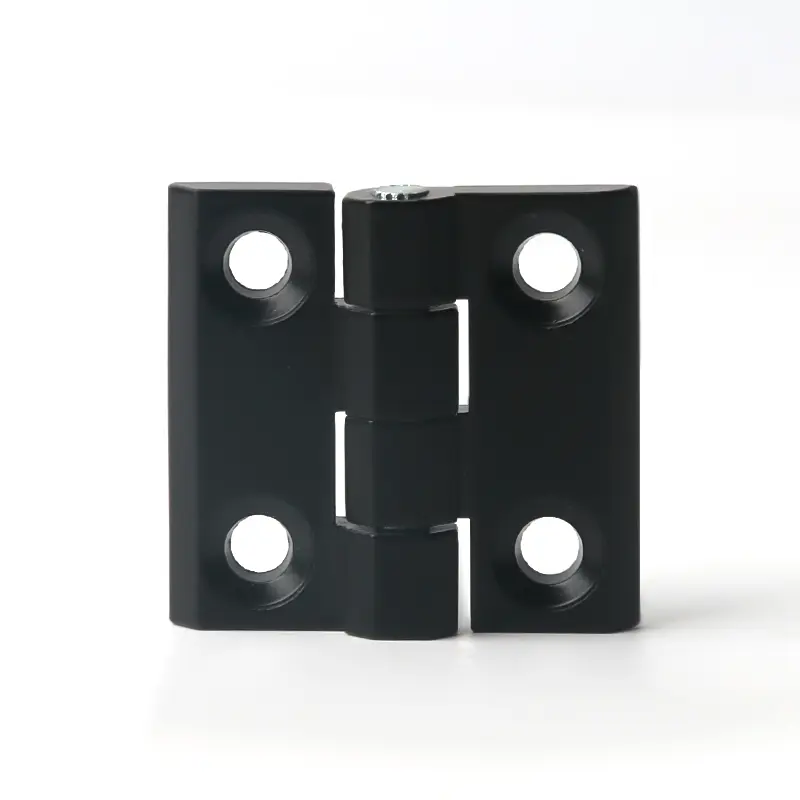

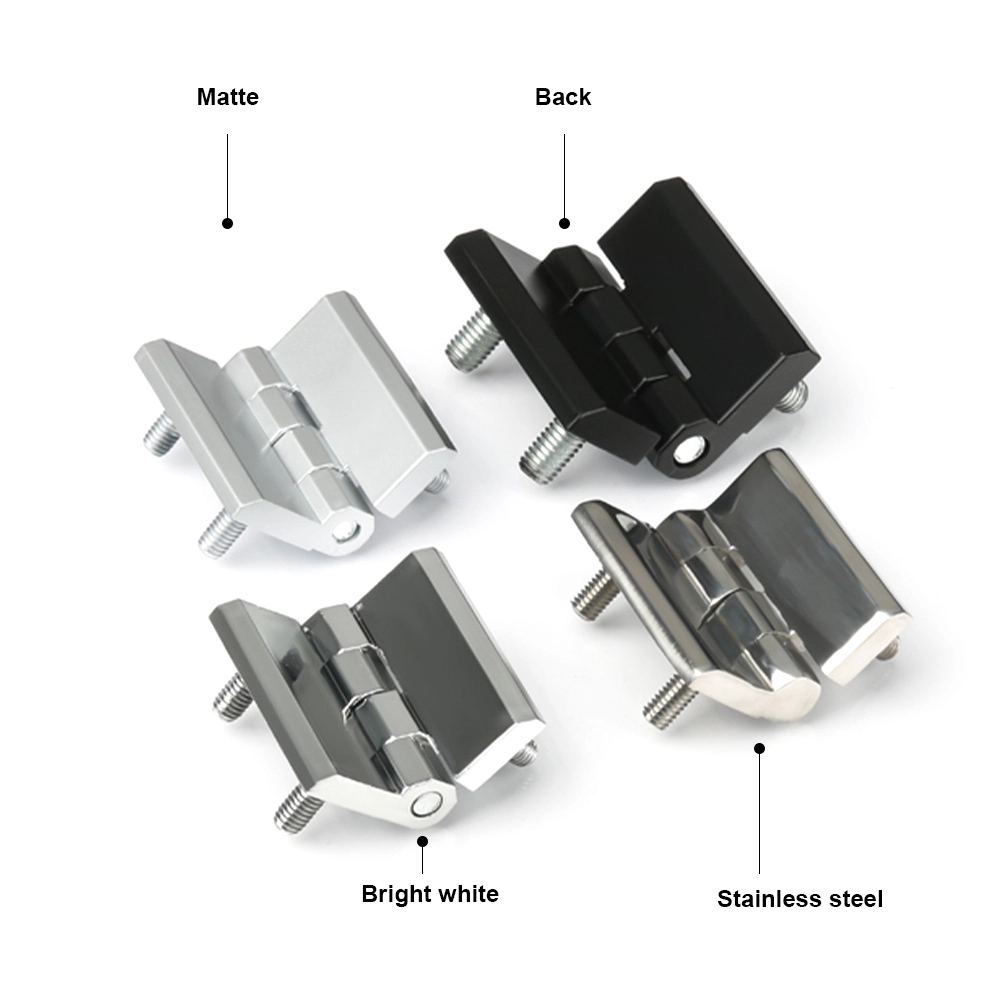

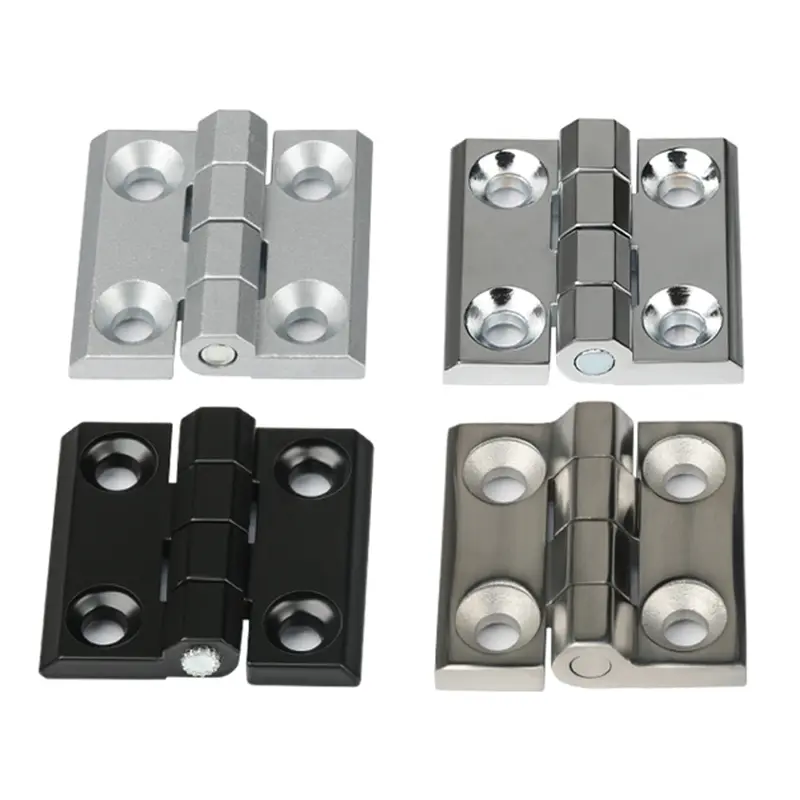

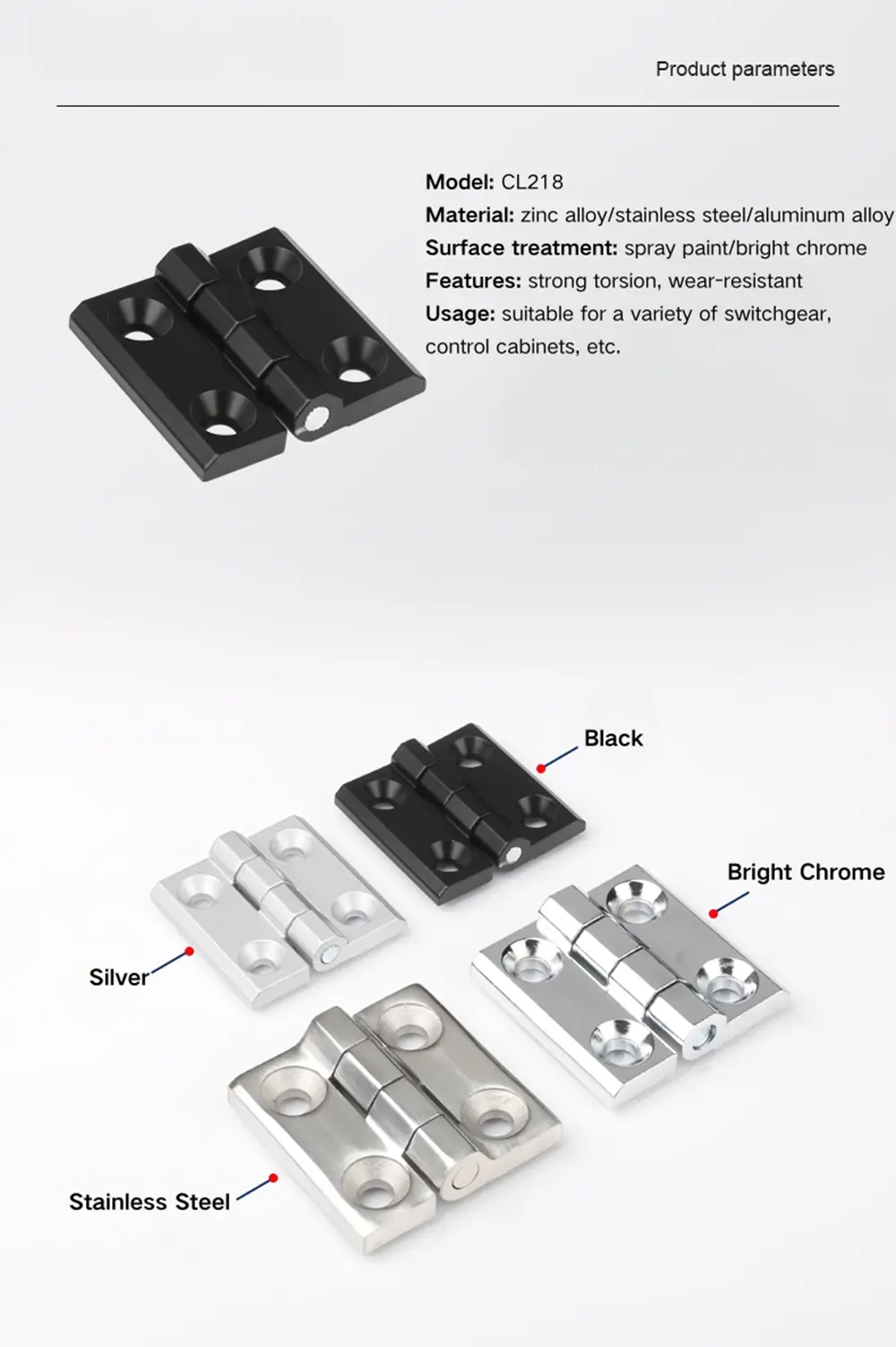

Zinc alloy material is mainly black, matte color and black.Iron material optional color is black and white.The color of Stainless steel hinge is based on the process decision, there are stainless steel stamping type, stainless steel mirror models and stainless steel brushed models.


Features

Made of 304 stainless steel for optimum rust resistance.

Reinforced construction supports heavier doors and ensures stability.

Stainless steel hinges are treated to prevent corrosion.

Compatible with standard cabinets such as Rittal and Siemens.


Suggestions for selection

Outdoor environments with rust prevention requirements: Stainless steel hinge is preferred.

Extreme load-bearing requirements: choose stainless steel or zinc alloy thickened version.

Aesthetic requirements: chrome-plated or polished surfaces.


FAQ

Q:What are the scenarios that CL218 hinges are suitable for?

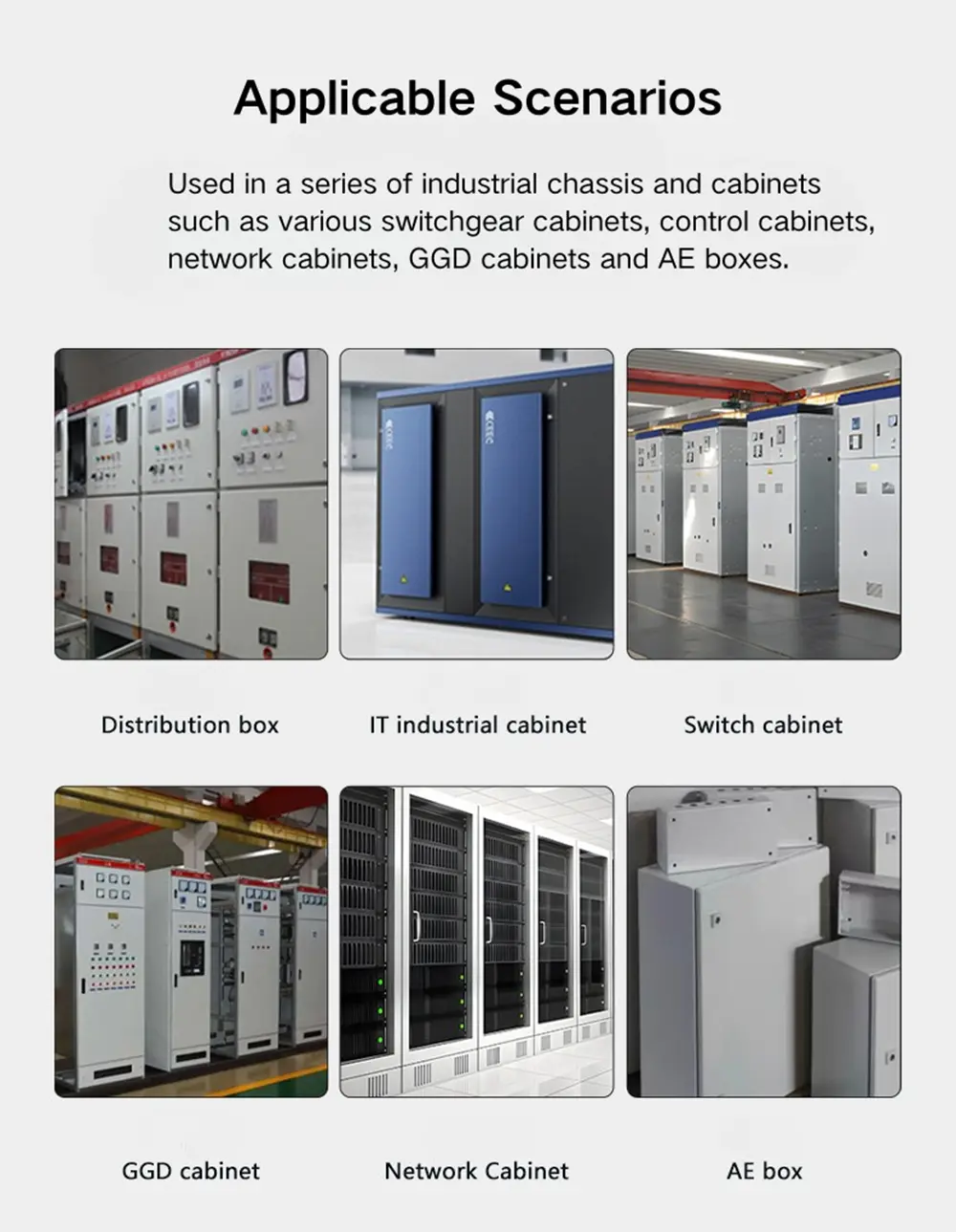

A:It is mainly used for power distribution cabinets, chassis doors, industrial equipment, server cabinets, outdoor electric control boxes and other applications that require high durability and load-bearing capacity.


Q: Are CL218 hinges corrosion resistant?

A: Stainless steel version: corrosion resistant, suitable for wet, outdoor or chemical environments.

Zinc alloy version: surface treatment (e.g. chrome plating, painting) is required to improve rust resistance.


Q: What sizes of CL218 hinges are available?

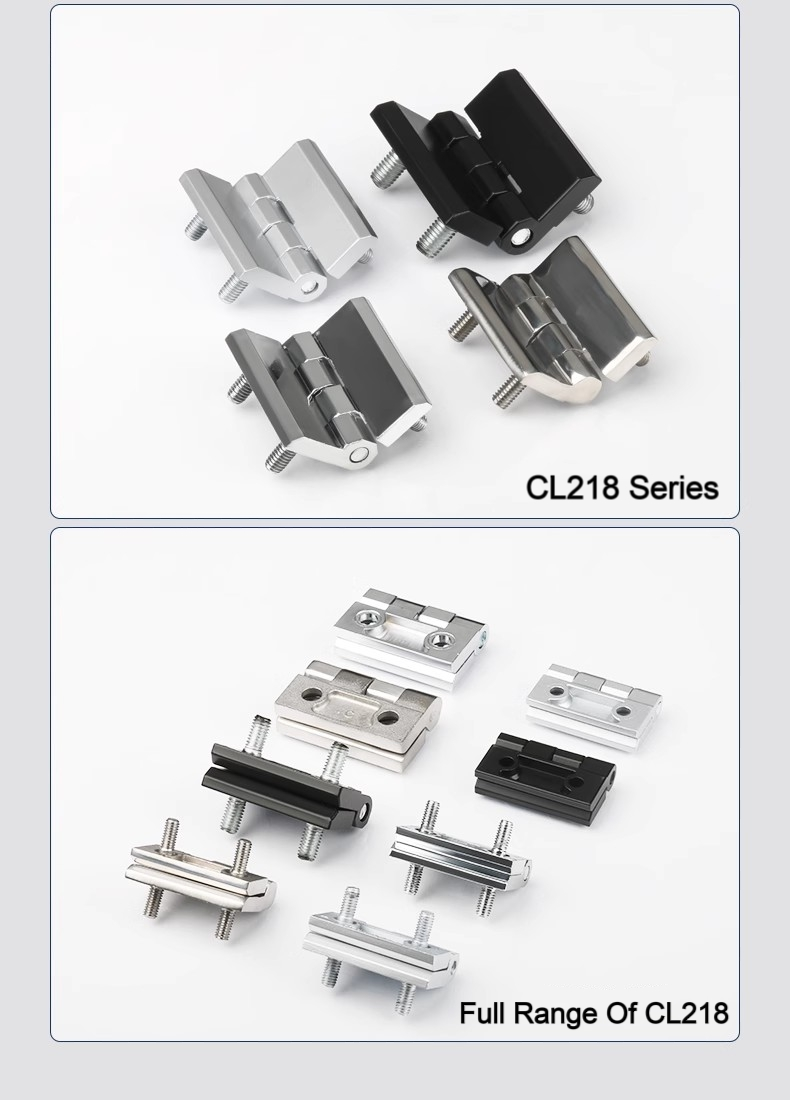

A: CL218-40,CL218-40-1,CL218-50,CL218-50-1,CL218-60,CL218-60-1


Q:How do I maintain the CL218 hinge?

A:Regularly check the screws for looseness and tighten them if necessary.

In dusty or high humidity environments, a small amount of grease can be applied to keep it smooth.

The stainless steel version generally requires no special maintenance, while the zinc alloy version needs to avoid long-term exposure to corrosive media.


Q:Can the CL218 hinge be adjusted for door gap?

A:CL218 is a fixed hinge and usually does not have an adjustment function. If adjustment is required, it is recommended to choose adjustable hinges.

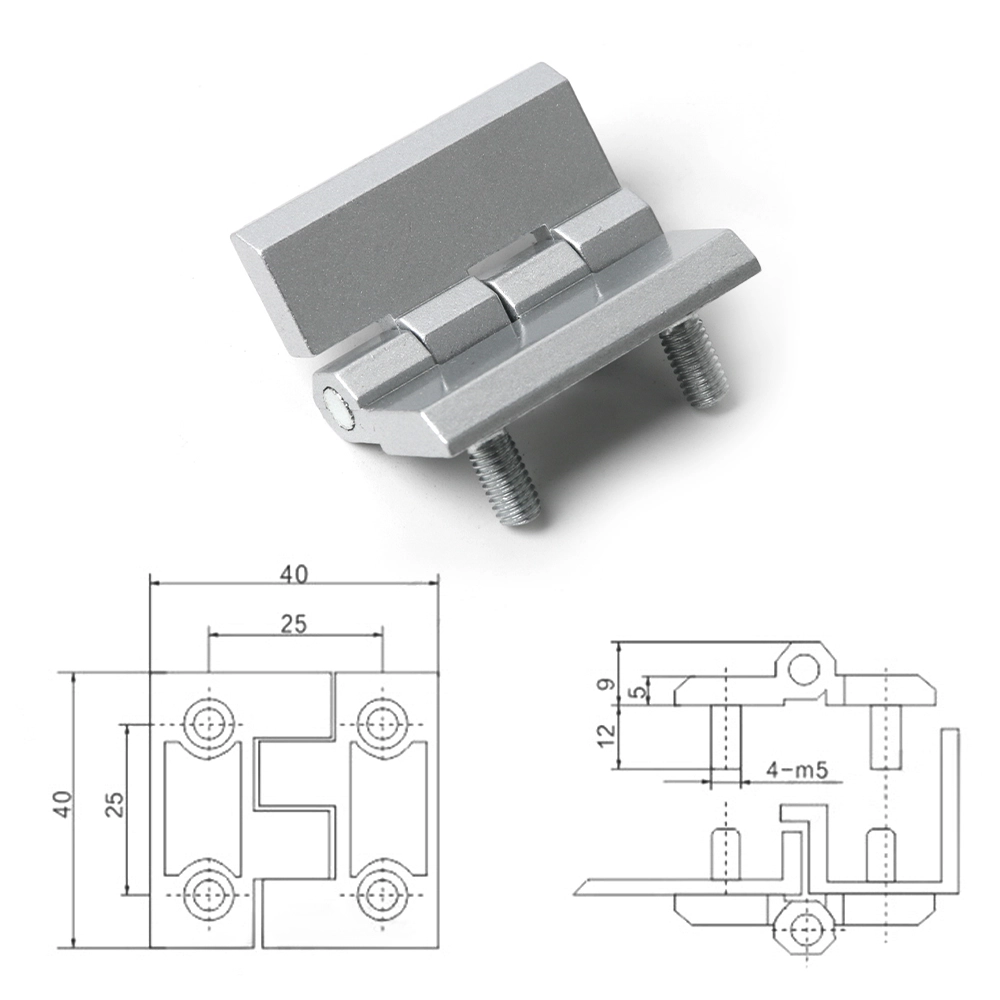

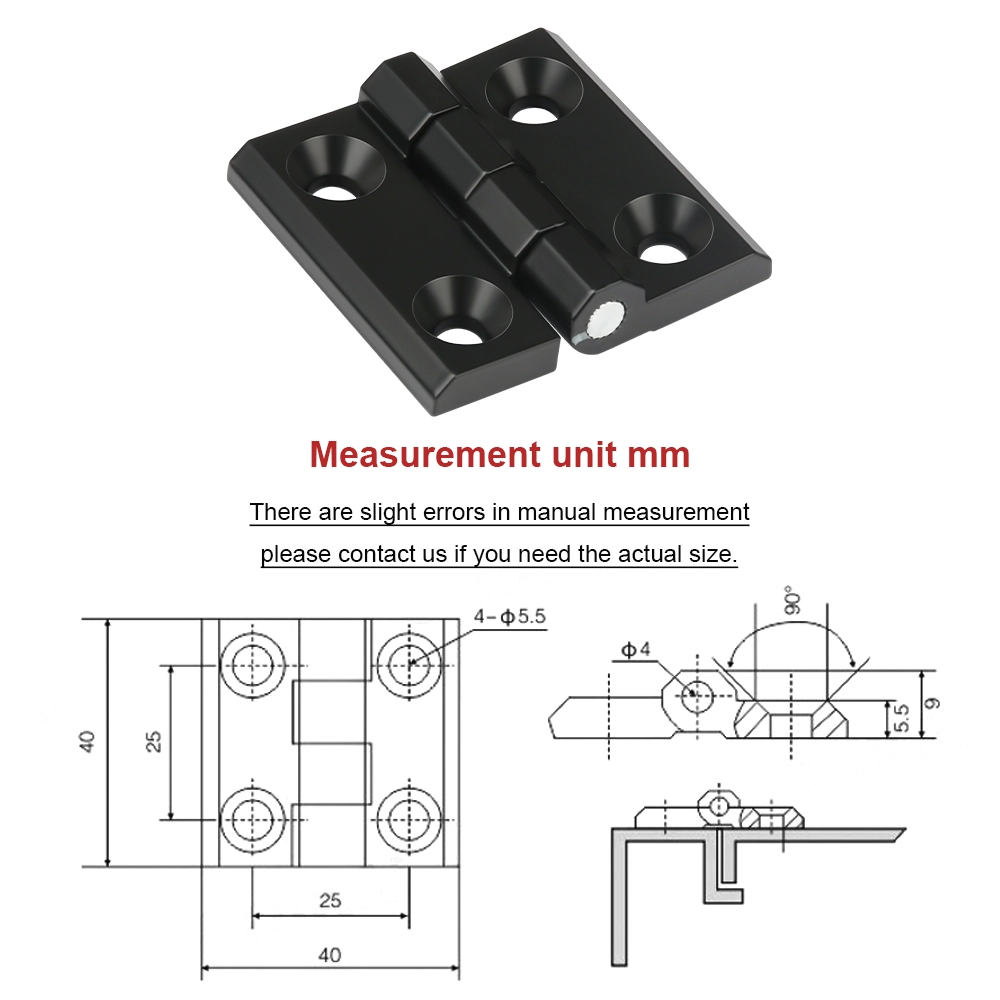

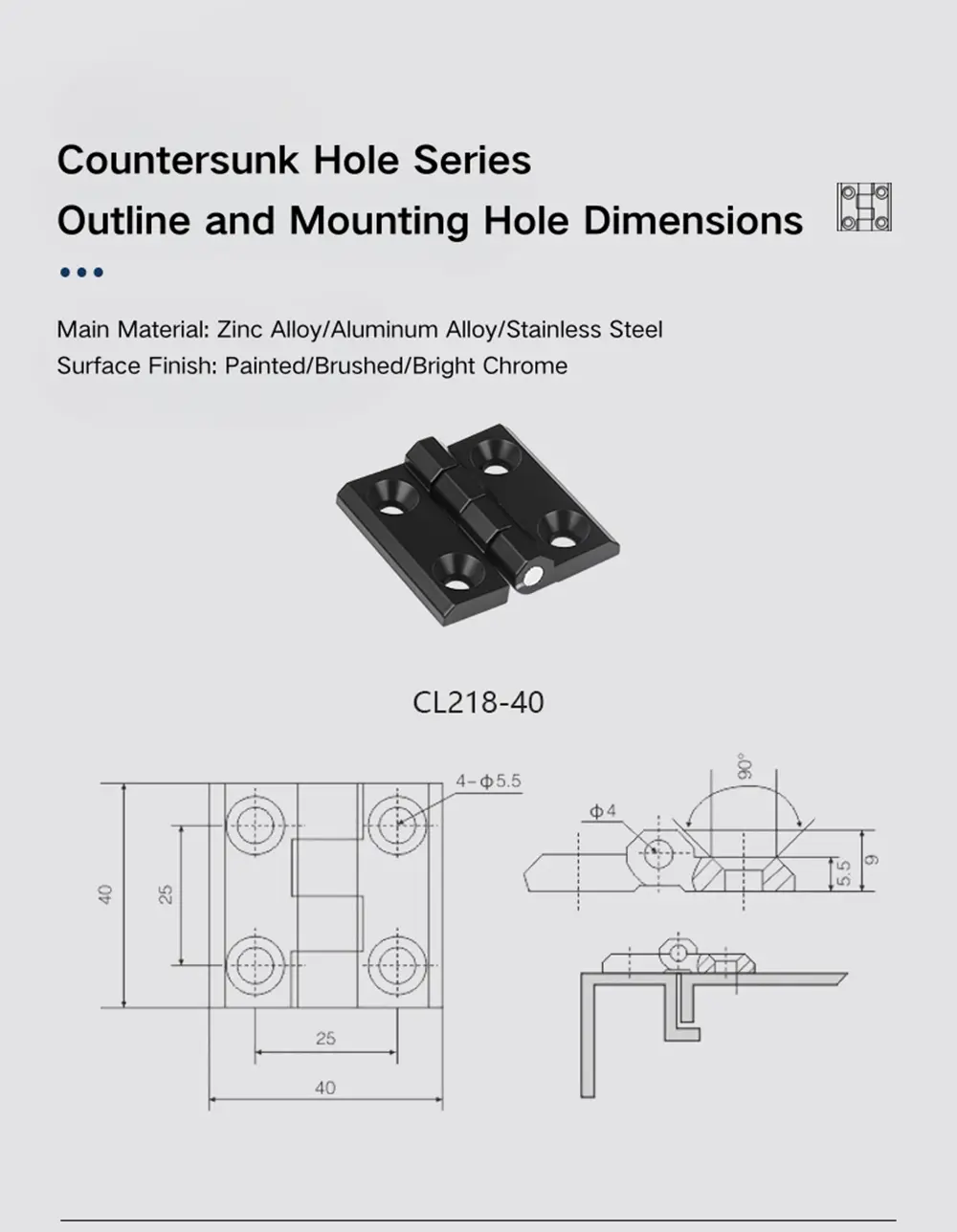

Product model CL218-40
Overall dimensions 40mm x40mm
Hole distance 25mm x25mm
Optional materials zinc alloy/stainless steel
Usage Suitable for various types of switch cabinets, control boxes, etc

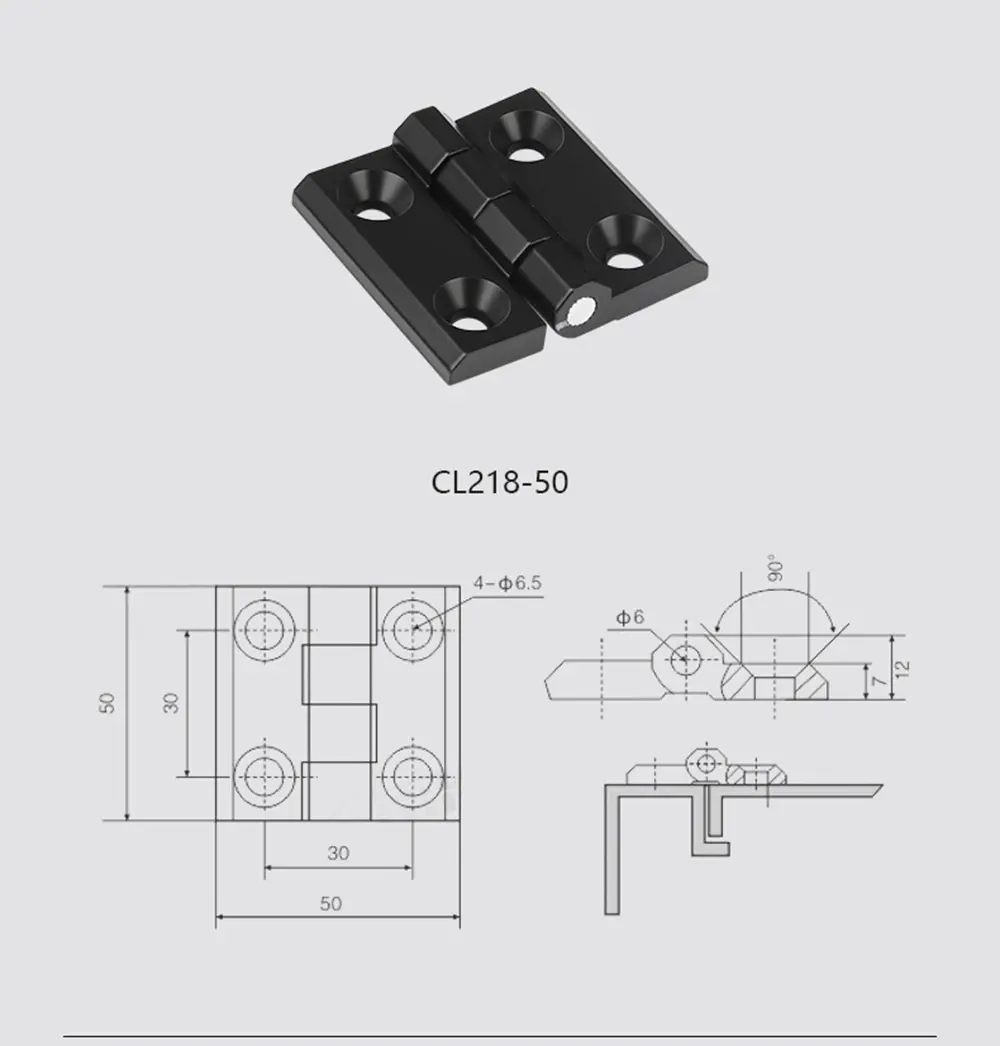

Product model CL218-50
Overall dimensions 50mmx50mm
Hole distance 30mmx30mm
Optional materials zinc alloy/stainless steel
Usage Suitable for various types of switch cabinets, control boxes, etc

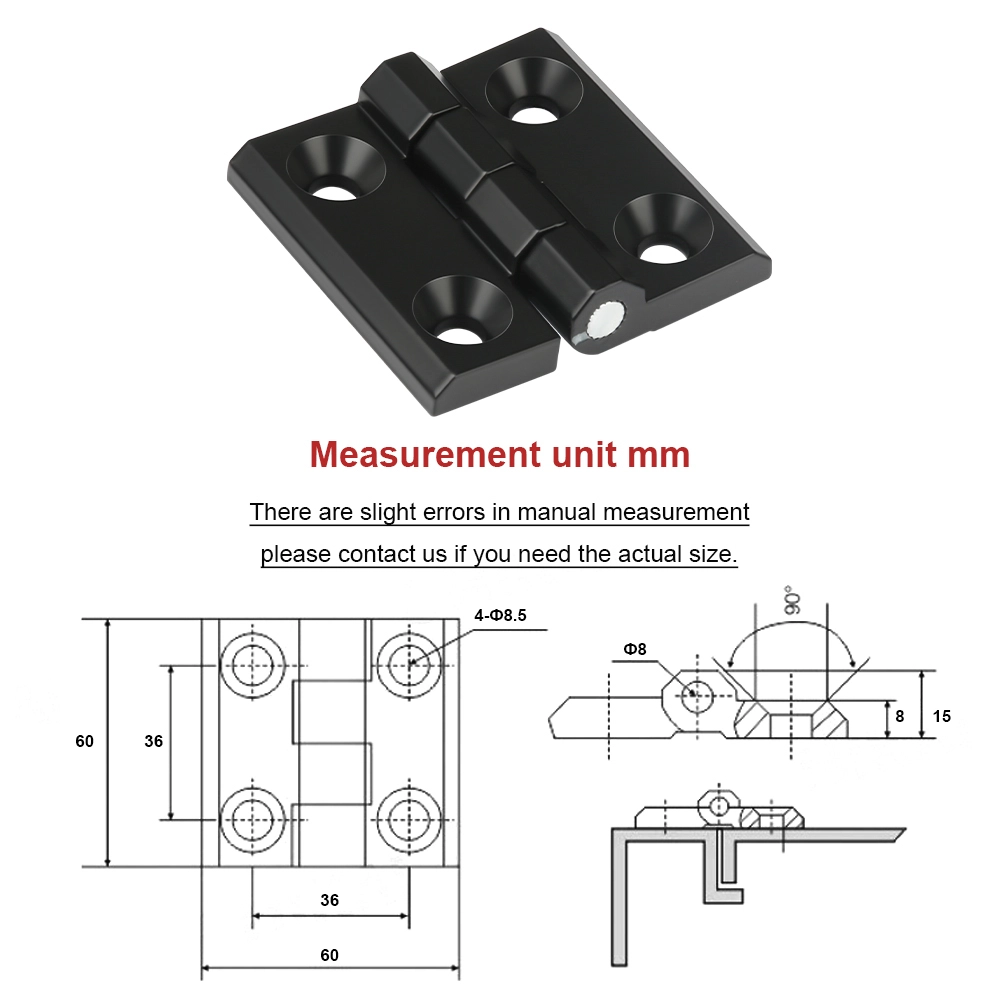

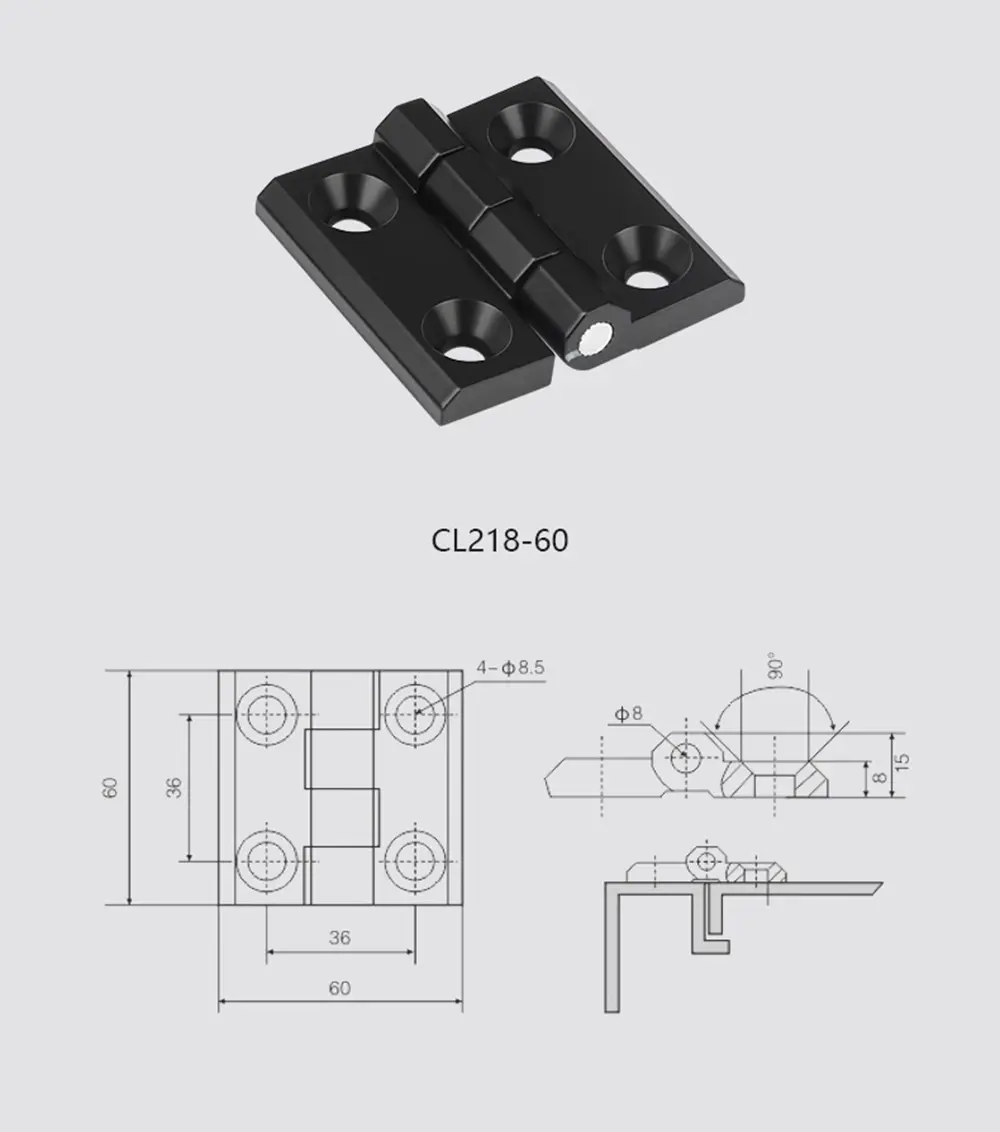

Product model CL218-60
Overall dimensions 60mmx60mm
Hole distance 36mmx36mm
Optional materials zinc alloy/stainless steel
Usage Suitable for various types of switch cabinets, control boxes, etc
