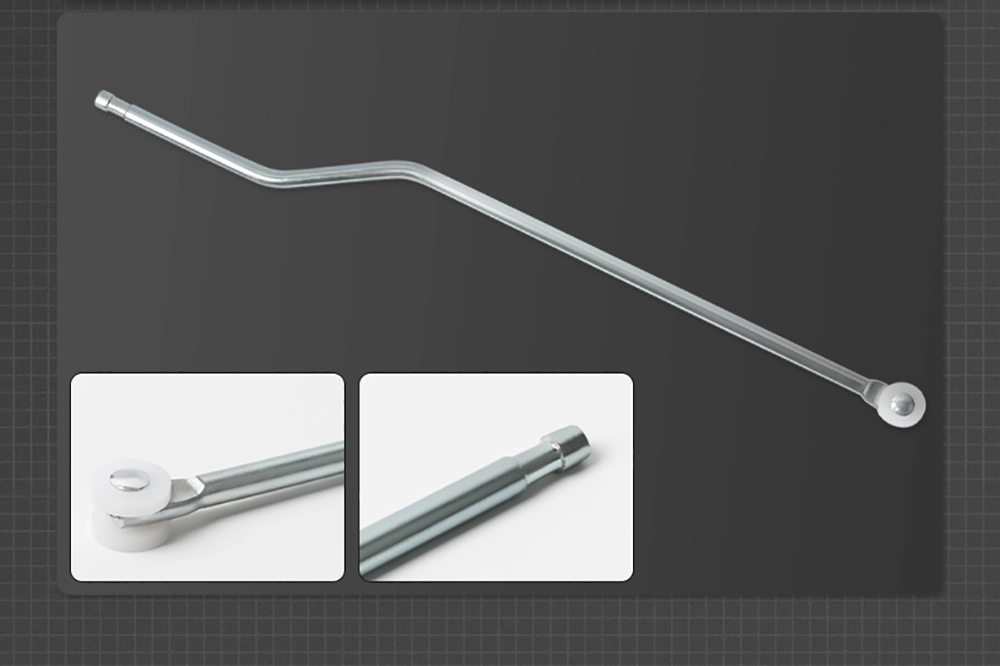

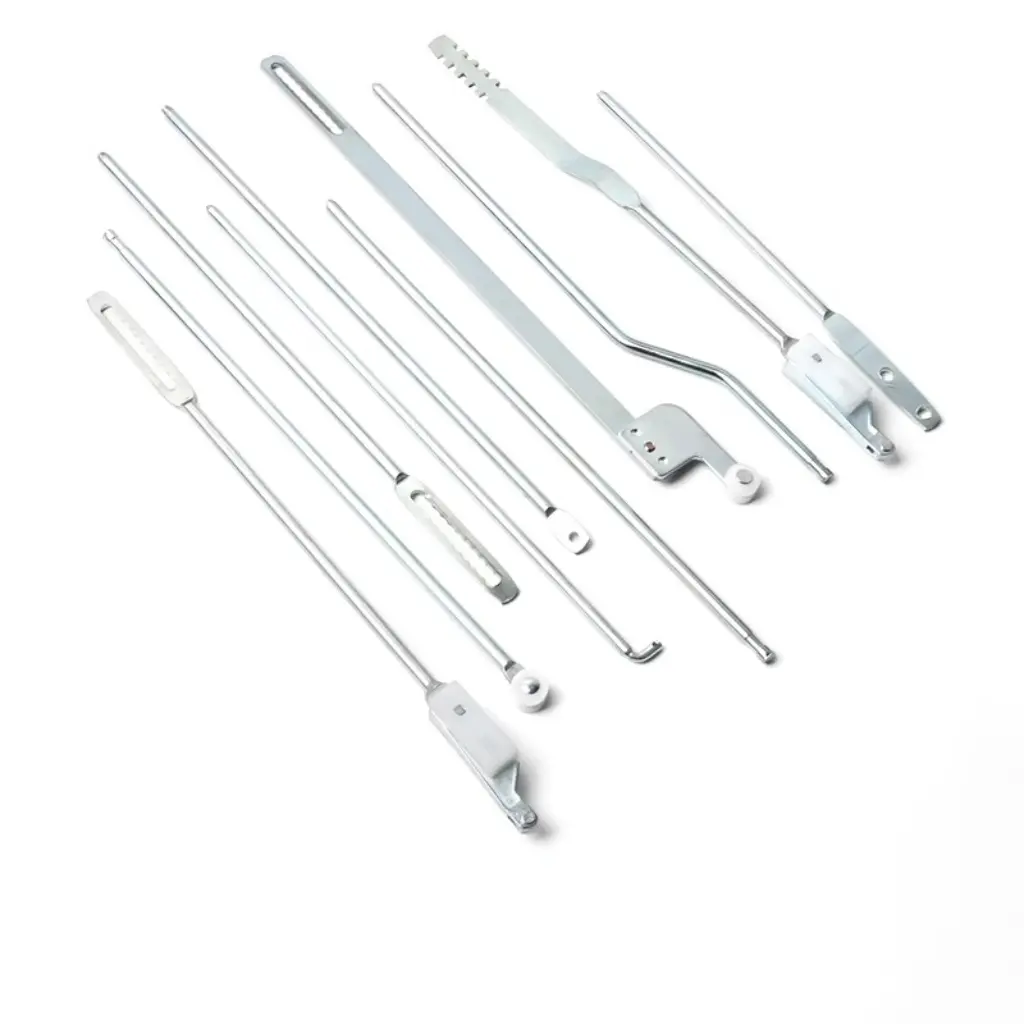

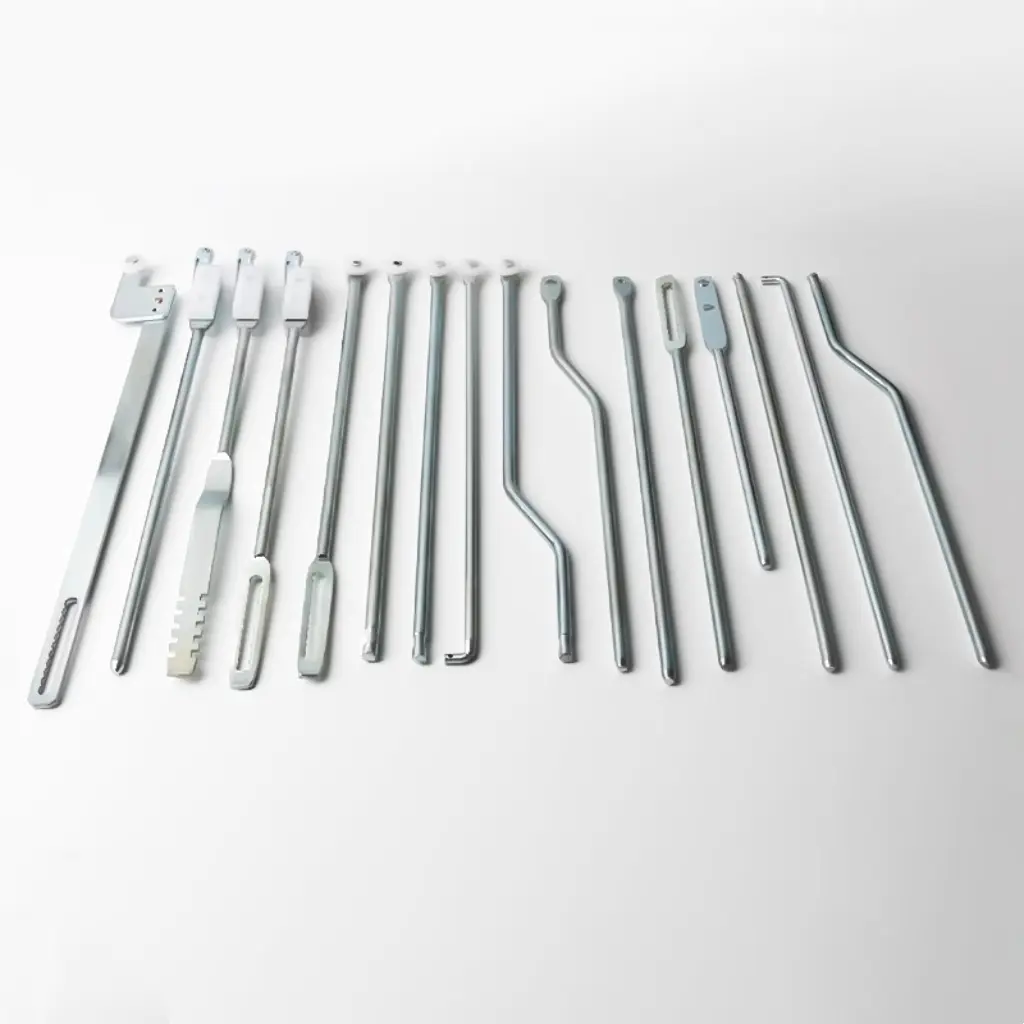

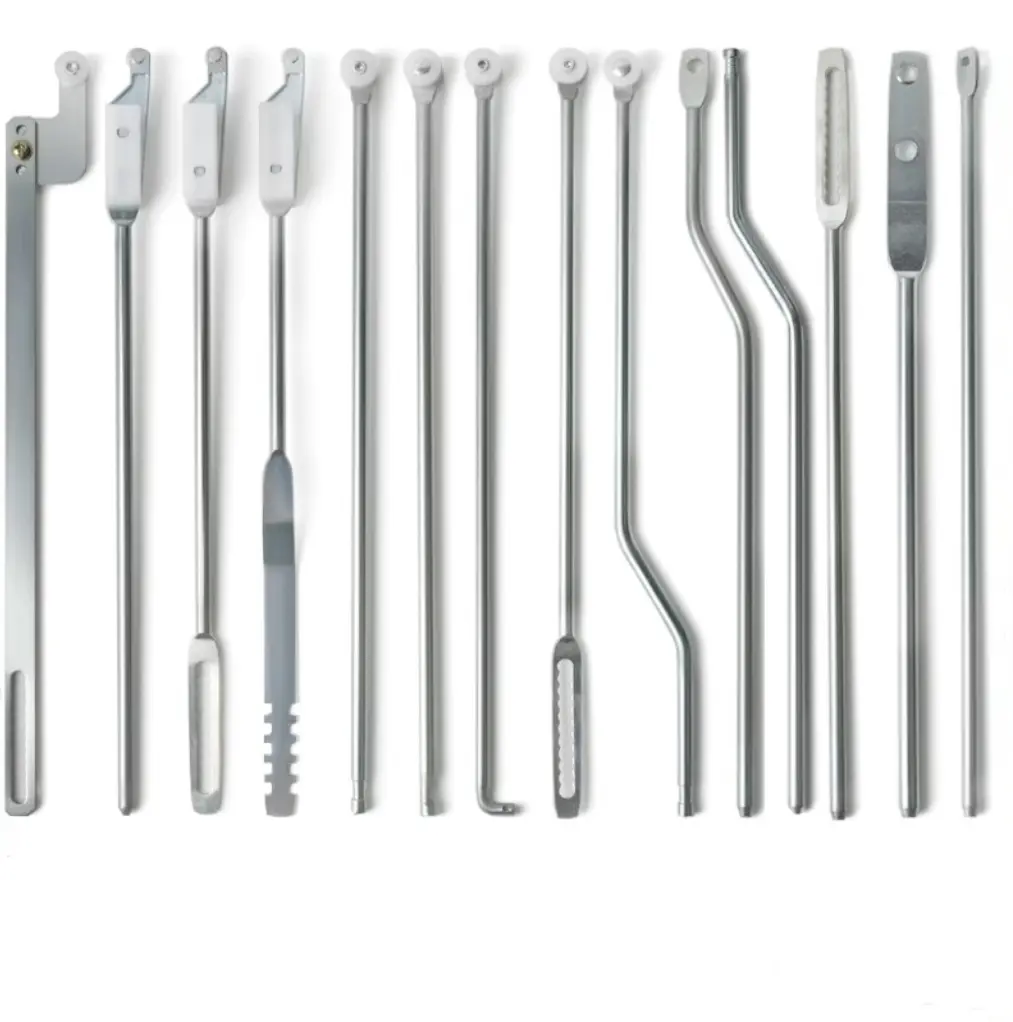

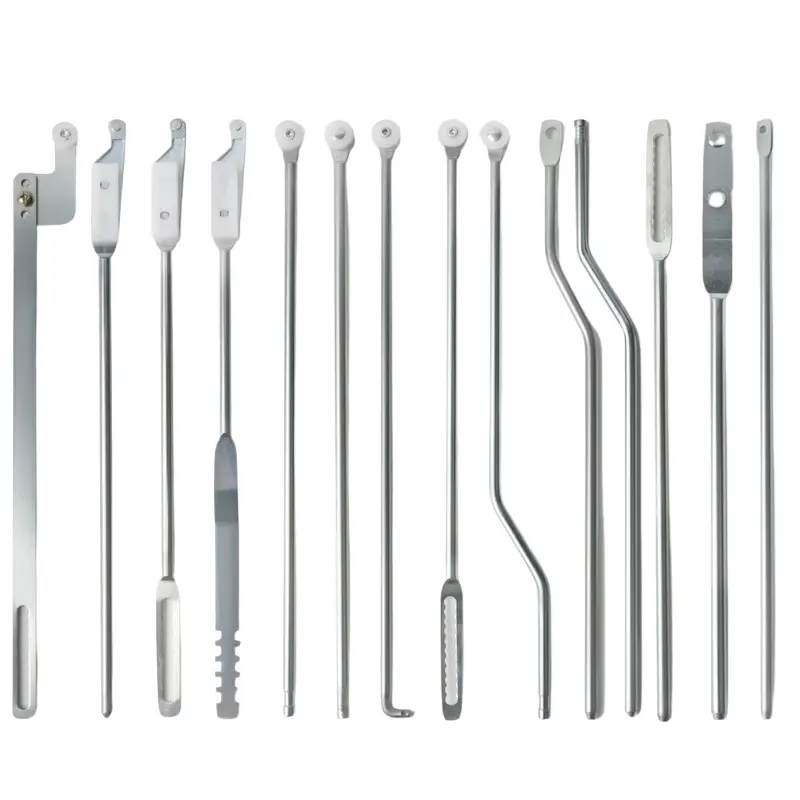

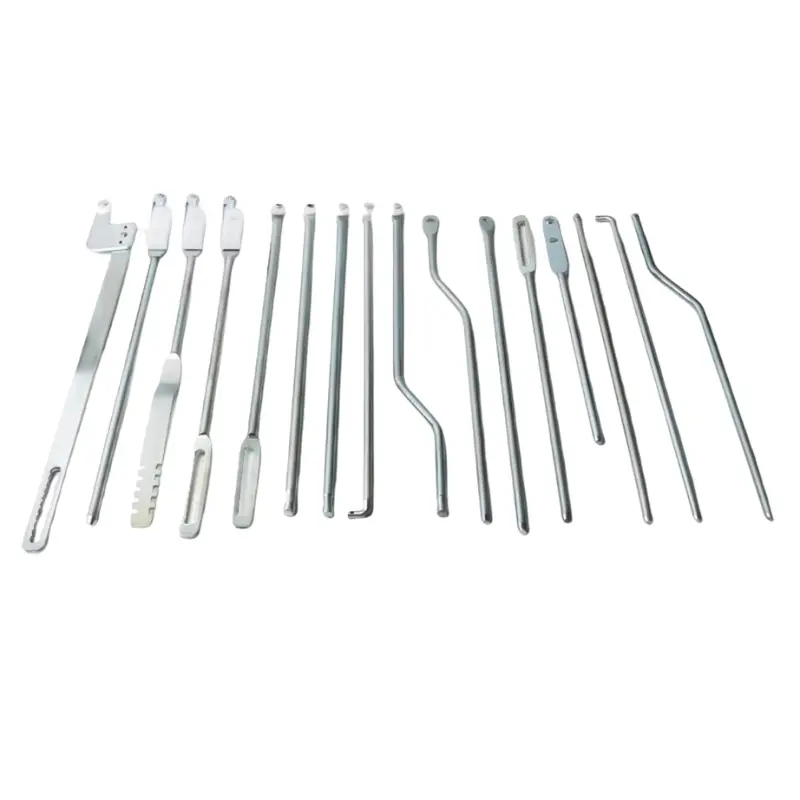

We focus on the practicality of our products and produce very durable box transformer station pull rods.The rods are usually used for mechanical connection, fixing equipment or adjusting the position to ensure the safe and stable operation of the box transformer.

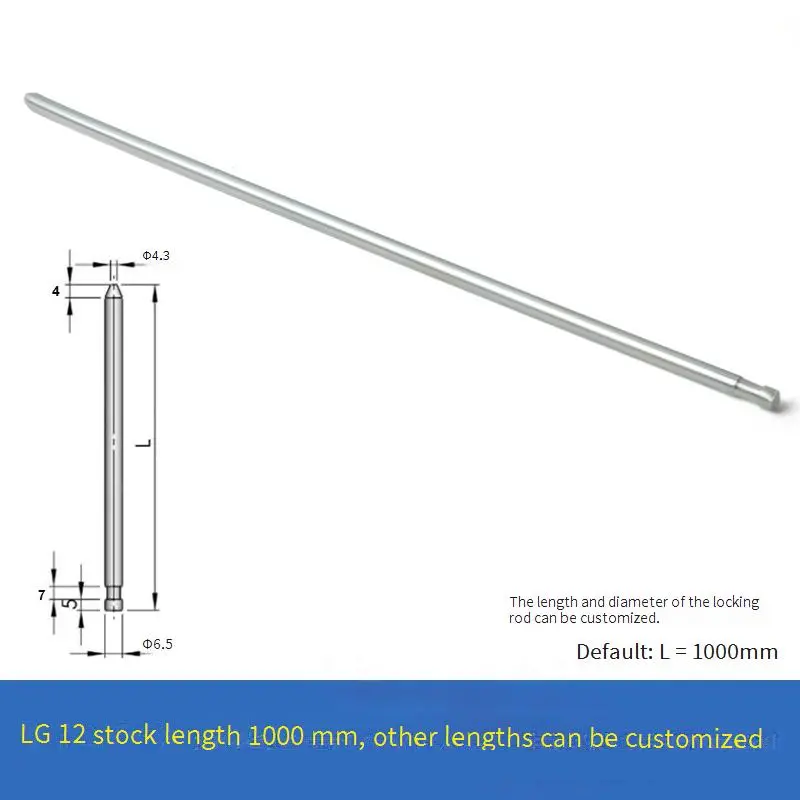

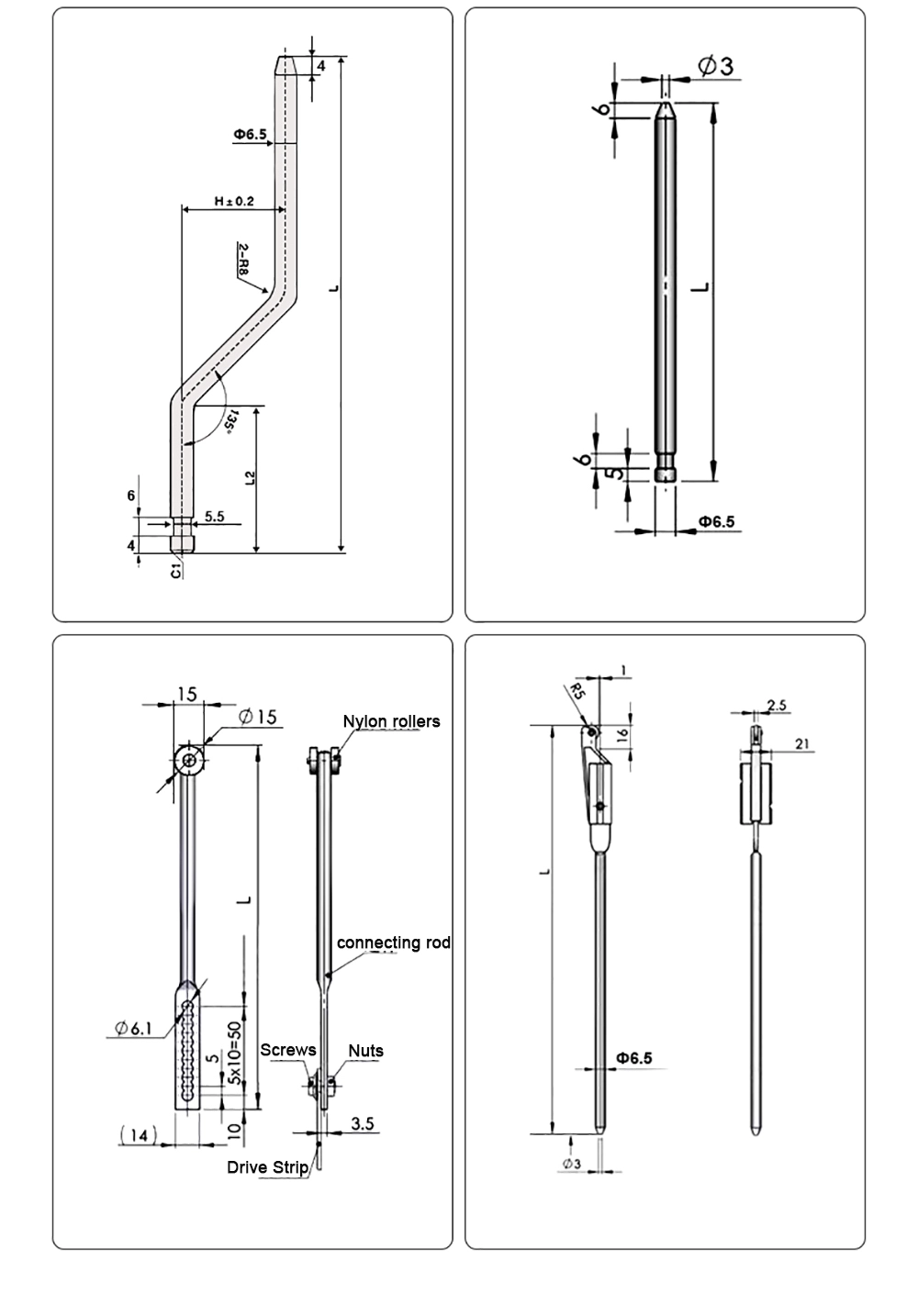

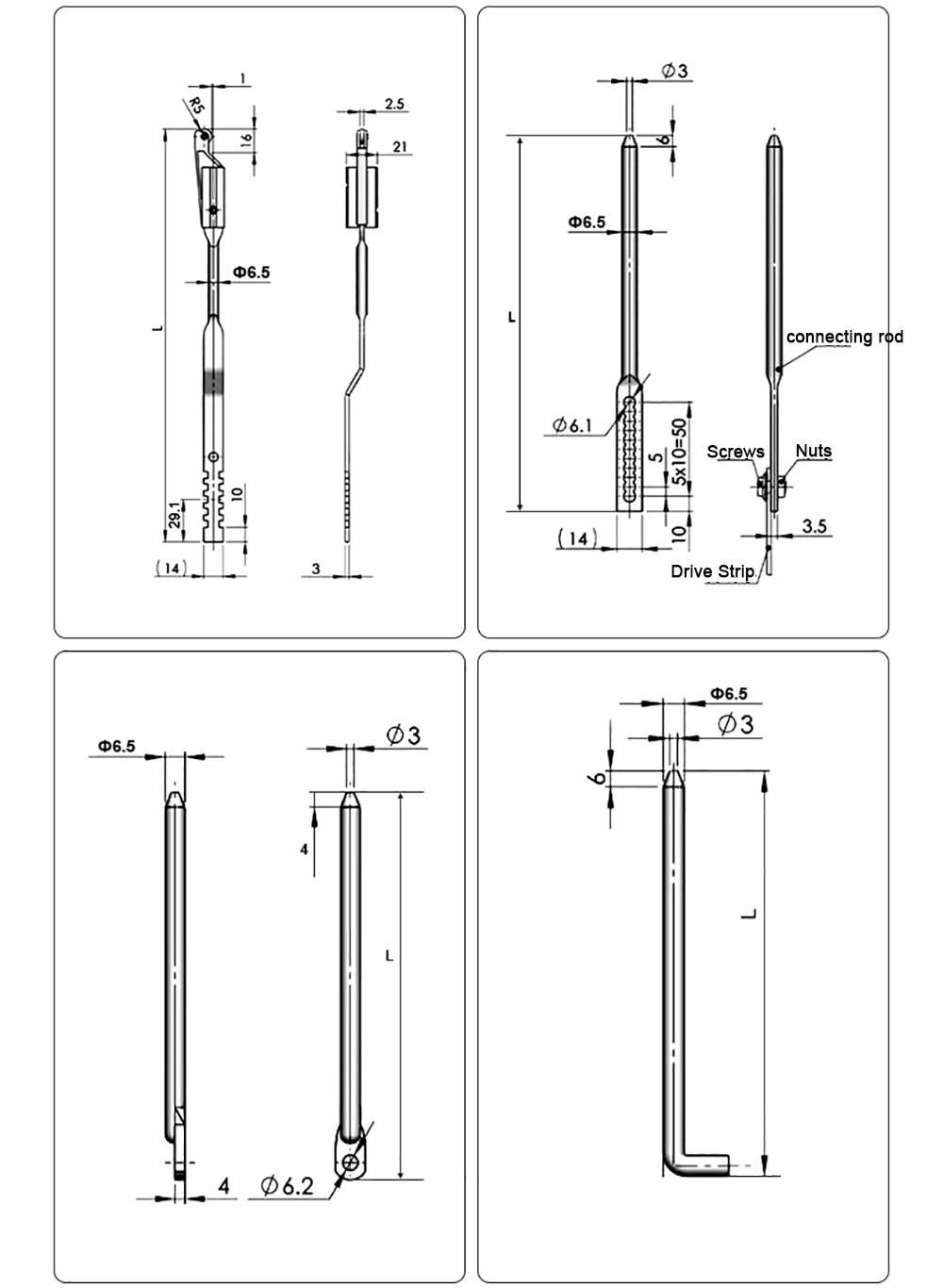

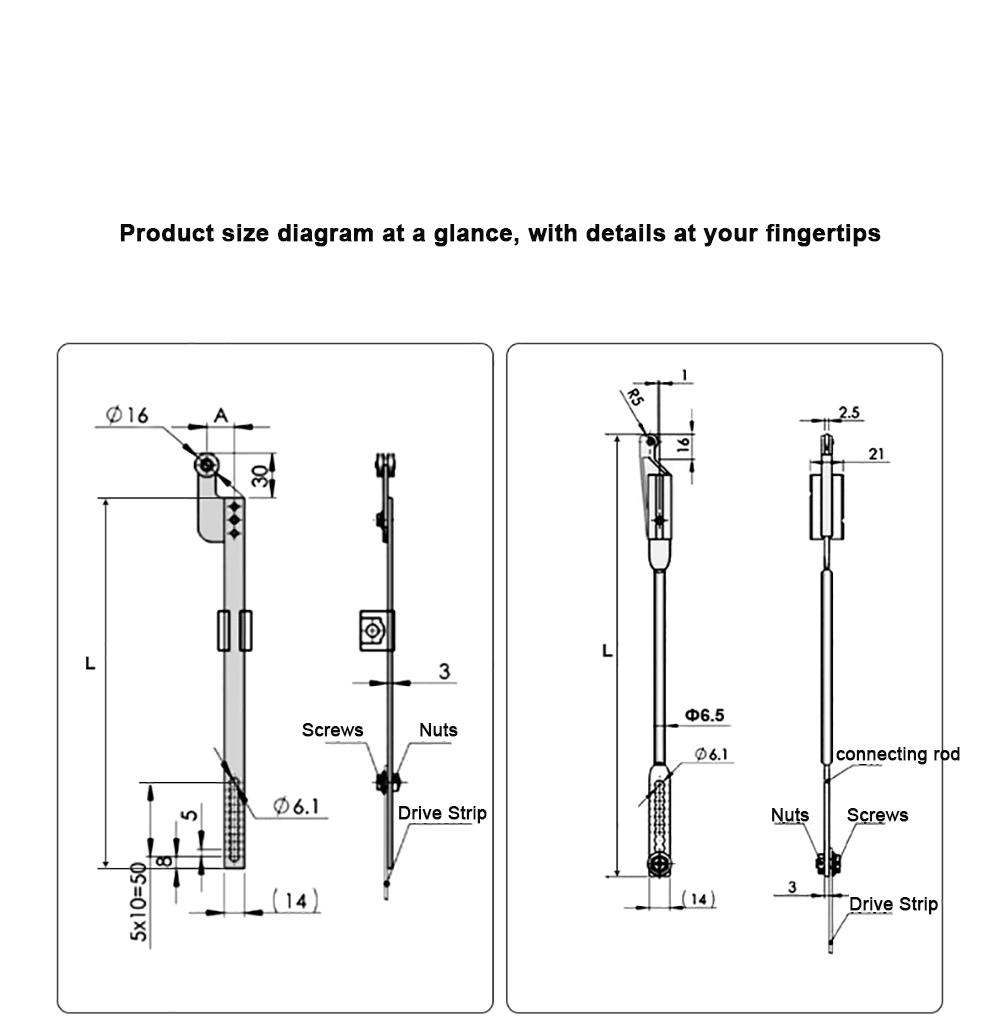

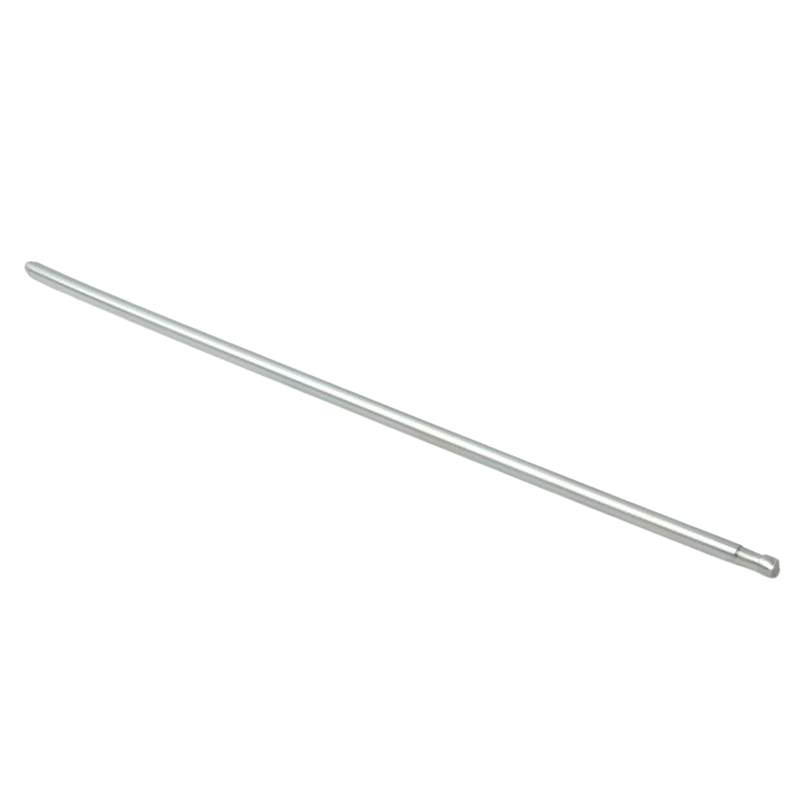

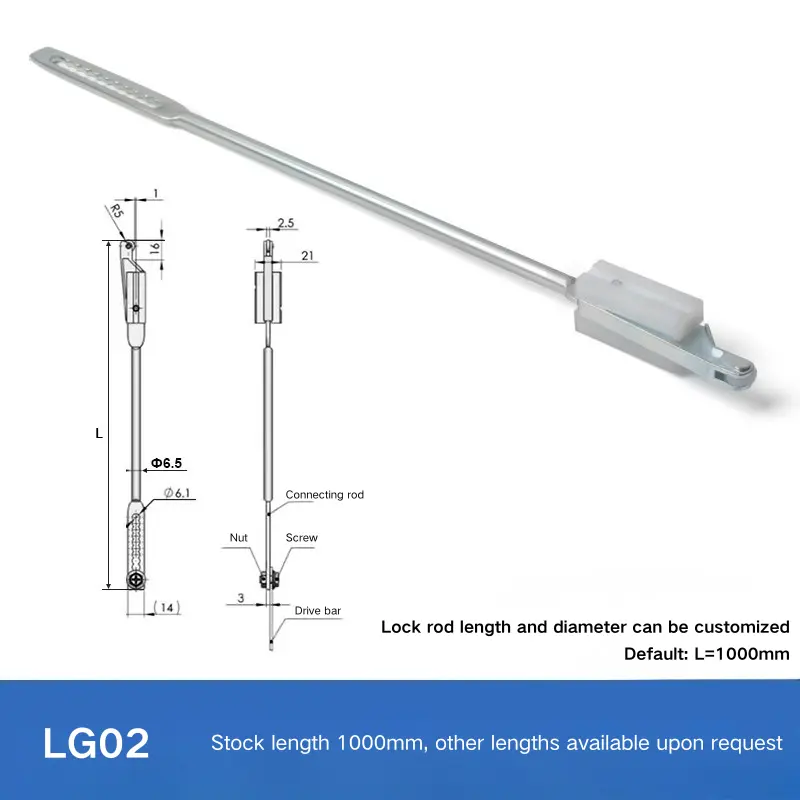

The default length of the Carbon steel(Iron) box transformer station pull rod is 1000mm, other lengths and diameters can be customized.
The box transformer station pull rods are usually used to reinforce the foundation connection of a box-variable station to prevent the box from tilting or collapsing due to external forces such as strong winds.
The rods can be used to fix high and low voltage bus bars and cables to ensure electrical safety distance and avoid short circuit or mechanical damage.
Anti-collision protection: In the box-variable station near the road or parking lot, the tie rod can be used in combination with the anti-collision pile to reduce the damage to the equipment caused by vehicle impact.
Confirm the specification model of the pull rod before installing box transformer station pull rod, and check the surface without damage or deformation. Prepare professional tools such as torque wrench, level meter, measuring tape, etc., and wear protective equipments such as insulated gloves and safety helmet.
Use laser range finder to determine the installation position, mark the installation holes, the error is controlled within ±2mm, the embedded parts should be poured in advance, bolted, and the torque value is subject to the manufacturer's requirements.
Check the surface condition of the tie rod and the connection parts for looseness at least once a month after installation.
Tighten all connecting bolts, replace damaged seals and replenish anti-corrosion coating every year.
Disassembly and measurement inspection every 3 years.
Q: What are the precautions when installing box transformer station pull rods?
A: It is necessary to ensure that the tie rods are reliably connected to the grounding network, the installation position shall not affect the ventilation of the equipment, the bolts should be tightened with a torque wrench to reach the specified value, and check the safety distance between the tie rods and the equipment.
Q: How to check whether the rods are firmly installed?
A: Regularly check the bolts for looseness (recommended every 6 months), observe the tie rods for deformation or corrosion, and test the insulation resistance of the insulated tie rods with a rocking meter.
Q: How long is the maintenance cycle for the rods?
A: Routine inspections should be done monthly, and comprehensive maintenance is recommended at least once a year, which needs to be shortened to once every six months in wet or coastal areas.
Q: What problems will be caused by box transformer station pull rods?
A:It may lead to equipment displacement, busbar deformation, connection point heating or even short-circuit, and in serious cases, it may lead to the deformation of the enclosure of the box-type transformer or the mechanical damage of the internal components.
Q:How to determine whether a tie rod needs to be replaced?
A:Replacement is required when the following conditions occur:
Obvious bending deformation, thread damage, corrosion resulting in cross-section reduction of more than 10% or broken connectors.

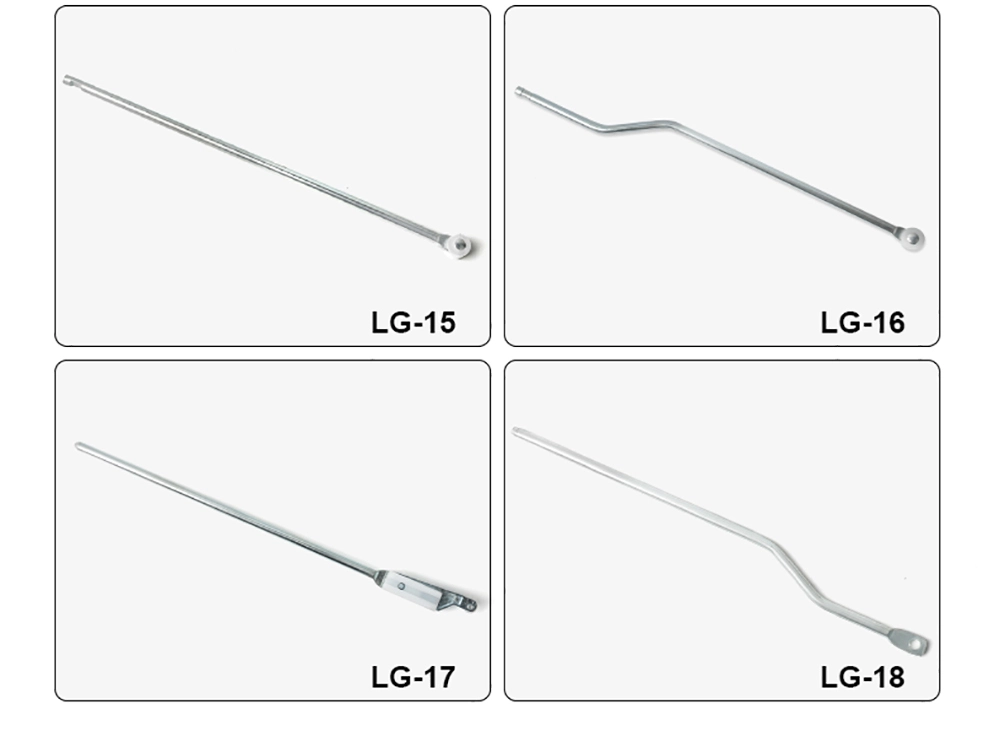

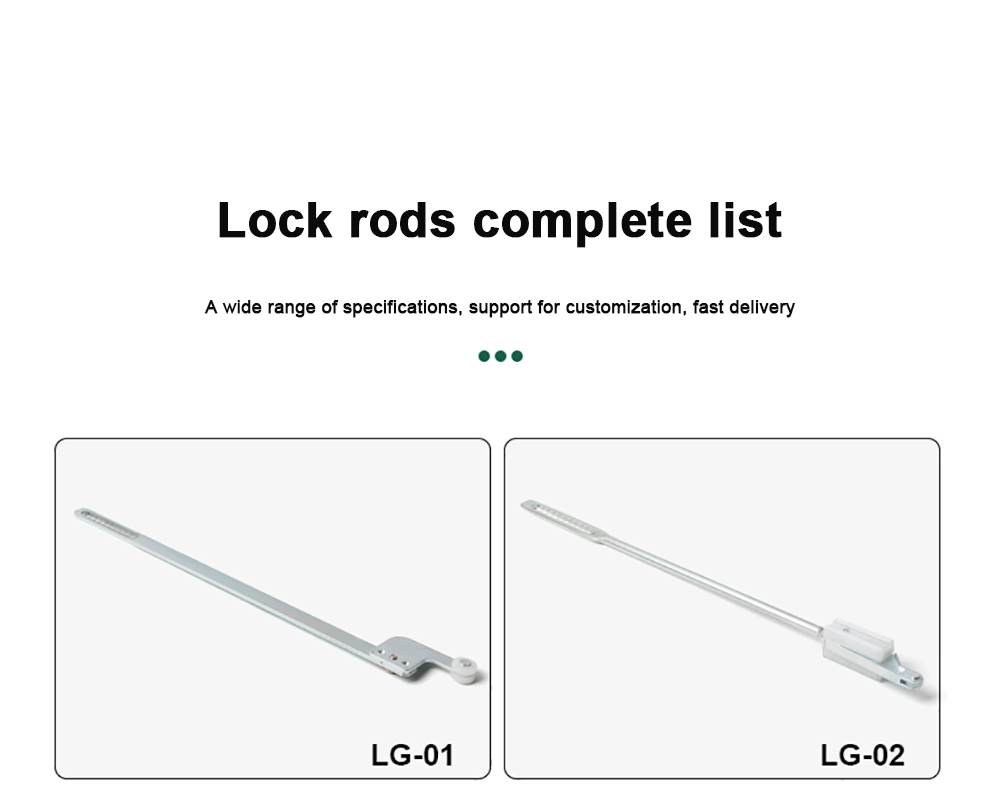

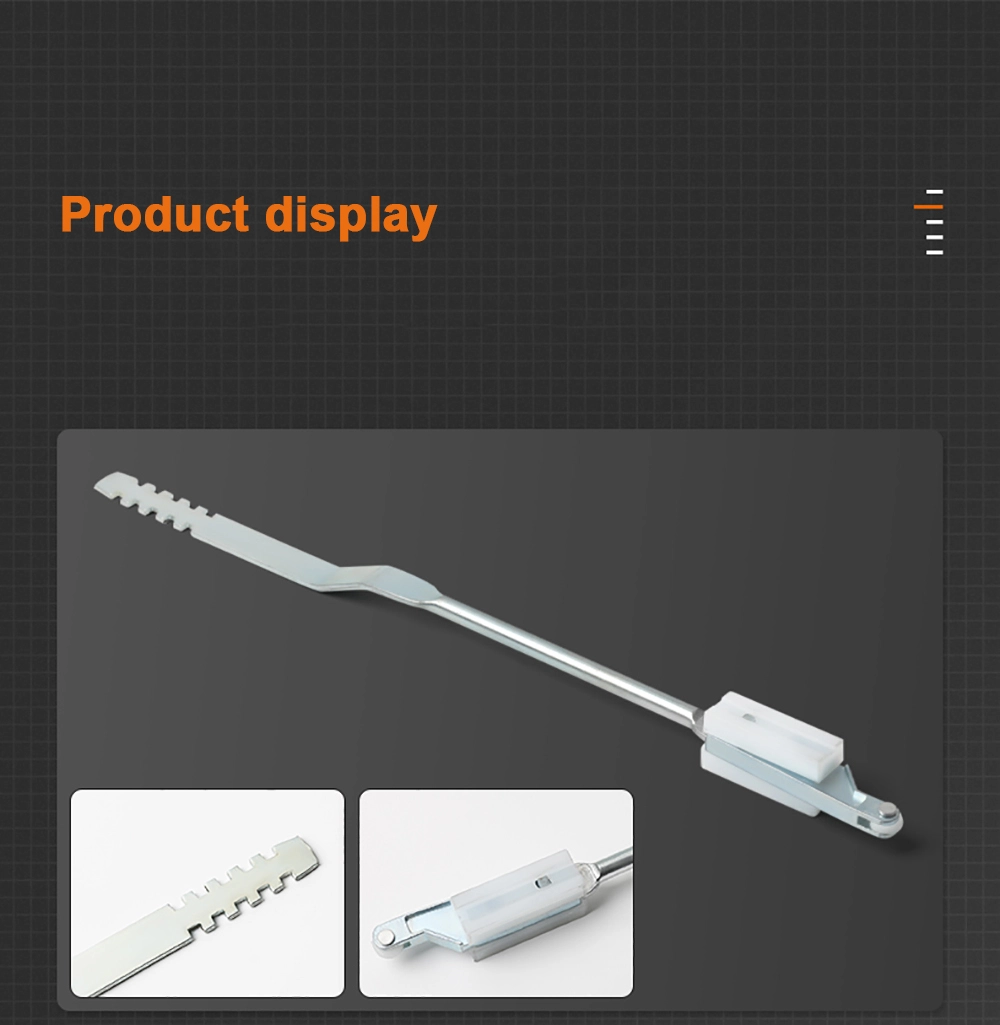

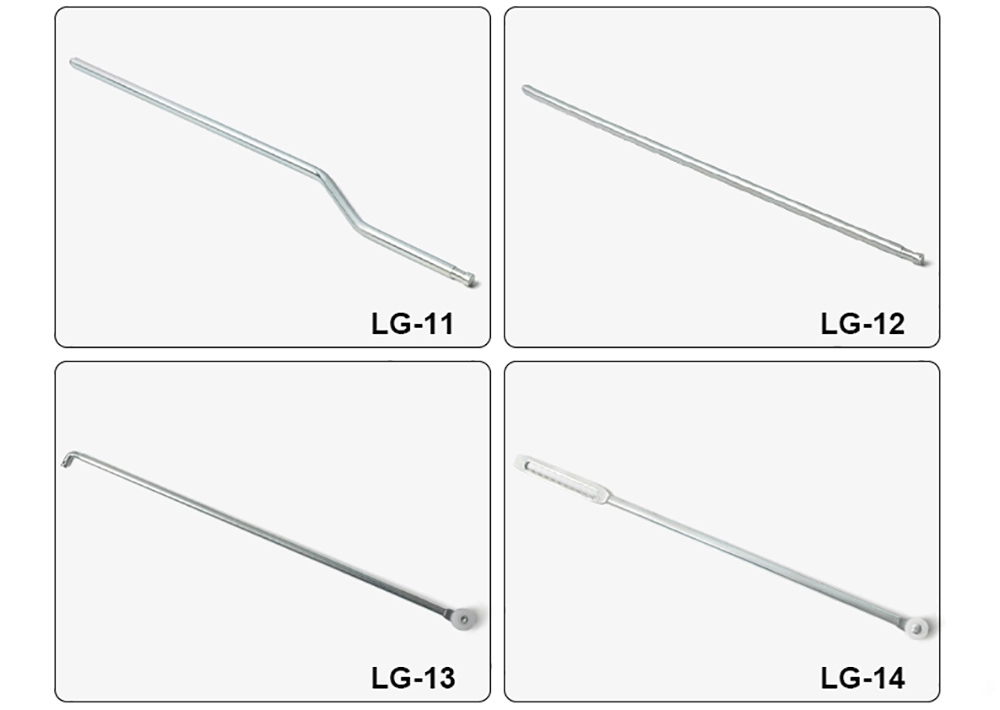

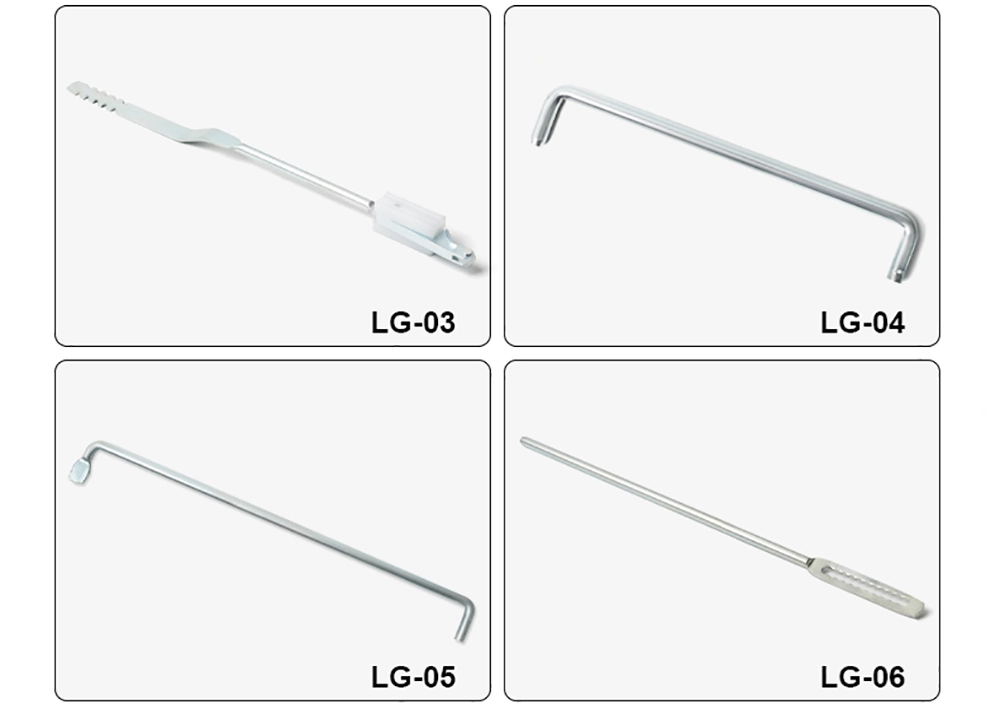

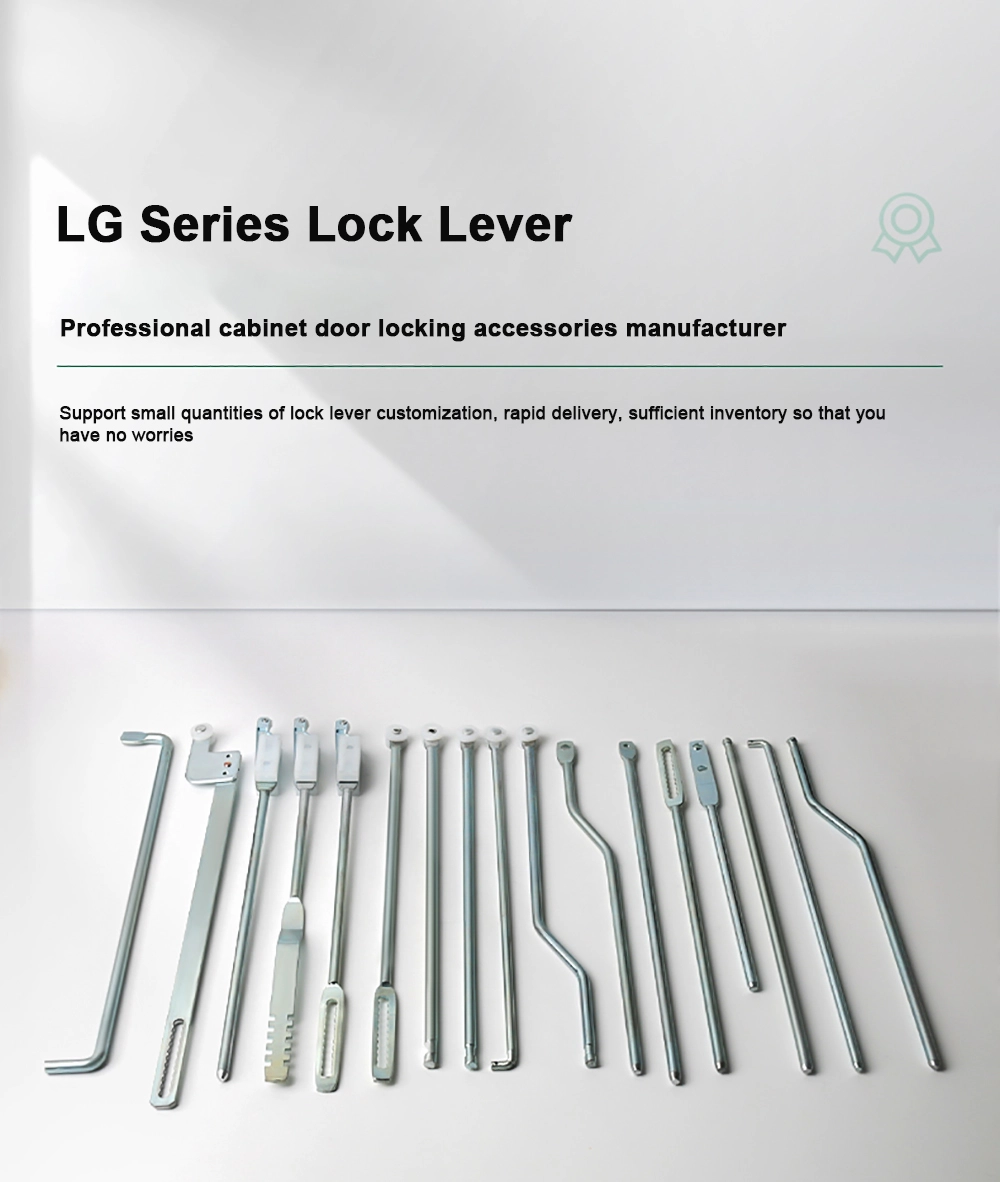

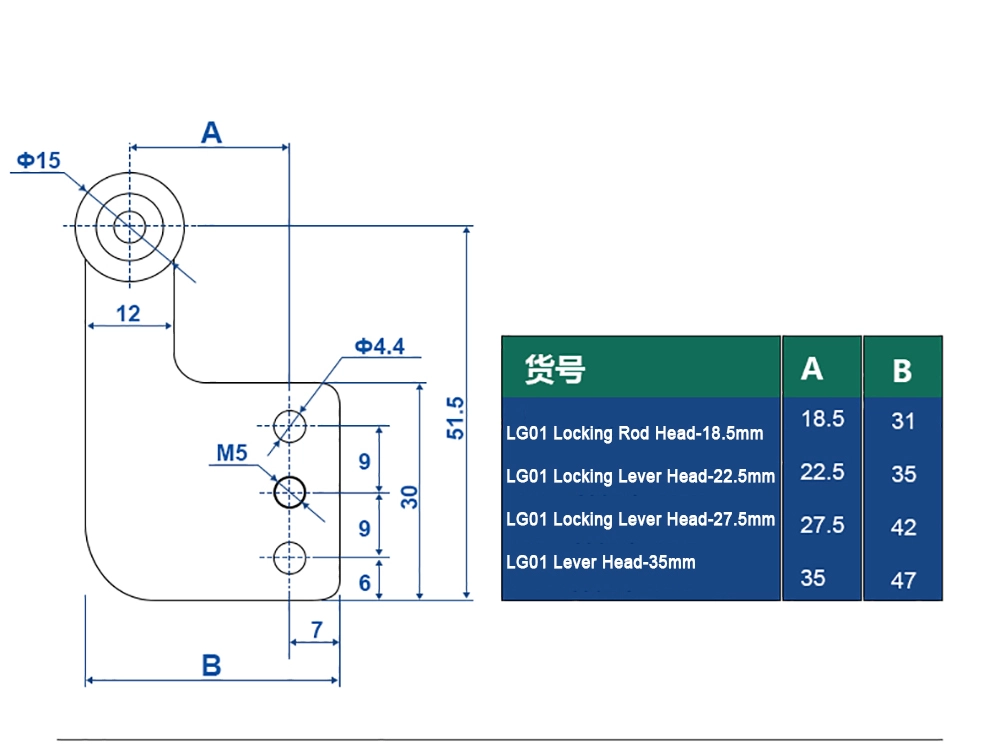

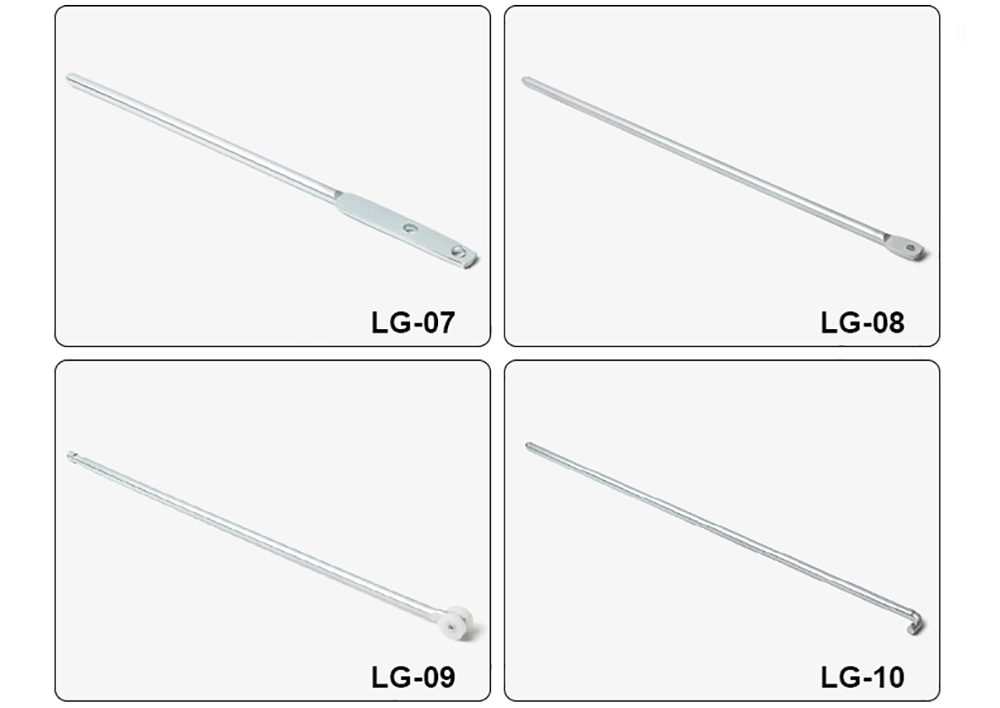

| Product model | LG Series Locking Lever |
| materials | Iron |
| colour | galvanized iron |
| Product features | Flexible rotation/thickened panel/anti-corrosion and durable |
| Application scope | Distribution box/cabinet/cabinet/all kinds of industrial boxes |
