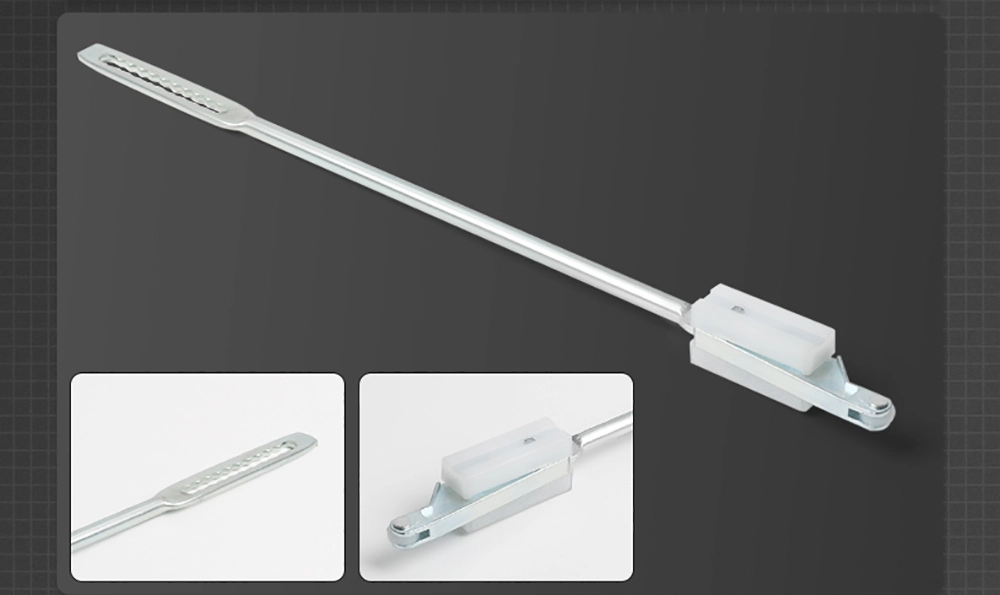

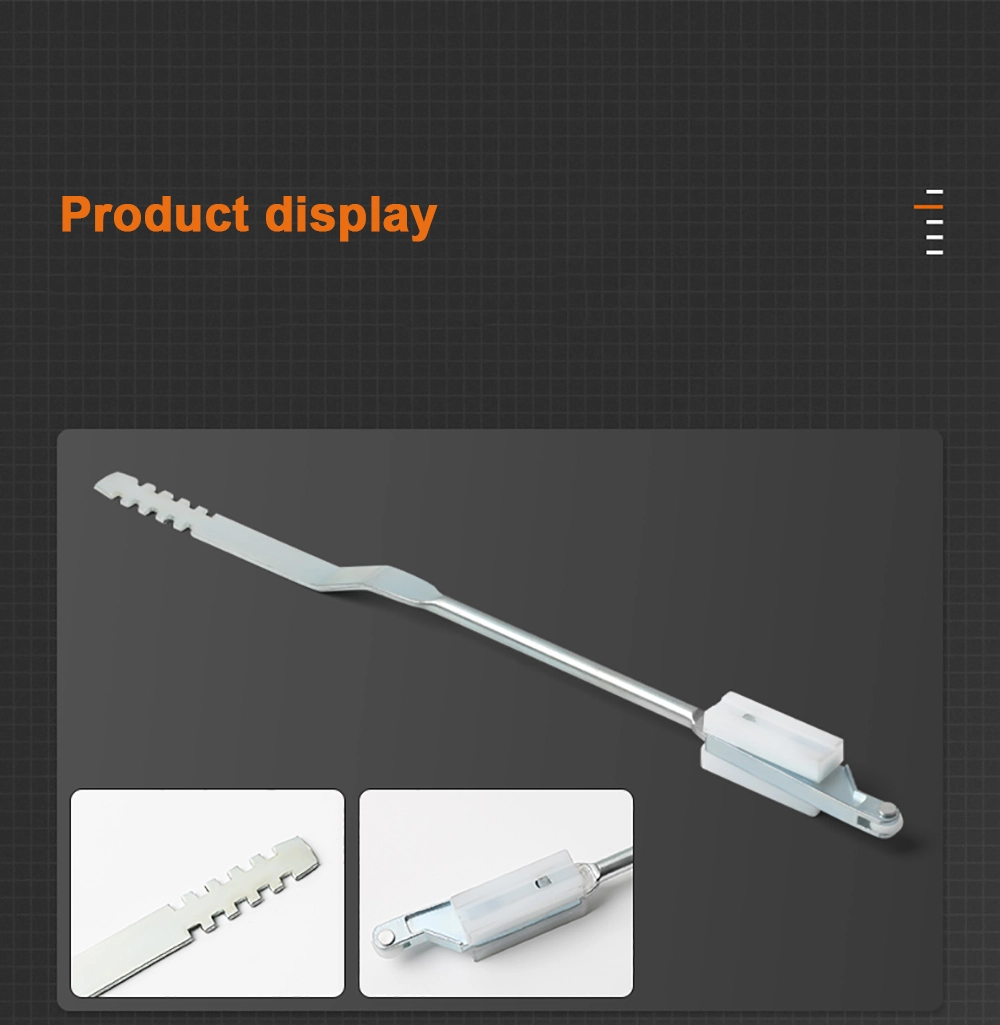

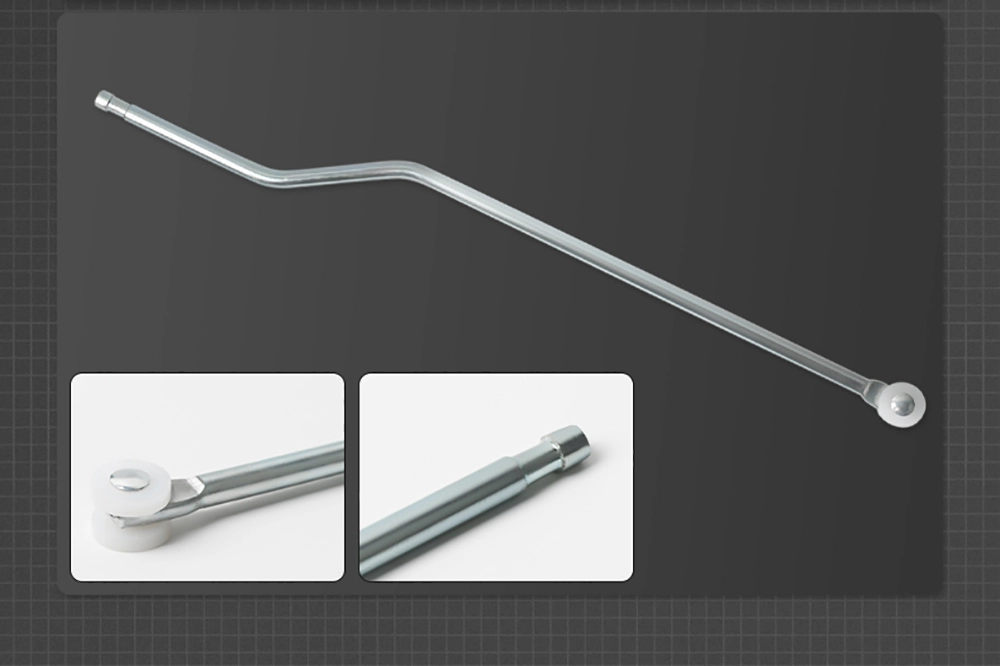

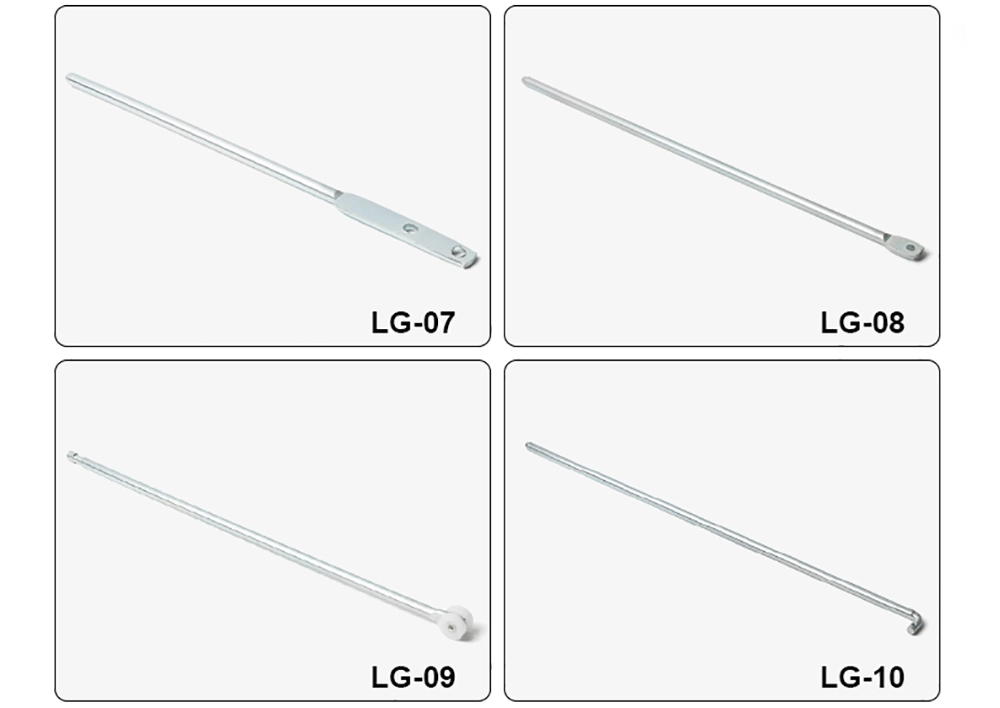

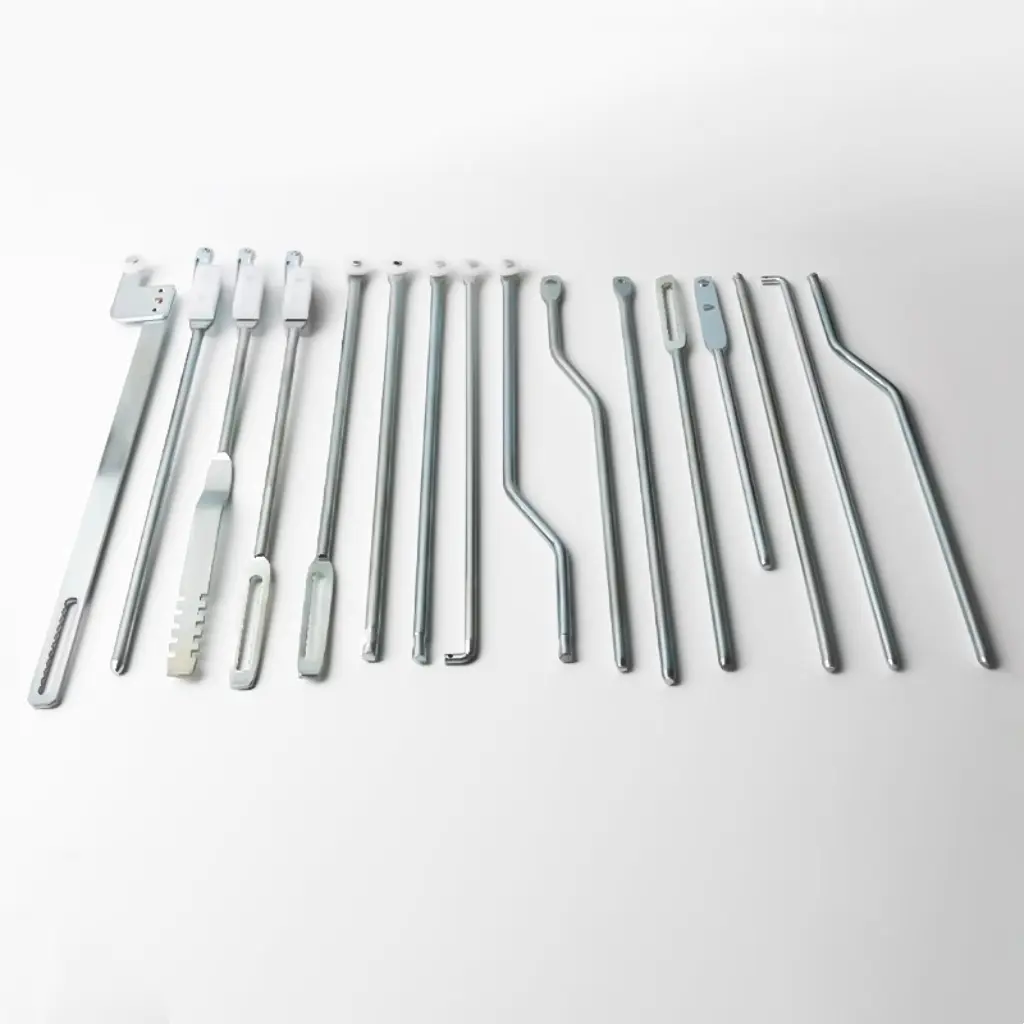

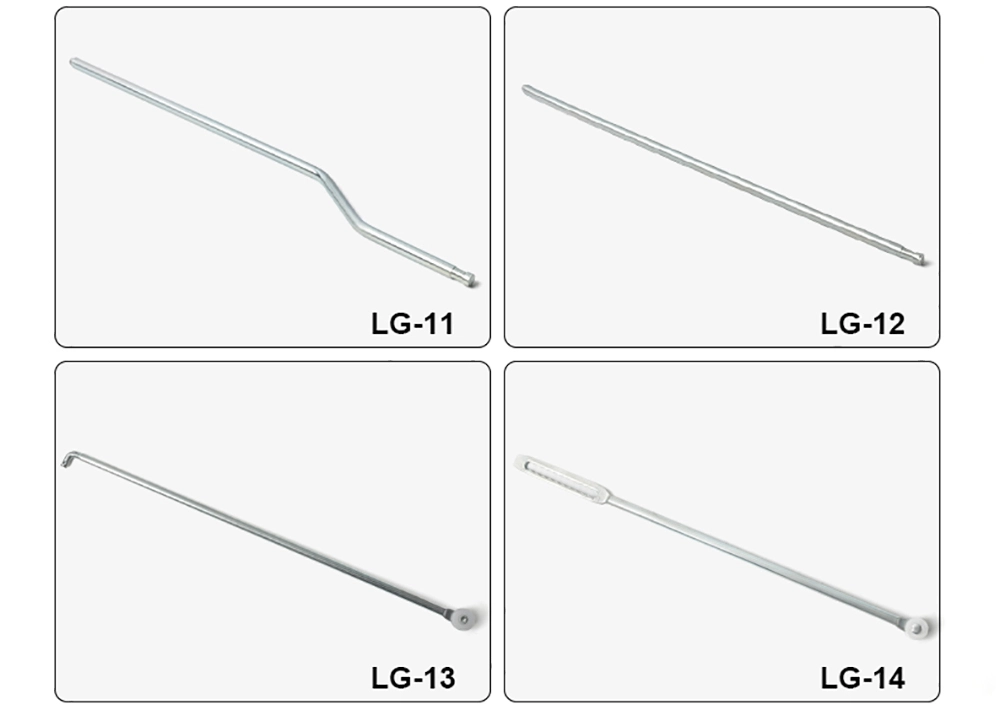

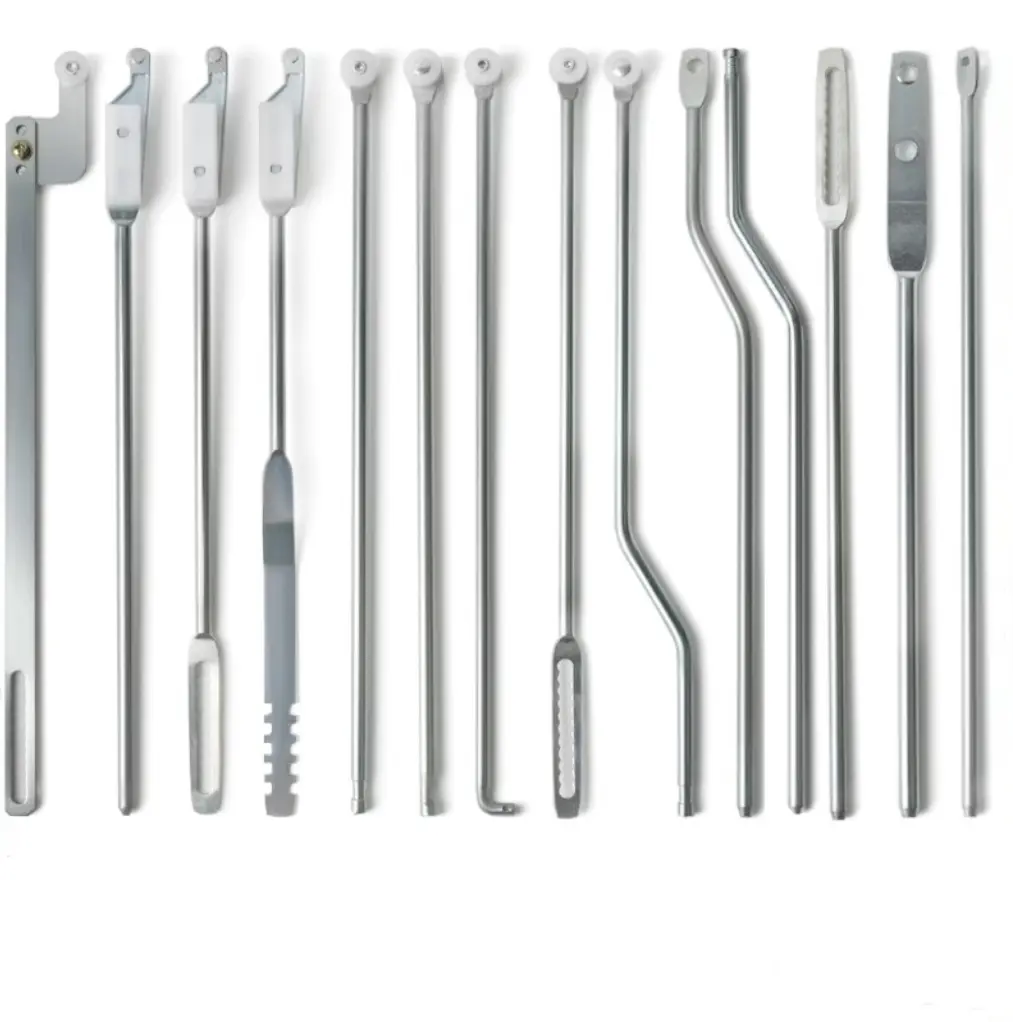

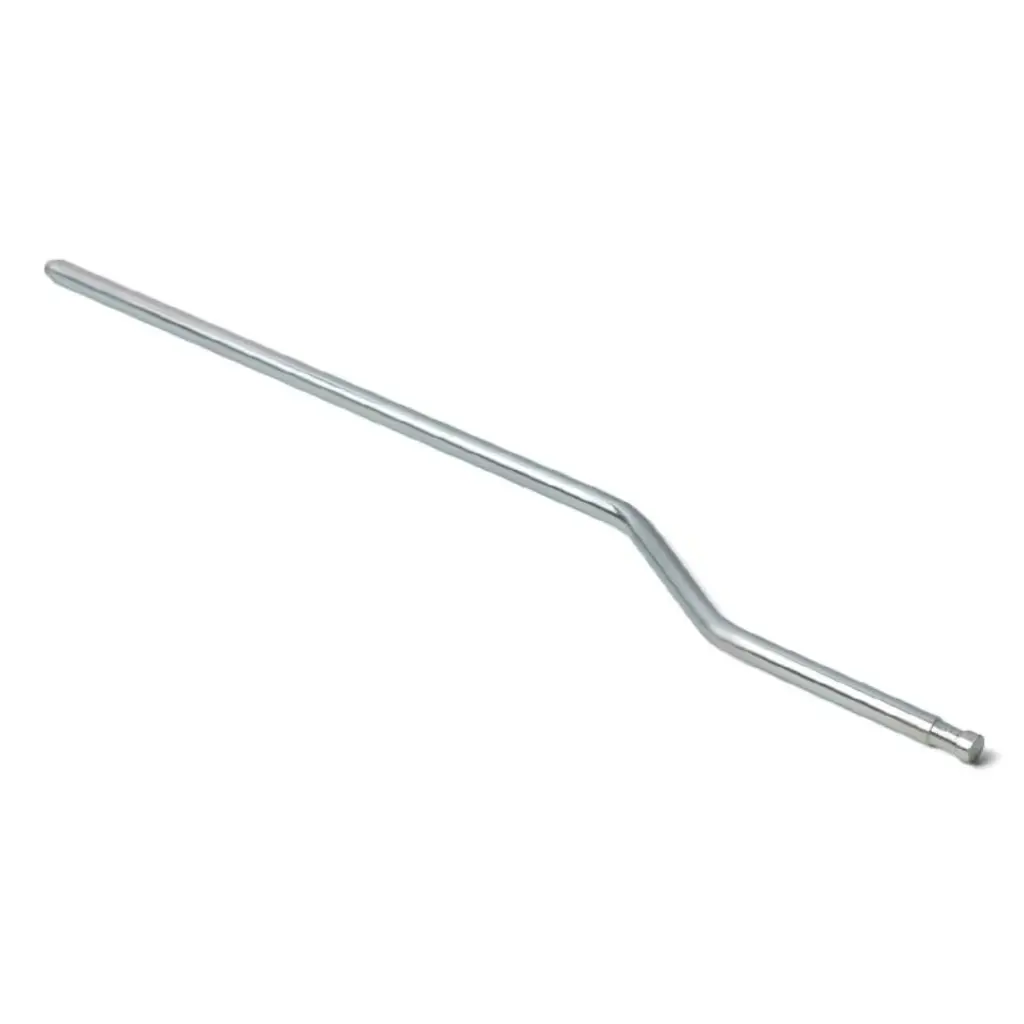

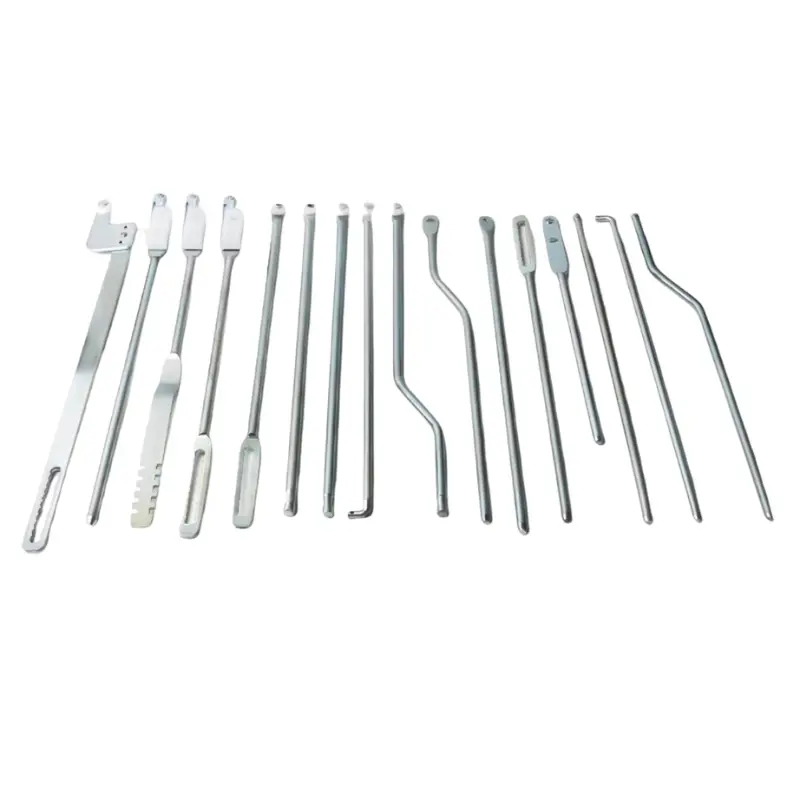

GGD Tie Rod

Yitai Lock's China GGD Tie Rods are exported to all over the world. GGD tie rods are mainly used to fix, support and connect electrical components inside the cabinet to ensure the structural stability and electrical safety of the distribution cabinet.

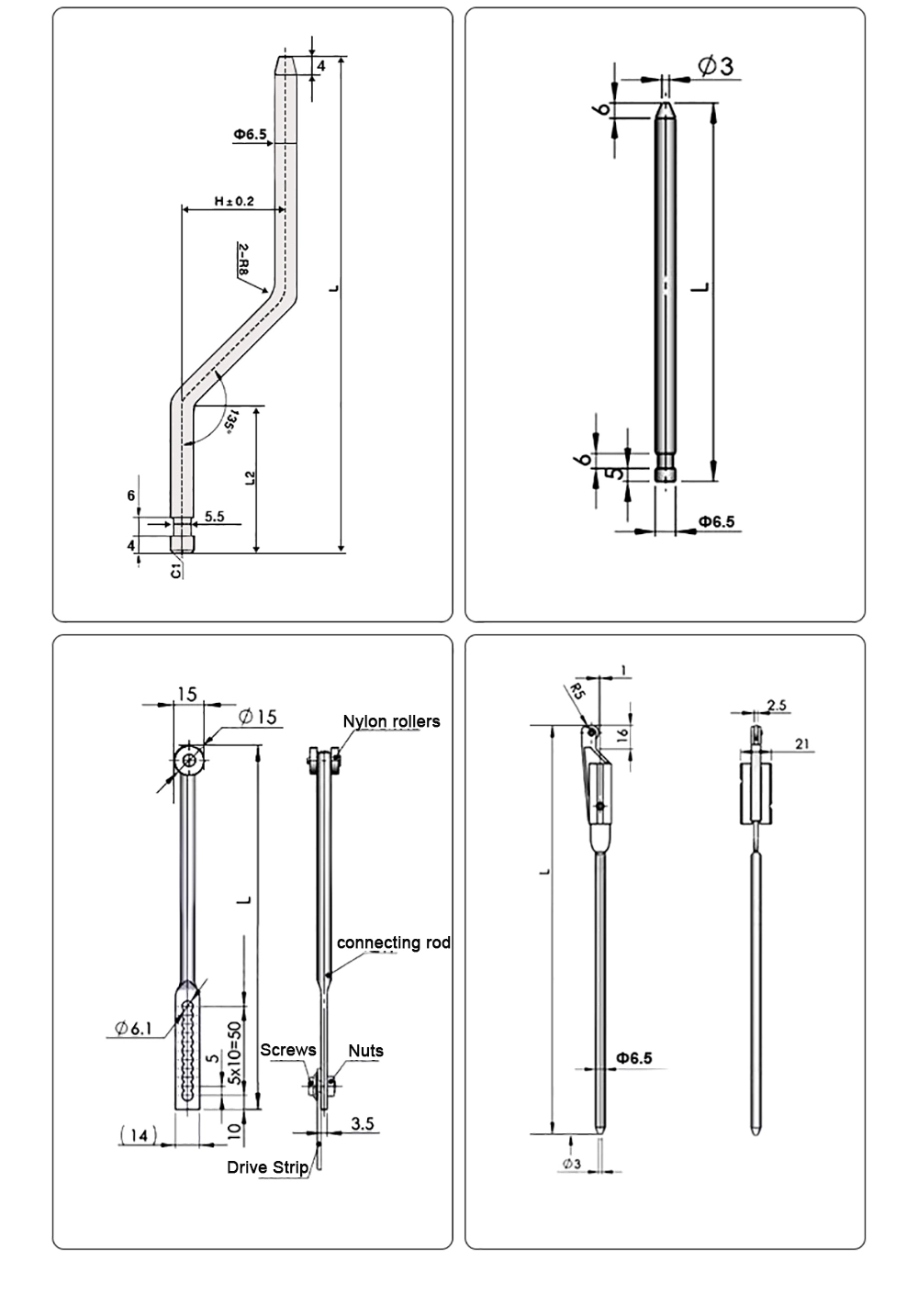

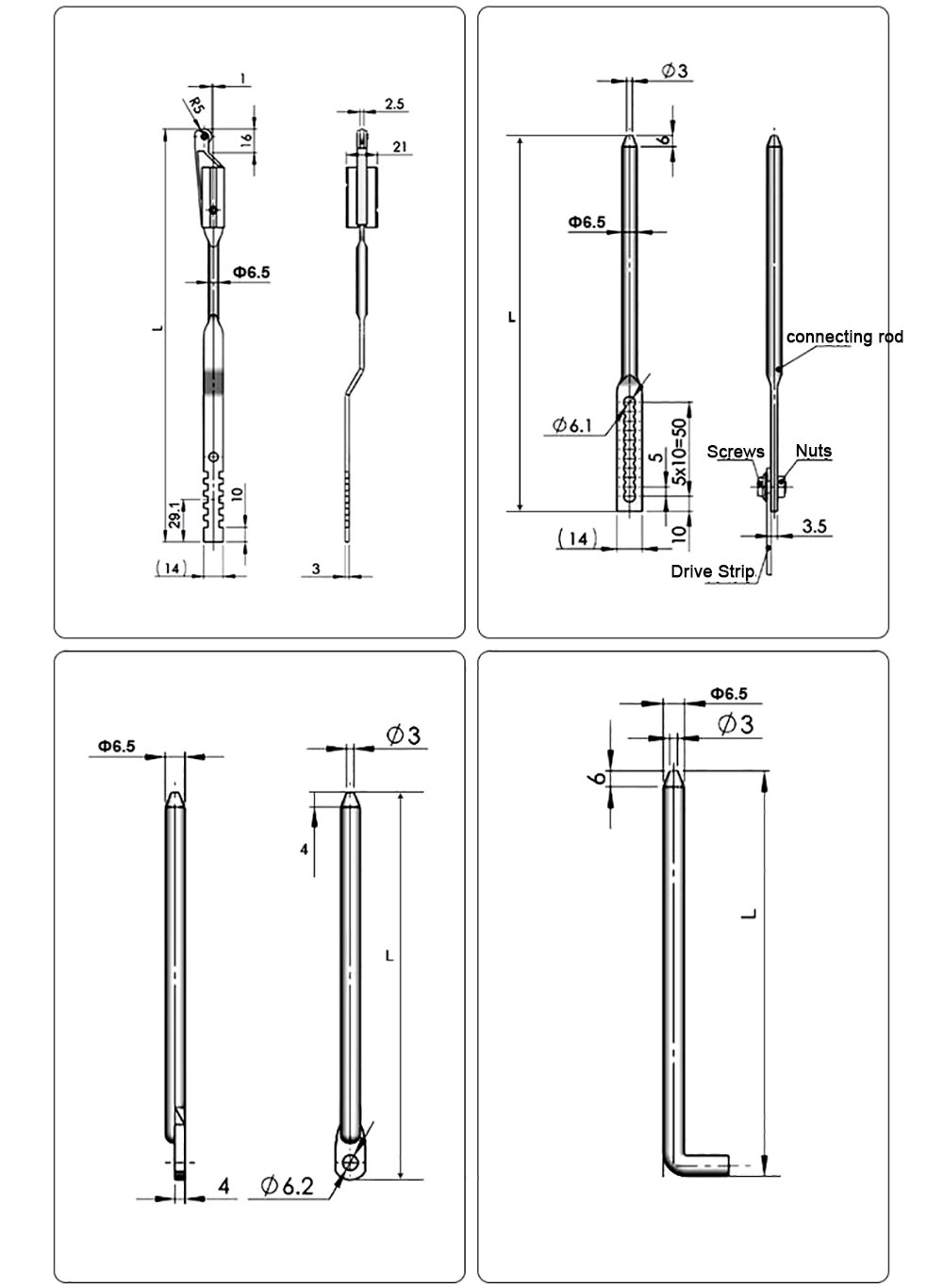

Dimensions:

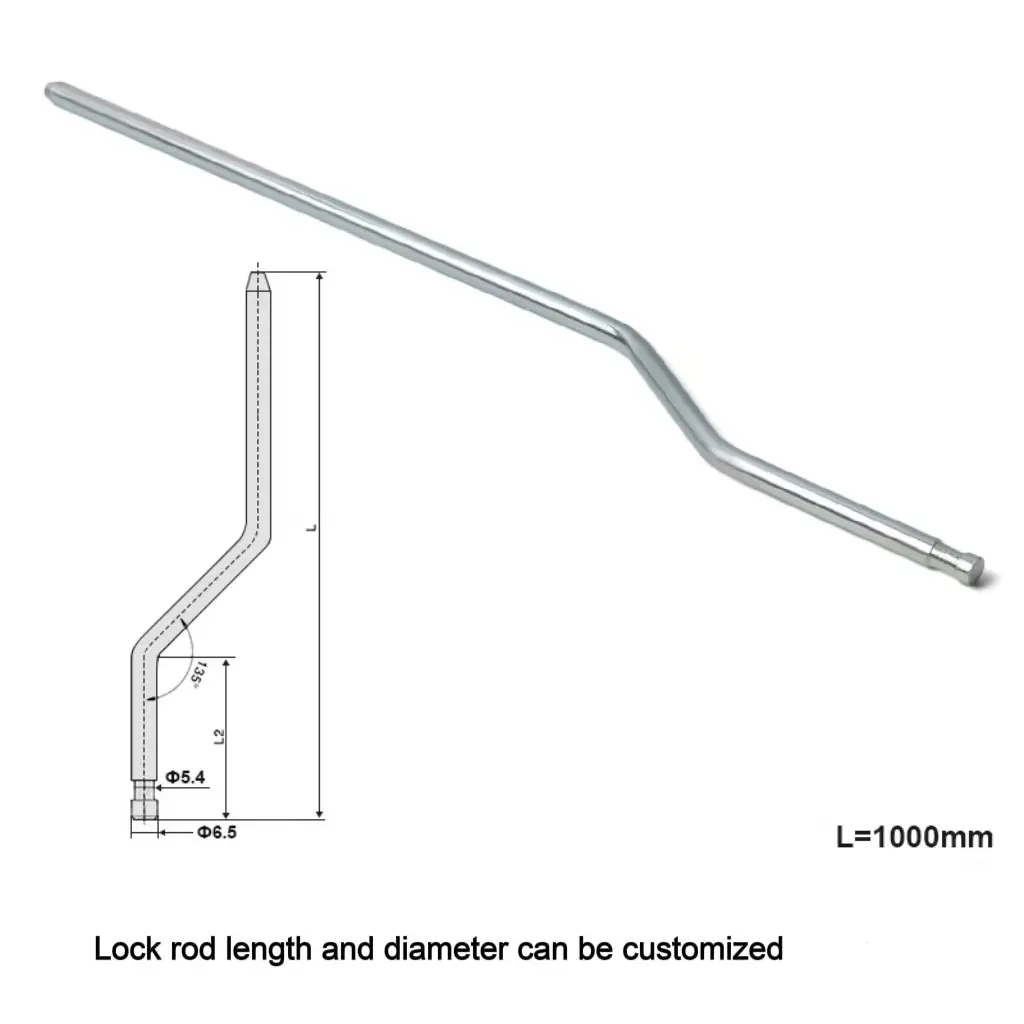

The default length of the carbon steel(Iron) GGD tie rod is 1000mm, other lengths and diameters can be customized.

Features

GGD tie rods are mainly used to fix the cabinet frame, support busbar rows and connect electrical components to ensure the stability of the overall structure of the distribution cabinet.

Installation method: bolt or weld connection with the cabinet.

Electrical safety: the design of tie rods should be considered to maintain a sufficient safety distance from the electrified body to prevent the occurrence of electrical discharge phenomenon.

Selection Guide

Select the length of GGD tie rod according to the cabinet size.

Select thickness according to load bearing requirements.

Galvanized version is recommended for corrosive environments.

For high aesthetics requirement, customized plastic spraying version is available.

FAQ

Q: What can I do if the tie rods don't telescope smoothly?

A: Check for foreign object obstruction.

Lubricate the joints or threaded parts.

Replacement is required if deformed or damaged.

Q: Is it possible to customize the length of the GGD tie rod?

A: Support customized lock rod length and diameter

Q: Is GGD tie rods resistant to high temperature?

A: Ordinary steel temperature resistance of about 200°C or less.

Q：How can I tell if a tie rod is damaged?

A:Observe for visible bends, cracks or worn threads.

Rattling or jamming during testing may be internal structural damage

Q:What is the life expectancy of a GGD tie rod?

A:Depending on the frequency of use, load and environment, up to several years or more with normal maintenance.
