Electrical Enclosures Recessed Draw Latch Lock

Yitai Lock supplies Electrical Enclosures Recessed Draw Latch Lock in stock for industrial applications. The DKS Electrical Enclosures Recessed Draw Latch Lock is available with key cylinder (DKS-1) and without key cylinder (DKS-2), supporting different access control needs. Both small and large sizes support stable engagement between the door and frame while keeping operation simple by recessed pulling. This design works well on electrical cabinets, mechanical equipment housings, and tool storage enclosures.

Model Options and Size

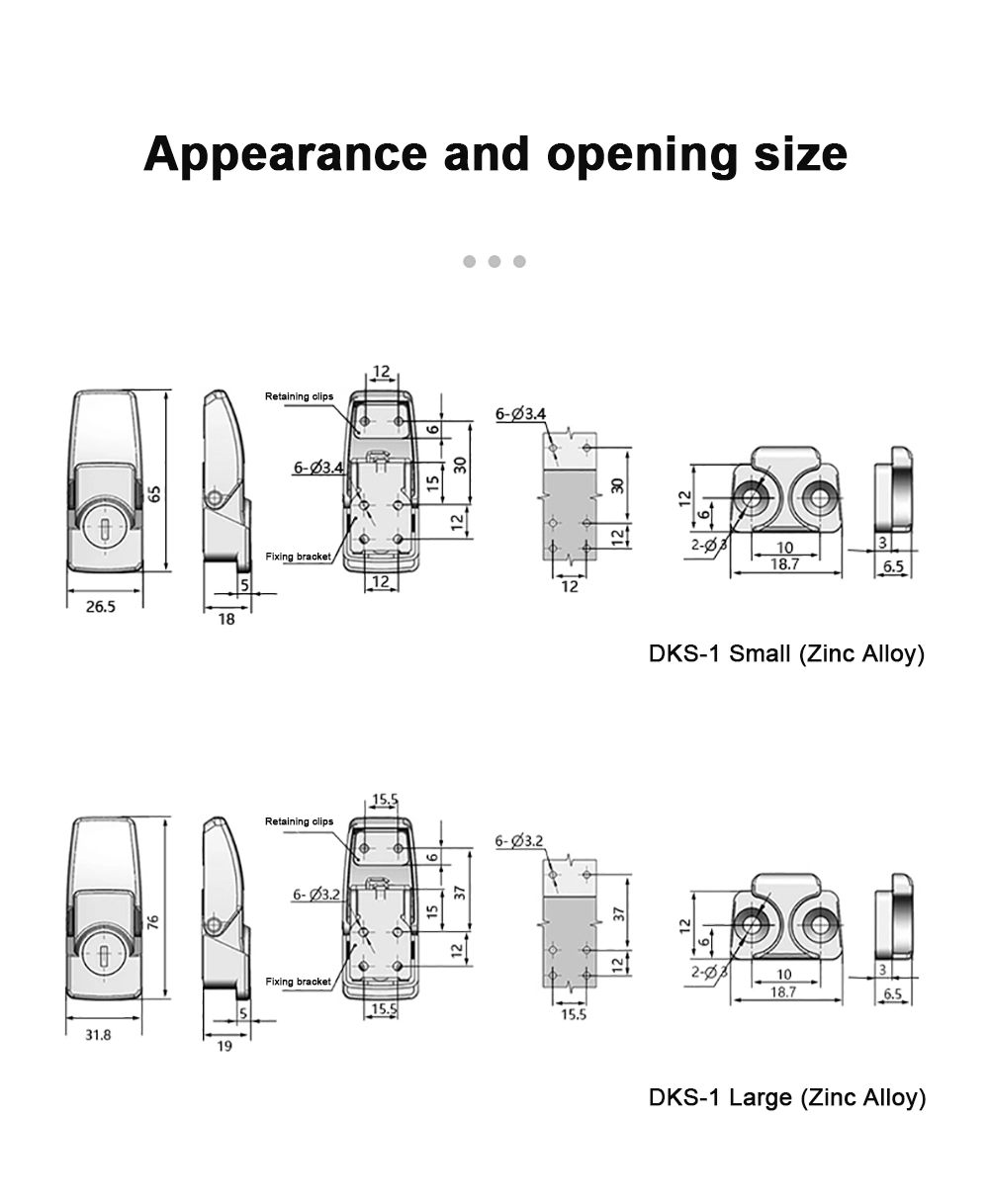

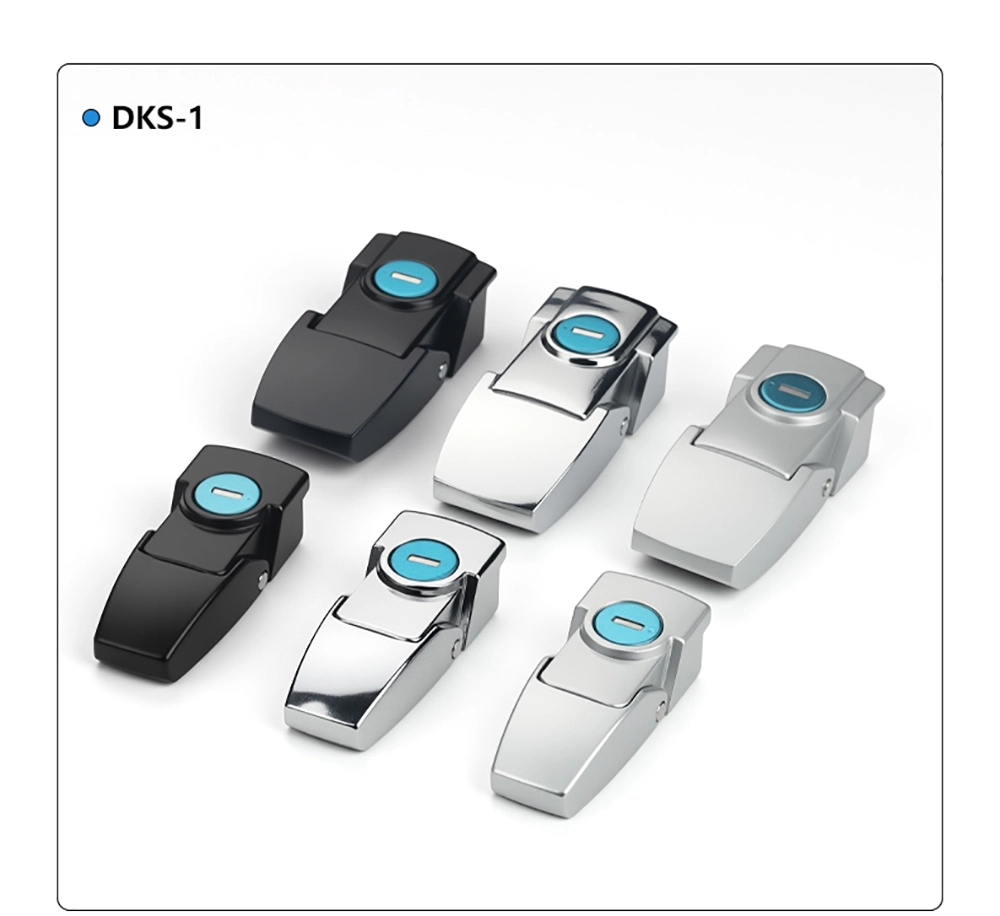

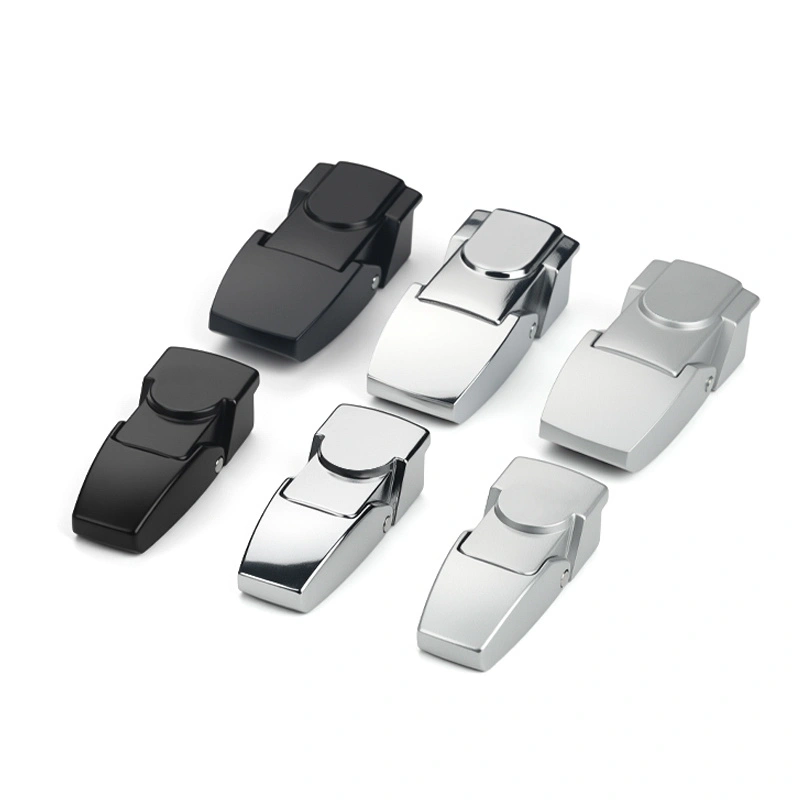

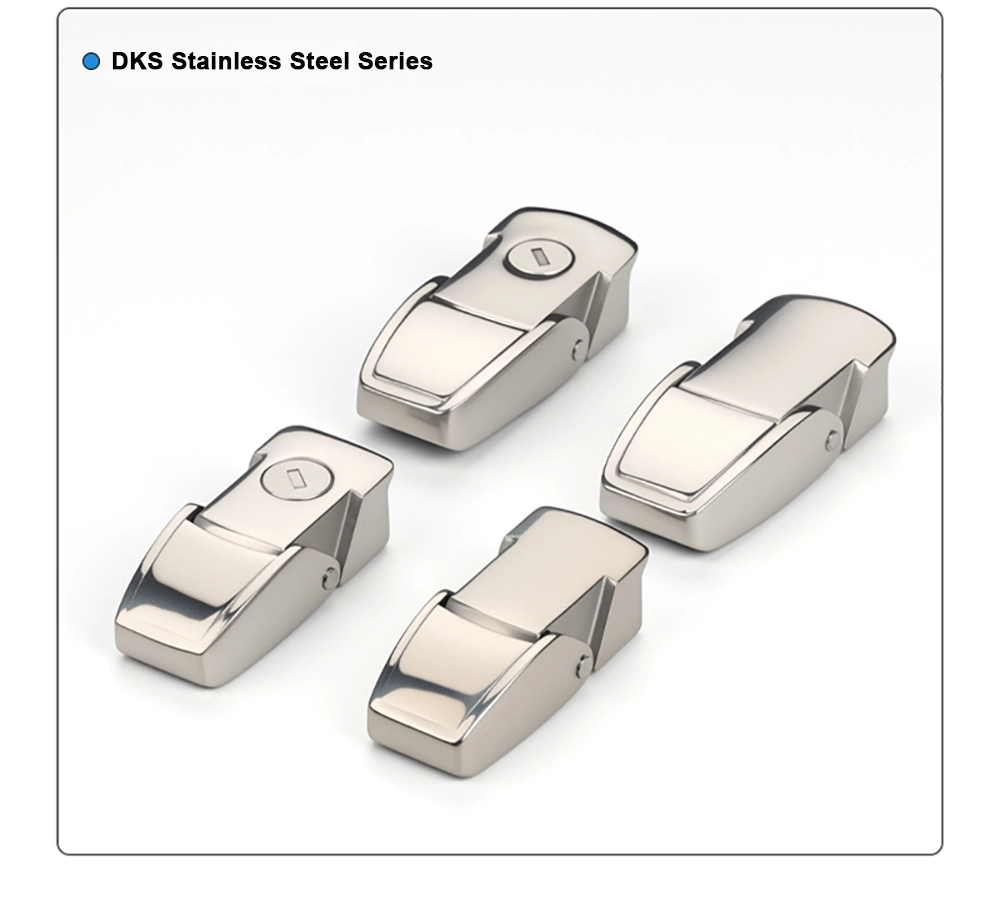

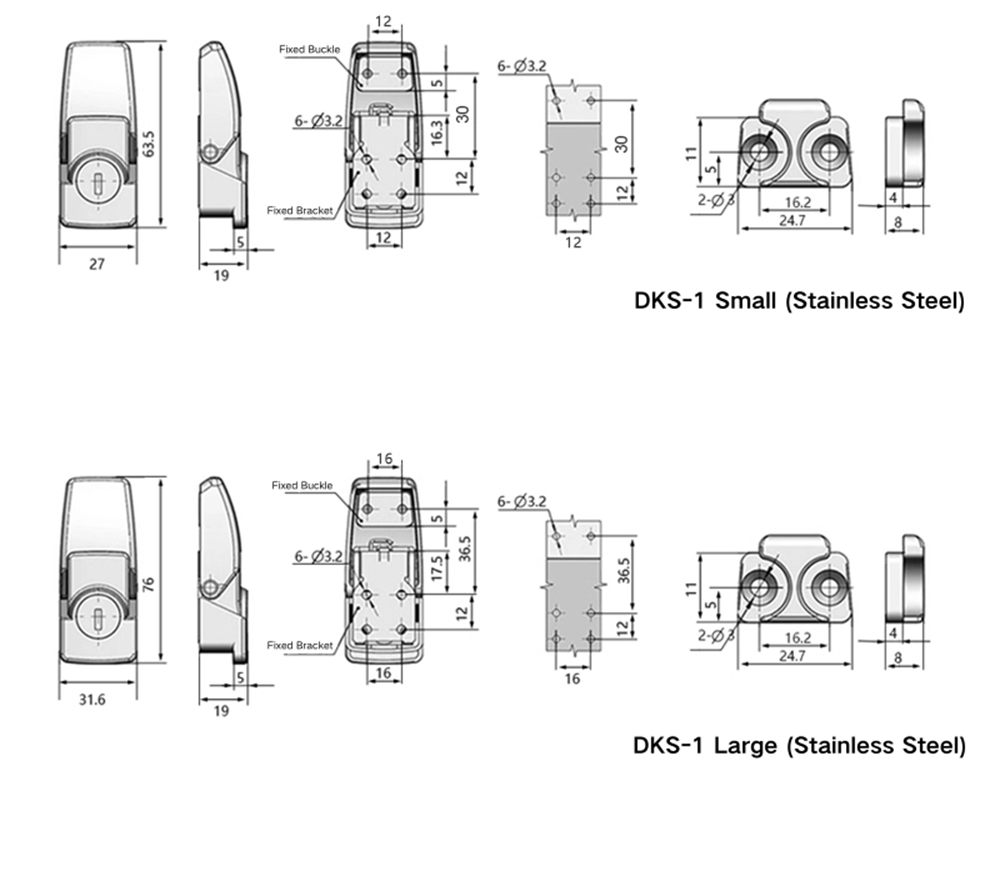

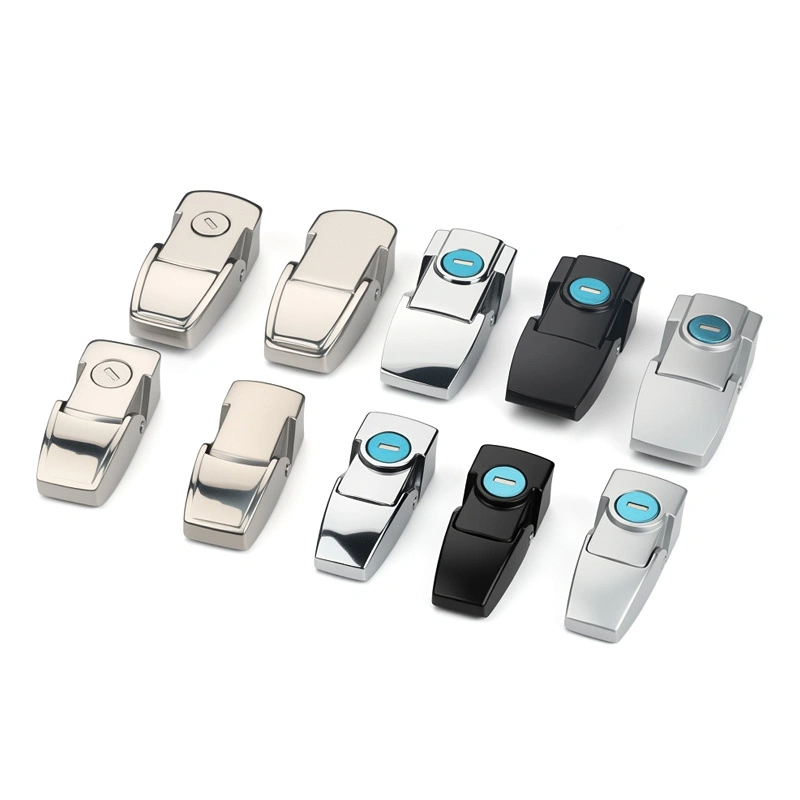

The Electrical Enclosures Recessed Draw Latch Lock is offered in DKS-1 with key cylinder and DKS-2 without key cylinder. Small size outer dimension is about 65 × 26.5 mm with a streamlined width up to 18 mm. Large size outer dimension is about 76 × 31.8 mm with a streamlined width up to 19 mm. With both sizes available, the Electrical Enclosures Recessed Draw Latch Lock supports different cabinet door thicknesses and panel layouts while keeping a concealed surface profile.

Operation and Security

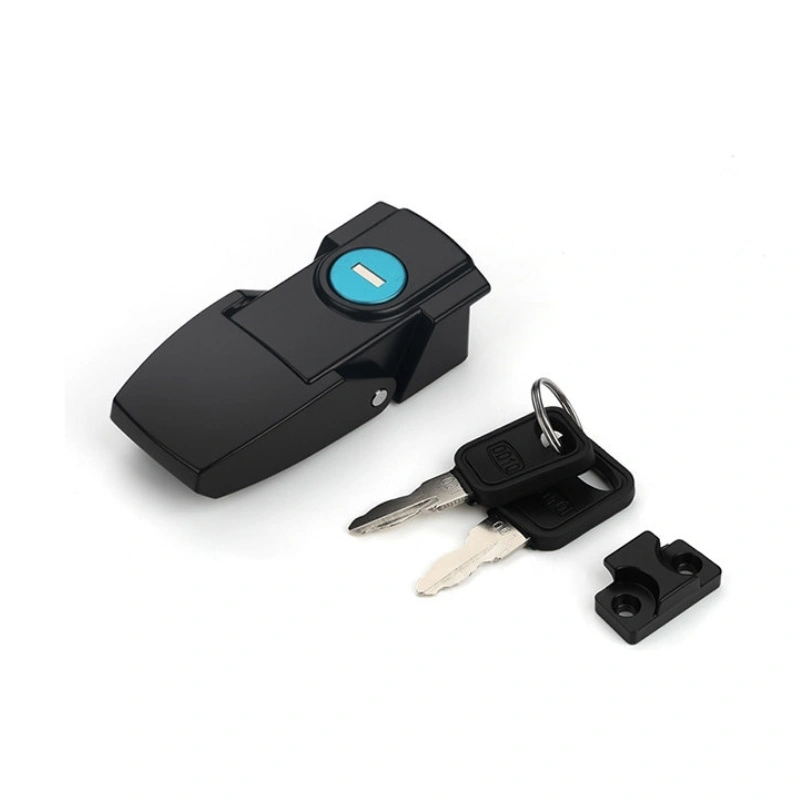

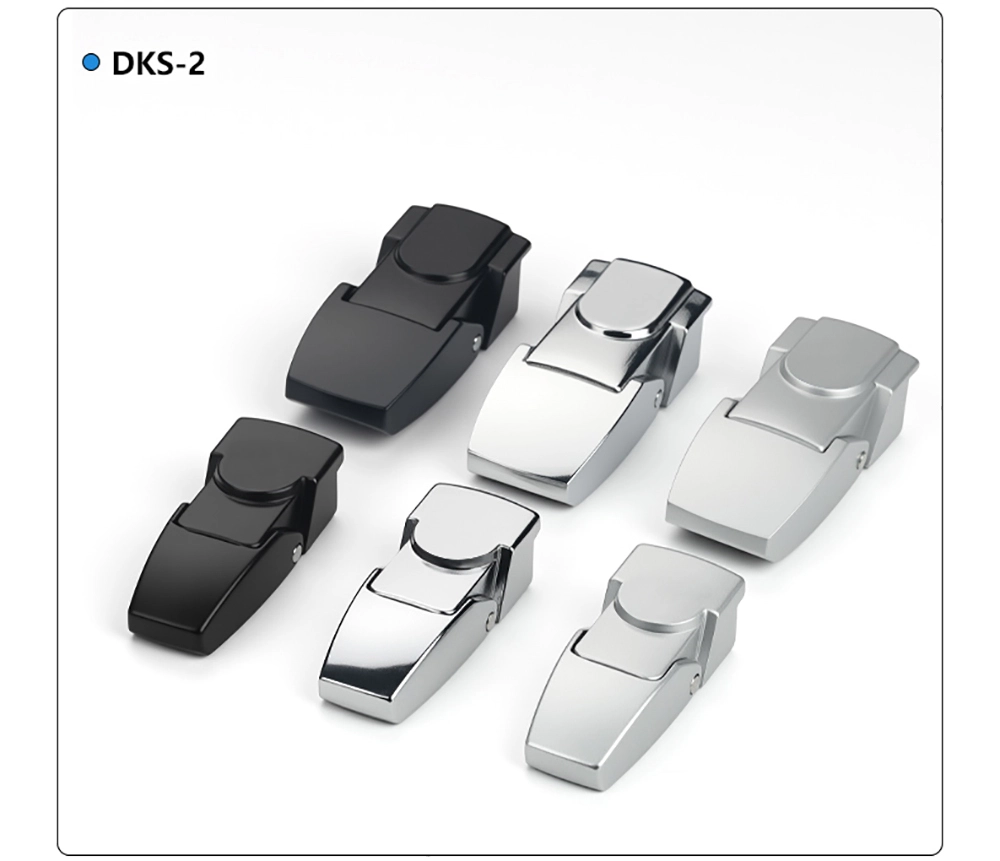

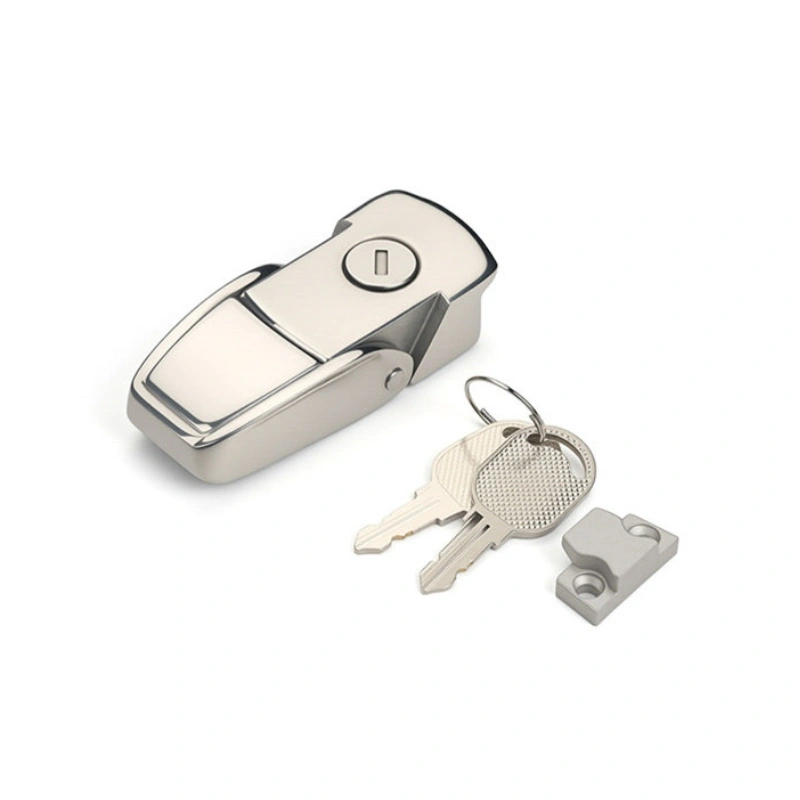

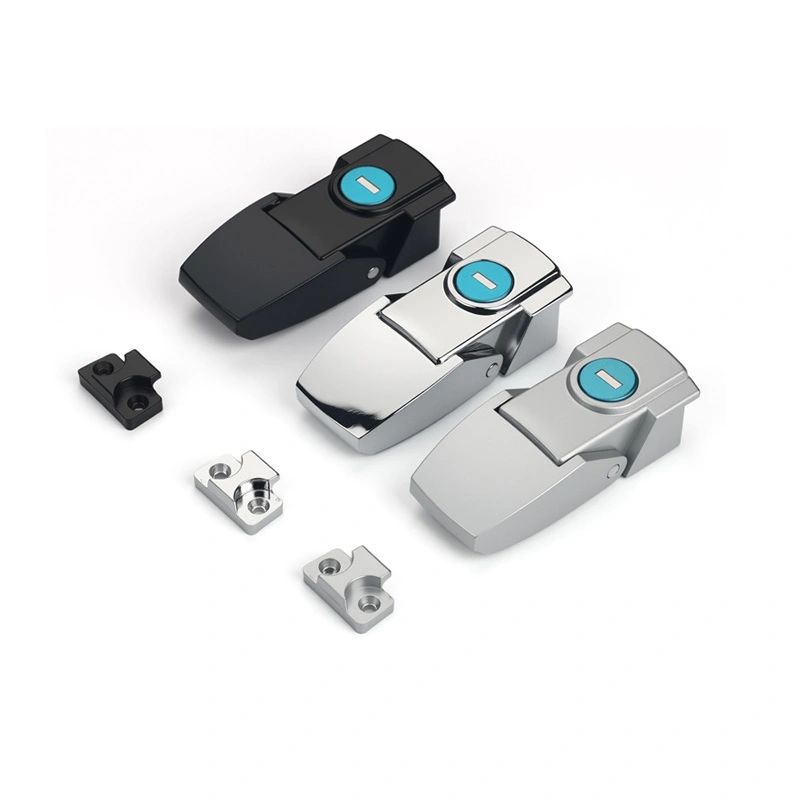

The recessed pull handle of the Electrical Enclosures Recessed Draw Latch Lock mechanism draws the door tightly against the frame. The DKS-1 Electrical Enclosures Recessed Draw Latch Lock provides keyed locking for projects requiring access control. The DKS-2 Electrical Enclosures Recessed Draw Latch Lock is ideal for areas requiring fast access and works without a key.  Both versions keep cabinet doors closed during equipment operation and allow controlled manual opening.

Practical Advantages

The Electrical Enclosures Recessed Draw Latch Lock keeps the cabinet surface smooth with no large handle sticking out. The embedded zipper design of electrical enclosures allows for repeated opening and closing while maintaining a stable connection to equipment cabinets, toolboxes, and enclosure doors.

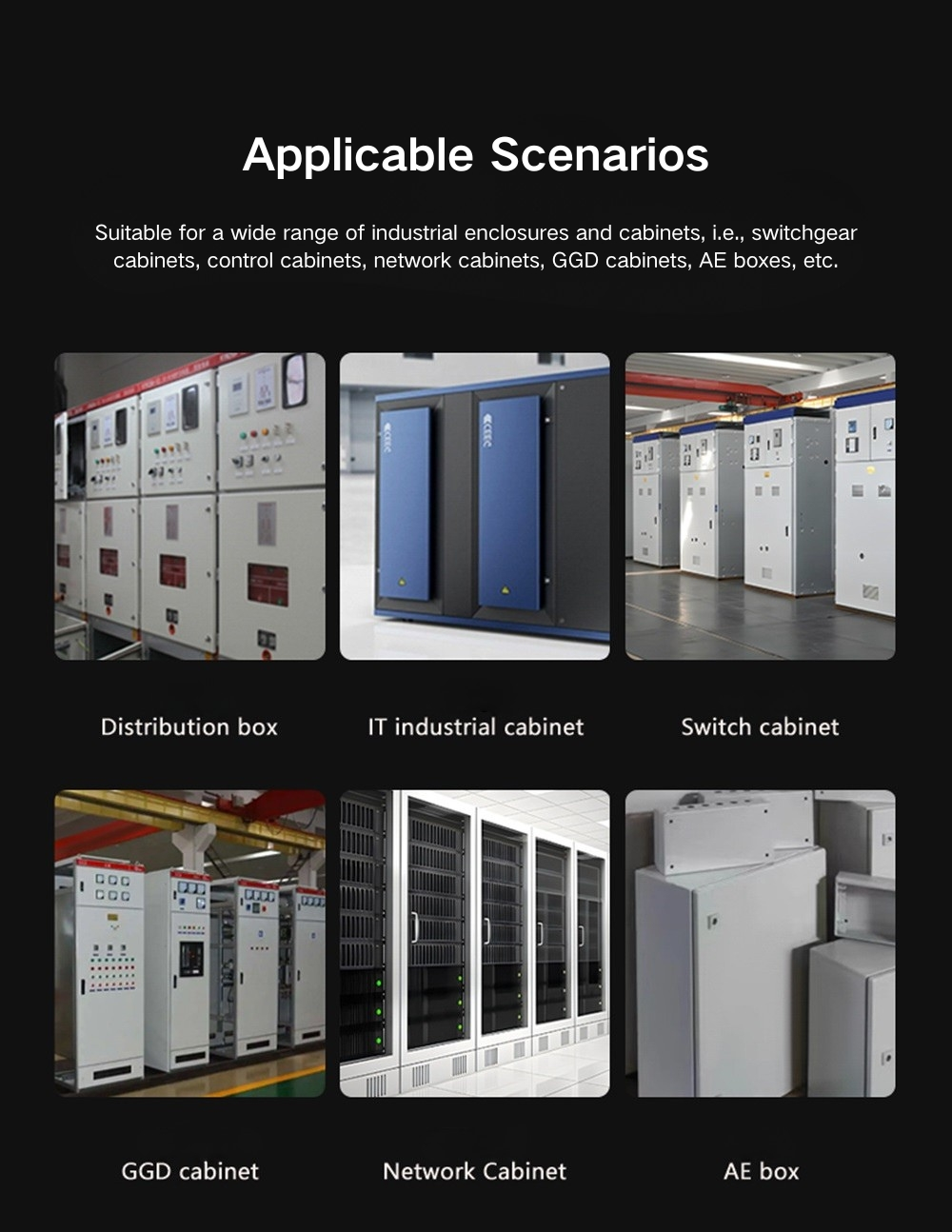

Applications

The Electrical Enclosures Recessed Draw Latch Lock is widely used on:

Electrical cabinet doors

Mechanical equipment enclosures

Tool boxes and storage cabinets

Control panels

Machine housing covers

1. What is the Electrical Enclosures Recessed Draw Latch Lock used for?

The DKS Electrical Enclosures Recessed Draw Latch Lock is used on cabinet doors and equipment enclosures that require a concealed pull handle and firm closure.

2. What is the difference between DKS-1 and DKS-2 Electrical Enclosures Recessed Draw Latch Lock?

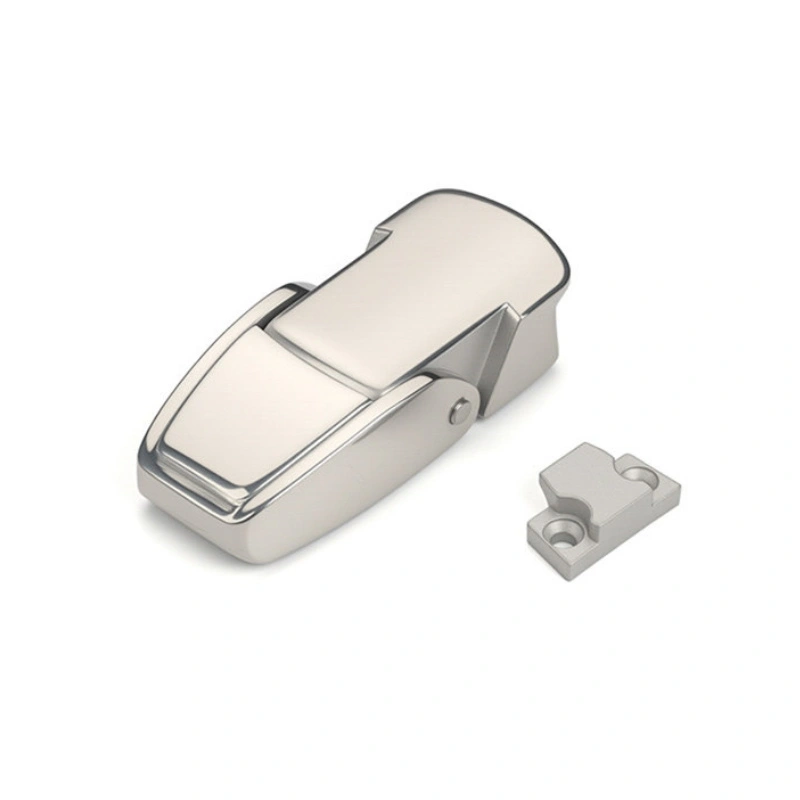

DKS-1 Electrical Enclosures Recessed Draw Latch Lock has a key cylinder, while DKS-2 works without a key for fast access.

3. Are there different sizes for the Electrical Enclosures Recessed Draw Latch Lock?

Yes, the Electrical Enclosures Recessed Draw Latch Lock is available in small and large sizes for different cabinet layouts.

4. What are the small size dimensions of the Electrical Enclosures Recessed Draw Latch Lock?

The small Electrical Enclosures Recessed Draw Latch Lock is about 65 × 26.5 mm with a streamlined width up to 18 mm.

5. What are the large size dimensions of the Electrical Enclosures Recessed Draw Latch Lock?

The large Electrical Enclosures Recessed Draw Latch Lock is about 76 × 31.8 mm with a streamlined width up to 19 mm.
