What Small Cabinet Fittings Actually Keep an Industrial Enclosure Together?

The locks and hinges on an industrial cabinet get most of the attention, but the smaller fittings are what hold the whole structure together — literally. Yitailock supplies a range of cabinet panel accessories that cover the nuts, connectors, and rod fittings that make up the backbone of a properly assembled distribution cabinet or industrial enclosure. Here's a look at three of them.

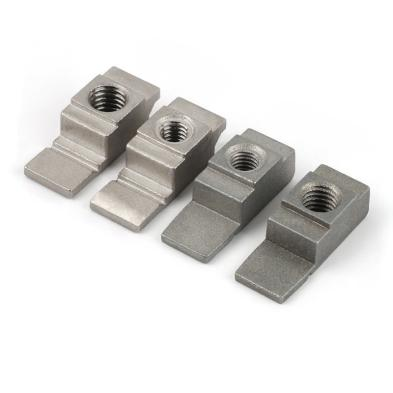

Square Nuts and Duckbill Nuts

The M6 and M8 square nuts and duckbill nuts are the kind of fitting that rarely gets thought about until it's missing. They slot into the cabinet frame profile and provide a threaded anchor point for panels, brackets, and other components — without needing access to the back of the profile to hold them in place during assembly. Available in zinc alloy and 304 stainless steel, the choice between the two follows the usual logic: zinc alloy for standard indoor enclosures, stainless steel for anything in a humid or corrosive environment. The 90-degree angle profile variants work on the same principle, just oriented for corner mounting situations.

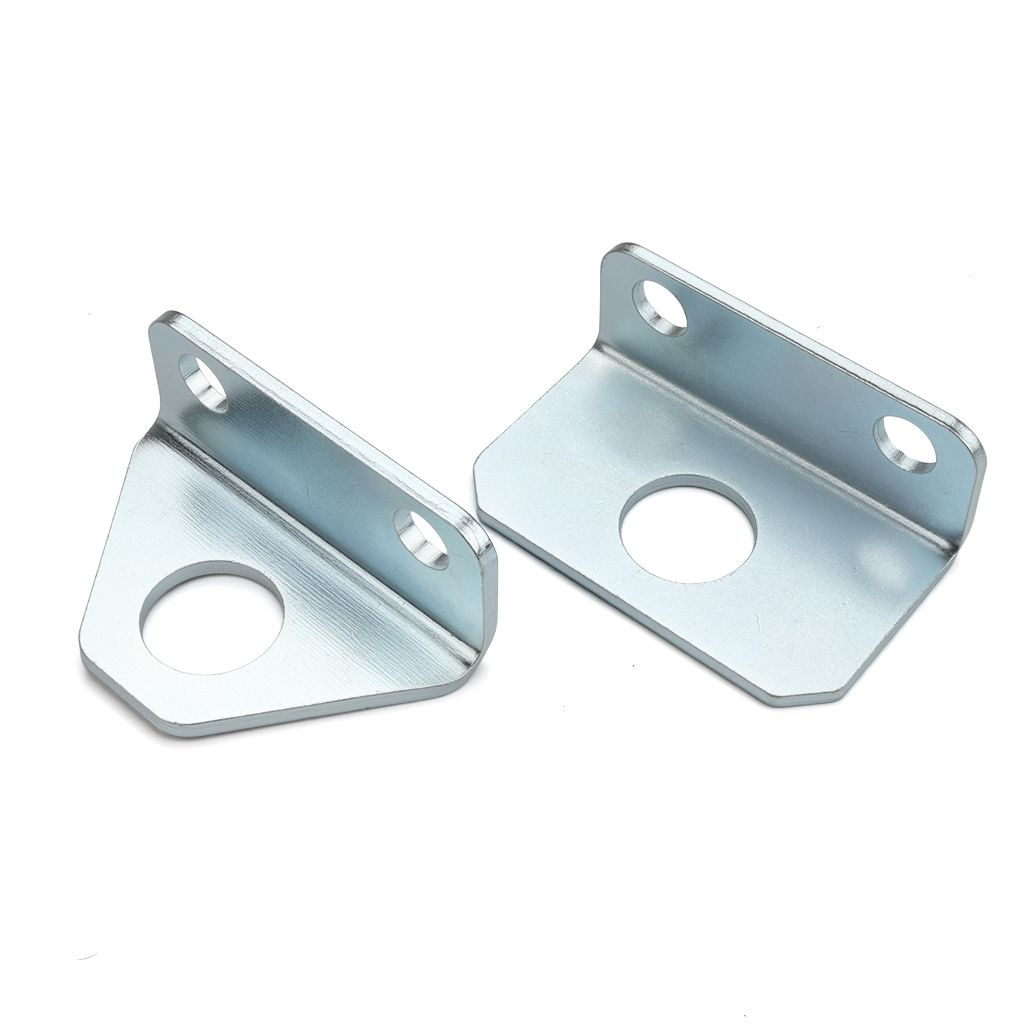

L-Shaped Lifting Connectors and Mounting Brackets

The upper right group covers cabinet joining and mounting components — L-shaped lifting connectors and mounting bracket assemblies used to join cabinet sections or secure the enclosure to a wall or floor structure. These are made from galvanized carbon steel, which gives them solid load-bearing capacity for panel assembly work. Two square models represent the older versions of this fitting; the newer trapezoidal model refines the profile for a cleaner fit within the frame channel. For anyone assembling multi-section distribution cabinets or anchoring enclosures in fixed installations, these connectors are what keep the structure aligned and stable once everything is bolted together.

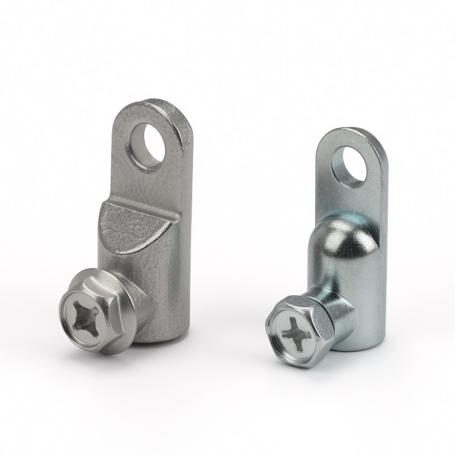

Lock Rod Connectors

The bottom right fittings are lock rod connectors — the link between the cabinet door's pull rod and the locking mechanism. In a connecting rod lock setup, these connectors join the rod sections and secure the assembly so the locking action transfers cleanly from the handle to the top and bottom bolts. Options include zinc alloy M8, 304 stainless steel M8, and zinc alloy M10, covering the most common rod thread sizes in use across standard industrial enclosures. Stainless steel is the better pick for outdoor or high-humidity cabinets where the rod assembly is exposed to more demanding conditions over time.

Putting It Together

None of these fittings are complicated, but getting the spec right — thread size, material, and model generation — saves time during assembly and avoids the frustration of mismatched components on site. For cabinet panel builds that need to go together cleanly and stay that way, these small details are worth paying attention to from the start.
