Mechanical Equipment Handle Lock

We serve as a direct Mechanical Equipment Handle Lock supplier for equipment manufacturers. The new model features improved handle dimensions and thickness, with a more substantial grip. Except for the stainless steel variant, all models utilize a standardized mounting hole pattern for easy replacement by customers.

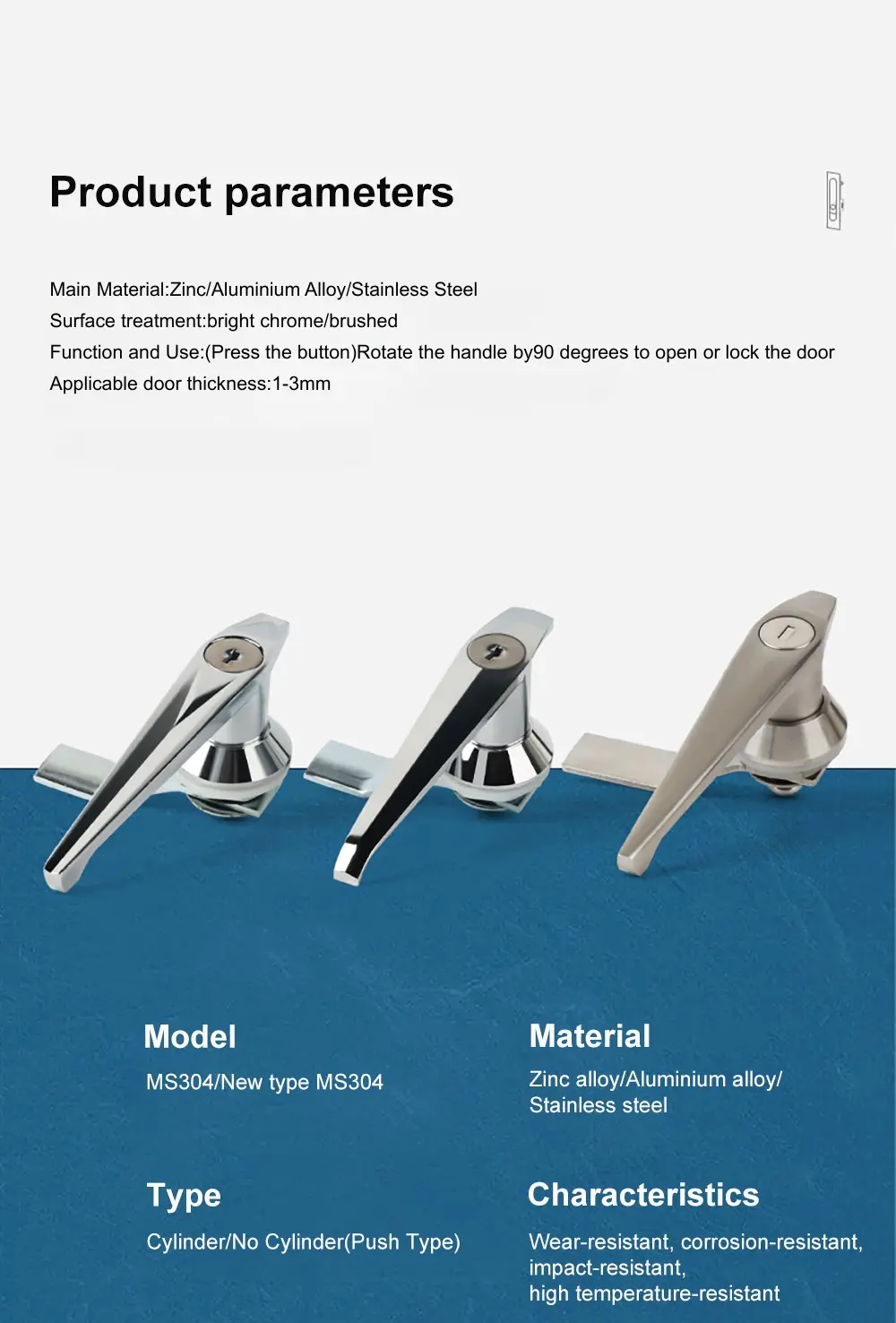

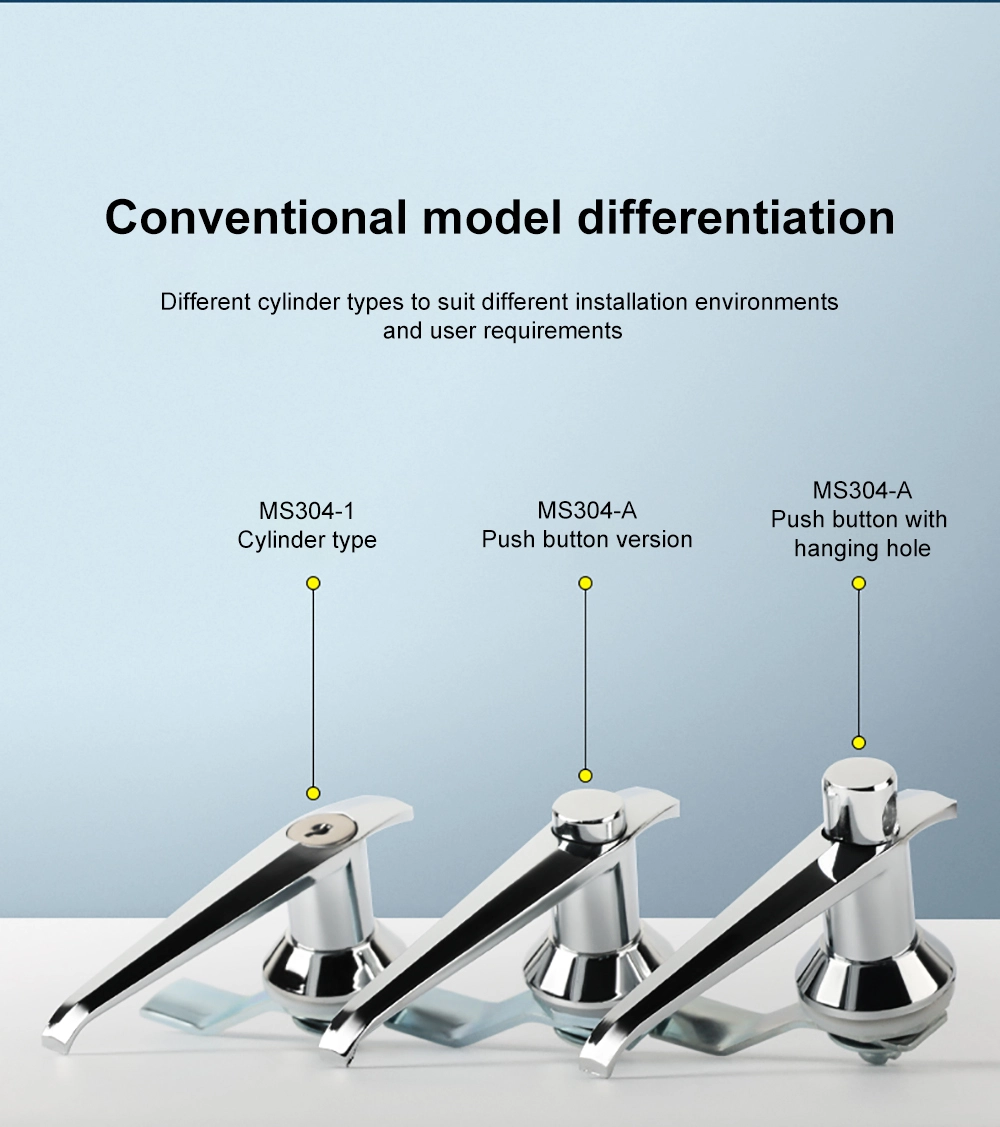

Model Introduction

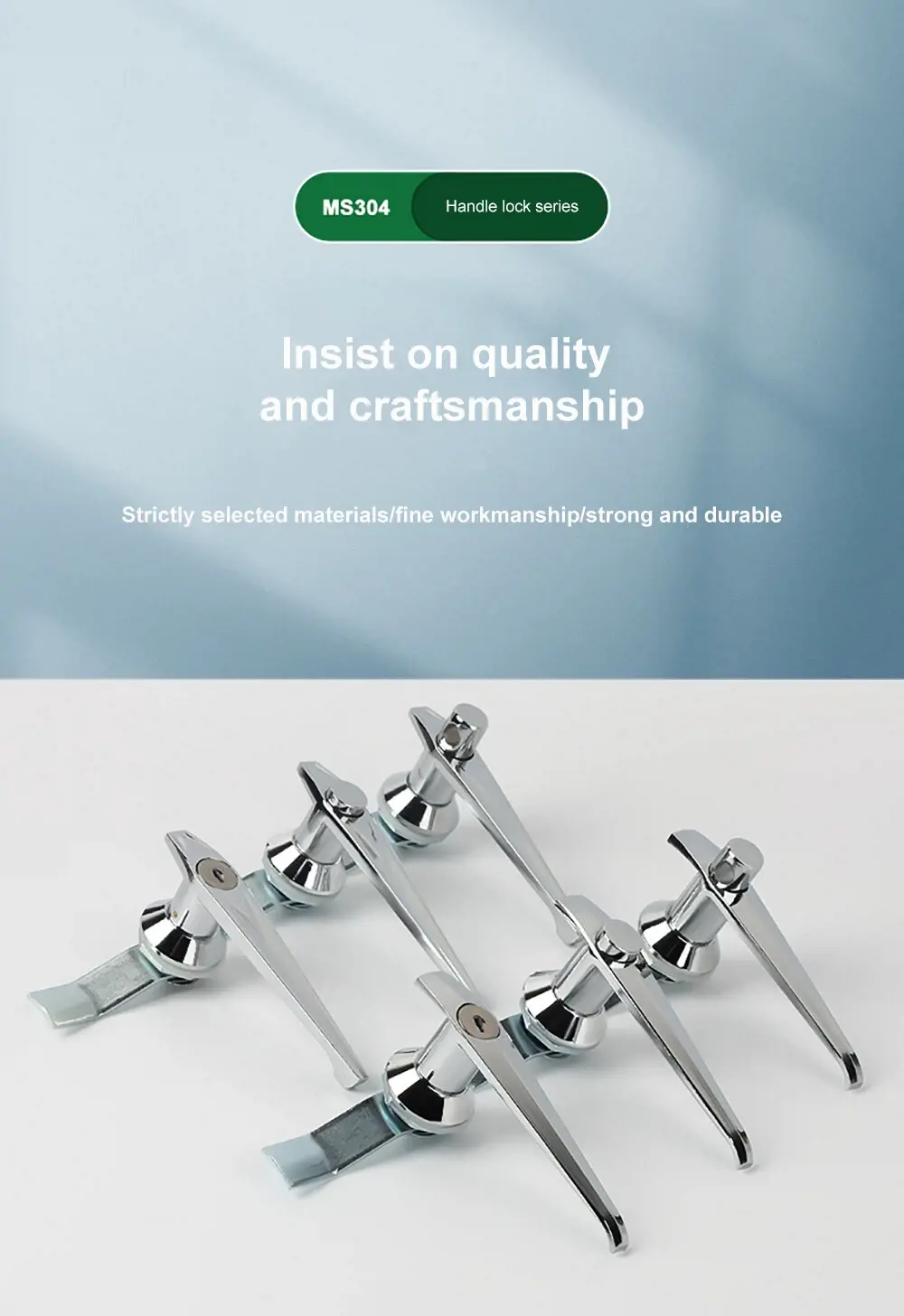

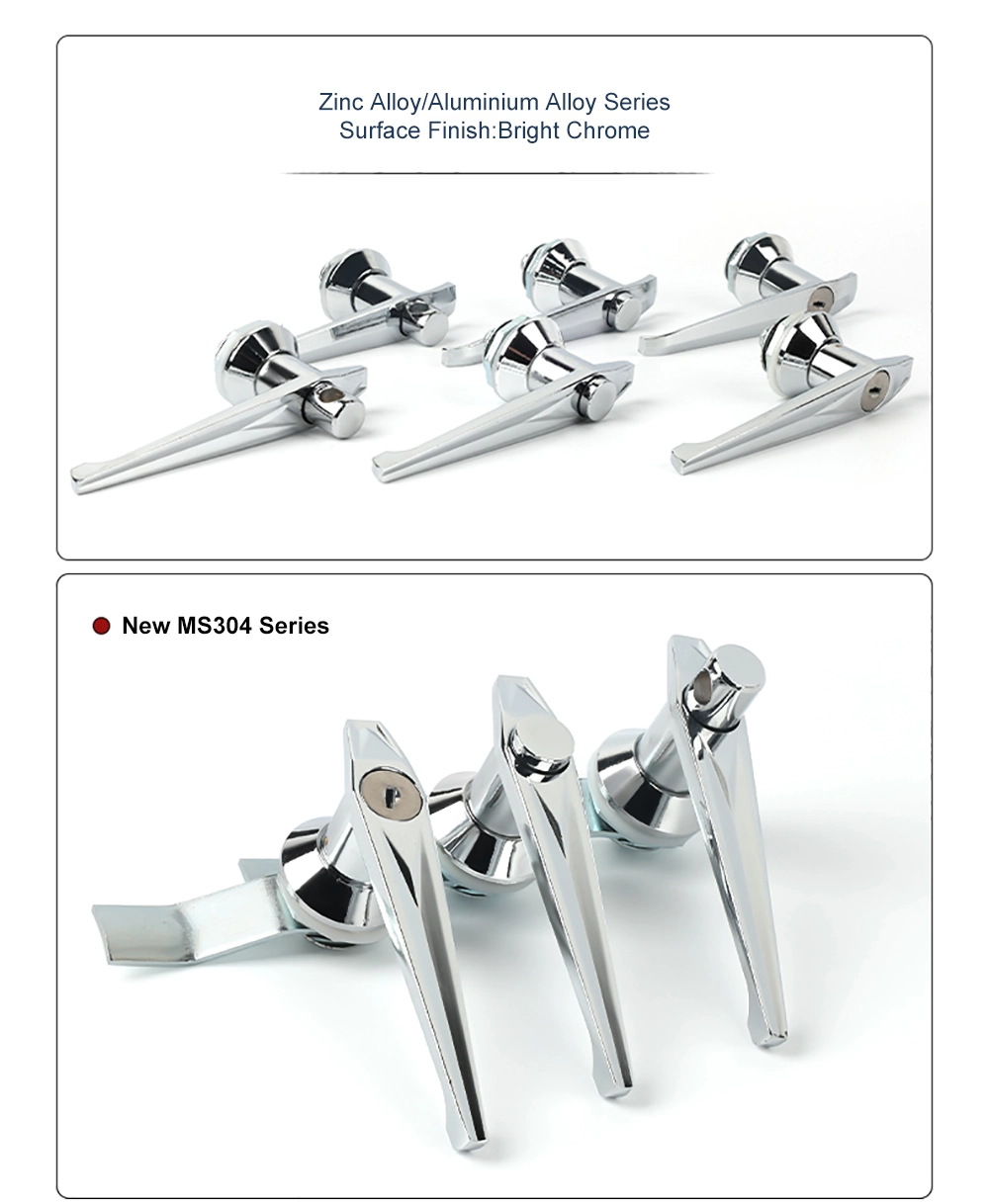

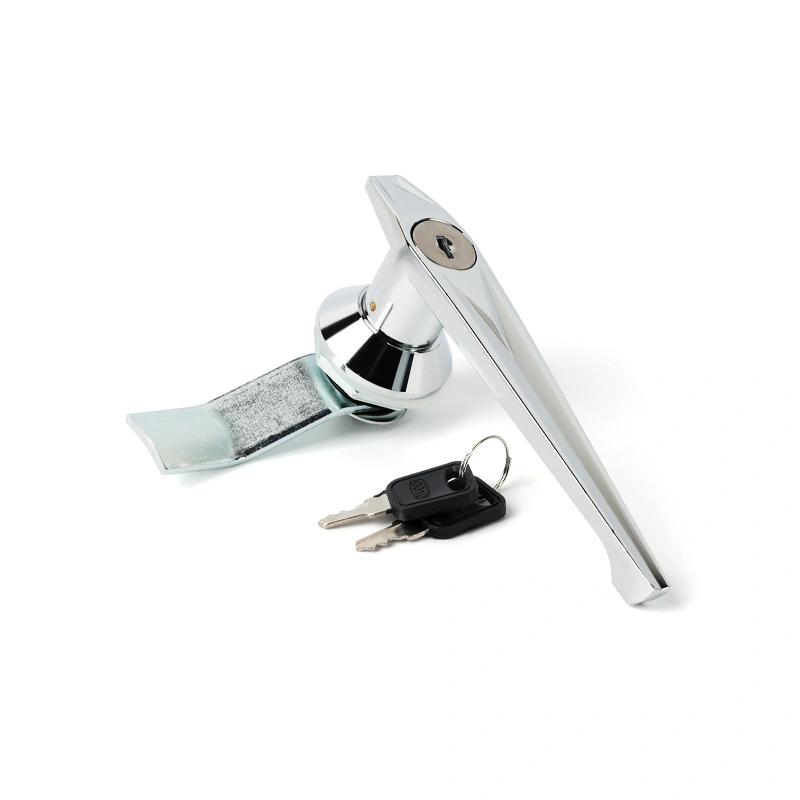

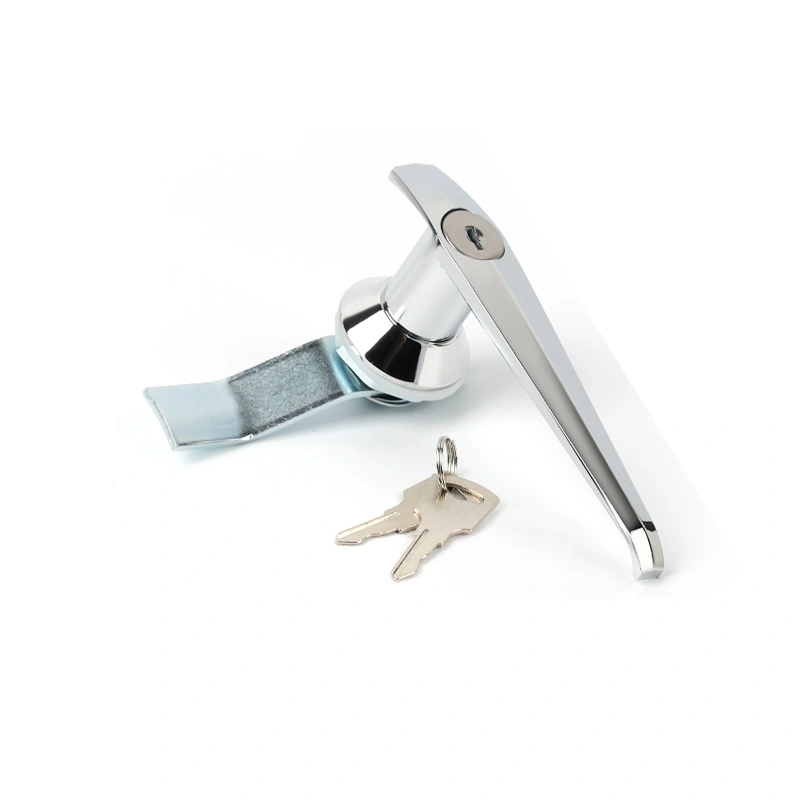

MS304-1 lockable models are available in bright chrome-plated aluminum alloy, bright chrome-plated zinc alloy, and brushed stainless steel.

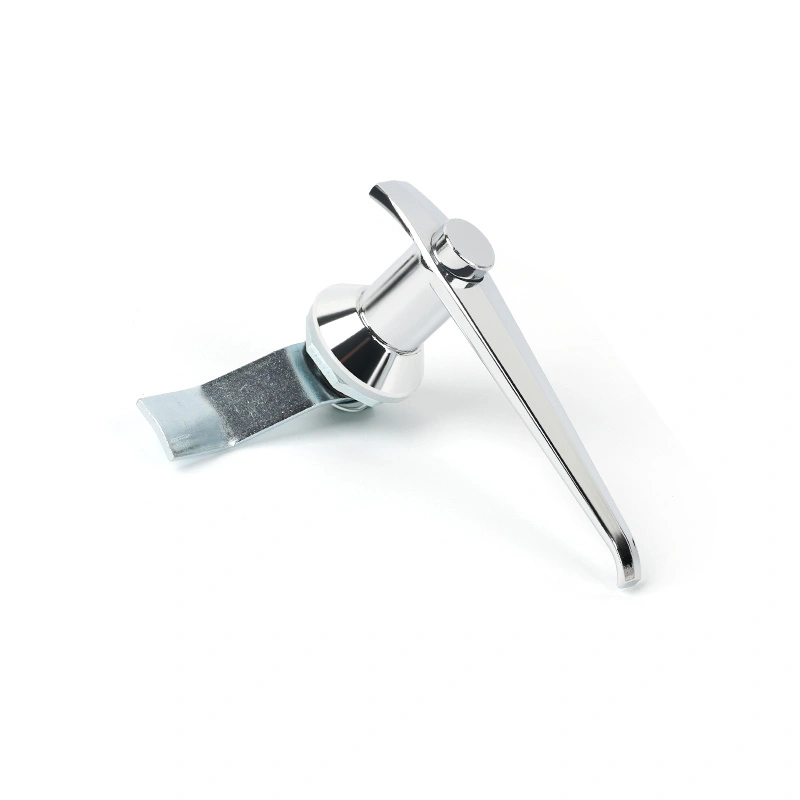

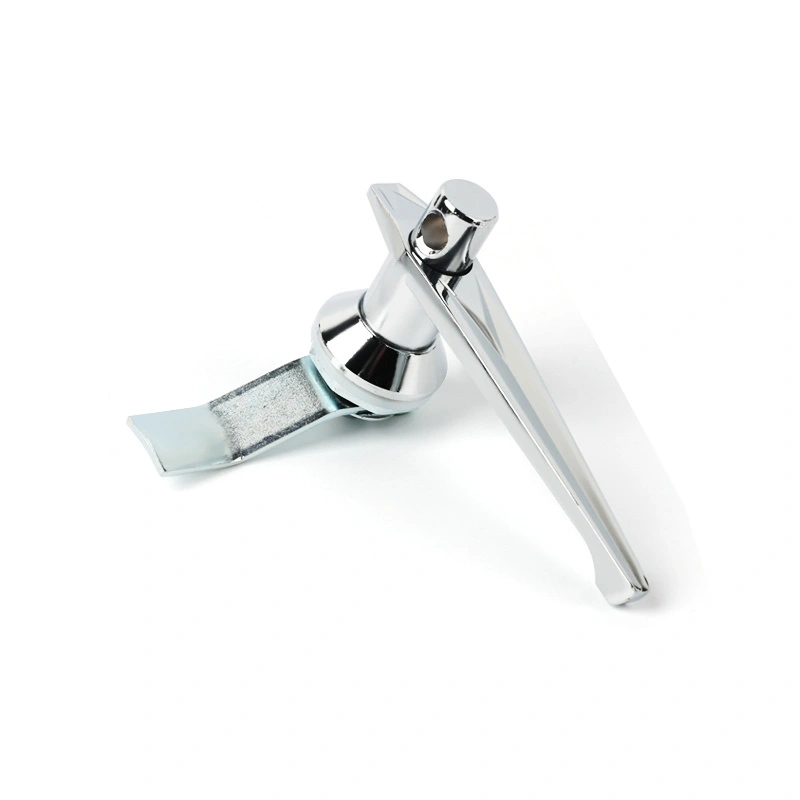

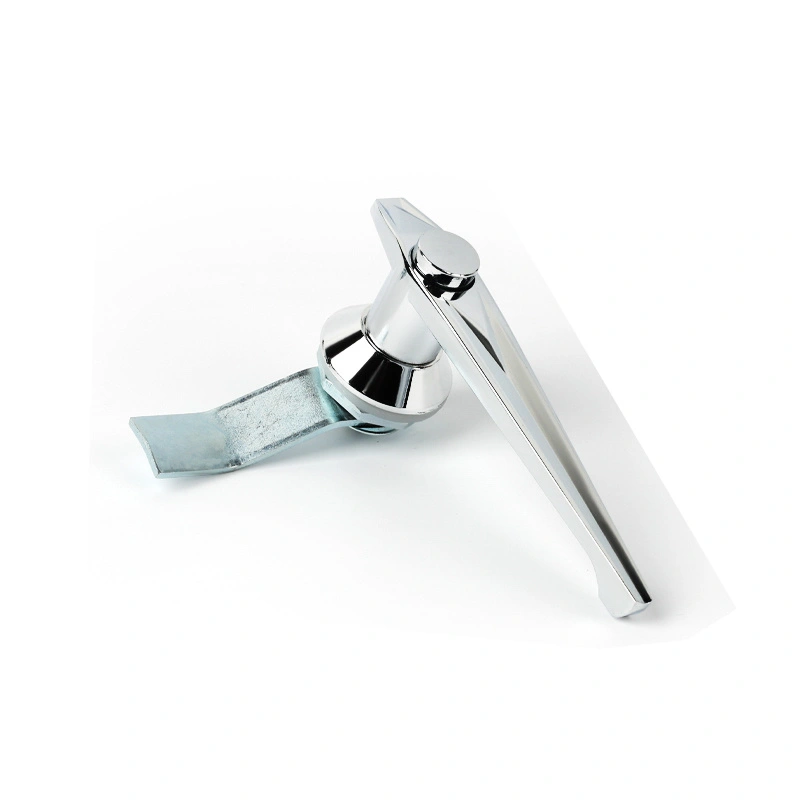

MS304-A non-lockable push-button models are available in bright chrome-plated aluminum alloy and bright chrome-plated zinc alloy.

The new MS403-1 lockable model features bright chrome-plated zinc alloy construction.

The new MS403-A non-locking push-button model is zinc alloy with bright chrome finish.

The new MS403-A-1 non-locking push-button with hanging option (for adding your own padlock) is zinc alloy with bright chrome finish.

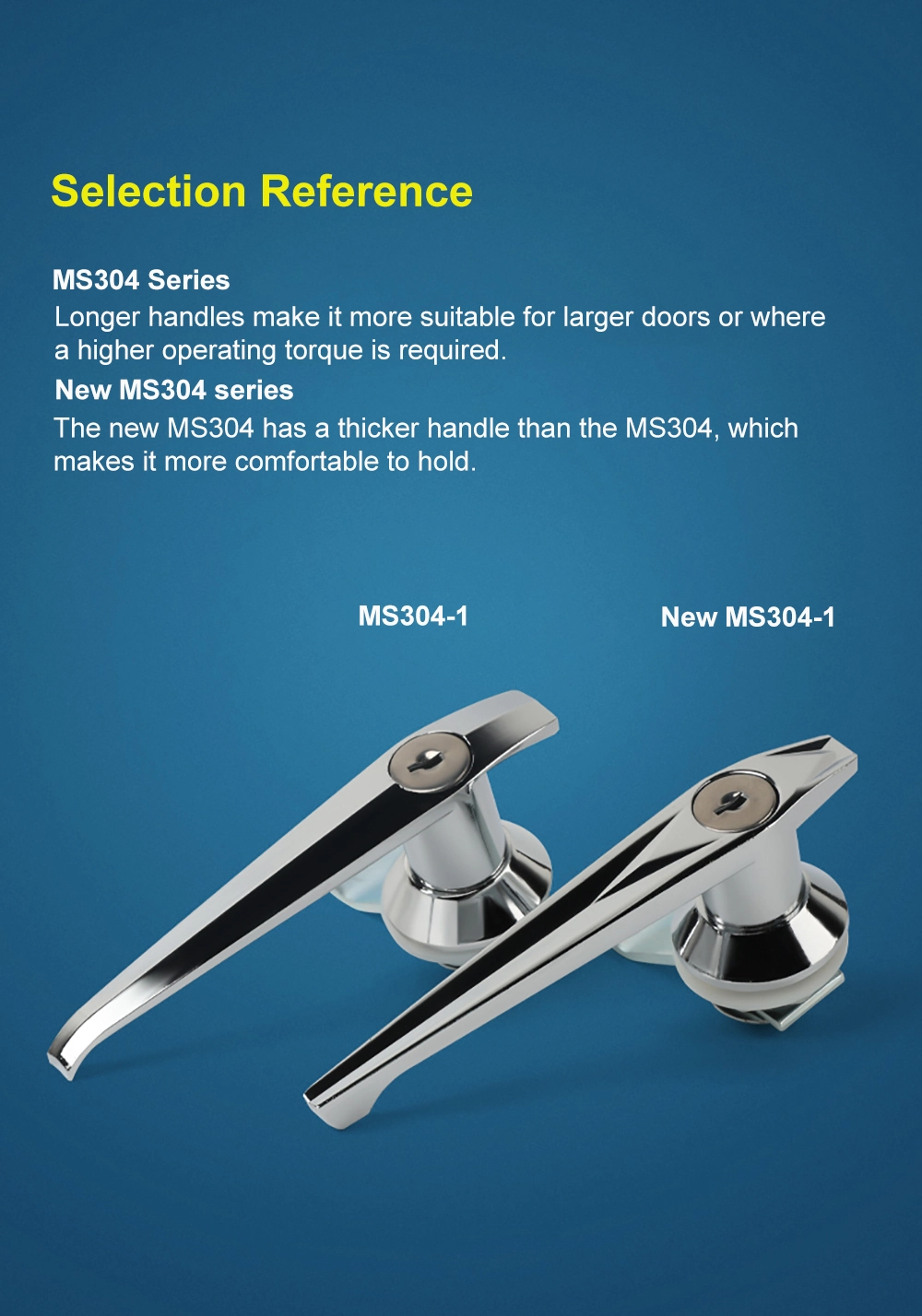

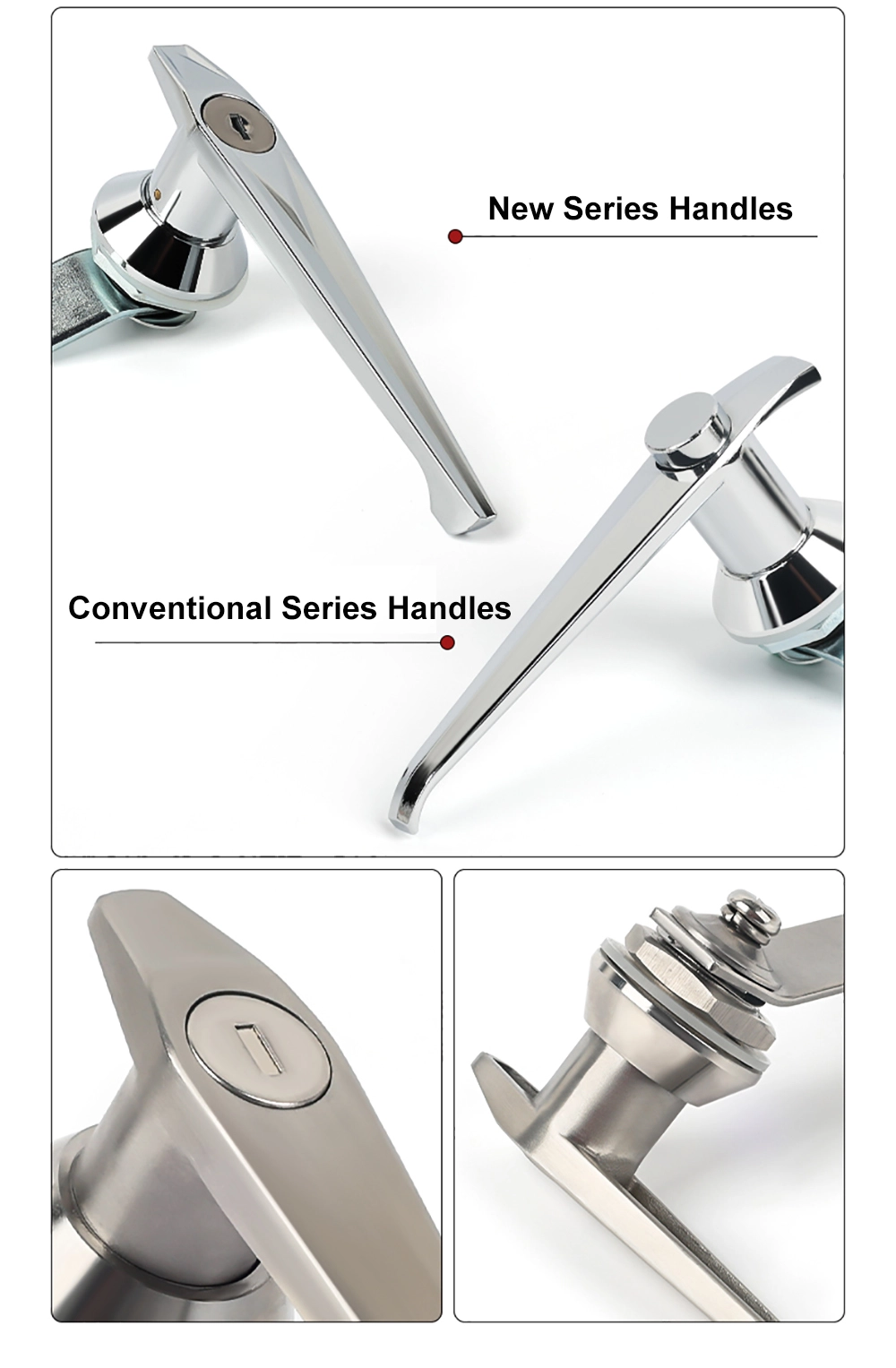

The new handle of Mechanical Equipment Handle Lock is thicker, and the external dimensions also differ.

Except for the stainless steel lock plate, all other lock plates are made of iron. The lock cylinder for the aluminum alloy version is plastic, while the handle and base are aluminum alloy. For the zinc alloy version, both the lock cylinder and the handle/base are zinc alloy.

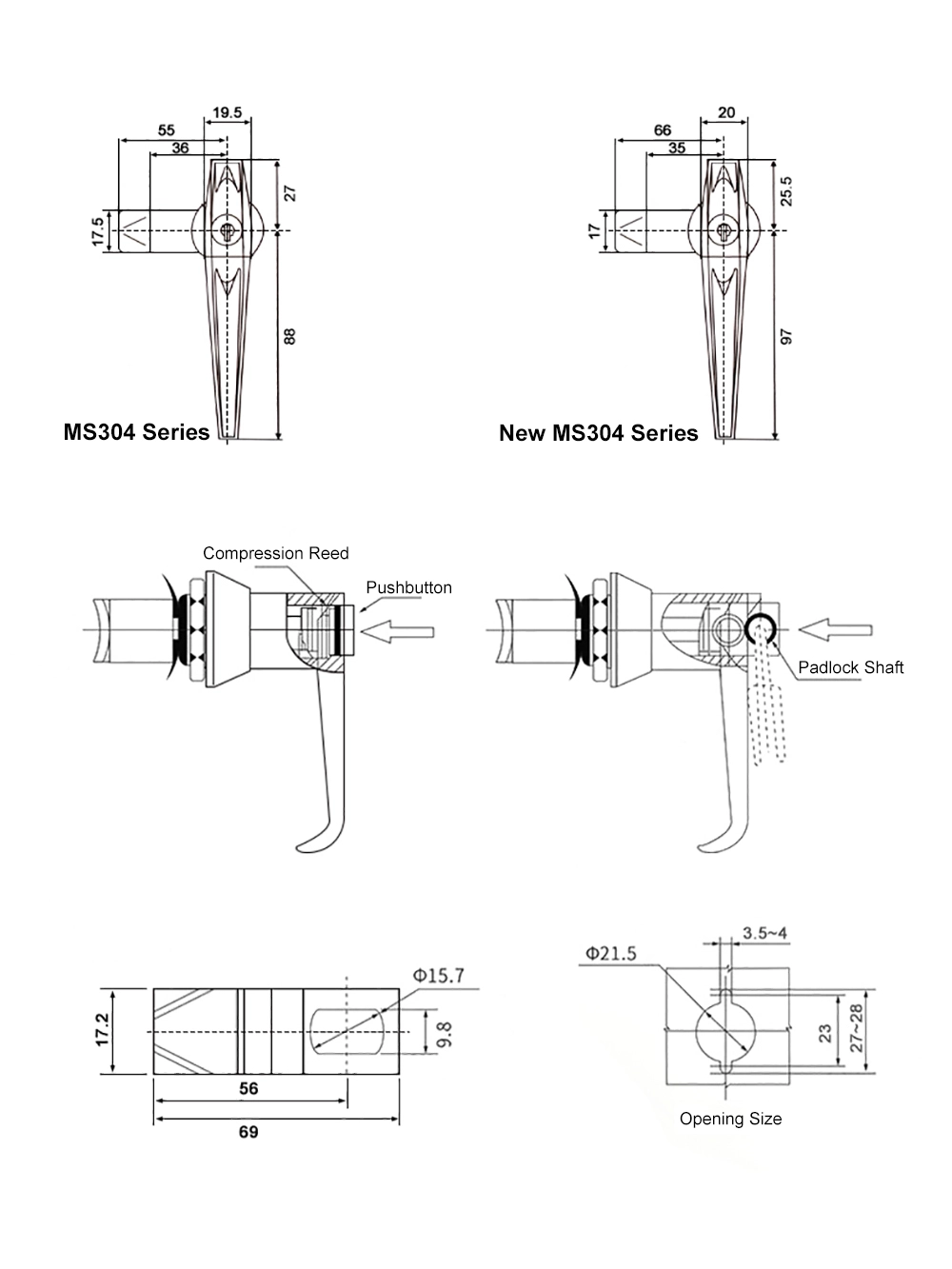

Dimensions

The handle length for MS304-1 and MS304-A Mechanical Equipment Handle Lock (aluminum alloy and zinc alloy) is 115mm, with a distance of 88mm from the lock cylinder center point to the handle end.

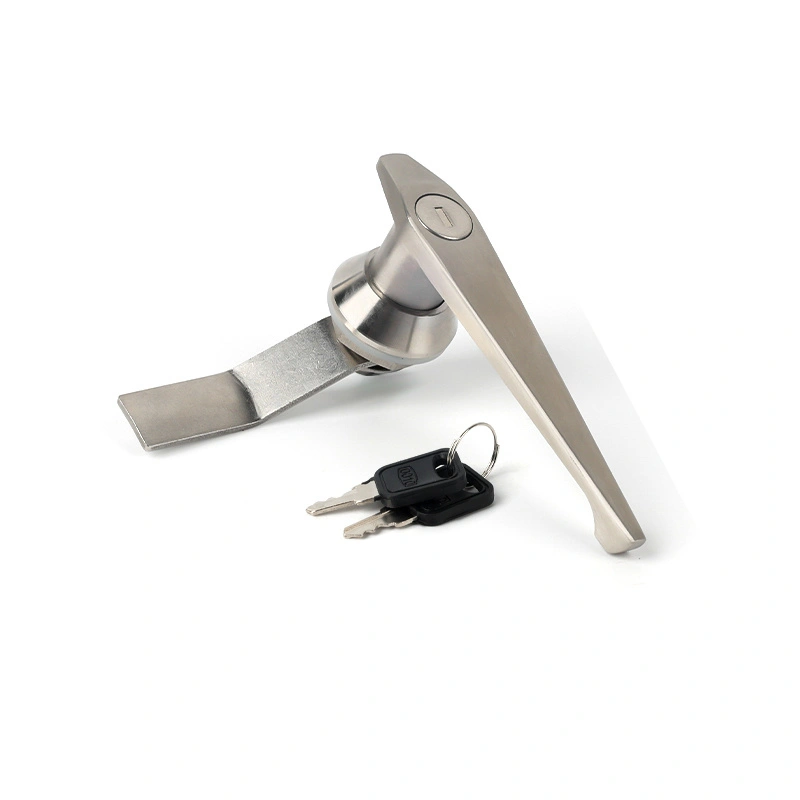

The stainless steel handle for MS304-1 measures 122.5mm in length, with a distance of 97mm from the lock cylinder center point to the handle end.

The new handle has a length of 122.5mm, with a distance of 97.5mm from the lock cylinder center point to the handle end.

Except for the MS304-1 stainless steel model, all other models share identical cutout dimensions. New and old models are interchangeable, but please note that the new model features a longer handle requiring sufficient installation space.

Application Scenarios

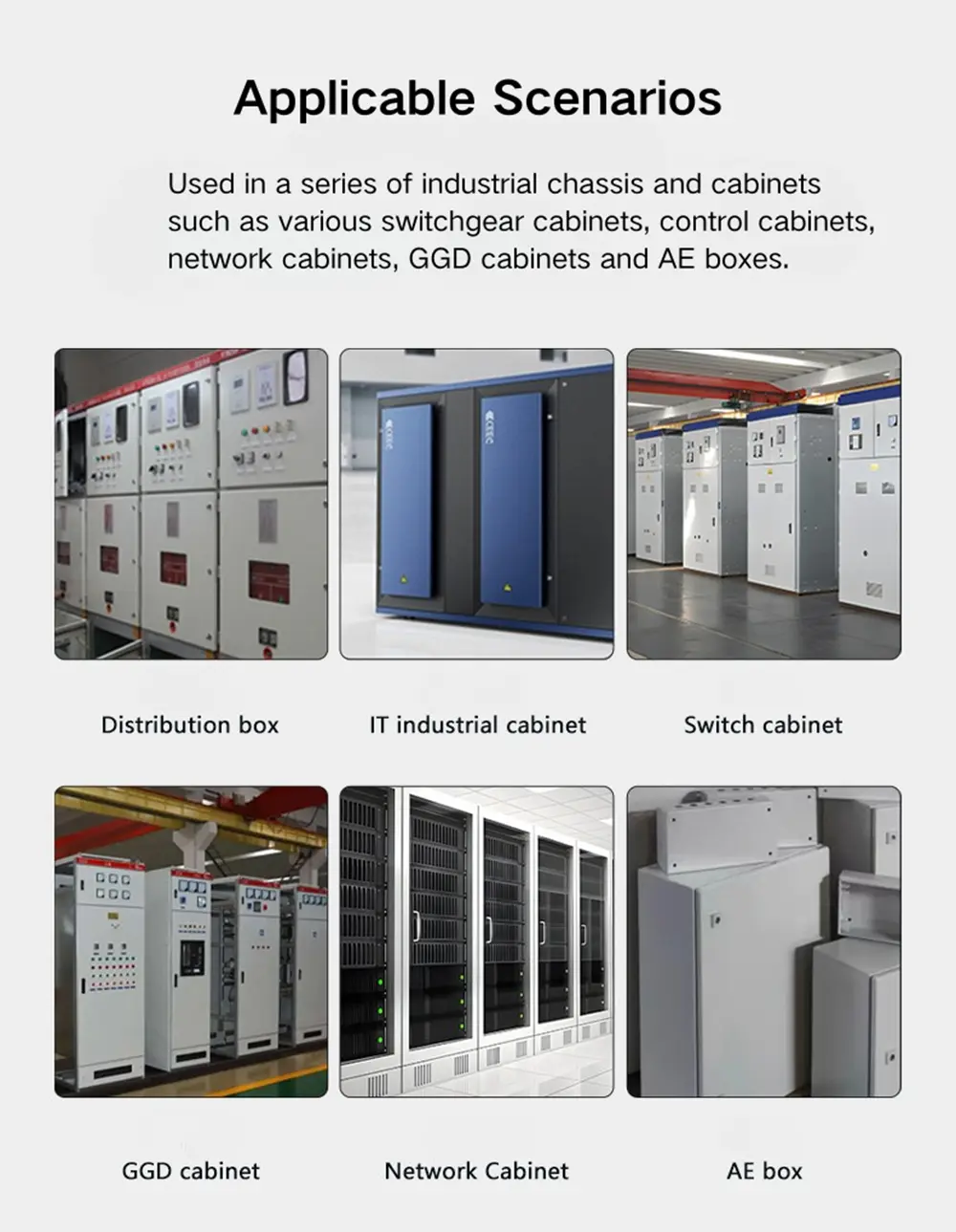

Mechanical Equipment Handle Lock is suitable for industrial control cabinets, distribution boxes, machinery operation panels, and similar applications. Lockable models are used for equipment requiring security protection, push-button types are suitable for high-frequency switching operations, and models with hanging lugs can be used in scenarios requiring temporary enhanced security.

FAQ

Q: What are the main differences between the models?

A: The main differences lie in the operation method: key-operated models require a key, push-button models allow quick access, and models with hasps enable additional padlock attachment.

Q: How does handle length affect usage?

A: Longer handles provide more leverage for easier operation but require more installation space.

Q: How is the rust resistance?

A: Stainless steel models offer better corrosion resistance, while other models are suitable for indoor environments.

Q: What is the maximum compatible door thickness?

A: Standard models suit door thicknesses of 1-3.0mm.

Q: Are the new and old models interchangeable?

A: Except for stainless steel models, all other models share the same mounting hole positions, but handle dimensions vary. Please ensure sufficient installation space before replacement.
