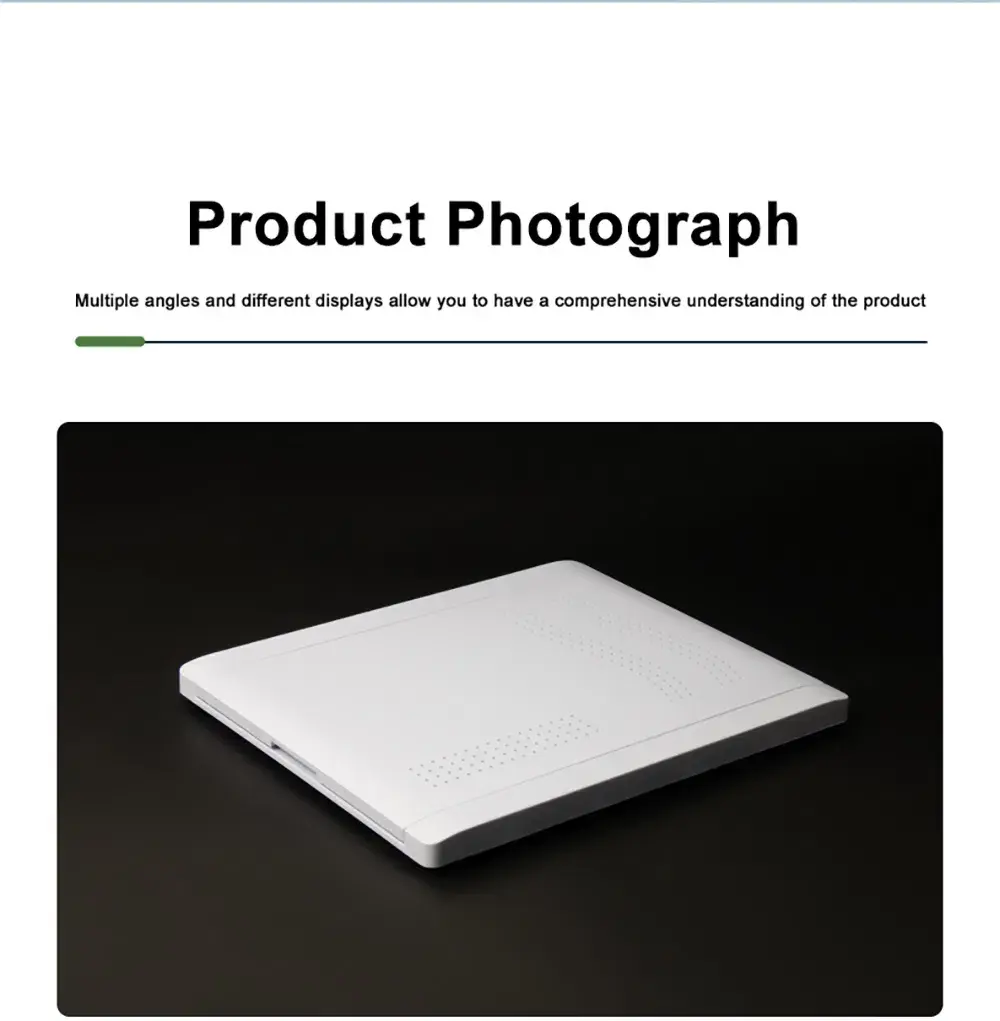

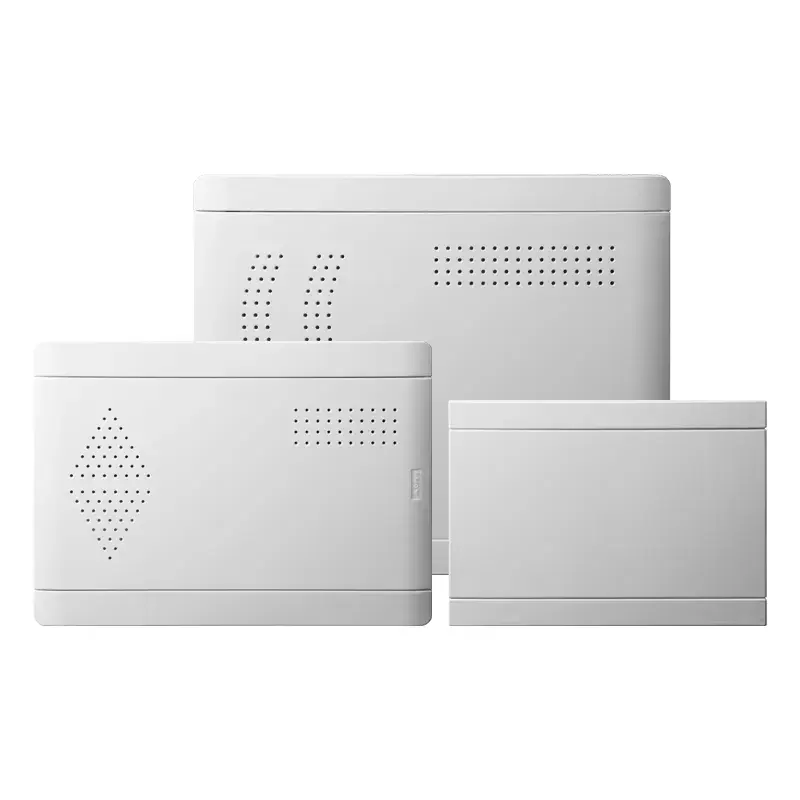

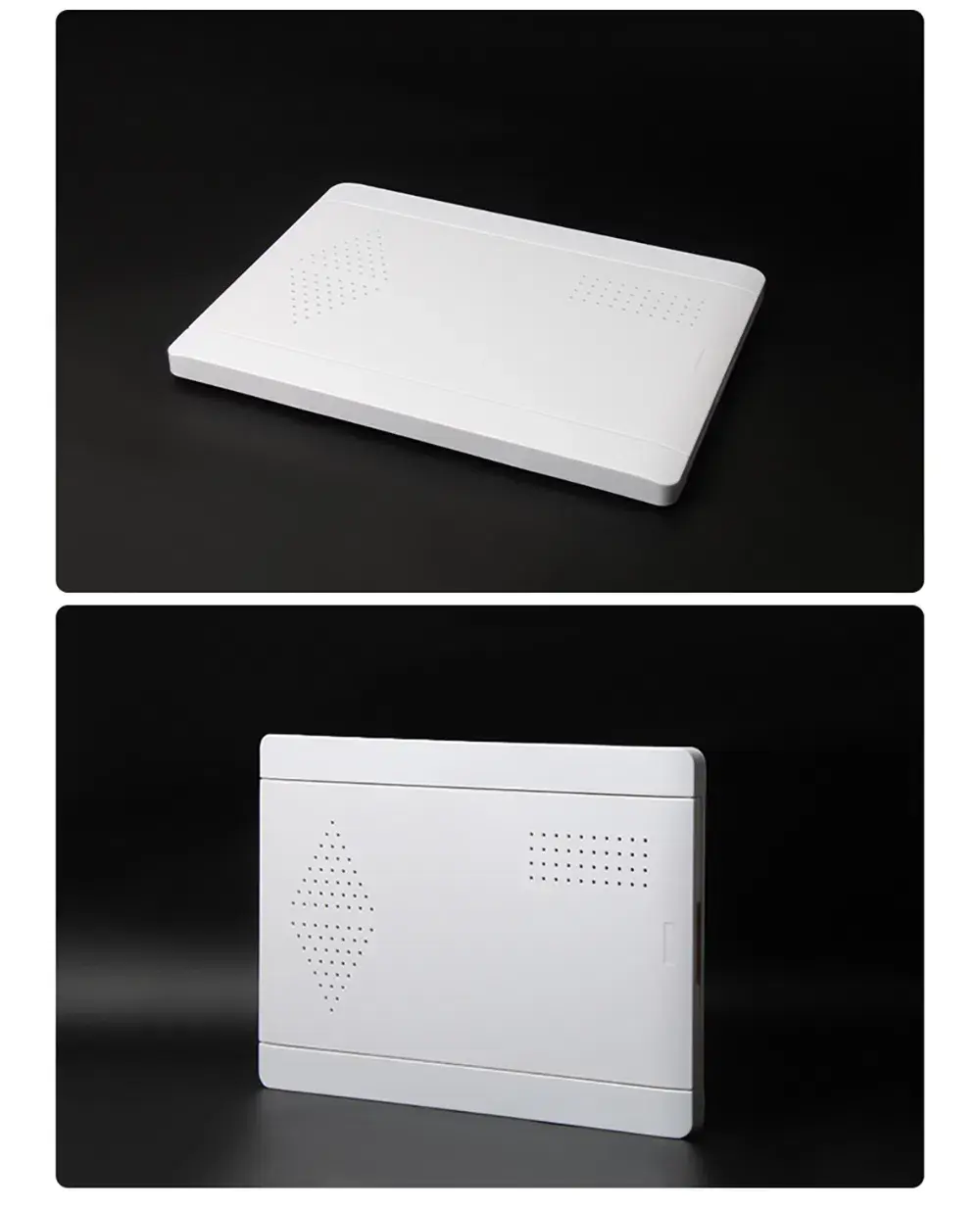

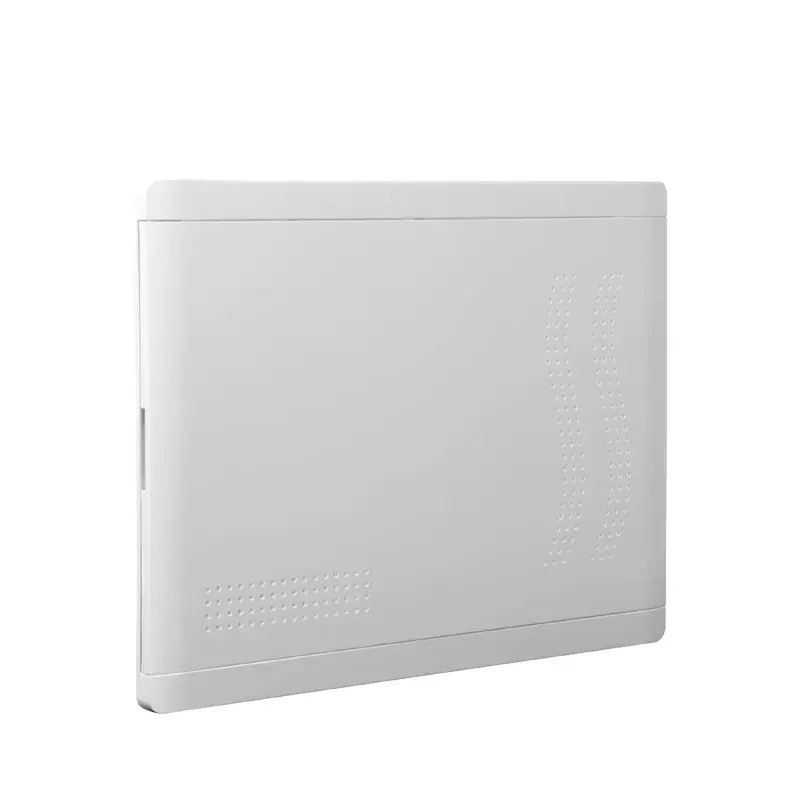

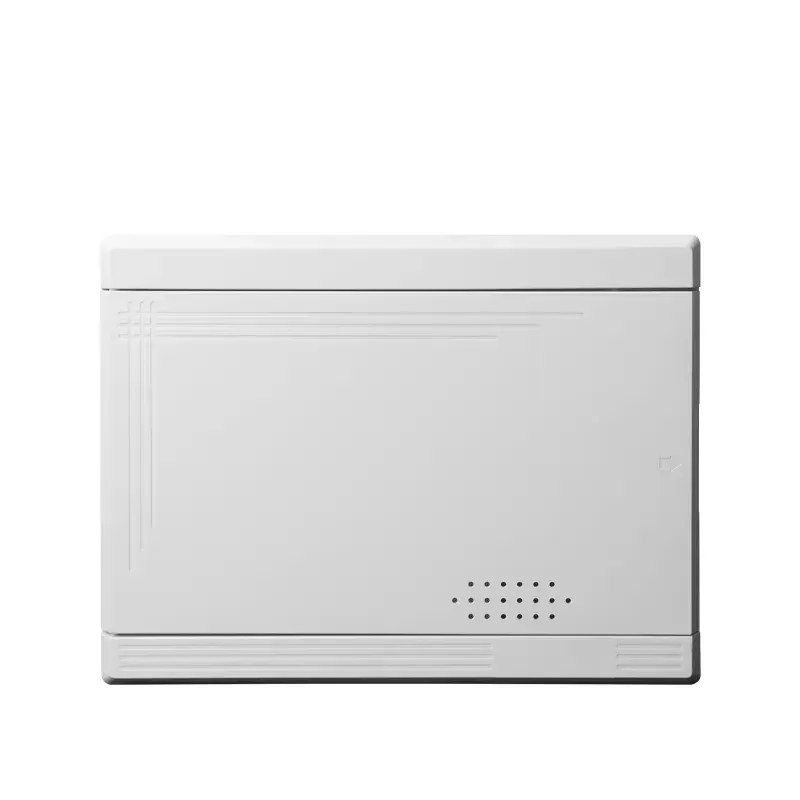

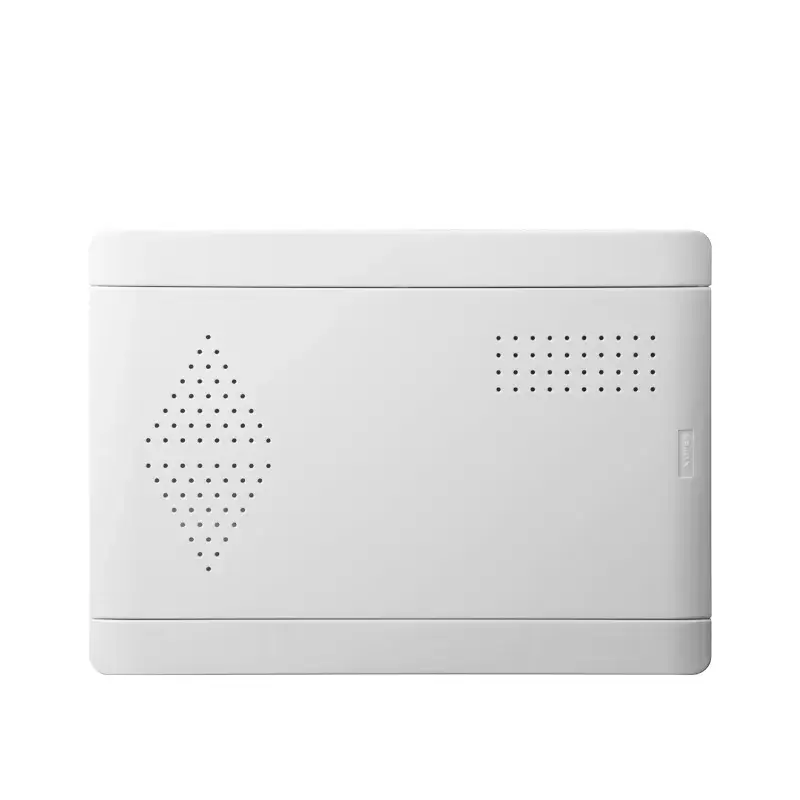

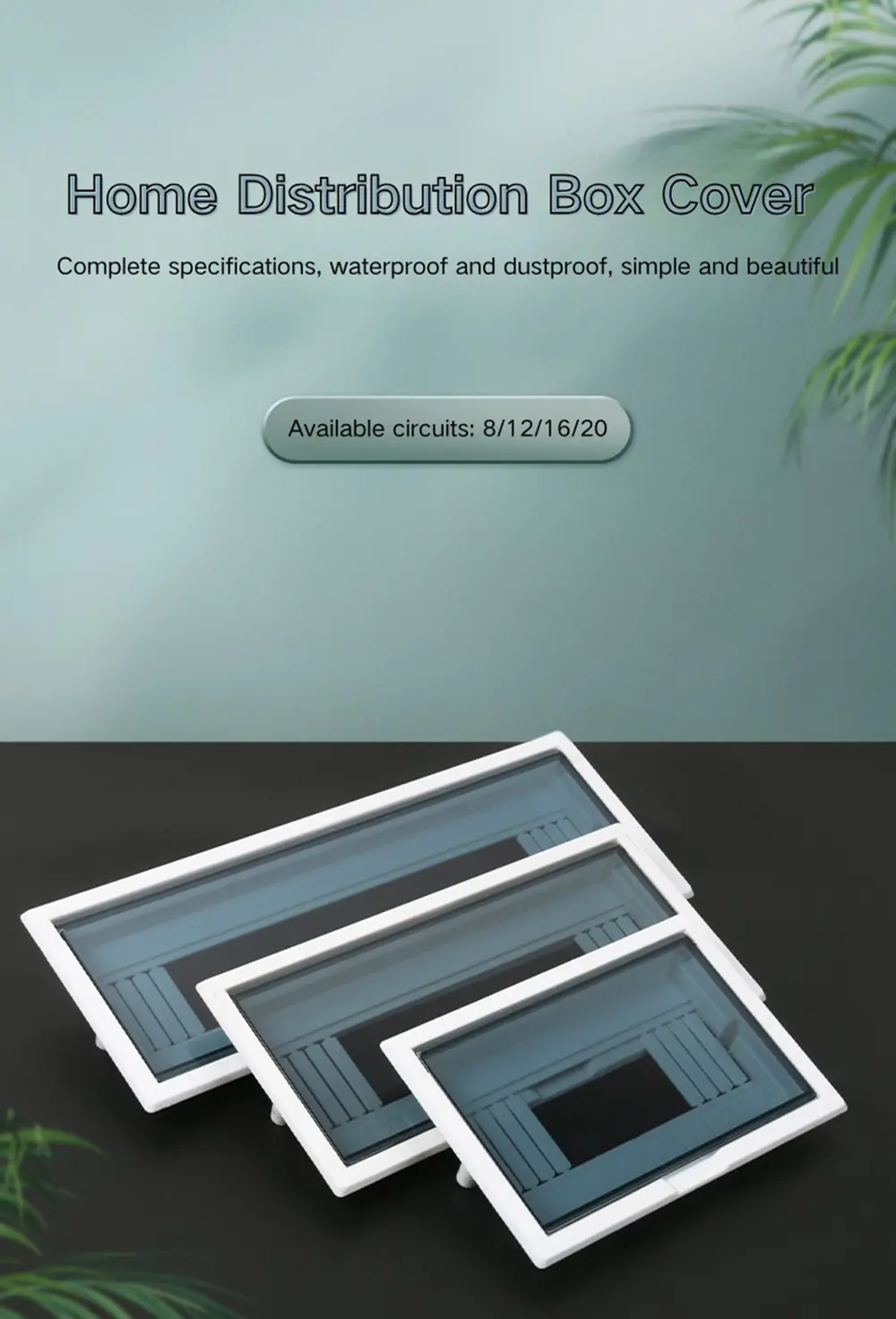

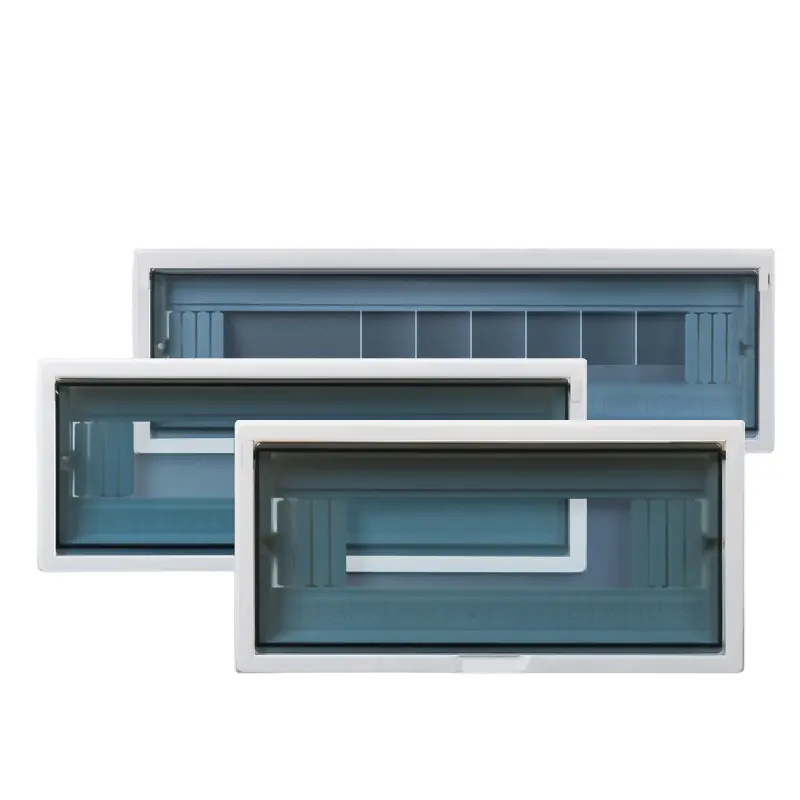

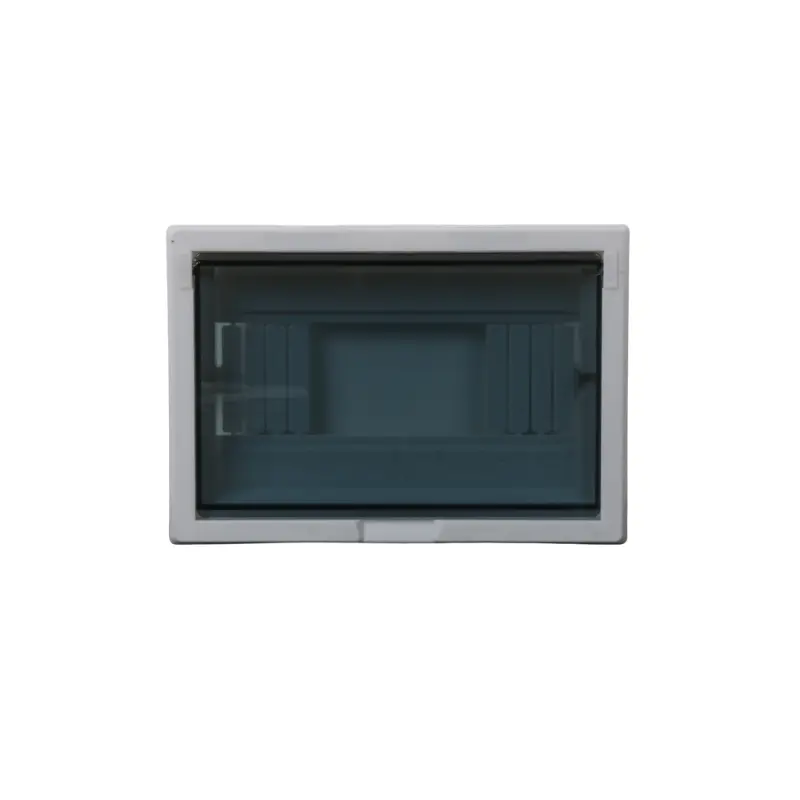

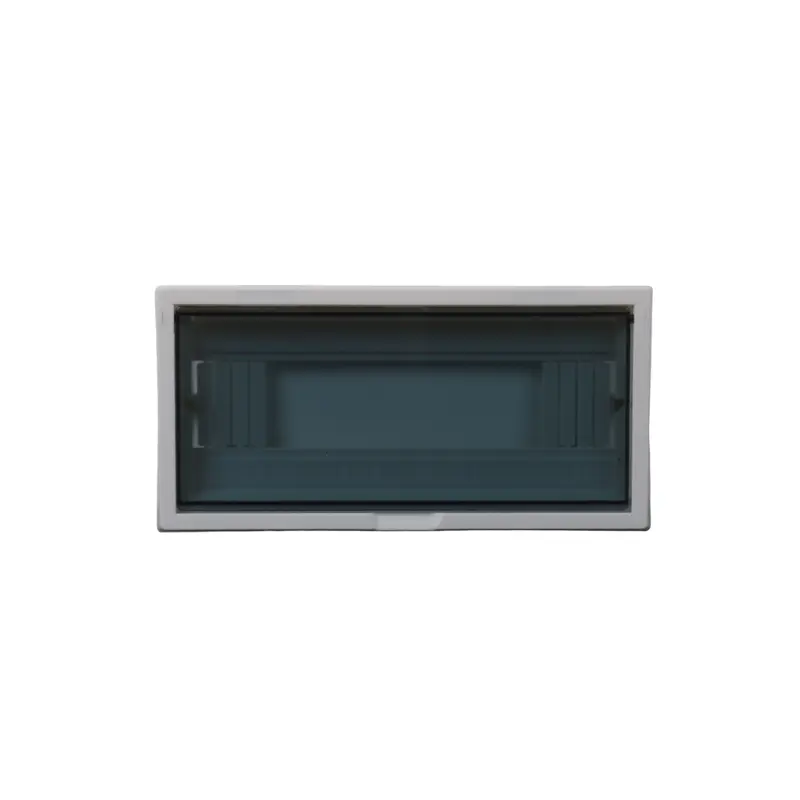

Home Exposed Multimedia Junction Box Panel

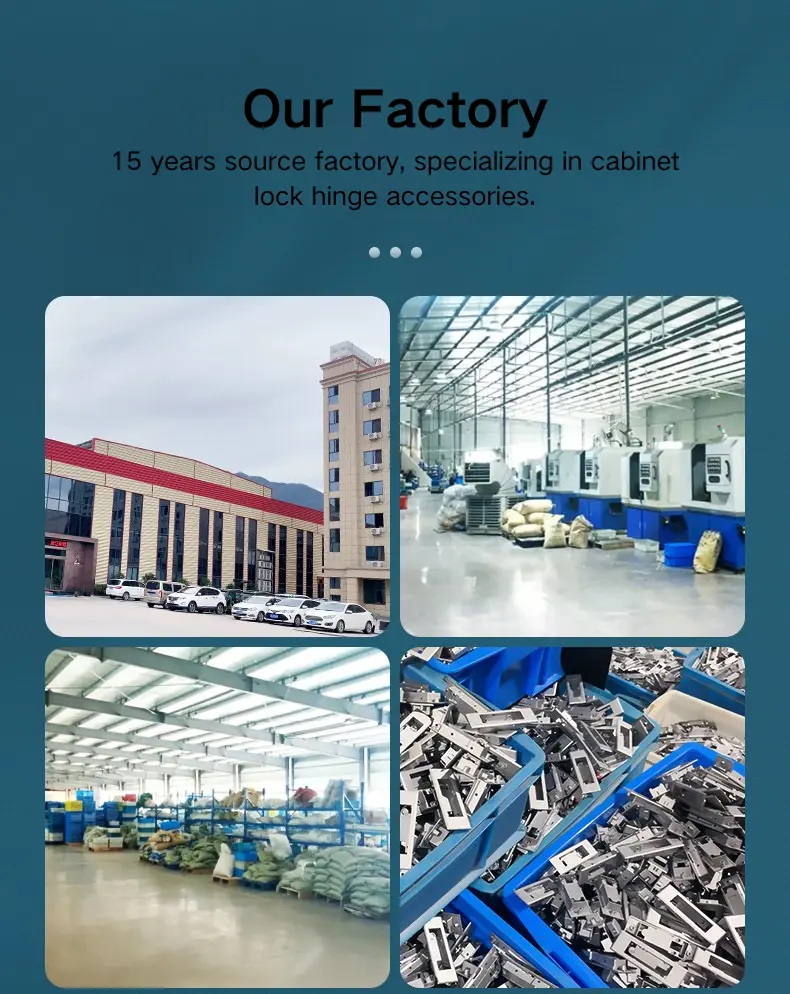

Yitai Lock is an excellent enterprise in the field of hardware locks and hinges manufacturing.Home Exposed Multimedia Junction Box Panel adopts the open installation method, no need to bury the boxes in advance, easy to install, and can be remodeled and upgraded later.

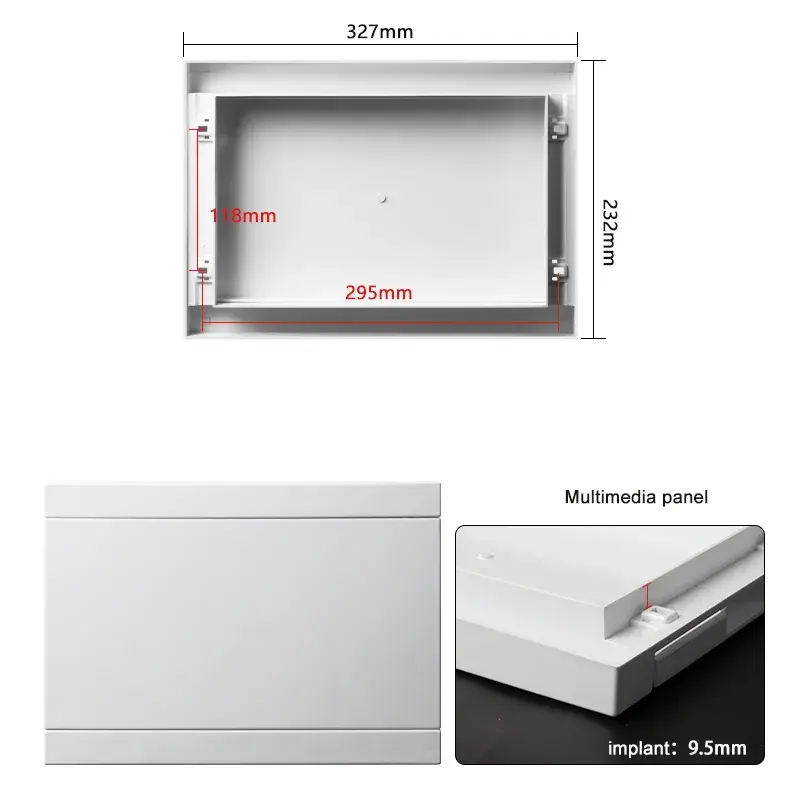

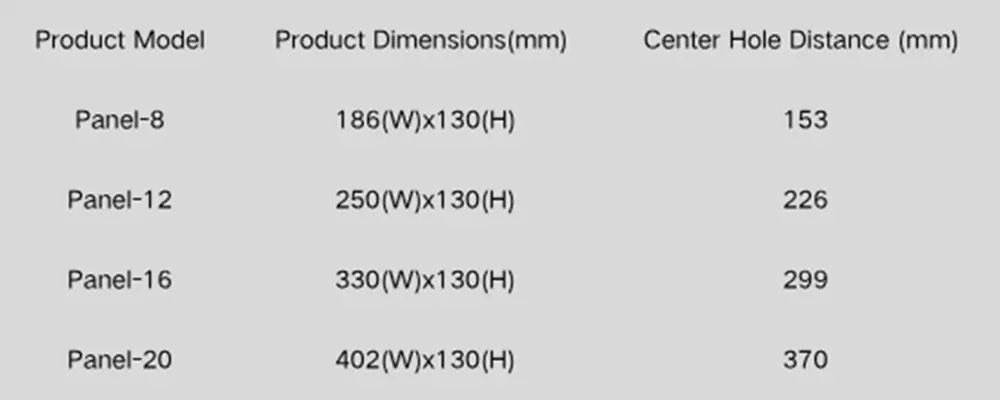

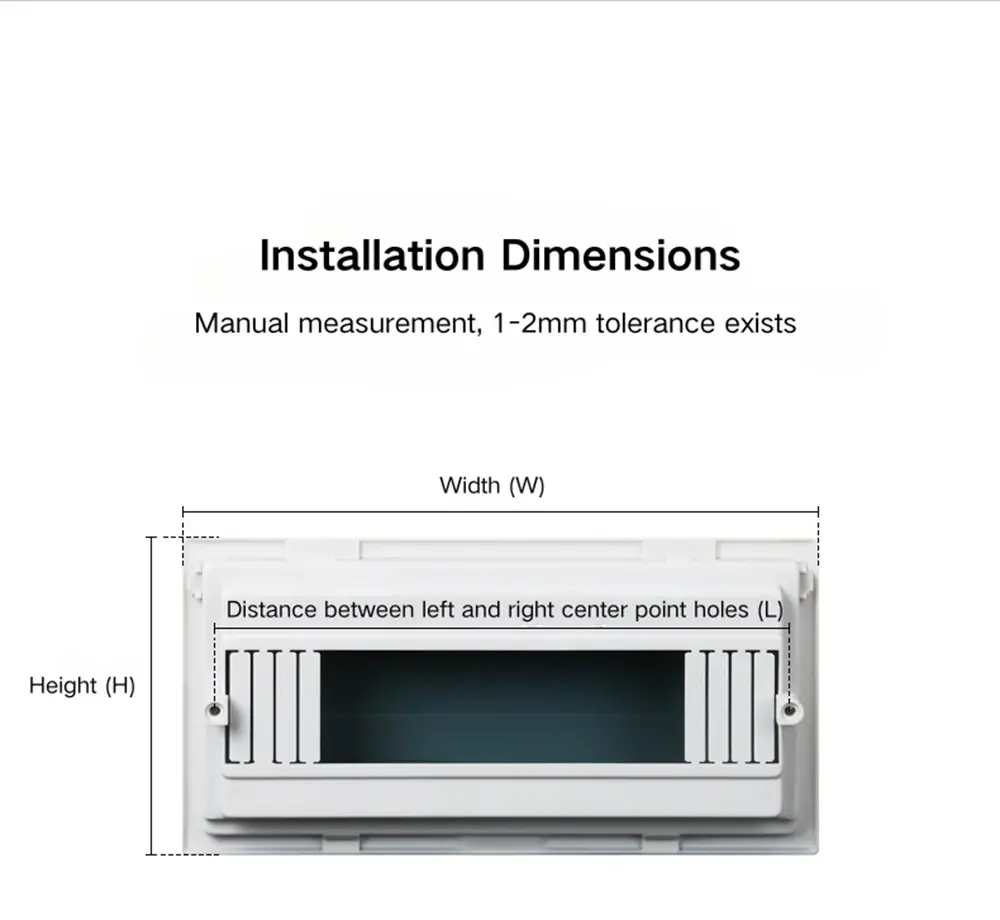

External dimensions:

The following units are all in mm.

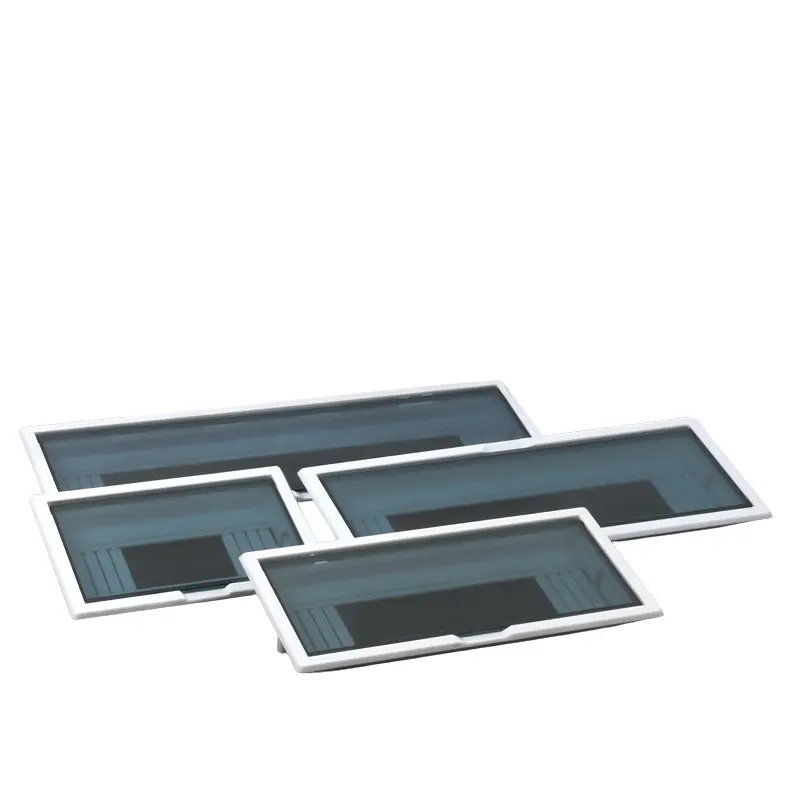

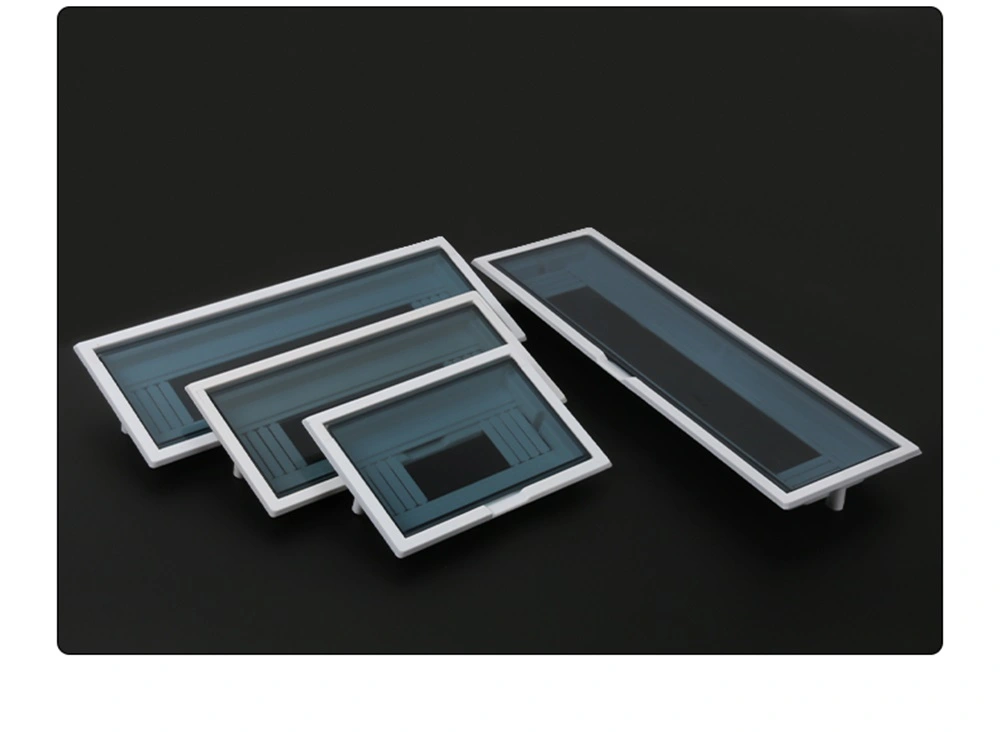

The external dimensions of the 8-circuit are 186 W x 130 H with a center hole spacing of 153.

The external dimensions of the 12-circuit are 250 W x 130 H with a center hole spacing of 226.

The external dimensions of the 16-circuit are 330 W x 130 H with a center hole spacing of 299.

The external dimensions of the 20-circuit are 402 W x 130 H with a center hole spacing of 370.

Functions

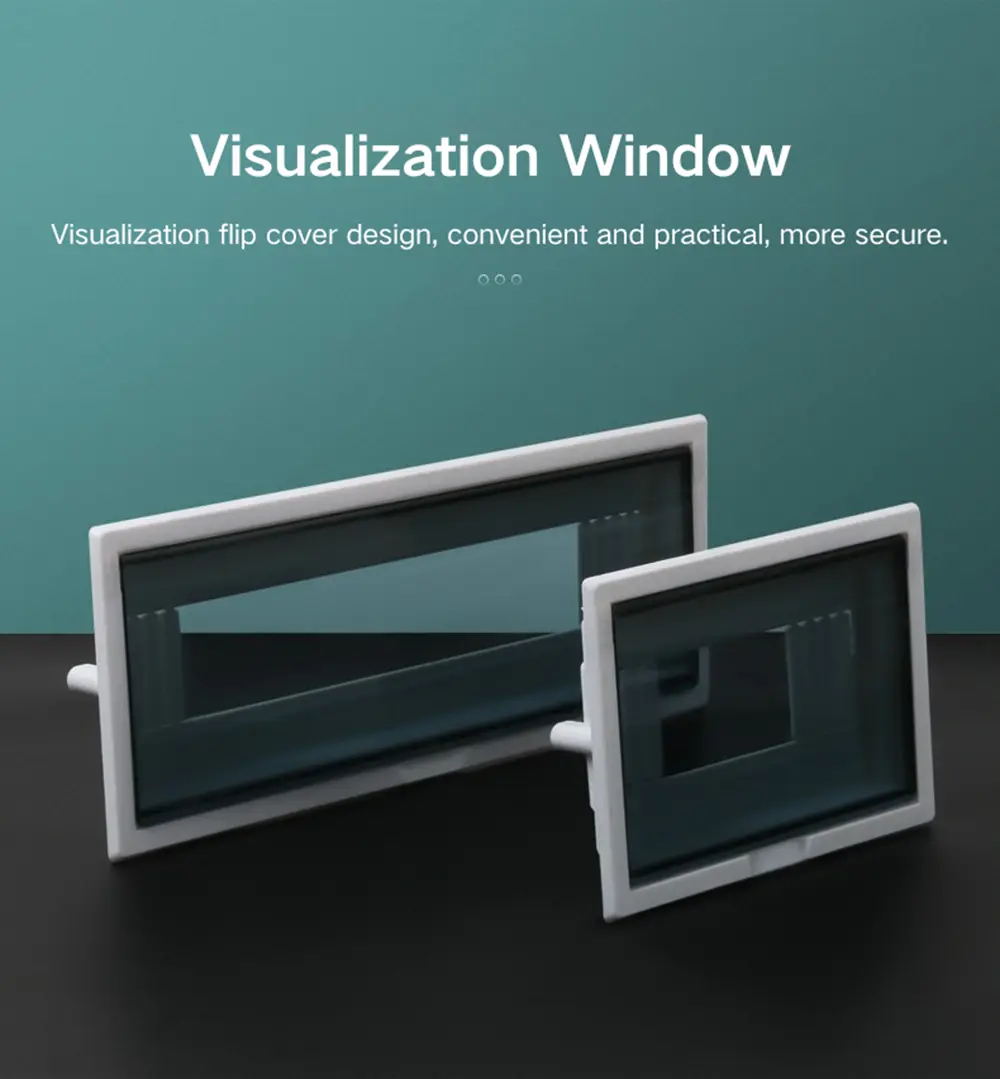

Centralized management of home weak power lines to avoid multiple devices scattered placement. With a visualization window, there is a flip cover design, for use in strong power box customers more convenient and practical and safe.Home open multimedia junction box panel is made of ABS flame retardant material, safe and durable, effectively protect the internal equipment.

Advantages

Support network, TV, telephone and other interfaces free combination.

Exposed structure is directly fixed on the wall, saving construction cost.

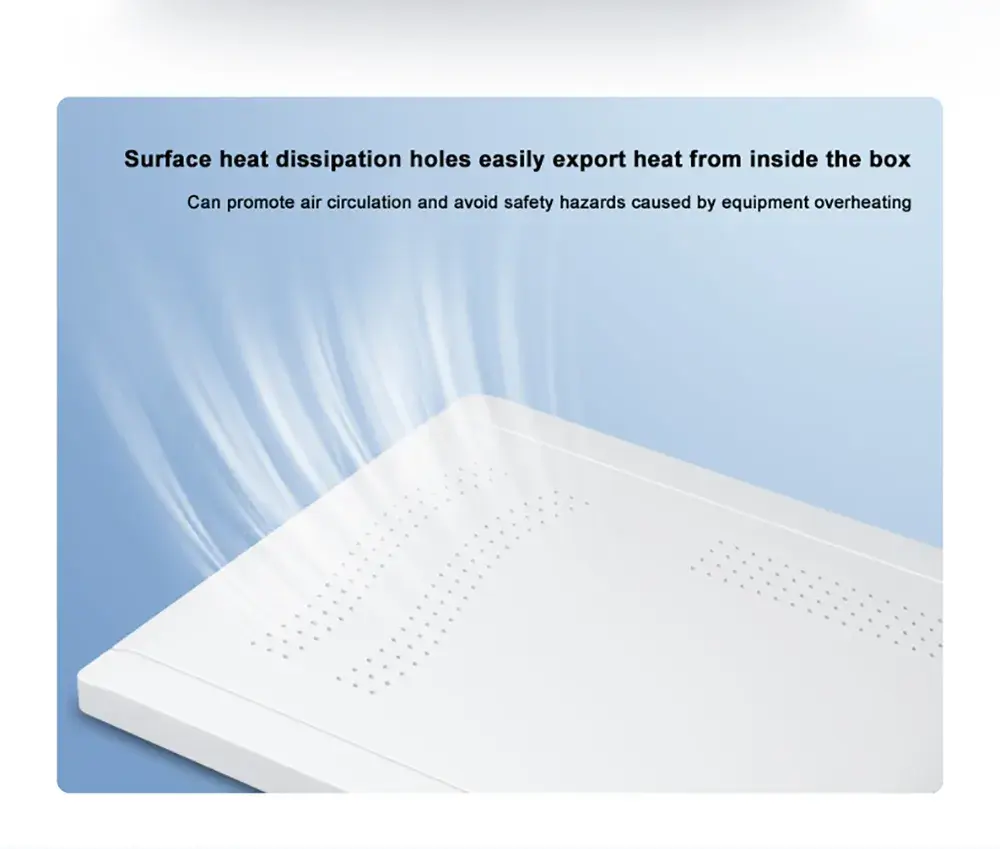

Reserve cooling holes in the box to avoid equipment overheating.

Hide messy cables, more beautiful.

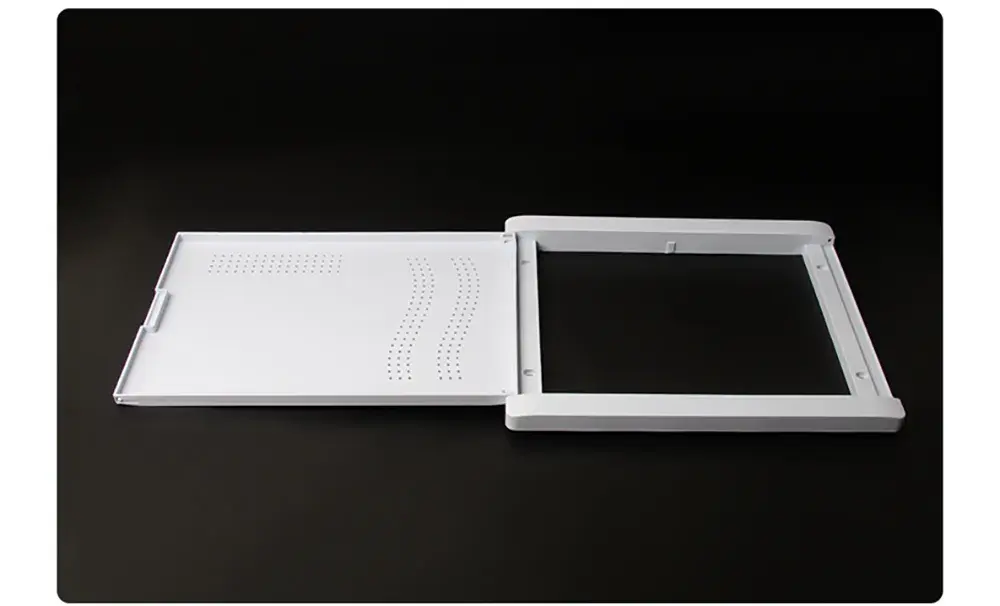

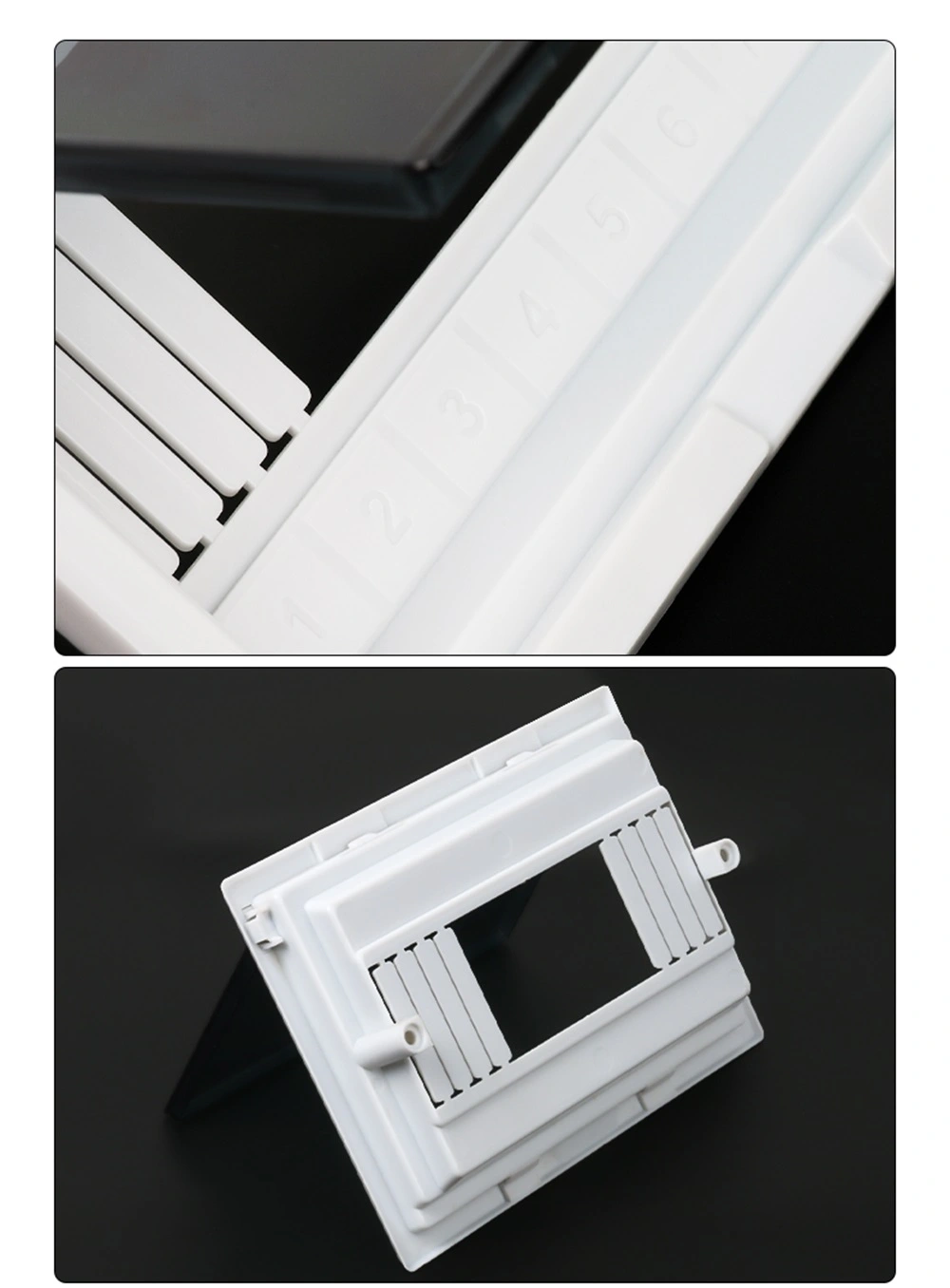

And the Home Exposed Multimedia Junction Box Panel can be opened and closed flexibly, which is convenient for daily maintenance.

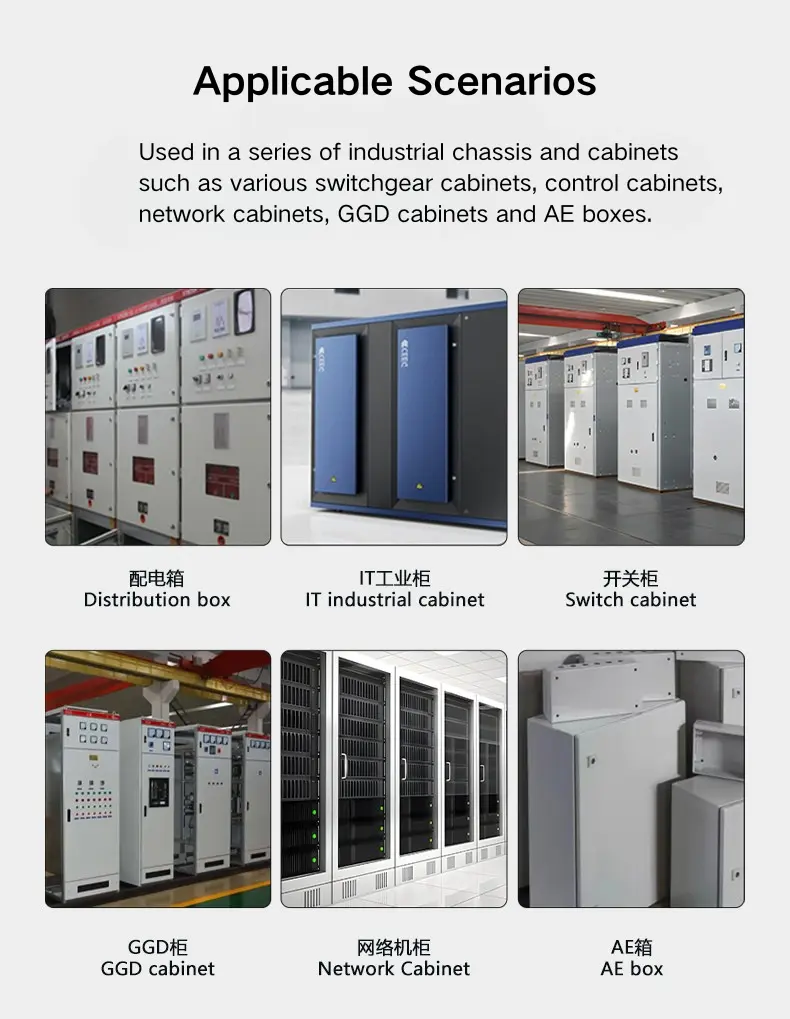

Suitable for mainstream weak power equipment and strong power box.

FAQ

1.Q: Which distribution boxes is this cover suitable for?

A: Suitable for standard size household lighting distribution boxes, supporting 8/12/16/20 circuit design.Adopting universal mounting hole spacing, suitable for most of the mainstream brands of chassis (need to confirm the specific model matching)

2. What are the advantages of ABS material?

A: Durability, anti-impact, anti-deformation, stronger than ordinary plastic, suitable for long-term use. Flame retardant in line with electrical safety standards, reducing the risk of fire. Light weight, easy to open and close, and corrosion resistance, suitable for humid environments (e.g., near bathrooms and kitchens)

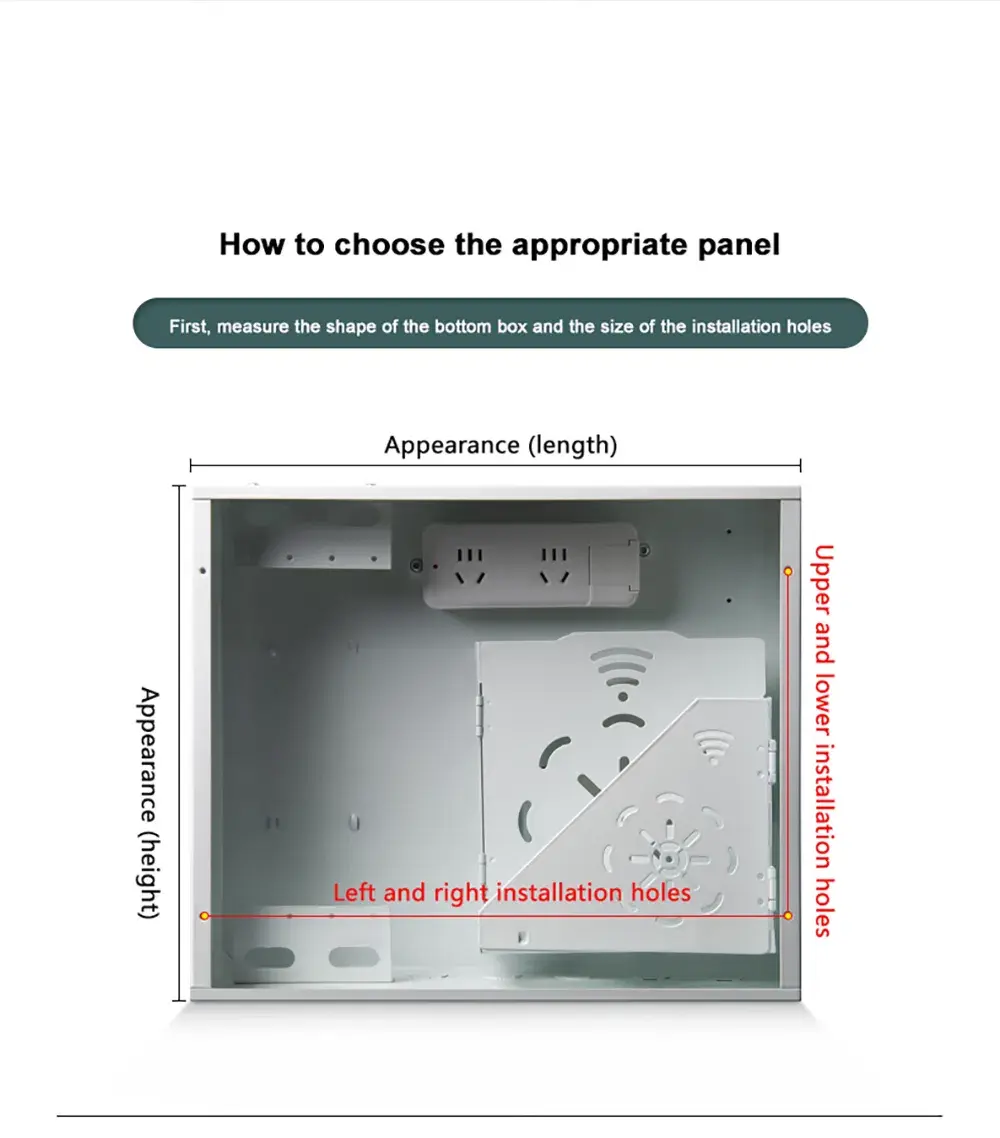

3.Q: How to choose the right panel?

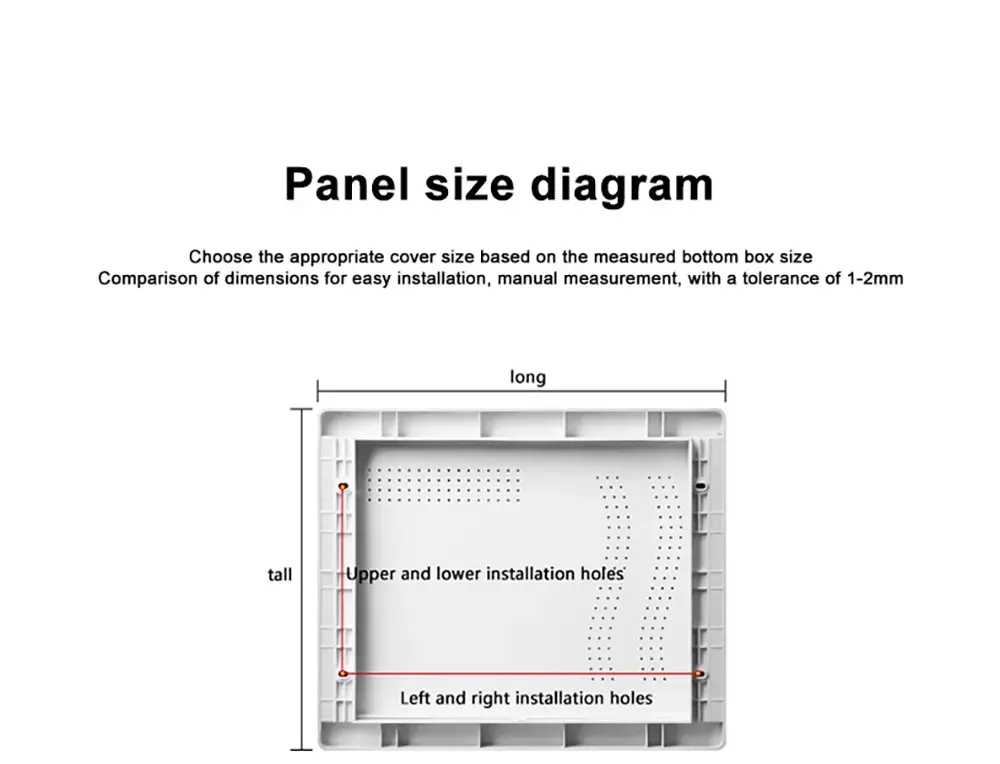

A: First measure the shape of the bottom box and the size of the mounting holes, buy against the size, manual measurement there is a tolerance of 1-2mm.

4. Q: What do I need to pay attention to when installing?

A: Check the size: Measure the size of the original distribution box opening (e.g. length x width x thickness) to ensure that the cover plate is completely covered.

Fixing method: Use matching screws or snap fasteners to avoid deformation caused by forced installation.Reserve operation space: Make sure that the cover plate does not affect the internal switch operation or cable layout when it is closed.

5. Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
