RMU Cabinet Zinc Alloy Hinge

For those sourcing RMU cabinet hardware from Yitai Lock in volume, the RMU Cabinet Zinc Alloy Hinge CL208 uses a dual-barrel design with two Φ8 mm barrels and a Φ4 mm pin, giving the hinge a wider load-bearing surface than a single-barrel type of the same size. The overall footprint is 48 × 26 mm, installed by welding, and the two finish options — black and bright chrome — cover the most common cabinet surface treatments in the RMU and switchgear market.

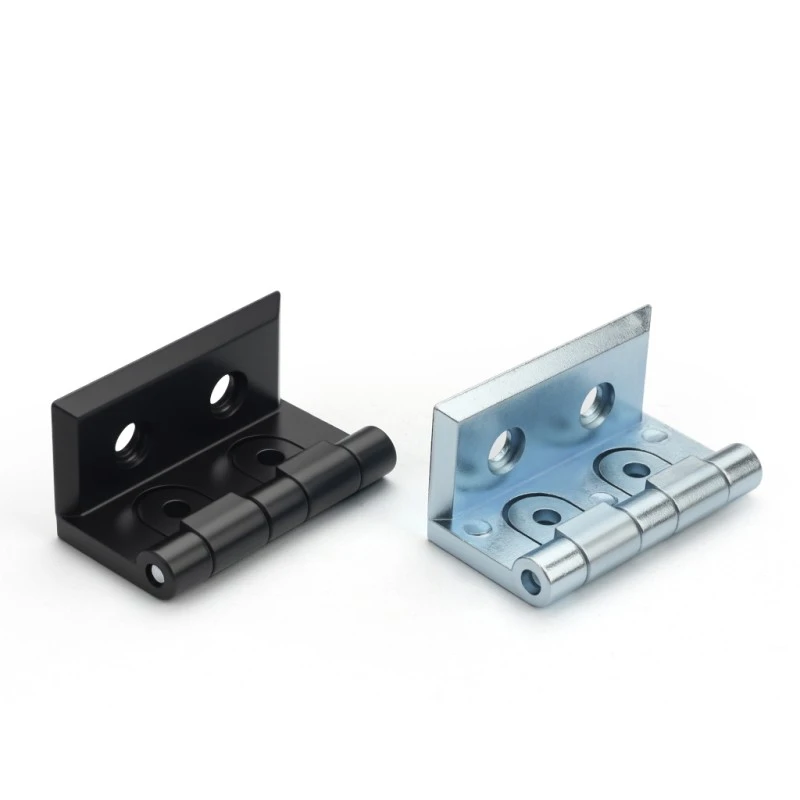

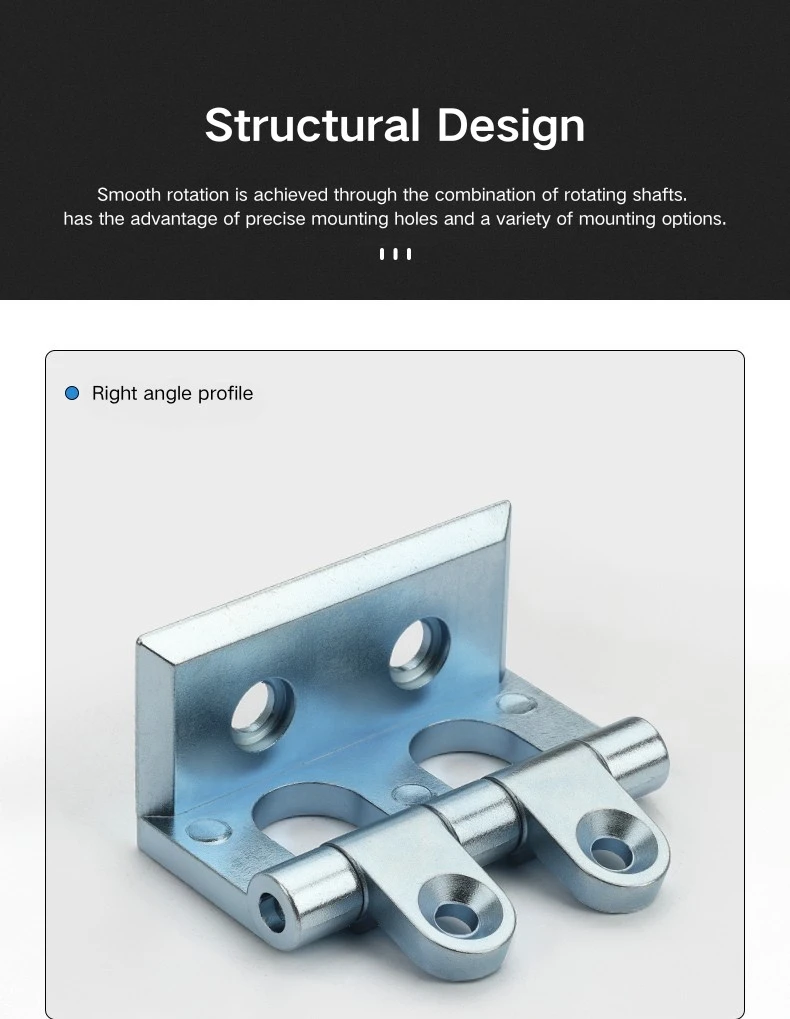

Structure and Dimensions

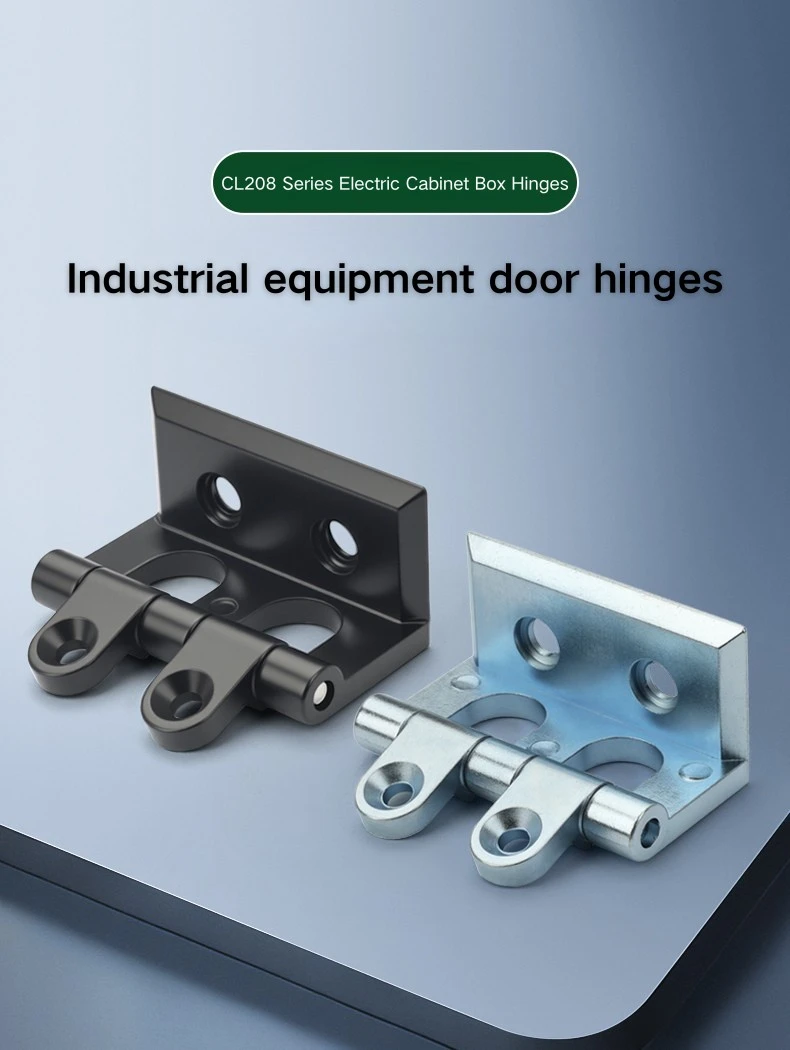

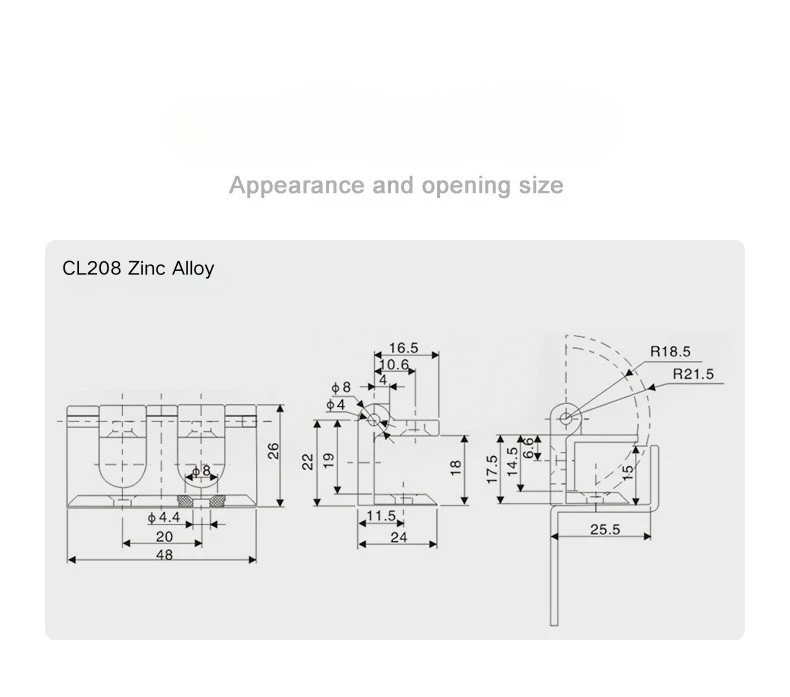

The RMU Cabinet Zinc Alloy Hinge measures 48 mm wide and 26 mm tall overall, with a 20 mm span between the two mounting wings. The RMU Cabinet Zinc Alloy Hinge uses two Φ8 mm barrels on a shared Φ4 mm pin rather than a single knuckle — the wider bearing surface spreads the door load more evenly and holds up better over repeated use. The barrel assembly sits 16.5 mm from the leaf edge with the pin centre at 10.6 mm.

On the side profile, the RMU Cabinet Zinc Alloy Hinge has a door panel engagement depth of 24 mm and a frame-side reach of 25.5 mm. The frame engagement section is 22 mm tall with an 11.5 mm base, and the lateral clearance runs 17.5 mm total height with a 14.5 mm inner step and 6.6 mm pin offset — dimensions that line up with the frame channel geometry typical of RMU and distribution cabinet builds.

Opening Angle and Door Control

The standout feature of the RMU Cabinet Zinc Alloy Hinge is the 270° opening angle. Most standard cabinet hinges open to 90°, 120°, or 180° — a 270° swing means the door can fold back almost flat against the side of the cabinet rather than stopping at a right angle or halfway. In RMU and ring main unit applications, this makes a real difference when technicians need unobstructed access to the interior for installation, maintenance, or cable management.

The arc radius on the RMU Cabinet Zinc Alloy Hinge runs from R18.5 mm to R21.5 mm through the swing range, which defines the clearance envelope the door travels through when opening. This is worth accounting for during cabinet layout — there needs to be enough clearance alongside the cabinet for the door to complete the full swing without obstruction.

Finish Options and Application

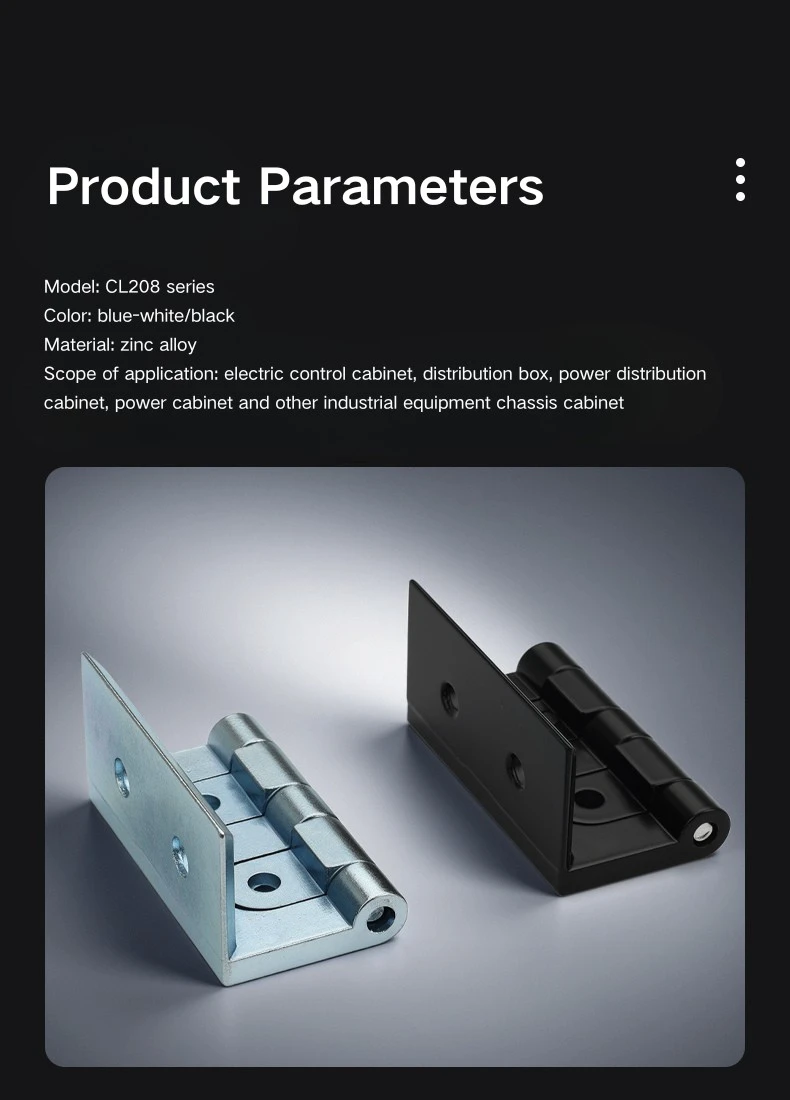

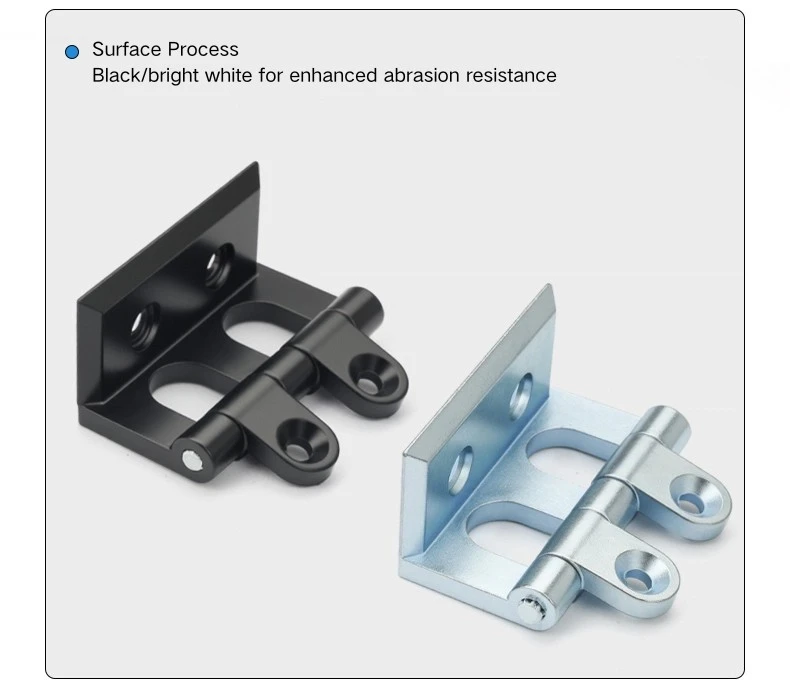

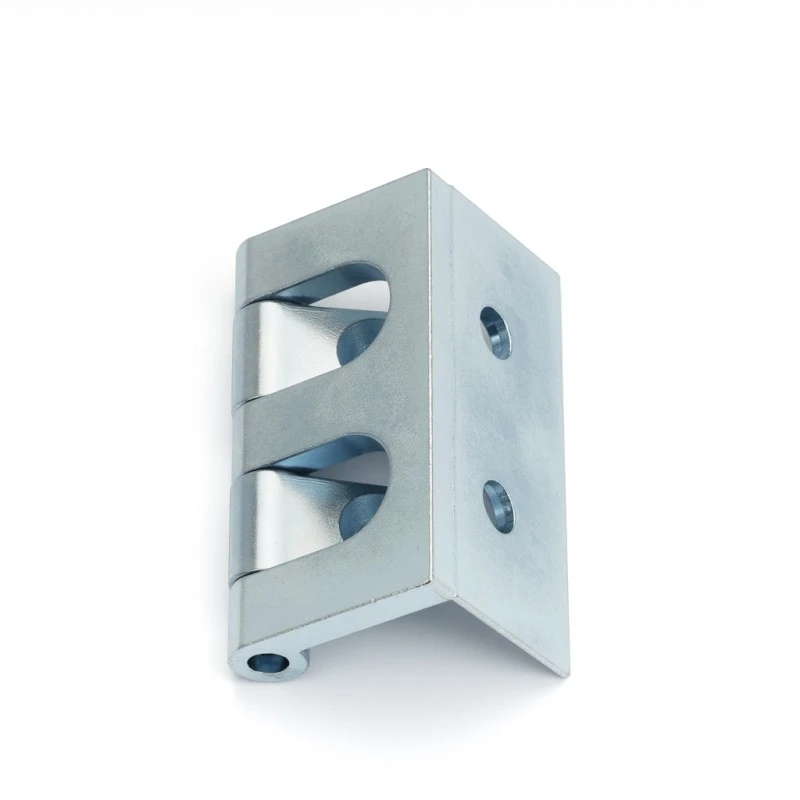

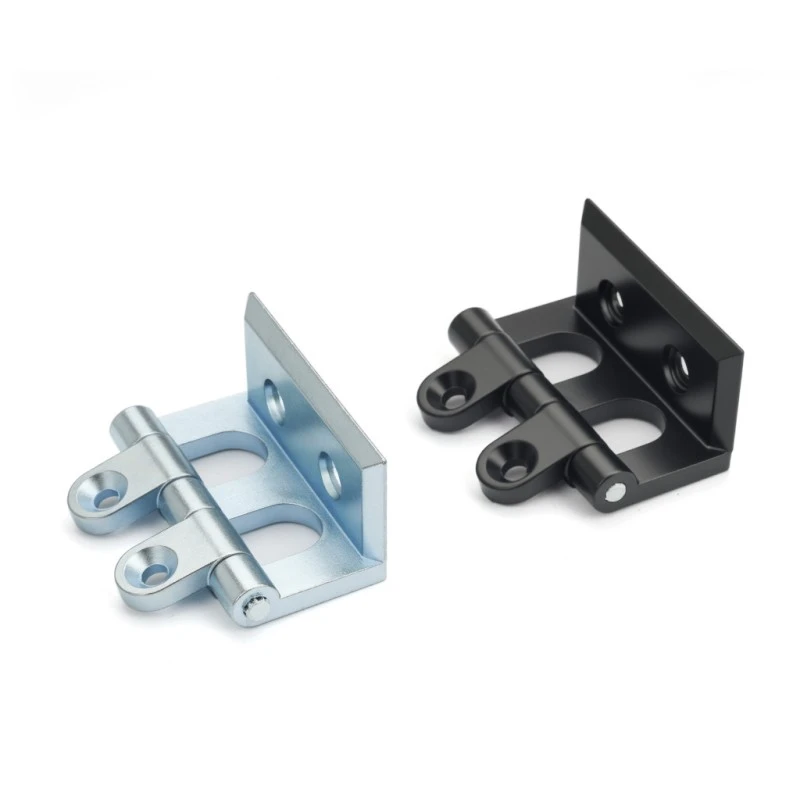

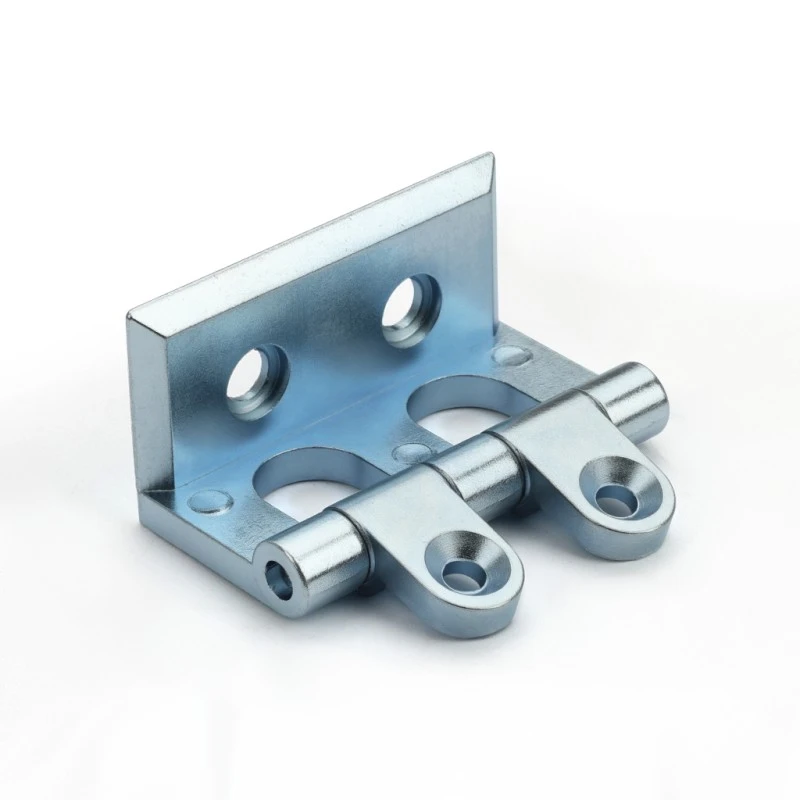

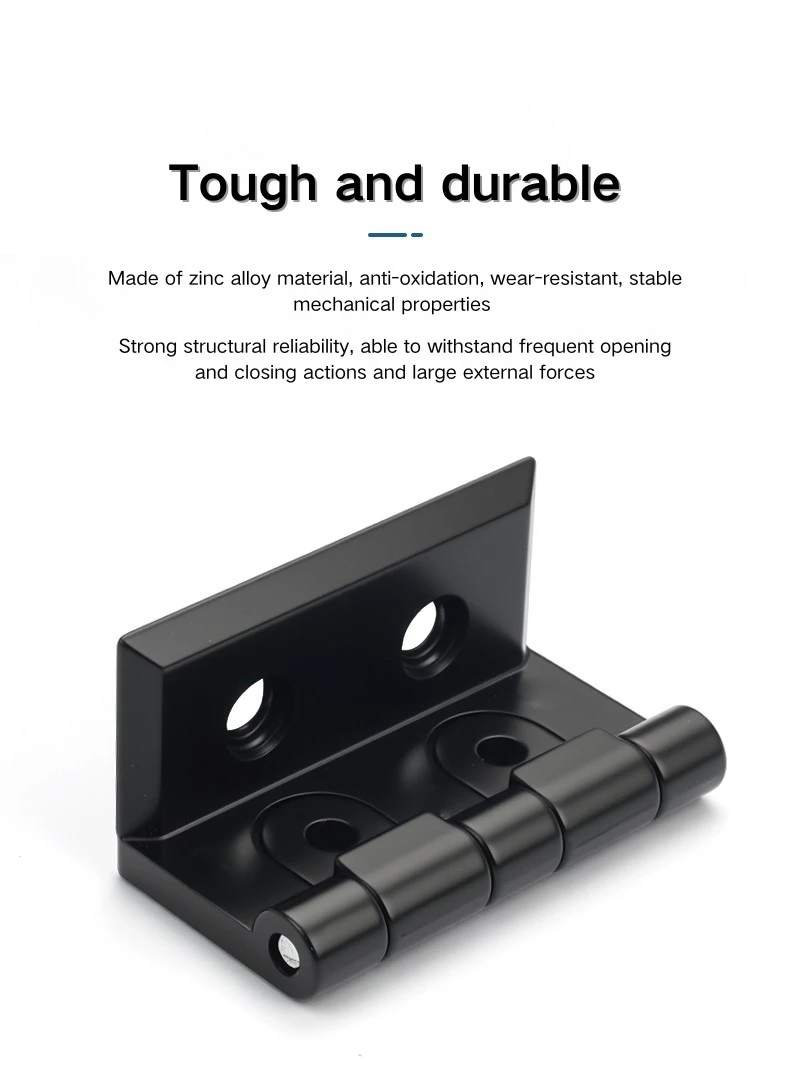

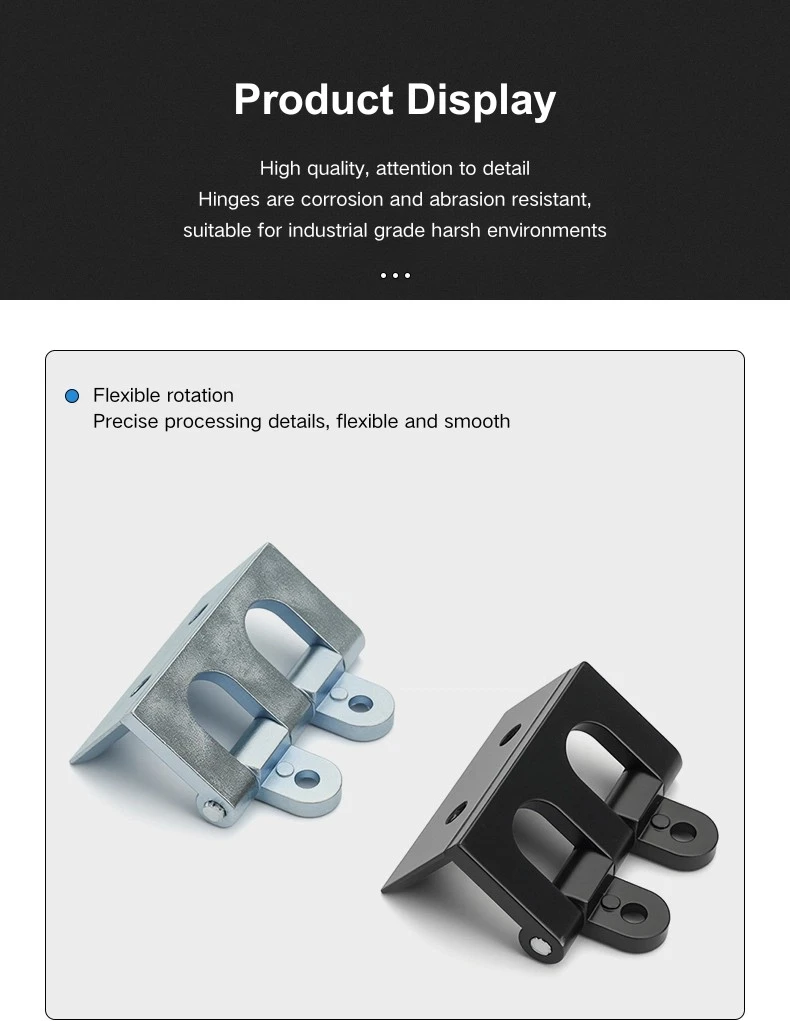

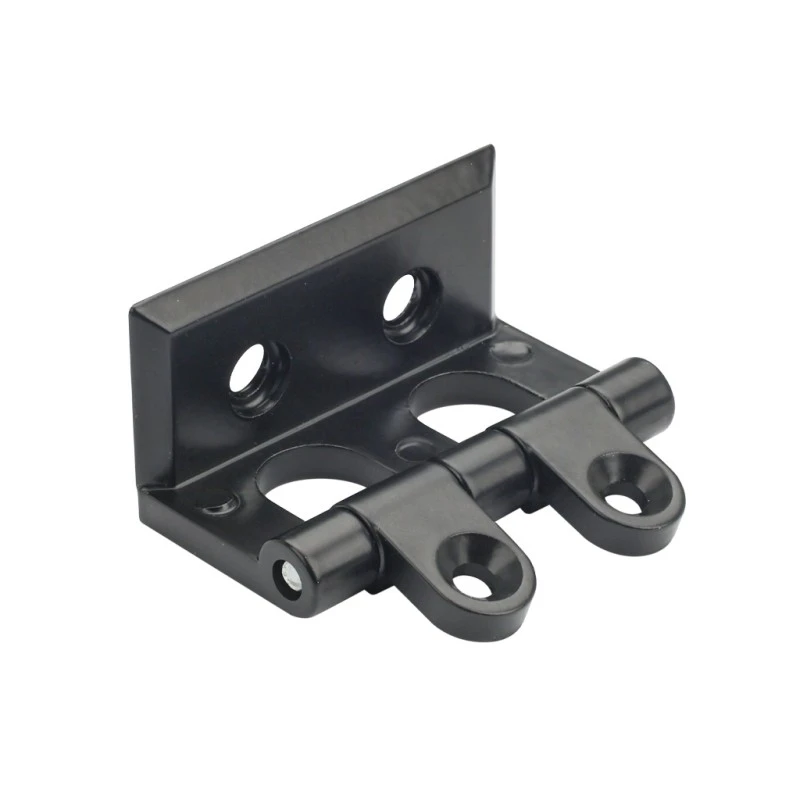

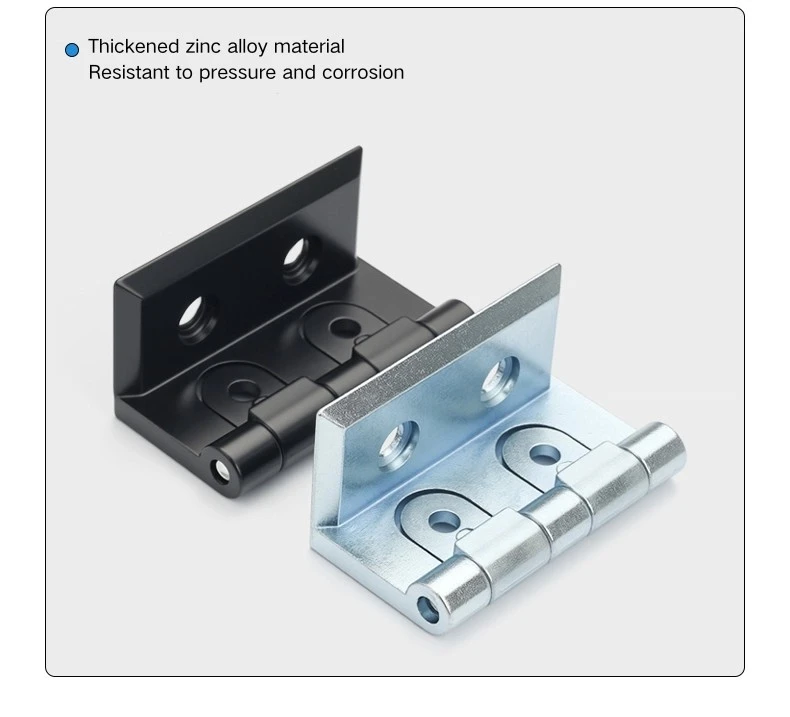

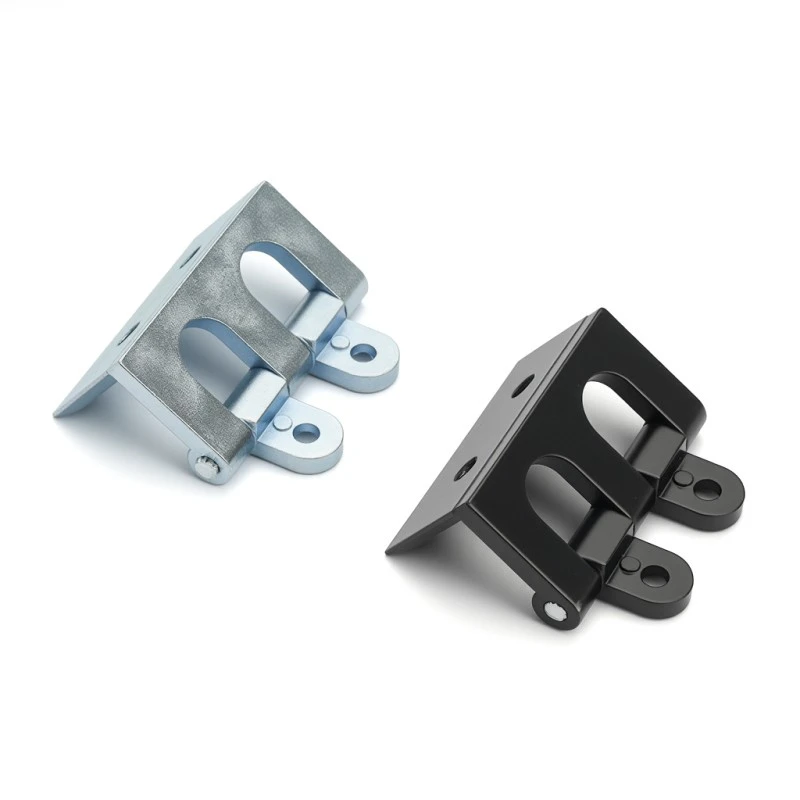

The RMU Cabinet Zinc Alloy Hinge comes in two finishes: black and bright chrome. Black suits dark powder-coated cabinet enclosures and is the more common choice in RMU builds where the cabinet exterior is a standard industrial finish. Bright chrome gives a polished, reflective appearance and works well on lighter-coloured or decorative enclosure panels where the hinge finish is part of the overall cabinet aesthetic.

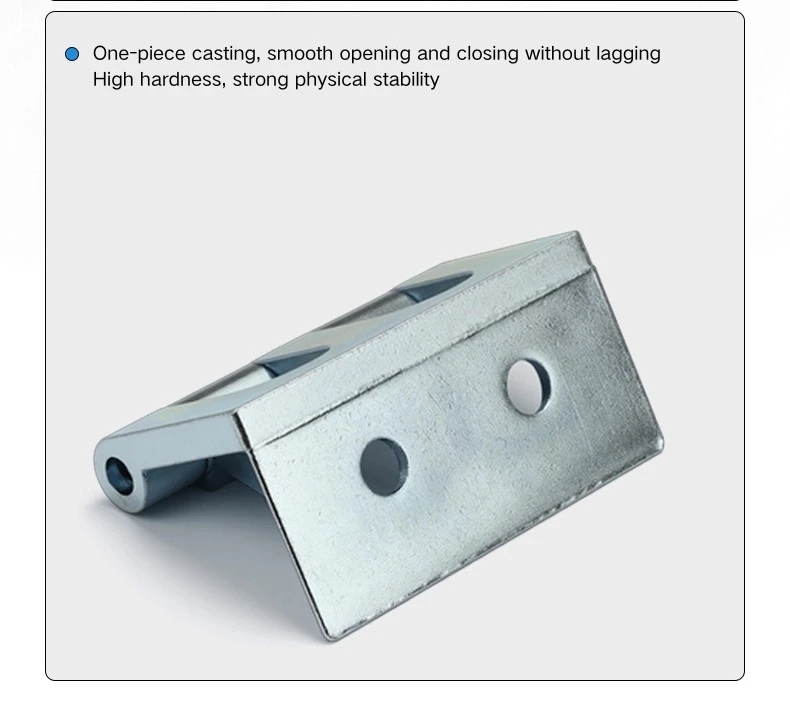

Both finishes of the RMU Cabinet Zinc Alloy Hinge are welded directly onto the cabinet frame during fabrication, so finish selection is a permanent decision at the build stage. The zinc alloy construction handles typical indoor industrial environments well, and the die-cast body gives consistent dimensional accuracy across production batches — useful when the hinge needs to line up precisely with a mating frame channel across multiple cabinet units.

FAQ

Q1: What is the opening angle of the CL208 hinge?

The CL208 opens to 270°, which allows the door to swing past flat and fold back almost fully alongside the cabinet frame. This is the main reason it's specified for RMU and ring main unit cabinets where full interior access is a regular requirement.

Q2: What are the overall dimensions of the CL208?

The CL208 zinc alloy cabinet hinge is 48 mm wide and 26 mm tall, with a 20 mm inner span between the mounting wings. The frame-side reach is 25.5 mm and the door panel engagement depth is 24 mm.

Q3: How is the CL208 installed?

The CL208 is a welded hinge — it is fixed to the cabinet frame and door panel by welding during fabrication. There is no screw-mount option for this model.

Q4: What finish options are available?

The CL208 comes in black zinc alloy and bright chrome zinc alloy. Black is the standard choice for dark or powder-coated enclosures; bright chrome suits lighter or decorative cabinet finishes.

Q5: What cabinet types is the CL208 designed for?

The CL208 is designed primarily for ring main unit cabinets and is also used on electrical distribution boxes, industrial control cabinets, and switchgear enclosures. The 270° opening angle is particularly relevant for RMU applications where full door clearance is a functional requirement.

Q6: Is there clearance needed for the 270° door swing?

Yes. The door travels through an arc of R18.5 to R21.5 mm as it opens. During cabinet layout, make sure there is enough clearance alongside the cabinet for the door to complete the full swing without hitting adjacent structures or equipment.

Q7: Is the CL208 available in stainless steel?

The CL208 is currently available in zinc alloy only, in black and bright chrome finishes. For stainless steel cabinet hinge options, other models in the Yitai Lock range may be more suitable depending on your application.
