Weatherproof Outdoor Lock

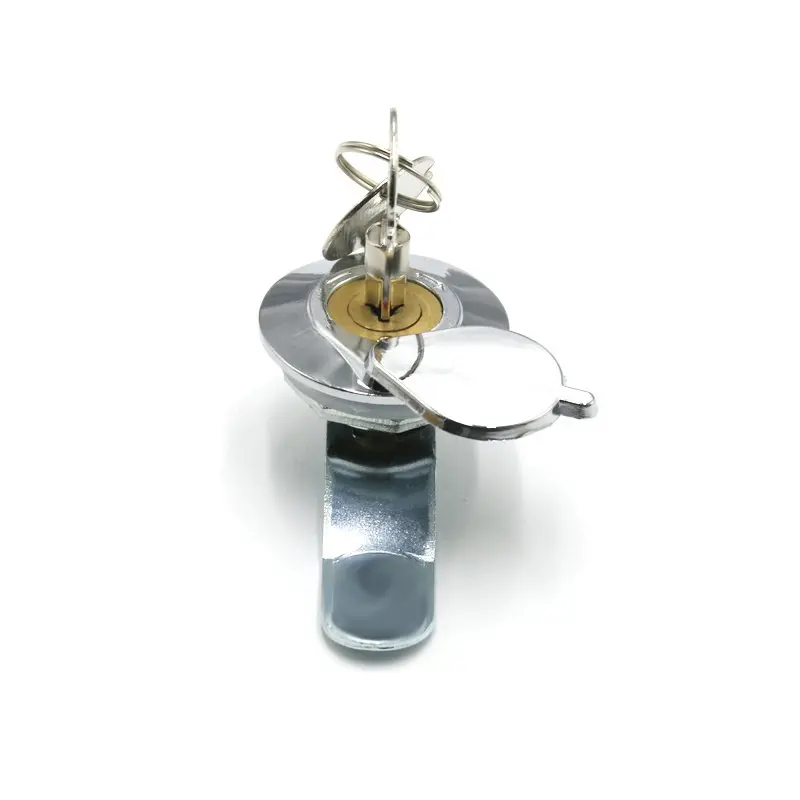

Consumers can purchase discounted, waterproof outdoor locks at Yitai Lock. The waterproof cover closes in the normal state and opens when the lock is unlocked, protecting the cylinder from the outdoor elements.

Material and Dimensions

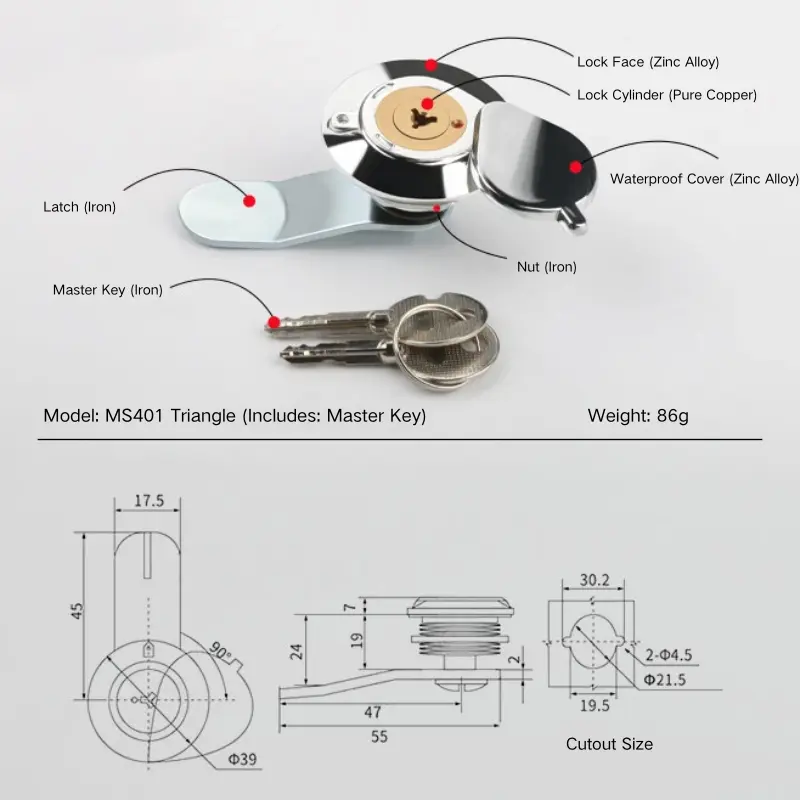

The waterproof cover and lock face of waterproof outdoor lock are crafted from zinc alloy, offering good structural strength. The lock cylinder is made of pure copper to make it more durable. The latch, nuts, and master key are constructed from iron.

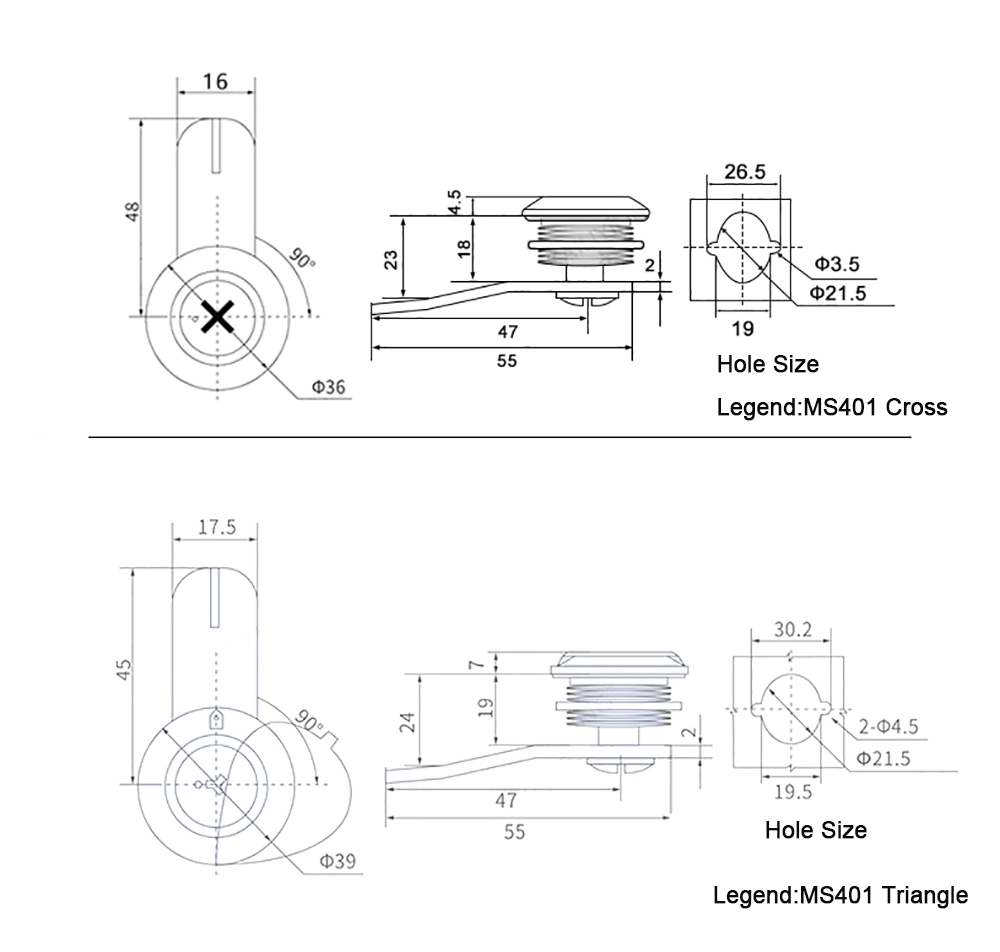

The lock plate measures 55mm in length and 17.5mm in width.

The lock face has a diameter of 39mm, and the waterproof cover rotates 90°.

Model Description

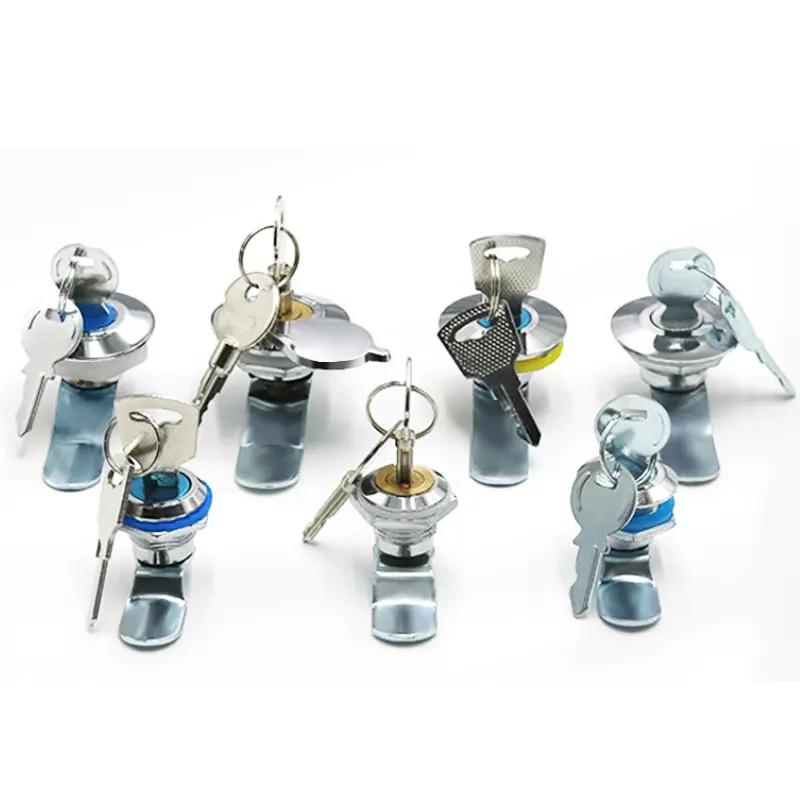

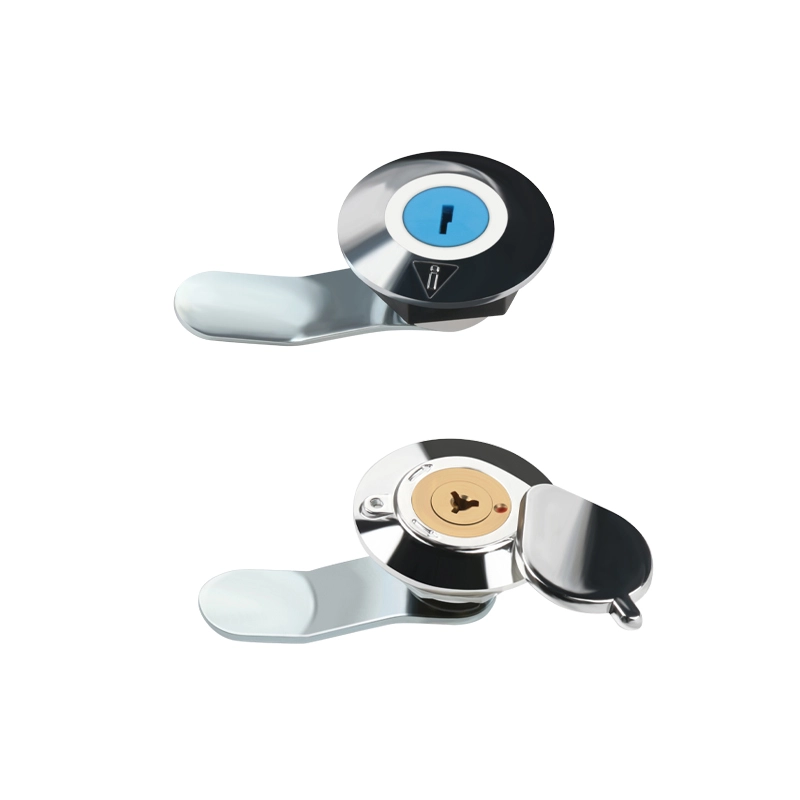

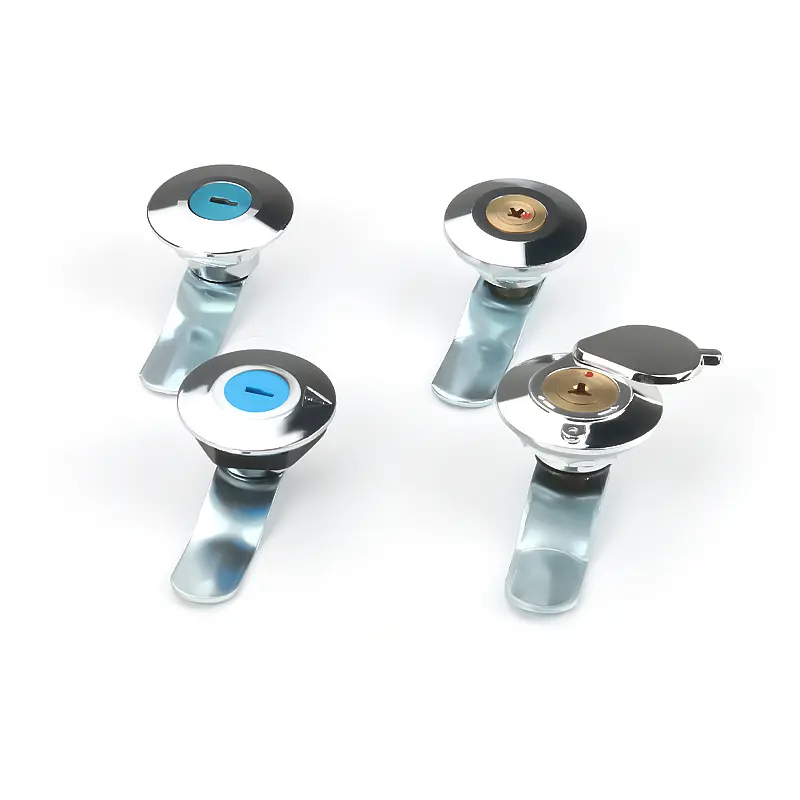

The cover of this waterproof outdoor lock protects the lock cylinder, extending its service life. Combining different materials, the zinc alloy components feature a bright chrome finish. Suitable for door panel thicknesses of 1-6mm, consumers may choose whether to opt for this waterproof cover model based on their needs. For this small round lock, we also offer a cross-shaped lock cylinder version without the waterproof cover. Select master keys or unique keys according to management requirements.

Application Scenarios

Waterproof outdoor locks are suitable for electrical equipment requiring outdoor use, i.e. outdoor distribution boxes, communication cabinets, and network equipment enclosures, as well as outdoor enclosures in power, telecommunications, and municipal sectors.

FAQ

Q: How effective is the waterproof cover?

A: The waterproof cover effectively blocks rain and dust, protecting the lock cylinder for normal operation.

Q: What size installation hole is required?

A: It uses a standard hole design. Refer to the product details page for specific dimensions.

Q: What should I do if I lose the key?

A: Contact us to have a new key made based on the lock's specifications.

Q: How do I fix a stiff latch bolt?

A: Check for obstructions and apply a small amount of lubricant if necessary.

Q: How do I know when the lock needs replacement?

A: Consider replacement when structural damage or functional failure occurs.
