Asymmetric Offset Hinge

Model Options and Size

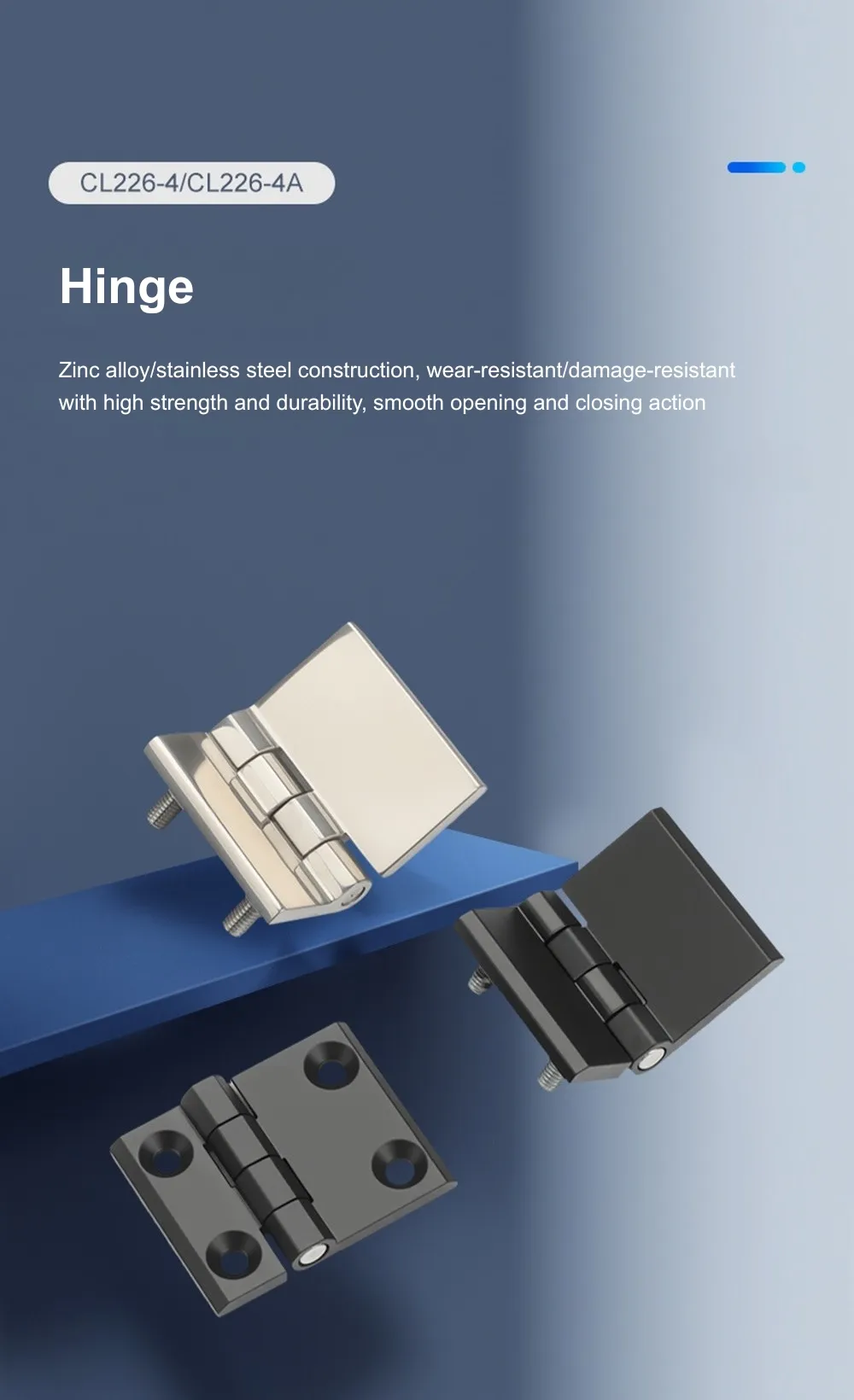

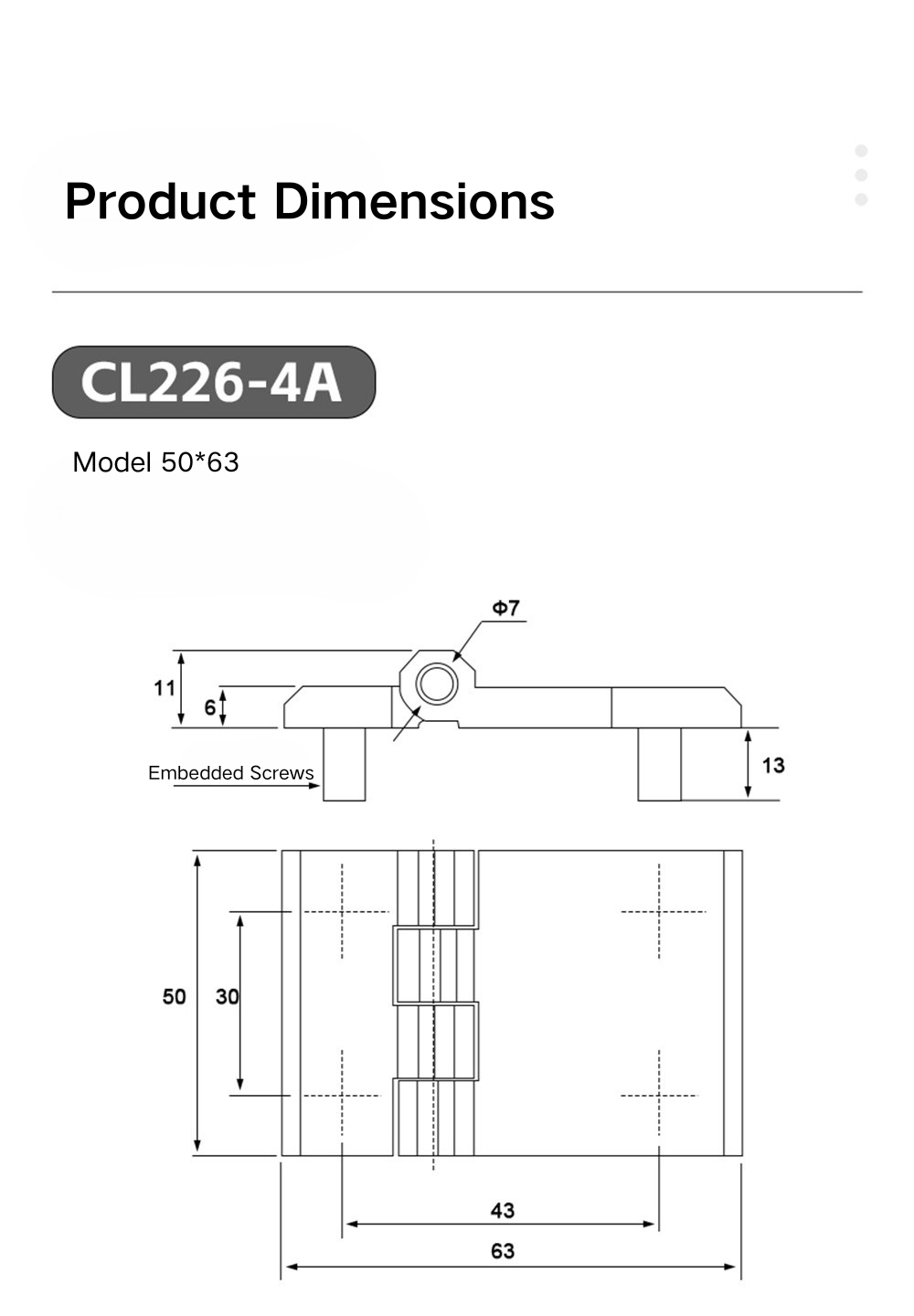

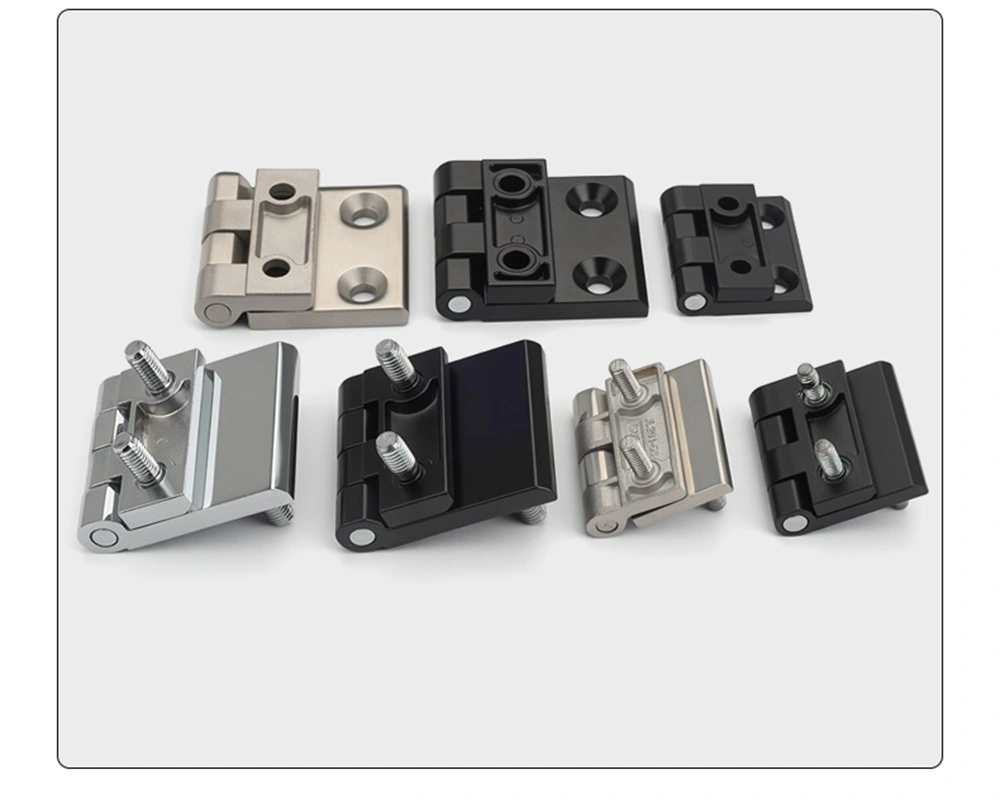

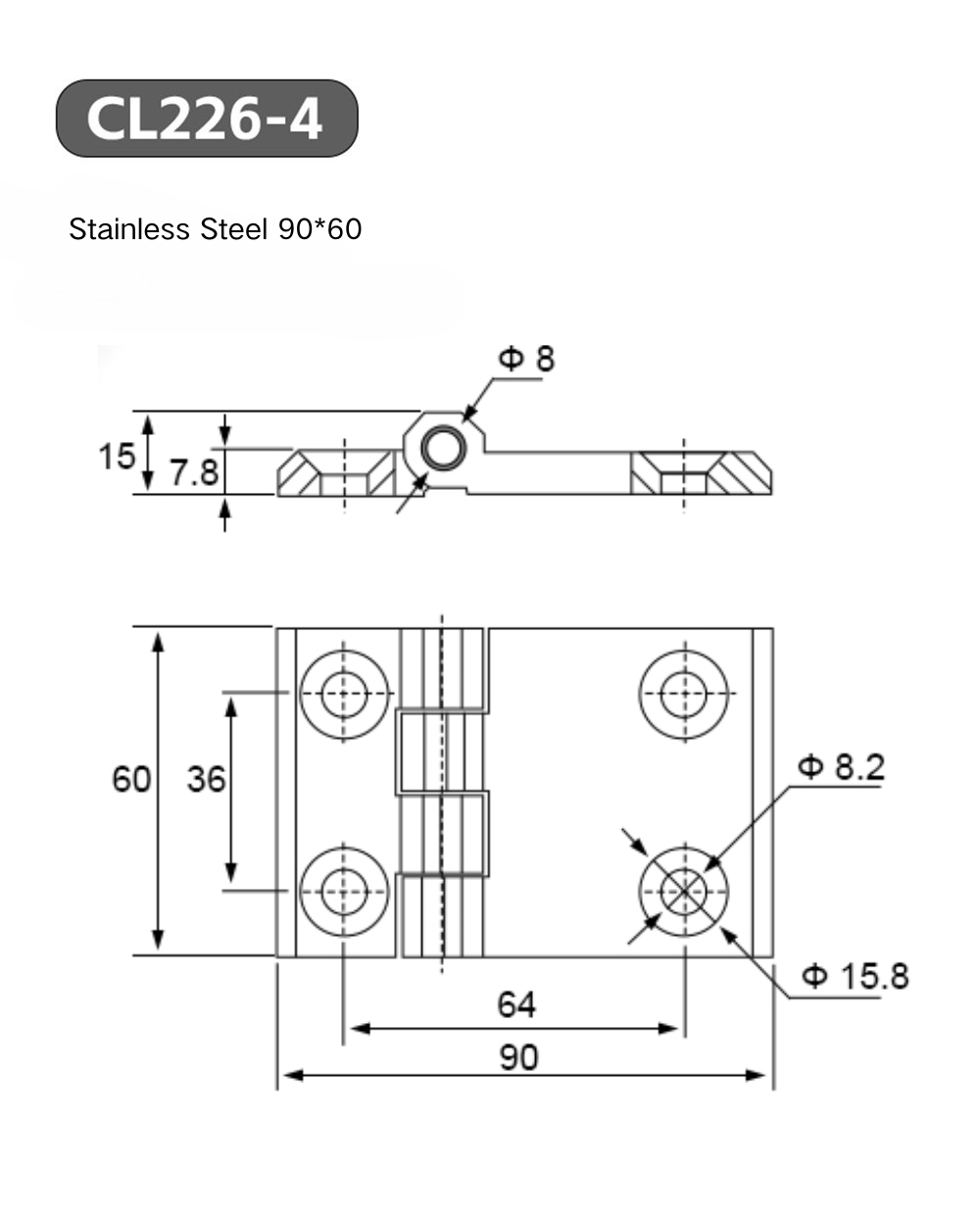

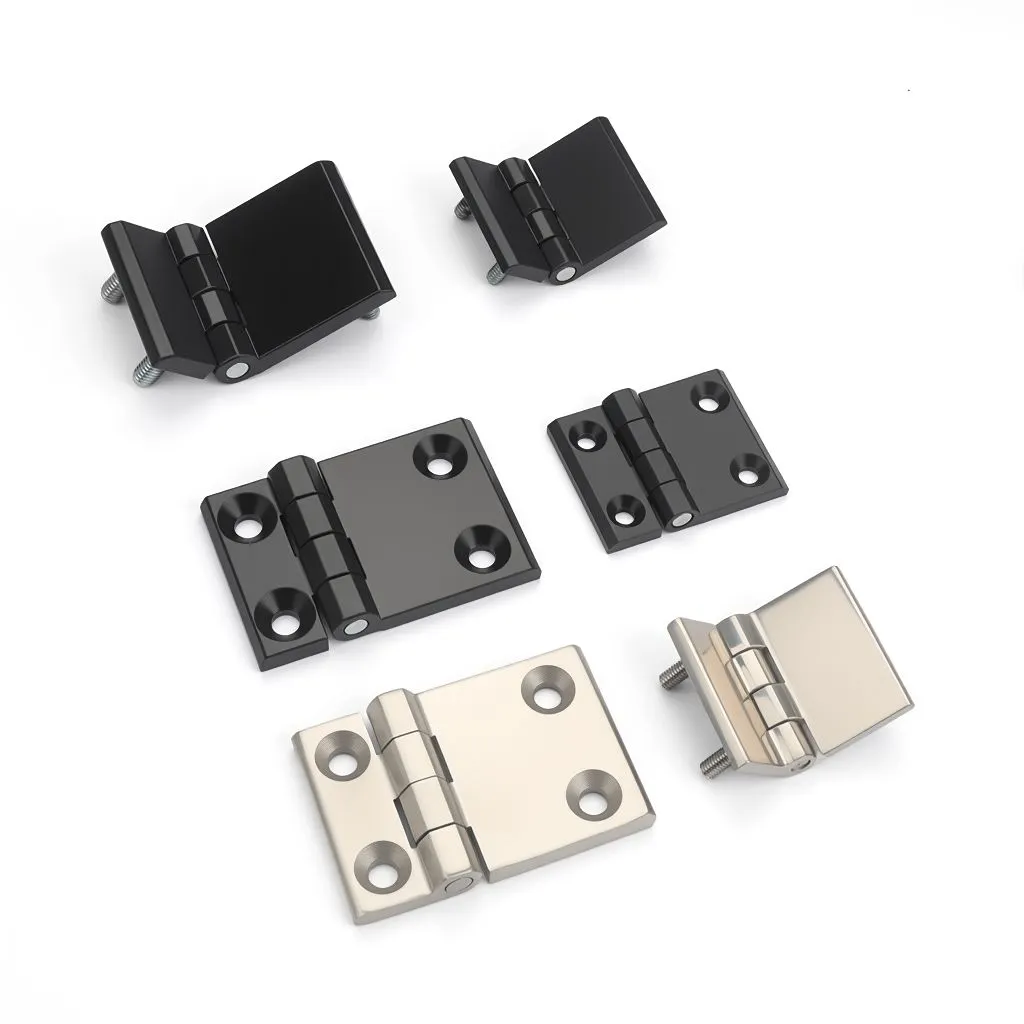

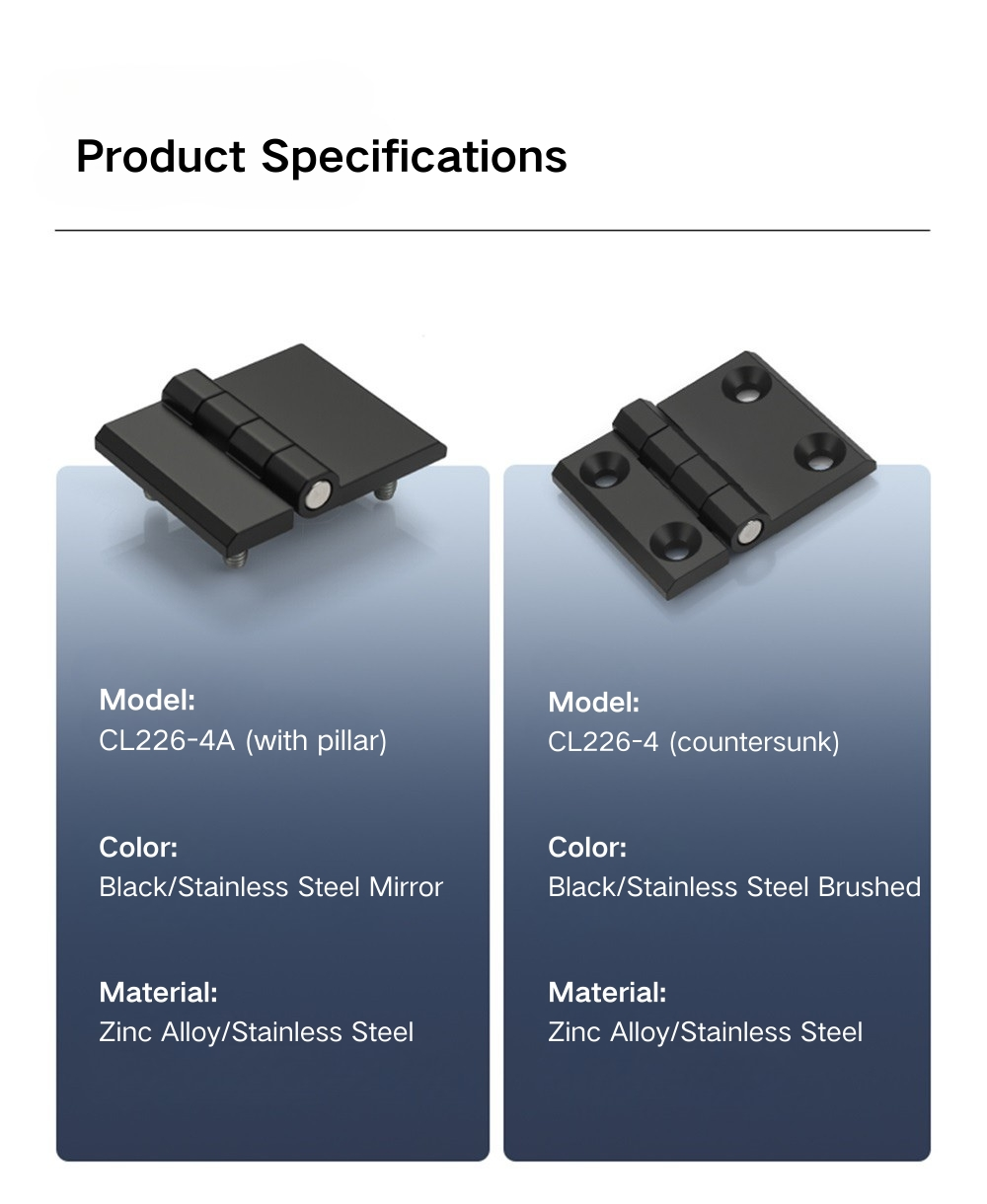

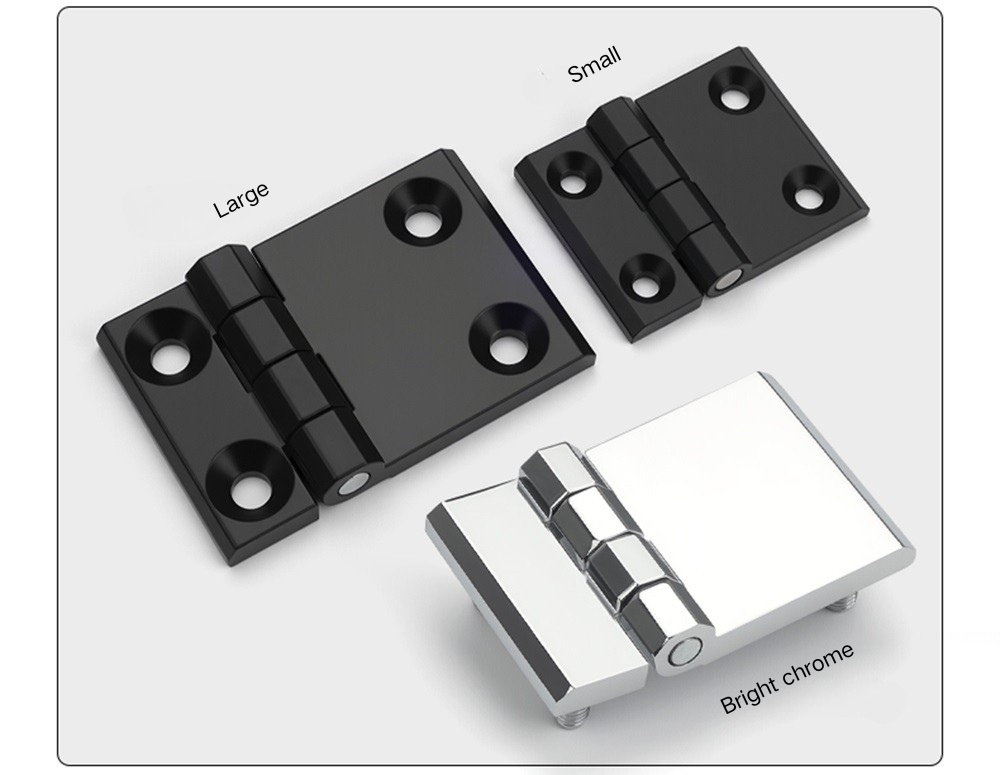

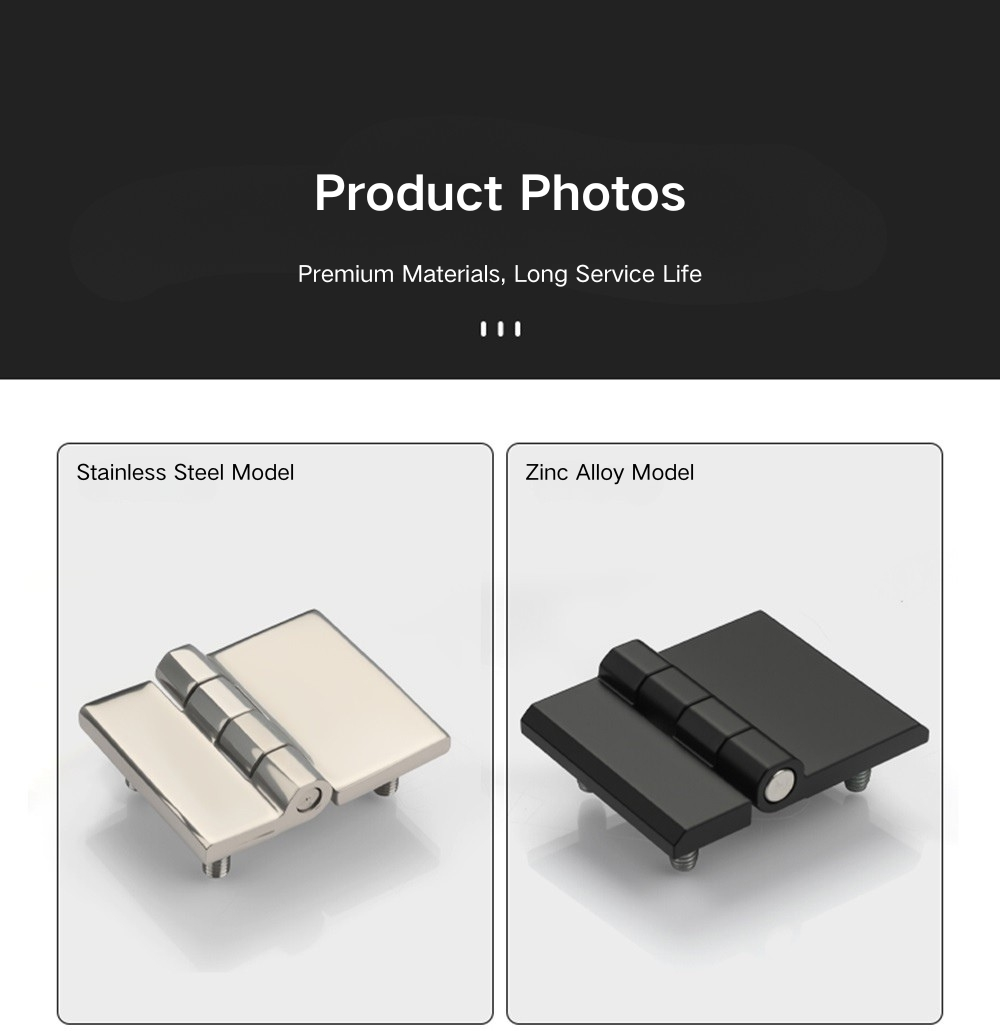

The CL226 Asymmetric Offset Hinge is available in sizes 50 × 63 mm and 90 × 60 mm. The Asymmetric Offset Hinge includes CL226-4 with countersunk holes and CL226-4A with stud mounting. Available combinations include zinc alloy and stainless steel options across both sizes. These variations allow the Asymmetric Offset Hinge to fit different cabinet door sizes and installation methods.

Structure and Mounting Difference

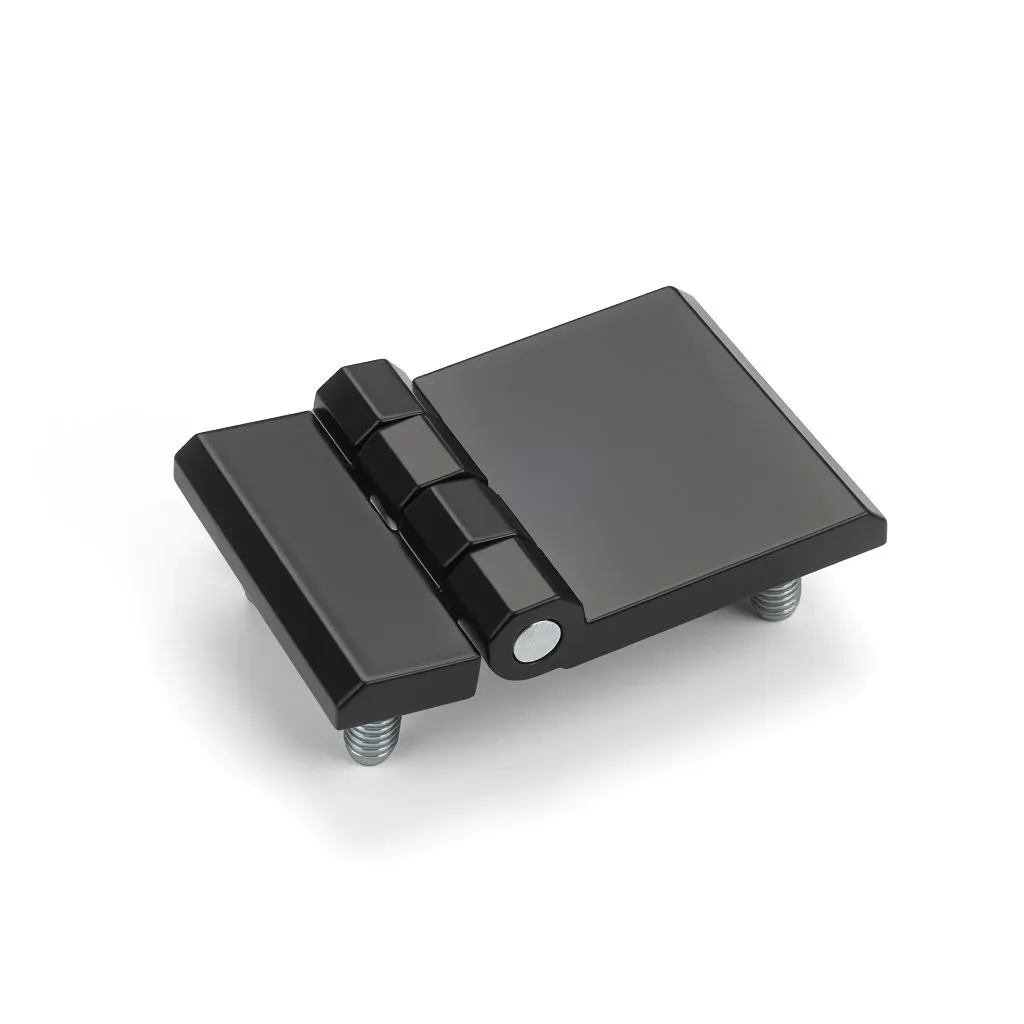

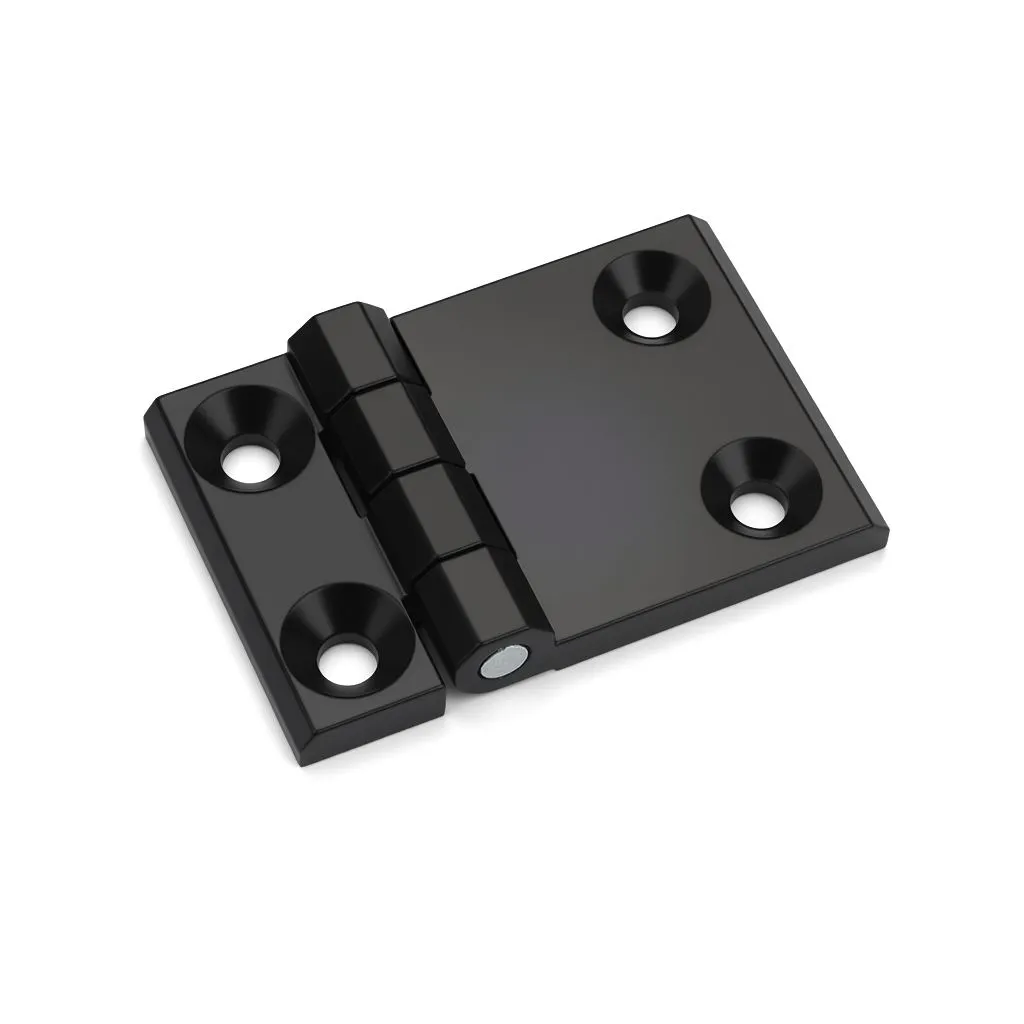

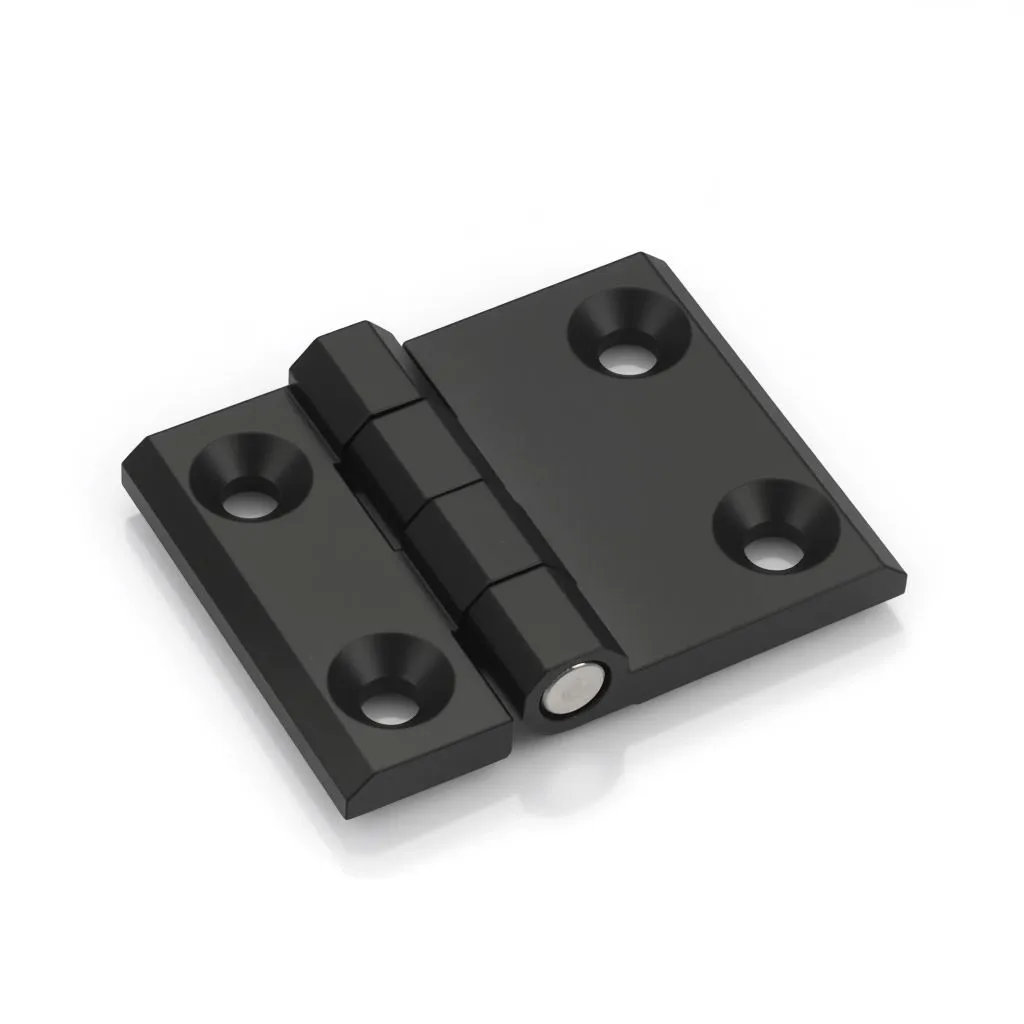

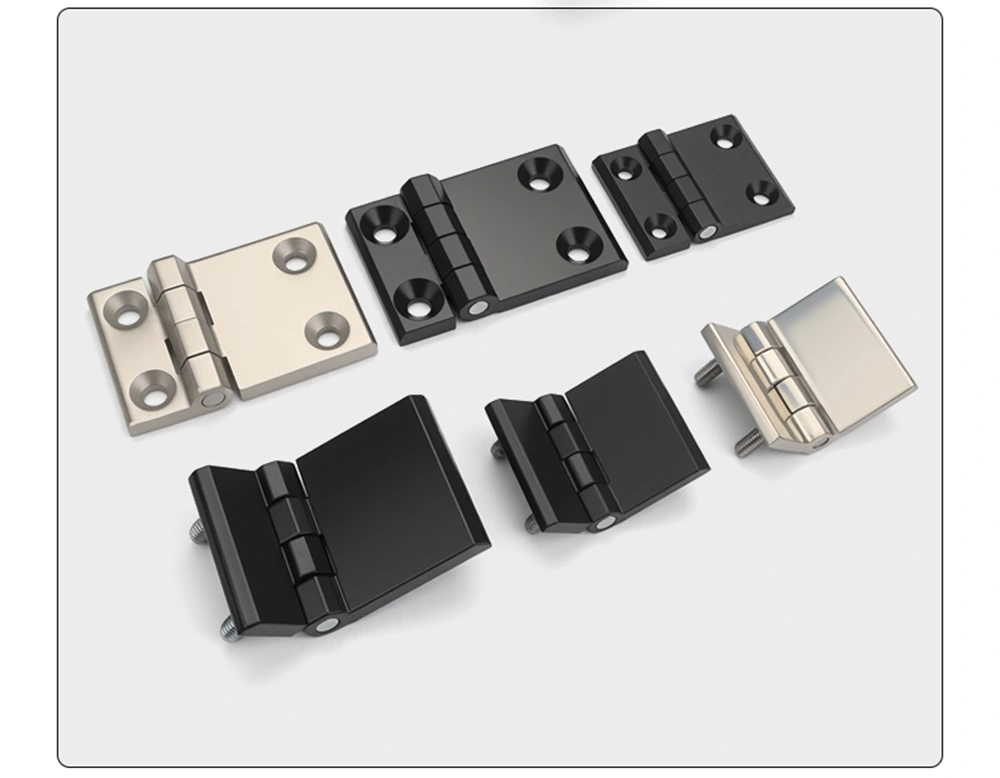

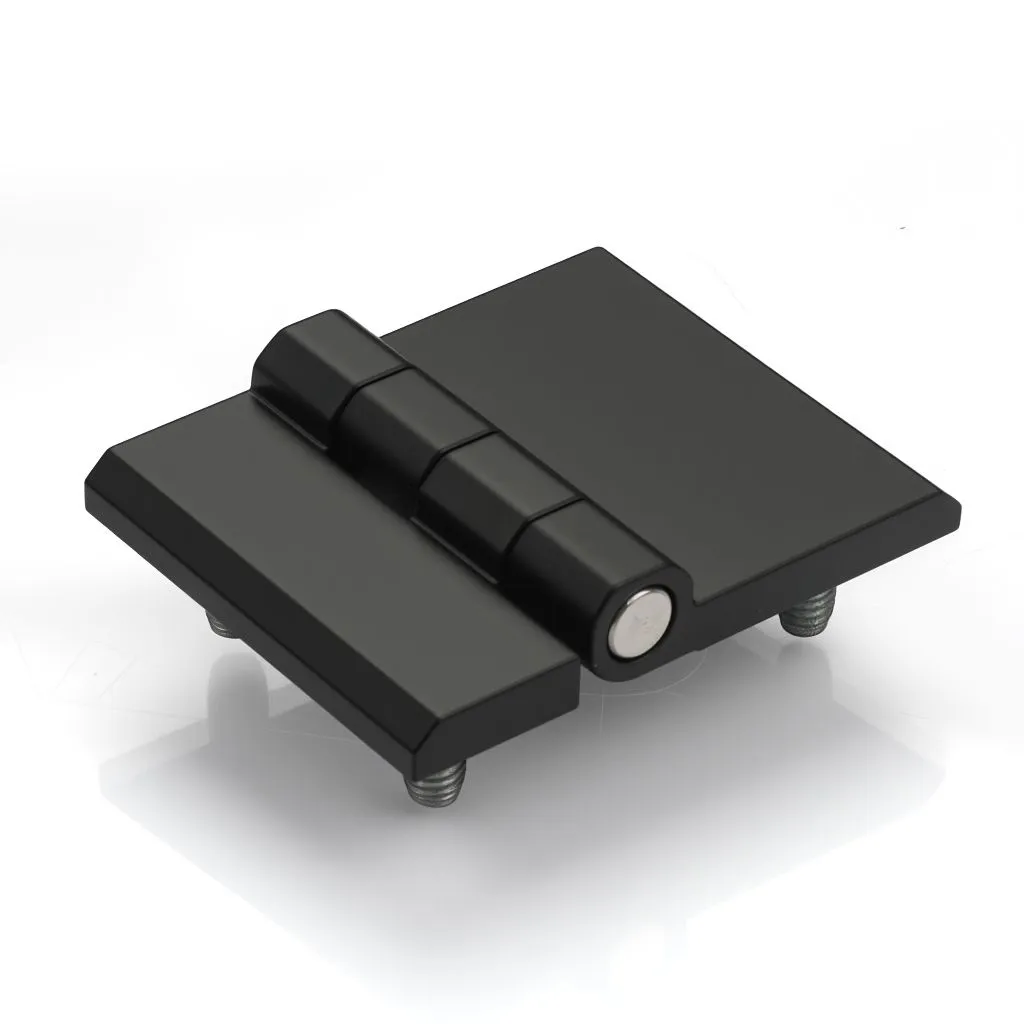

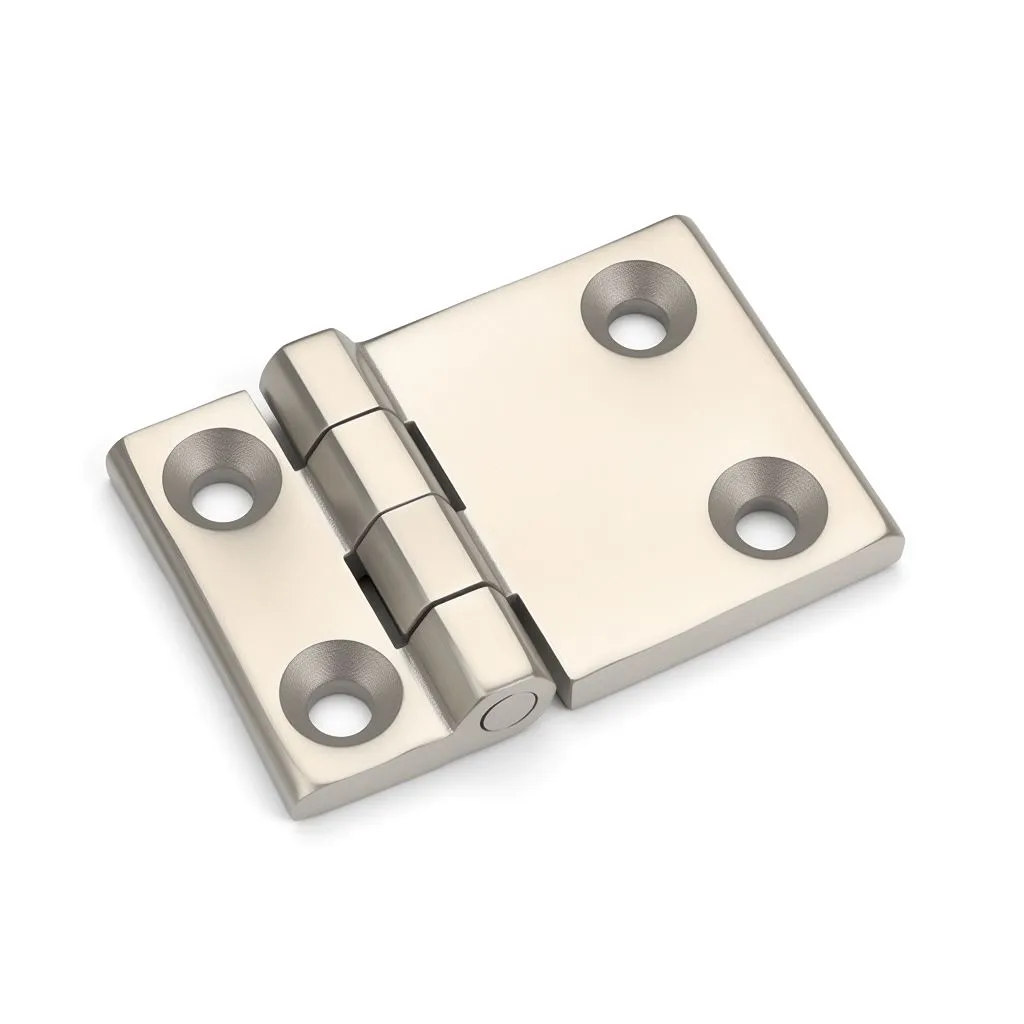

The CL226-4 Asymmetric Offset Hinge uses a countersunk mounting design, allowing screws to sit flush with the hinge surface. The CL226-4A Asymmetric Offset Hinge uses stud mounting for faster installation on cabinet frames. Both types keep the offset structure, allowing the door to open away from the frame. The Asymmetric Offset Hinge provides flexibility for different cabinet manufacturing processes.

Rotation and Offset Function

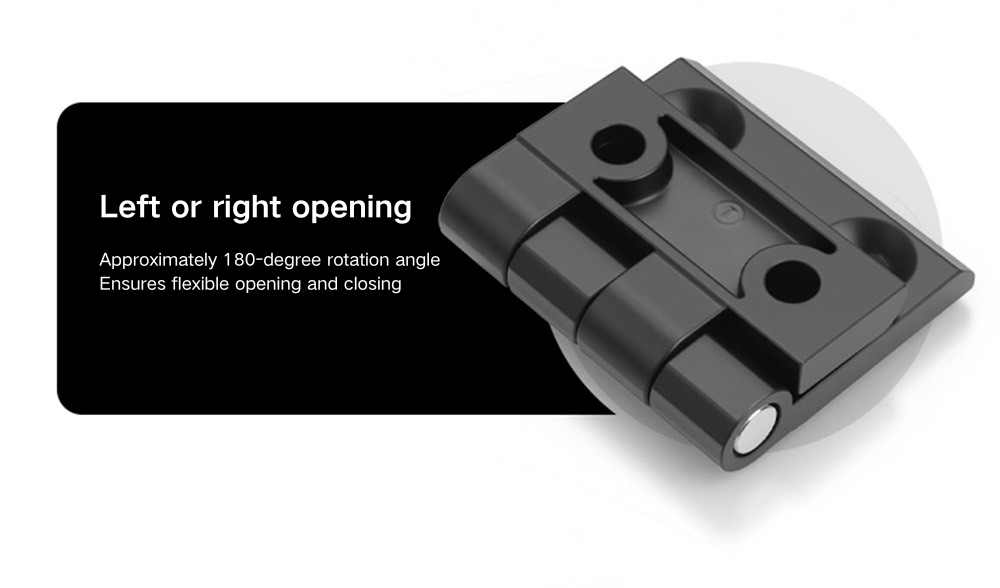

The Asymmetric Offset Hinge supports an opening angle of about 180°, allowing the door to open fully. The offset structure creates space between the door and the cabinet frame during opening, which is useful for equipment with internal components close to the door edge. The CL226 Asymmetric Offset Hinge makes it easy for doors to move smoothly while staying in the right position when closing.

Environment and Use

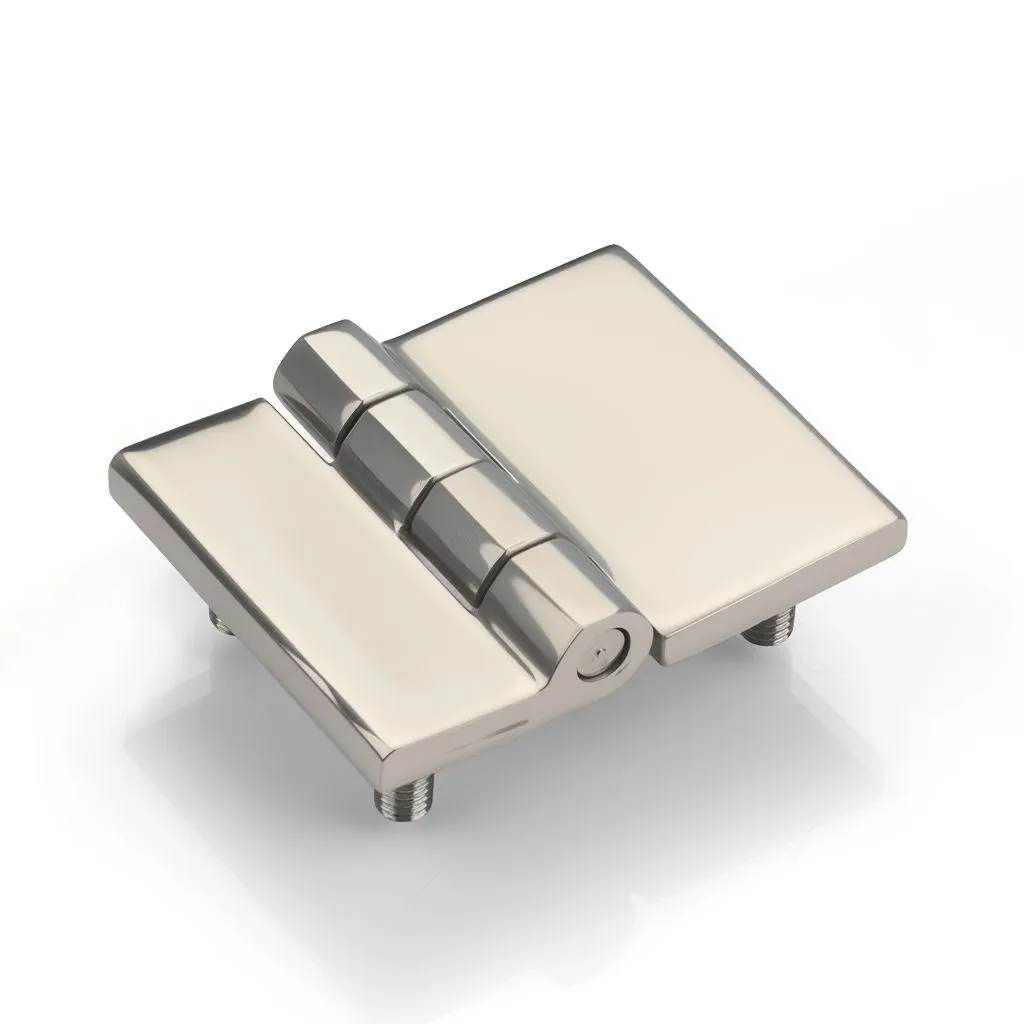

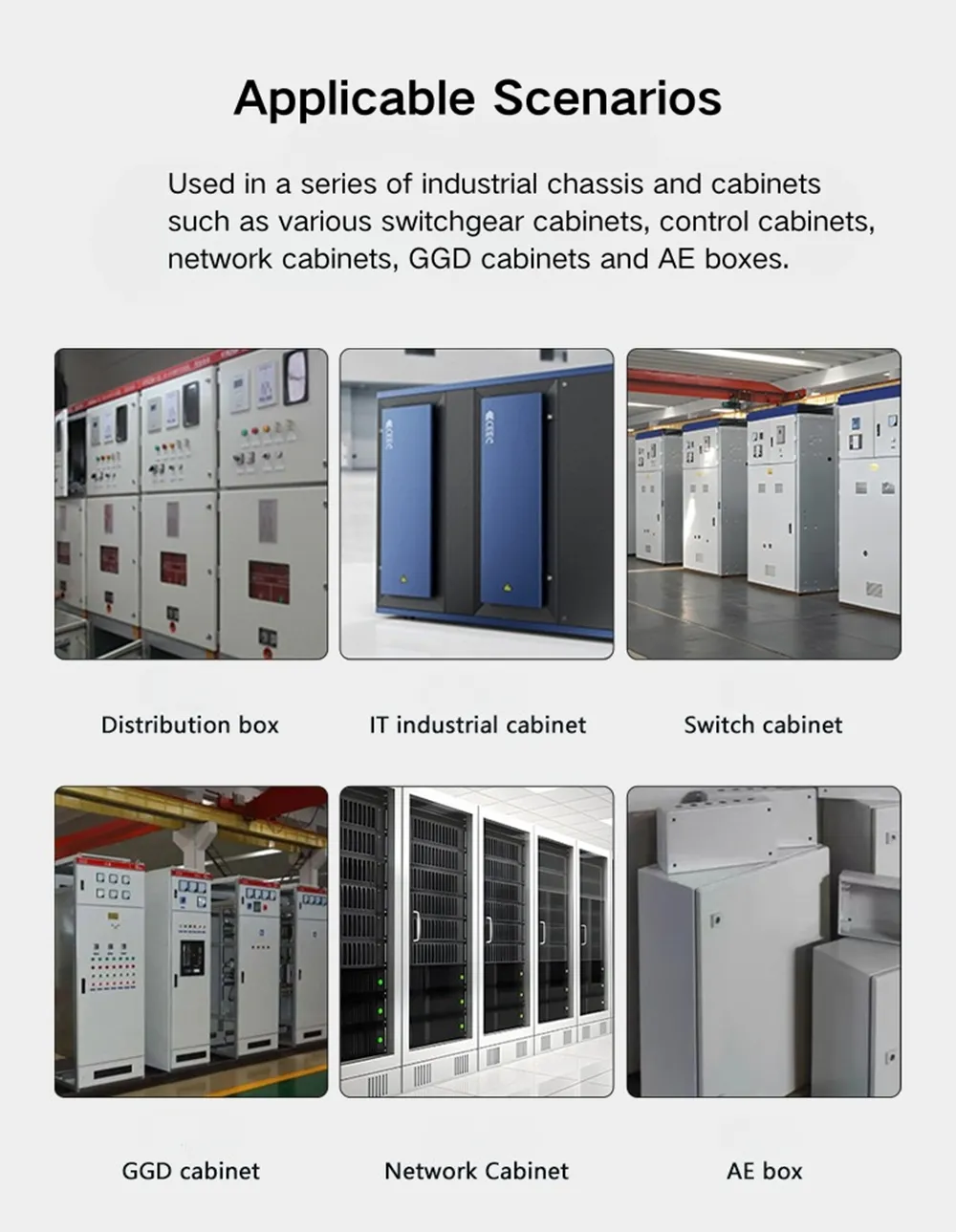

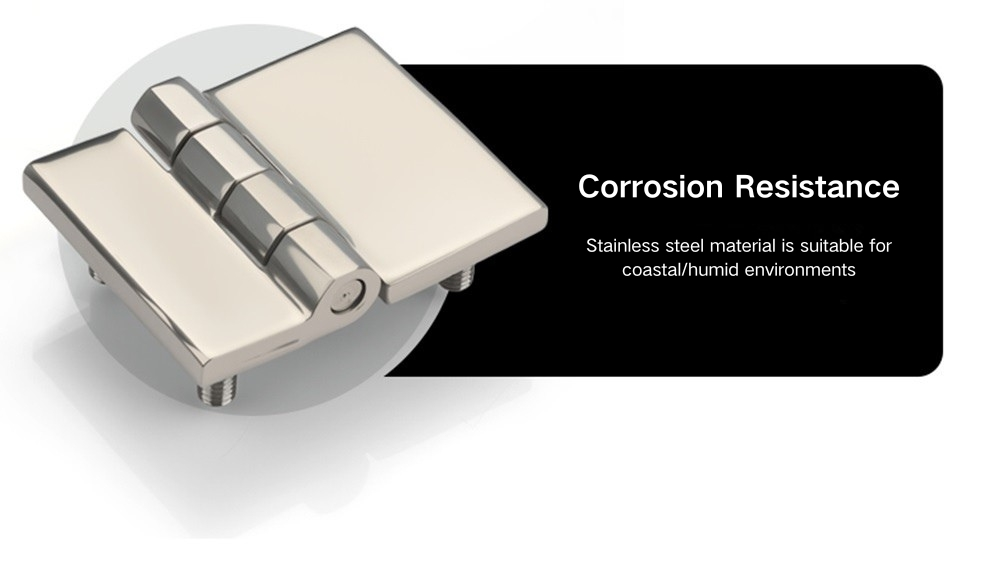

The Asymmetric Offset Hinge is available in stainless steel versions suitable for humid and coastal environments where resistance to corrosion is required. Other versions of the Asymmetric Offset Hinge are used in indoor cabinets such as distribution boxes and control panels. This makes the hinge suitable for both standard and more demanding installation conditions.

FAQ

1. What is an Asymmetric Offset Hinge used for?

The CL226 Asymmetric Offset Hinge is used on cabinet doors that require offset opening and extra clearance.

2. What is the opening angle of the Asymmetric Offset Hinge?

The Asymmetric Offset Hinge supports an opening angle of about 180°.

3. What is the difference between CL226-4 and CL226-4A Asymmetric Offset Hinge?

CL226-4 Asymmetric Offset Hinge uses countersunk mounting, while CL226-4A uses stud mounting.

4. What sizes are available for Asymmetric Offset Hinge?

The Asymmetric Offset Hinge is available in 50 × 63 mm and 90 × 60 mm.

5. Is Asymmetric Offset Hinge suitable for outdoor use?

Stainless steel Asymmetric Offset Hinge versions are suitable for humid or coastal environments.
