Coaxial Switchgear Hinge

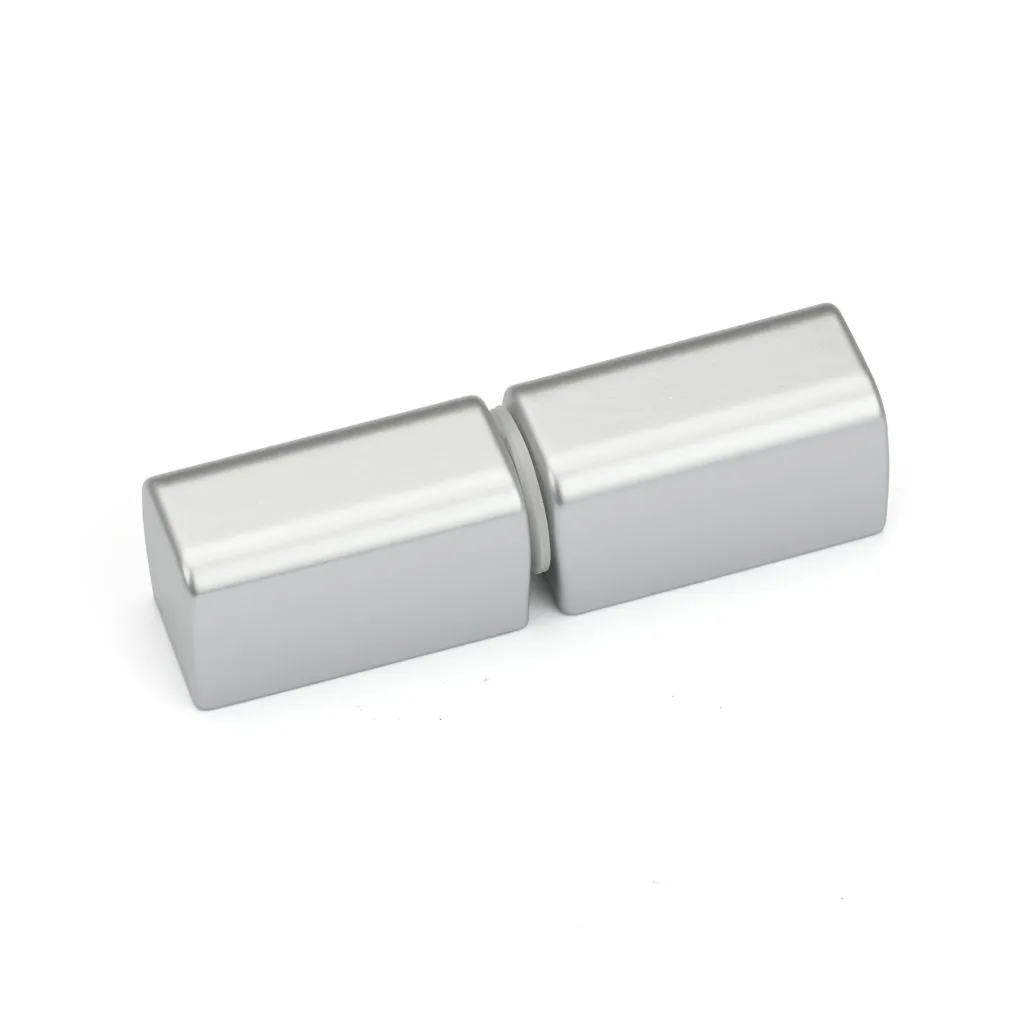

Yitai Lock specializes in providing high quality locks and Coaxial Switchgear Hinge to customers worldwide.The core structure of the product is matched with bearings through a precision-machined shaft core to realize smooth rotational movement, with excellent load capacity, and can withstand radial and axial multi-directional forces.

Material and Appearance

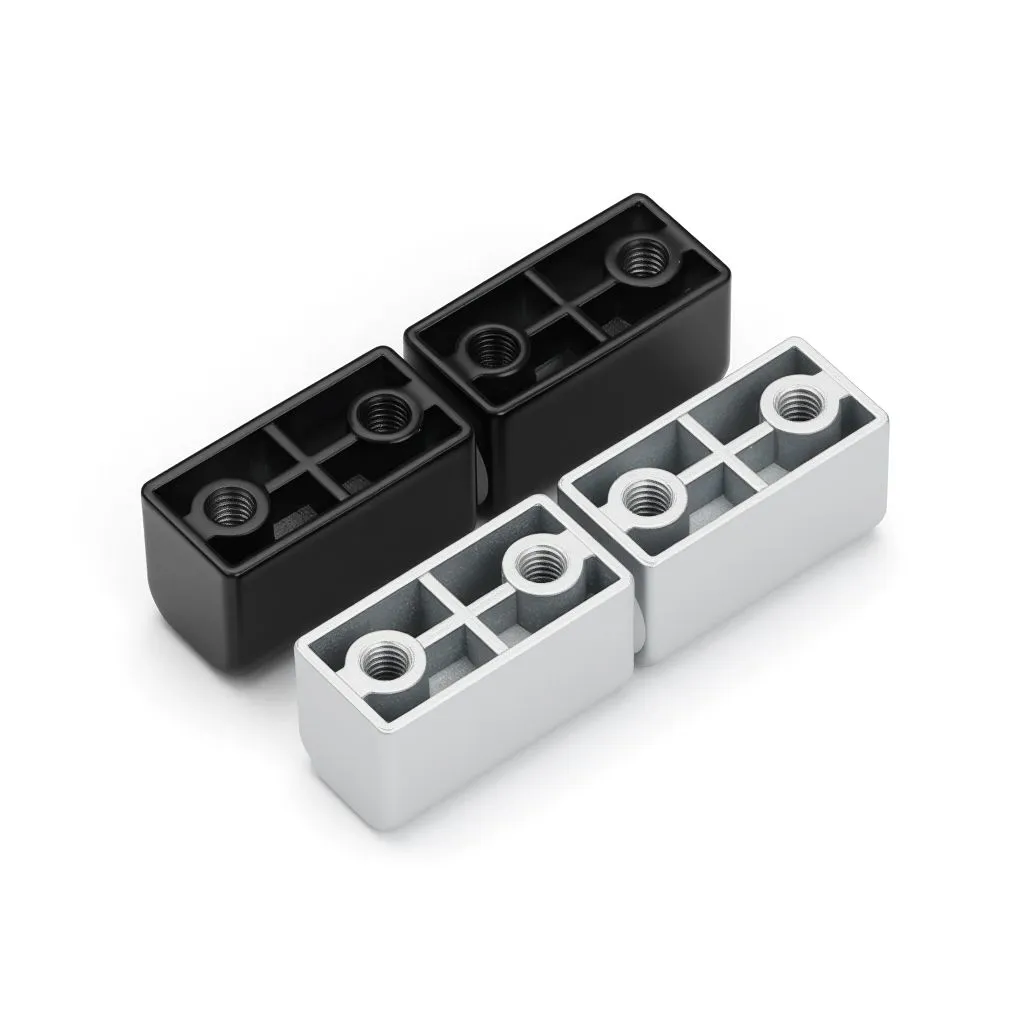

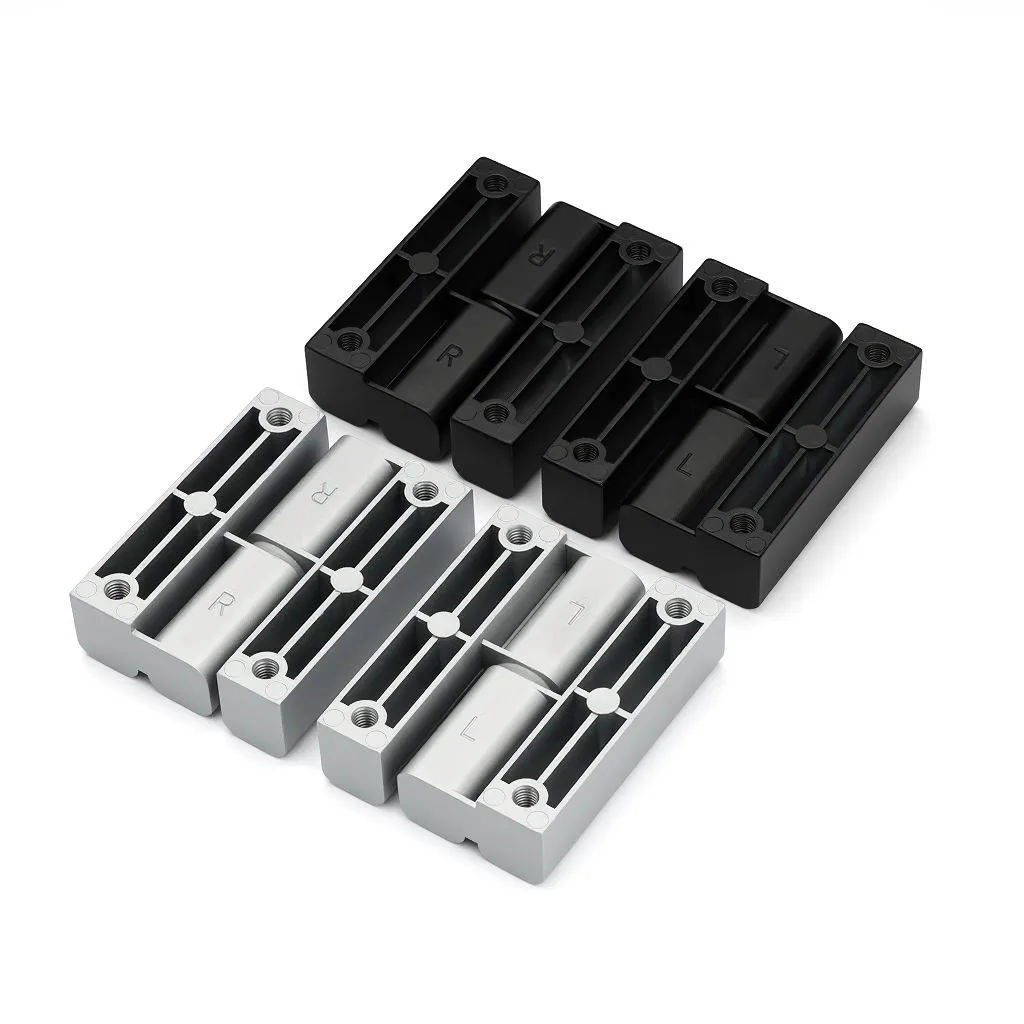

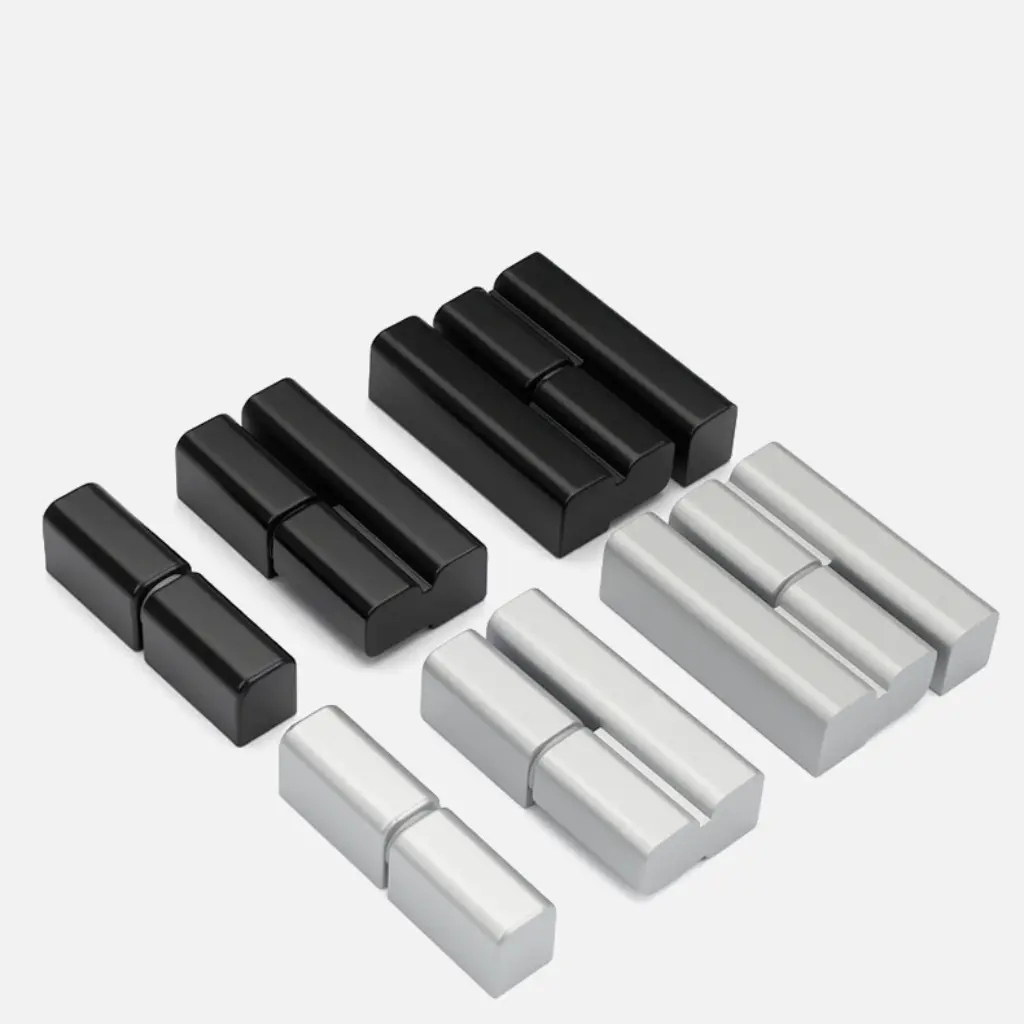

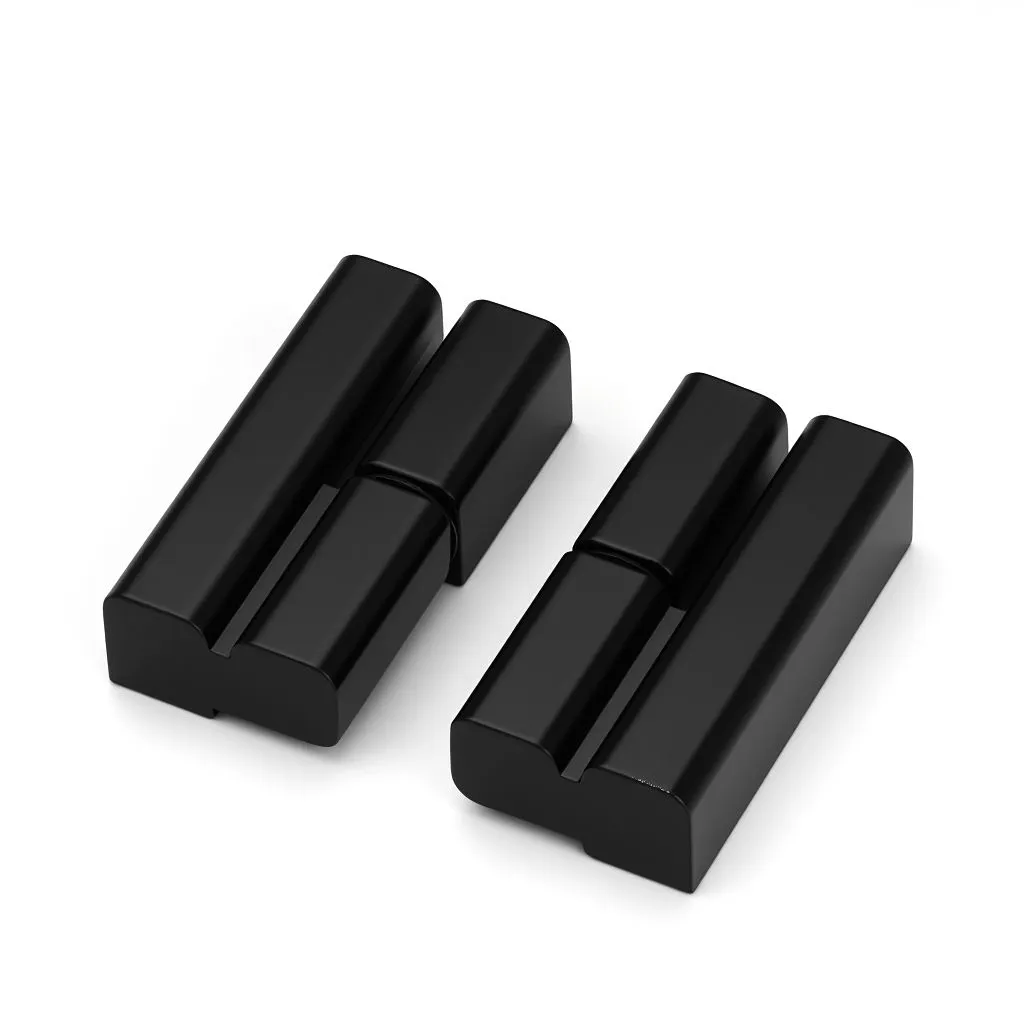

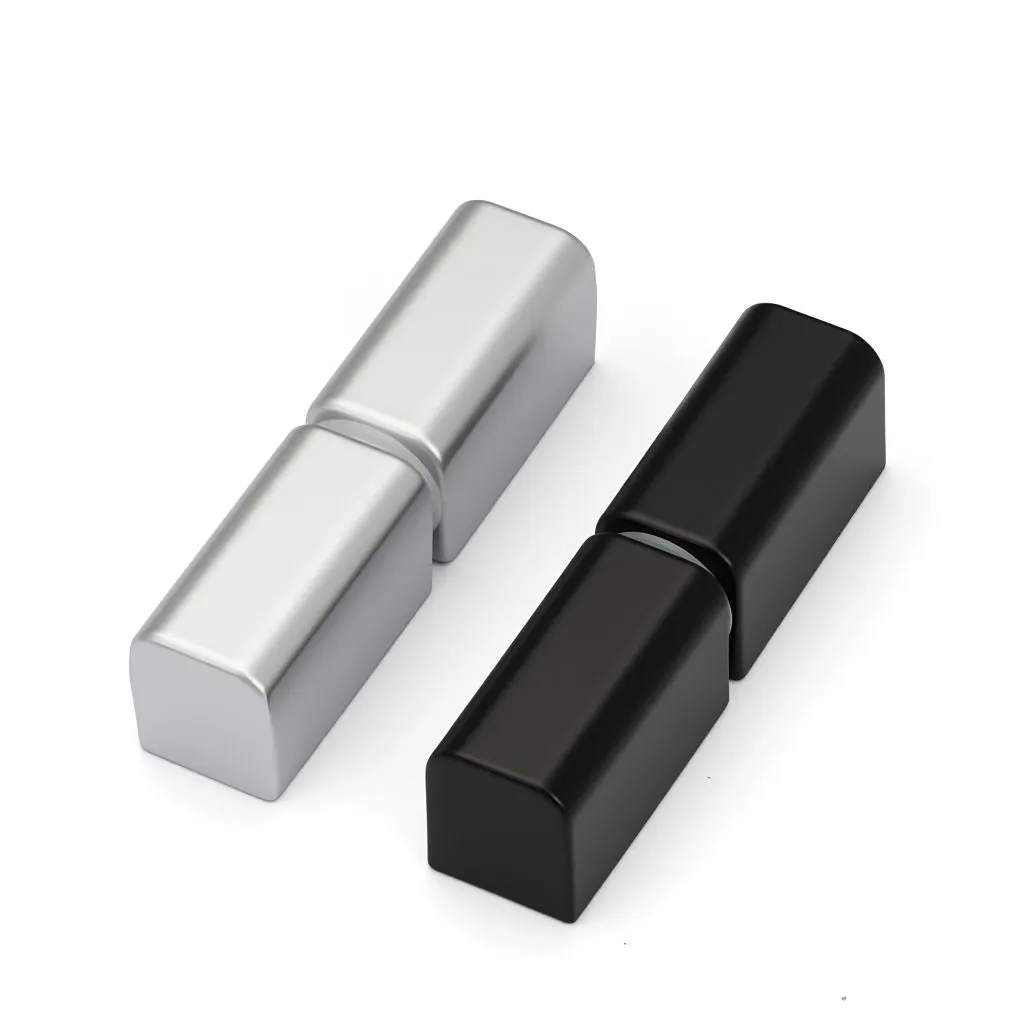

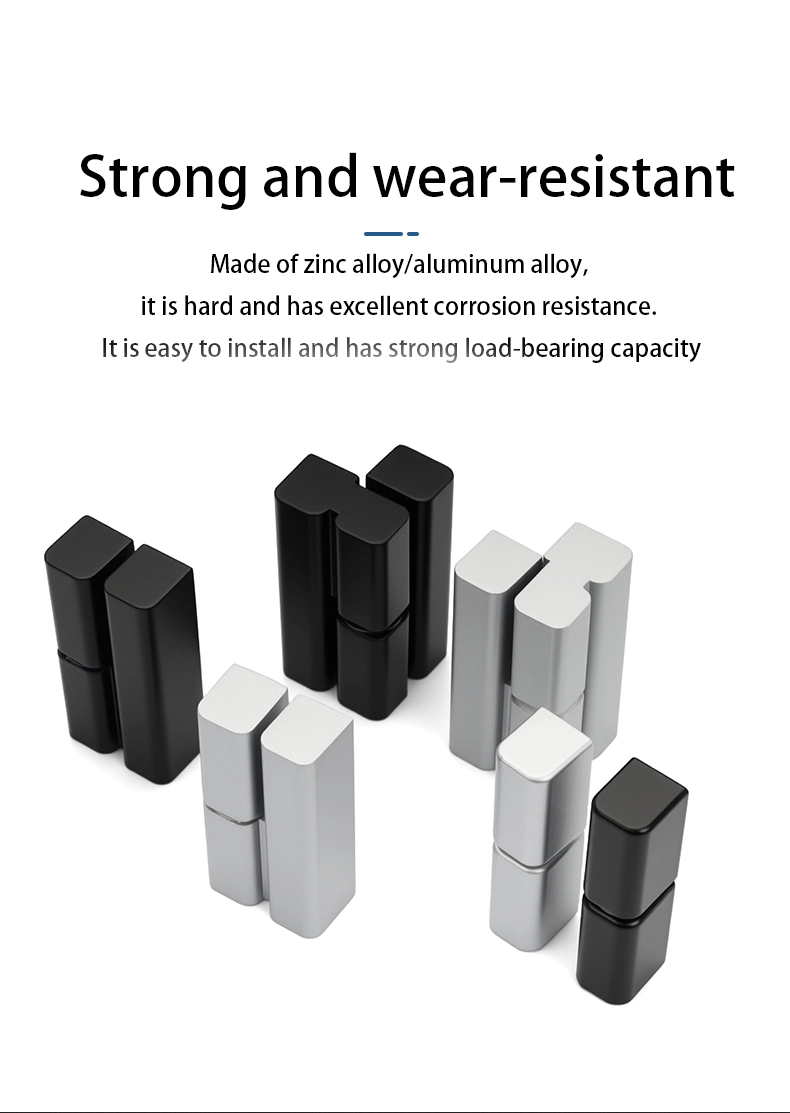

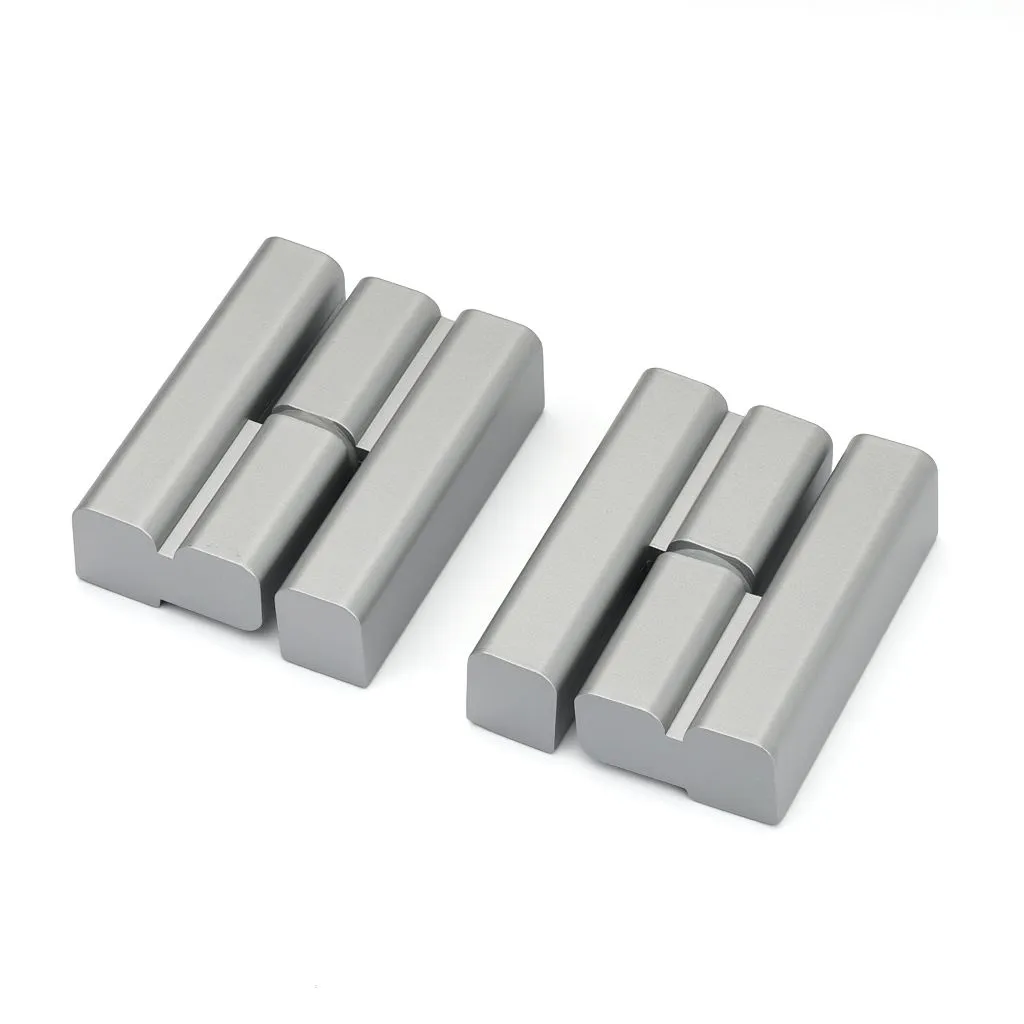

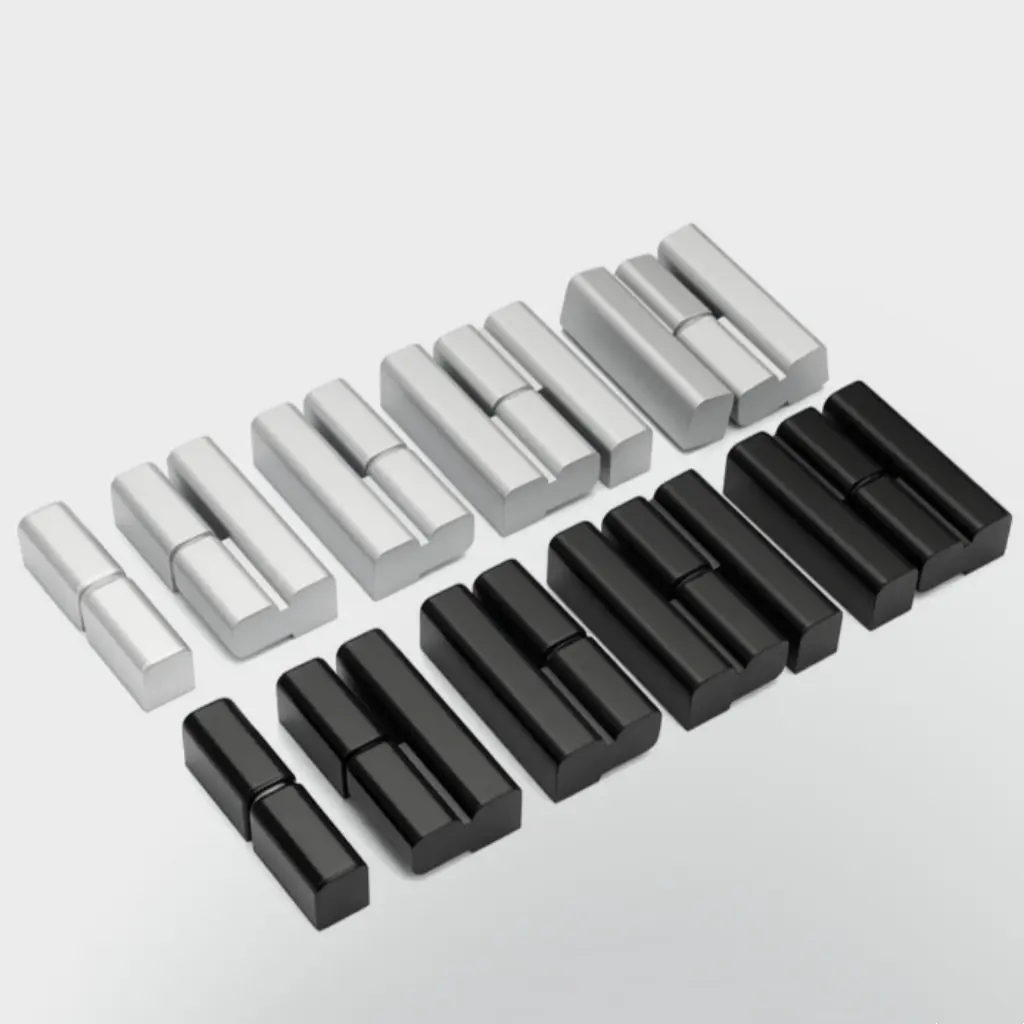

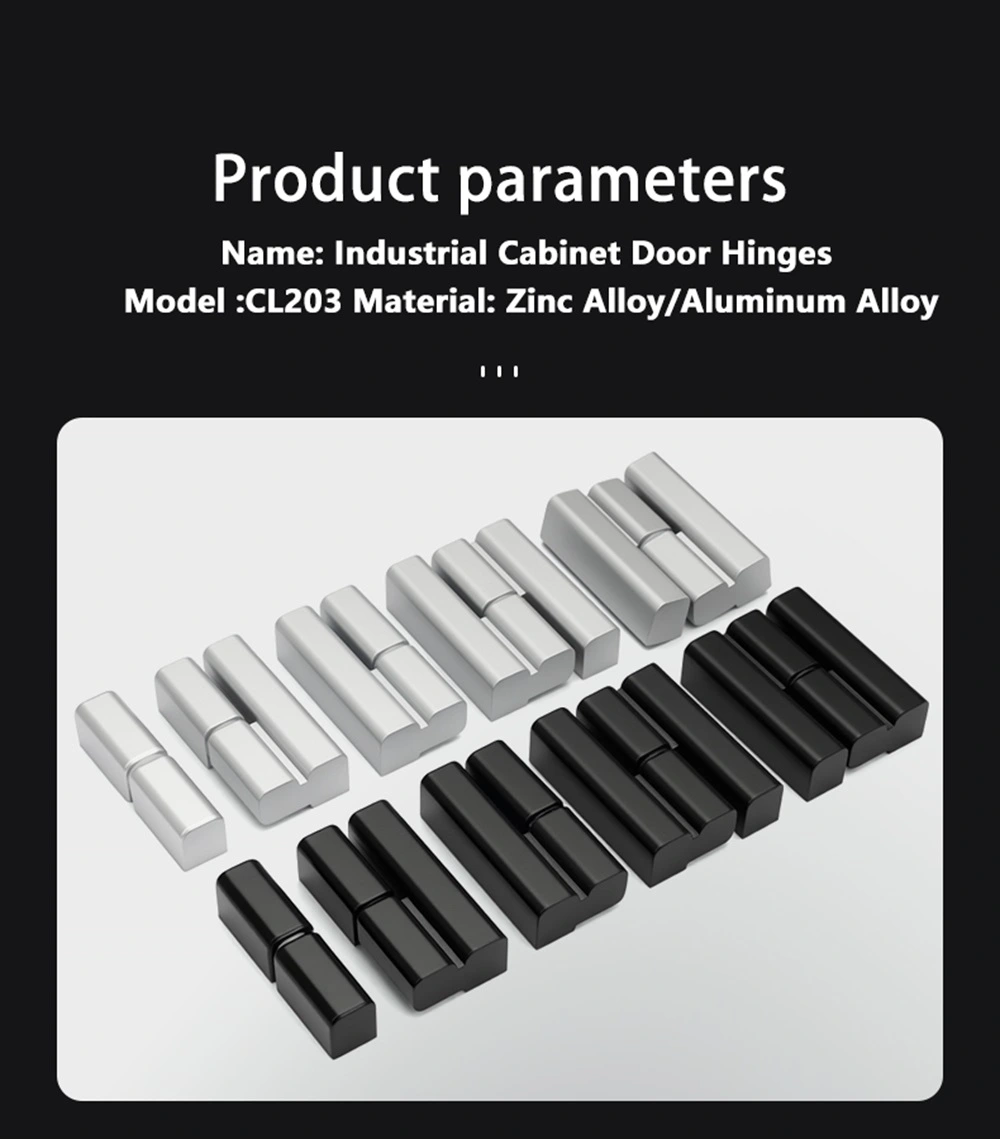

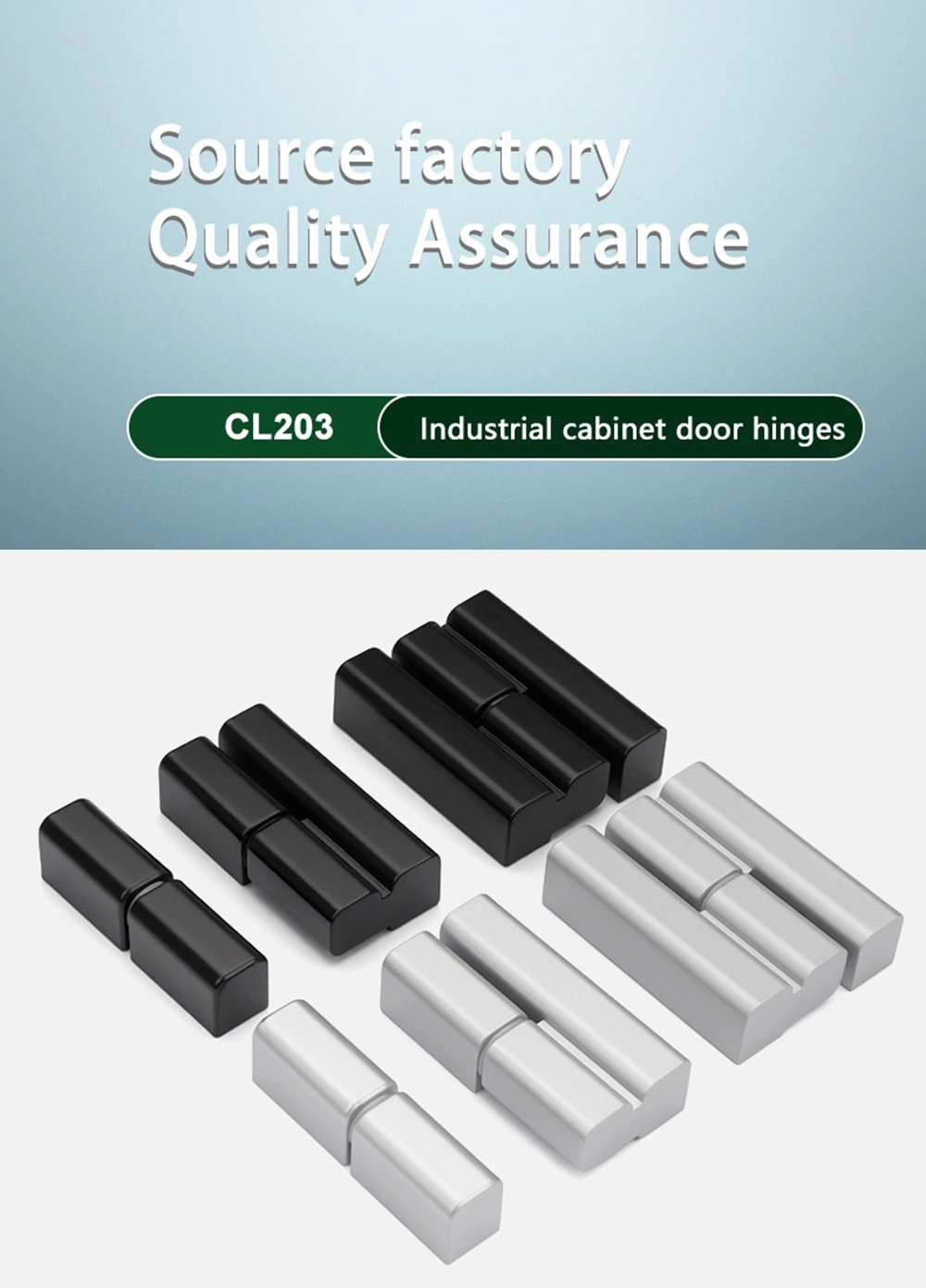

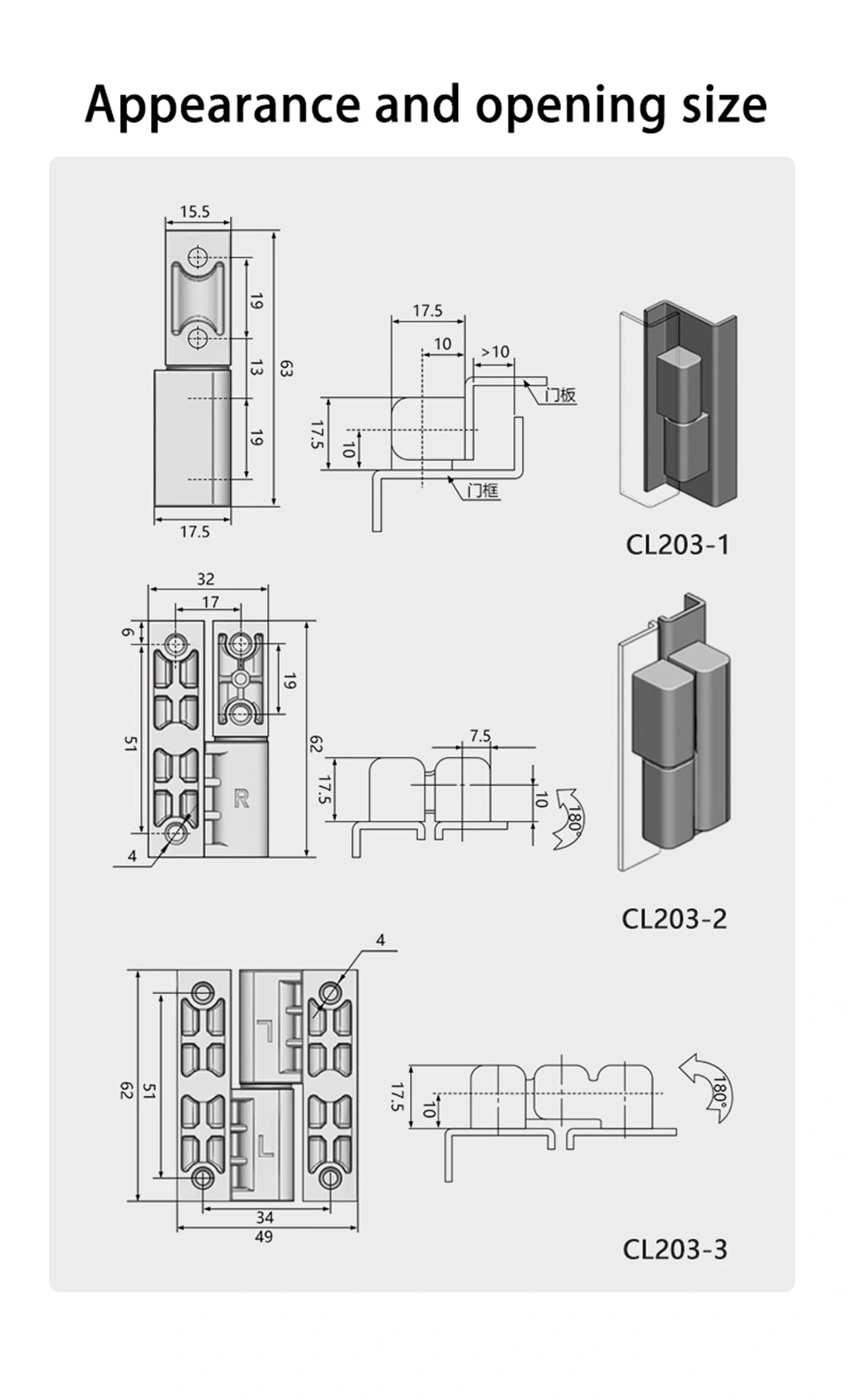

CL203-1 is made of aluminum alloy and zinc alloy, combining light weight and durability; CL203-2 adopts a combination of stainless steel and zinc alloy, with stainless steel material having higher strength and stronger corrosion resistance; and CL203-3 adopts zinc alloy structure. For special specifications or customized service, please feel free to contact us.We offer black and matte colors for aluminum and zinc alloys, and original stainless steel colors for stainless steel.

Functions

The Coaxial Switchgear Hinge provides stable rotational support for smooth opening and closing of connected parts.

Supports multi-angle fixation.

Supports the weight of components and cushions against external impacts.

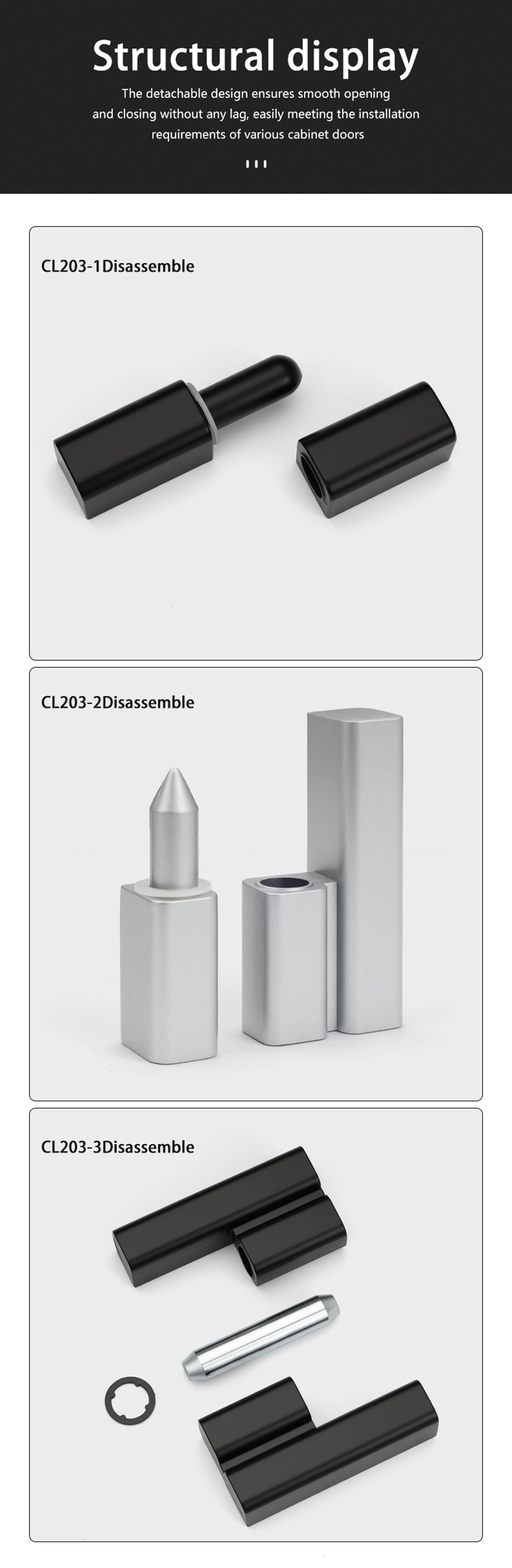

Detachable design for easy maintenance or replacement, standardized interface to adapt to different devices.

Applications

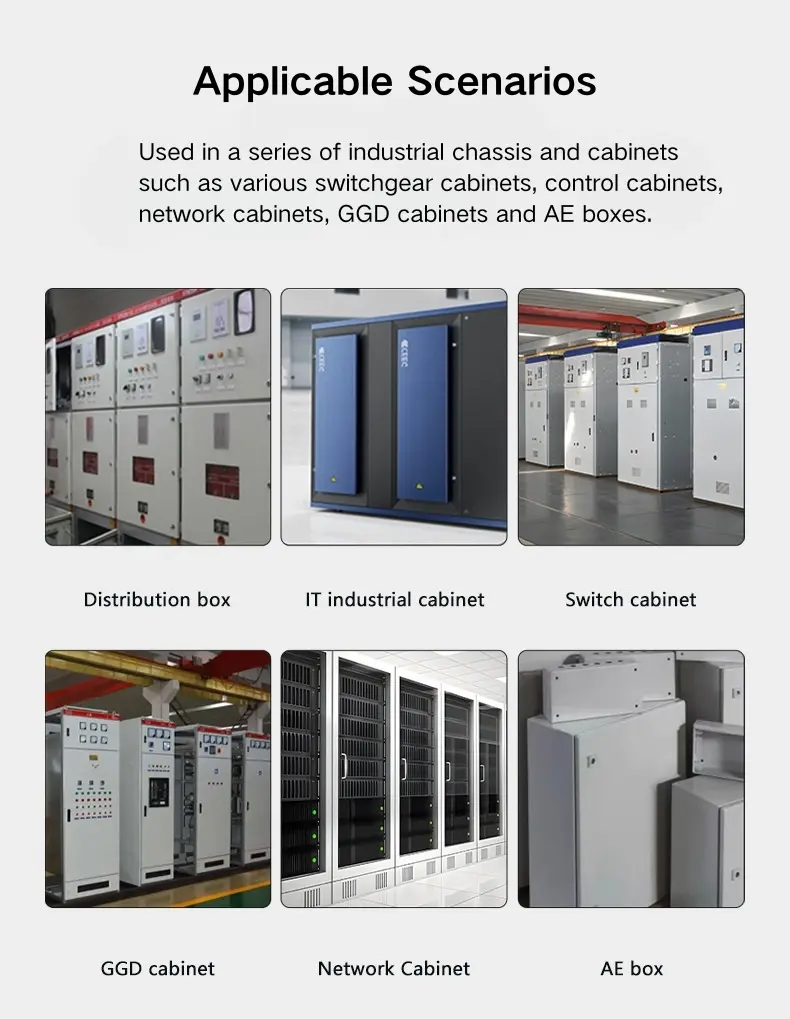

Industrial control cabinets: The Coaxial Switchgear Hinge is used in power distribution cabinets, PLC control boxes, automation equipment cabinets and so on.

Power distribution system: installed in substation distribution boxes, power control cabinets and other occasions.

Support server cabinet, network chassis door body.

Transportation facilities: rail transportation control box, outdoor electrical cabinet.

FAQ

Q: How to choose the right coaxial switchgear hinge?

A:Consideration needs to be given to load weight, swivel angle (e.g. 90°, 180°), mounting method (recessed/surface), environment (whether it needs to be waterproof, corrosion resistant) and service life requirements.

Q: Are these hinges suitable for outdoor use?

A: CL203-2 (stainless steel or zinc alloy) has the best corrosion resistance and is recommended for use in wet or outdoor environments; other models are recommended for dry indoor applications.

Q: Why is there a noise when the hinge is rotating?

A: It may be caused by insufficient lubrication, bearing wear or impurity entry, regular cleaning and adding special grease (such as silicone grease) can be solved.

Q： Does it provide customized surface treatment (such as plastic spraying, chrome plating)?

A:Yes.Different colors or anti-corrosion coatings are available upon request, but the price is usually a little more expensive.

Q: Do I need to drill holes for installation?

A:Pre-drilled holes are required according to the cabinet. Our basic are standard parts, need to customize please consult us.
