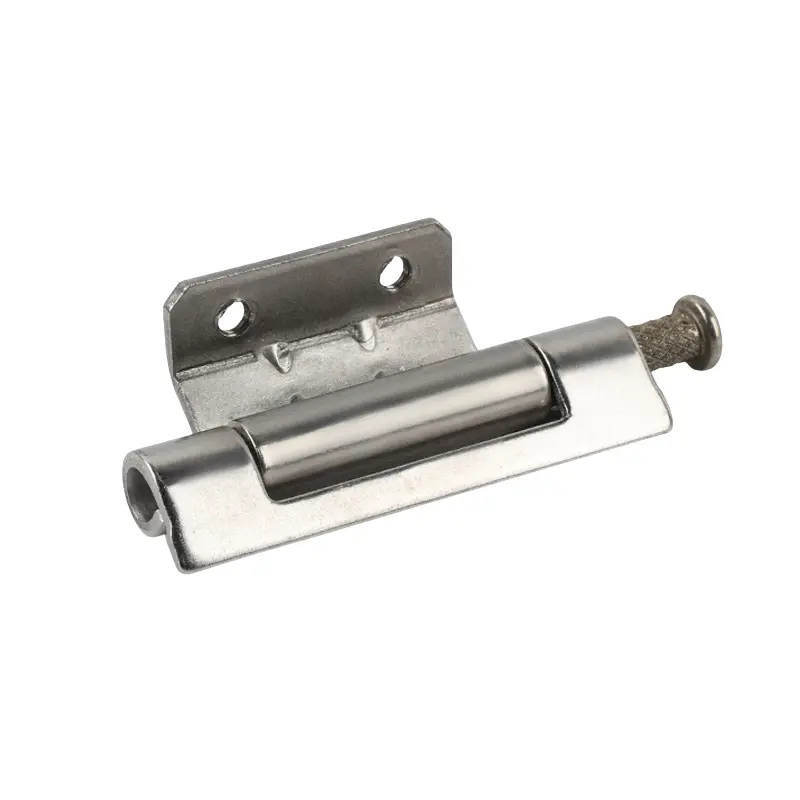

Distribution Board Swivel Hinge

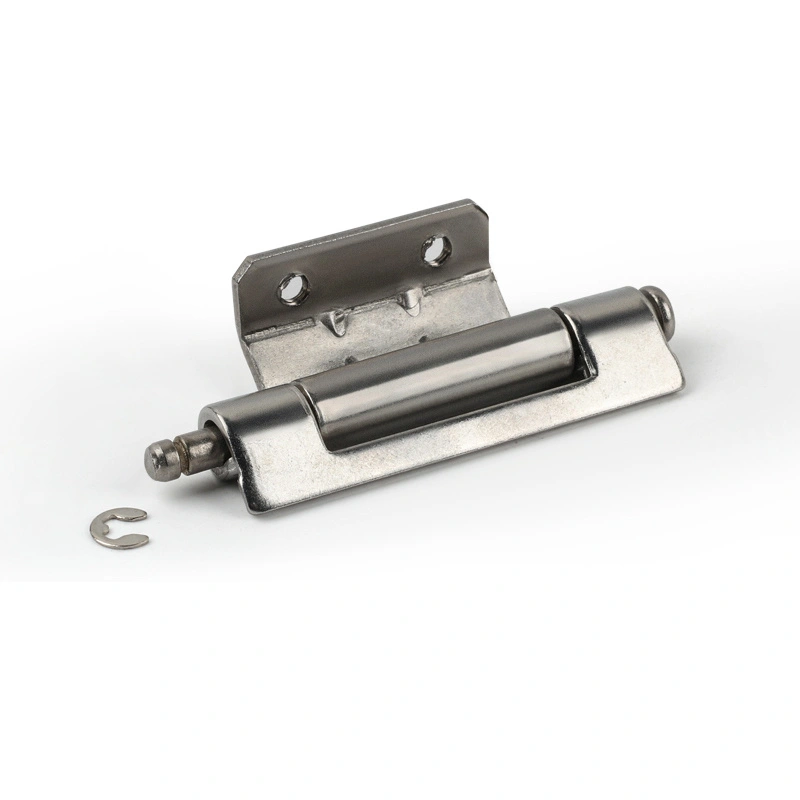

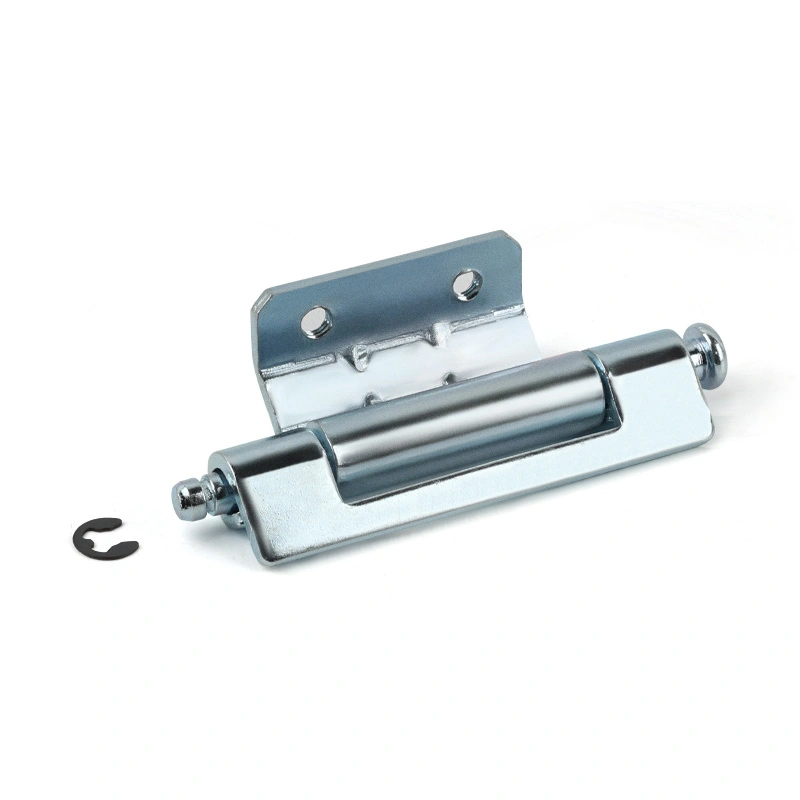

Yitai Lock has Distribution Board Swivel Hinge in stock for industrial cabinet projects. With an opening angle of up to 110°, the CL248 Distribution Board Swivel Hinge provides ample space for wiring, inspection, and maintenance. It can be fixed by screws or welding based on cabinet structure. With optional straight rod, bent rod, or knurled rod, the Distribution Board Swivel Hinge adapts to different door frame layouts and assembly methods.

Model Options and Configuration

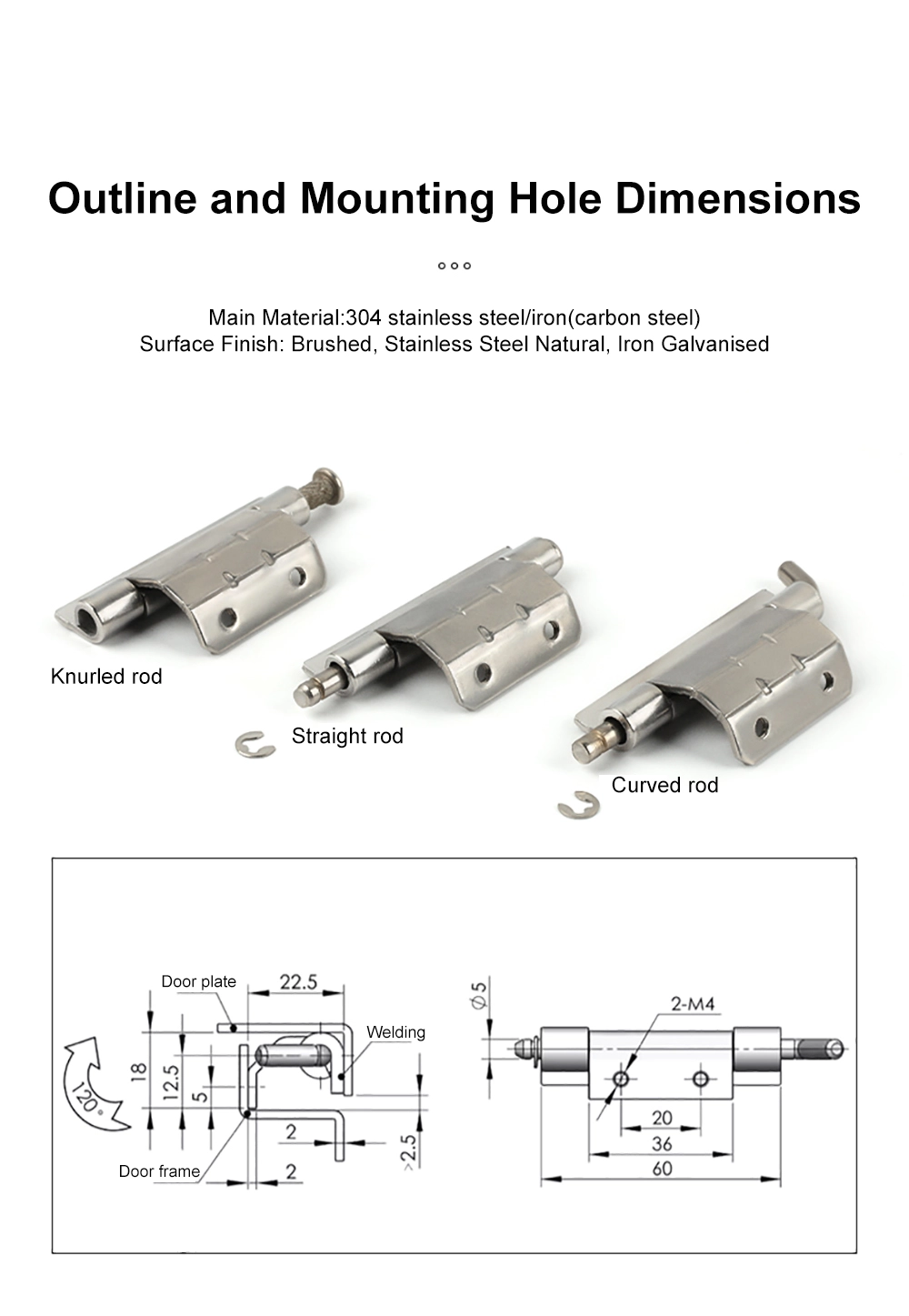

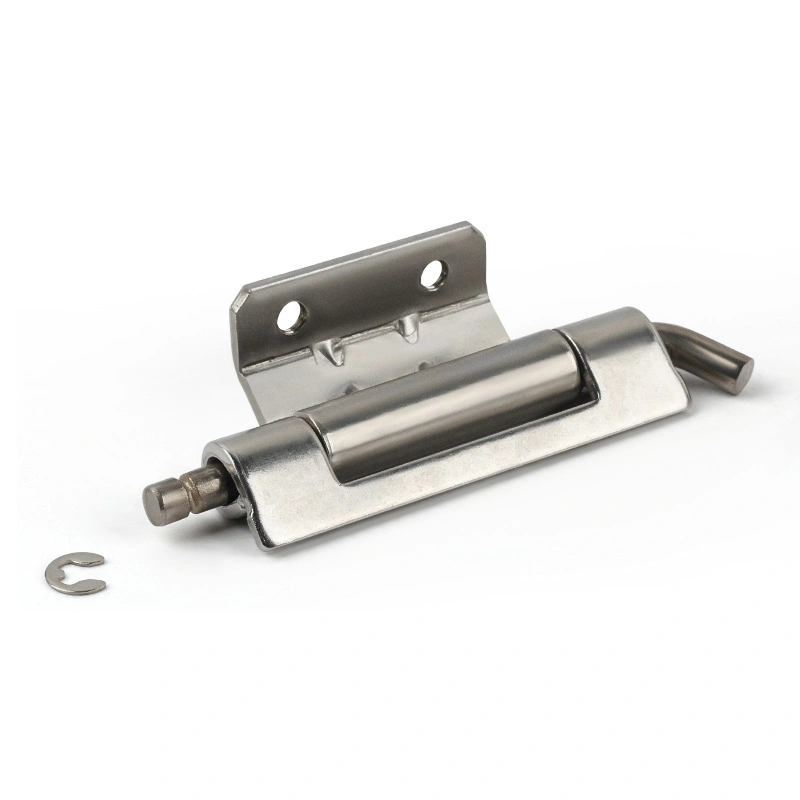

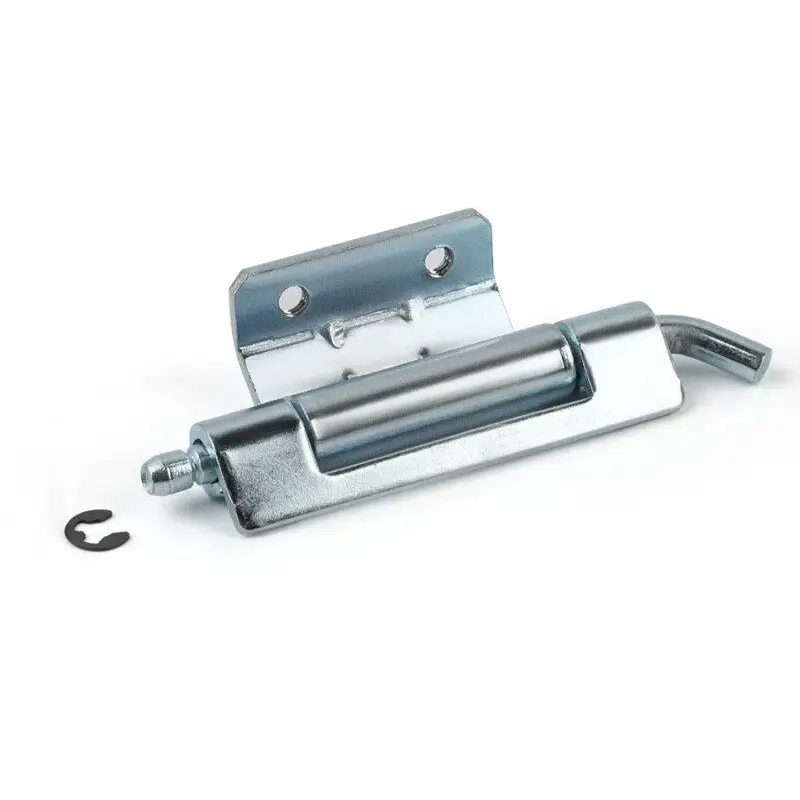

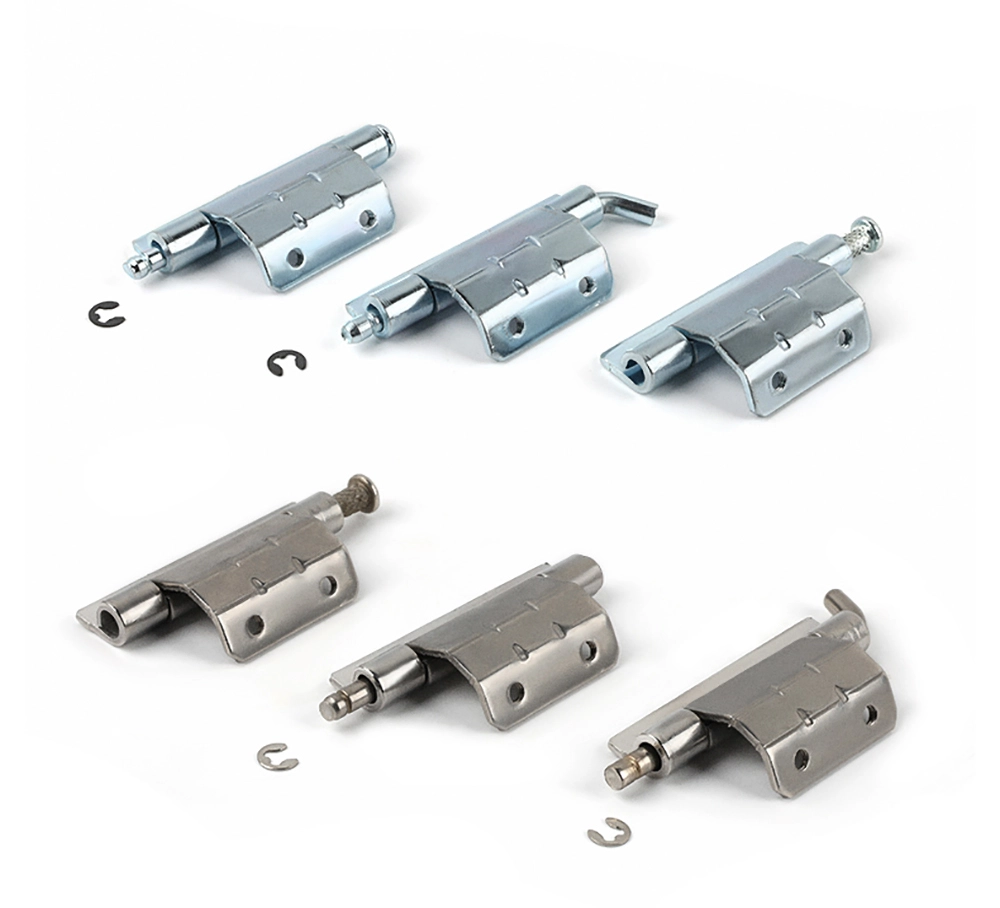

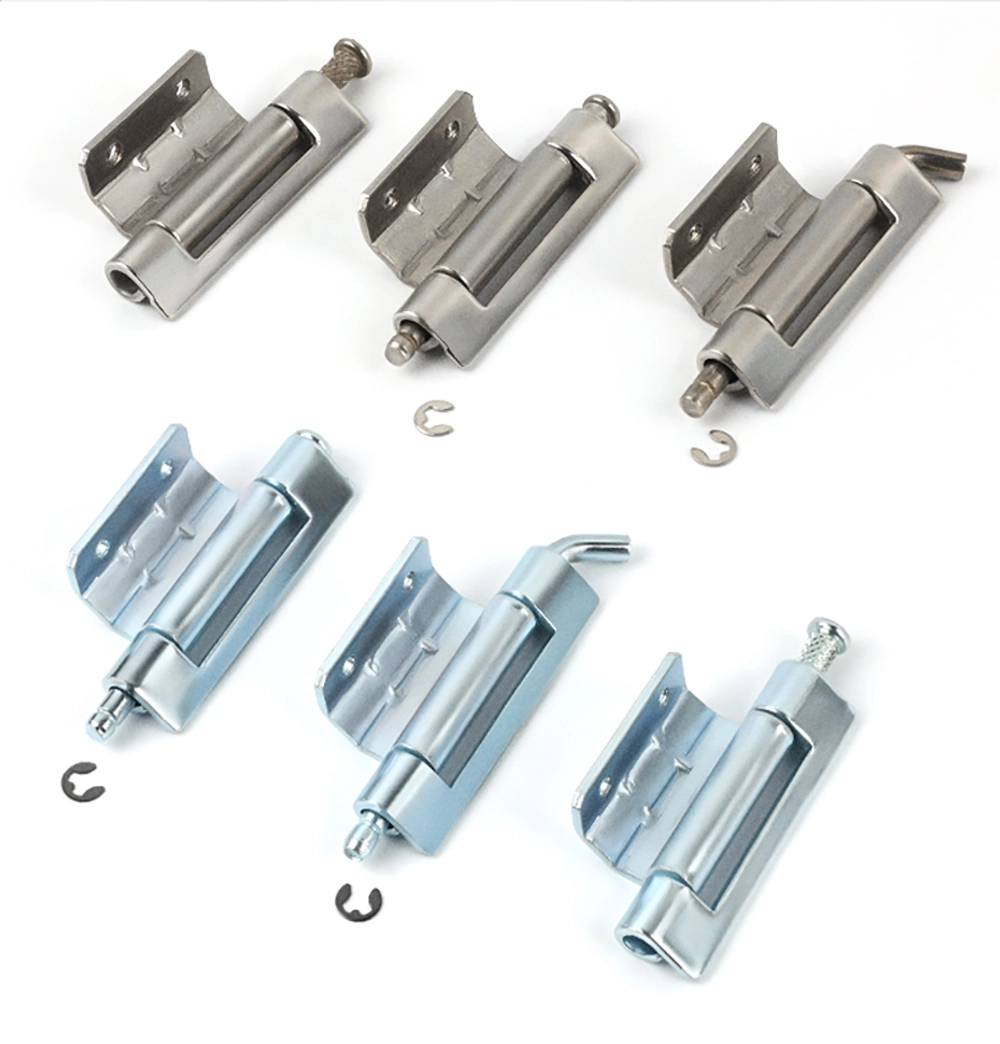

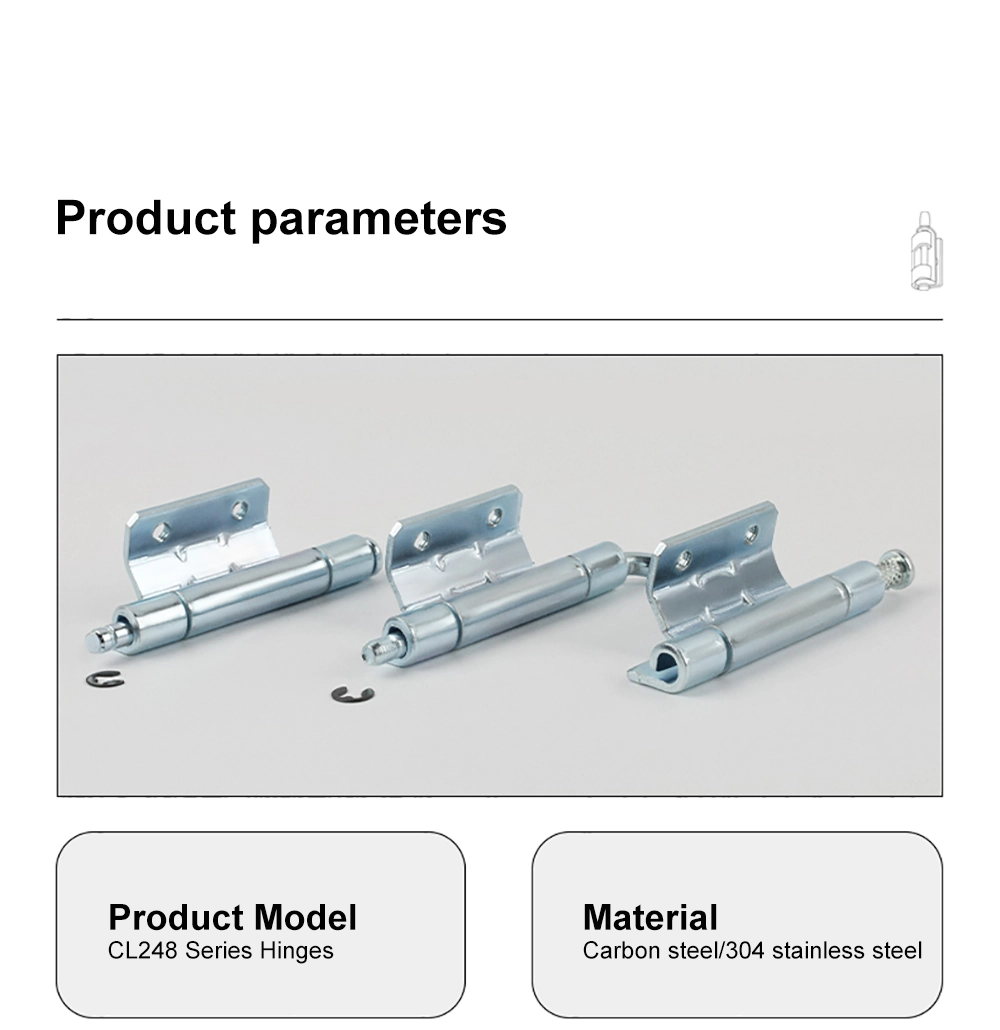

The CL248 Distribution Board Swivel Hinge is offered in multiple configurations. Options are available with straight rod, bent rod, and knurled rod. Each Distribution Board Swivel Hinge weighs about 49–50 g with small variation by model. These combinations allow cabinet builders to match the hinge with different panel thickness and mounting positions while keeping the swivel function stable.

Rotation and Door Control

The CL248 Distribution Board Swivel Hinge supports door rotation up to 110°. This opening range keeps access comfortable for wiring and inspection work without forcing the door beyond its travel. On distribution boards and control cabinets, the Distribution Board Swivel Hinge keeps the door path smooth and maintains consistent alignment between the door and the cabinet frame during repeated opening.

Mounting and Assembly

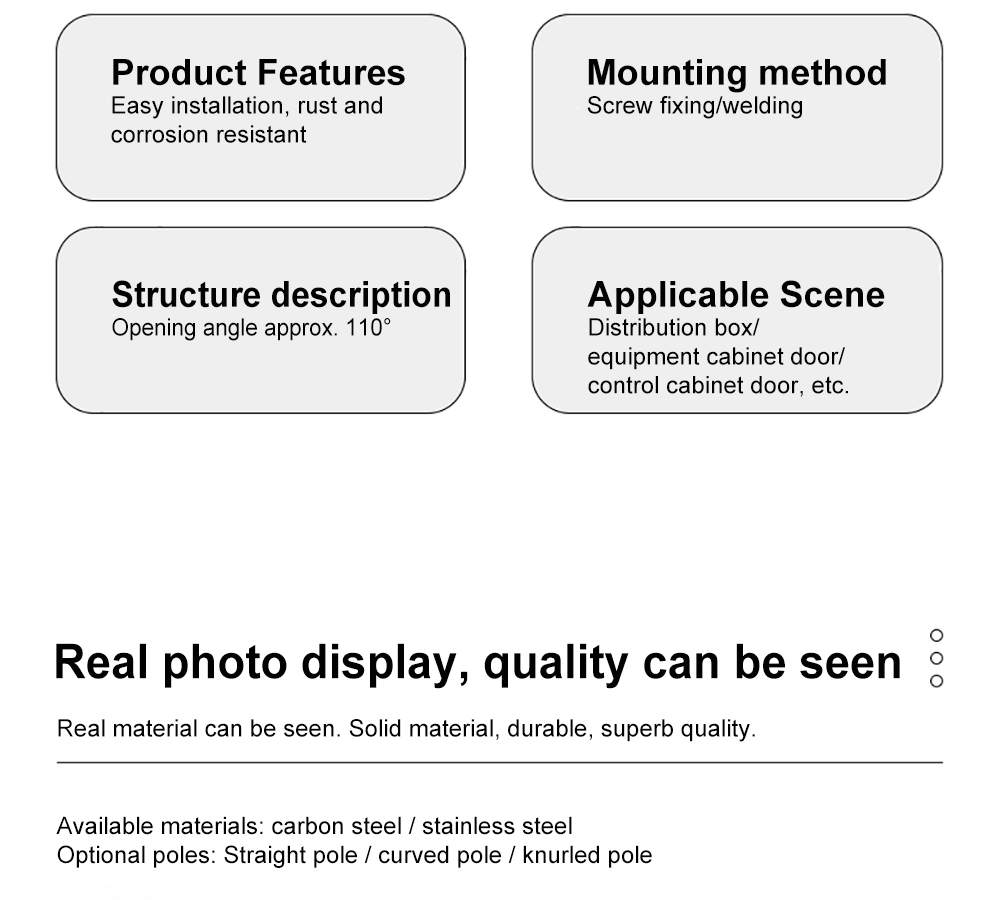

The Distribution Board Swivel Hinge supports screw fixing and welding installation. Screw mounting suits standard sheet metal cabinets, while welding is used on frames requiring permanent hinge positioning. The CL248 Distribution Board Swivel Hinge fits different enclosure manufacturing processes and keeps installation stable on electrical cabinets and base boxes.

FAQ

1. What is the Distribution Board Swivel Hinge used for?

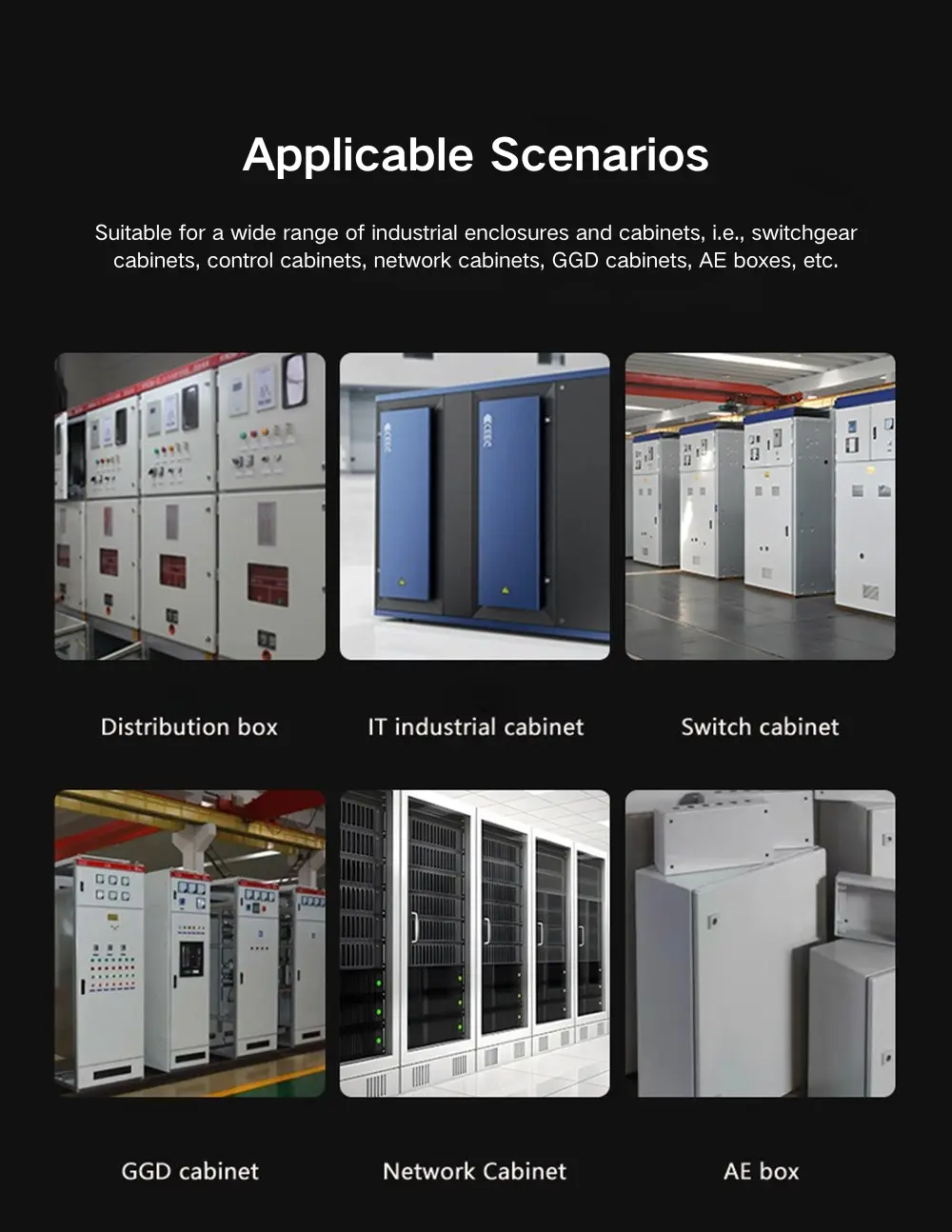

The CL248 Distribution Board Swivel Hinge is used on distribution boards and electrical cabinets that need detachable door rotation.

2. How is the Distribution Board Swivel Hinge installed?

The CL248 Distribution Board Swivel Hinge can be installed by screw fixing or welding.

3. Can the door be removed with the Distribution Board Swivel Hinge?

Yes, the swivel structure of the Distribution Board Swivel Hinge allows the door to be lifted off when required.

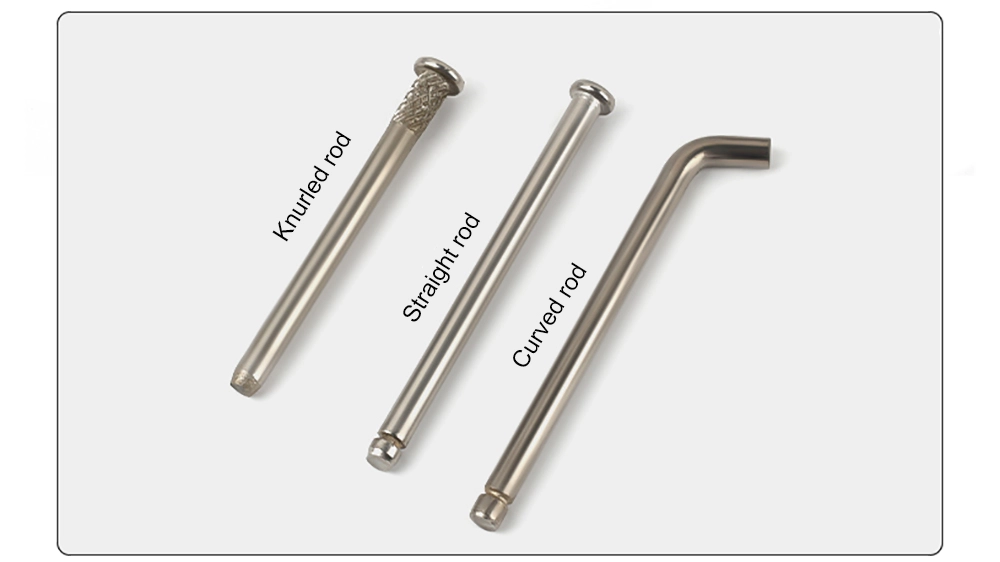

4. What rod types are available for the Distribution Board Swivel Hinge?

The Distribution Board Swivel Hinge is available with straight rod, bent rod, and knurled rod.

5. What is the weight of the Distribution Board Swivel Hinge?

Each CL248 Distribution Board Swivel Hinge weighs about 49–50 g depending on the model.
