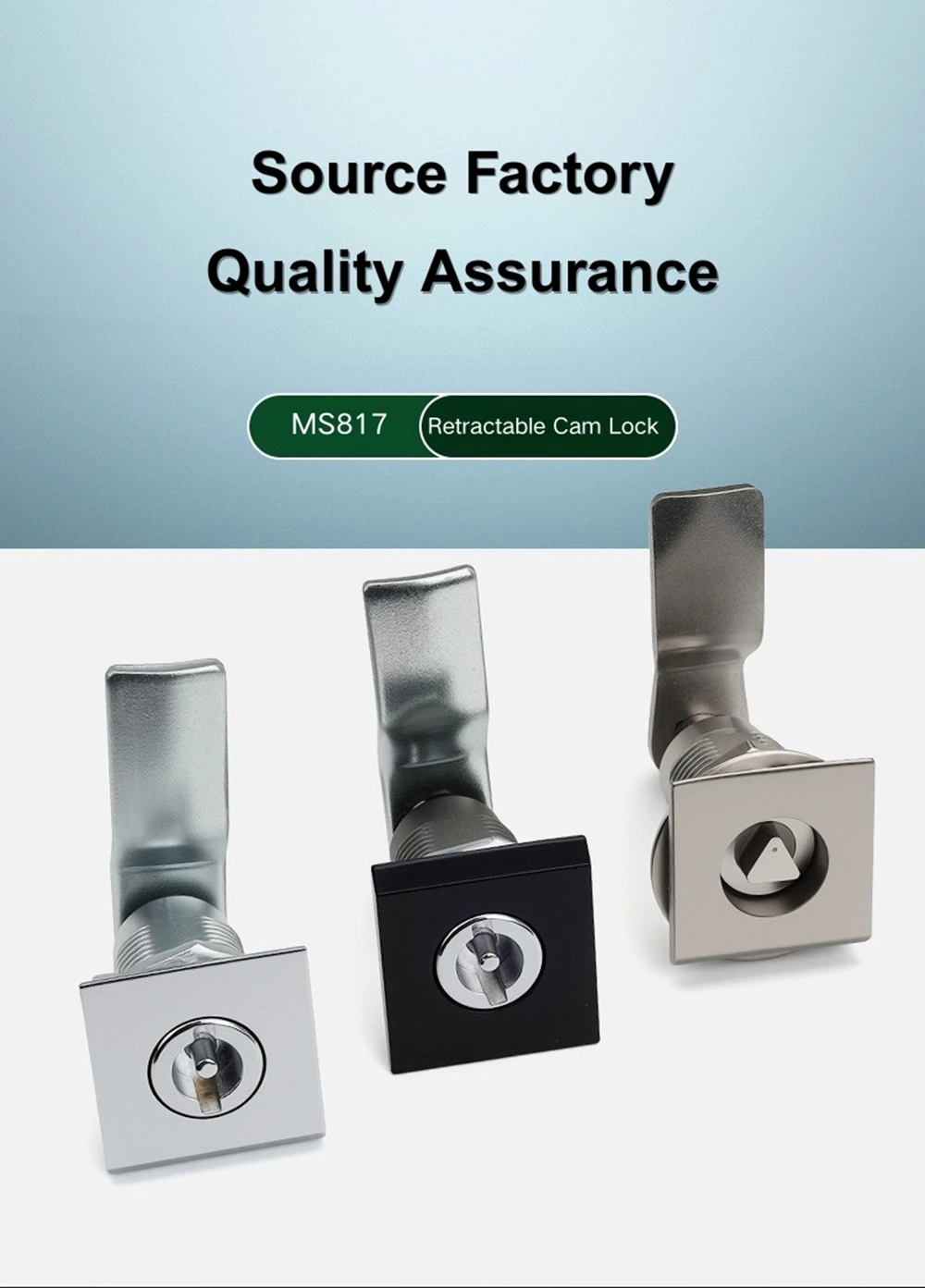

Flat Key Cam Lock

Yitai Lock is a China supplier of easy-maintainable flat key cam locks.This flat key cam lock withstands wear and tear from daily use, making it suitable for industrial environments. It is practical and easy to operate.

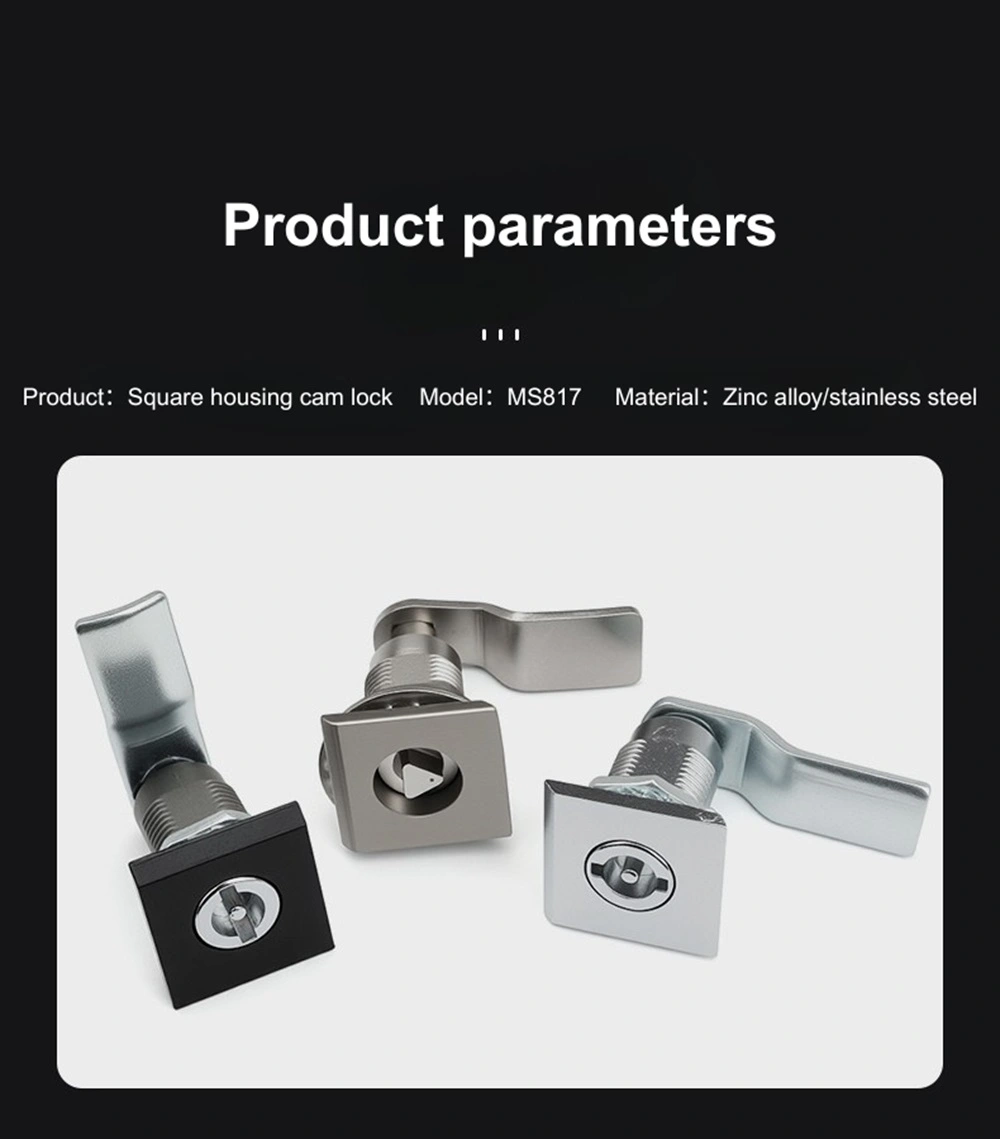

Dimensions and Material Colors

This deadbolt lock features an extendable deadbolt mechanism. Rotating the lock cylinder controls the extension of the connecting rod. The zinc alloy version has a 7mm extension range, while the stainless steel version extends 10mm.

Zinc alloy mounting hole dimensions: Width 18.5mm, Diameter 22mm.

Stainless steel mounting hole dimensions: Width 19mm, Diameter 22mm.

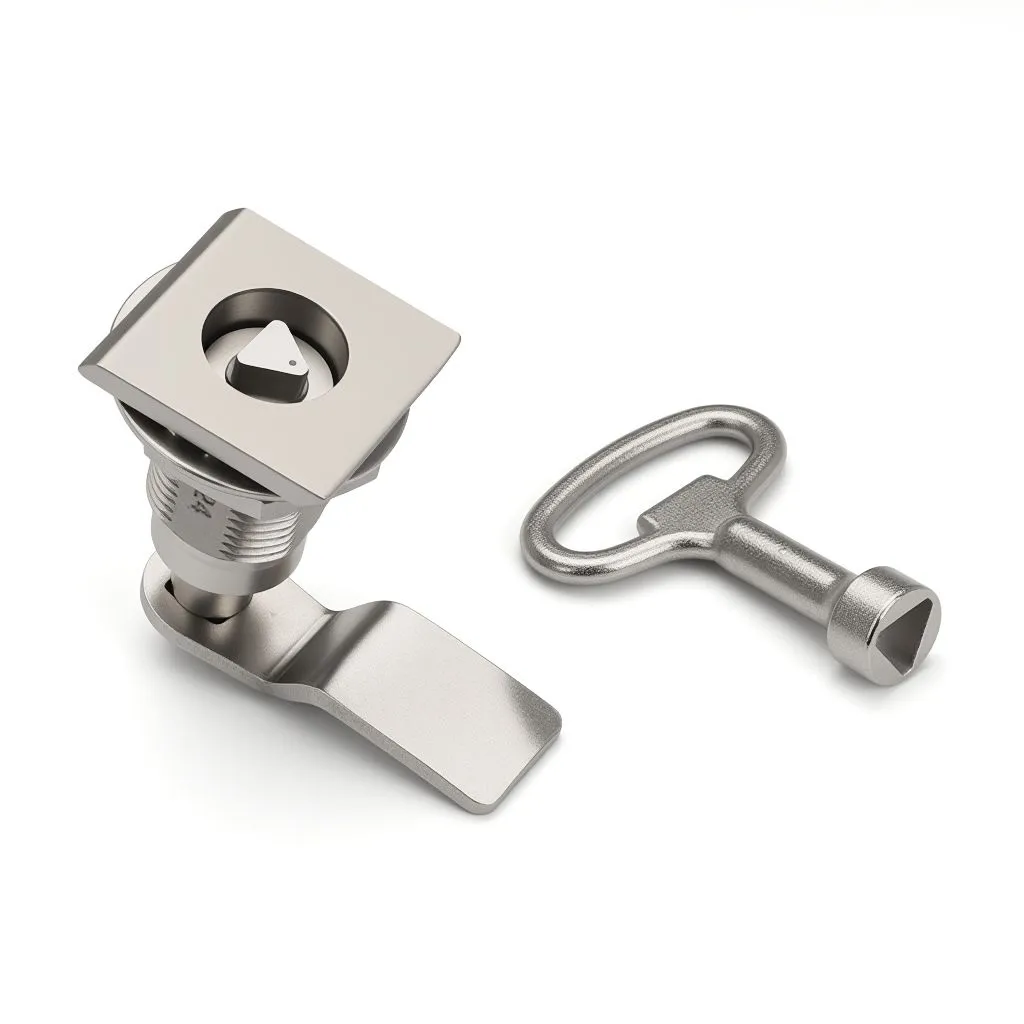

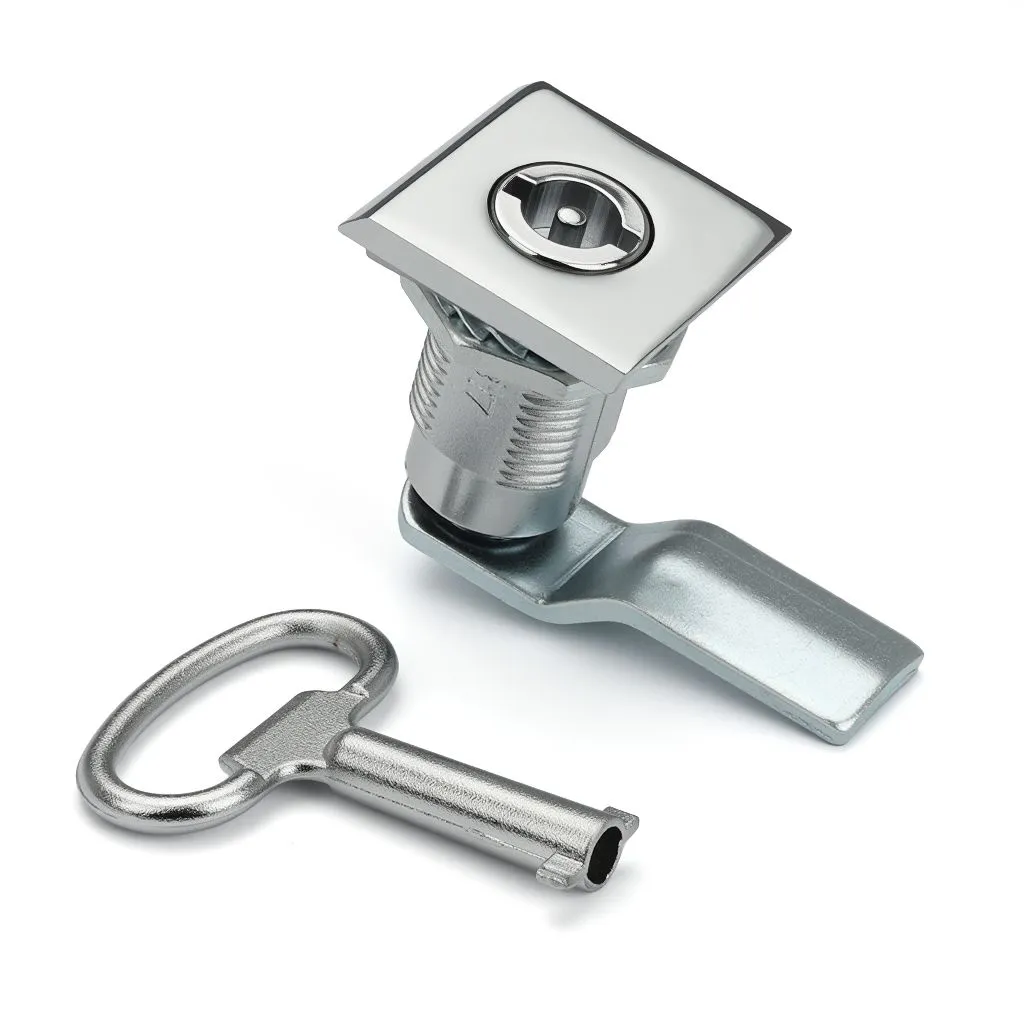

Zinc alloy cylinder: Double-bitted. Stainless steel cylinder: Triangular.

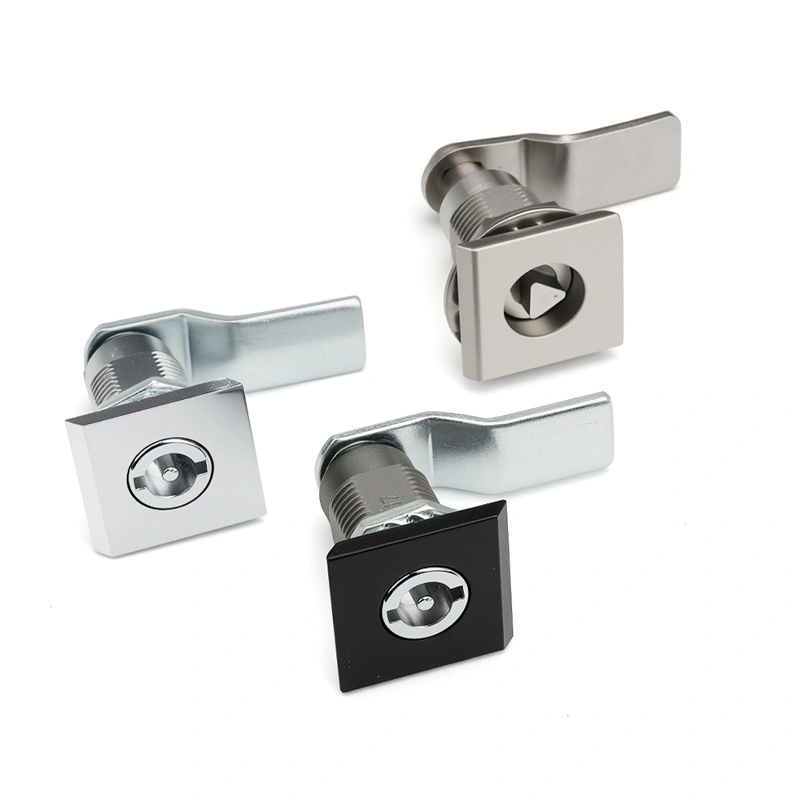

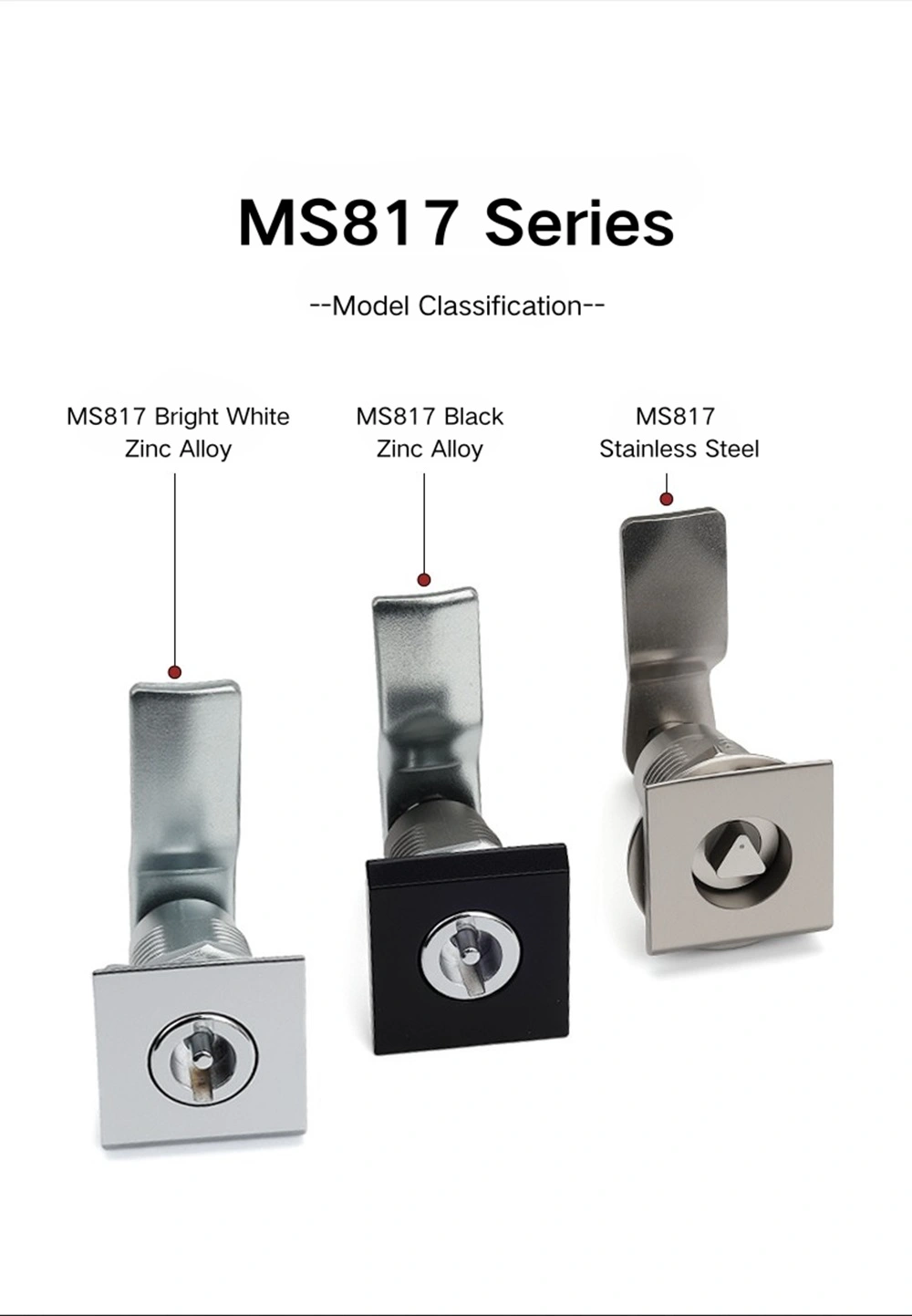

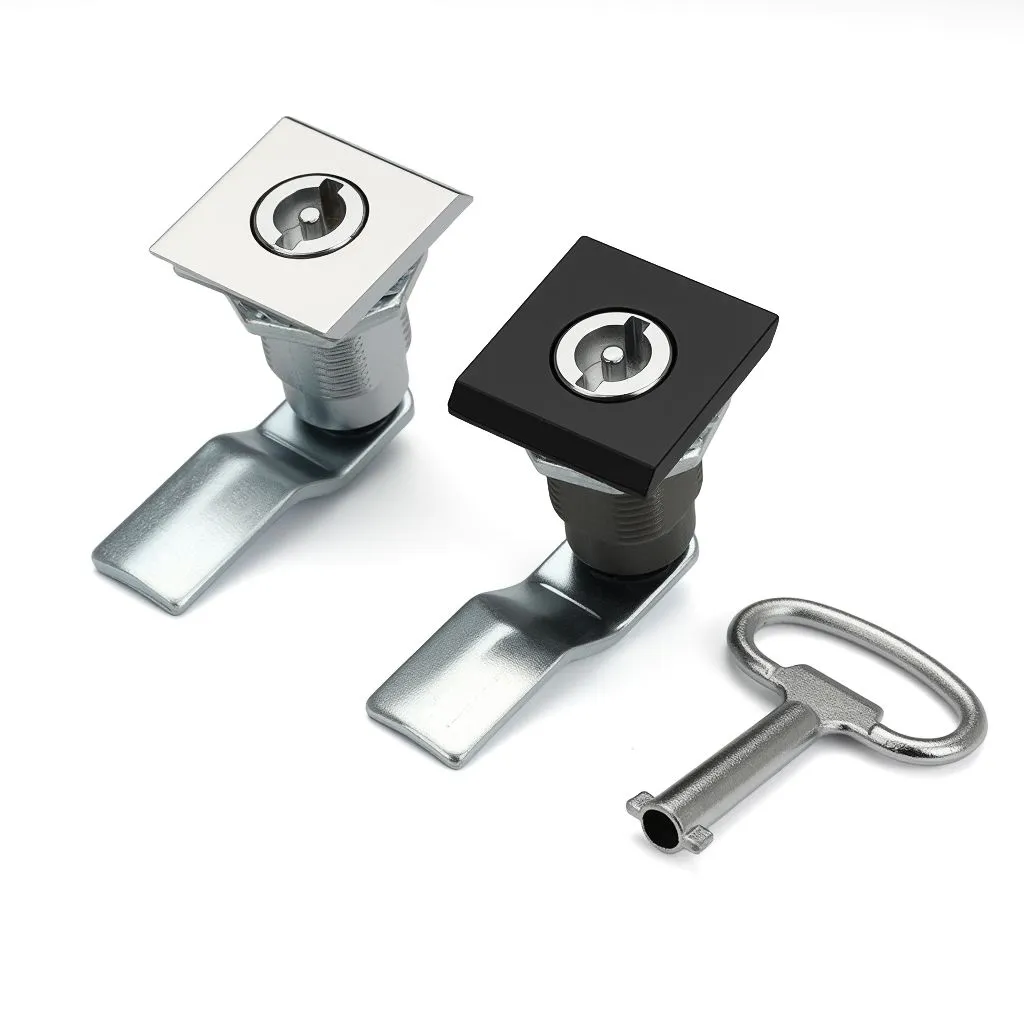

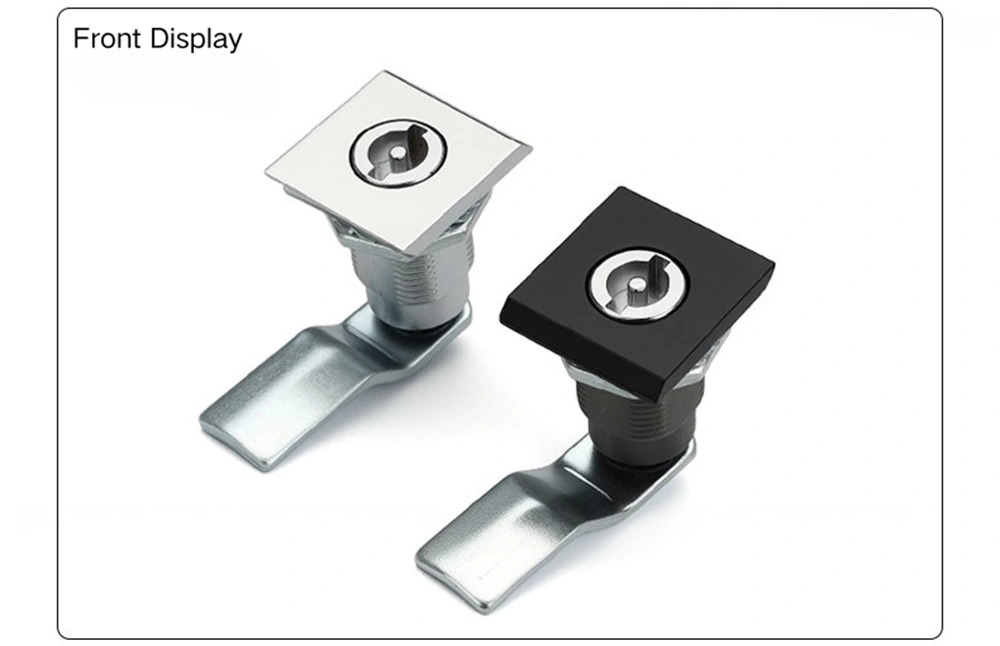

Zinc alloy finishes: Black or Bright Chrome. Stainless steel finish: Brushed surface.

For specific latch height requirements, please contact us.

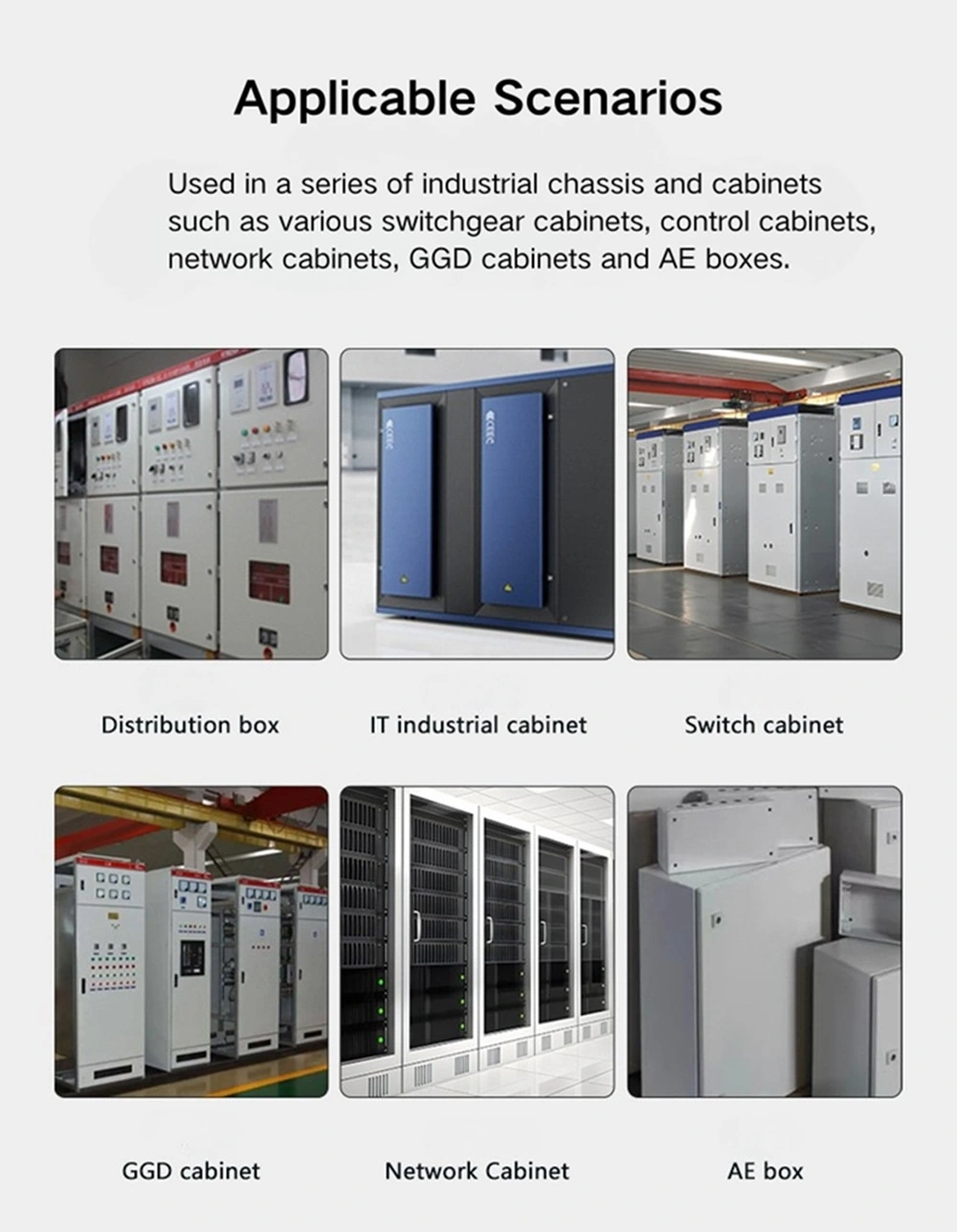

Application Scenarios

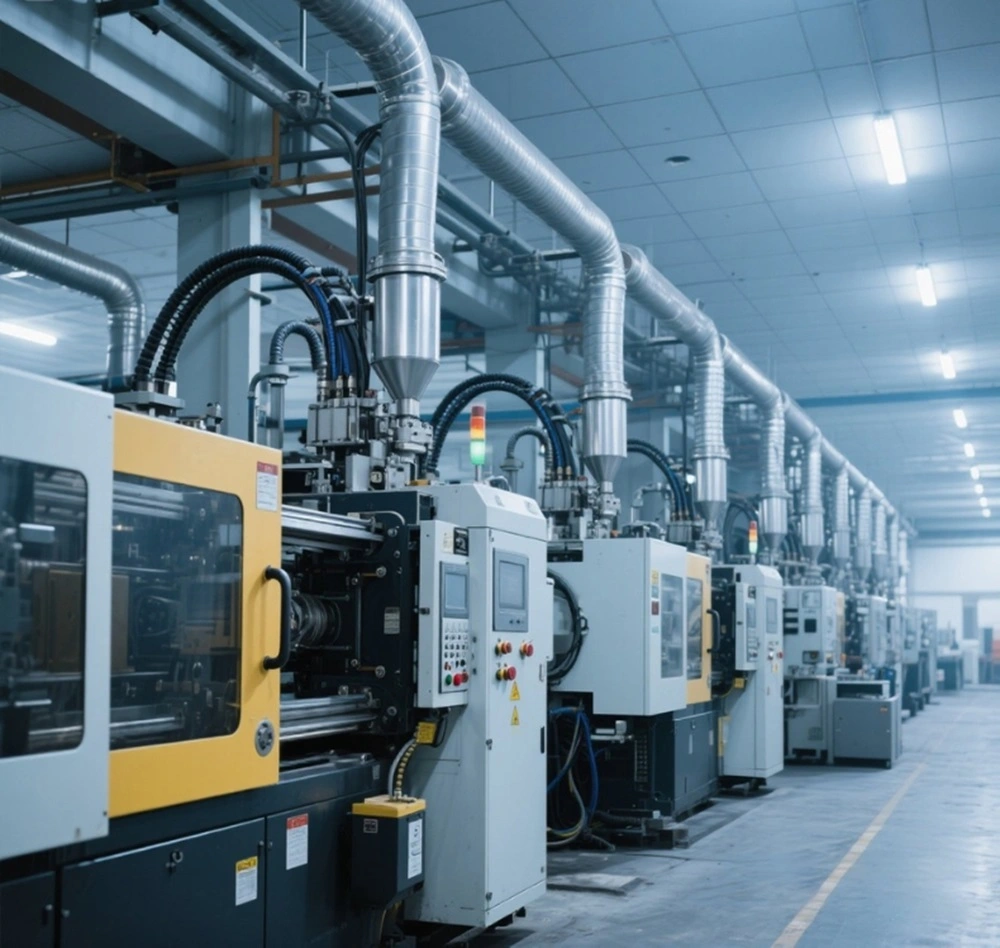

In industrial power distribution, flat key cam lock can be applied to distribution panels, control cabinets, automation equipment enclosures, and similar devices at all levels, providing fundamental safety protection for electrical equipment. In the communications sector, this solution can be used in network and fibre optic distribution cabinets, as well as other equipment. It can also be used to protect commercial equipment.

Function

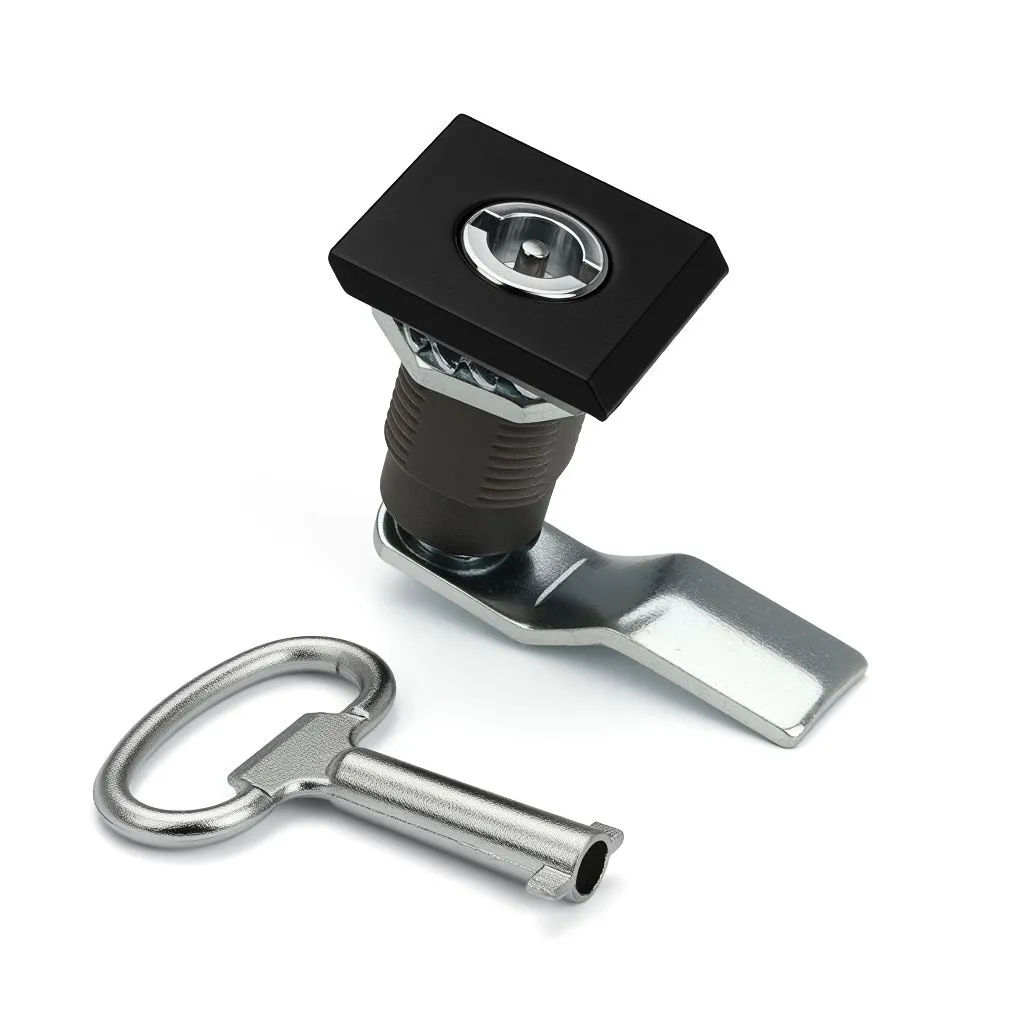

The flat key cam lock is activated by turning the key, which extends or retracts the latch to open or close the cabinet doors. The double-edged key provides straightforward operation and meets standard security requirements for industrial environments. The lock surface is powder coated, chrome plated or has a brushed finish, which makes it resistant to moisture and dust. This lock is compatible with a variety of cabinet types, specifically switch, equipment, and metal cabinets.

FAQ

Q: What are the installation steps for this lock?

A: First, cut a square hole of the specified dimensions in the door panel, then insert the lock for installation and secure it.

Q: What details should be noted during installation?

A: Ensure the latch direction matches the door opening direction.

Q: How is the rust resistance?

A: The zinc alloy material features a rust-proof surface treatment, suitable for indoor use. Stainless steel models are available for outdoor applications.

Q: What are the cleaning and maintenance requirements?

A: Wipe the surface with a soft cloth. Avoid using corrosive cleaning agents.

Q: How do I know when the lock needs replacement?

A: Consider replacement when the key becomes difficult to turn or the latch operates poorly.
