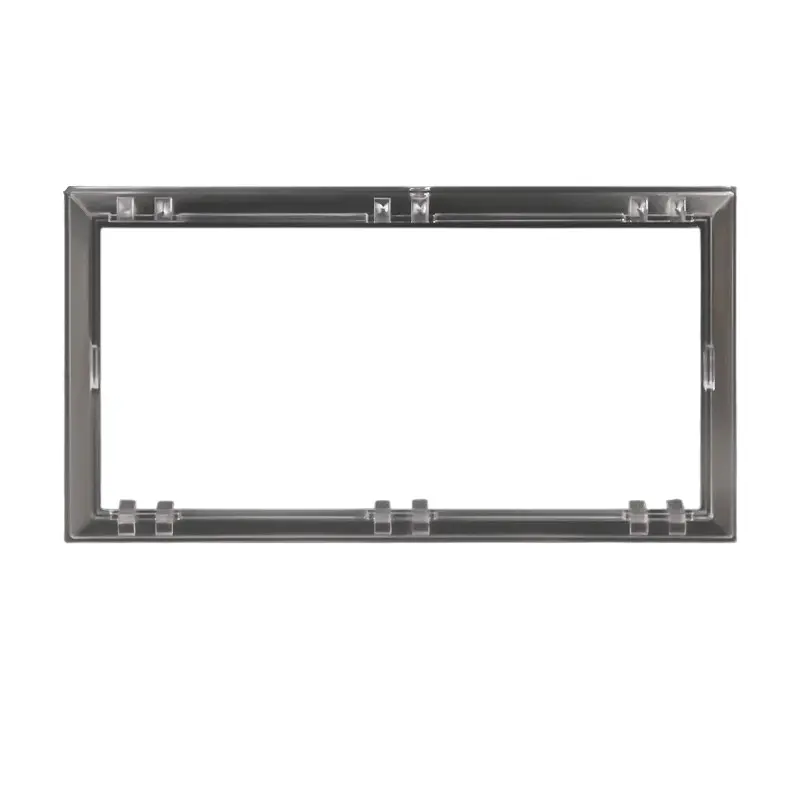

Meter Box Observation Window

Yitai Lock’s durable Meter Box Observation Window ensure long-term performance in industrial use. The meter box observation window adopts special materials and structural design to monitor the operation status of the equipment inside the cabinet safely and intuitively under the premise of ensuring the safety of the operators.

Material And Color

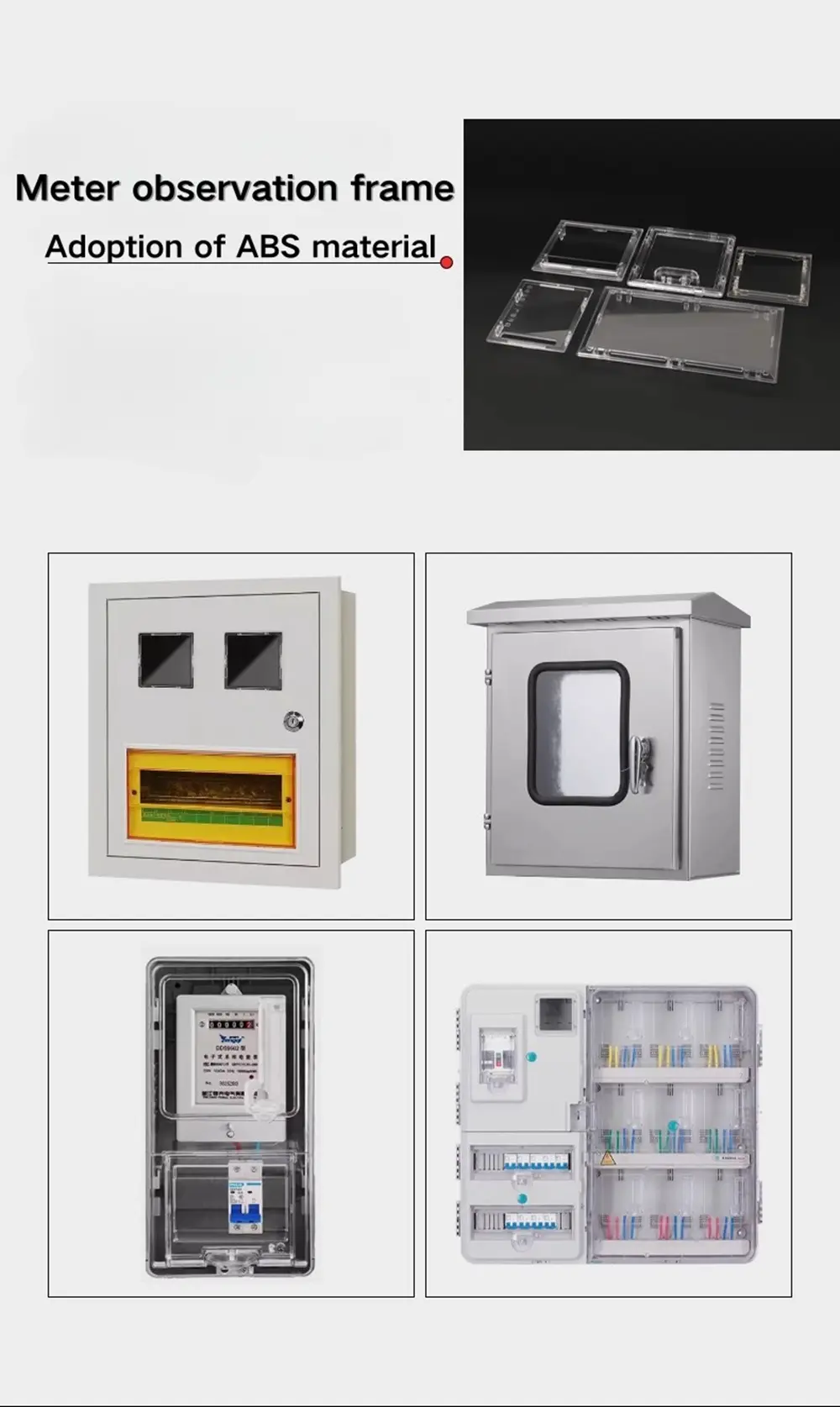

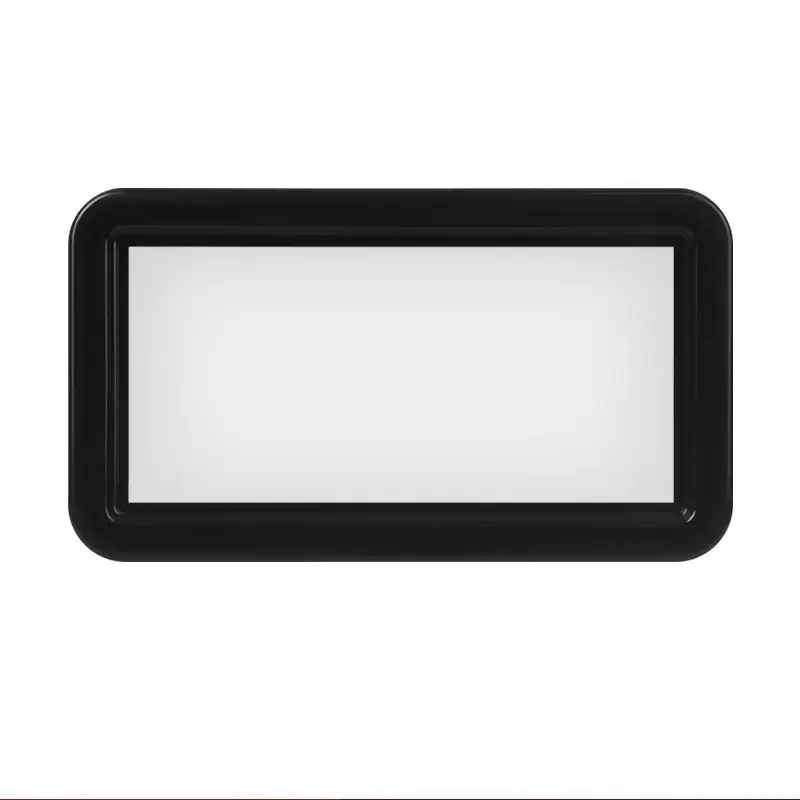

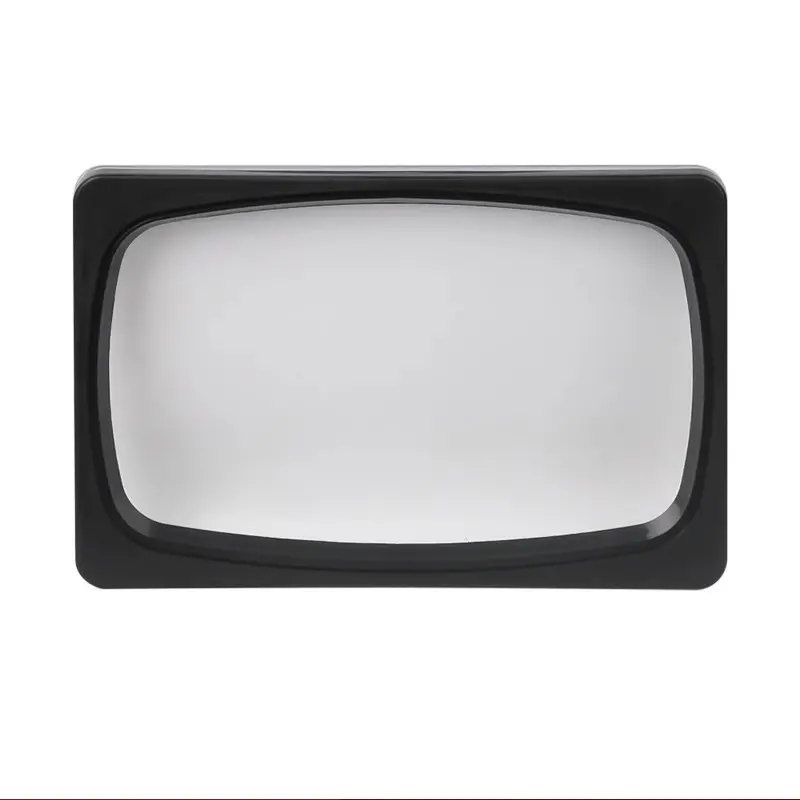

The Meter Box Observation Window for high-voltage cabinets is made of ABS with stable performance, which ensures safe use in high-voltage environments. The outer frame of the high-pressure cabinet viewing window is black.

Applications

10kV/35kV switchgear operation status monitoring;

Substation high-voltage equipment visualization operation and maintenance;

Railway transportation power supply system;

New energy power generation grid-connected equipment.

Safety performance:

Environmental adaptability: wide temperature working range, anti-UV aging design, adapt to the outdoor environment

Humanized design: wide-angle observation range anti-fog surface treatment, to ensure clear visibility in a variety of environments

Dimensions(The following units:mm):

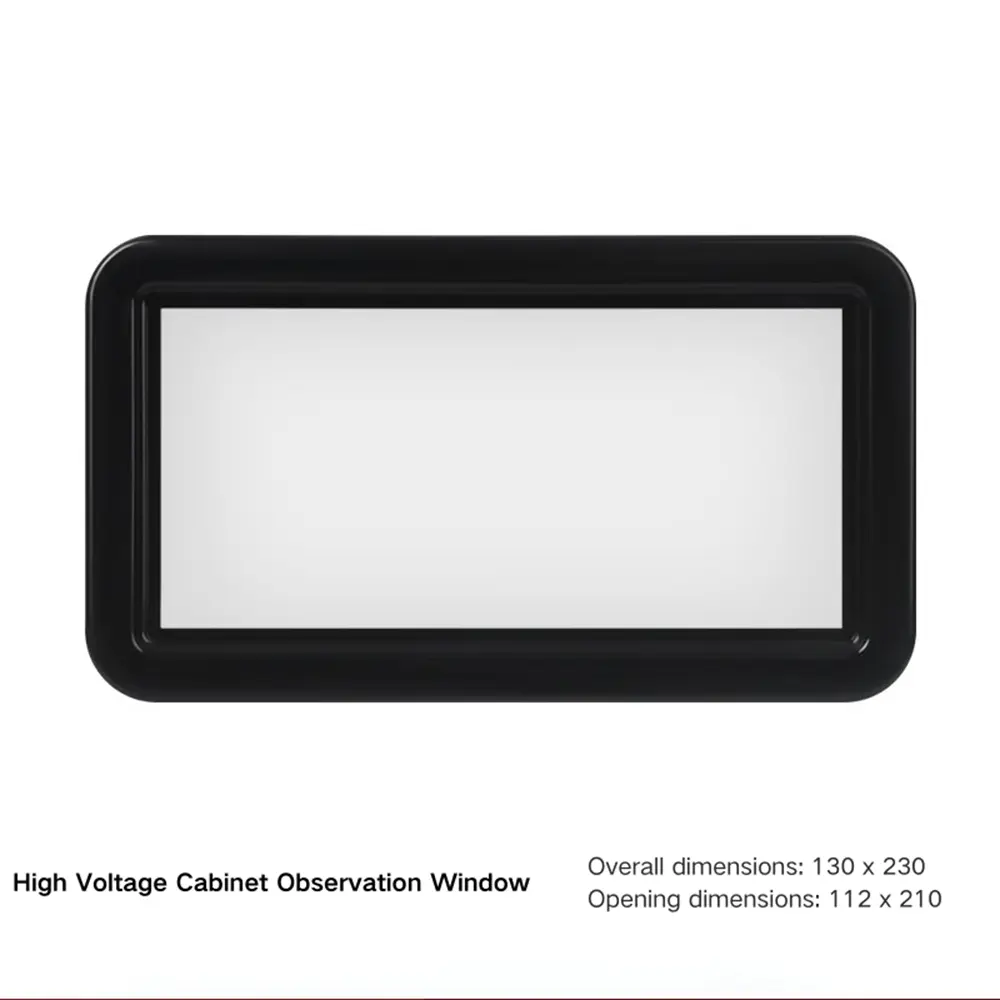

High Voltage Cabinet Observation Window:130*230,150*230.

FAQ

Q: What is the main function of the observation window of the high-voltage cabinet?

A: It is used to safely observe the operation status of the equipment inside the high-voltage cabinet (e.g. circuit breaker opening and closing position), and at the same time to ensure that the operator is isolated from the electrically charged parts.

Q: How high voltage level can the observation window withstand?

A: Standard products withstand voltage levels of 10-35kV, special design can meet the needs of higher voltage (need to provide specific advice).

Q: Do I need to replace the observation window immediately if it is cracked?

A: It must be taken out of service and replaced immediately. Any visible cracks will reduce insulation and explosion safety.

Q：What do I need to pay attention to when installing?

A:Make sure that the sealing strip is intact, the torque of the fastening bolts is in accordance with the standard, and the pressure resistance test is required after installation.

Q:How can I tell that the observation window needs to be replaced?

A:When there are obvious scratches/yellowing/loss of light transmission >30%, aging and cracking of sealing strips, or regular testing of insulation performance is not up to standard.
