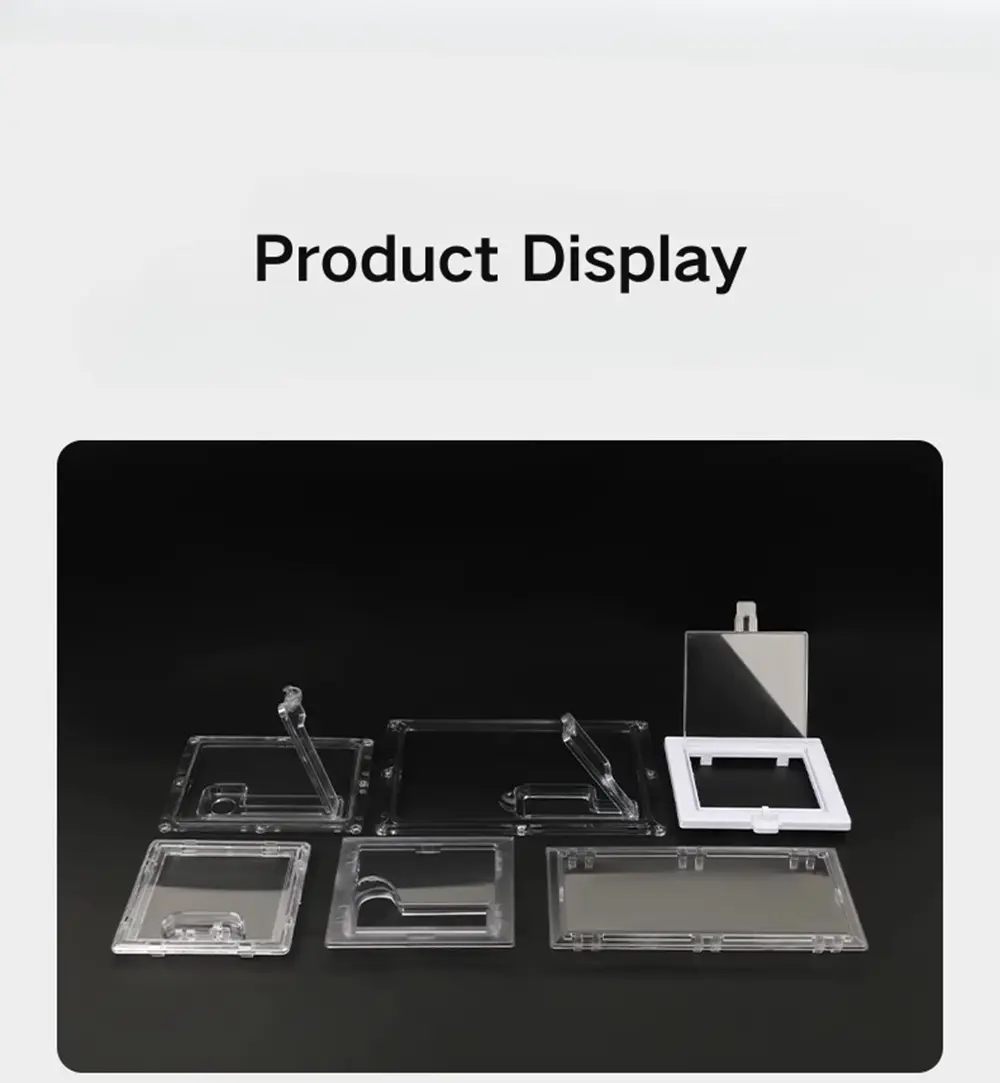

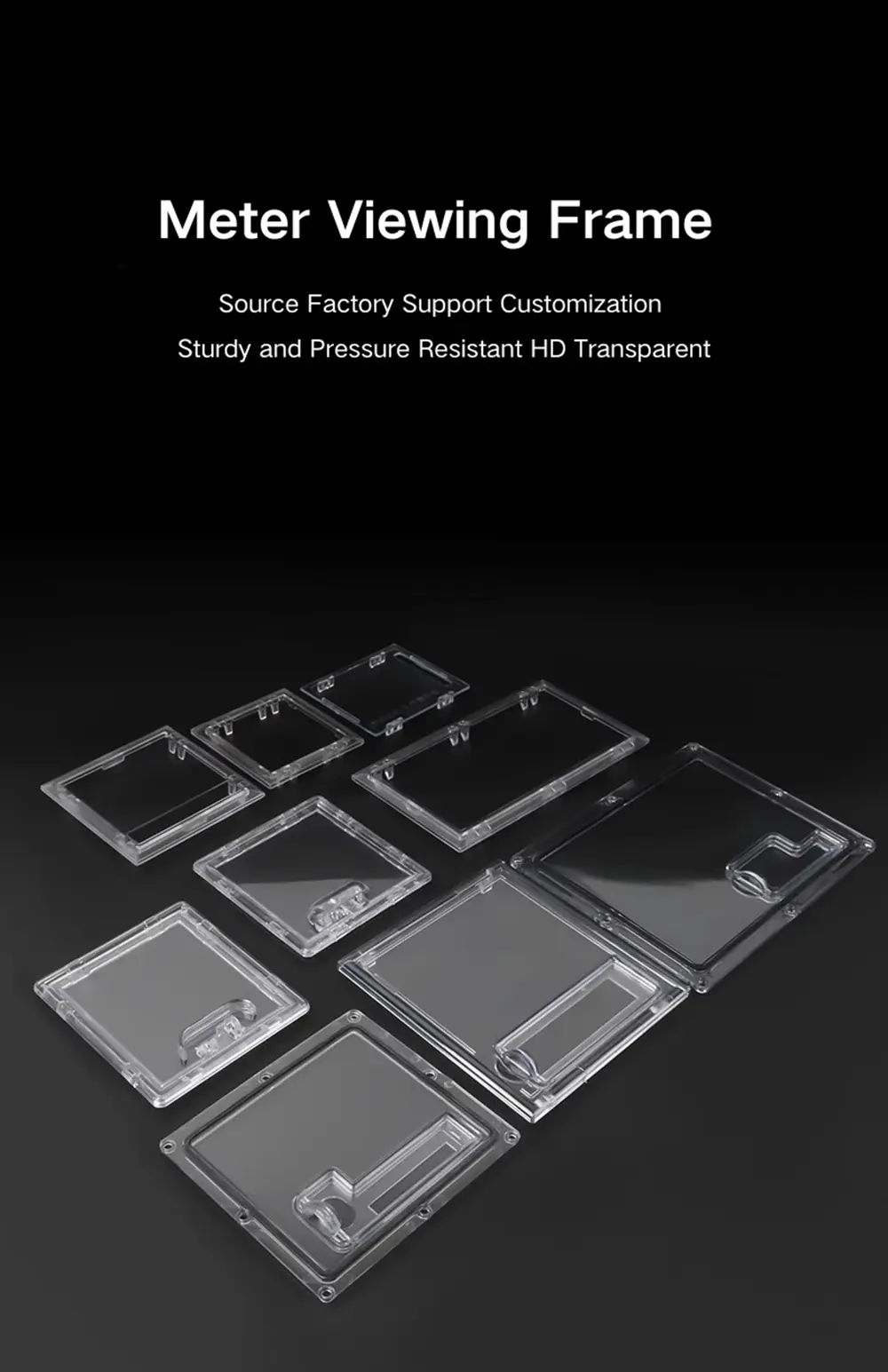

Meter Viewing Panel

Electrical enclosure builders prefer wholesale panels from Yitai Lock for consistency.The Meter Viewing Panel is designed with special materials and structures to monitor the operating status of the equipment inside the cabinet in a safe and intuitive way, under the premise of ensuring the safety of operators.

Material Types

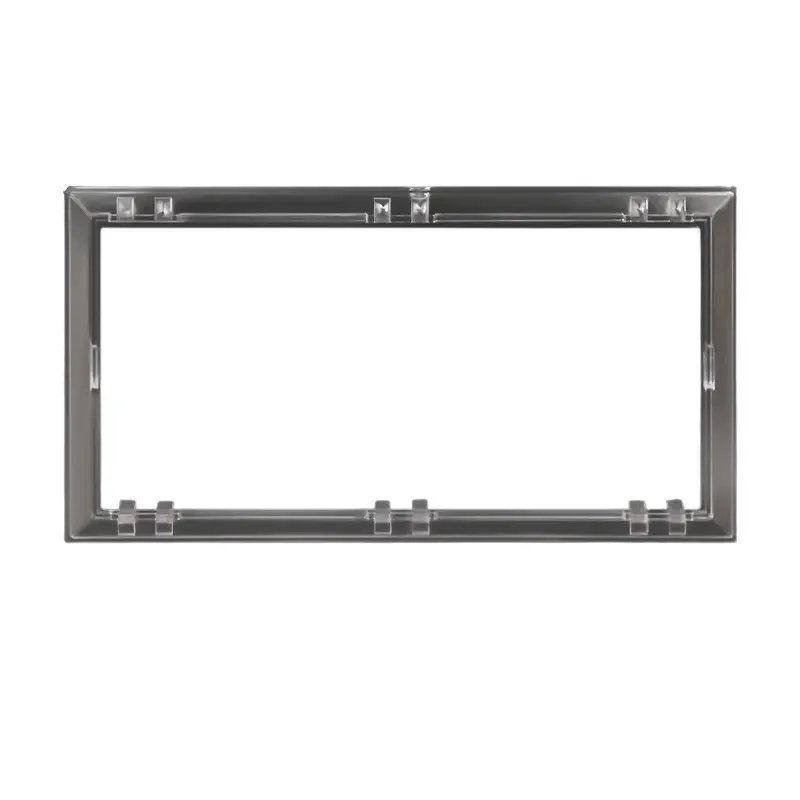

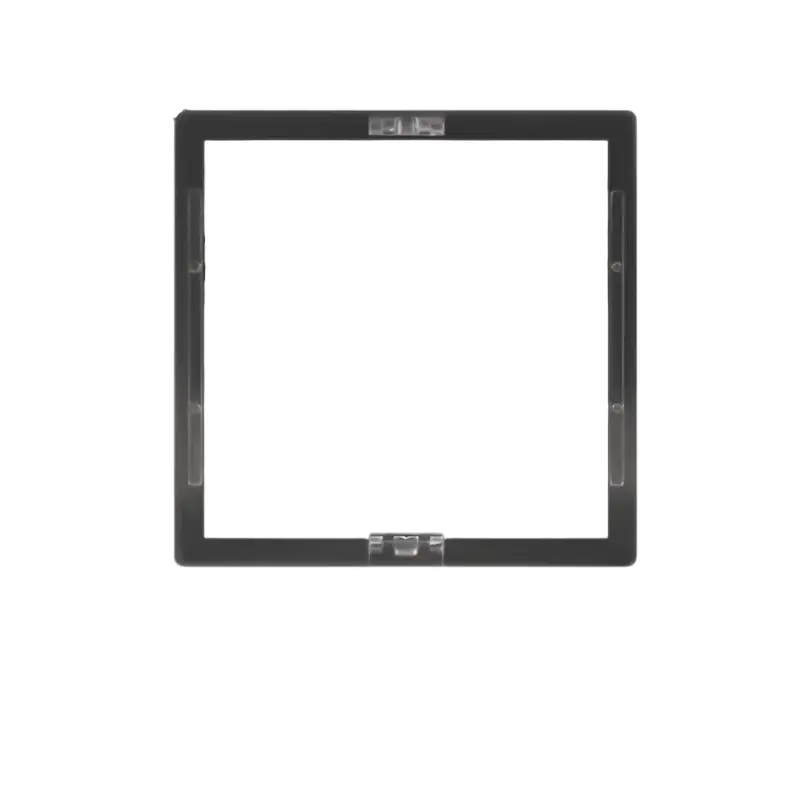

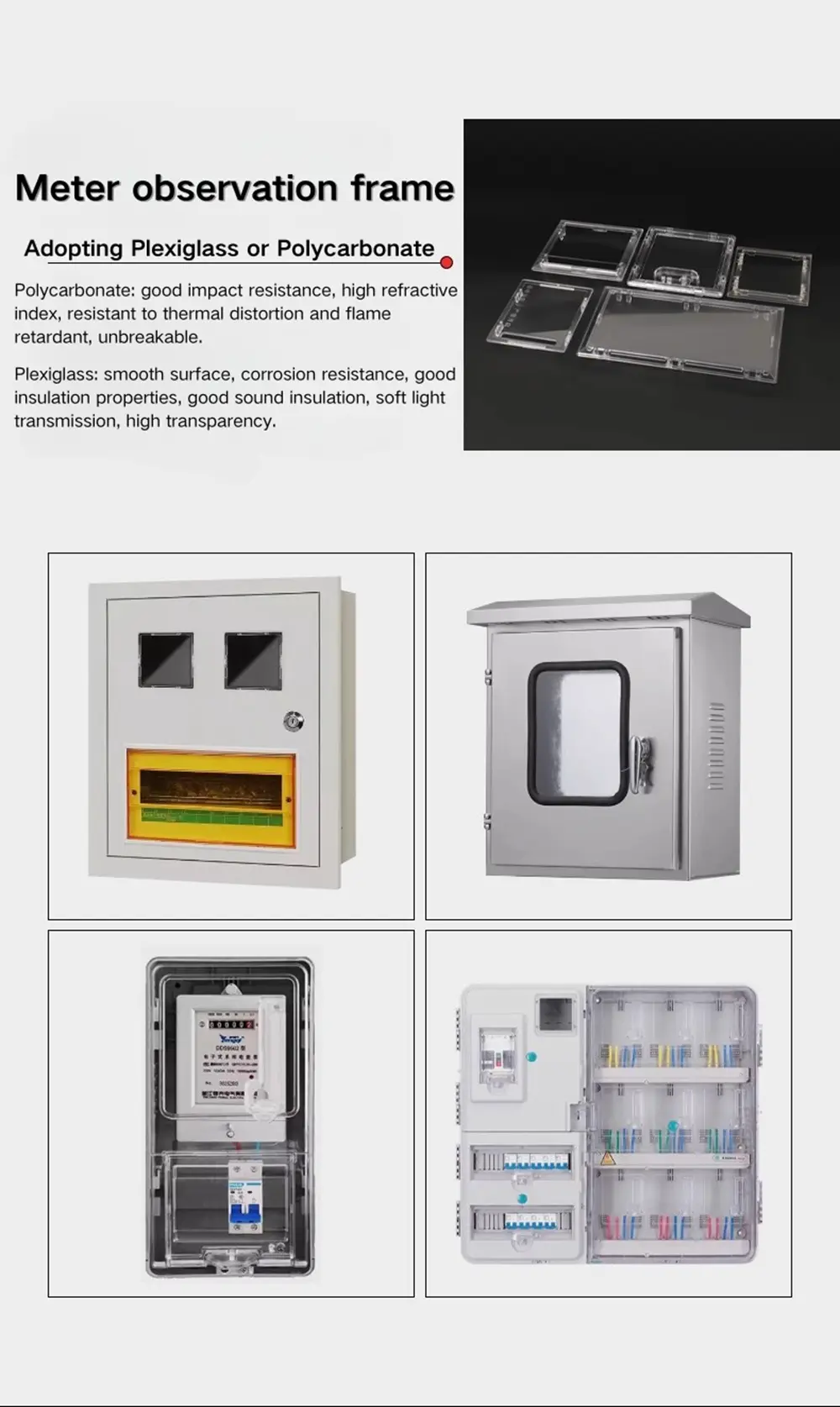

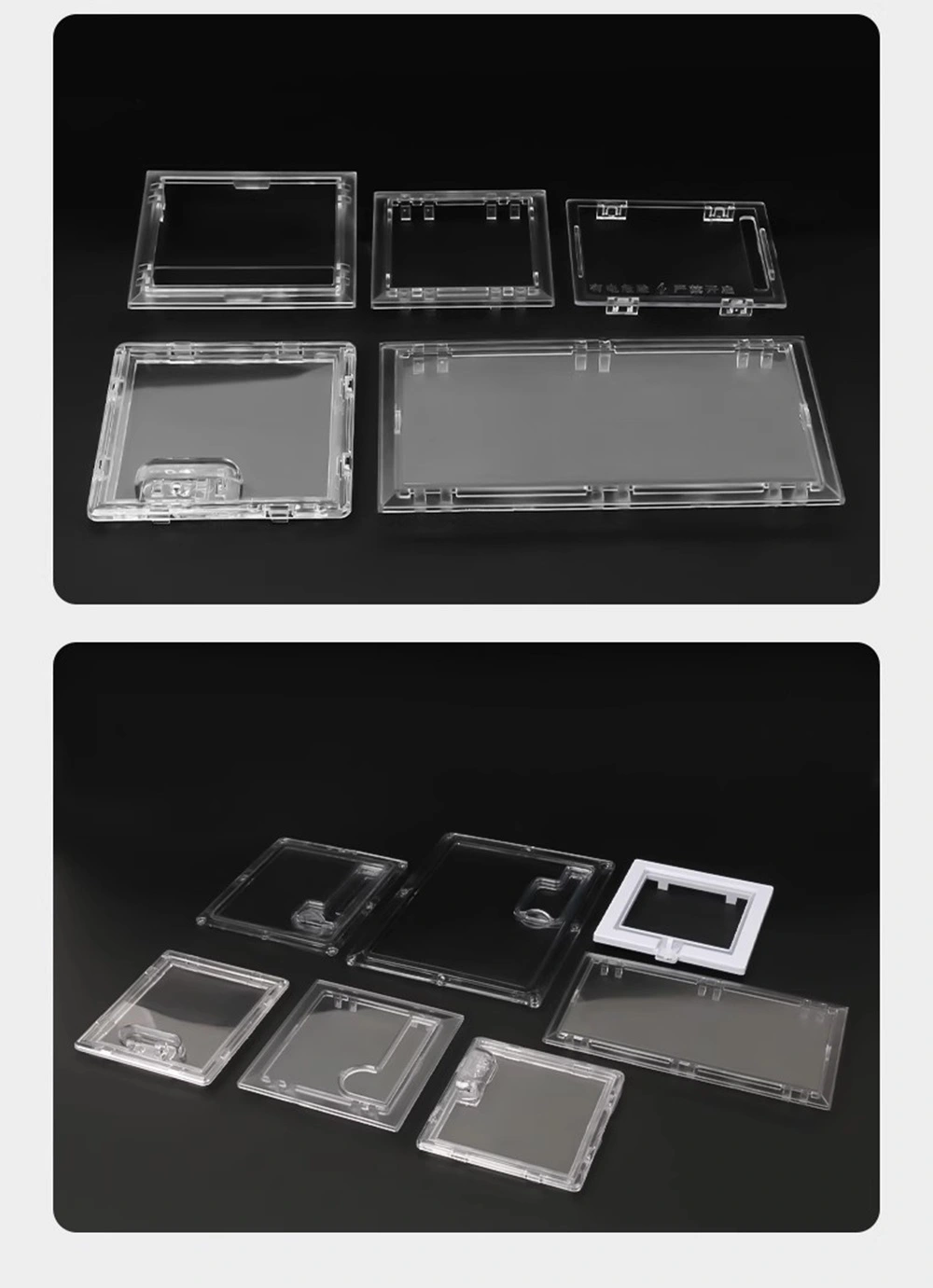

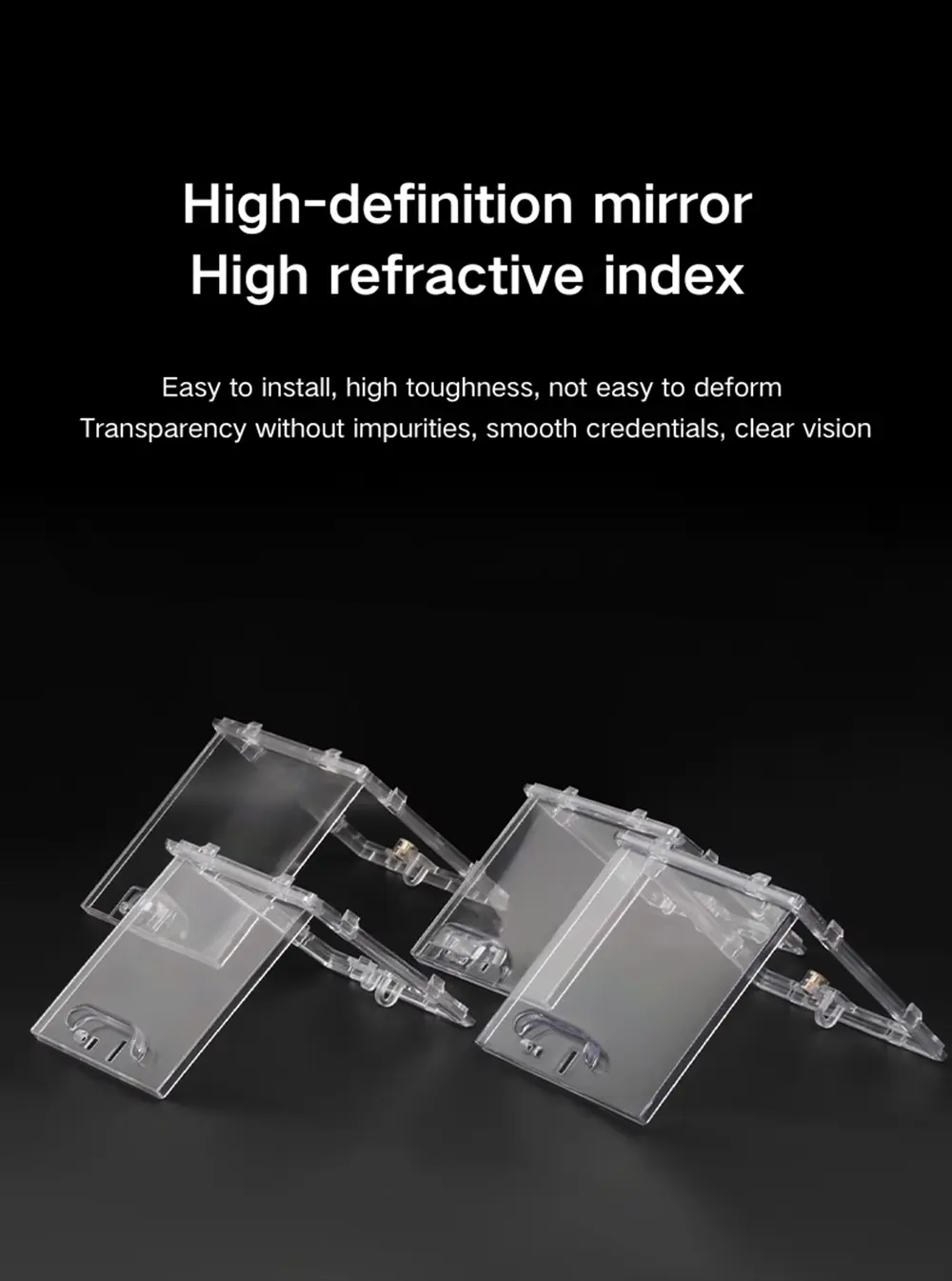

The organic observation frame is made of polystyrene with excellent light transmission, which is suitable for basic observation needs; the PC observation frame is made of high-strength polycarbonate (PC), which is resistant to impact and high temperature; and the observation window for high-voltage cabinets is made of ABS with stable performance, which ensures safe use in high-voltage environments.

Color Options

Both the organic and PC viewing windows are fully transparent, and the outer frame of the high-pressure cabinet viewing window is black.

Applications

10kV/35kV switchgear operation status monitoring;

Substation high-voltage equipment visualization operation and maintenance;

Railway transportation power supply system;

New energy power generation grid-connected equipment.

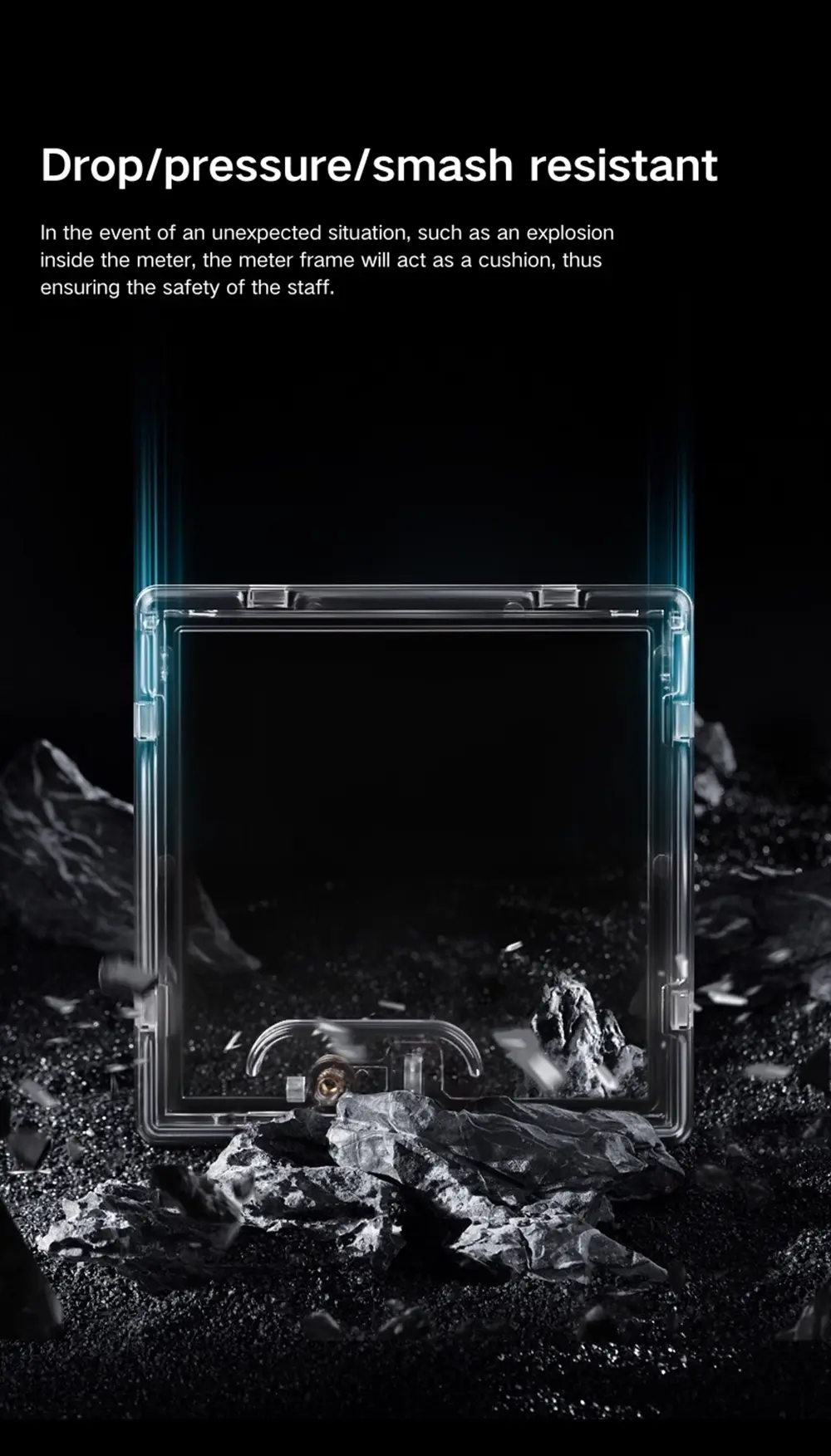

Safety performance:

Environmental adaptability: wide temperature working range, anti-UV aging design, adapt to the outdoor environment

Humanized design: wide-angle observation range (viewing angle ≥ 160 °), anti-fog surface treatment, to ensure clear visibility in a variety of environments

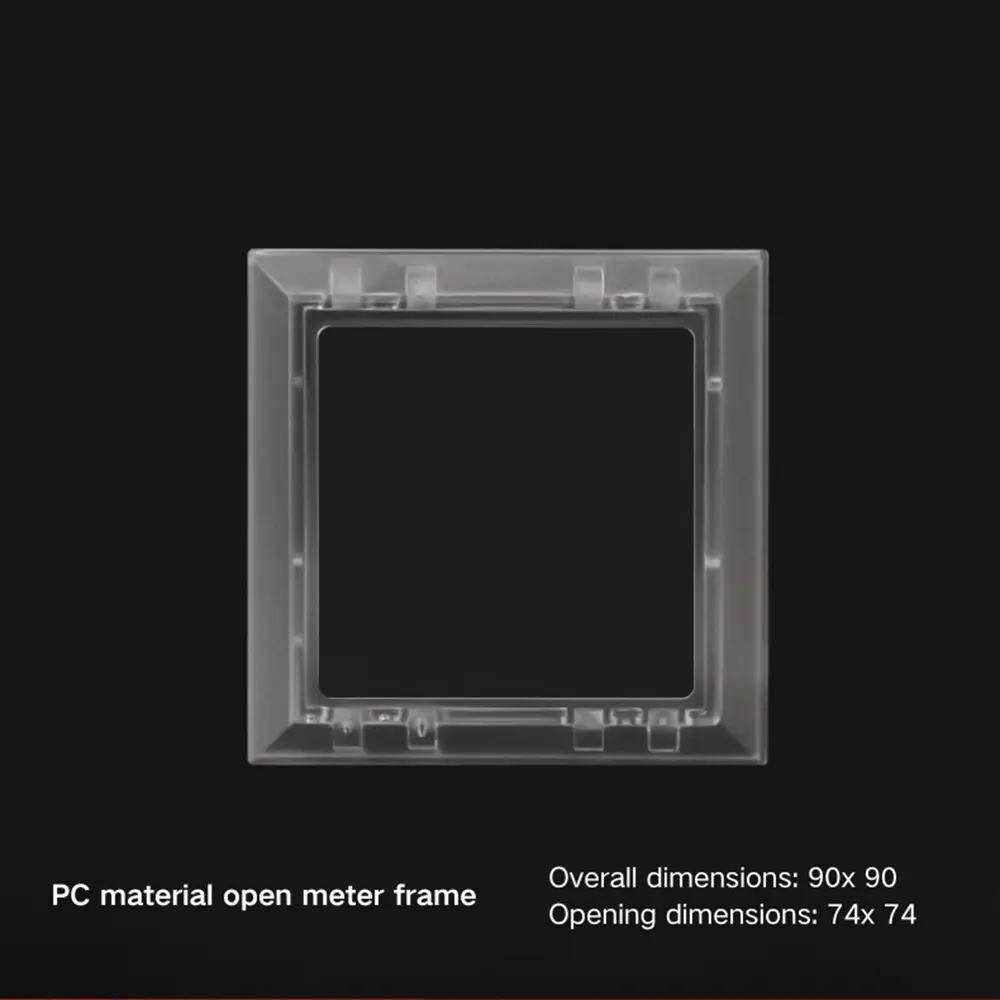

Dimensions(The following units:mm):

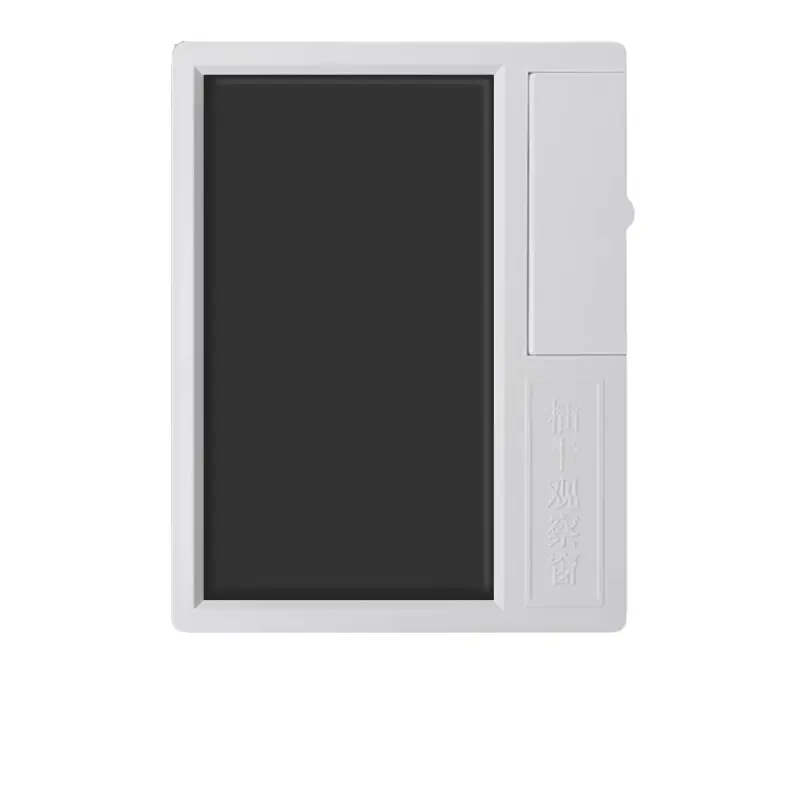

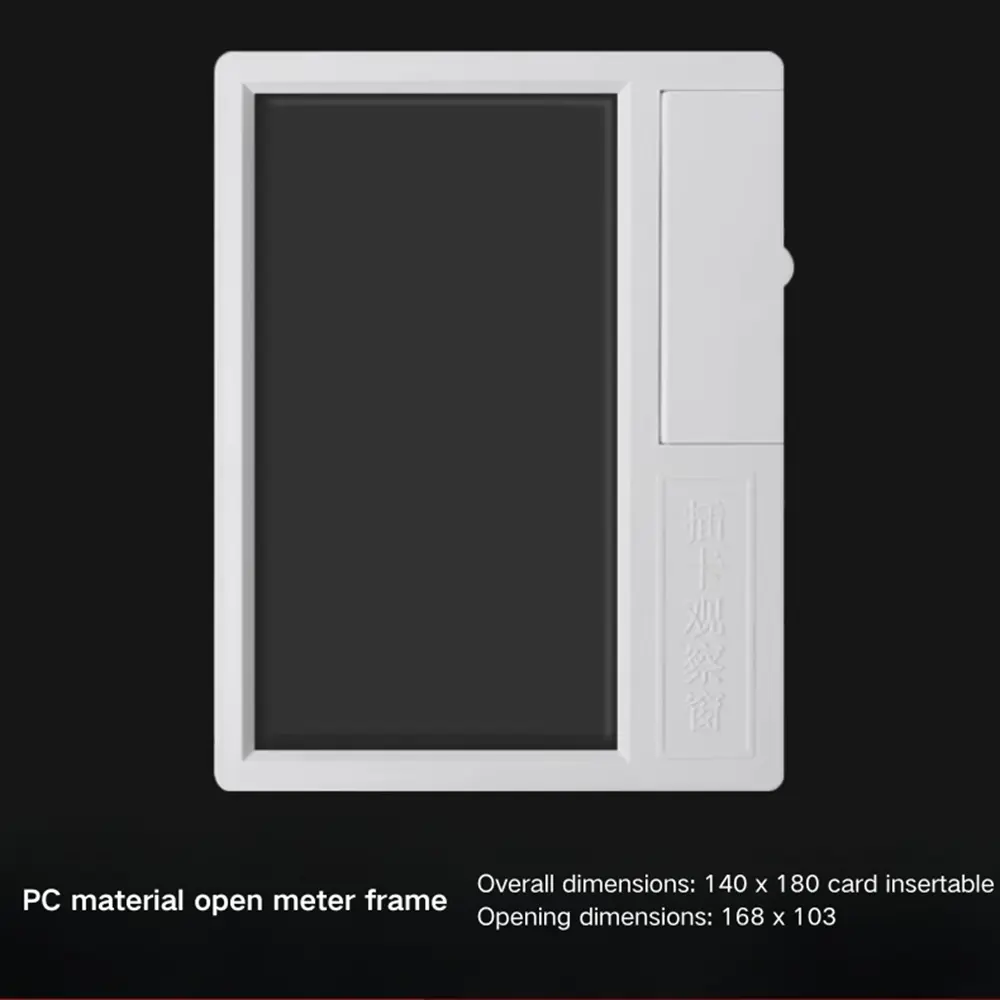

Some models with small doors, or with holes, or with magnetic cards, please contact us for details.

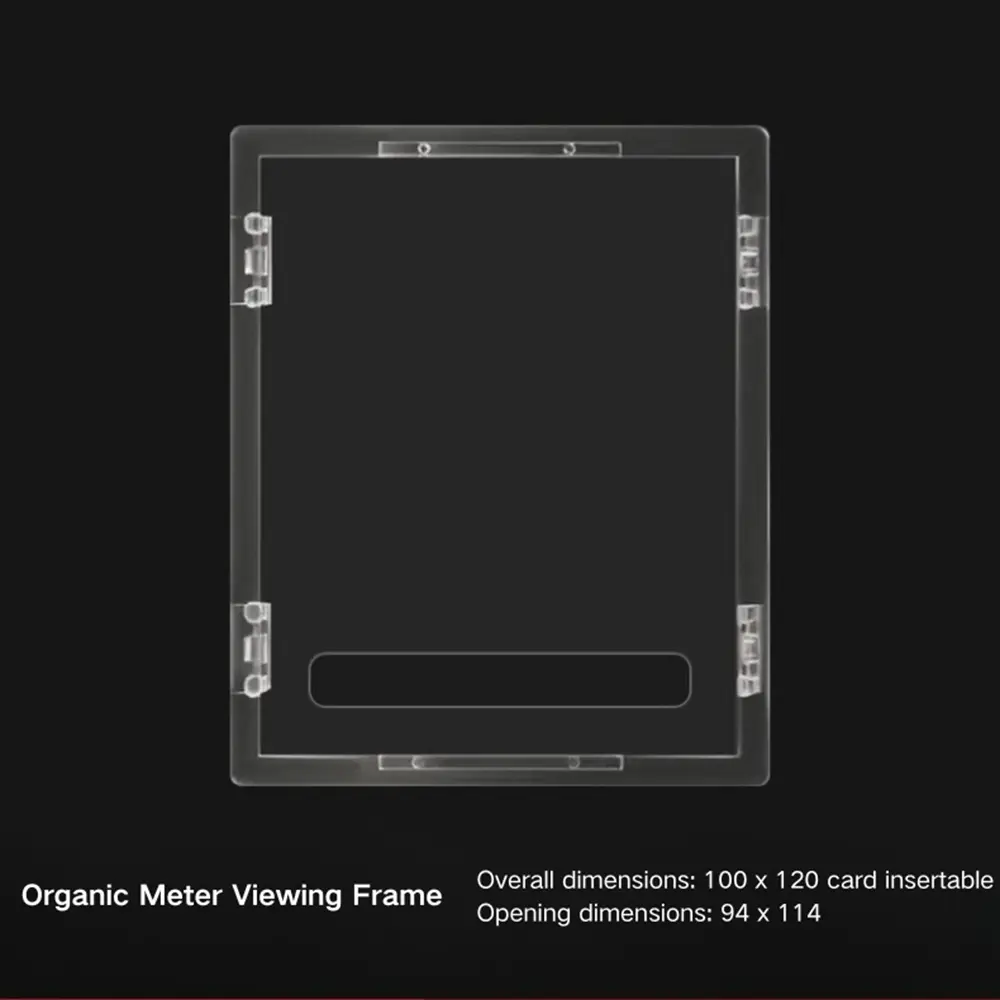

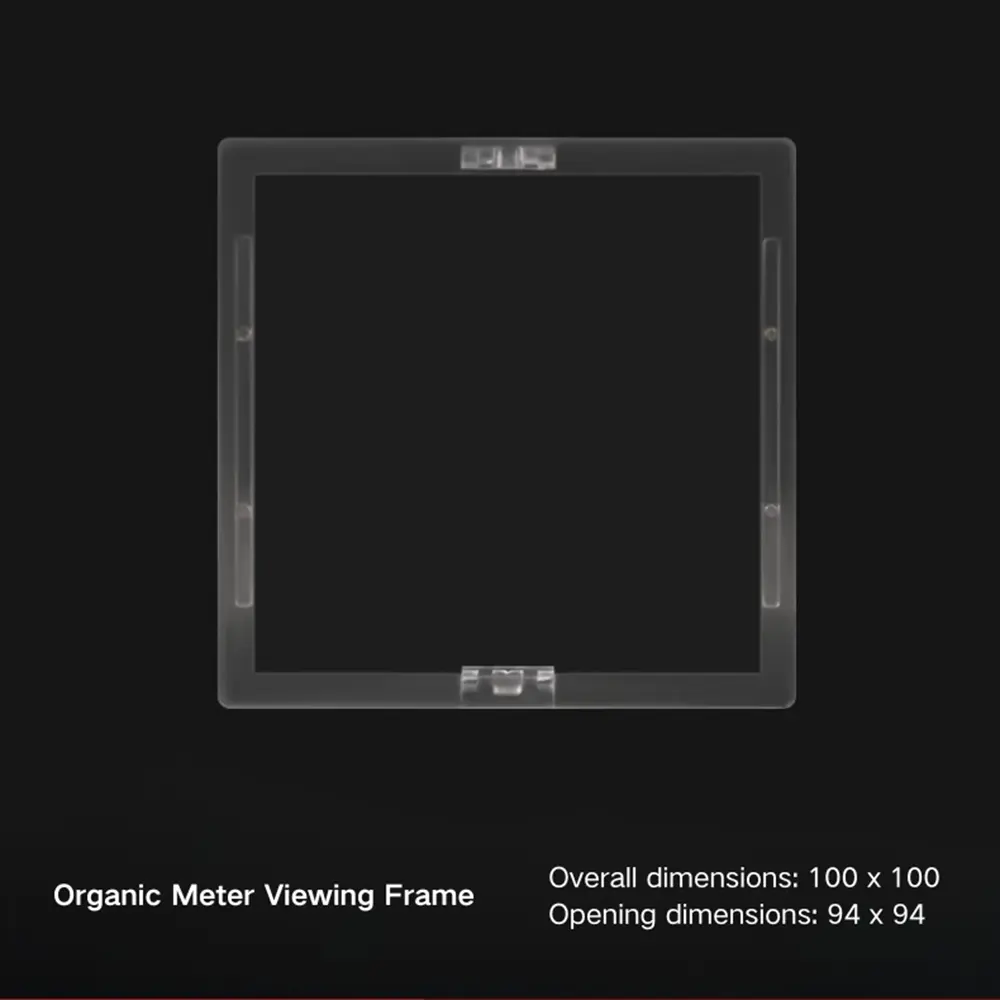

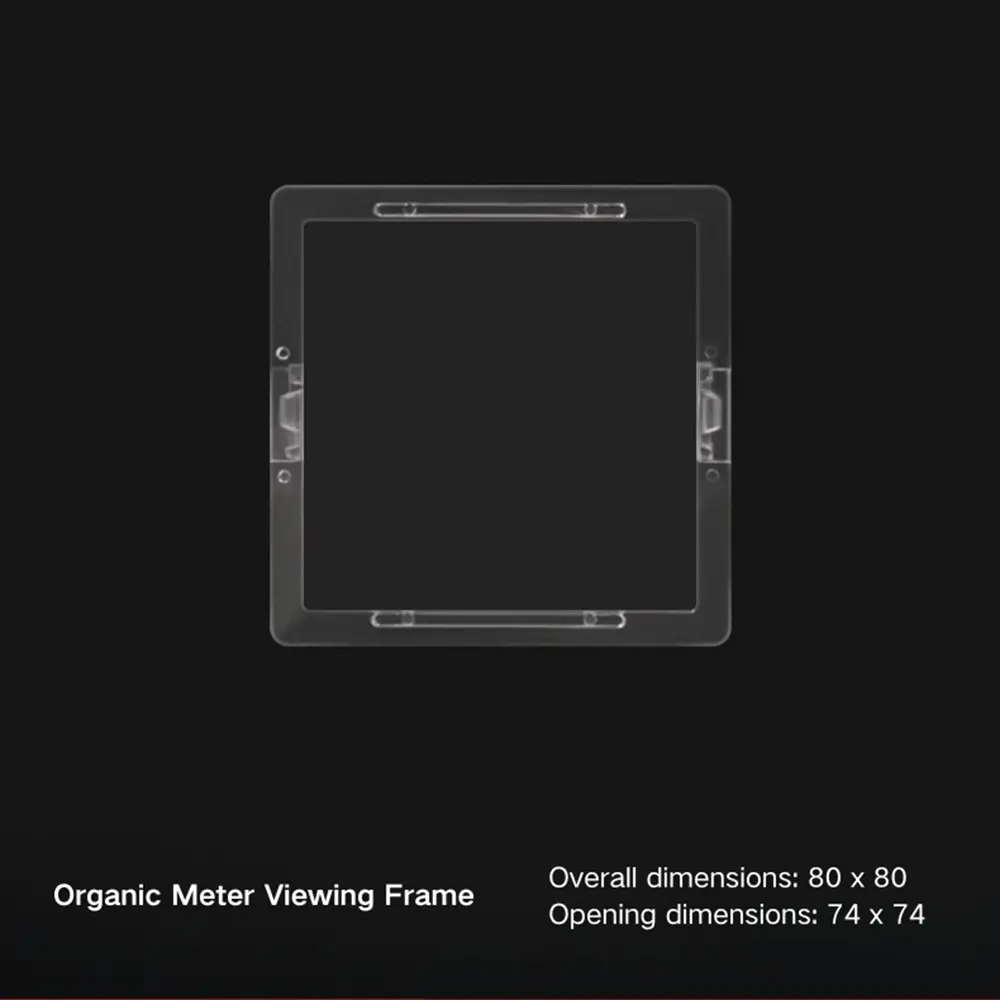

Organic observation frame:80*80,90*90,90*110,96*96,100*100,100*120,106*106,110*110

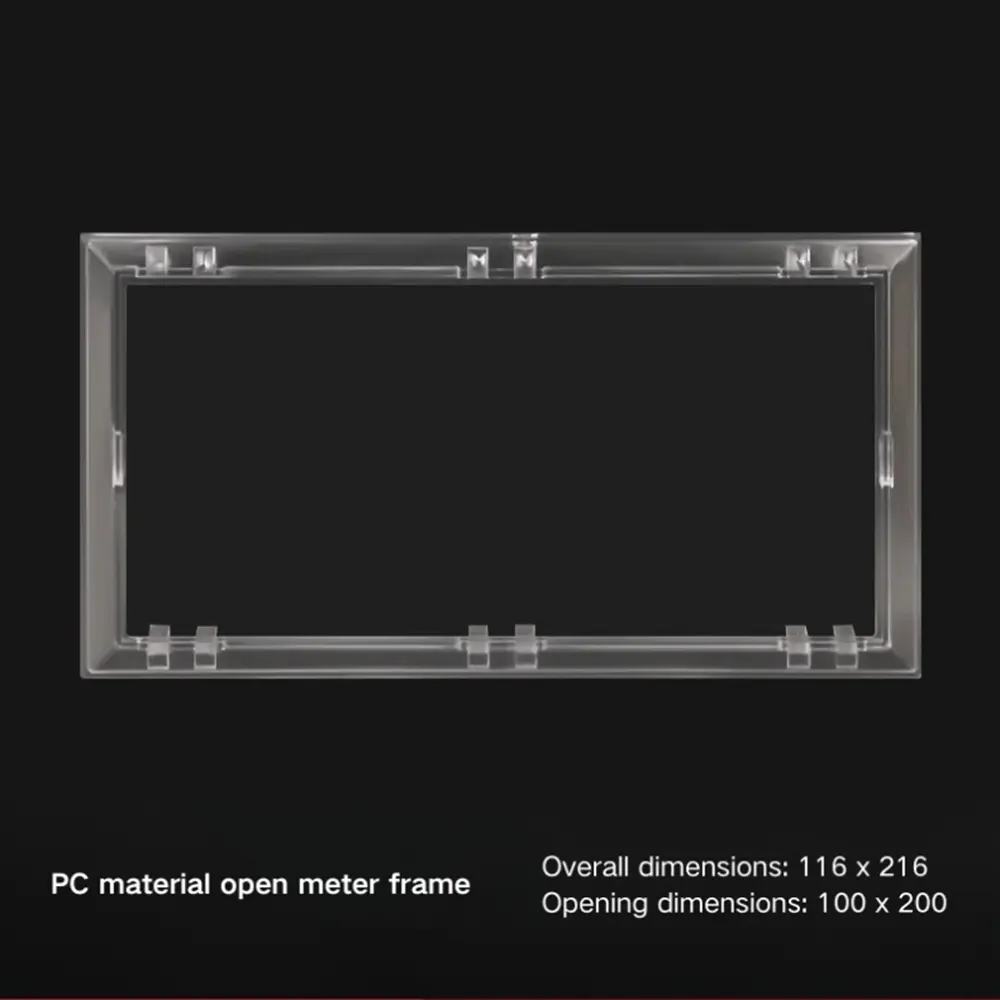

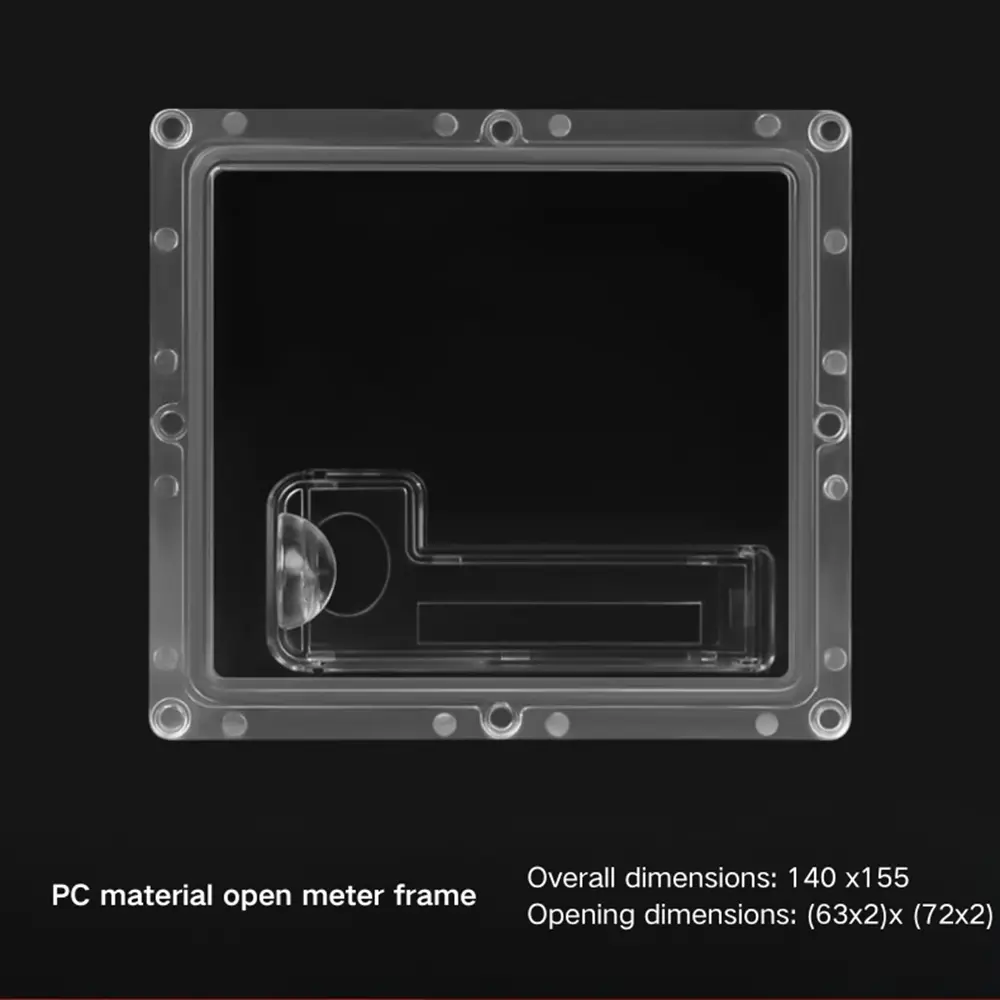

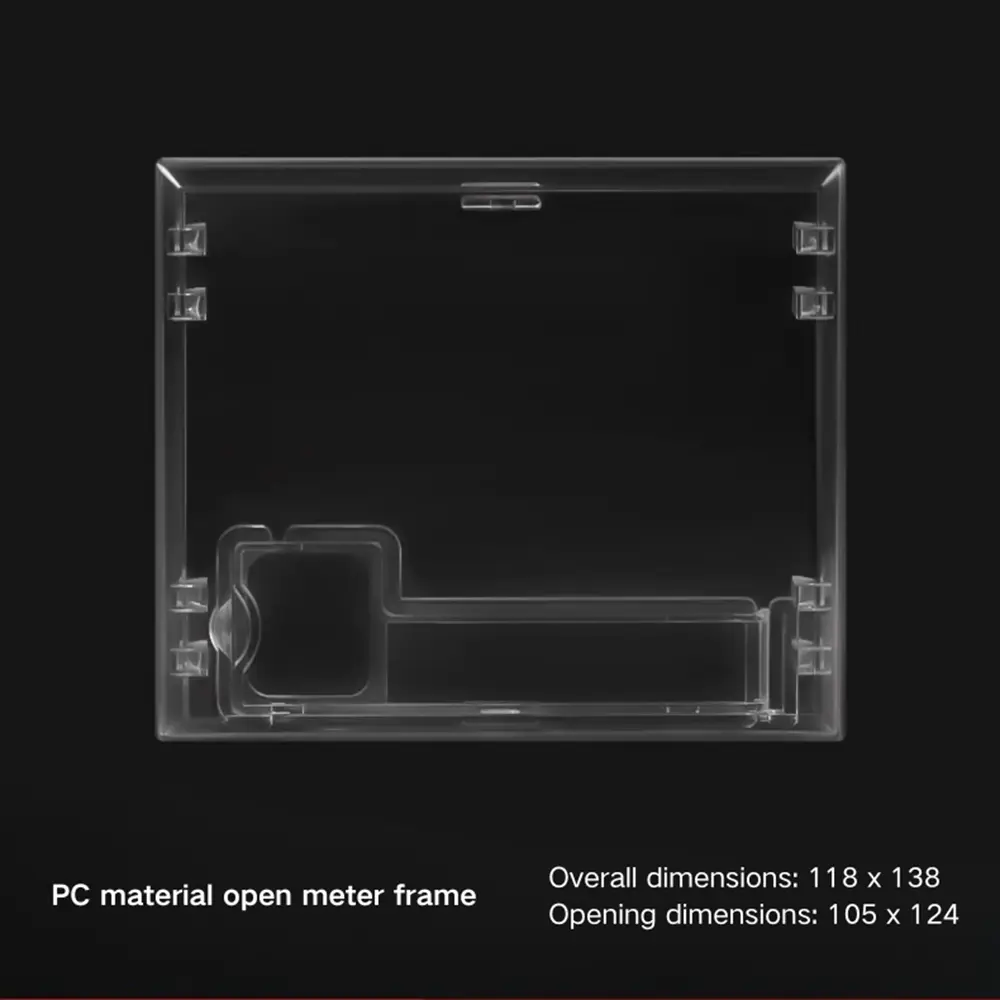

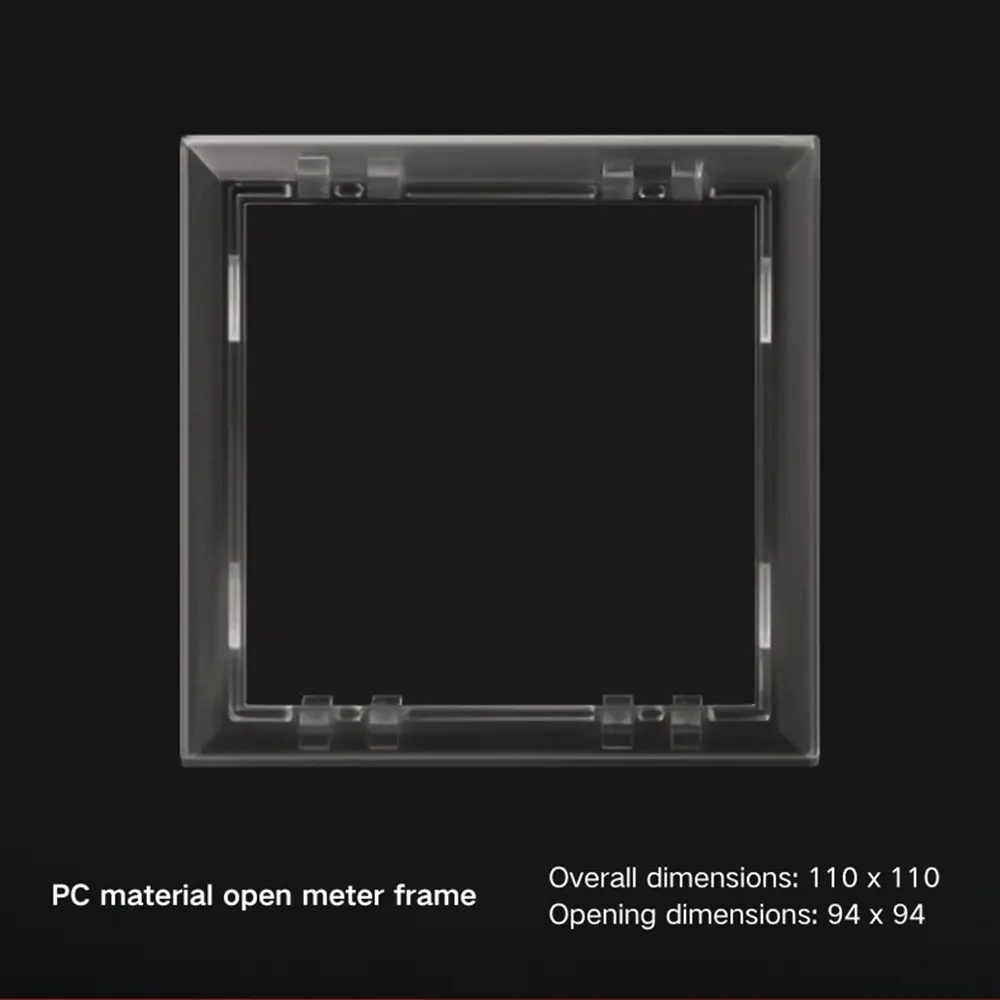

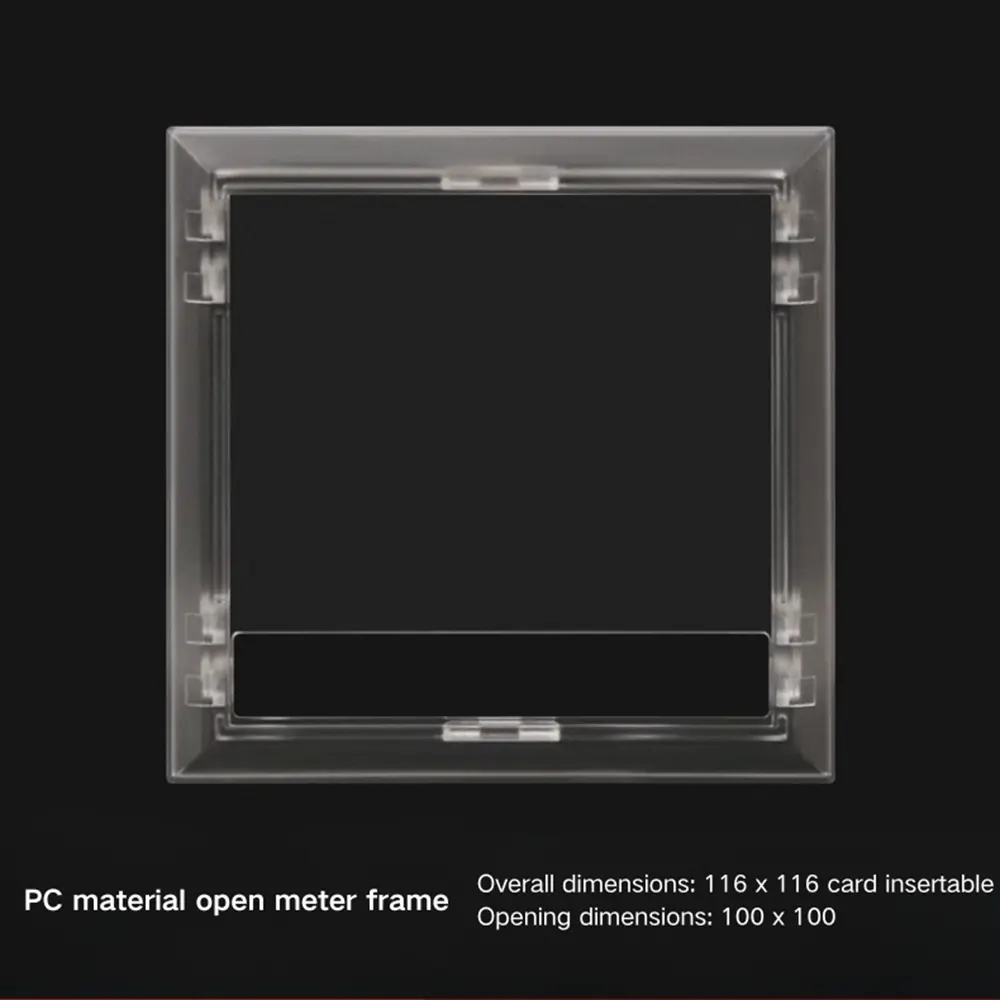

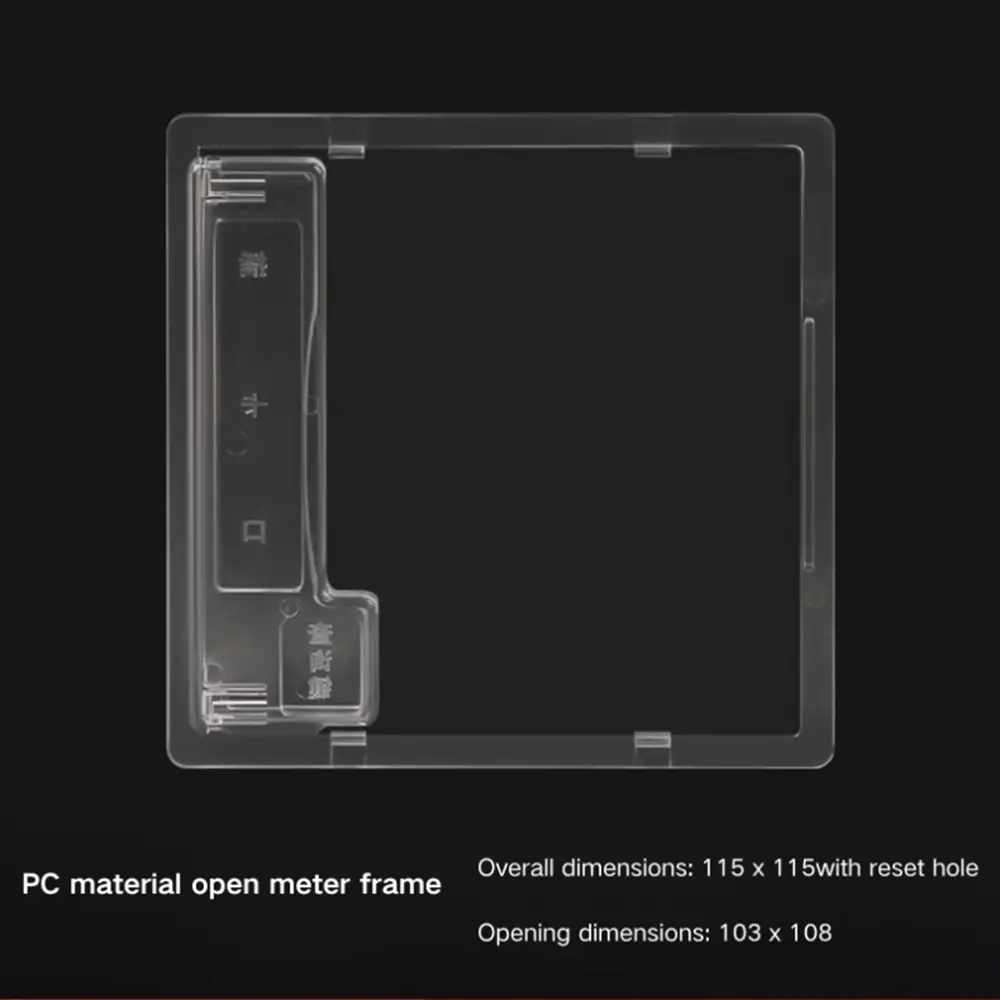

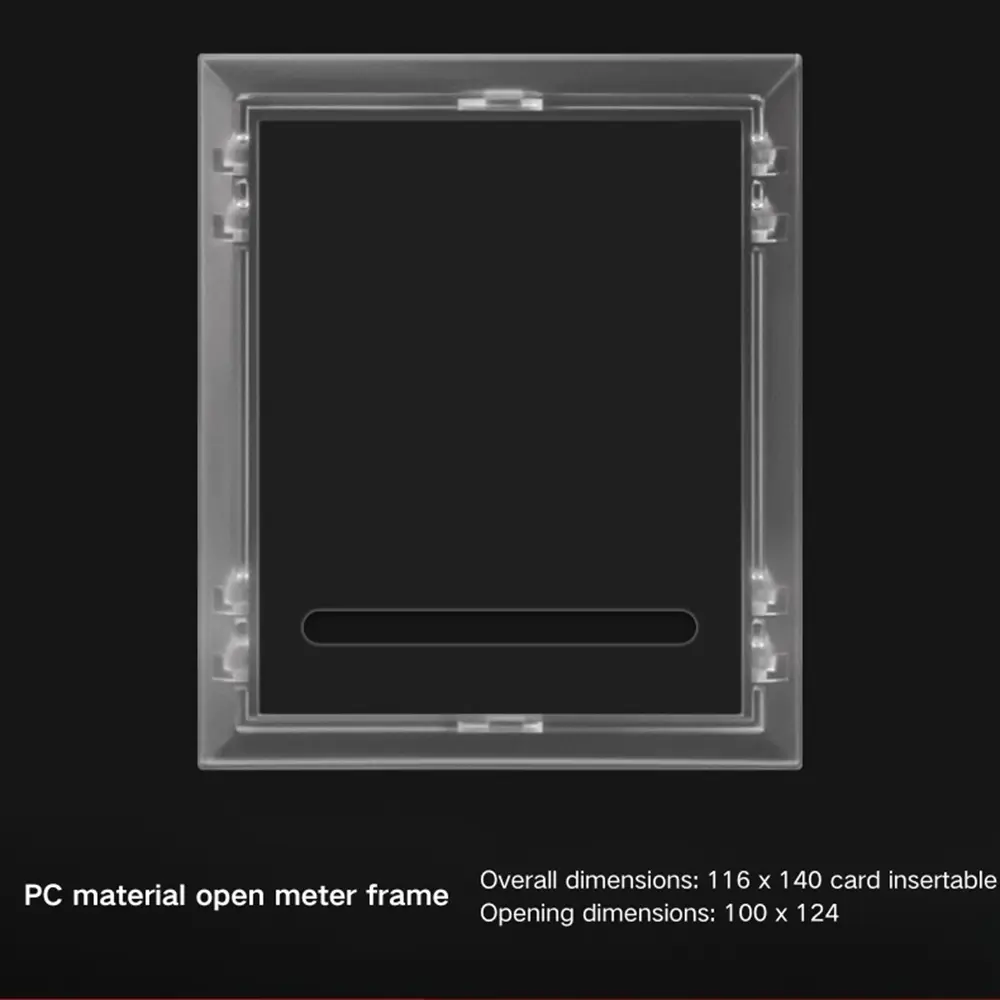

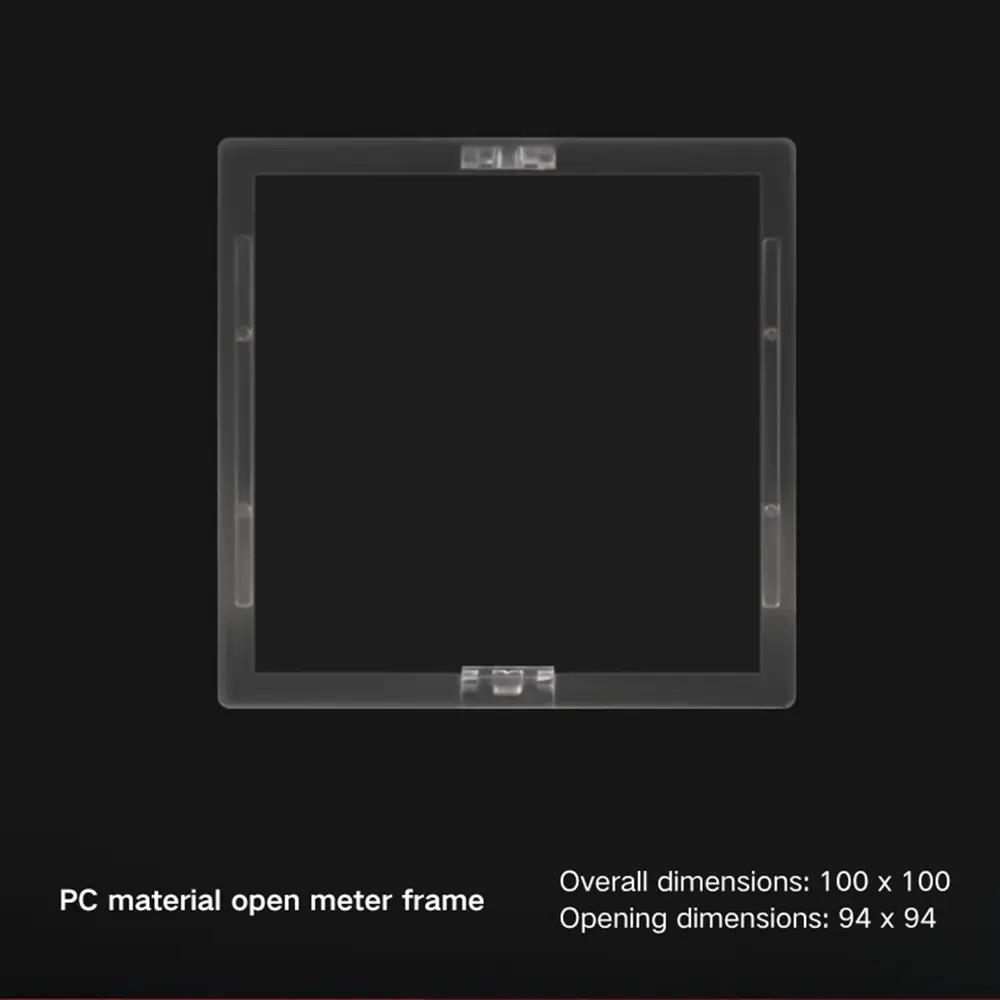

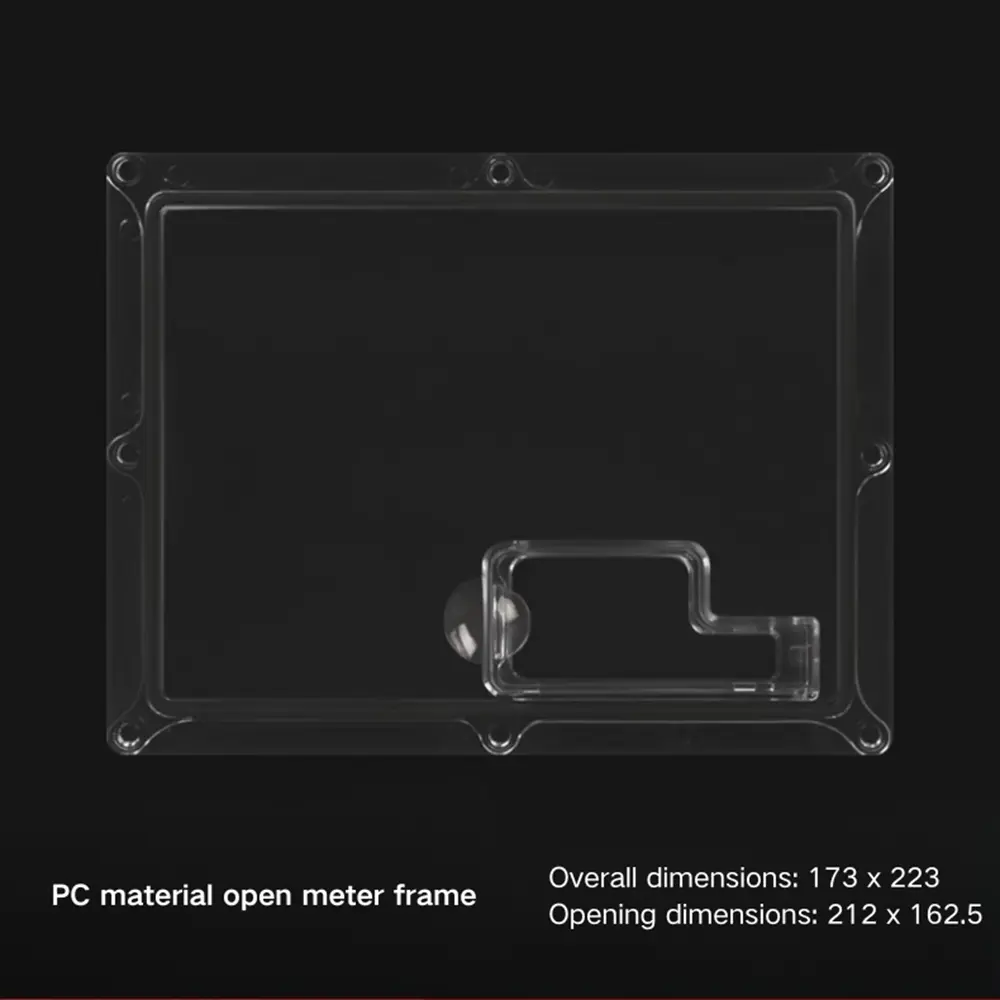

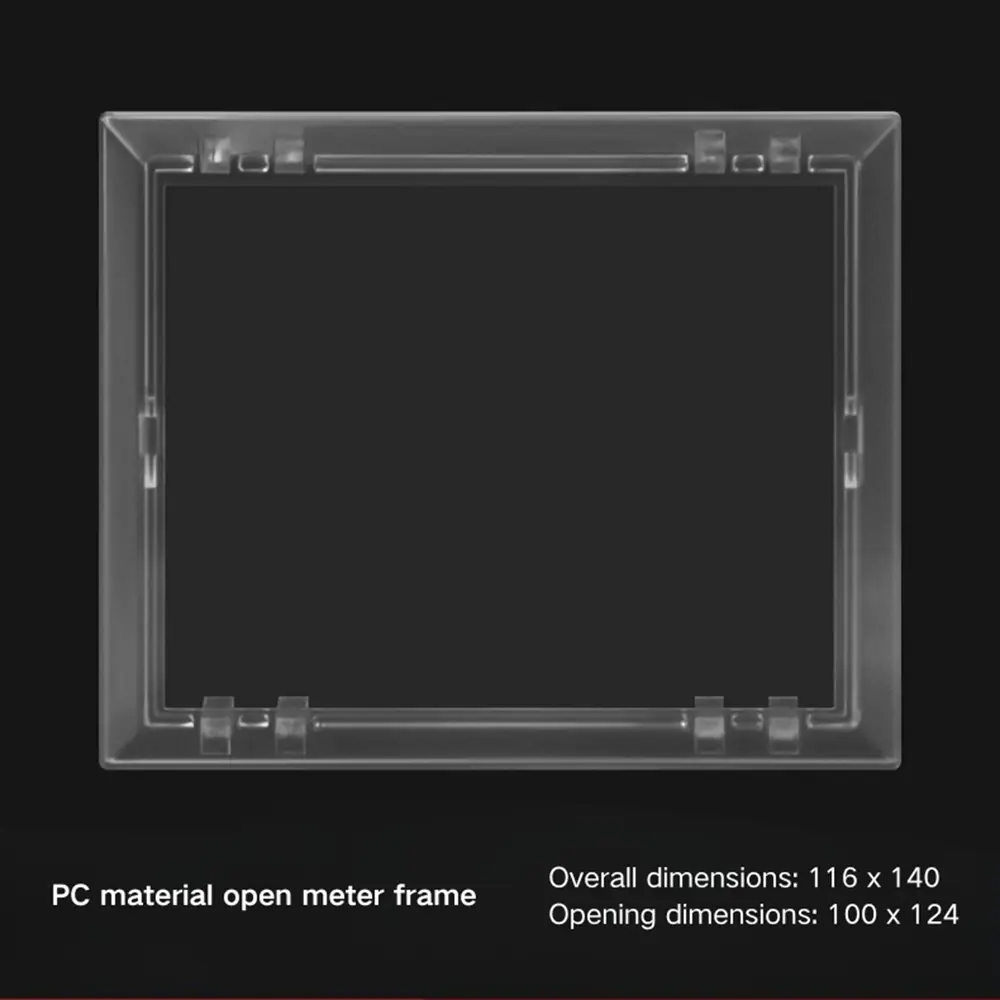

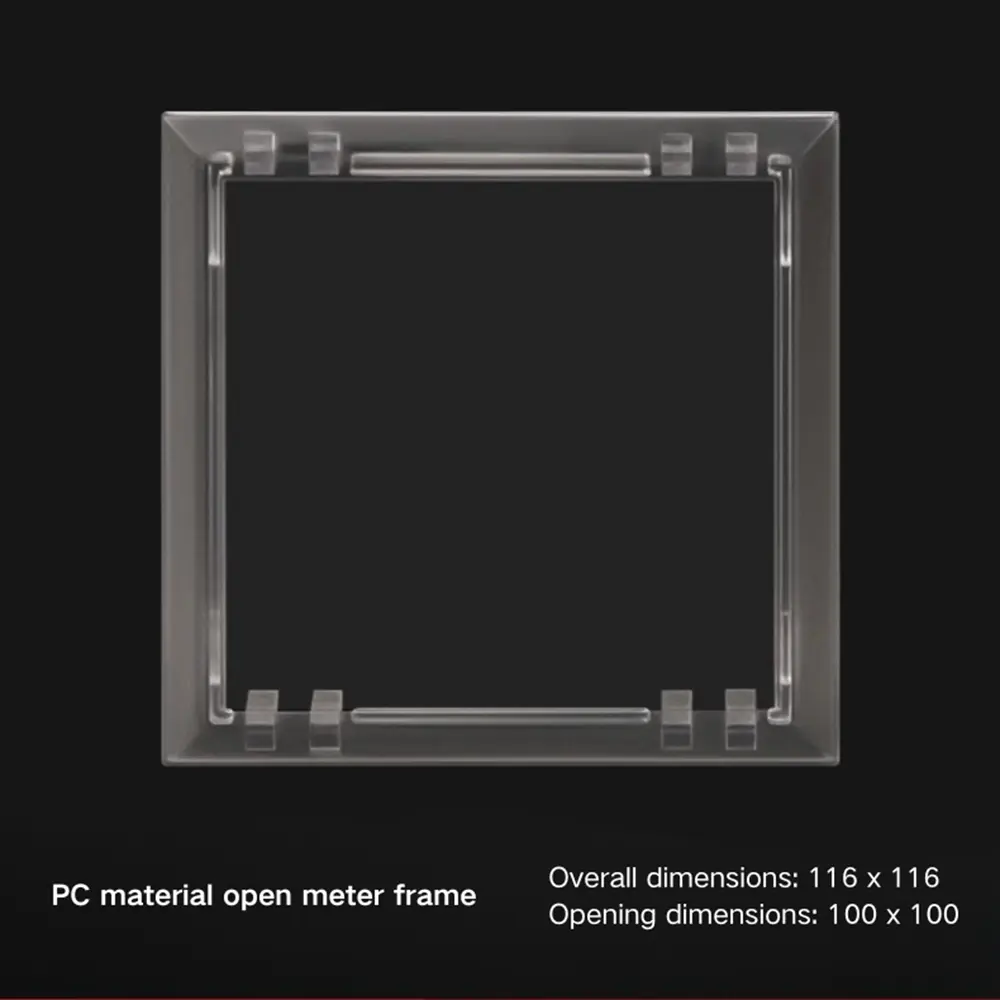

PC observation frame: 115*115,116*116,116*140,116*156,116*216,118*118,118*138,120*130,120*155,122*150,128*128,130*130,135*135,140*155,140*180,150*185,154*168173*223

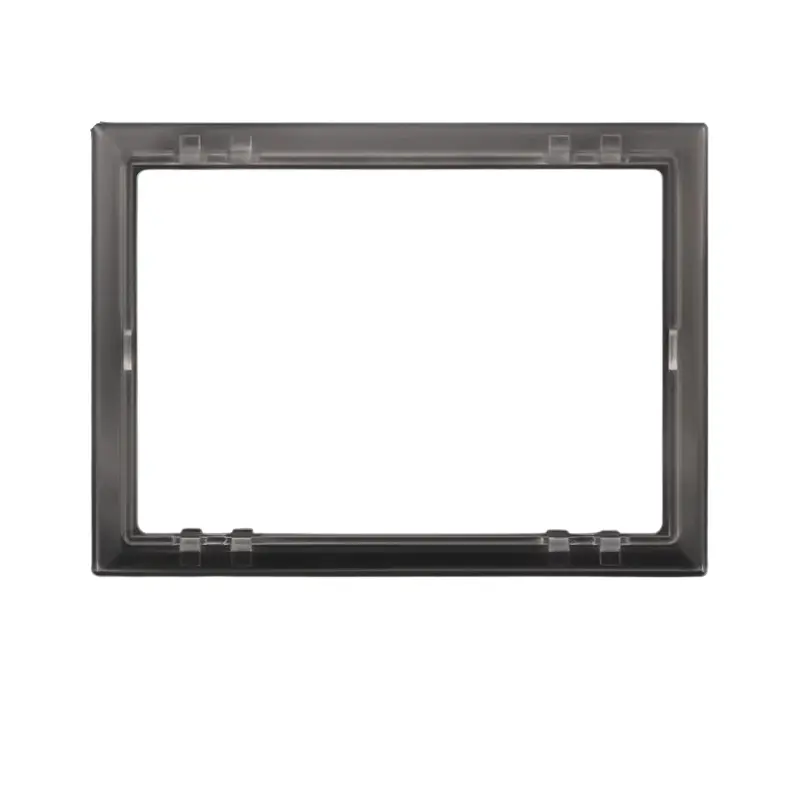

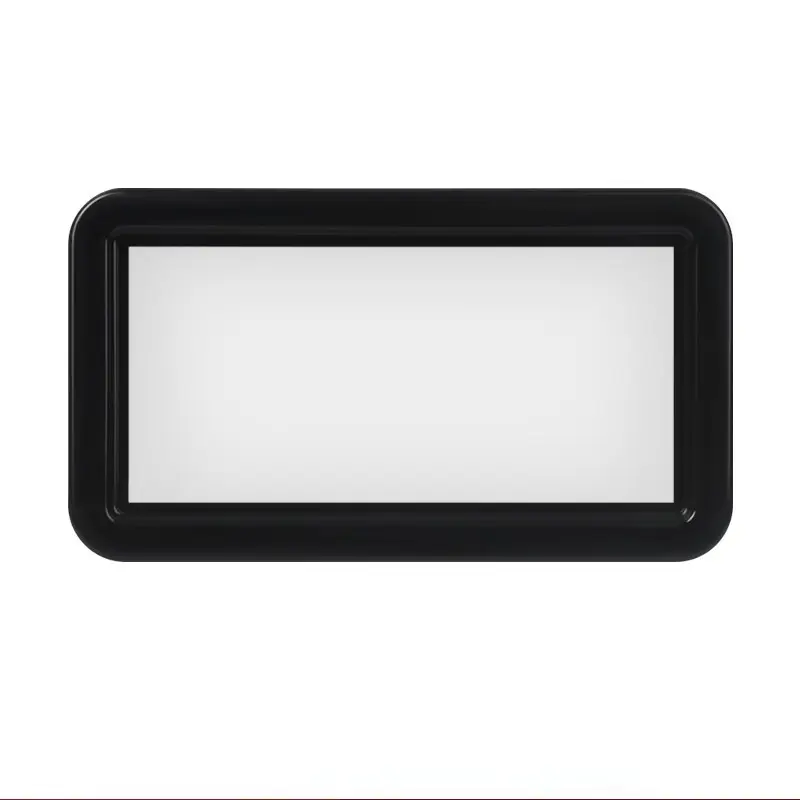

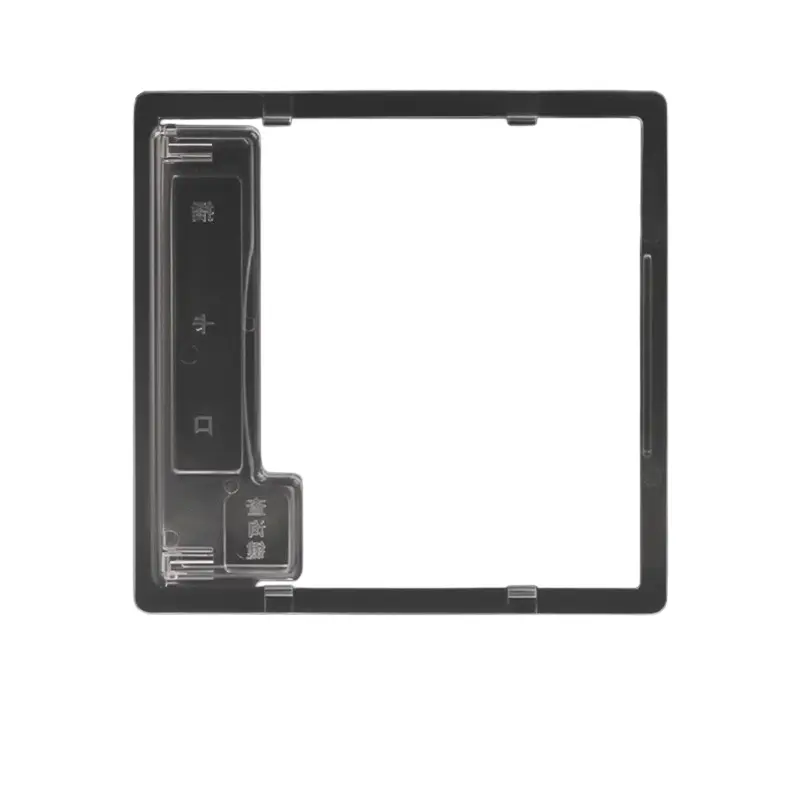

High Voltage Cabinet Observation Window:130*230,150*230

FAQ

Q: What is the main function of the meter viewing panel of the high-voltage cabinet?

A: It is used to safely observe the operation status of the equipment inside the high-voltage cabinet (e.g. circuit breaker opening and closing position), and at the same time to ensure that the operator is isolated from the electrically charged parts.

Q: How high voltage level can the meter viewing panel withstand?

A: Standard products withstand voltage levels of 10-35kV, special design can meet the needs of higher voltage (need to provide specific advice).

Q: Do I need to replace the meter viewing panel immediately if it is cracked?

A: It must be taken out of service and replaced immediately. Any visible cracks will reduce insulation and explosion safety.

Q：What do I need to pay attention to when installing?

A:Make sure that the sealing strip is intact, the torque of the fastening bolts is in accordance with the standard, and the pressure resistance test is required after installation.

Q:How can I tell that the meter viewing panel needs to be replaced?

A:When there are obvious scratches/yellowing/loss of light transmission >30%, aging and cracking of sealing strips, or regular testing of insulation performance is not up to standard.
