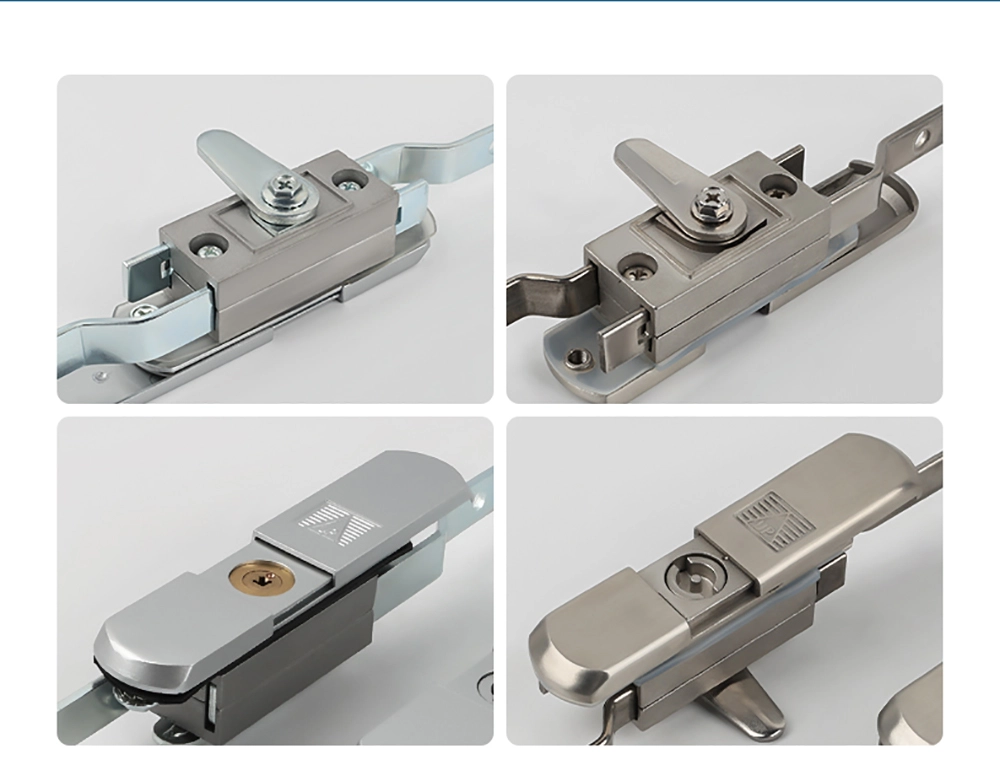

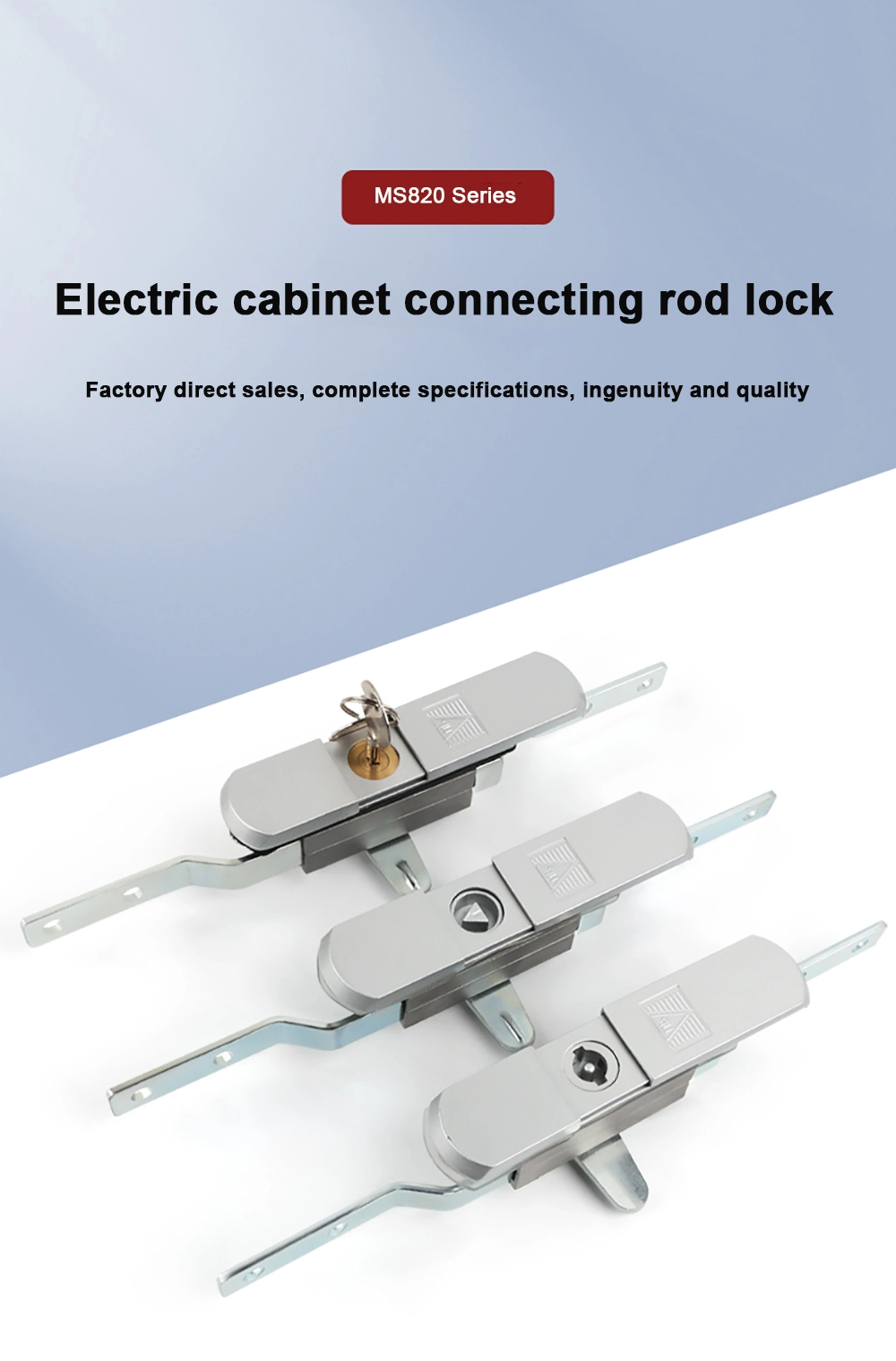

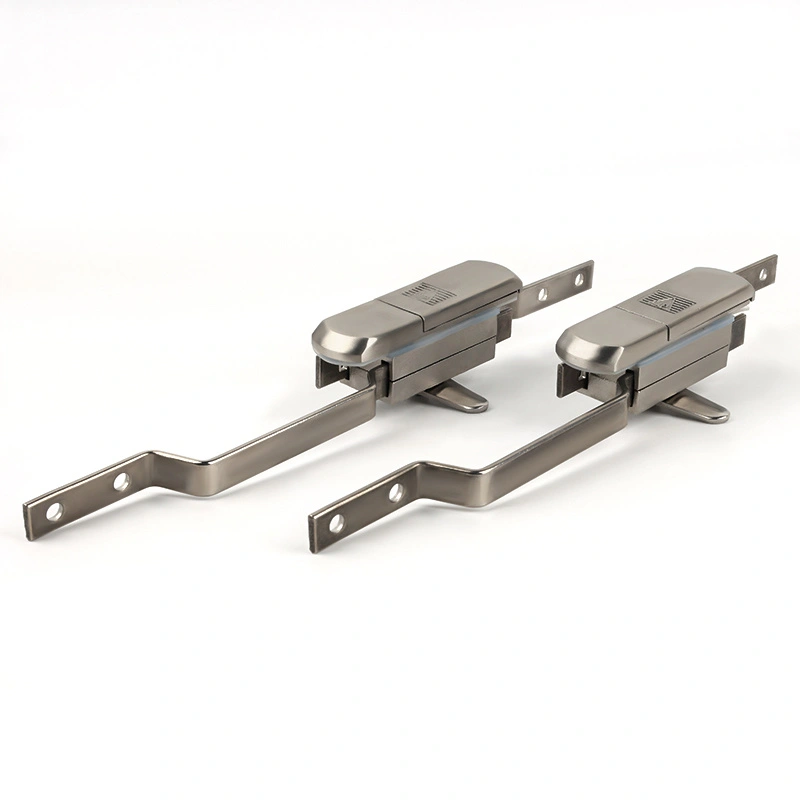

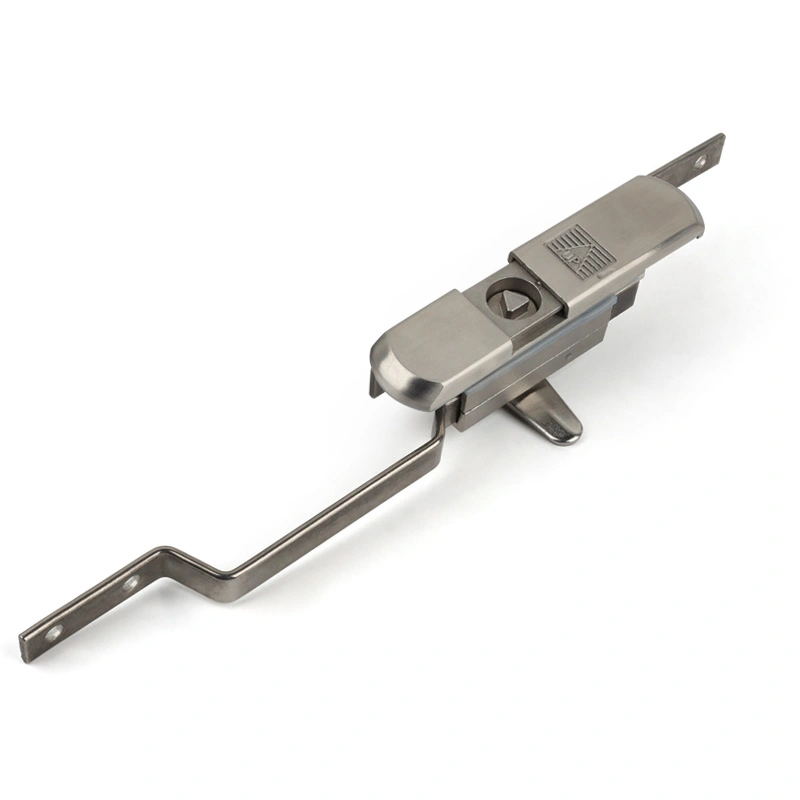

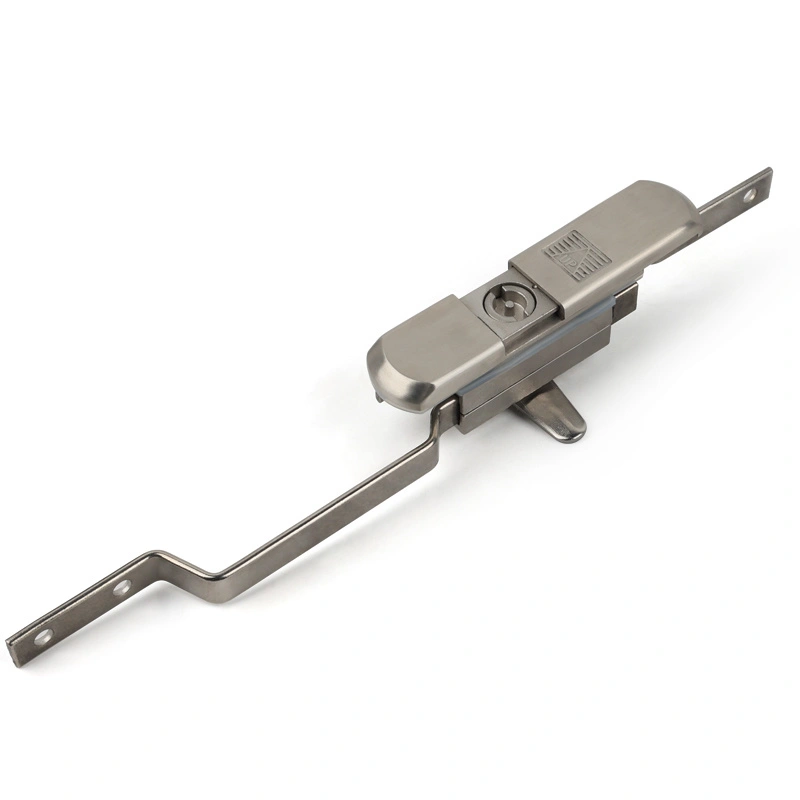

Stainless Steel Connecting Rod Lock

Advanced locking mechanisms from Yitai Lock prevent unauthorized access effectively. Its structural design balances durability and vandal resistance, supporting flexible installation methods and compatibility with standard cabinet bodies.

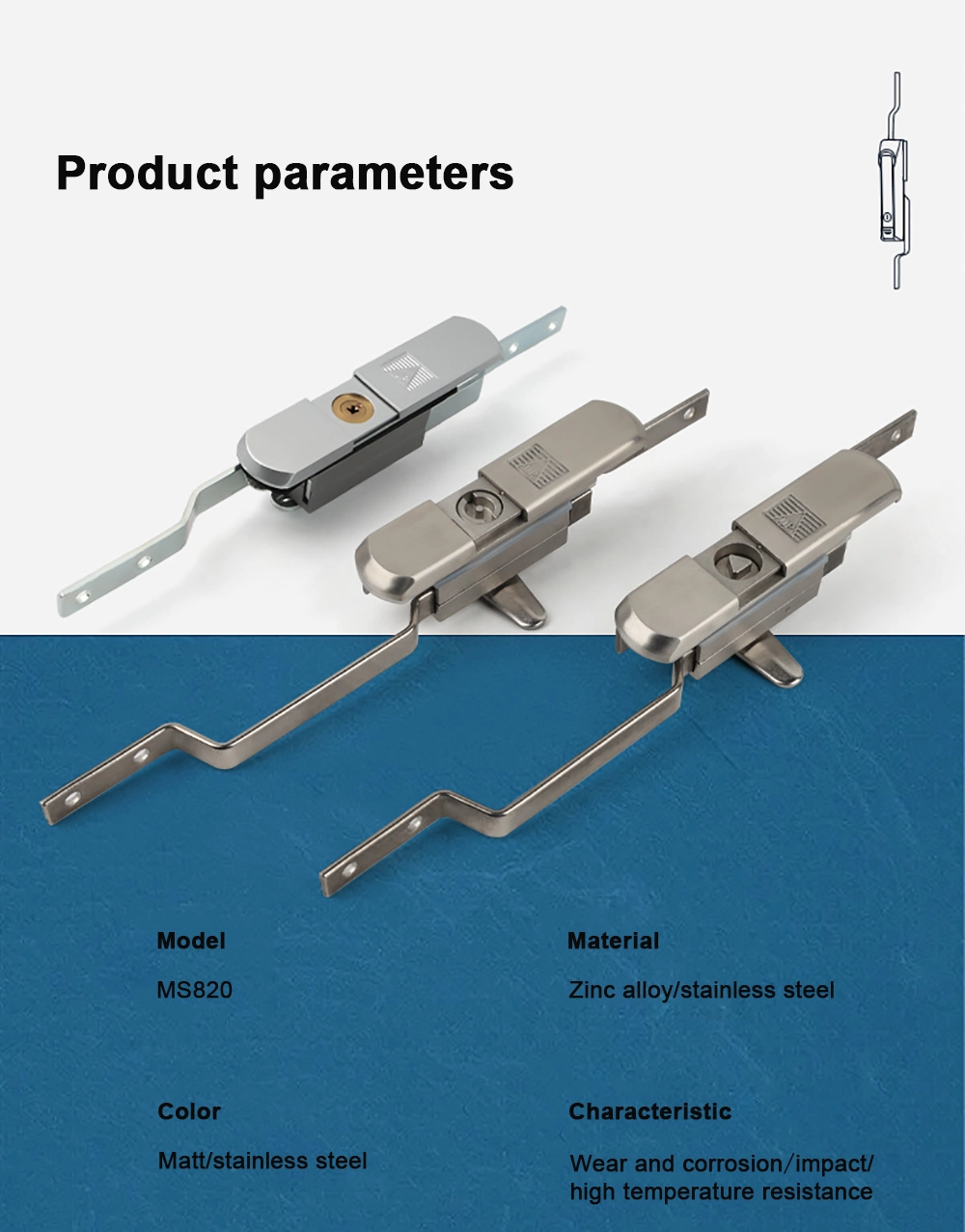

Materials and Colors

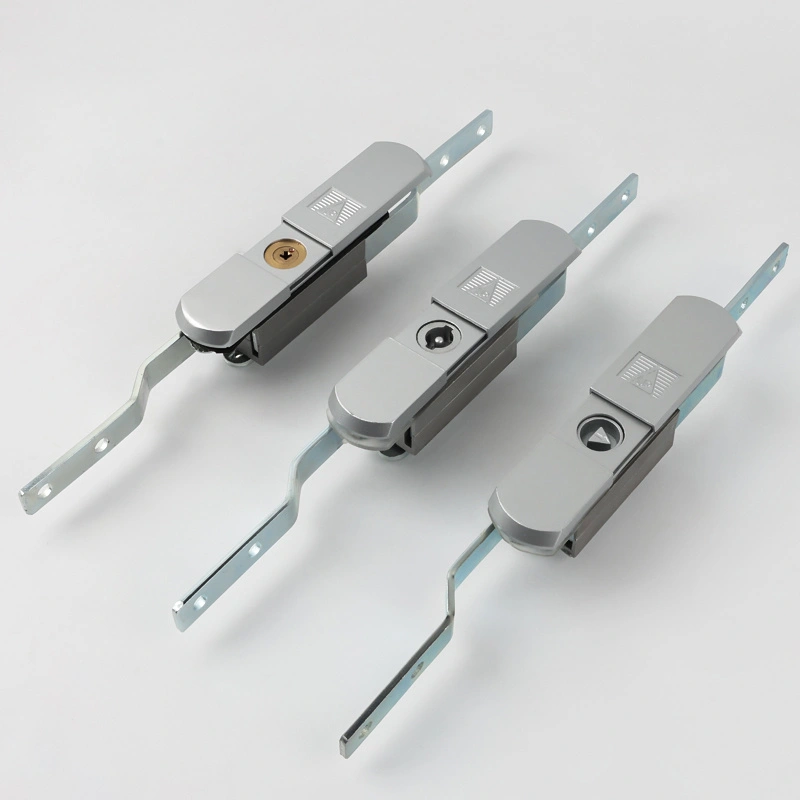

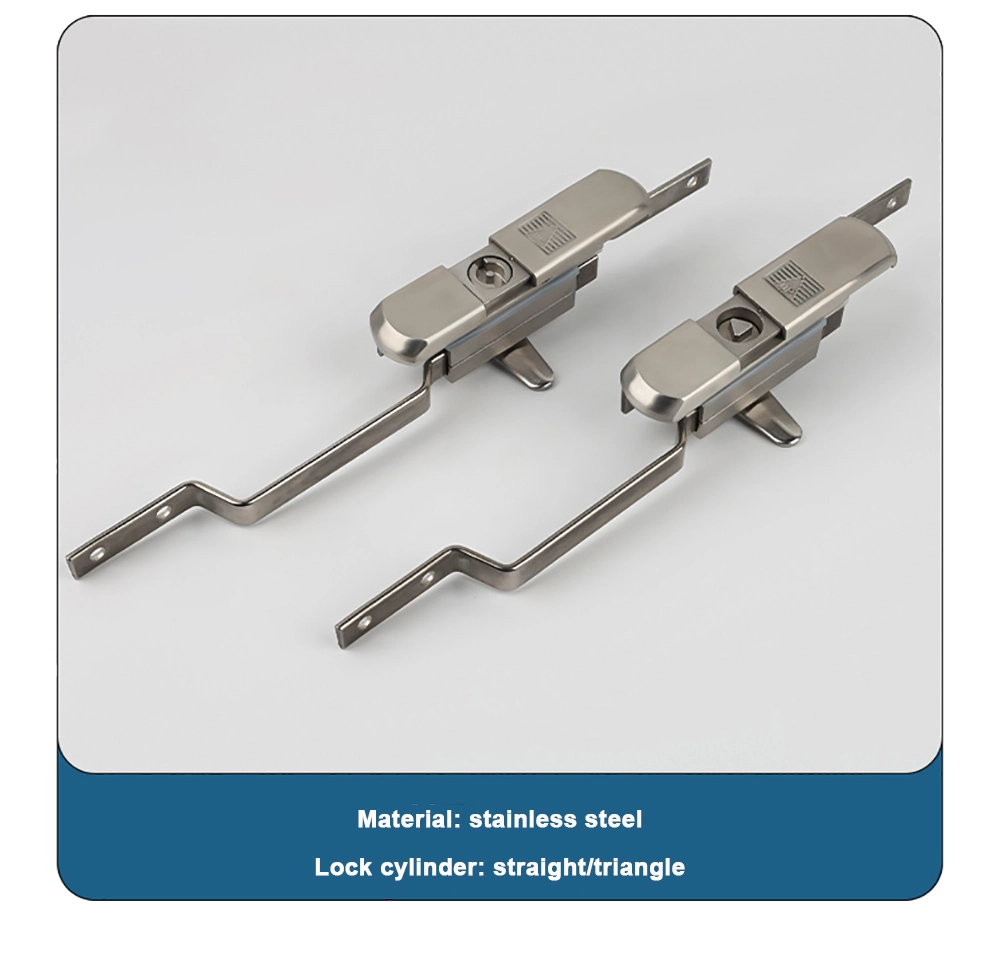

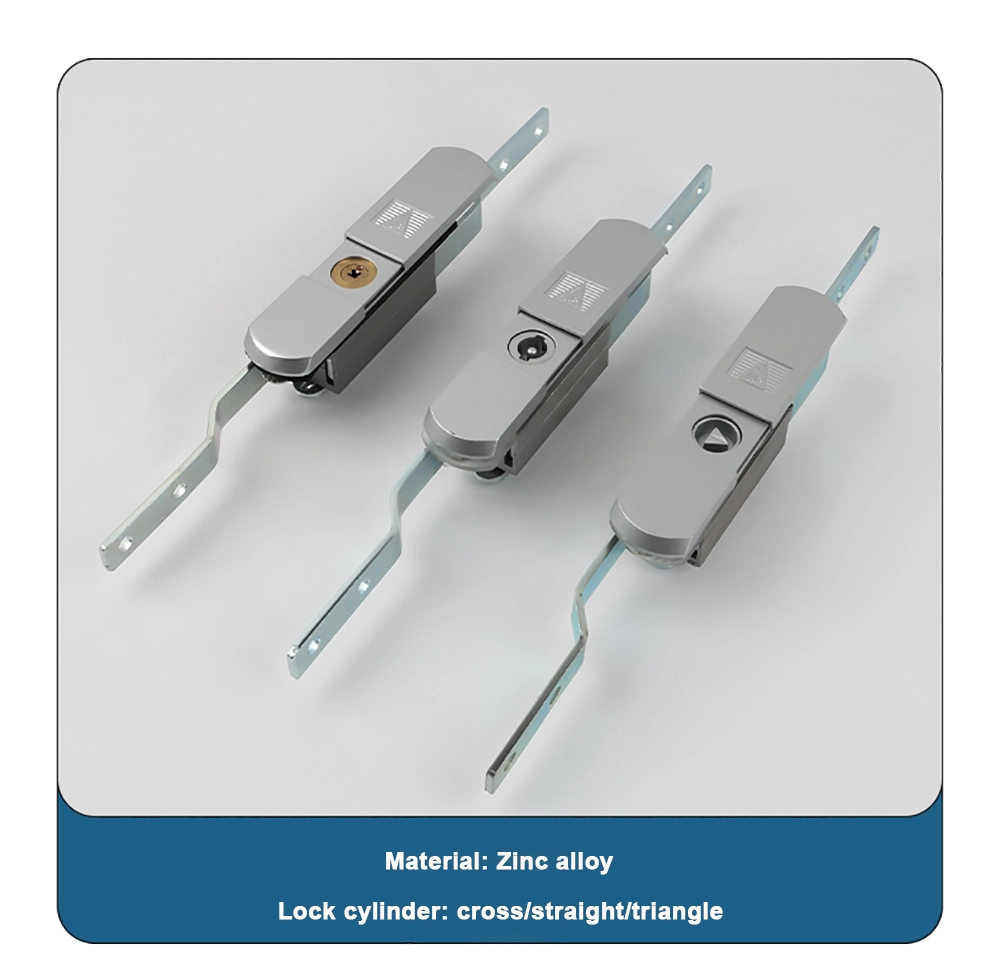

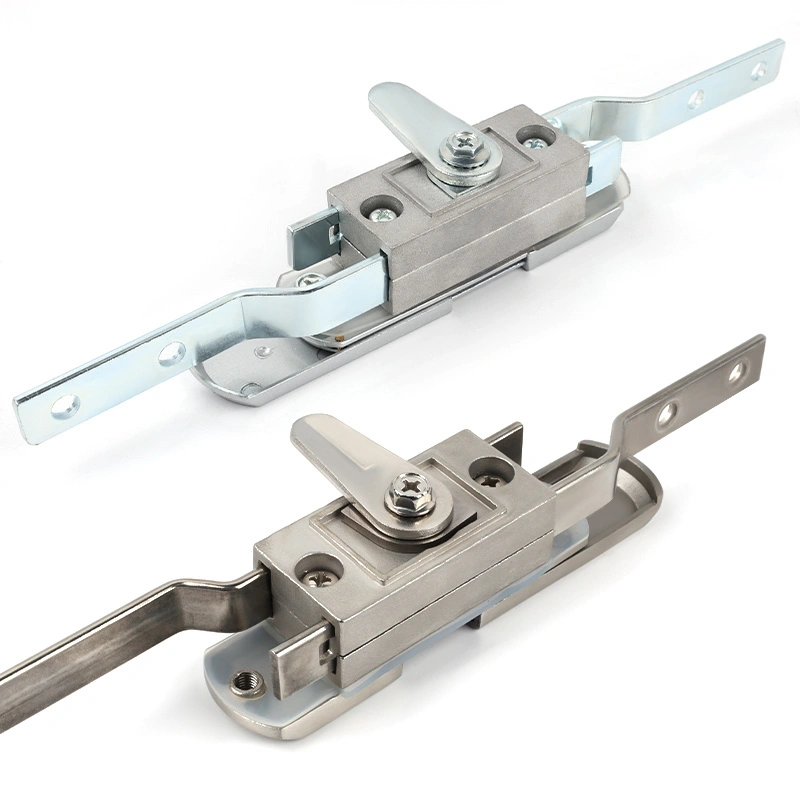

The materials available are zinc alloy and stainless steel. Zinc alloy offers high strength and is suitable for industrial environments. Stainless steel is more suitable for humid, outdoor, or highly corrosive environments. Both materials offer flat-head pin tumbler lock cylinders and triangular key lock cylinders. Zinc alloy models additionally offer cross keys.

Functionality

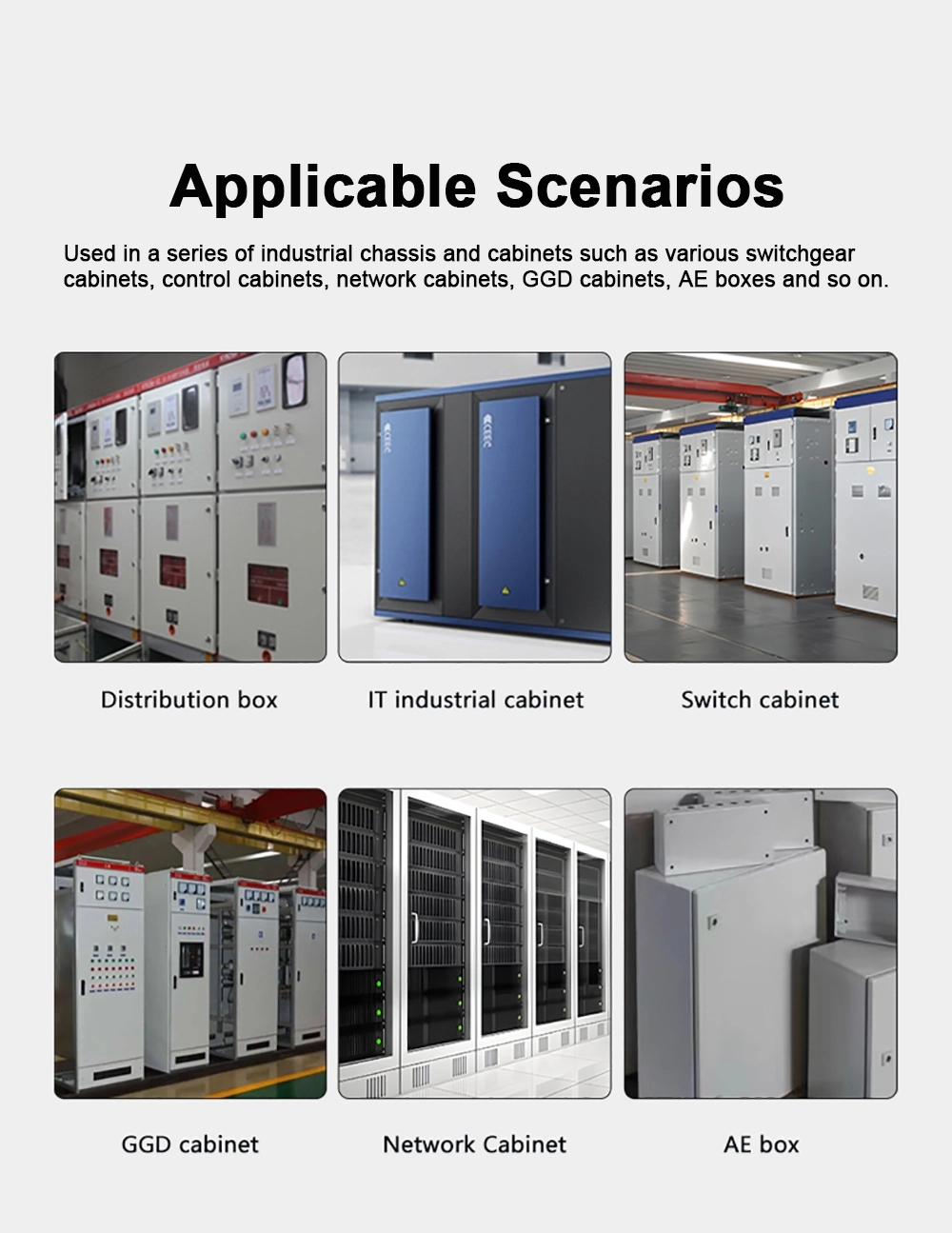

The function of this lock is to secure cabinet doors via a vertical rod mechanism, providing comprehensive protection for electrical cabinets or server racks. The product design is compatible with Rittal cabinets and standard cabinet bodies, and installation does not affect the door structure. The lock body features a dust cover for simplified maintenance.

Installation and Maintenance

Before installation, please confirm the thickness of the cabinet door and the length of the connecting rod, and tighten the screws to prevent the lock body from tilting. Regularly check the connecting rod hinge and add a small amount of grease. If deformation of the connecting rod or wear of the lock cylinder is discovered after long-term use, the components must be replaced promptly.

FAQ

1.Q: Is the stainless steel model suitable for coastal salt fog environments?

A: Stainless steel has excellent salt fog resistance and is an ideal choice for coastal areas, but it is recommended to rinse the surface regularly with clean water to remove salt deposits.

2.Q: Does installation require modification of the existing cabinet?

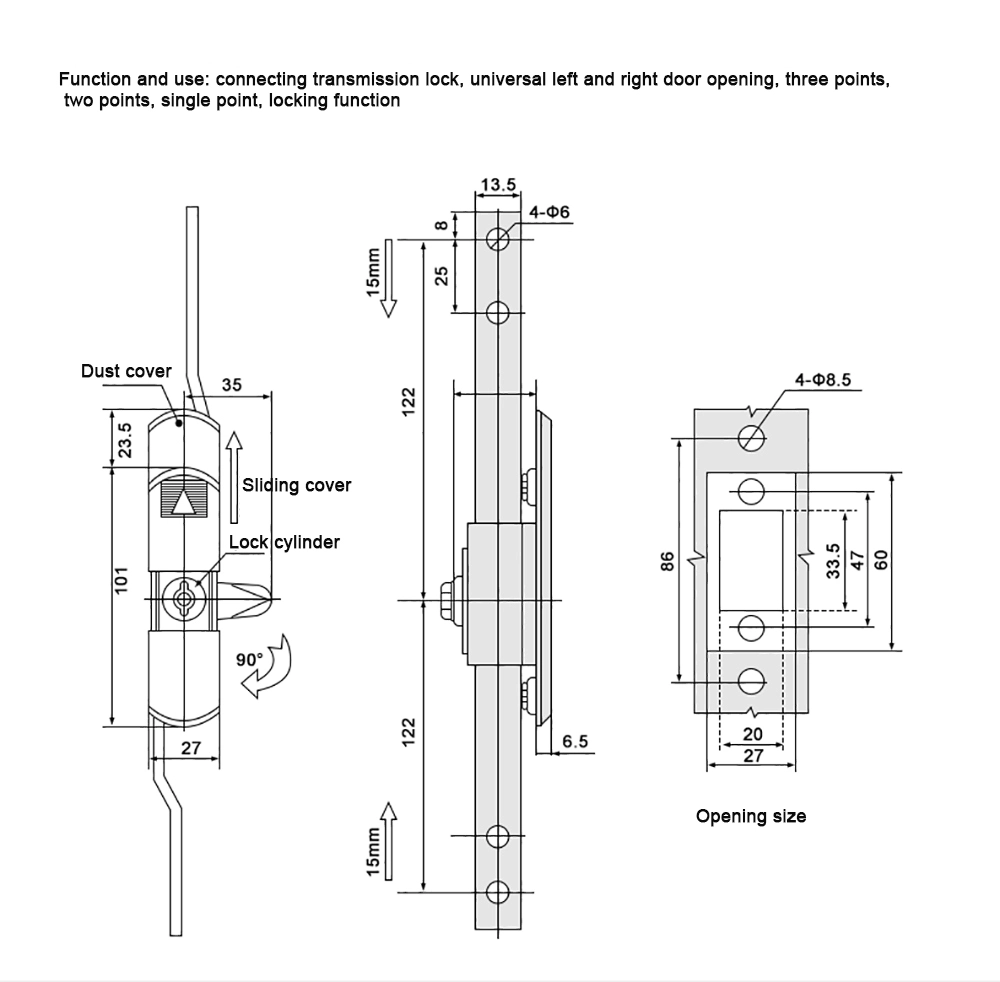

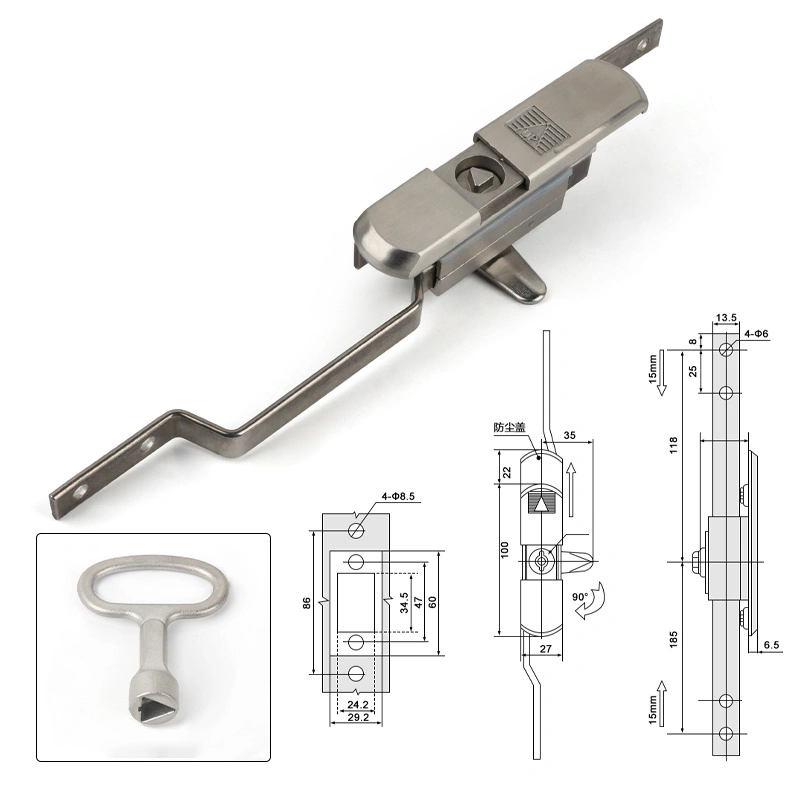

A: Standard mounting holes are compatible with most cabinets, but some special cabinet types may require enlarging the holes. It is recommended to compare the installation drawings first.

3.Q: What should I do if the linkage mechanism is not operating smoothly?

A: Check that all hinge points are aligned, adjust the linkage length as needed, and apply lubricant to moving parts.

4.Q:What are the advantages of a triangle key over a flat key?

A: The three-dimensional tooth pattern of a triangle key is more complex.

5.Q:What is the dustproof performance like?

A: The lock cylinder features a dustproof design.
