Our quotation for electrical cabinet hinges is very attractive.These hinges are designed for distribution boxes, industrial control cabinets and electrical equipment cabinets.

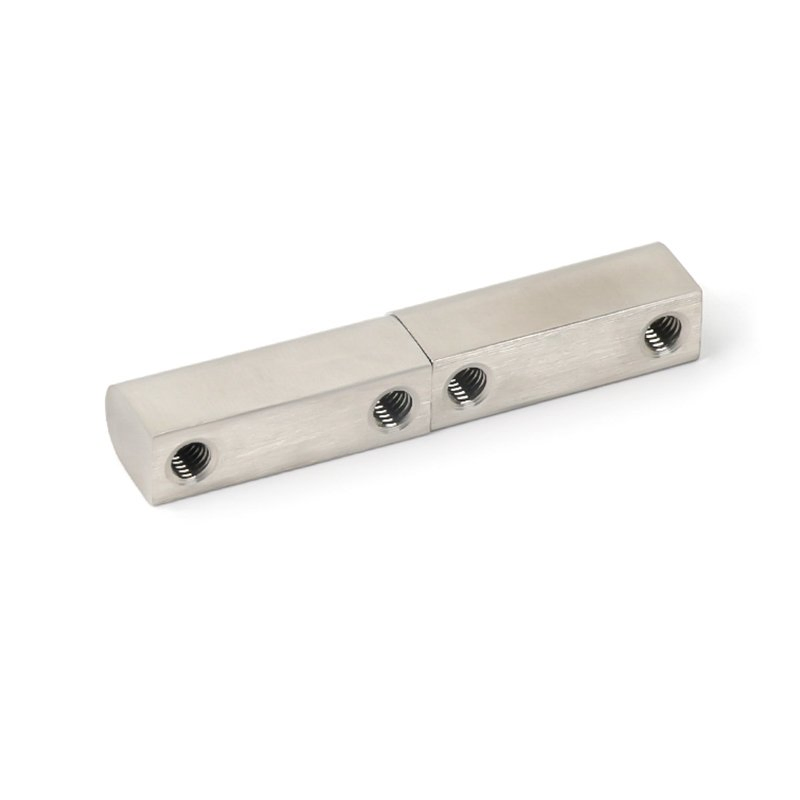

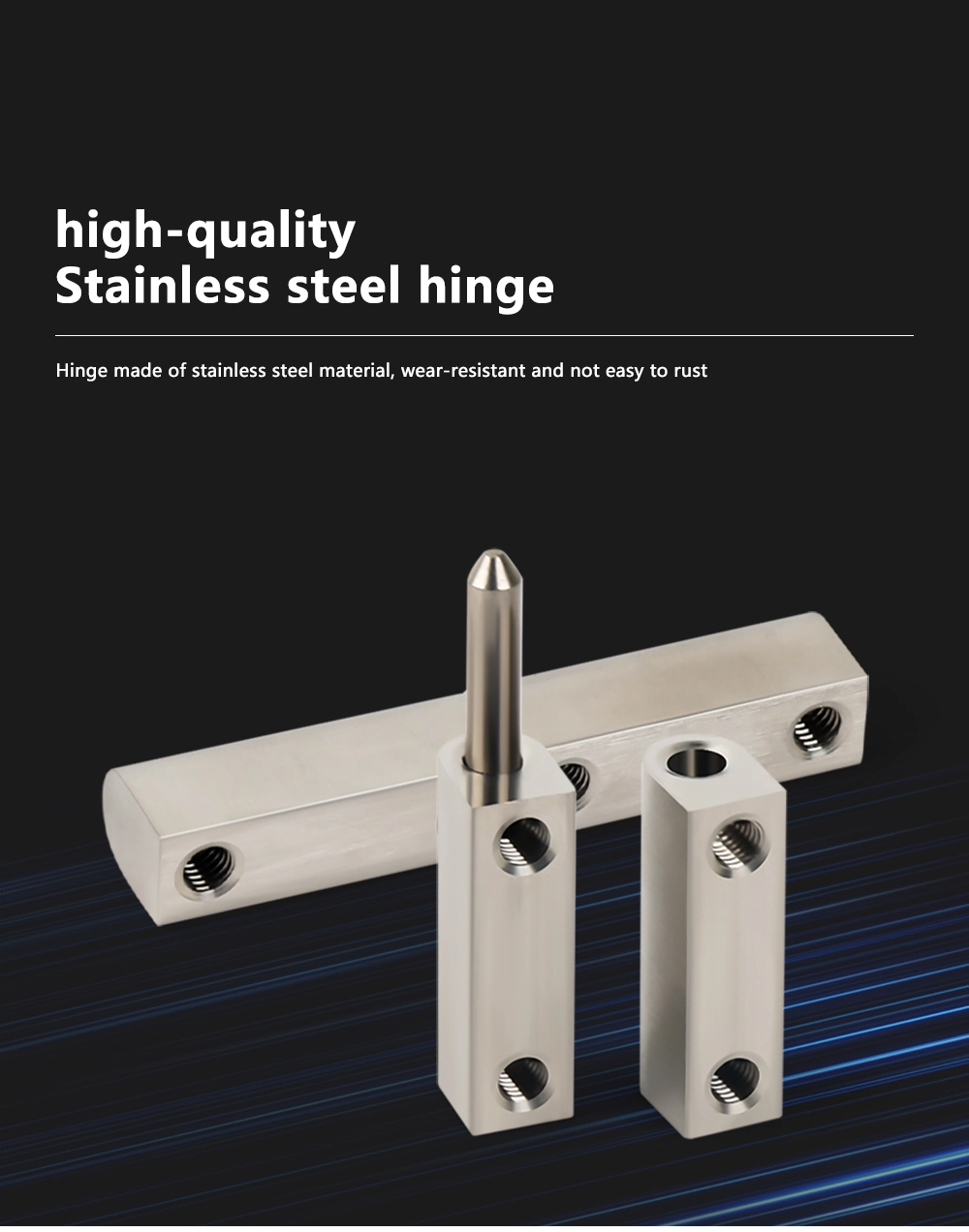

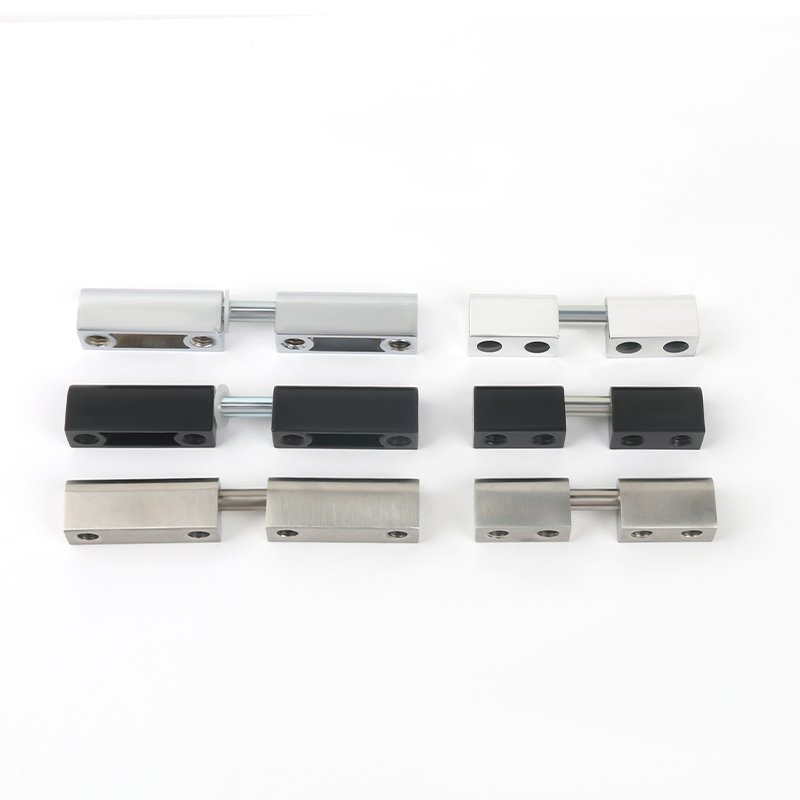

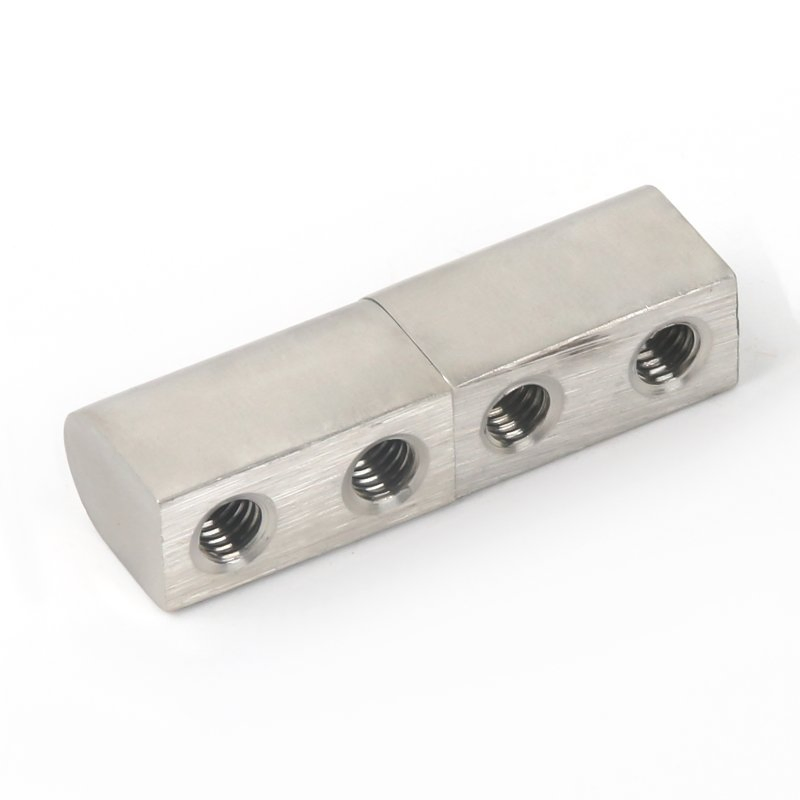

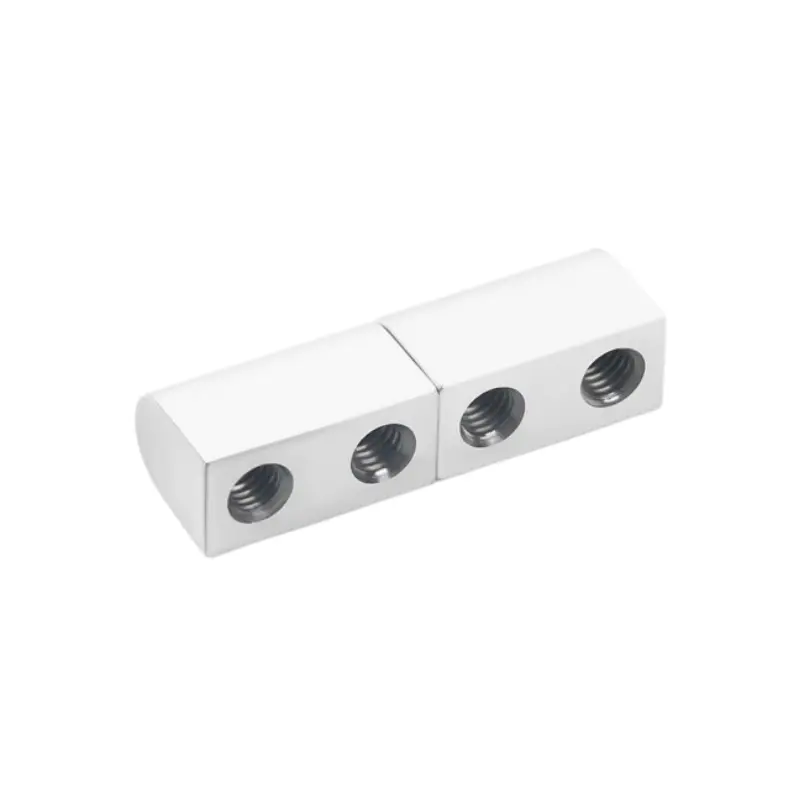

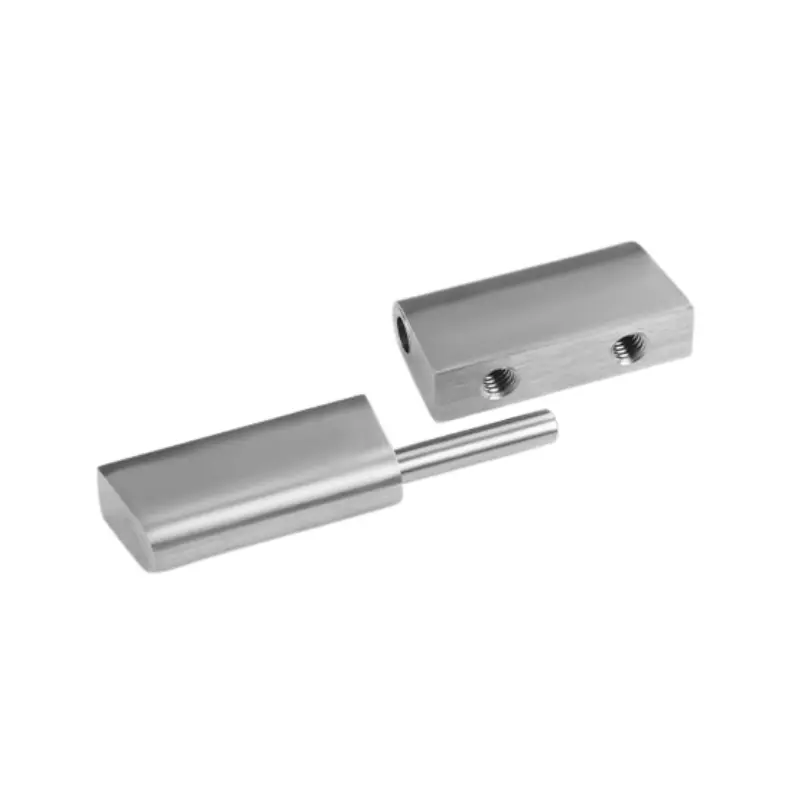

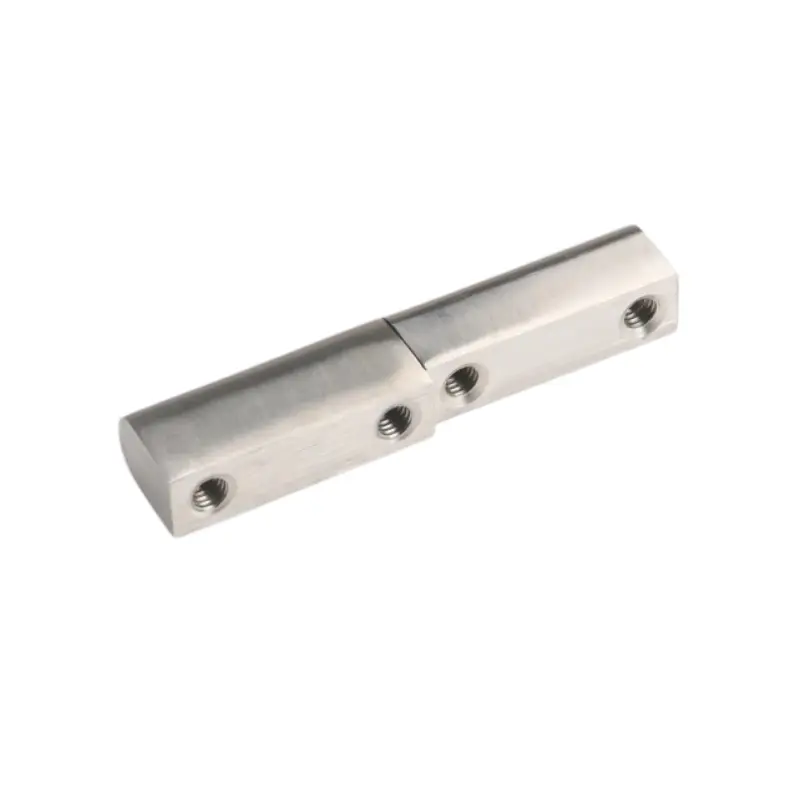

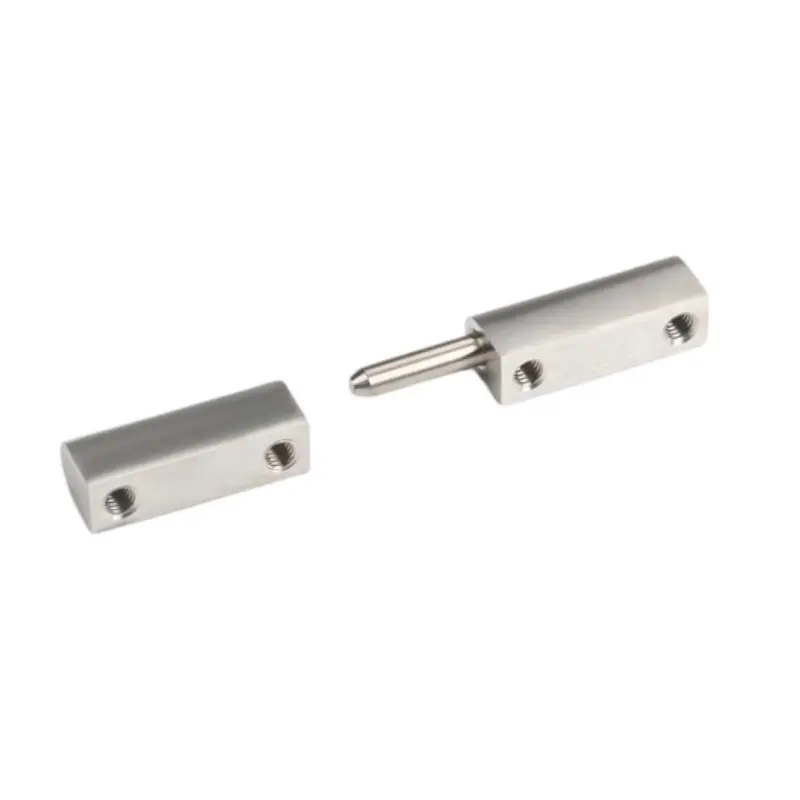

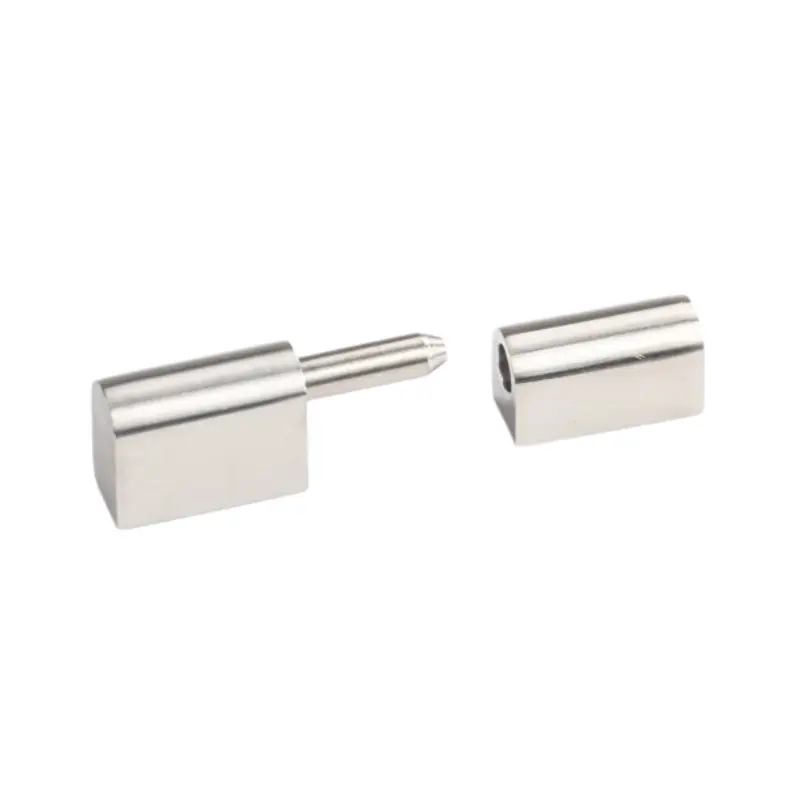

The CL204 Distribution Box Hinge is available in stainless steel and zinc alloy. Stainless steel hinges are more suitable for wet, outdoor or corrosive environments, ensuring long-term stable use; zinc alloy hinges have good strength and cost-effectiveness, and the surface is chrome-plated, which also has a certain degree of rust resistance.

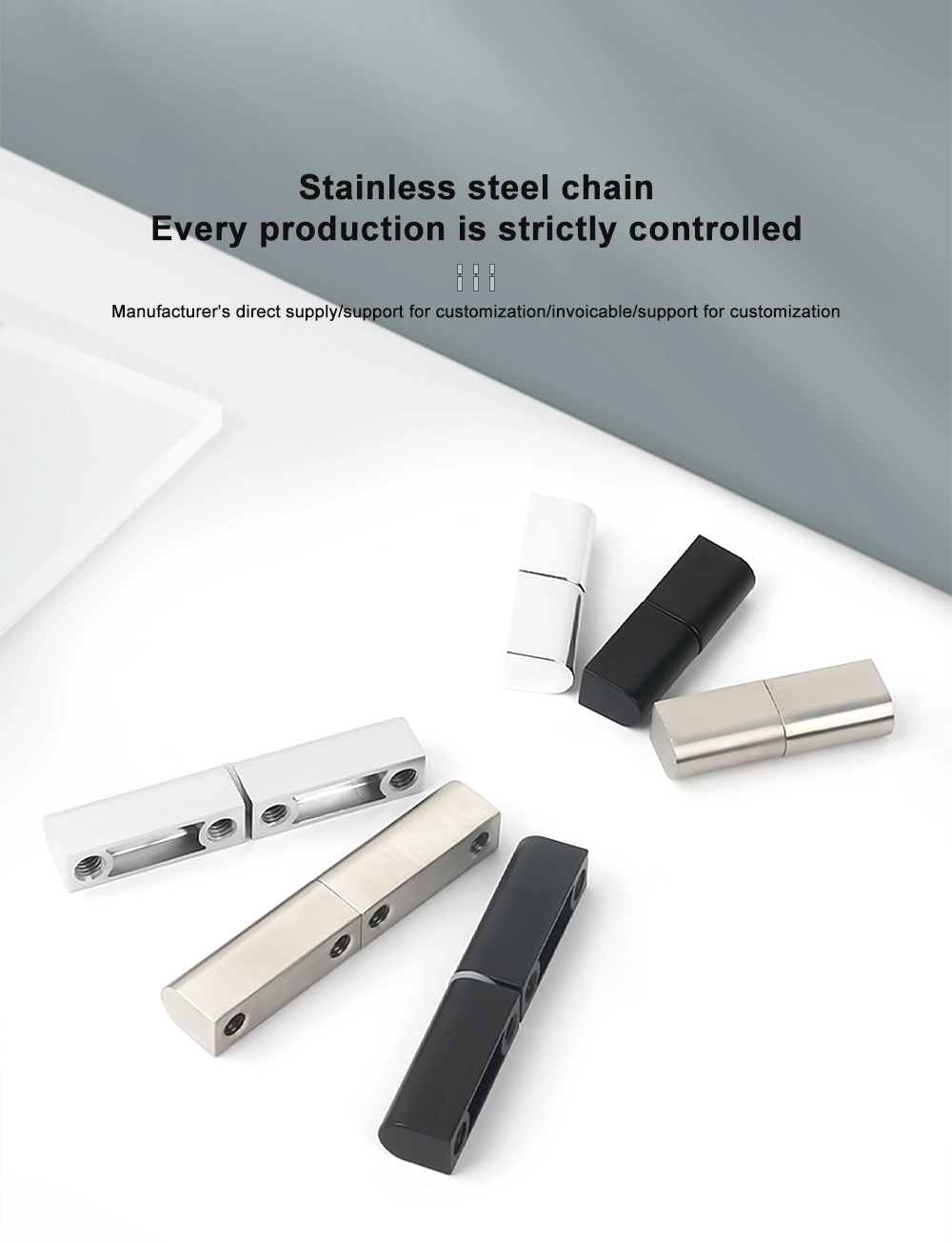

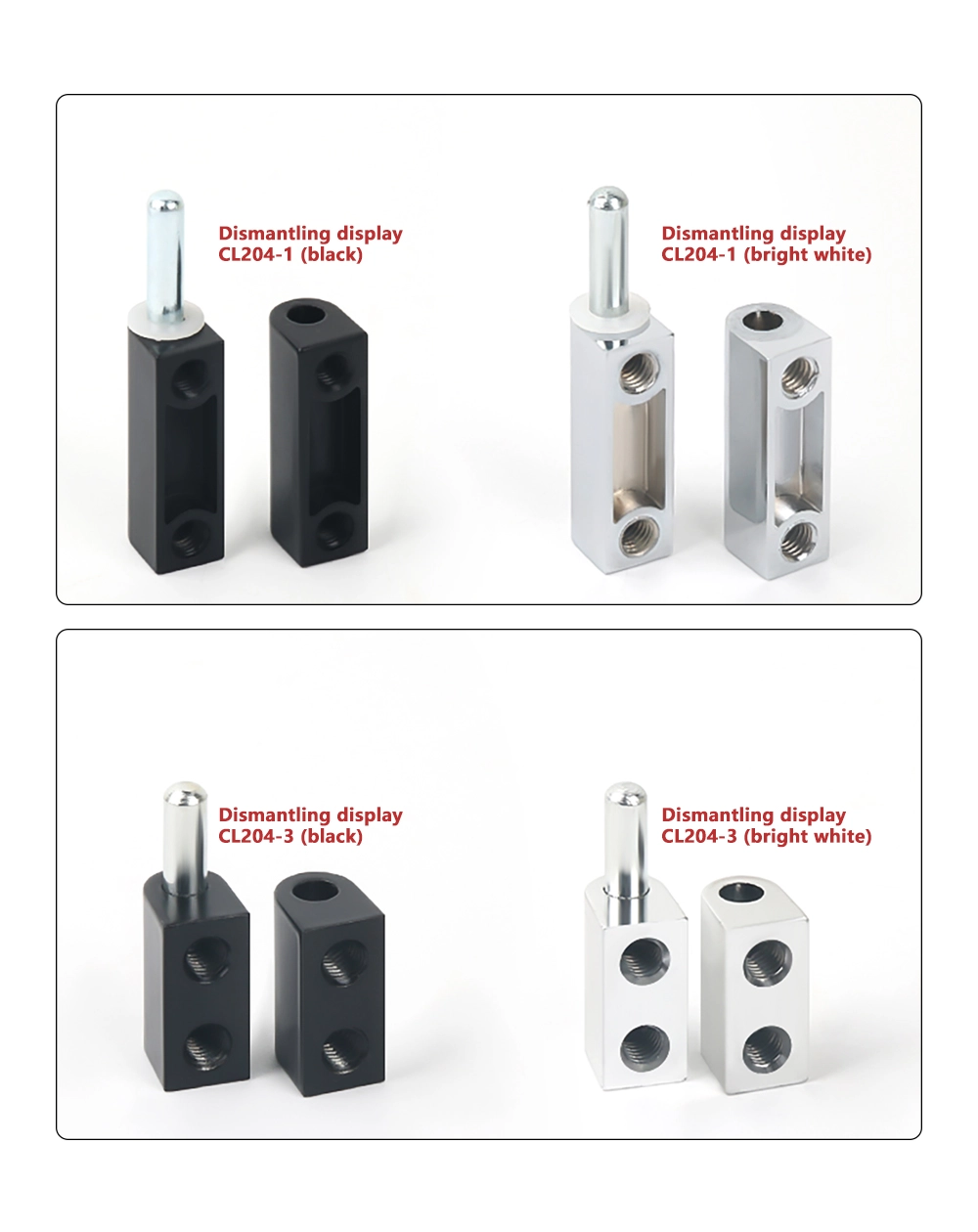

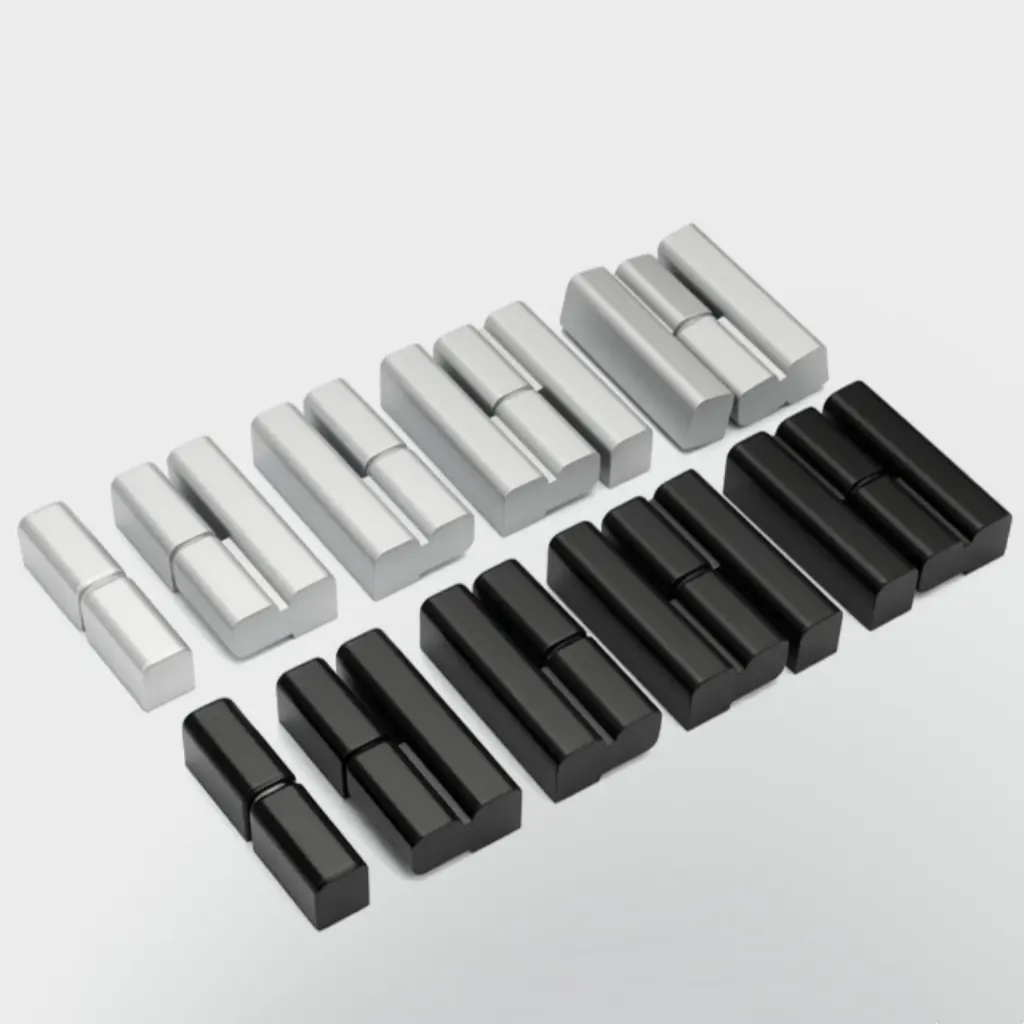

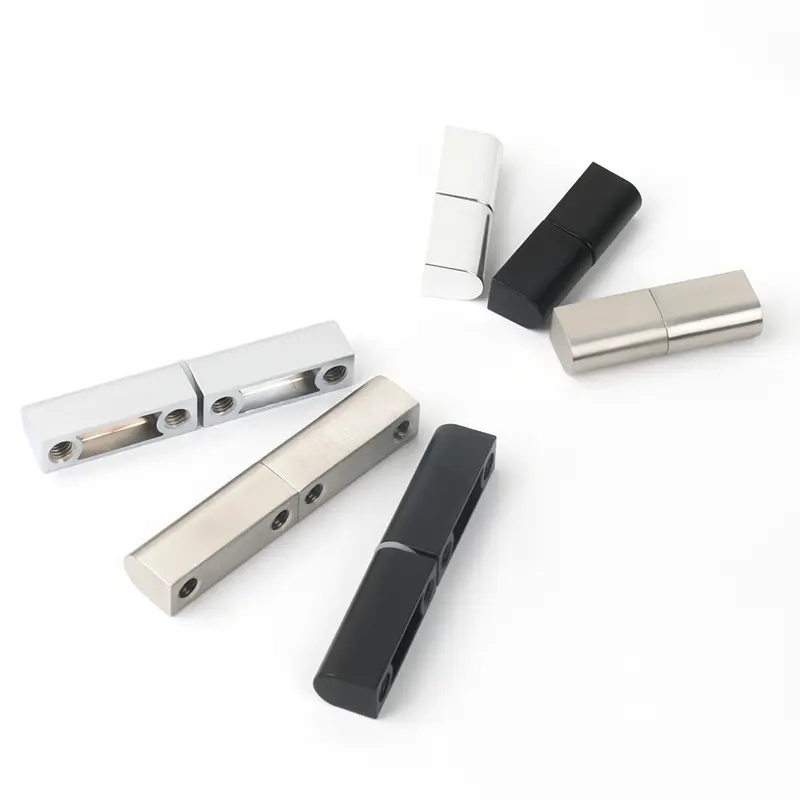

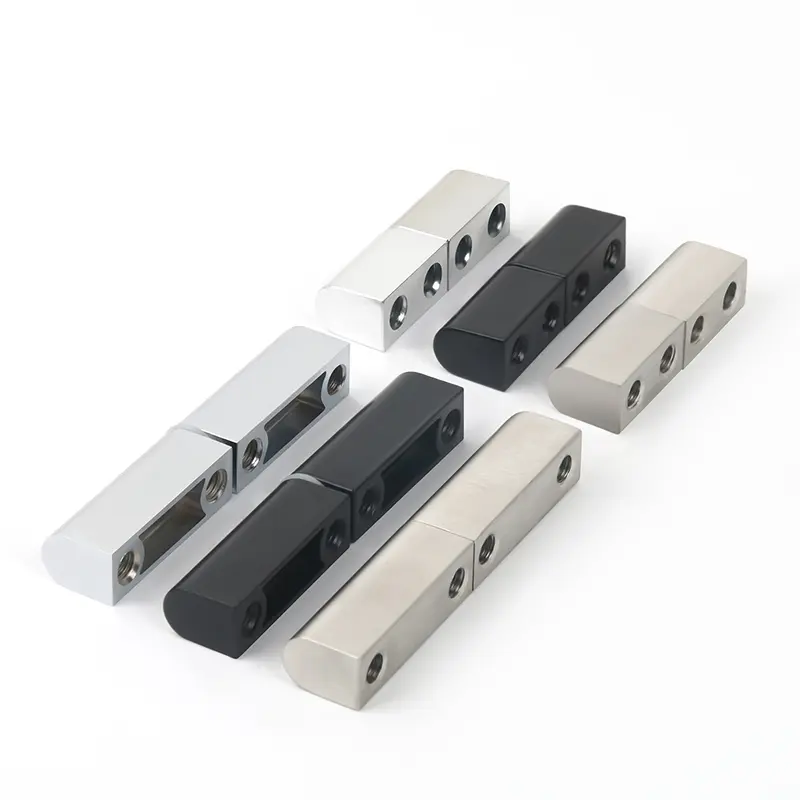

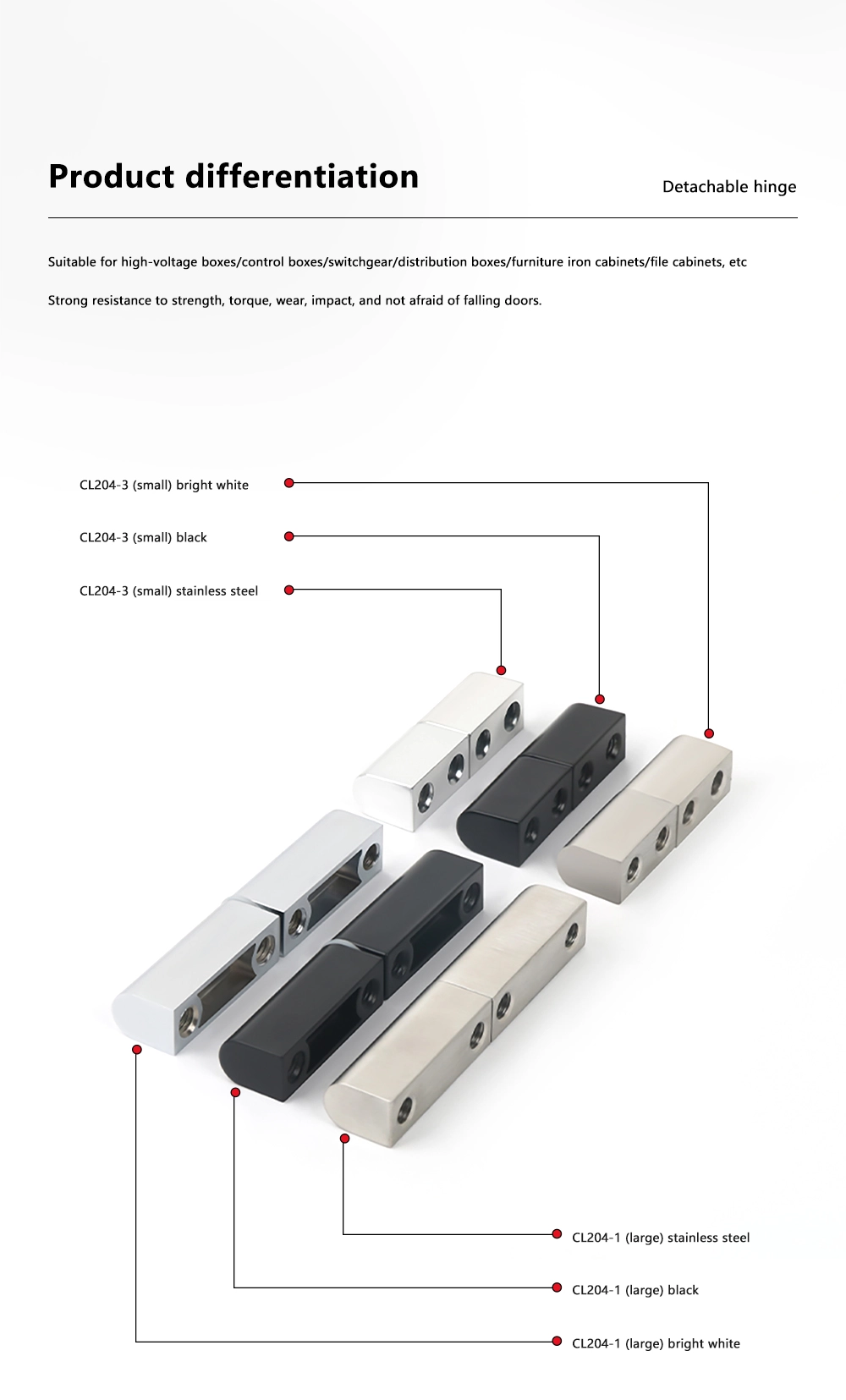

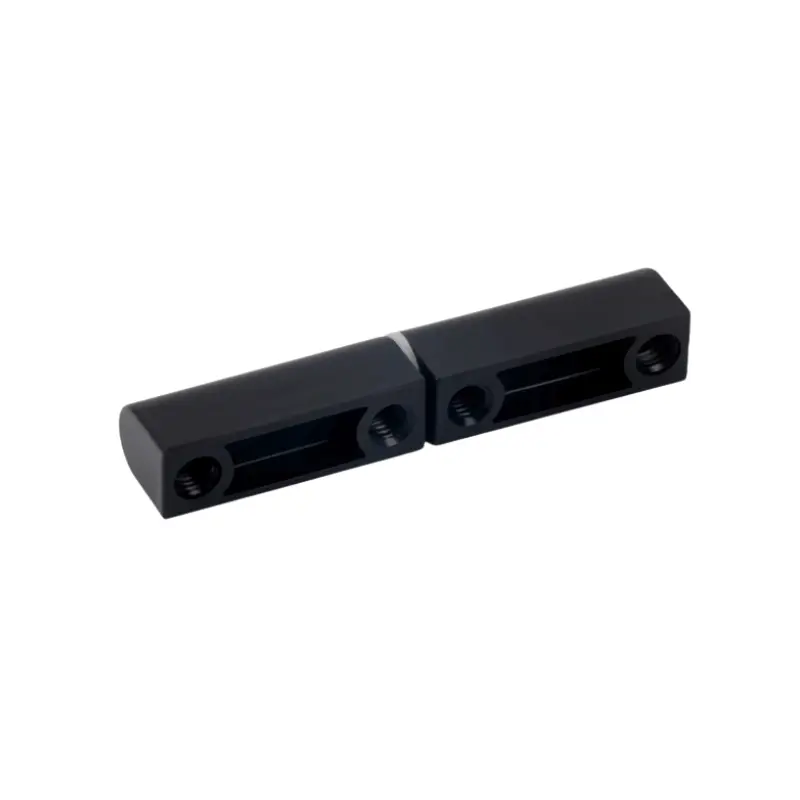

The material of zinc alloy provides two colors of bright white and black for consumers to choose, and the surface of stainless steel is brushed, and the color is the original color of stainless steel.
Clean the distribution box hinge gap dust with a dry cloth every 6 months, stubborn stains can be wiped with alcohol cotton.
Prohibit the use of acidic cleaners or high-pressure water gun rinse.
Inject 1-2 drops of silicone-based grease into the shaft core every year(Damping hinges cannot be lubricated).
Door sinking: Retighten the base screws of the distribution box hinges and adjust the vertical top wire.
Opening and closing noise: check the core for wear and replace the hinge if necessary.
Quick release failure: clean the button spring mechanism to ensure that no debris jamming.
Q: How to choose between stainless steel and zinc alloy versions?
A: Stainless steel is recommended for outdoor or wet environments, while the more cost-effective zinc alloy is available for dry indoor environments.
Q: What are the surface treatment processes?
A: Stainless steel is brushed in original color and zinc alloy is chrome plated. If you need to customize the surface process, you can contact us to ask for specific costs
Q: Is the opening angle adjustable?
A: This product can be rotated 360°.
Q:How long is the delivery time?
A: 3-5 working days for standard models, 15-20 working days for customized models (large quantities need to be negotiated).

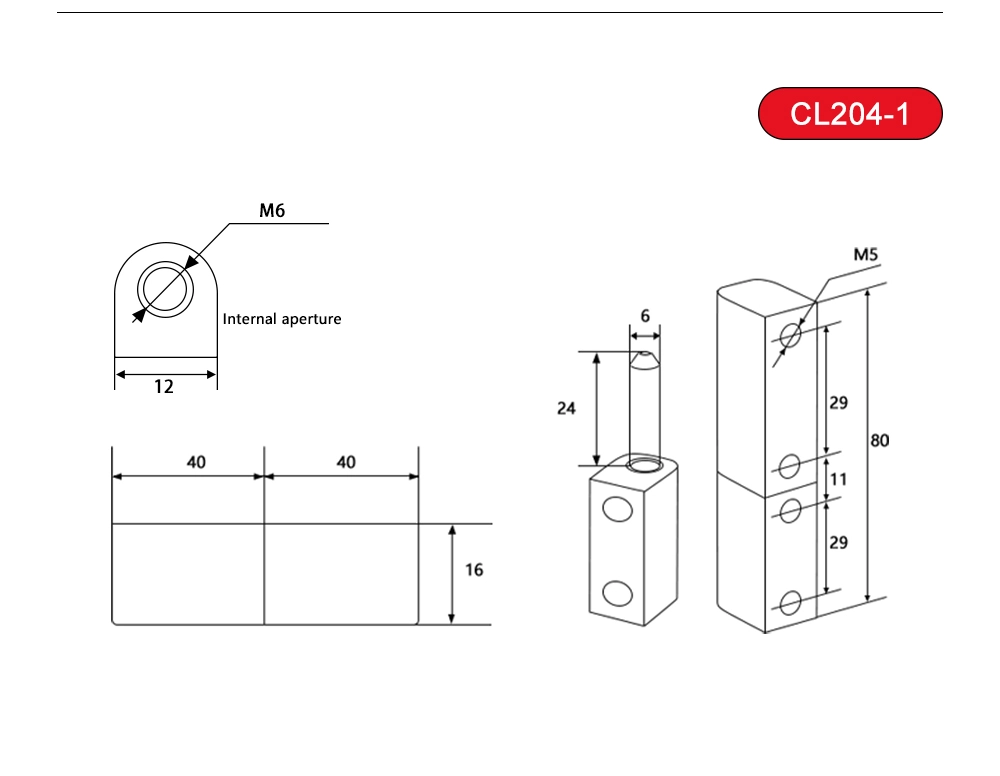

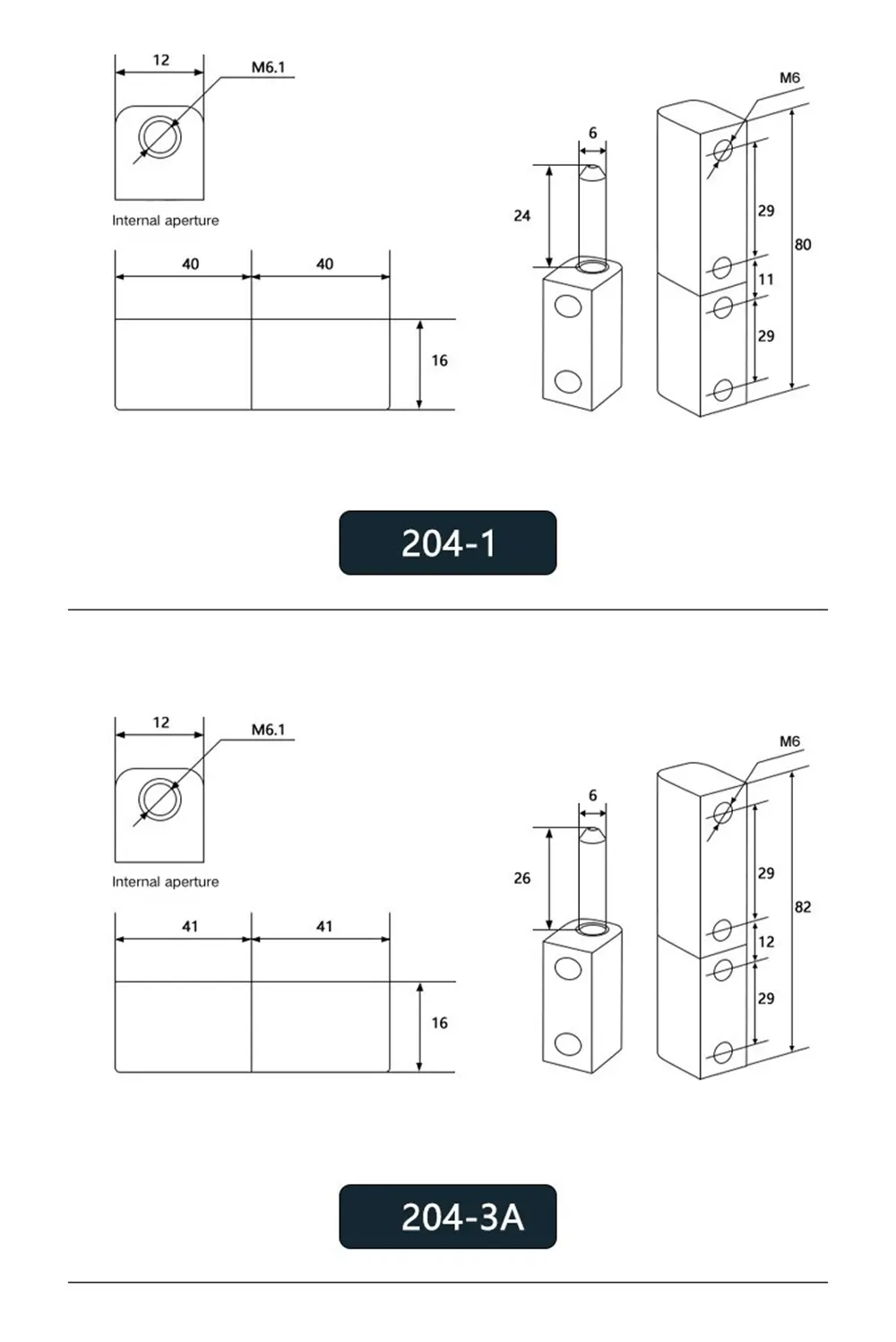

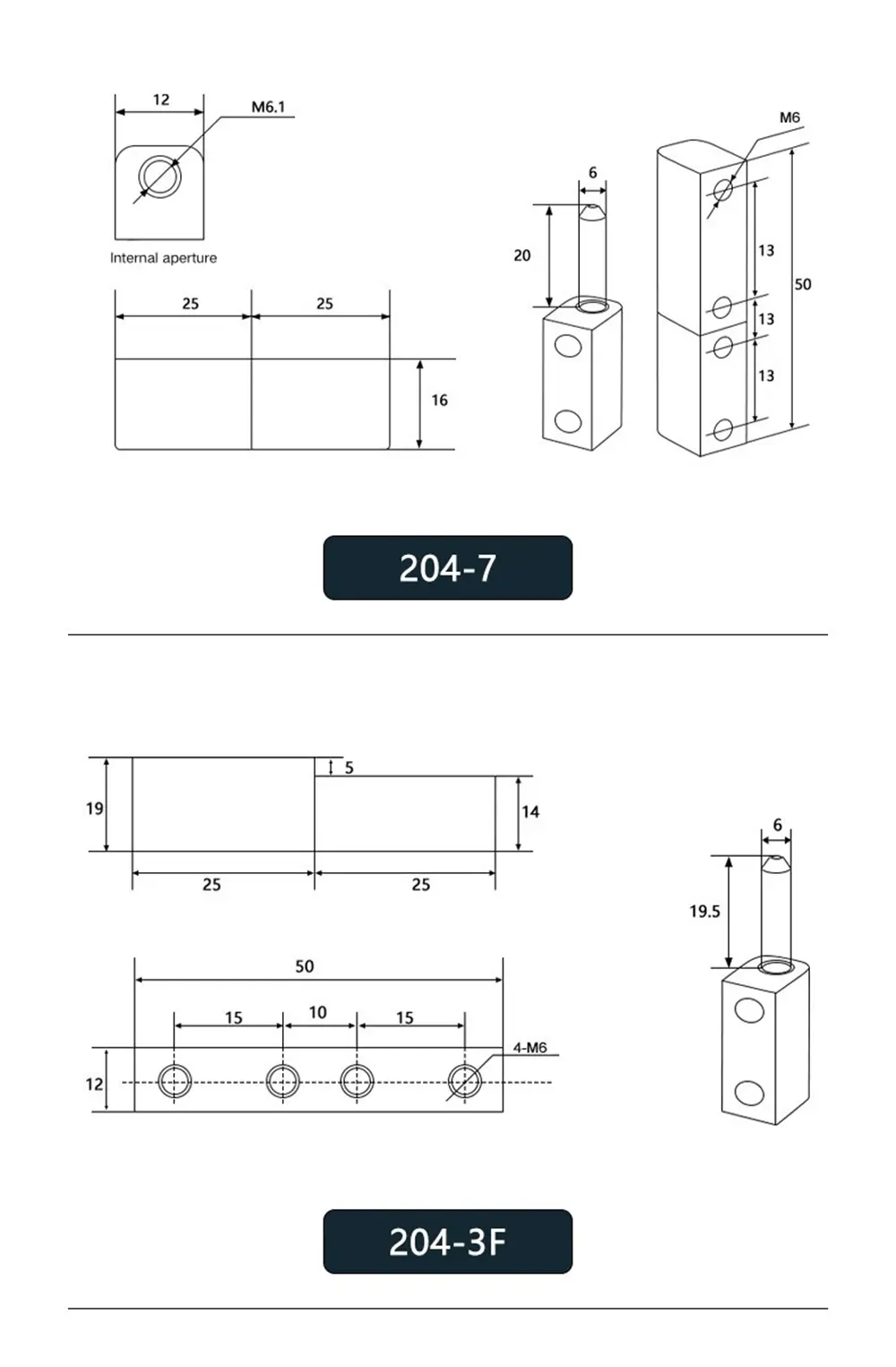

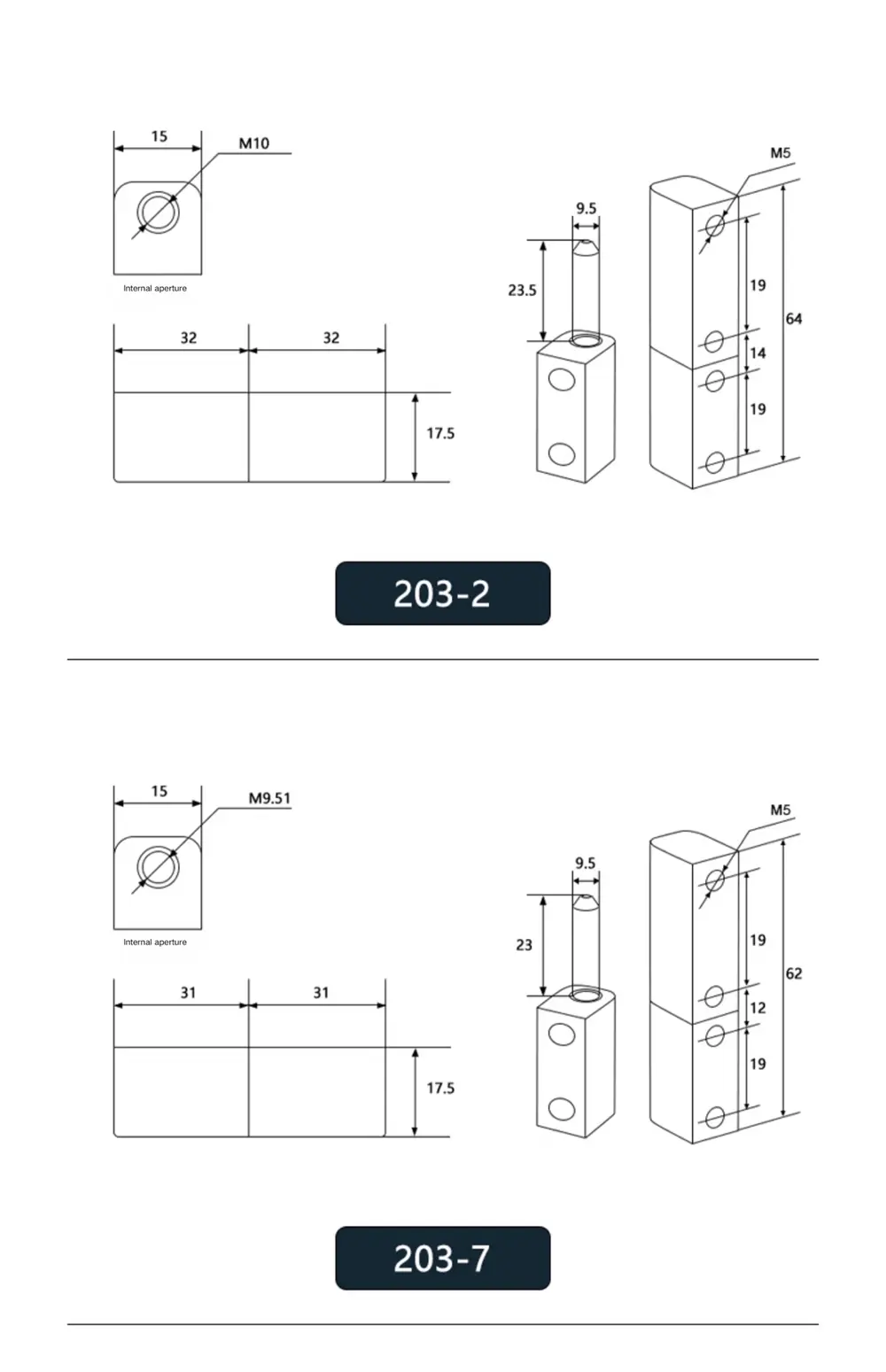

Q:What is the internal bore size?

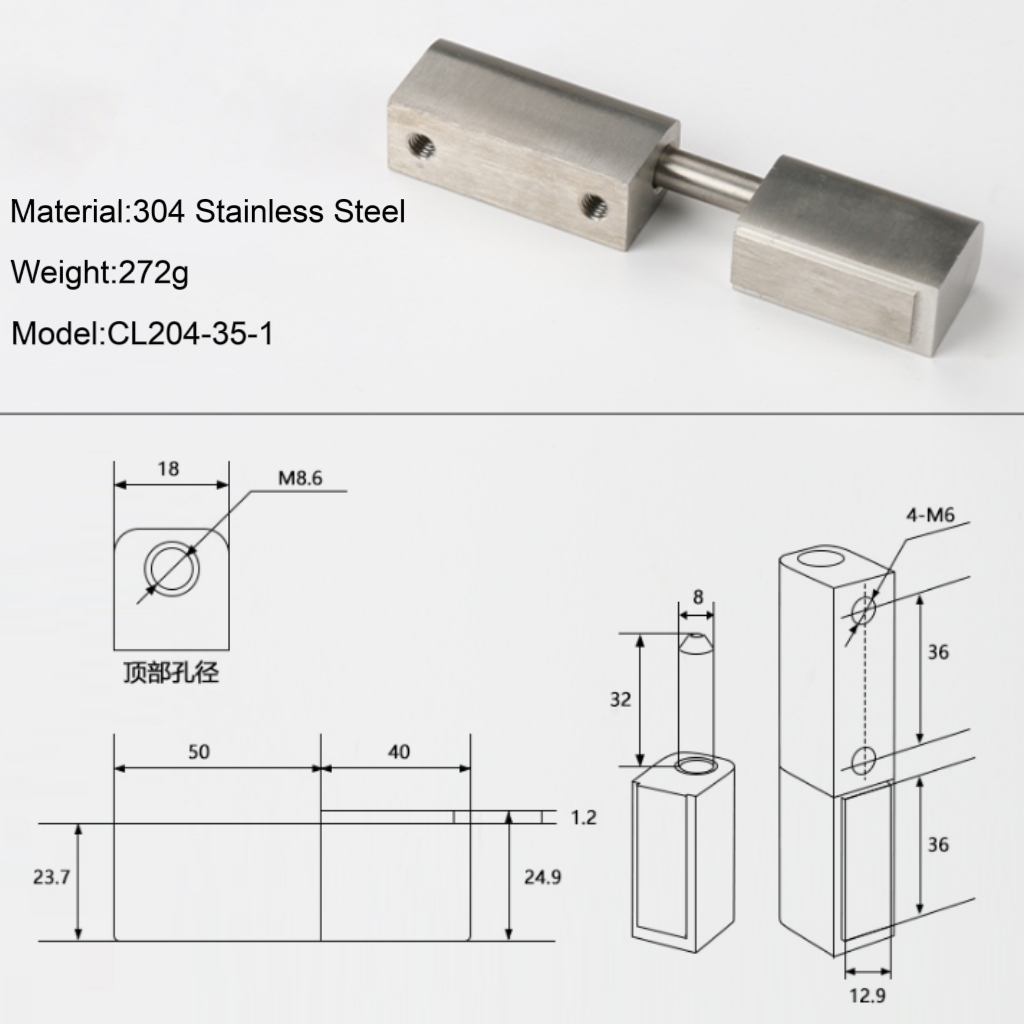

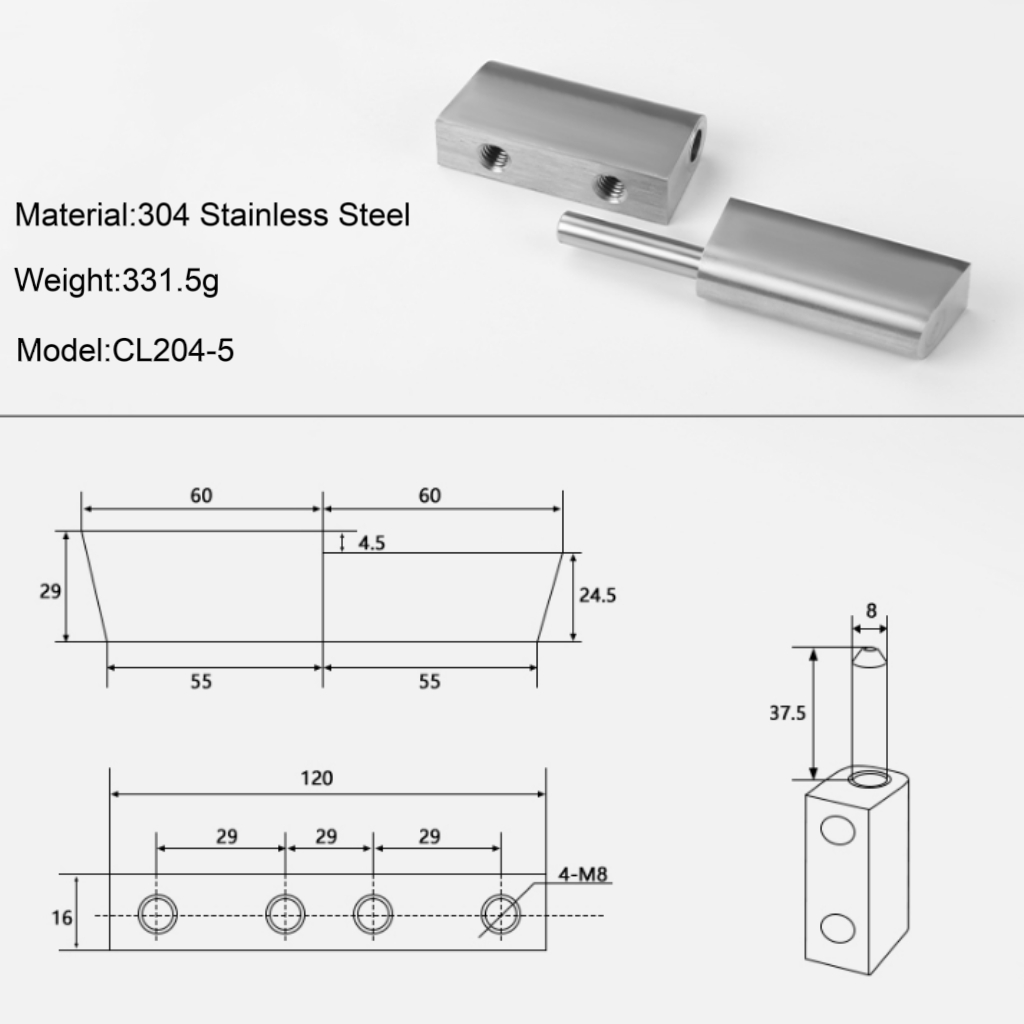

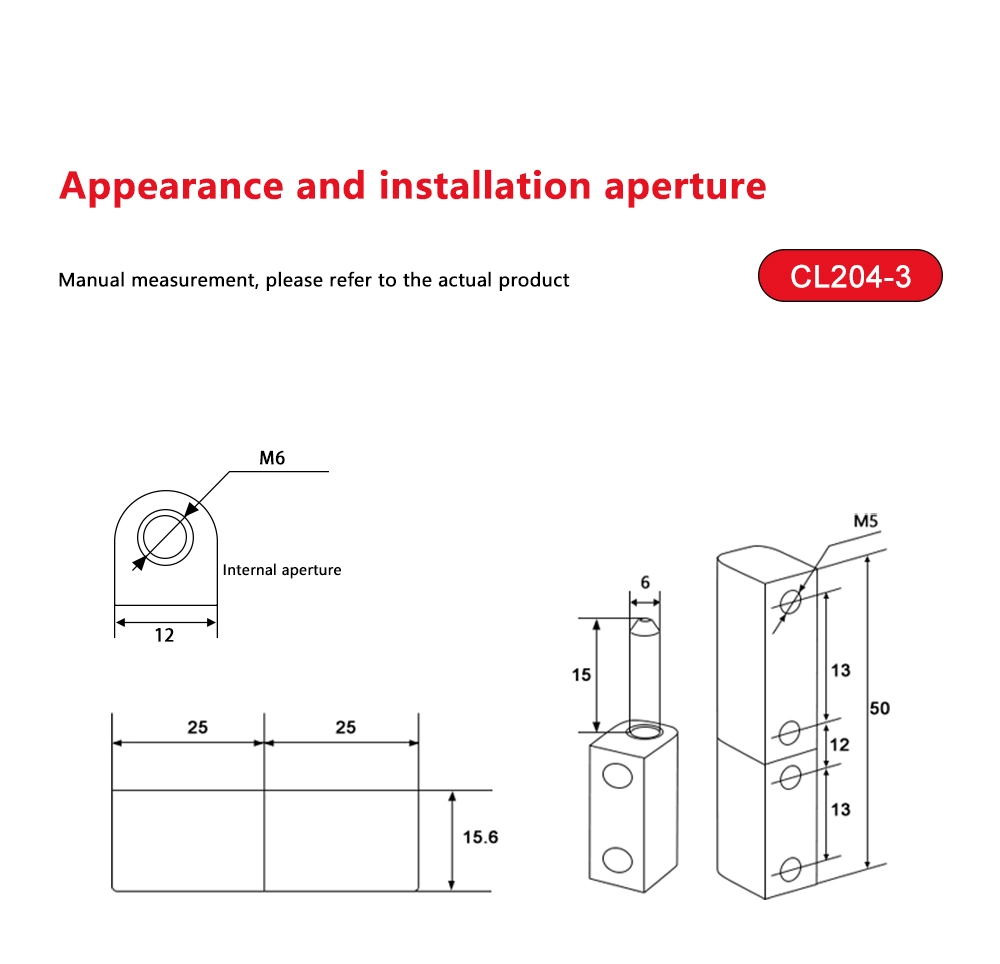

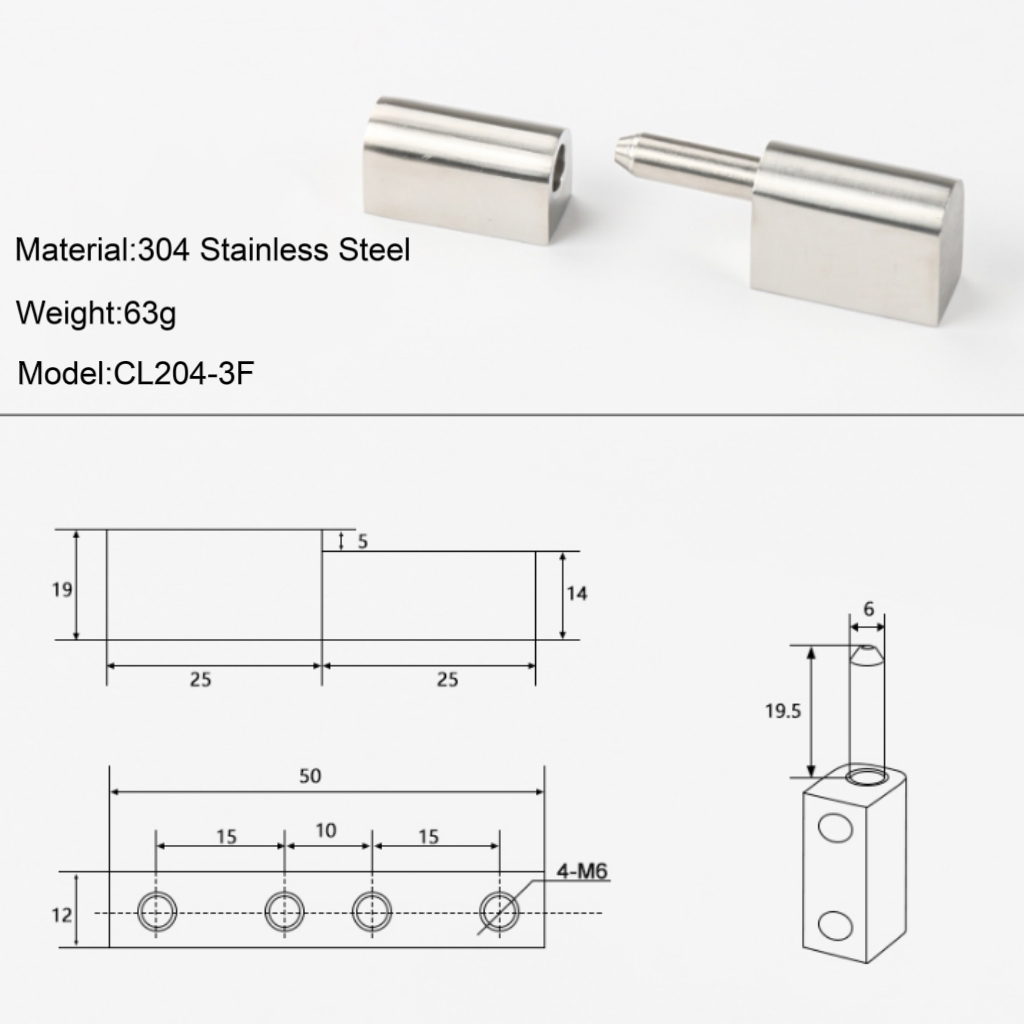

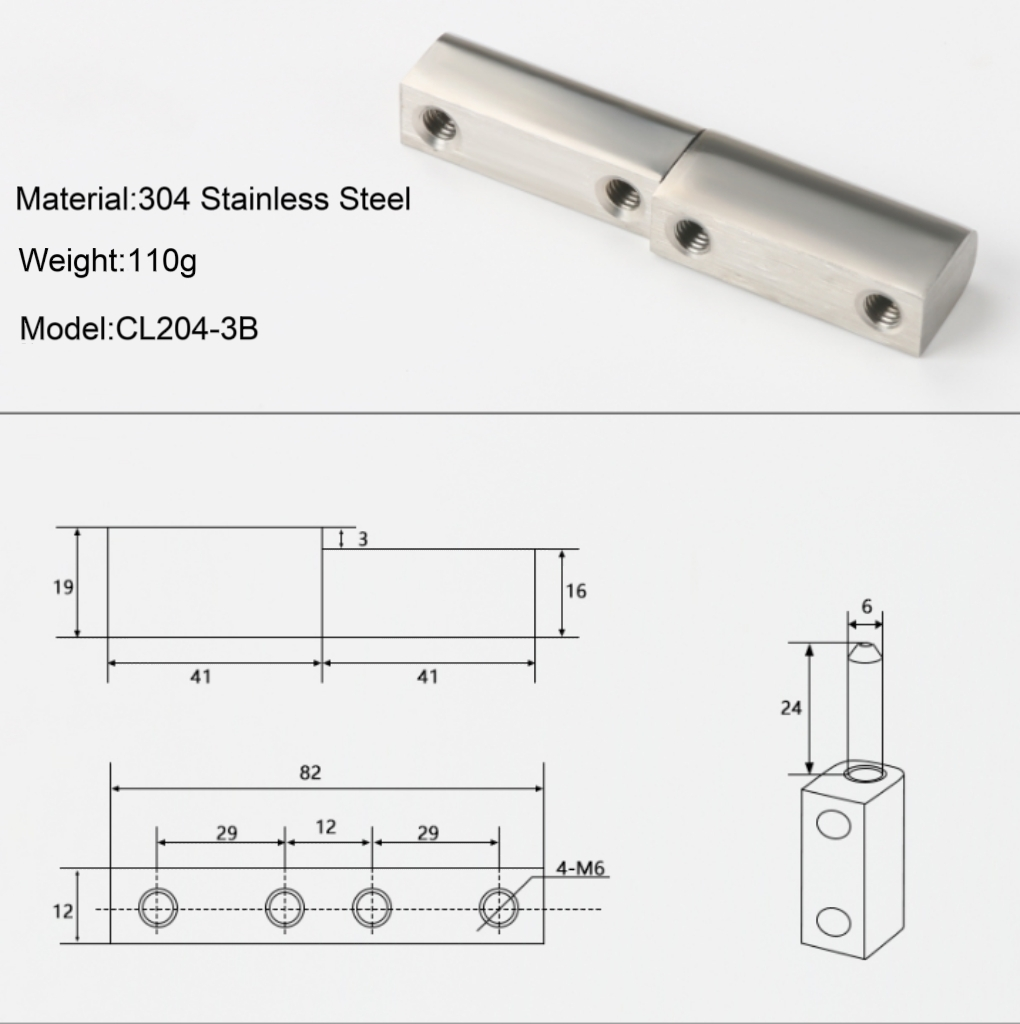

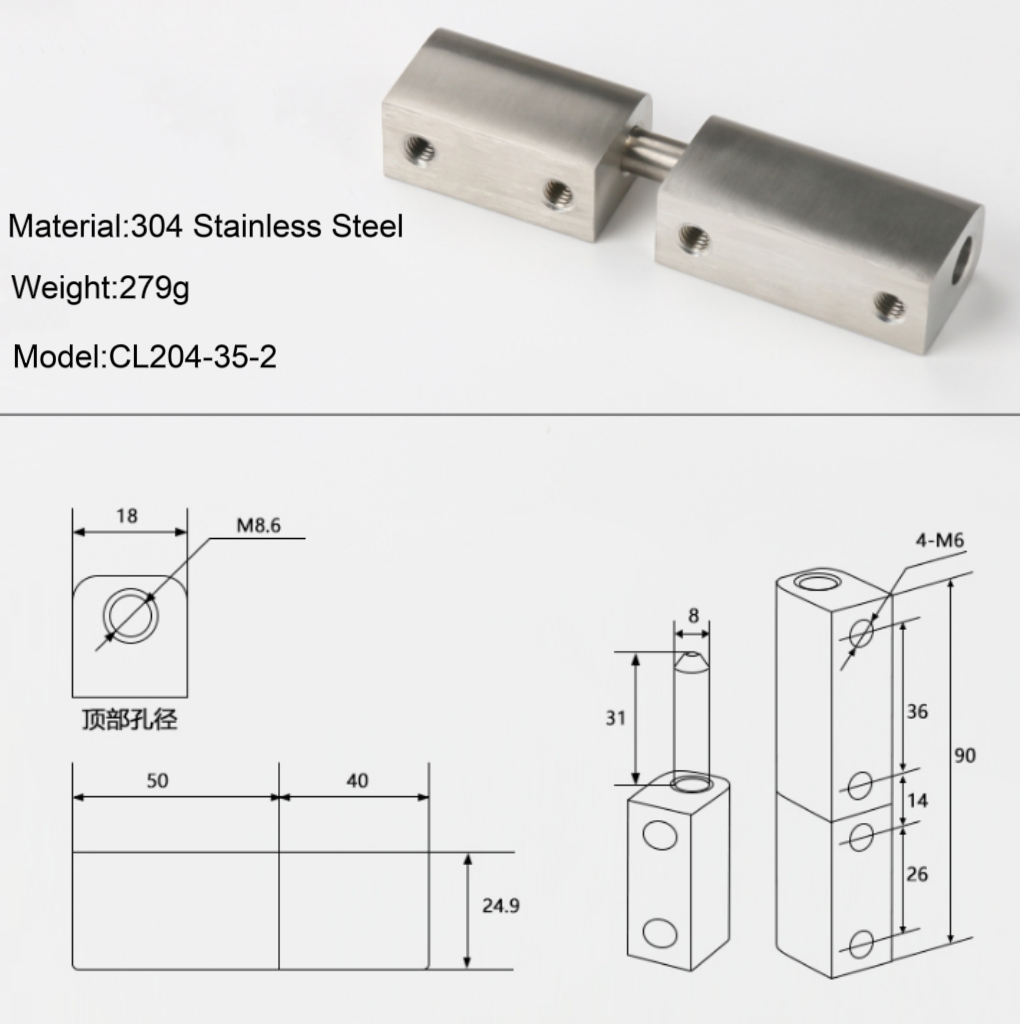

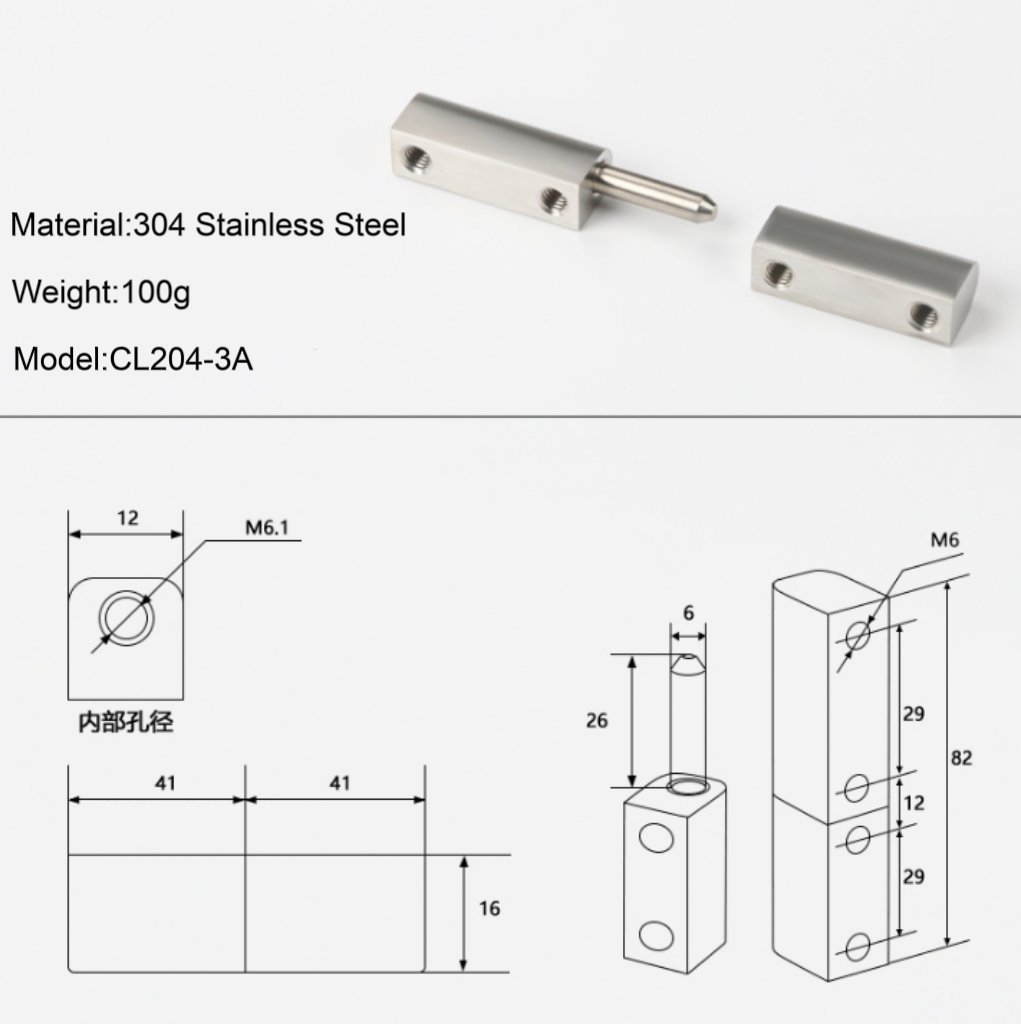

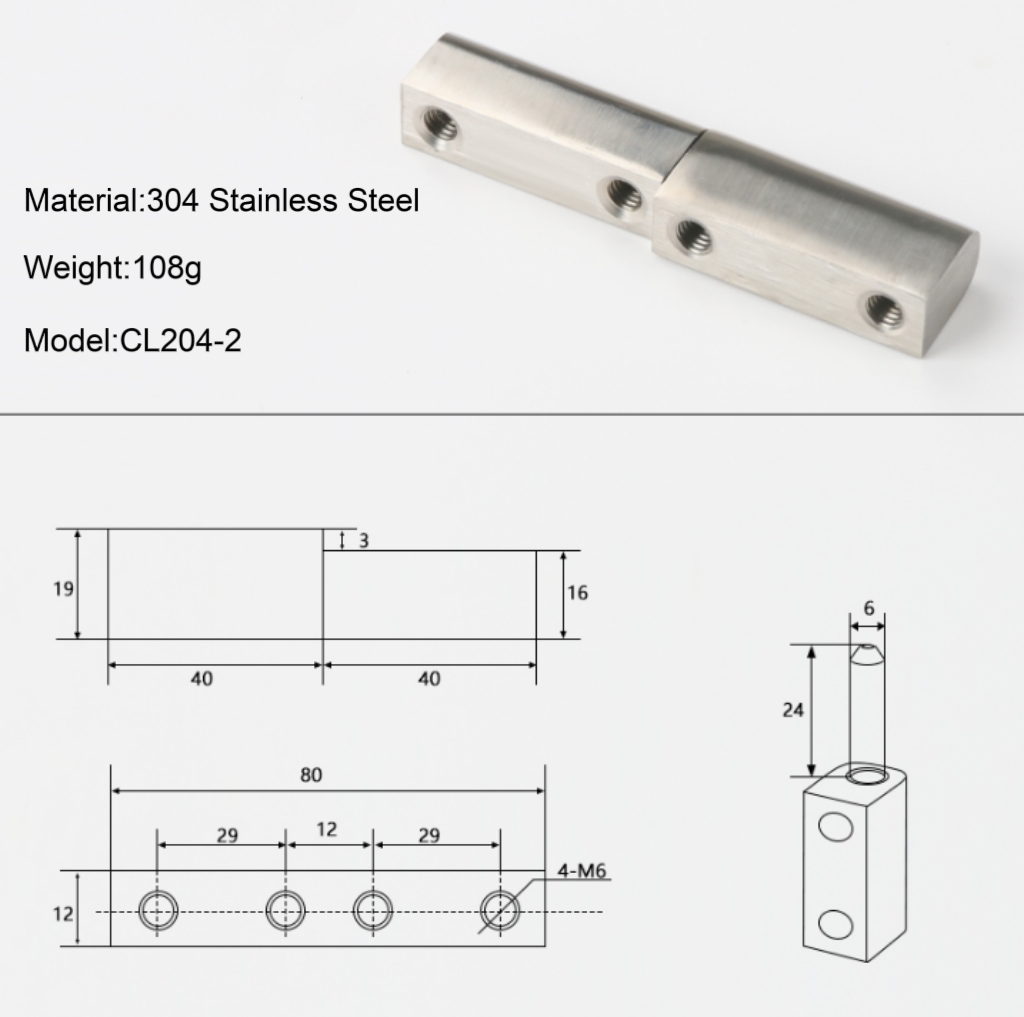

A:Each model is different, please refer to the detail picture or ask us.

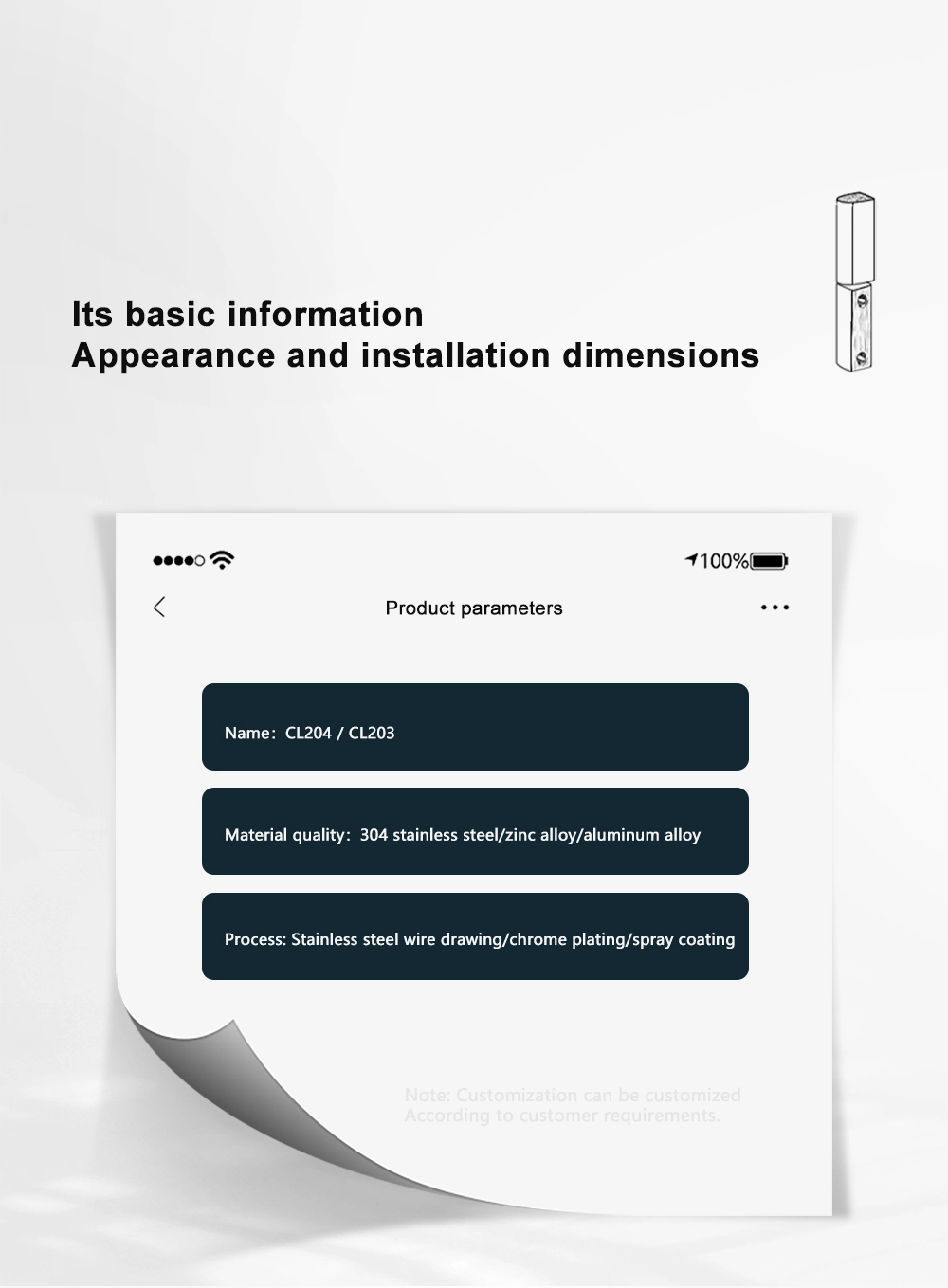

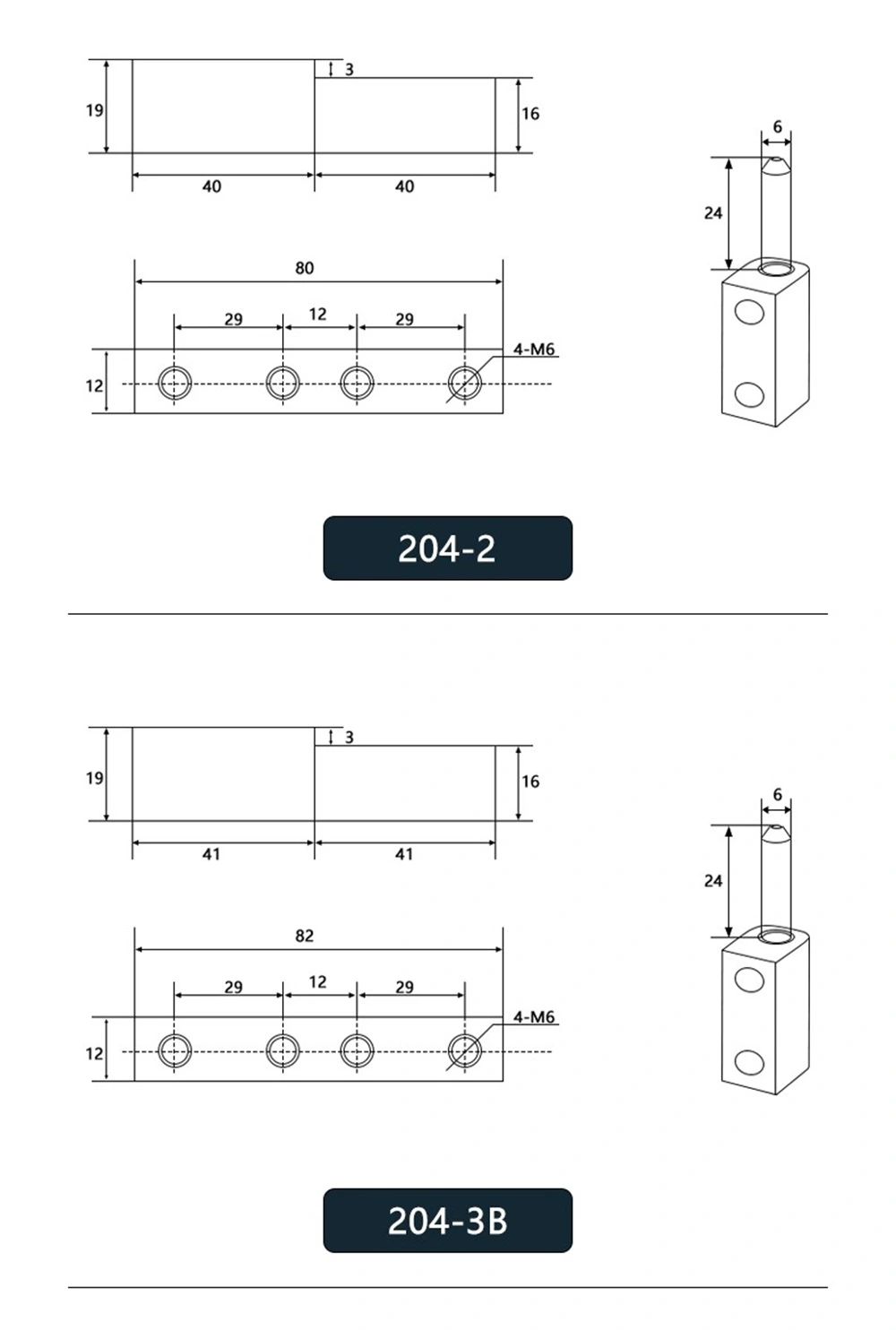

| Product model | CL204 series detachable hinge |
| Craftsmanship | Chromium plating/spray coating |
| Material | Stainless steel/zinc alloy |
| can choose colour | Black/bright white/stainless steel |
| Usage | Suitable for various types of switch cabinets, control boxes, etc |
