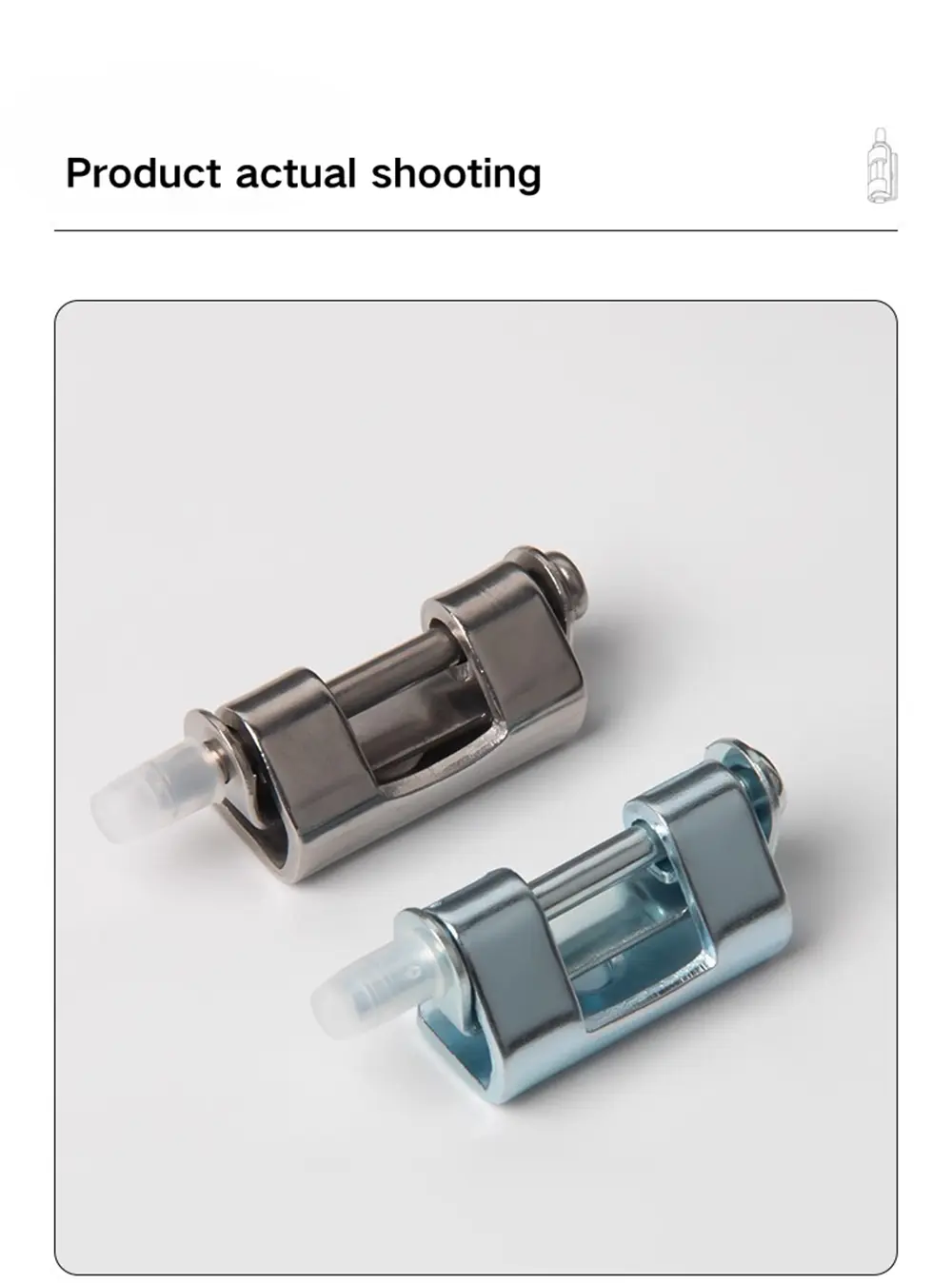

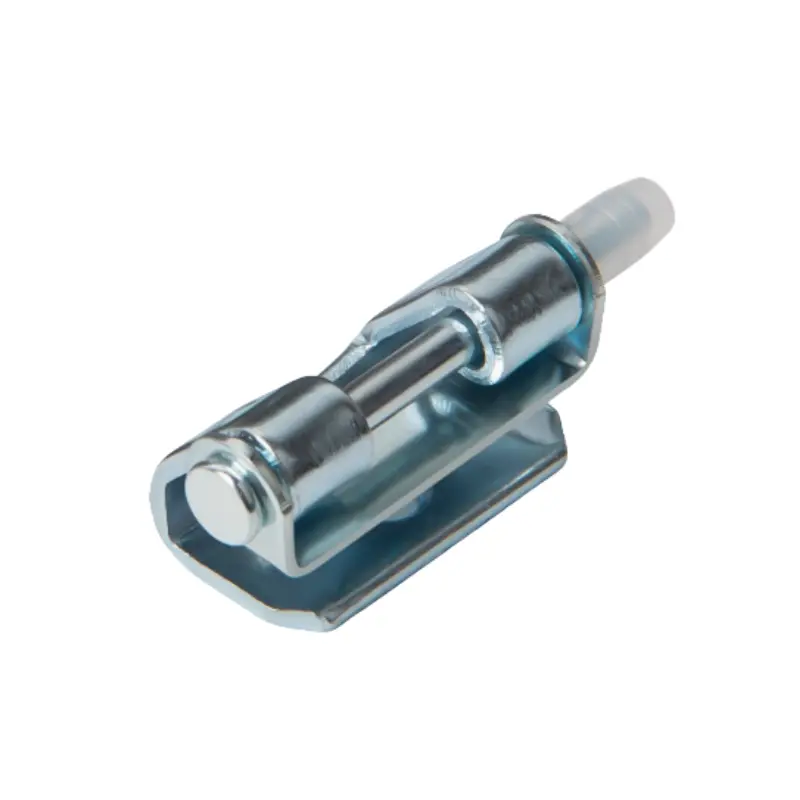

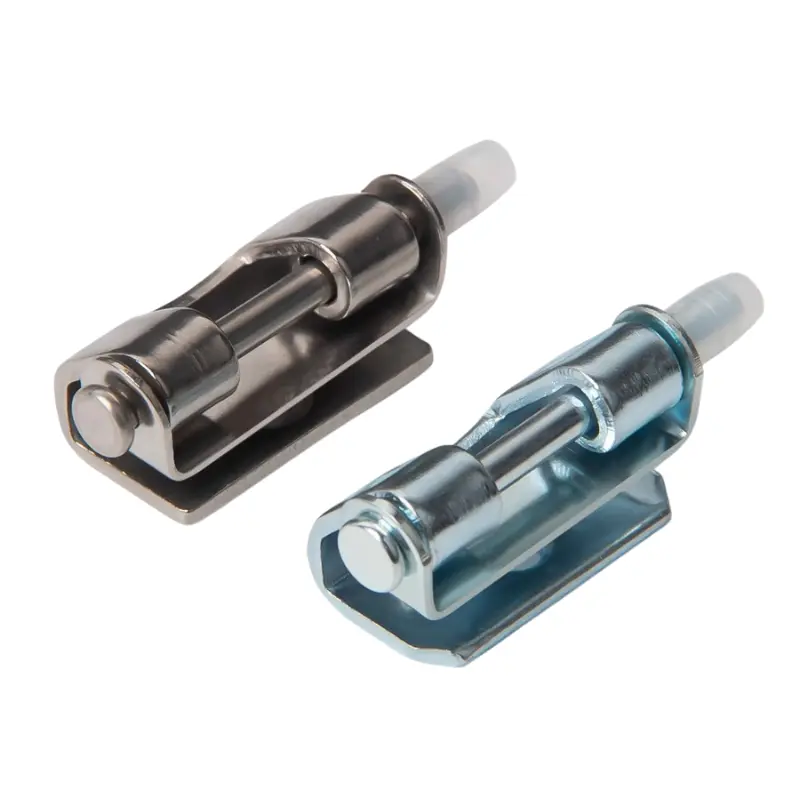

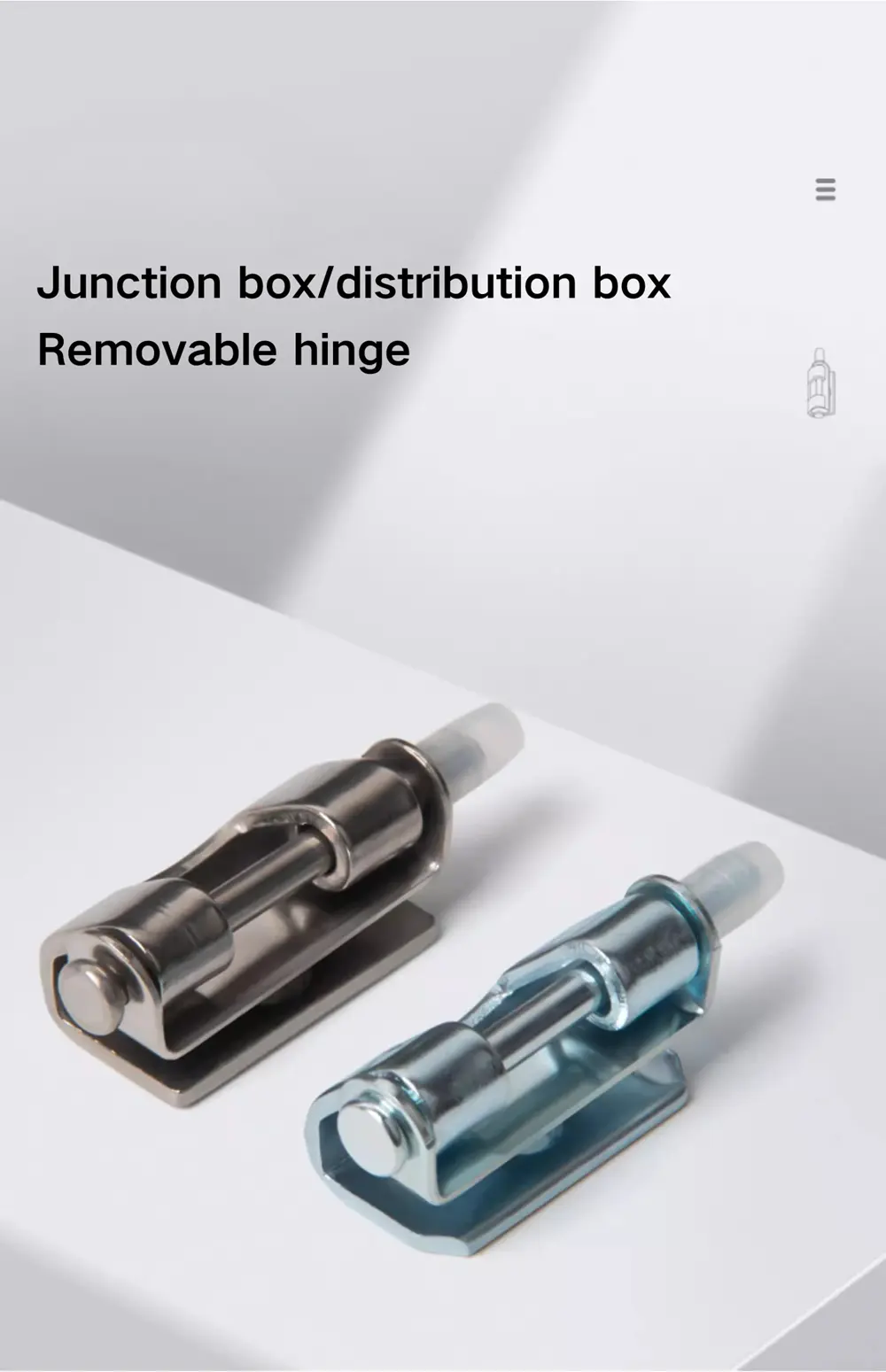

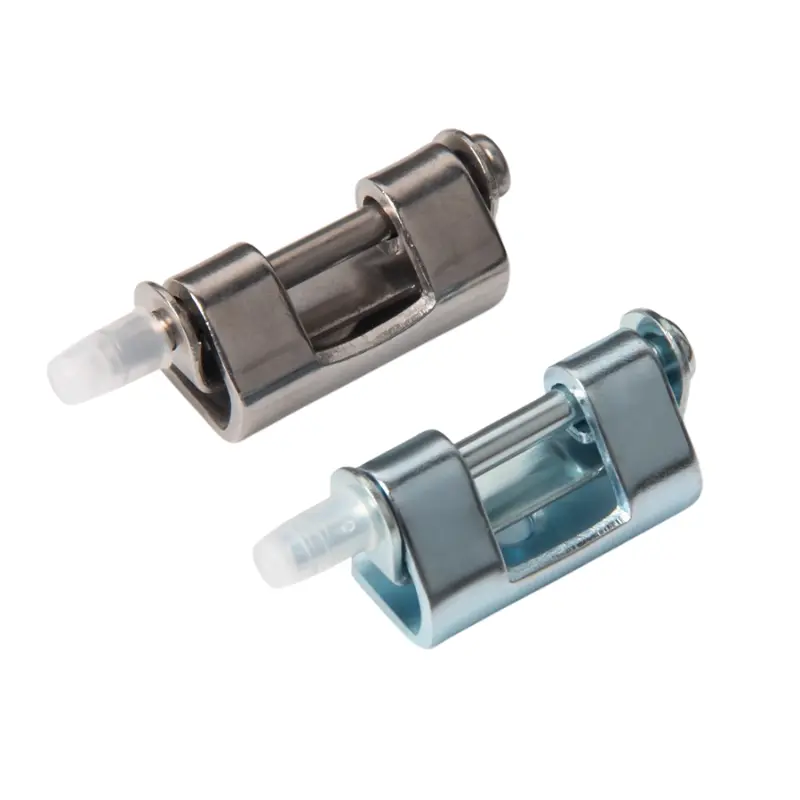

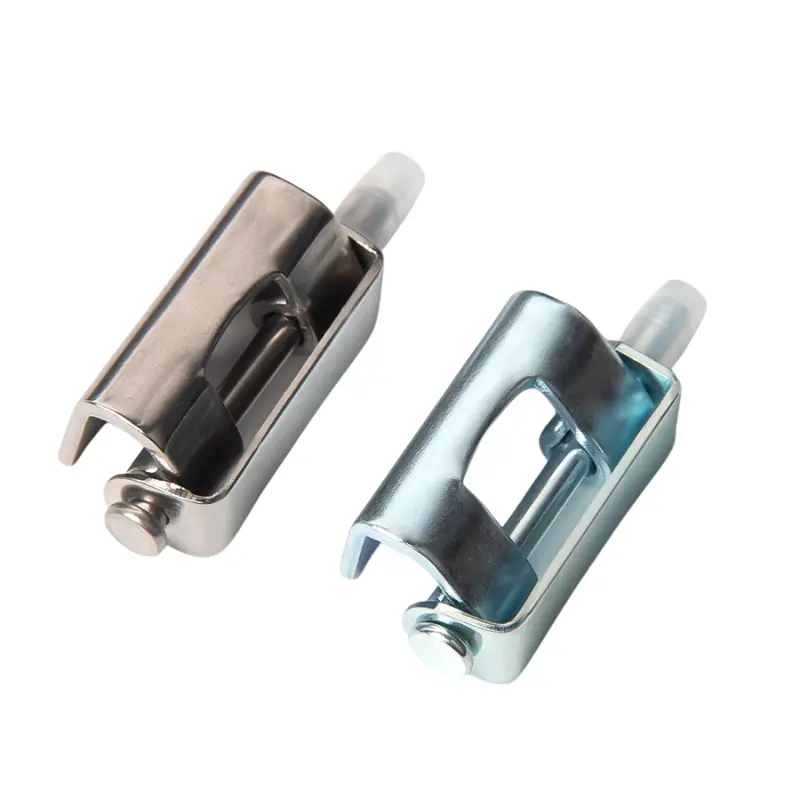

Removable Pin Hinge

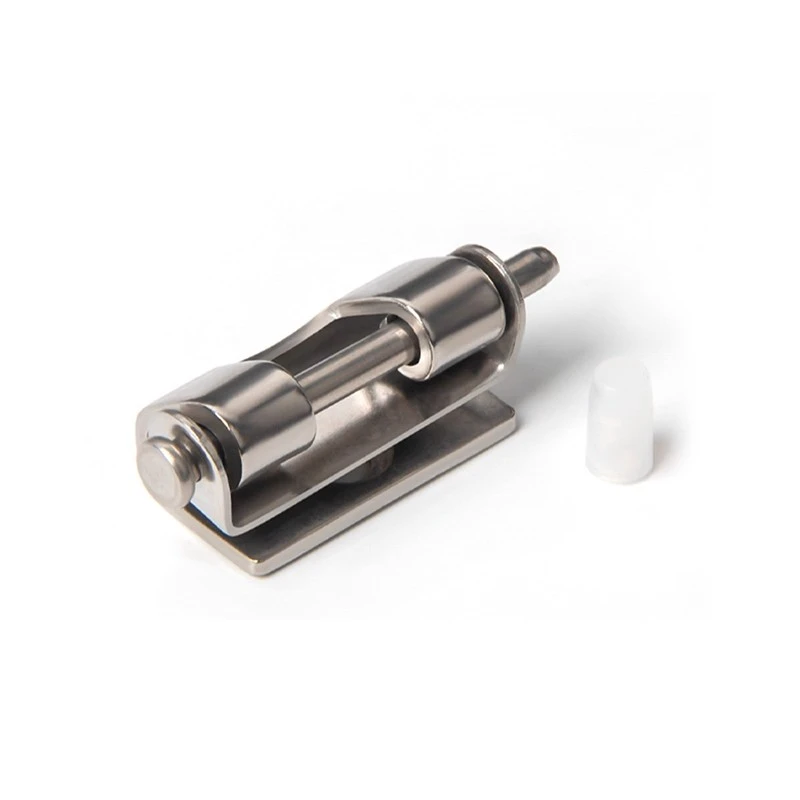

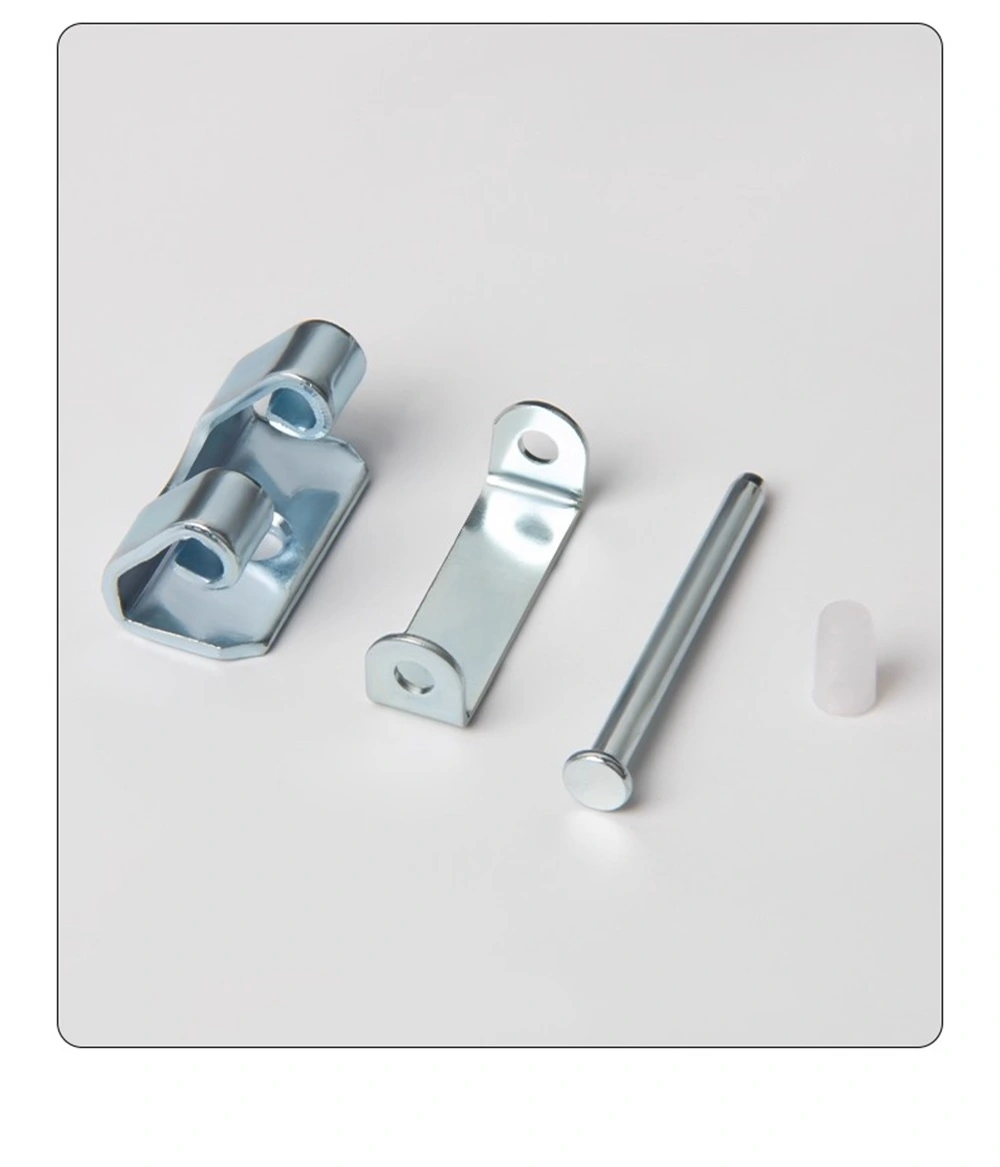

Yitai Lock provides excellent after-sales service.This type of hinge usually consists of a hinge leaf, a bushing and a pin, which can be manually pulled out or inserted without completely removing the hinge.

Material Types

The Removable Pin Hinge is available in semi-galvanized aluminum, stainless steel, and galvanized iron.If you have a large number of customized needs, you can also consult us.

Color Options

Black, matte, bright white, stainless steel and galvanized iron are available for your choice.Also, we support color customization.

Applications

Machine tools that require frequent disassembly and maintenance, high-voltage cabinets, PLC control boxes and other equipment that require regular safety inspections. Conveyor belts, mixing tank cover hinges. Emergency access hinges for security doors, fire doors, modular cabinets with removable fences, escape windows, marine hatches, etc.

FAQ

1.Q: Can I replace only a single hinge?

A: You need to make sure that the new hinge is the same as the old one in terms of hole position, shaft diameter and opening angle, otherwise it may cause the door panel to be uneven.

2. How do I adjust a hinged door panel that is sagging?

A: Remove the pins and re-insert them after fine-tuning the position of the door panel; if it is still sagging, check if the hinge base screws are loose.

3.Q: Will frequent disassembly affect hinge life?

A:High-quality hinges (e.g. 304 stainless steel) are highly resistant to wear and tear, but excessive disassembly may loosen the bushings. It is recommended to check the tightness of screws and pins annually.

4.Q: What is the maximum load capacity of this hinge?

A: The load capacity varies depending on the material and size, e.g. stainless steel models are usually 50-120kg.Please contact us for specific values.

5. Q: How are the pins removed? Does it need to be pulled out by force?

A: Most of them are designed to be pulled out manually, but some heavy-duty hinges need to be tapped on the end of the pin (a rubber mallet is recommended). If there is too much resistance, check for corrosion or deformation.

6. Q:Do I need special tools to install removable pin hinges?

A: Usually, only basic tools (e.g., screwdriver, drill) are required, but some models may require pin alignment aids.
